MT4(MQL4)均线组指标附源码

MT4(MQL4)均线组指标附源码

这在东财或通达信上面均线往往有很多条。用户可以自己设置均线的参数,只要周期设置为0就不显示了,所以还是很方便的,我将这个功能也加到了MT4上面。
原理很简单,就是设置一系列的均线参数,然后显示即可。
代码如下:
名称:ind_mass
//+------------------------------------------------------------------+//|                                                      ind_mas.mq4 |//|                                                           龙听期货论坛 |//|                                               http://www.qhlt.cn |//+------------------------------------------------------------------+#property copyright "龙听期货论坛"#property link      "http://www.qhlt.cn"#property version   "1.00"#property strict#property indicator_chart_window#property indicator_buffers 10#property indicator_plots   10#include<CommonMath.mqh>#include<MovingAverages.mqh>//--- plot ma1#property indicator_label1  "ma1"#property indicator_type1   DRAW_LINE#property indicator_color1  clrWhite#property indicator_style1  STYLE_SOLID#property indicator_width1  1//--- plot ma2#property indicator_label2  "ma2"#property indicator_type2   DRAW_LINE#property indicator_color2  clrYellow#property indicator_style2  STYLE_SOLID#property indicator_width2  1//--- plot ma3#property indicator_label3  "ma3"#property indicator_type3   DRAW_LINE#property indicator_color3  clrGreen#property indicator_style3  STYLE_SOLID#property indicator_width3  1//--- plot ma4#property indicator_label4  "ma4"#property indicator_type4   DRAW_LINE#property indicator_color4  clrRed#property indicator_style4  STYLE_SOLID#property indicator_width4  1//--- plot ma5#property indicator_label5  "ma5"#property indicator_type5   DRAW_LINE#property indicator_color5  clrPurple#property indicator_style5  STYLE_SOLID#property indicator_width5  1//--- plot ma6#property indicator_label6  "ma6"#property indicator_type6   DRAW_LINE#property indicator_color6  clrAquamarine#property indicator_style6  STYLE_SOLID#property indicator_width6  1//--- plot ma7#property indicator_label7  "ma7"#property indicator_type7   DRAW_LINE#property indicator_color7  clrRed#property indicator_style7  STYLE_SOLID#property indicator_width7  1//--- plot ma8#property indicator_label8  "ma8"#property indicator_type8   DRAW_LINE#property indicator_color8  clrRed#property indicator_style8  STYLE_SOLID#property indicator_width8  1//--- plot ma9#property indicator_label9  "ma9"#property indicator_type9   DRAW_LINE#property indicator_color9  clrRed#property indicator_style9  STYLE_SOLID#property indicator_width9  1//--- plot ma10#property indicator_label10  "ma10"#property indicator_type10   DRAW_LINE#property indicator_color10  clrRed#property indicator_style10  STYLE_SOLID#property indicator_width10  1//--- input parametersinput int      Input1=5;input int      Input2=10;input int      Input3=20;input int      Input4=30;input int      Input5=60;input int      Input6=120;input int      Input7=250;input int      Input8=0;input int      Input9=0;input int      Input10=0;//--- indicator buffersdouble         ma1Buffer[];double         ma2Buffer[];double         ma3Buffer[];double         ma4Buffer[];double         ma5Buffer[];double         ma6Buffer[];double         ma7Buffer[];double         ma8Buffer[];double         ma9Buffer[];double         ma10Buffer[];//+------------------------------------------------------------------+//| Custom indicator initialization function                         |//+------------------------------------------------------------------+intOnInit()  {//--- indicator buffers mapping   SetIndexBuffer(0,ma1Buffer);   SetIndexBuffer(1,ma2Buffer);   SetIndexBuffer(2,ma3Buffer);   SetIndexBuffer(3,ma4Buffer);   SetIndexBuffer(4,ma5Buffer);   SetIndexBuffer(5,ma6Buffer);   SetIndexBuffer(6,ma7Buffer);   SetIndexBuffer(7,ma8Buffer);   SetIndexBuffer(8,ma9Buffer);   SetIndexBuffer(9,ma10Buffer);//---   return(INIT_SUCCEEDED);  }//+------------------------------------------------------------------+//| Custom indicator iteration function                              |//+------------------------------------------------------------------+intOnCalculate(constint rates_total,                const int prev_calculated,                const datetime &time[],                const double &open[],                const double &high[],                const double &low[],                const double &close[],                const long &tick_volume[],                const long &volume[],                const int &spread[])  {//---    if(rates_total <= Max3(Input1,Input2,Input10))return 0;   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input1,   close,   ma1Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input2,   close,   ma2Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input3,   close,   ma3Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input4,   close,   ma4Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input5,   close,   ma5Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input6,   close,   ma6Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input7,   close,   ma7Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input8,   close,   ma8Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input9,   close,   ma9Buffer   );   SimpleMAOnBuffer(   rates_total,   prev_calculated,   0,   Input10,   close,   ma10Buffer   );//--- return value of prev_calculated for next call   return(rates_total);  }//+------------------------------------------------------------------+
需要用到的一个调用的文档:

CommonMath.mqh

#property copyright "龙听期货论坛"#property link      "http://www.qhlt.cn"#property strict#ifndef __COMMON_MATH_MQH__#define __COMMON_MATH_MQH__doubleMax3(double a, double b, double c){   return MathMax(a, MathMax(b, c));}doubleMin3(double a, double b, double c){   return MathMin(a, MathMin(b, c));}#endif

求三个数中最大最小的max3,min3.

MovingAverages.mqhp 这个是官网自带的,就不发出来了。

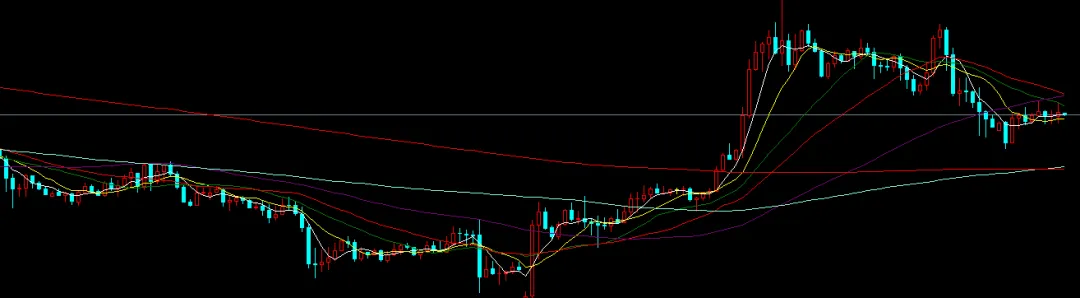

设计后效果图如下:

模板是东财或文华版。
