C++ QT 实现Dialog插件

C++ QT 实现Dialog插件

开头:

在 Qt 的开发世界里,弹窗永远是避不开的坎。但有时候,产品经理的需求总能让我们在深夜陷入沉思:

  1. 自定义 Widget 插件: “能不能做一个弹窗,它看起来很高级,但必须‘乖巧’地待在父窗口里,绝对不能越界(拖出窗口外)?”——这就是所谓的画地为牢型

  2. QDialog 插件: “能不能调起系统级的对话框,让它像幽灵一样在屏幕上乱跑,甚至覆盖掉其他应用?”——这就是我们的放飞自我型

今天,我们要挑战的就是同时搞定这两套逻辑。一个是基于 QWidget 手写位移限制算法,实现“家教森严”的子窗口;另一个是利用 QDialog 的原生力量,搞定那些“不服管教”的顶级窗口。

作为一名资深的(或者是头发尚存的)Qt 开发者,我知道你们最关心的是逻辑。所以,UI 布局咱们点到为止,核心代码我已在键盘上就绪。让我们看看如何通过插件化的思维,把这两头性格迥异的“猛兽”关进代码的笼子里。

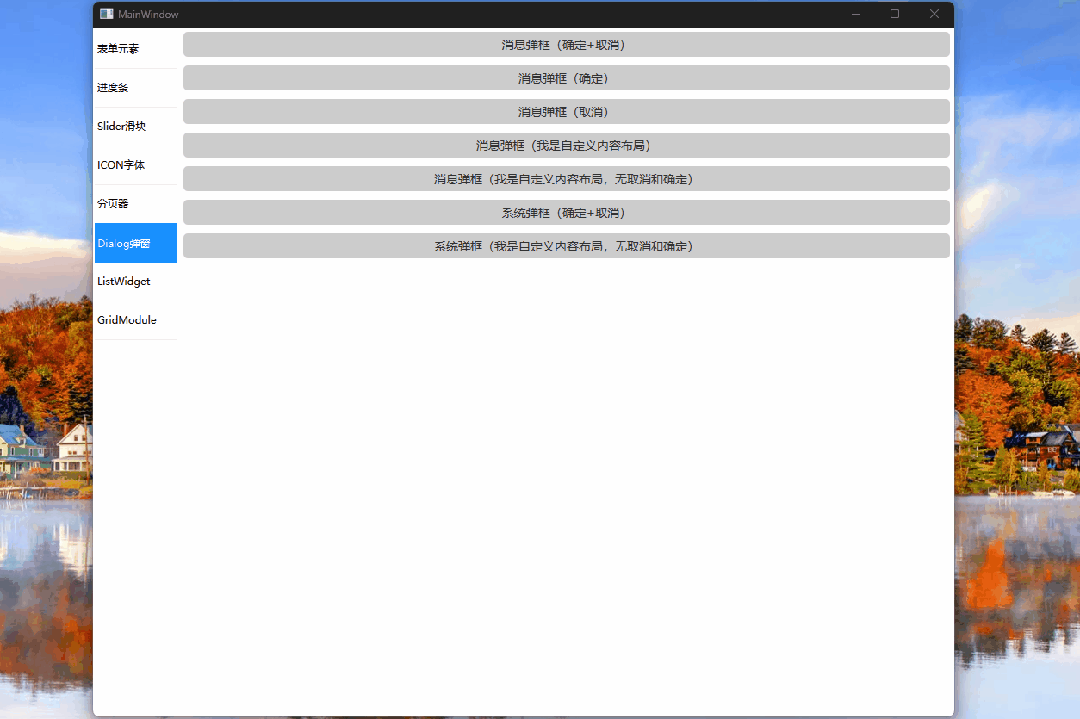

先看看GIF效果

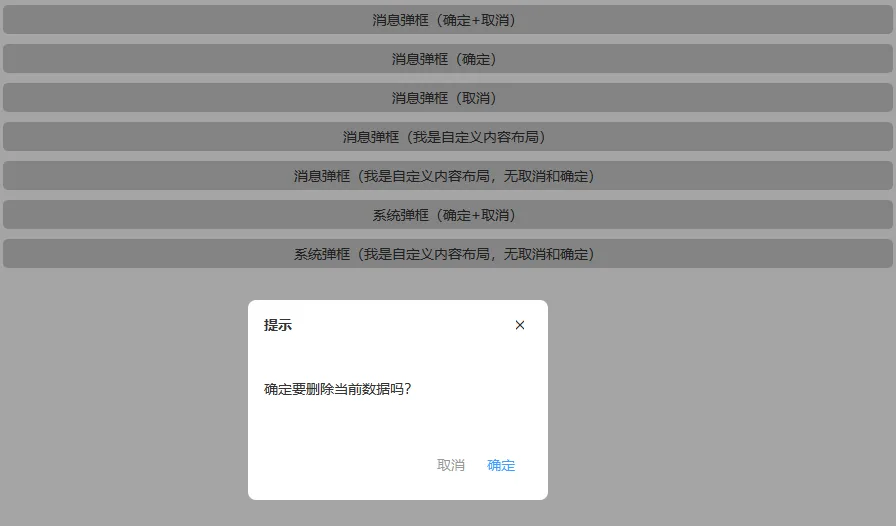

上图为2种逻辑:

1. 自定义widget 获取属主window窗口 插入dialog到上层,只能在当前窗口中拖动。

2.使用系统的QDialog,是独立的窗口可以任意拖动。

3. 都可以设置title, 关闭回调,自定义按钮,中间内容自定义,拖动功能等

首先分析第一种“家教森严”型,源代码如下:

overlayDialog.h

#pragma once#include<QWidget>#include<QLabel>#include<QPushButton>class OverlayDialog : public QWidget{	Q_OBJECTpublic:	enum ButtonFlag {		None = 0x0,		Ok = 0x1,		Cancel = 0x2	};	//定义一个新类型 如同  typedef QFlags<ButtonFlag> ButtonFlags;	Q_DECLARE_FLAGS(ButtonFlags, ButtonFlag)	// 快捷接口	static OverlayDialog* showMessage(		QWidget* anyWidget,		const QString& title,		const QString& message,		ButtonFlags buttons = Ok,		int panelWidth = 300,		int panelHeight = 200	);	// 自定义	static OverlayDialog* showCustom(		QWidget* anyWidget,		const QString& title,		QWidget* customContent,		ButtonFlags buttons = Ok,		int panelWidth = 420,		int panelHeight = 260	);signals:	voidaccepted();	voidrejected();	voidclosed();protected:	booleventFilter(QObject* obj, QEvent* event)override;	voidmousePressEvent(QMouseEvent* event)override;	voidkeyPressEvent(QKeyEvent* event)override;private:	explicitOverlayDialog(QWidget* root, int panelWidth, int panelHeight);	voidinitUi();	voidsetTitle(const QString& title);	voidsetMessage(const QString& message);	voidsetCustomContent(QWidget* widget);	voidsetButtons(ButtonFlags flags);	voidcenterPanel();	voidcloseDialog();private:	QWidget* m_root = nullptr;	QWidget* m_header = nullptr;	QWidget* m_panel = nullptr;	QWidget* m_contentArea = nullptr;	QLabel* m_titleLabel = nullptr;	QLabel* m_messageLabel = nullptr;	QPushButton* m_okBtn = nullptr;	QPushButton* m_cancelBtn = nullptr;	int m_panelWidth = 420;    int m_panelHeight = 260;	bool m_dragging = false;	QPoint m_dragStartPos;     // 鼠标按下的全局位置	QPoint m_panelStartPos;    // 面板初始位置};//给 ButtonFlags 生成这些运算符: //operator|//operator&//operator|=//operator&=//operator~Q_DECLARE_OPERATORS_FOR_FLAGS(OverlayDialog::ButtonFlags)

overlayDialog.cpp

#include"overlaydialog.h"#include<QPropertyAnimation>#include<QVBoxLayout>#include<QHBoxLayout>#include<QEvent>#include<QMouseEvent>#include<QKeyEvent>#include<QParallelAnimationGroup>#include<qgraphicseffect.h>OverlayDialog::OverlayDialog(QWidget* root, int panelWidth, int panelHeight)    : QWidget(root), m_root(root), m_panelWidth(panelWidth)    , m_panelHeight(panelHeight){    setAttribute(Qt::WA_StyledBackground);    setFocusPolicy(Qt::StrongFocus);    setStyleSheet("background-color: rgba(0,0,0,90);");    setGeometry(root->rect());    raise();    root->installEventFilter(this);    initUi();}voidOverlayDialog::initUi(){    // ===== 面板 =====    m_panel = new QWidget(this);    m_panel->setFixedSize(this->m_panelWidth, this->m_panelHeight);    m_panel->setStyleSheet(        "background: white;"        "border-radius: 8px;"    );    auto mainLayout = new QVBoxLayout(m_panel);    mainLayout->setContentsMargins(16121612);    mainLayout->setSpacing(12);    // ===== 头部 =====    m_header = new QWidget(m_panel);    m_header->setCursor(Qt::OpenHandCursor);   // ⭐ 悬停提示    m_header->installEventFilter(this);    auto headerLayout = new QHBoxLayout(m_header);    headerLayout->setContentsMargins(0000);    m_titleLabel = new QLabel("Title");    m_titleLabel->setStyleSheet("font-weight: bold; font-size: 14px;");    auto closeBtn = new QPushButton("✕");    closeBtn->setCursor(Qt::PointingHandCursor);    closeBtn->setFixedSize(2424);    closeBtn->setStyleSheet(        "QPushButton { border: none; background: transparent; }"        "QPushButton:hover { color: red; }"    );    connect(closeBtn, &QPushButton::clicked, this, &OverlayDialog::closeDialog);    headerLayout->addWidget(m_titleLabel);    headerLayout->addStretch();    headerLayout->addWidget(closeBtn);    // ===== 内容区 =====    m_contentArea = new QWidget(m_panel);    auto contentLayout = new QVBoxLayout(m_contentArea);    contentLayout->setContentsMargins(0000);    m_messageLabel = new QLabel;    m_messageLabel->setWordWrap(true);    contentLayout->addWidget(m_messageLabel);    // ===== 底部按钮 =====    auto footer = new QWidget(m_panel);    auto footerLayout = new QHBoxLayout(footer);    footerLayout->addStretch();    m_okBtn = new QPushButton("确定");    m_cancelBtn = new QPushButton("取消");    m_okBtn->setStyleSheet(        "QPushButton { color: #409eff; border: none; background: transparent; }"        "QPushButton:hover { color: #90409eff; }"    );    m_cancelBtn->setStyleSheet(        "QPushButton { color: #999999; border: none; background: transparent; }"        "QPushButton:hover { color: #90999999; }"    );    connect(m_okBtn, &QPushButton::clicked, this, [=]() {        emit accepted();        closeDialog();        });    connect(m_cancelBtn, &QPushButton::clicked, this, [=]() {        emit rejected();        closeDialog();        });    footerLayout->addWidget(m_cancelBtn);    footerLayout->addWidget(m_okBtn);    mainLayout->addWidget(m_header);    mainLayout->addWidget(m_contentArea, 1);    mainLayout->addWidget(footer);    centerPanel();}OverlayDialog* OverlayDialog::showMessage(    QWidget* anyWidget,    const QString& title,    const QString& message,    ButtonFlags buttons,    int panelWidth,    int panelHeight){    QWidget* root = anyWidget->isWindow() ? anyWidget : anyWidget->window();    auto dlg = new OverlayDialog(root, panelWidth, panelHeight);    dlg->setTitle(title);    dlg->setMessage(message);    dlg->setButtons(buttons);    dlg->show();    dlg->raise();    dlg->activateWindow();    return dlg;}OverlayDialog* OverlayDialog::showCustom(    QWidget* anyWidget,    const QString& title,    QWidget* customContent,    ButtonFlags buttons,    int panelWidth,    int panelHeight){    QWidget* root = anyWidget->isWindow() ? anyWidget : anyWidget->window();    auto dlg = new OverlayDialog(root, panelWidth, panelHeight);    dlg->setTitle(title);    dlg->setCustomContent(customContent);    dlg->setButtons(buttons);    dlg->show();    dlg->raise();    dlg->activateWindow();    return dlg;}voidOverlayDialog::setTitle(const QString& title){    m_titleLabel->setText(title);}voidOverlayDialog::setMessage(const QString& message){    m_messageLabel->setText(message);}voidOverlayDialog::setCustomContent(QWidget* widget){    delete m_messageLabel;    m_messageLabel = nullptr;    widget->setParent(m_contentArea);    m_contentArea->layout()->addWidget(widget);}voidOverlayDialog::setButtons(ButtonFlags flags){    m_okBtn->setVisible(flags & Ok);    m_cancelBtn->setVisible(flags & Cancel);}voidOverlayDialog::centerPanel(){    m_panel->move(        (width() - m_panel->width()) / 2,        (height() - m_panel->height()) / 2    );}boolOverlayDialog::eventFilter(QObject* obj, QEvent* event){    if (obj == m_root && event->type() == QEvent::Resize) {        setGeometry(m_root->rect());        centerPanel();        return false;    }    // ===== 标题栏拖动 =====    if (obj == m_header) {        switch (event->type()) {        case QEvent::MouseButtonPress: {            auto* e = static_cast<QMouseEvent*>(event);            if (e->button() == Qt::LeftButton) {                m_dragging = true;                m_dragStartPos = e->globalPosition().toPoint();                m_panelStartPos = m_panel->pos();                m_header->setCursor(Qt::ClosedHandCursor);                return true;            }            break;        }        case QEvent::MouseMove: {            if (m_dragging) {                auto* e = static_cast<QMouseEvent*>(event);                QPoint delta = e->globalPosition().toPoint() - m_dragStartPos;                m_panel->move(m_panelStartPos + delta);                return true;            }            break;        }        case QEvent::MouseButtonRelease: {            m_dragging = false;            m_header->setCursor(Qt::OpenHandCursor);            return true;        }        case QEvent::Leave:            m_header->setCursor(Qt::ArrowCursor);            break;        case QEvent::Enter:            m_header->setCursor(Qt::OpenHandCursor);            break;        }    }    return QWidget::eventFilter(obj, event);}voidOverlayDialog::mousePressEvent(QMouseEvent* event){    if (!m_panel->geometry().contains(event->pos())) {        closeDialog();    }}voidOverlayDialog::keyPressEvent(QKeyEvent* event){    if (event->key() == Qt::Key_Escape)        closeDialog();}voidOverlayDialog::closeDialog(){    if (m_root)        m_root->removeEventFilter(this);    emit closed();    deleteLater();}

ok 上面是第一种,下面是放飞自由型,使用系统的QDialog插件

SystemDialog.h

#pragma once#include<QDialog>class QLabel;class QPushButton;class QWidget;class SystemDialog : public QDialog{    Q_OBJECTpublic:    enum ButtonFlag {        None = 0x0,        Ok = 0x1,        Cancel = 0x2    };       //定义一个新类型 如同  typedef QFlags<ButtonFlag> ButtonFlags;        Q_DECLARE_FLAGS(ButtonFlags, ButtonFlag)    explicitSystemDialog(QWidget* parent = nullptrint panelWidth = 420int panelHeight = 260);    // ===== API =====    voidsetTitle(const QString& title);    voidsetMessage(const QString& message);    voidsetCustomContent(QWidget* widget);    voidsetButtons(ButtonFlags flags);    // 静态工厂(像 QMessageBox)    static SystemDialog* showMessage(        QWidget* parent,        const QString& title,        const QString& message,        ButtonFlags buttons = ButtonFlags(),        int panelWidth = 300,        int panelHeight = 200);    // 自定义    static SystemDialog* showCustom(        QWidget* anyWidget,        const QString& title,        QWidget* customContent,        ButtonFlags buttons = ButtonFlags(),        int panelWidth = 420,        int panelHeight = 260    );signals:    voidaccepted();    voidrejected();    voidclosed();protected:    booleventFilter(QObject* obj, QEvent* event)override;private:    voidinitUi();private:    QWidget* m_header = nullptr;    QLabel* m_titleLabel = nullptr;    QLabel* m_messageLabel = nullptr;    QWidget* m_contentArea = nullptr;    QPushButton* m_okBtn = nullptr;    QPushButton* m_cancelBtn = nullptr;    // 拖动相关    bool   m_dragging = false;    QPoint m_dragStartPos;    QPoint m_windowStartPos;    int m_panelWidth = 420;    int m_panelHeight = 260;};Q_DECLARE_OPERATORS_FOR_FLAGS(SystemDialog::ButtonFlags)

SystemDialog.cpp

#include "systemdialog.h"#include <QVBoxLayout>#include <QHBoxLayout>#include <QLabel>#include <QPushButton>#include <QMouseEvent>SystemDialog::SystemDialog(QWidget* parentint panelWidth, int panelHeight)    : QDialog(parent),m_panelWidth(panelWidth)    , m_panelHeight(panelHeight){    setWindowFlags(Qt::Dialog | Qt::FramelessWindowHint);    setModal(true);    //setAttribute(Qt::WA_StyledBackground);    //设置背景透明    setAttribute(Qt::WA_TranslucentBackground);    //设置高宽    setFixedSize(panelWidth, panelHeight);    initUi();}void SystemDialog::initUi(){    // ===== 外层透明布局 =====    auto outerLayout = new QVBoxLayout(this);    outerLayout->setContentsMargins(0000);    outerLayout->setSpacing(0);    // ===== 圆角主体容器(真正画背景的地方)=====    auto *m_frame = new QWidget(this);    m_frame->setObjectName("dialogFrame");    m_frame->setStyleSheet(        "#dialogFrame {"        " background: white;"        " border-radius: 8px;"        " border: 1px solid #eeeeee;"        "}"    );    outerLayout->addWidget(m_frame);    auto mainLayout = new QVBoxLayout(m_frame);    mainLayout->setContentsMargins(16121612);    mainLayout->setSpacing(12);    // ===== Header =====    m_header = new QWidget(this);    m_header->setFixedHeight(32);    m_header->setCursor(Qt::OpenHandCursor);    m_header->installEventFilter(this);    auto headerLayout = new QHBoxLayout(m_header);    headerLayout->setContentsMargins(0000);    m_titleLabel = new QLabel("Title");    m_titleLabel->setStyleSheet("font-weight: bold; font-size: 14px;");    auto closeBtn = new QPushButton("✕");    closeBtn->setFixedSize(2424);    closeBtn->setCursor(Qt::PointingHandCursor);    closeBtn->setFixedSize(2424);    closeBtn->setStyleSheet(        "QPushButton { border: none; background: transparent; }"        "QPushButton:hover { color: red; }"    );    connect(closeBtn, &QPushButton::clicked, this,  [=]() {        emit closed();        close();        });    headerLayout->addWidget(m_titleLabel);    headerLayout->addStretch();    headerLayout->addWidget(closeBtn);    // ===== Content =====    m_contentArea = new QWidget(this);    auto contentLayout = new QVBoxLayout(m_contentArea);    contentLayout->setContentsMargins(0000);    m_messageLabel = new QLabel;    m_messageLabel->setWordWrap(true);    contentLayout->addWidget(m_messageLabel);    // ===== Footer =====    auto footer = new QWidget(this);    auto footerLayout = new QHBoxLayout(footer);    footerLayout->addStretch();//占满剩余空间    m_okBtn = new QPushButton("确定");    m_cancelBtn = new QPushButton("取消");    m_okBtn->setStyleSheet(        "QPushButton { color: #409eff; border: none; background: transparent; }"        "QPushButton:hover { color: #90409eff; }"    );    m_cancelBtn->setStyleSheet(        "QPushButton { color: #999999; border: none; background: transparent; }"        "QPushButton:hover { color: #90999999; }"    );    connect(m_okBtn, &QPushButton::clicked, this, [this]() {        emit accepted();        //关闭弹窗        close();        });    connect(m_cancelBtn, &QPushButton::clicked, this, [this]() {        emit rejected();        //关闭弹窗        close();        });    footerLayout->addWidget(m_cancelBtn);    footerLayout->addWidget(m_okBtn);    mainLayout->addWidget(m_header);    mainLayout->addWidget(m_contentArea);    mainLayout->addWidget(footer);}bool SystemDialog::eventFilter(QObject* obj, QEvent* event){    if (obj == m_header) {        switch (event->type()) {        case QEvent::MouseButtonPress: {            auto* e = static_cast<QMouseEvent*>(event);            if (e->button() == Qt::LeftButton) {                m_dragging = true;                m_dragStartPos = e->globalPosition().toPoint();                m_windowStartPos = pos();                m_header->setCursor(Qt::ClosedHandCursor);                return true;            }            break;        }        case QEvent::MouseMove: {            if (m_dragging) {                auto* e = static_cast<QMouseEvent*>(event);                QPoint delta = e->globalPosition().toPoint() - m_dragStartPos;                move(m_windowStartPos + delta);                return true;            }            break;        }        case QEvent::MouseButtonRelease:            m_dragging = false;            m_header->setCursor(Qt::OpenHandCursor);            return true;        }    }    return QDialog::eventFilter(obj, event);}void SystemDialog::setTitle(const QString& title){    m_titleLabel->setText(title);}void SystemDialog::setMessage(const QString& message){    m_messageLabel->setText(message);}void SystemDialog::setCustomContent(QWidget* widget){    delete m_messageLabel;    m_messageLabel = nullptr;    widget->setParent(m_contentArea);    m_contentArea->layout()->addWidget(widget);}void SystemDialog::setButtons(ButtonFlags flags){    m_okBtn->setVisible(flags & Ok);    m_cancelBtn->setVisible(flags & Cancel);}SystemDialog* SystemDialog::showMessage(    QWidget* parent,    const QString& title,    const QString& message,    ButtonFlags buttons, int panelWidth,    int panelHeight){    auto dlg = new SystemDialog(parent, panelWidth,        panelHeight);    dlg->setTitle(title);    dlg->setMessage(message);    dlg->setButtons(buttons);    dlg->show();    return dlg;}SystemDialog* SystemDialog::showCustom(    QWidget* anyWidget,    const QString& title,    QWidget* customContent,    ButtonFlags buttons,    int panelWidth,    int panelHeight){    QWidget* root = anyWidget->isWindow() ? anyWidget : anyWidget->window();    auto dlg = new SystemDialog(root, panelWidth, panelHeight);    dlg->setTitle(title);    dlg->setCustomContent(customContent);    dlg->setButtons(buttons);    dlg->show();    dlg->raise();    dlg->activateWindow();    return dlg;}

上面就是2种类型的dialog的全部源码,下面举例怎么使用。

dialogwidget.h

#ifndef DIALOGWIDGET_H#define DIALOGWIDGET_H#include <QWidget>namespace Ui {class dialogwidget;}class dialogwidget : public QWidget{    Q_OBJECTpublic:    explicitdialogwidget(QWidget *parent = nullptr);    ~dialogwidget();private:    Ui::dialogwidget *ui;};#endif // DIALOGWIDGET_H

dialogwidget.cpp

#include "dialogwidget.h"#include "ui_dialogwidget.h"#include <overlaydialog.h>#include <overlaydialogmycustomwidget.h>#include <systemdialog.h>dialogwidget::dialogwidget(QWidget *parent)    : QWidget(parent)    , ui(new Ui::dialogwidget){    ui->setupUi(this);    //消失提示,确认和取消    connect(ui->pushButton, &QPushButton::clicked, [this]() {        auto dlg = OverlayDialog::showMessage(            this,            "提示",            "确定要删除当前数据吗?",            OverlayDialog::Ok | OverlayDialog::Cancel        );        connect(dlg, &OverlayDialog::accepted, this, []() {            qDebug() << "用户点击了确定";            });        connect(dlg, &OverlayDialog::rejected, this, []() {            qDebug() << "用户点击了取消";            });        connect(dlg, &OverlayDialog::closed, this, []() {            qDebug() << "关闭了";            });    });    //设置样式margin    ui->pushButton->setStyleSheet("QPushButton{margin: 5px;}");    connect(ui->pushButton2, &QPushButton::clicked, [this]() {        OverlayDialog::showMessage(            this,            "提示",            "我只有OK键吗?",            OverlayDialog::Ok         );        });    ui->pushButton2->setStyleSheet("QPushButton{margin: 5px;}");    connect(ui->pushButton3, &QPushButton::clicked, [this]() {        OverlayDialog::showMessage(            this,            "提示",            "我只有cannel键吗?",            OverlayDialog::Cancel        );        });    ui->pushButton3->setStyleSheet("QPushButton{margin: 5px;}");    //我是自定义的组件widget ,替换掉OverlayDialog的widget    connect(ui->pushButton4, &QPushButton::clicked, [this]() {        auto custom = new OverlayDialogMyCustomWidget();        OverlayDialog::showCustom(            this,            "我是自定义的内容widget",            custom,            OverlayDialog::Ok | OverlayDialog::Cancel        );    });    ui->pushButton4->setStyleSheet("QPushButton{margin: 5px;}");    //我是自定义的组件widget ,替换掉OverlayDialog的widget,无取消和确定按钮    connect(ui->pushButton5, &QPushButton::clicked, [this]() {        auto custom = new OverlayDialogMyCustomWidget();        OverlayDialog::showCustom(            this,            "我是自定义的内容widget,无取消和确定按钮",            custom,            OverlayDialog::None        );        });    ui->pushButton5->setStyleSheet("QPushButton{margin: 5px;}");    //系统自带的dialog插件    connect(ui->pushButton6, &QPushButton::clicked, [this]() {        auto dlg = SystemDialog::showMessage(            this,            "提示",            "我是系统弹框?",            SystemDialog::Ok | SystemDialog::Cancel        );        connect(dlg, &SystemDialog::accepted, this, []() {            qDebug() << "用户点击了确定";            });        connect(dlg, &SystemDialog::rejected, this, []() {            qDebug() << "用户点击了取消";            });        connect(dlg, &SystemDialog::closed, this, []() {            qDebug() << "用户点击了关闭";            });    });    ui->pushButton6->setStyleSheet("QPushButton{margin: 5px;}");    //系统dialog的自定义内容    connect(ui->pushButton7, &QPushButton::clicked, [this]() {        auto custom = new OverlayDialogMyCustomWidget();        auto dlg = SystemDialog::showCustom(            this,            "提示",            custom,            SystemDialog::Ok | SystemDialog::Cancel        );        connect(dlg, &SystemDialog::accepted, this, []() {            qDebug() << "用户点击了确定";            });        connect(dlg, &SystemDialog::rejected, this, []() {            qDebug() << "用户点击了取消";            });        connect(dlg, &SystemDialog::closed, this, []() {            qDebug() << "用户点击了关闭";            });        });    ui->pushButton7->setStyleSheet("QPushButton{margin: 5px;}");}dialogwidget::~dialogwidget(){    delete ui;}

dialogwidget.ui

<?xml version="1.0" encoding="UTF-8"?><uiversion="4.0"> <class>dialogwidget</class> <widgetclass="QWidget"name="dialogwidget">  <propertyname="geometry">   <rect>    <x>0</x>    <y>0</y>    <width>320</width>    <height>240</height>   </rect>  </property>  <propertyname="windowTitle">   <string>Form</string>  </property>  <layoutclass="QVBoxLayout"name="verticalLayout_2">   <propertyname="spacing">    <number>0</number>   </property>   <propertyname="leftMargin">    <number>0</number>   </property>   <propertyname="topMargin">    <number>0</number>   </property>   <propertyname="rightMargin">    <number>0</number>   </property>   <propertyname="bottomMargin">    <number>0</number>   </property>   <item>    <layoutclass="QVBoxLayout"name="verticalLayout">     <propertyname="spacing">      <number>0</number>     </property>     <item>      <widgetclass="QPushButton"name="pushButton">       <propertyname="text">        <string>消息弹框(确定+取消)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton2">       <propertyname="text">        <string>消息弹框(确定)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton3">       <propertyname="text">        <string>消息弹框(取消)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton4">       <propertyname="text">        <string>消息弹框(我是自定义内容布局)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton5">       <propertyname="text">        <string>消息弹框(我是自定义内容布局,无取消和确定)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton6">       <propertyname="text">        <string>系统弹框(确定+取消)</string>       </property>      </widget>     </item>     <item>      <widgetclass="QPushButton"name="pushButton7">       <propertyname="text">        <string>系统弹框(我是自定义内容布局,无取消和确定)</string>       </property>      </widget>     </item>     <item>      <spacername="verticalSpacer">       <propertyname="orientation">        <enum>Qt::Orientation::Vertical</enum>       </property>       <propertyname="sizeHint"stdset="0">        <size>         <width>20</width>         <height>40</height>        </size>       </property>      </spacer>     </item>    </layout>   </item>  </layout> </widget> <resources/> <connections/></ui>

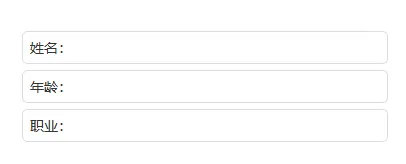

上面代码中 OverlayDialogMyCustomWidget是举例的自定义connent 的内容widget 就不贴代码了,如图:

demo已经举例,隐藏按钮,设置title, 自定义内容消息等功能。

结尾

这两种插件的实现,本质上是我们在窗口坐标系全局屏幕坐标系之间反复横跳的过程:

  • 自定义 Widget 插件让我们学会了如何当一名严厉的“保安”,死死守住 pos() 的边界,不让窗口踏出雷池一步。

  • QDialog 插件则让我们重新审视了 Qt 的窗口标志位(WindowFlags),看它是如何优雅地调戏操作系统的窗口管理器。

最后给各位同行的几句忠告:

  • 关于拖动: 在计算 event->pos() 的时候,千万分清什么是“相对位置”,什么是“绝对位置”。搞混了的话,你的窗口可能会在你点击的一瞬间,以量子穿梭的速度飞向屏幕左上角。

  • 关于父子关系: 记住,一旦你给 QWidget 设置了父窗口,它这辈子就很难逃出“五指山”了。如果你想让它既在里面待着,偶尔又能出去转转,那建议你考虑一下 QDockWidget,或者……重新审视一下需求。

分页器也好,弹窗插件也罢,代码的终点永远是用户的顺心和我们的不加班。如果你在实现过程中发现窗口还是会“越狱”,或者 QDialog 消失在了次元空间,欢迎在评论区留言,我们一起抓虫!
