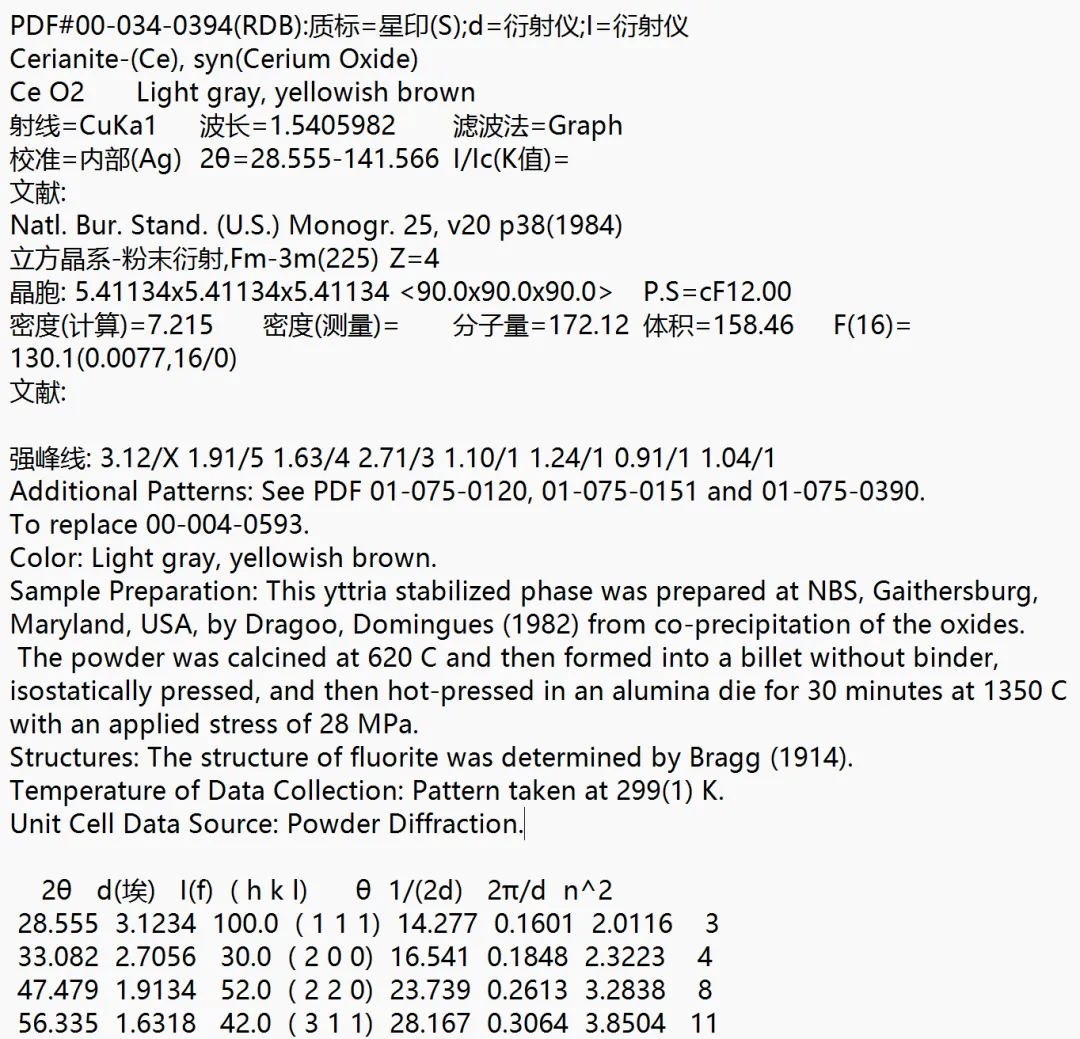

PDF#00-034-0394(RDB):质标=星印(S);d=衍射仪;I=衍射仪

Cerianite-(Ce), syn(Cerium Oxide)

Ce O2 Light gray, yellowish brown

射线=CuKa1 波长=1.5405982 滤波法=Graph

校准=内部(Ag) 2θ=28.555-141.566 I/Ic(K值)=

文献:

Natl. Bur. Stand. (U.S.) Monogr. 25, v20 p38(1984)

立方晶系-粉末衍射,Fm-3m(225) Z=4

晶胞: 5.41134×5.41134×5.41134 <90.0×90.0x90.0> P.S=cF12.00

密度(计算)=7.215 密度(测量)= 分子量=172.12 体积=158.46 F(16)=130.1(0.0077,16/0)

文献:

强峰线: 3.12/X 1.91/5 1.63/4 2.71/3 1.10/1 1.24/1 0.91/1 1.04/1

Additional Patterns: See PDF 01-075-0120, 01-075-0151 and 01-075-0390.

To replace 00-004-0593.

Color: Light gray, yellowish brown.

Sample Preparation: This yttria stabilized phase was prepared at NBS, Gaithersburg, Maryland, USA, by Dragoo, Domingues (1982) from co-precipitation of the oxides.

 The powder was calcined at 620 C and then formed into a billet without binder, isostatically pressed, and then hot-pressed in an alumina die for 30 minutes at 1350 C with an applied stress of 28 MPa.

Structures: The structure of fluorite was determined by Bragg (1914).

Temperature of Data Collection: Pattern taken at 299(1) K.

Unit Cell Data Source: Powder Diffraction.

    2θ   d(埃)   I(f)  ( h k l)      θ  1/(2d)   2π/d  n^2

 28.555  3.1234  100.0  ( 1 1 1)  14.277  0.1601  2.0116    3

 33.082  2.7056   30.0  ( 2 0 0)  16.541  0.1848  2.3223    4

 47.479  1.9134   52.0  ( 2 2 0)  23.739  0.2613  3.2838    8

 56.335  1.6318   42.0  ( 3 1 1)  28.167  0.3064  3.8504   11

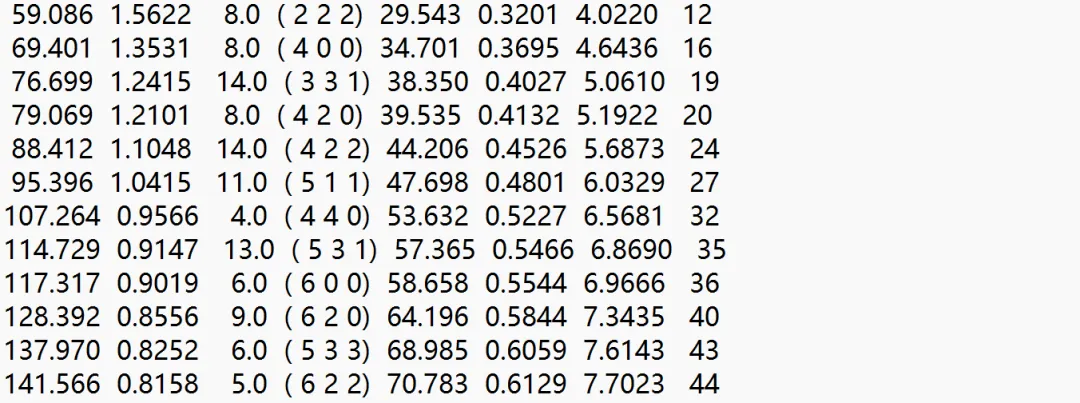

 59.086  1.5622    8.0  ( 2 2 2)  29.543  0.3201  4.0220   12

 69.401  1.3531    8.0  ( 4 0 0)  34.701  0.3695  4.6436   16

 76.699  1.2415   14.0  ( 3 3 1)  38.350  0.4027  5.0610   19

 79.069  1.2101    8.0  ( 4 2 0)  39.535  0.4132  5.1922   20

 88.412  1.1048   14.0  ( 4 2 2)  44.206  0.4526  5.6873   24

 95.396  1.0415   11.0  ( 5 1 1)  47.698  0.4801  6.0329   27

107.264  0.9566    4.0  ( 4 4 0)  53.632  0.5227  6.5681   32

114.729  0.9147   13.0  ( 5 3 1)  57.365  0.5466  6.8690   35

117.317  0.9019    6.0  ( 6 0 0)  58.658  0.5544  6.9666   36

128.392  0.8556    9.0  ( 6 2 0)  64.196  0.5844  7.3435   40

137.970  0.8252    6.0  ( 5 3 3)  68.985  0.6059  7.6143   43

141.566  0.8158    5.0  ( 6 2 2)  70.783  0.6129  7.7023   44
