博途软件S7-1200PLC与GRAPH流程图

当前时间： 2026-08-08 12:29:13 分类：办公文件 评论(0)
博途软件S7-1200PLC与GRAPH流程图
众所周知，S7‑1200 PLC 原生仅支持 LAD、SCL 两种编程语言，但 GRAPH 凭借结构简洁、条理清晰的优势，在顺序控制场景广受认可，那么该如何使用 GRAPH 实现顺序控制程序编写？

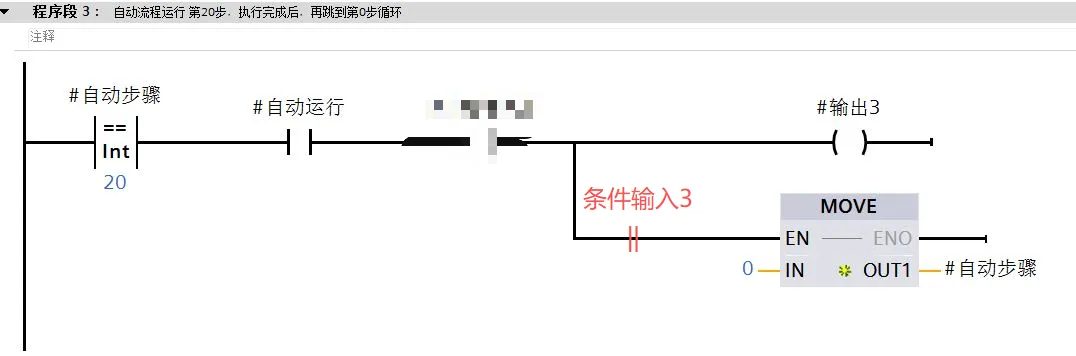

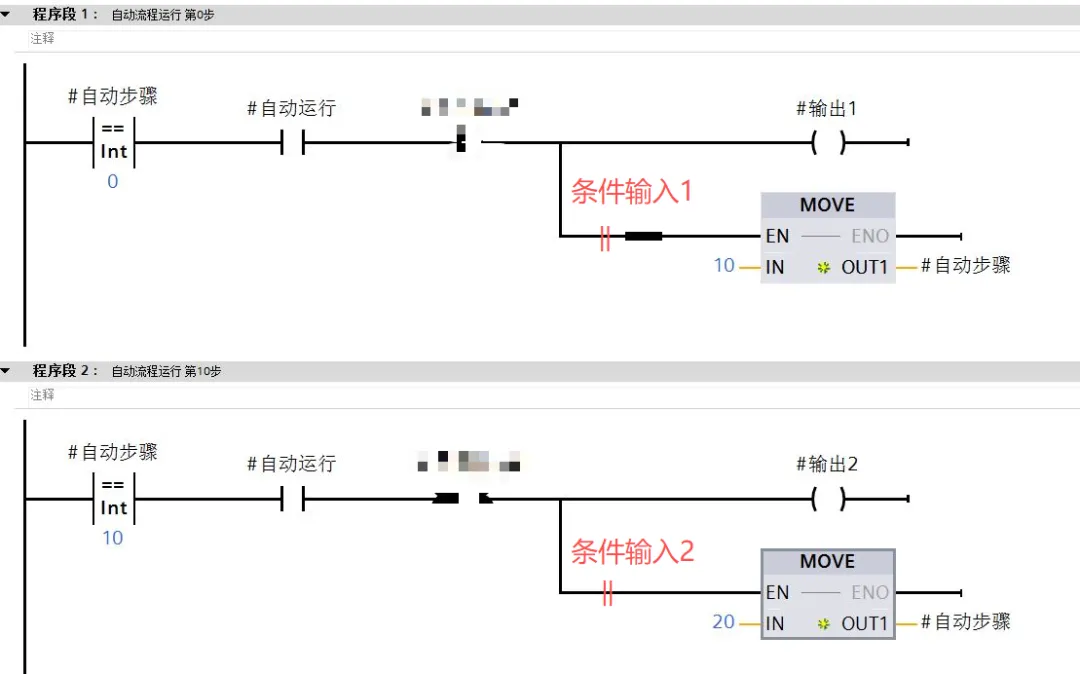

第一种: LAD梯形图

LAD梯形图是最常用的一种方式，利用比较指令，判断当前步骤，步骤程序执行完成后，再用MOVE指令进行赋值，跳转到下一步。

如下图所示：

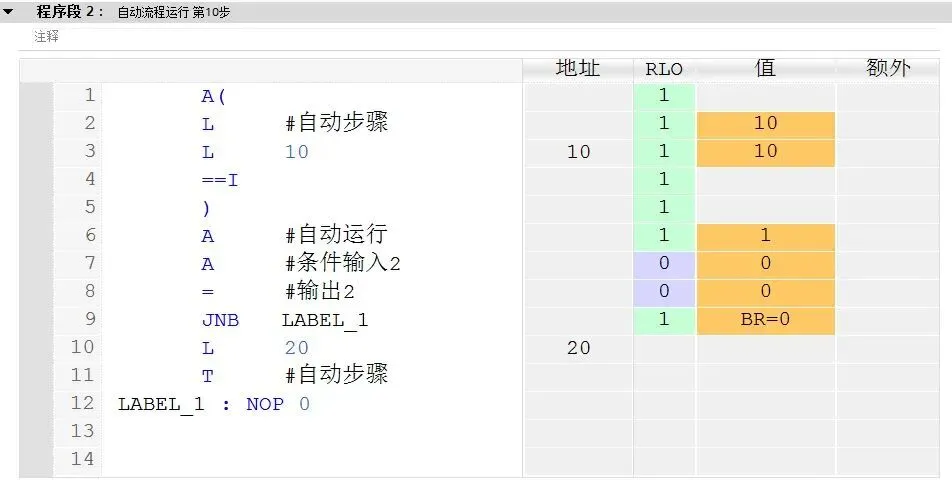

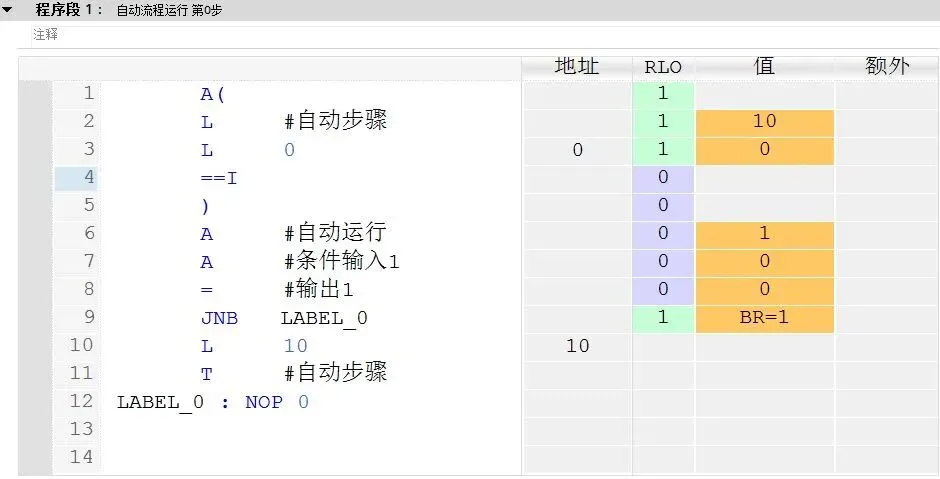

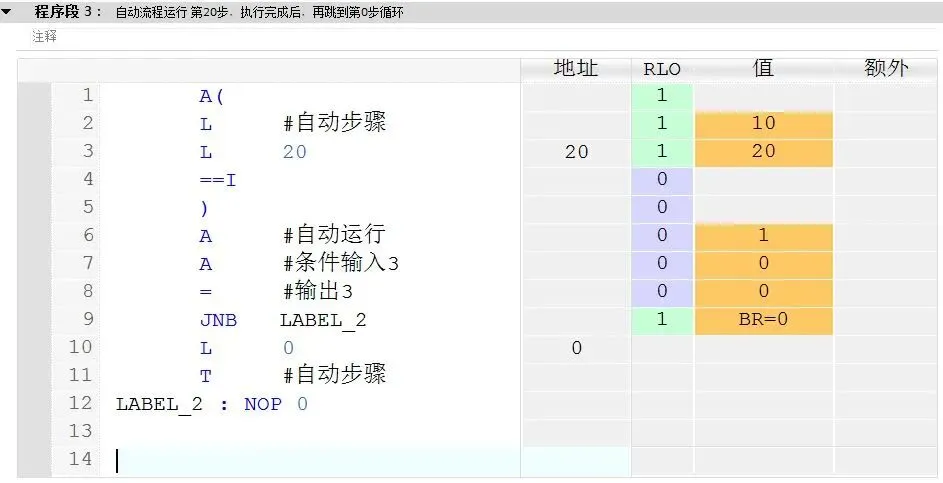

第二种: STL语句表

STL语句表与梯形图思路一致，利用比较指令与赋值指令 执行程序步骤，多了一组JNB跳转指令，上面的条件满足，则执行JNB LABEL_0标签里的指令。

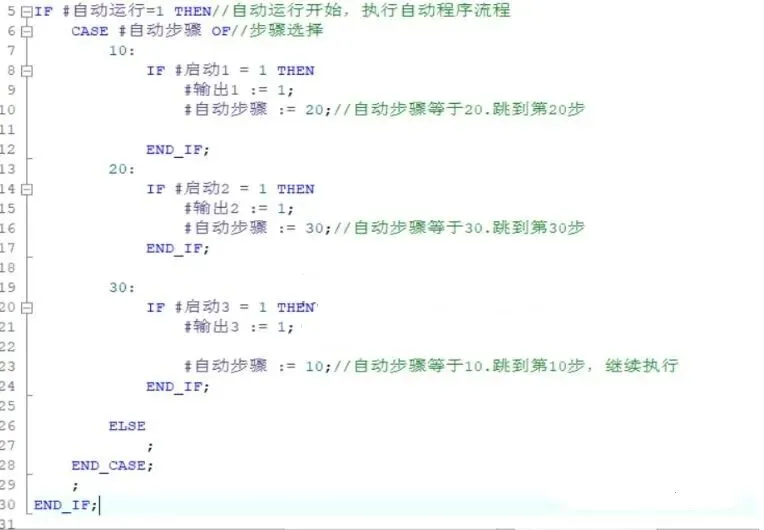

第三种:SCL语言

SCL语言最常用的一个语句指令 CASE...OF...  可以当做选择功能写流程步骤。
