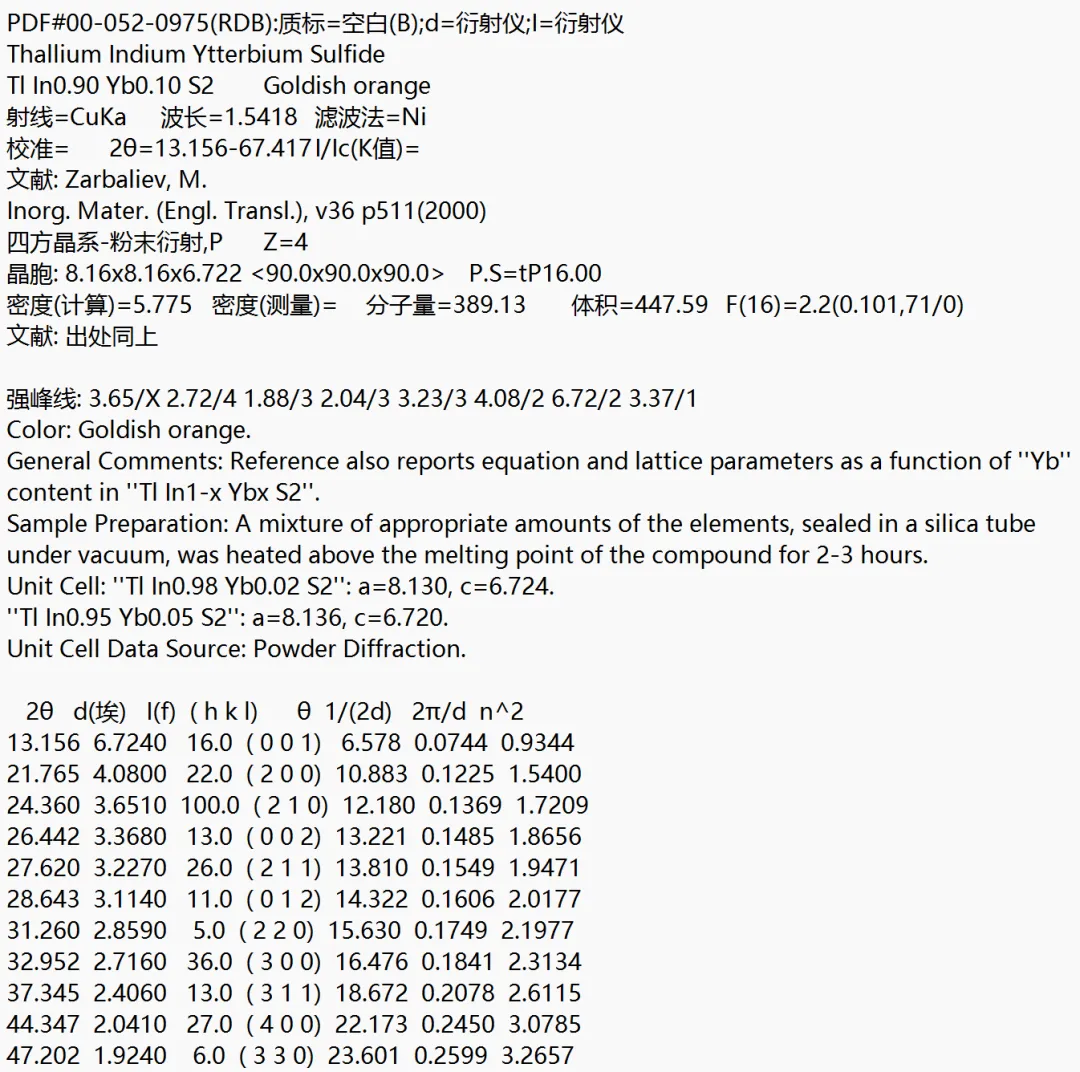

PDF#00-052-0975(RDB):质标=空白(B);d=衍射仪;I=衍射仪

Thallium Indium Ytterbium Sulfide

Tl In0.90 Yb0.10 S2 Goldish orange

射线=CuKa 波长=1.5418 滤波法=Ni

校准= 2θ=13.156-67.417 I/Ic(K值)=

文献: Zarbaliev, M.

Inorg. Mater. (Engl. Transl.), v36 p511(2000)

四方晶系-粉末衍射,P Z=4

晶胞: 8.16x8.16x6.722 <90.0x90.0x90.0> P.S=tP16.00

密度(计算)=5.775 密度(测量)= 分子量=389.13 体积=447.59 F(16)=2.2(0.101,71/0)

文献: 出处同上

强峰线: 3.65/X 2.72/4 1.88/3 2.04/3 3.23/3 4.08/2 6.72/2 3.37/1

Color: Goldish orange.

General Comments: Reference also reports equation and lattice parameters as a function of ''Yb'' content in ''Tl In1-x Ybx S2''.

Sample Preparation: A mixture of appropriate amounts of the elements, sealed in a silica tube under vacuum, was heated above the melting point of the compound for 2-3 hours.

Unit Cell: ''Tl In0.98 Yb0.02 S2'': a=8.130, c=6.724.

''Tl In0.95 Yb0.05 S2'': a=8.136, c=6.720.

Unit Cell Data Source: Powder Diffraction.

   2θ   d(埃)   I(f)  ( h k l)      θ  1/(2d)   2π/d  n^2

13.156  6.7240   16.0  ( 0 0 1)   6.578  0.0744  0.9344

21.765  4.0800   22.0  ( 2 0 0)  10.883  0.1225  1.5400

24.360  3.6510  100.0  ( 2 1 0)  12.180  0.1369  1.7209

26.442  3.3680   13.0  ( 0 0 2)  13.221  0.1485  1.8656

27.620  3.2270   26.0  ( 2 1 1)  13.810  0.1549  1.9471

28.643  3.1140   11.0  ( 0 1 2)  14.322  0.1606  2.0177

31.260  2.8590    5.0  ( 2 2 0)  15.630  0.1749  2.1977

32.952  2.7160   36.0  ( 3 0 0)  16.476  0.1841  2.3134

37.345  2.4060   13.0  ( 3 1 1)  18.672  0.2078  2.6115

44.347  2.0410   27.0  ( 4 0 0)  22.173  0.2450  3.0785

47.202  1.9240    6.0  ( 3 3 0)  23.601  0.2599  3.2657

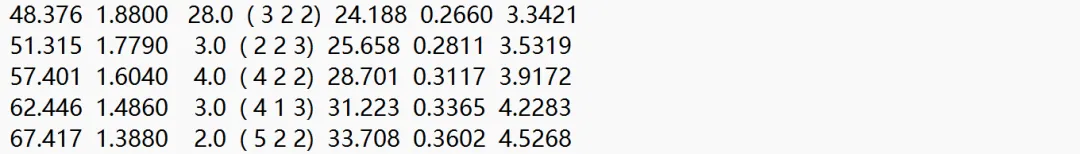

48.376  1.8800   28.0  ( 3 2 2)  24.188  0.2660  3.3421

51.315  1.7790    3.0  ( 2 2 3)  25.658  0.2811  3.5319

57.401  1.6040    4.0  ( 4 2 2)  28.701  0.3117  3.9172

62.446  1.4860    3.0  ( 4 1 3)  31.223  0.3365  4.2283

67.417  1.3880    2.0  ( 5 2 2)  33.708  0.3602  4.5268
