Leaflet.Graticule源码分析以及经纬度汉化展示
前言
一、源码分析

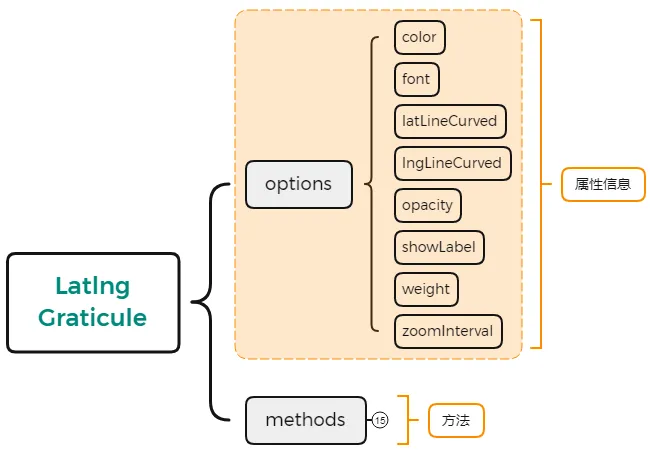

1、类图设计

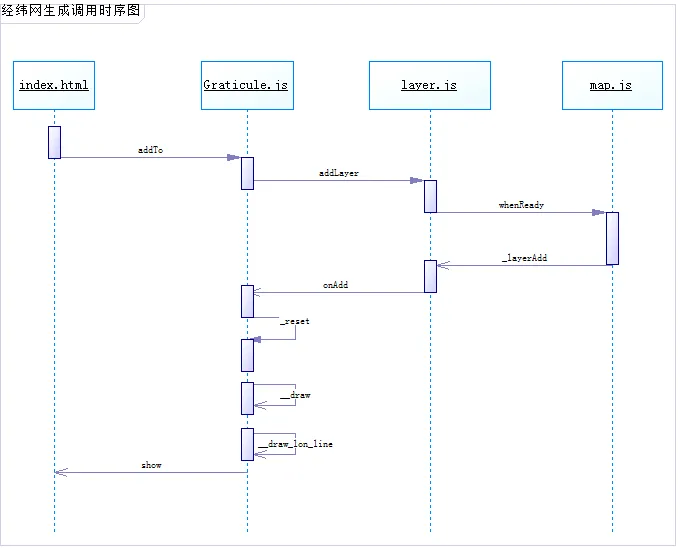

2、时序调用

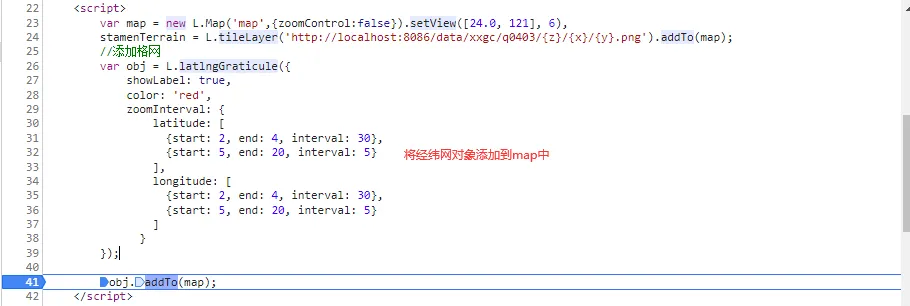

3、调用说明
var obj = L.latlngGraticule({showLabel: true,color: 'red',zoomInterval: {latitude: [{start: 2, end: 4, interval: 30},{start: 5, end: 20, interval: 5}],longitude: [{start: 2, end: 4, interval: 30},{start: 5, end: 20, interval: 5}]}});
addTo: function (map) {map.addLayer(this);return this;}

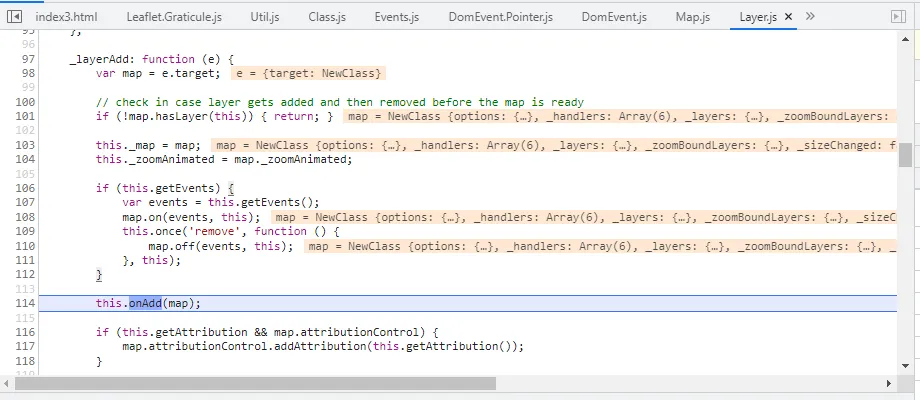

_layerAdd: function (e) {var map = e.target;// check in case layer gets added and then removed before the map is readyif (!map.hasLayer(this)) { return; }this._map = map;this._zoomAnimated = map._zoomAnimated;if (this.getEvents) {var events = this.getEvents();map.on(events, this);this.once('remove', function () {map.off(events, this);}, this);}this.onAdd(map);if (this.getAttribution && map.attributionControl) {map.attributionControl.addAttribution(this.getAttribution());}this.fire('add');map.fire('layeradd', {layer: this});

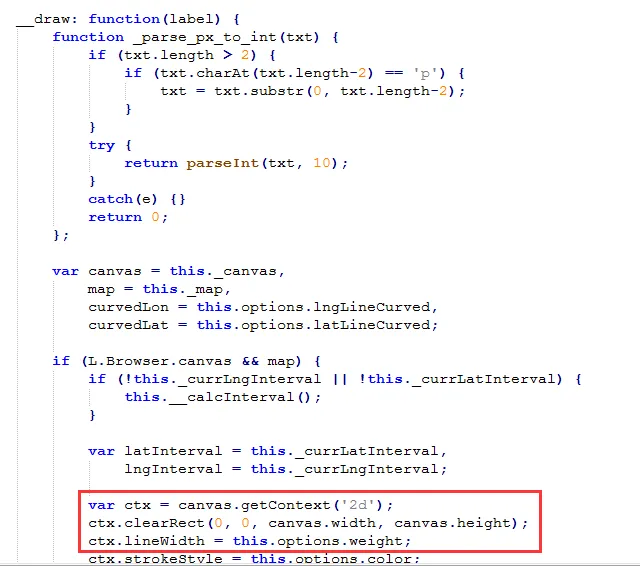

_reset: function () {var container = this._container,canvas = this._canvas,size = this._map.getSize(),lt = this._map.containerPointToLayerPoint([0, 0]);L.DomUtil.setPosition(container, lt);container.style.width = size.x + 'px';container.style.height = size.y + 'px';canvas.width = size.x;canvas.height = size.y;canvas.style.width = size.x + 'px';canvas.style.height = size.y + 'px';this.__calcInterval();this.__draw(true);},

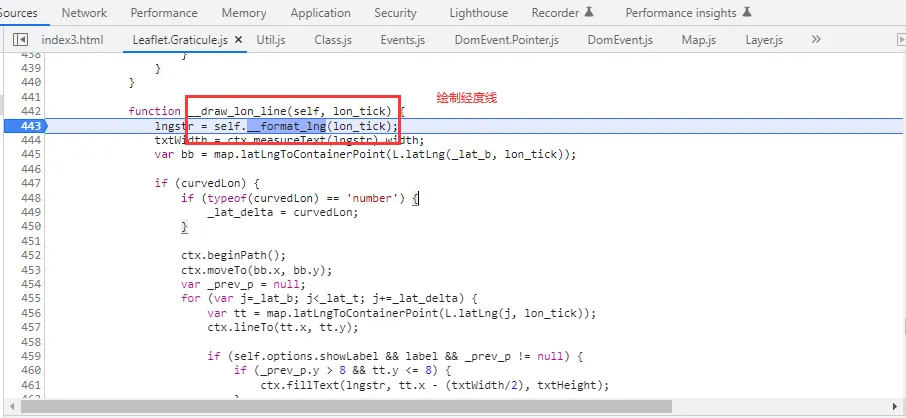

function__draw_lon_line(self, lon_tick) {lngstr = self.__format_lng(lon_tick);txtWidth = ctx.measureText(lngstr).width;var bb = map.latLngToContainerPoint(L.latLng(_lat_b, lon_tick));if(curvedLon) {if(typeof(curvedLon) == 'number') {_lat_delta = curvedLon;}ctx.beginPath();ctx.moveTo(bb.x, bb.y);var _prev_p = null;for(var j=_lat_b; j<_lat_t; j+=_lat_delta) {var tt = map.latLngToContainerPoint(L.latLng(j, lon_tick));ctx.lineTo(tt.x, tt.y);if(self.options.showLabel && label && _prev_p != null) {if(_prev_p.y > 8 && tt.y <= 8) {ctx.fillText(lngstr, tt.x - (txtWidth/2), txtHeight);}else if (_prev_p.y >= hh && tt.y < hh) {ctx.fillText(lngstr, tt.x - (txtWidth/2), hh-2);}}_prev_p = {x:tt.x, y:tt.y, lon:lon_tick, lat:j};}ctx.stroke();}else {var __lat_top = _lat_t;var tt = map.latLngToContainerPoint(L.latLng(__lat_top, lon_tick));if(curvedLat) {__lat_top = map.containerPointToLatLng(L.point(tt.x, 0));__lat_top = __lat_top.lat;if(__lat_top > 90) { __lat_top = 90; }tt = map.latLngToContainerPoint(L.latLng(__lat_top, lon_tick));var __lat_bottom = map.containerPointToLatLng(L.point(bb.x, hh));__lat_bottom = __lat_bottom.lat;if(__lat_bottom < -90) { __lat_bottom = -90; }bb = map.latLngToContainerPoint(L.latLng(__lat_bottom, lon_tick));}ctx.beginPath();ctx.moveTo(tt.x, tt.y+1);ctx.lineTo(bb.x, bb.y-1);ctx.stroke();if(self.options.showLabel && label) {ctx.fillText(lngstr, tt.x - (txtWidth/2), txtHeight+1);ctx.fillText(lngstr, bb.x - (txtWidth/2), hh-3);}}};
二、经纬度汉化

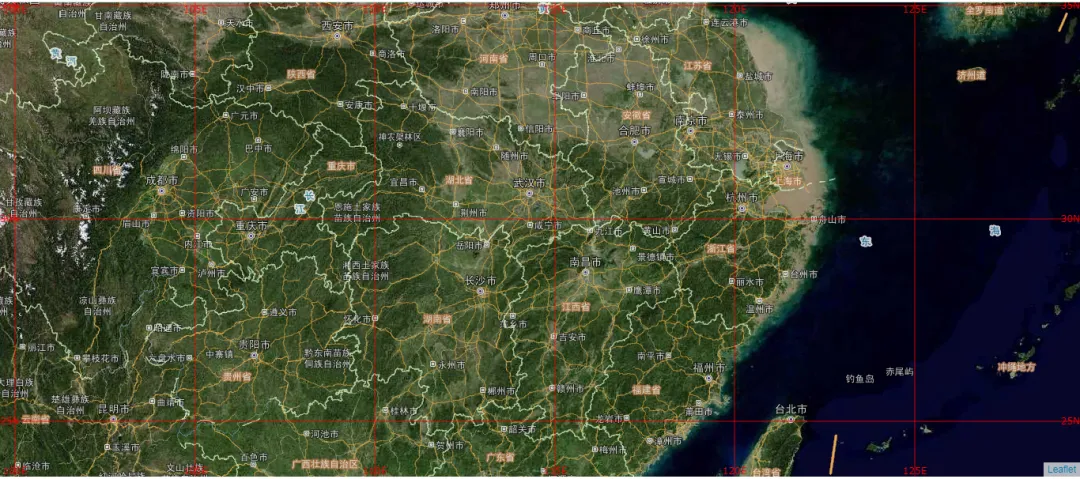

1、改造前
__format_lng: function(lng) {if (this.options.lngFormatTickLabel) {return this.options.lngFormatTickLabel(lng);}// todo: format type of floatif (lng > 180) {return '' + (360 - lng) + 'W';}else if (lng > 0 && lng < 180) {return '' + lng + 'E';}else if (lng < 0 && lng > -180) {return '' + (lng*-1) + 'W';}else if (lng == -180) {return '' + (lng*-1);}else if (lng < -180) {return '' + (360 + lng) + 'W';}return '' + lng;}
2、汉化
__format_lng: function(lng) {if (this.options.lngFormatTickLabel) {return this.options.lngFormatTickLabel(lng);}if (lng > 180) {return '' + (360 - lng) + '西经';}else if (lng > 0 && lng < 180) {return '' + lng + '东经';}else if (lng < 0 && lng > -180) {return '' + (lng*-1) + '西经';}else if (lng == -180) {return '' + (lng*-1);}else if (lng < -180) {return '' + (360 + lng) + '西经';}return '' + lng;}

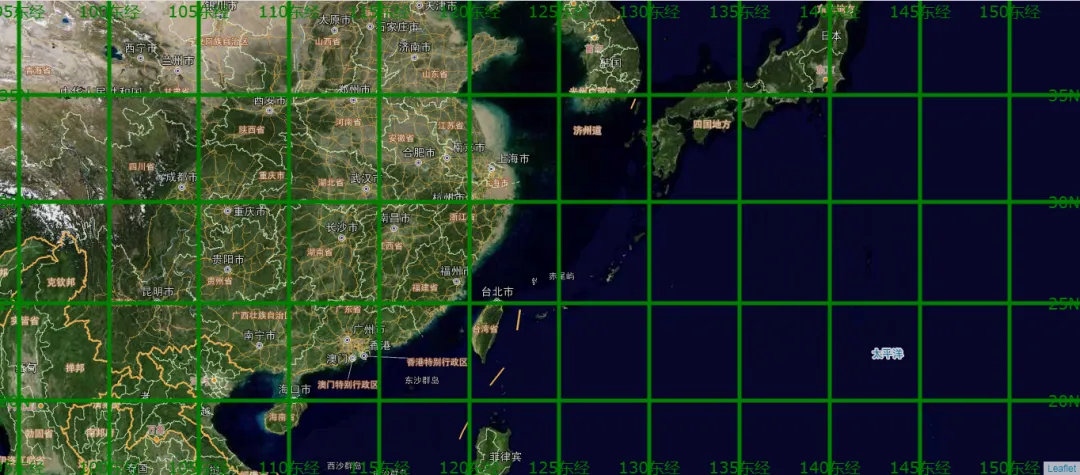

3、改造效果
