支撑压力突破+均线+高低点统计主图源码

二、源码仅用于文华软件，新建主图类型

MA7:MA(C,7),COLORMAGENTA,LINETHICK2;

EMA30:EMA2(C,20),COLORWHITE,LINETHICK3;

EMA70:=EMA2(C,50),COLORRED,LINETHICK4;

EMA100:=EMA(C,100),COLORGREEN,LINETHICK4;

DIFF:=EMA(CLOSE,7) – EMA(CLOSE,16);

DEA:=EMA(DIFF,7);

MACD:=2*(DIFF-DEA);

//潮汐指标

CMI:=ABS(C-REF(C,15))/(HHV(H,16)-LLV(L,16))*100;

//ATR

TR : =MAX(MAX((HIGH-LOW),ABS(REF(CLOSE,1)-HIGH)),ABS(REF(CLOSE,1)-LOW));

ATR : =MA(TR,16);

BIAS1:=(CLOSE-MA(CLOSE,6))/MA(CLOSE,6)*100;//

趋势度:=(C-VALUEWHEN(DAYBARPOS=1,O))/(HHV(H,DAYBARPOS)-LLV(L,DAYBARPOS));

LC:=REF(CLOSE,1); //取前一根K线的收盘价

VID:=SUM(VOL,2)/((HHV(HIGH,2)-LLV(LOW,2))*100); //2周期成交量相加，除以2周期最高价和最低价的差值乘以100

RC:=(CLOSE-LC)*VID;//收盘价与LC的差值，乘以VID

LONG:=SUM(RC,0); //将所有K线上RC的数值求和

LONGMA1:=SMA(LONG,10,1); //LONG的10个周期内的扩展指数加权移动平均

LONGMA2:=SMA(LONG,20,1); //LONG的20个周期内的扩展指数加权移动平均

LON:=LONGMA1-LONGMA2; //LONGMA1与LONGMA2做差

LONGMA:=MA(LON,10); //LON的N个周期均值

LONGT:=LON,COLORSTICK;

VOL1:=MA((VOL-REF(VOL,1))/REF(VOL,1),5);//取成交量与上一周期成交量的差值，除以上一周期成交量的五周期均值

JC2:=(CLOSE-MA(CLOSE,24))/MA(CLOSE,24)*100;//取收盘价与24周期均线的差值，除以24周期均线，取得的比值乘100

SHORT:=JC2*(1+VOL1);

SHORTMA:=MA(SHORT,5);//取SHORT的N周期均值

SHORTT:=SHORT,COLORSTICK;

DRAWTEXT(DEA>0&&MACD>0&&DIFF>0&&SHORTMA>0&&SHORT>0&&SHORT>SHORTMA&&C>MA7 &&C>EMA30 && C>HV(MAX(O,C),4) ,L,’↑’),VALIGN0,COLORRED,FONTSIZE40;

DRAWTEXT(DEA<0&&MACD<0&&DIFF<0&&SHORTMA<0&&SHORT<0&&SHORT<SHORTMA&&C<MA7&&C<EMA30  && C<LV(MIN(O,C),4 ),H,’↓’),COLORGREEN,FONTSIZE40;

//  反转  当前面4根K线任意  一根 出现高高预警时，当前K线低于前2根K线的最低价时，预警 涨不动

N1:=DEA>0&&MACD>0&&DIFF>0&&SHORTMA>0&&SHORT>0&&C>MA7 &&C>EMA30 &&SHORT>SHORTMA&& C>HV(MAX(O,C),4) ;

N2:=DEA<0&&MACD<0&&DIFF<0&&SHORTMA<0&&SHORT<0&&C<MA7&&C<EMA30 &&SHORT<SHORTMA && C<LV(MIN(O,C),4 );

//NN:=EXIST(N1,3) AND C<LV(L,2);

//PP:=EXIST(N2,3) AND C>HV(H,2);

NN:=REF(EXIST(N1,7),1) AND C<LV(L,5);

PP:=REF(EXIST(N2,7),1) AND C>HV(H,5);

DRAWICON(NN,H,2);

DRAWICON(PP,H,1);

CONDA1:=O>EMA70&&C>EMA100&&MA7>EMA30&&C>EMA70&&C>HV(MAX(O,C),4)&&C>REF(IF(EXIST(ISUP,20),HHV(IF(ISUP,C,0),20),HHV(C,3)),1)&&SHORT>0&&ISUP&&(SHORTMA>REF(SHORTMA,1)||SHORT>REF(SHORT,1))&&MACD>0&&DIFF>0&&趋势度>0.4;

CONDA2:=O<EMA70&&C<EMA100&&MA7<EMA30&&C<EMA70&&C<LV(MIN(O,C),4)&&C<REF(IF(EXIST(ISDOWN,20),LLV(IF(ISDOWN,C,10000000),20),LLV(C,3)),1)&&SHORT<0&&ISDOWN&&(SHORTMA<REF(SHORTMA,1)||SHORT<REF(SHORT,1))&&MACD<0&&DIFF<0&&趋势度<-0.4;

//金肯特

MOVAVGVAL:=MA((HIGH+LOW+CLOSE)/3,20);//三价均线

TRUEHIGH1:=IF(HIGH>REF(C,1),HIGH,REF(C,1));

TRUELOW1:=IF(LOW<=REF(C,1),LOW,REF(C,1));

TRUERANGE1:=IF(ISLASTBAR,H-L,TRUEHIGH1-TRUELOW1);

UPBAND:=MOVAVGVAL+MA(TRUERANGE1,3);//通道上轨

DNBAND:=MOVAVGVAL-MA(TRUERANGE1,3);//通道上轨

LIQUIDPOINT:=MOVAVGVAL;//出场条件

IF(L<LV(L,BARPOS),L,LV(L,BARPOS)),COLORWHITE,LINETHICK3;

IF(H>HV(H,BARPOS),H,HV(H,BARPOS)),COLORWHITE,LINETHICK3;

Q:=10;

QQ := C ;

A1:= REF ( QQ ,10)= HHV ( QQ ,2*10+1);

B1:= FILTER (A1,10);

C1:= BACKSET (B1,10+1);

HD := FILTER (C1,10);

A2:= REF ( QQ ,10)= LLV ( QQ ,2*10+1);

B2:= FILTER (A2,10);

C2:= BACKSET (B2,10+1);

LD := FILTER (C2,10);

A := REF ( C , BARSLAST ( HD ));

B := REF ( L , BARSLAST ( LD ));

T1:= BARSLAST ( HD )< BARSLAST ( LD ) AND NOT ( HD );

T2:= BARSLAST ( HD )> BARSLAST ( LD ) AND NOT ( LD );

压力: IF (T1, A , A ), COLORRED , LINETHICK5 , NODRAW ;

支撑: IF (T2, B , B ), COLORGREEN ,LINETHICK5, NODRAW ;

DRAWCOLORKLINE ( CROSS ( C ,压力)&&ISUP, COLORMAGENTA , 0 );//上涨颜色K线

DRAWCOLORKLINE ( CROSSDOWN ( C ,支撑)&&ISDOWN, COLORGREEN , 0 );//下跌颜色K线

DRAWCOLORKLINE ( CROSS ( C ,压力)&&ISUP,COLORMAGENTA , 0 );//上涨颜色K线

DRAWCOLORKLINE ( CROSSDOWN ( C ,支撑)&&ISDOWN, COLORBLUE , 0 );//下跌颜色K线

CROSS ( C ,压力)&&ISUP|| CROSSDOWN ( C ,支撑)&&ISDOWN, SOUND (‘ A ‘);

VALUEWHEN(压力<> REF (压力,1),压力),LINETHICK3,COLORRED;//上线

VALUEWHEN(支撑<> REF (支撑,1),支撑),LINETHICK3,COLORGREEN;//下线

N:=10;

AA10:=REF(H,N)=HHV(H,2*N+1);

AA11:=REF(L,N)=LLV(L,2*N+1);

QY10:=BACKSET(AA10,N+1);

QY11:=BACKSET(AA11,N+1);

CC10:=FILTER(QY10,N) AND H=HHV(H,N+1);

CURRBARSCOUNT:=DATACOUNT-BARPOS+1;

CC11:=FILTER(QY11,N) AND L=LLV(L,N+1);

DDD10:=BARSLAST(CC10);

DD11:=BARSLAST(CC11);

GDTS1:=IF(CC10,CURRBARSCOUNT,0);

DDTS10:=IF(CC11,CURRBARSCOUNT,0);

DINGBUTS10:=IF(DDD10,REF(GDTS1,DDD10),GDTS1);

DDTS11:=IF(DD11,REF(DDTS10,DD11),DDTS10);

GDCS10:=REFX1(DINGBUTS10,10000);

DDCS10:=REFX1(DDTS11,10000);

DINGBUTS11:=REF(DINGBUTS10,DDD10+1);

DDTS20:=REF(DDTS11,DD11+1);

GDCS2:=REFX1(DINGBUTS11,10000);

DDCS2:=REFX1(DDTS20,10000);

DRAWSL(ISLASTBAR&&C>REF(H,GDCS2-1),REF(H,GDCS2-1),0,-GDCS2+1,0,COLORRED),LINETHICK2;

DRAWSL(ISLASTBAR&&C<REF(H,GDCS2-1),REF(H,GDCS2-1),0,-GDCS2+1,0,COLORGREEN),LINETHICK2;

KTEXT(ISLASTBAR&&C>REF(H,GDCS2-1),-GDCS2+1,REF(H,GDCS2-1),1,COLORRED,’高1′),COLORRED;

KTEXT(ISLASTBAR&&C<REF(H,GDCS2-1),-GDCS2+1,REF(H,GDCS2-1),1,COLORGREEN,’高1′),COLORGREEN;

DRAWSL(ISLASTBAR&&C>REF(H,GDCS10-1),REF(H,GDCS10-1),0,-GDCS10+1,0,COLORRED),LINETHICK2;

DRAWSL(ISLASTBAR&&C<REF(H,GDCS10-1),REF(H,GDCS10-1),0,-GDCS10+1,0,COLORGREEN),LINETHICK2;

KTEXT(ISLASTBAR&&C>REF(H,GDCS10-1),-GDCS10+1,REF(H,GDCS10-1),1,COLORRED,’高2′),COLORRED;

KTEXT(ISLASTBAR&&C<REF(H,GDCS10-1),-GDCS10+1,REF(H,GDCS10-1),1,COLORGREEN,’高2′),COLORGREEN;

DRAWSL(ISLASTBAR&&C>REF(L,DDCS2-1),REF(L,DDCS2-1),0,-DDCS2+1,0,COLORRED),LINETHICK2;

DRAWSL(ISLASTBAR&&C<REF(L,DDCS2-1),REF(L,DDCS2-1),0,-DDCS2+1,0,COLORGREEN),LINETHICK2;

KTEXT(ISLASTBAR&&C>REF(L,DDCS2-1),-DDCS2+1,REF(L,DDCS2-1),1,COLORRED,’低1′),VALIGN0;

KTEXT(ISLASTBAR&&C<REF(L,DDCS2-1),-DDCS2+1,REF(L,DDCS2-1),1,COLORGREEN,’低1′),VALIGN0;

DRAWSL(ISLASTBAR&&C>REF(L,DDCS10-1),REF(L,DDCS10-1),0,-DDCS10+1,0,COLORRED),LINETHICK2;

DRAWSL(ISLASTBAR&&C<REF(L,DDCS10-1),REF(L,DDCS10-1),0,-DDCS10+1,0,COLORGREEN),LINETHICK2;

KTEXT(ISLASTBAR&&C>REF(L,DDCS10-1),-DDCS10+1,REF(L,DDCS10-1),1,COLORRED,’低2′),COLORRED,VALIGN0;

KTEXT(ISLASTBAR&&C<REF(L,DDCS10-1),-DDCS10+1,REF(L,DDCS10-1),1,COLORGREEN,’低2′),COLORGREEN,VALIGN0;

三、更好用的指标案例图：不公开发布代码！

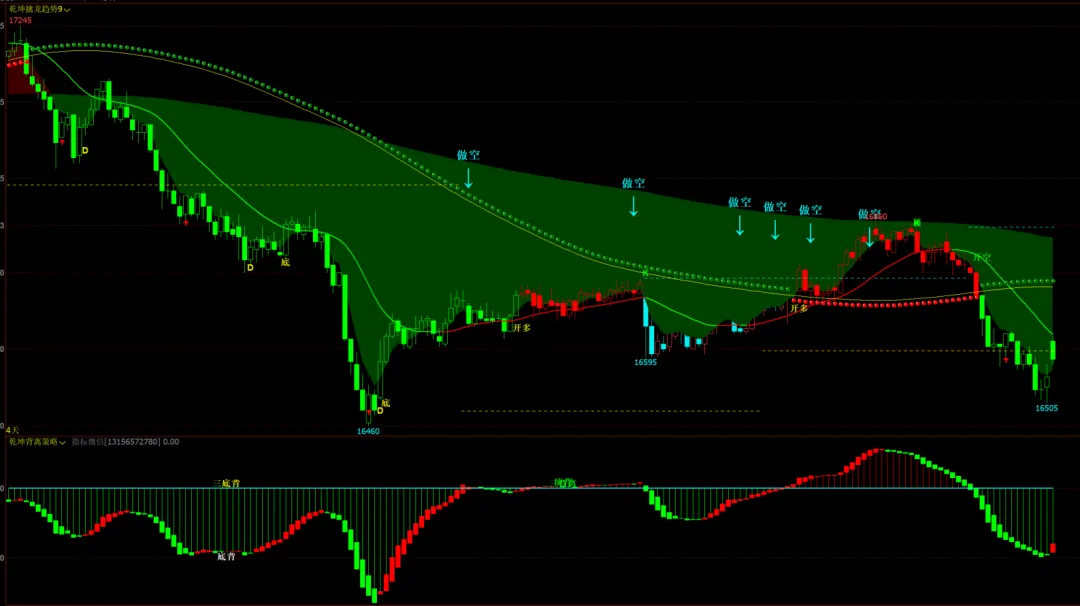

1、主图：趋势波段王，幅图：支撑压力多分界线，幅图：macd多空反转

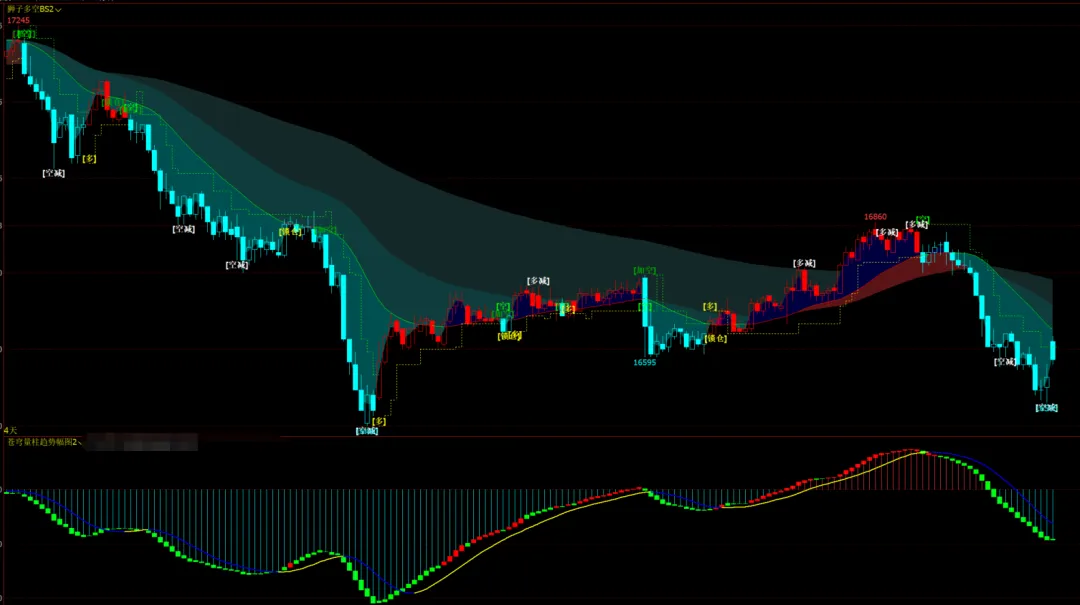

2、趋势趋势趋势类的指标，幅图是多空背离

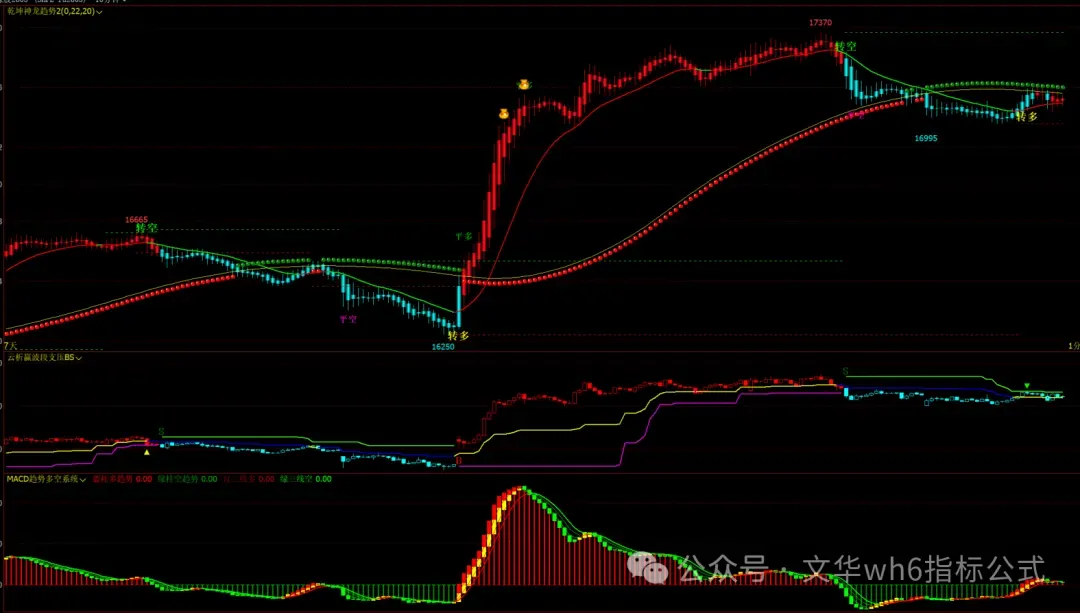

3、主图：支撑压力转折多空，量化操作提示。幅图：多空量柱趋势变色线
