目标APP无法抓包
抓包目标APP发现一直提示出错了，但是网络是正常的。
日志分析
抓一下日志看看有没有什么报错。
获取 app 包名
PS D:\> adb shell dumpsys activity activities | findstr "mResumedActivity"
mResumedActivity: ActivityRecord{79be772 u0 ************************/************************.splash.SplashActivity t1184}过滤出该包名下的日志并导出到 logcat.txt
adb logcat --pid=$(adb shell pidof ************************) -v time > logcat.txt可疑的日志
发现一段可疑的日志，疑似与证书校验相关。
04-23 13:16:06.427 D/vcnnetwork( 9525): <0x0,custom_verify.c,JNI_OnLoad,55>-----compiled native library Mar 9 2026 10:09:07-----
04-23 13:16:06.427 D/vcnnetwork( 9525): <0x0,custom_verify.c,JNI_OnLoad,63>register verify call start
04-23 13:16:06.427 D/vcnnetwork( 9525): <0x0,custom_verify.c,JNI_OnLoad,67>register verify call end
04-23 13:16:06.427 D/vcnnetwork( 9525): <0x0,custom_verify.c,JNI_OnLoad,70><JNI_OnLoad,70> JNI_OnLoad (result=65540)
04-23 13:16:06.990 D/ttmverify( 9525): <0x0,custom_verify.c,JNI_OnLoad,56>-----compiled native library Jan 22 2026 03:06:08-----
04-23 13:16:06.990 D/ttmverify( 9525): <0x0,custom_verify.c,JNI_OnLoad,64>register verify call start
04-23 13:16:06.991 E/bytehook_tag( 9525): bytehook version 1.1.2-alpha.0: bytehook init(mode: AUTOMATIC, debuggable: false), return: 0, real-init: yes
04-23 13:16:06.991 W/System.err( 9525): saf-init:HomepageViewPagerAssem initPager End: ************************.main.assems.ui.HomepageViewPagerAssem@41585f5
04-23 13:16:06.992 I/jato ( 9525): g.e. init start
04-23 13:16:06.993 I/System.out( 9525): SAFActivity: afterCallSceneActivityCreated end [************************.main.MainActivity@7116b45]
04-23 13:16:06.993 I/System.out( 9525): SceneSafeLifecycleDispatcher: onActivityCreated End ACTIVITY_CREATED
04-23 13:16:06.993 I/jato ( 9525): g.e. init success
04-23 13:16:06.995 D/ttmverify( 9525): <0x0,custom_verify.c,JNI_OnLoad,68>register verify call end
04-23 13:16:06.995 D/ttmverify( 9525): <0x0,custom_verify.c,JNI_OnLoad,71><JNI_OnLoad,71> JNI_OnLoad (result=65540)根据日志追溯一下调用堆栈
📢 [Native Log] [3] vcnnetwork: <%p,%s,%s,%d>%s
🔍 Native Backtrace:
↪ 0x79302c6298 libvcnverify.so!0x1298
↪ 0x7a8d79ba88
↪ 0x79d8c5a11c libart.so!_ZN3art9JavaVMExt12AddGlobalRefEPNS_6ThreadENS_6ObjPtrINS_6mirror6ObjectEEE+0x80
↪ 0x79d8c6c2a8 libart.so!_ZN3art3JNIILb0EE12NewGlobalRefEP7_JNIEnvP8_jobject+0x26c
↪ 0x79d8c6d724 libart.so!_ZN3art3JNIILb0EE11NewLocalRefEP7_JNIEnvP8_jobject+0x254
↪ 0x79d8e8f9c8 libart.so!_ZN3art6Thread22SetClassLoaderOverrideEP8_jobject+0x48
↪ 0x79302c62f0 libvcnverify.so!JNI_OnLoad+0x30
↪ 0x79d8c5c738 libart.so!_ZN3art9JavaVMExt17LoadNativeLibraryEP7_JNIEnvRKNSt3__112basic_stringIcNS3_11char_traitsIcEENS3_9allocatorIcEEEEP8_jobjectP7_jclassPS9_+0xc14
↪ 0x79d8c5c758 libart.so!_ZN3art9JavaVMExt17LoadNativeLibraryEP7_JNIEnvRKNSt3__112basic_stringIcNS3_11char_traitsIcEENS3_9allocatorIcEEEEP8_jobjectP7_jclassPS9_+0xc34
↪ 0x79c8cca200 libopenjdkjvm.so!JVM_NativeLoad+0x1ac
↪ 0x6f3fc838 boot.oat!art_jni_trampoline+0x98
↪ 0x6f41288c boot.oat!java.lang.Runtime.loadLibrary0+0x14c
↪ 0x6f414308 boot.oat!java.lang.Runtime.loadLibrary0+0xb8
↪ 0x6f417ba4 boot.oat!java.lang.System.loadLibrary+0x64
↪ 0x7940e5b6b0 base.odex!X.08tJ.doInBackground+0x100
↪ 0x70dfc280 boot-framework.oat!android.os.AsyncTask$3.call+0xb0
...
📢 [Native Log] [3] ttmverify: <%p,%s,%s,%d>%s
🔍 Native Backtrace:
↪ 0x78a0df3258 libttmverify.so!0x1258
↪ 0x7a8d79ba88
↪ 0x79d8c5a11c libart.so!_ZN3art9JavaVMExt12AddGlobalRefEPNS_6ThreadENS_6ObjPtrINS_6mirror6ObjectEEE+0x80
↪ 0x79d8c6c2a8 libart.so!_ZN3art3JNIILb0EE12NewGlobalRefEP7_JNIEnvP8_jobject+0x26c
↪ 0x79d8c6d724 libart.so!_ZN3art3JNIILb0EE11NewLocalRefEP7_JNIEnvP8_jobject+0x254
↪ 0x79d8e8f9c8 libart.so!_ZN3art6Thread22SetClassLoaderOverrideEP8_jobject+0x48
↪ 0x79d8c5c738 libart.so!_ZN3art9JavaVMExt17LoadNativeLibraryEP7_JNIEnvRKNSt3__112basic_stringIcNS3_11char_traitsIcEENS3_9allocatorIcEEEEP8_jobjectP7_jclassPS9_+0xc14
↪ 0x79d8c5c758 libart.so!_ZN3art9JavaVMExt17LoadNativeLibraryEP7_JNIEnvRKNSt3__112basic_stringIcNS3_11char_traitsIcEENS3_9allocatorIcEEEEP8_jobjectP7_jclassPS9_+0xc34
↪ 0x79c8cca200 libopenjdkjvm.so!JVM_NativeLoad+0x1ac
↪ 0x6f3fc838 boot.oat!art_jni_trampoline+0x98
↪ 0x6f41288c boot.oat!java.lang.Runtime.loadLibrary0+0x14c
↪ 0x6f414308 boot.oat!java.lang.Runtime.loadLibrary0+0xb8
↪ 0x6f417ba4 boot.oat!java.lang.System.loadLibrary+0x64
↪ 0x7a79852874 libutils.so!_ZN7android12uptimeMillisEv+0x14
↪ 0x7940ec40e0 base.odex!X.09PC.LIZ+0x450
↪ 0x79d8a12524 libart.so!nterp_helper+0xfb4 是在 libvcnverify.so 和 libttmverify.so 中调用的。
脱壳 libvcnverify.so 和 libttmverify.so
(frida17) PS D:\Python\anti-app\frida_dump> python dump_so.py libvcnverify.so
D:\Python\anti-app\frida_dump\dump_so.py:48: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
module_info = script.exports.findmodule(origin_so_name)
{'name': 'libvcnverify.so', 'base': '0x738430a000', 'size': 32768, 'path': '/data/app/~~WiBzHiHD7fuLTDU-THU1XA==/************************-oinNVswN-LUsY3SZ4C1NFw==/lib/arm64/libvcnverify.so'}
D:\Python\anti-app\frida_dump\dump_so.py:52: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
module_buffer = script.exports.dumpmodule(origin_so_name)
libvcnverify.so.dump.so
D:\Python\anti-app\frida_dump\dump_so.py:60: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
arch = script.exports.arch()
android/SoFixer64: 1 file pushed, 0 skipped. 45.5 MB/s (186656 bytes in 0.004s)
libvcnverify.so.dump.so: 1 file pushed, 0 skipped. 19.5 MB/s (32768 bytes in 0.002s)
adb shell /data/local/tmp/SoFixer -m 0x738430a000 -s /data/local/tmp/libvcnverify.so.dump.so -o /data/local/tmp/libvcnverify.so.dump.so.fix.so
[main_loop:87]start to rebuild elf file
[Load:69]dynamic segment have been found in loadable segment, argument baseso will be ignored.
[RebuildPhdr:25]=============LoadDynamicSectionFromBaseSource==========RebuildPhdr=========================
[RebuildPhdr:37]=====================RebuildPhdr End======================
[ReadSoInfo:549]=======================ReadSoInfo=========================
[ReadSoInfo:696]soname
[ReadSoInfo:637] destructors (DT_FINI_ARRAY) found at 7c78
[ReadSoInfo:641] destructors (DT_FINI_ARRAYSZ) 2
[ReadSoInfo:699]Unused DT entry: type 0x6ffffef5 arg 0x00000378
[ReadSoInfo:580]string table found at 7e0
[ReadSoInfo:584]symbol table found at 3c0
[ReadSoInfo:595] plt_rel_count (DT_PLTRELSZ) 48
[ReadSoInfo:591] plt_rel (DT_JMPREL) found at c88
[ReadSoInfo:699]Unused DT entry: type 0x00000009 arg 0x00000018
[ReadSoInfo:699]Unused DT entry: type 0x6ffffffb arg 0x00000001
[ReadSoInfo:699]Unused DT entry: type 0x6ffffffe arg 0x00000c20
[ReadSoInfo:699]Unused DT entry: type 0x6fffffff arg 0x00000001
[ReadSoInfo:699]Unused DT entry: type 0x6ffffff0 arg 0x00000bc2
[ReadSoInfo:699]Unused DT entry: type 0x6ffffff9 arg 0x00000003
[ReadSoInfo:703]=======================ReadSoInfo End=========================
[RebuildShdr:42]=======================RebuildShdr=========================
[RebuildShdr:536]=====================RebuildShdr End======================
[RebuildRelocs:783]=======================RebuildRelocs=========================
[RebuildRelocs:809]=======================RebuildRelocs End=======================
[RebuildFin:709]=======================try to finish file rebuild =========================
[RebuildFin:733]=======================End=========================
[main:123]Done!!!
/data/local/tmp/libvcnverify.so.dump.so.fix.so: 1 file pulled, 0 skipped. 12.8 MB/s (33637 bytes in 0.002s)
libvcnverify.so_0x738430a000_32768_fix.so
(frida17) PS D:\Python\anti-app\frida_dump> python dump_so.py libttmverify.so
D:\Python\anti-app\frida_dump\dump_so.py:48: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
module_info = script.exports.findmodule(origin_so_name)
{'name': 'libttmverify.so', 'base': '0x72e3fe2000', 'size': 36864, 'path': '/data/app/~~WiBzHiHD7fuLTDU-THU1XA==/************************-oinNVswN-LUsY3SZ4C1NFw==/lib/arm64/libttmverify.so'}
D:\Python\anti-app\frida_dump\dump_so.py:52: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
module_buffer = script.exports.dumpmodule(origin_so_name)
libttmverify.so.dump.so
D:\Python\anti-app\frida_dump\dump_so.py:60: DeprecationWarning: Script.exports will become asynchronous in the future, use the explicit Script.exports_sync instead
arch = script.exports.arch()
android/SoFixer64: 1 file pushed, 0 skipped. 118.4 MB/s (186656 bytes in 0.002s)
libttmverify.so.dump.so: 1 file pushed, 0 skipped. 85.9 MB/s (36864 bytes in 0.000s)
adb shell /data/local/tmp/SoFixer -m 0x72e3fe2000 -s /data/local/tmp/libttmverify.so.dump.so -o /data/local/tmp/libttmverify.so.dump.so.fix.so
[main_loop:87]start to rebuild elf file
[Load:69]dynamic segment have been found in loadable segment, argument baseso will be ignored.
[RebuildPhdr:25]=============LoadDynamicSectionFromBaseSource==========RebuildPhdr=========================
[RebuildPhdr:37]=====================RebuildPhdr End======================
[ReadSoInfo:549]=======================ReadSoInfo=========================
[ReadSoInfo:696]soname ��
[ReadSoInfo:629]�� constructors (DT_INIT_ARRAY) found at 7c70
[ReadSoInfo:633]�� constructors (DT_INIT_ARRAYSZ) 1
[ReadSoInfo:637]�� destructors (DT_FINI_ARRAY) found at 7c78
[ReadSoInfo:641]�� destructors (DT_FINI_ARRAYSZ) 2
[ReadSoInfo:580]string table found at 778
[ReadSoInfo:584]symbol table found at 370
[ReadSoInfo:595]�� plt_rel_count (DT_PLTRELSZ) 45
[ReadSoInfo:591]�� plt_rel (DT_JMPREL) found at bf8
[ReadSoInfo:699]Unused DT entry: type 0x00000009 arg 0x00000018
[ReadSoInfo:699]Unused DT entry: type 0x00000018 arg 0x00000000
[ReadSoInfo:699]Unused DT entry: type 0x6ffffffb arg 0x00000001
[ReadSoInfo:699]Unused DT entry: type 0x6ffffffe arg 0x00000ba8
[ReadSoInfo:699]Unused DT entry: type 0x6fffffff arg 0x00000001
[ReadSoInfo:699]Unused DT entry: type 0x6ffffff0 arg 0x00000b4c
[ReadSoInfo:699]Unused DT entry: type 0x6ffffff9 arg 0x00000001
[ReadSoInfo:703]=======================ReadSoInfo End=========================
[RebuildShdr:42]=======================RebuildShdr=========================
[RebuildShdr:536]=====================RebuildShdr End======================
[RebuildRelocs:783]=======================RebuildRelocs=========================
[RebuildRelocs:809]=======================RebuildRelocs End=======================
[RebuildFin:709]=======================try to finish file rebuild =========================
[RebuildFin:733]=======================End=========================
[main:123]Done!!!
/data/local/tmp/libttmverify.so.dump.so.fix.so: 1 file pulled, 0 skipped. 8.8 MB/s (37809 bytes in 0.004s)
libttmverify.so_0x72e3fe2000_36864_fix.so使用 IDA 分析 so 文件

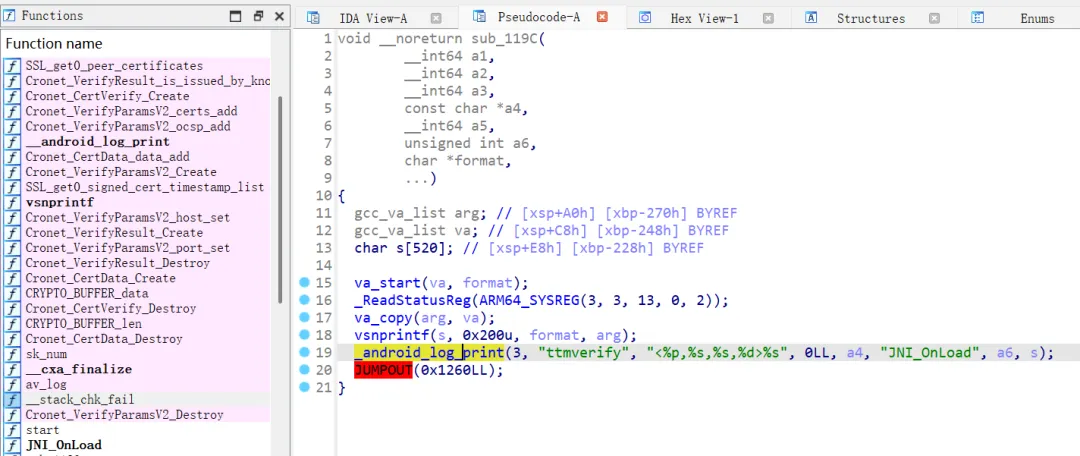

使用 IDA 打开 libttmverify.so_0x72e3fe2000_36864_fix.so 并跳转到 libttmverify.so!0x1258

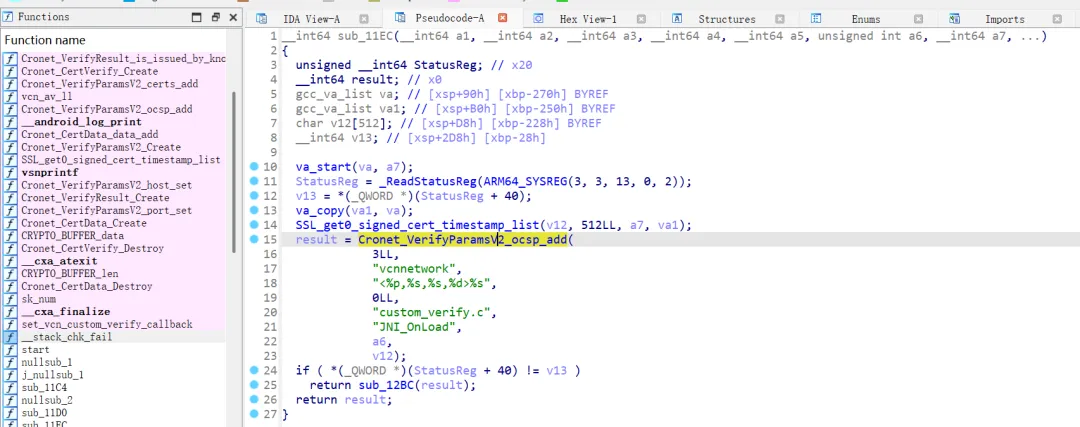

使用 IDA 打开 libttmverify.so_0x72e3fe2000_36864_fix.so 并跳转到 libvcnverify.so!0x1298
so 中包含大量 Cronet 相关的函数，并调用了 Cronet 相关函数做 SSL Pinning。
bool __fastcall vcn_custom_verify_2(__int64 a1, const void *a2, const char *a3, unsigned int a4)
{
__int64 v7; // x0
__int64 v8; // x19
__int64 v9; // x0
__int64 v10; // x21
__int64 v11; // x22
unsigned __int64 v12; // x23
__int64 v13; // x25
unsigned __int8 *v14; // x24
__int64 v15; // x26
__int64 i; // x25
unsigned int v17; // t1
unsigned __int64 j; // x22
unsigned __int64 k; // x22
__int64 v20; // x0
__int64 v21; // x23
unsigned int v22; // w22
_BOOL4 v23; // w20
unsigned __int64 v25; // [xsp+8h] [xbp-78h] BYREF
__int64 v26; // [xsp+10h] [xbp-70h] BYREF
unsigned __int64 v27; // [xsp+18h] [xbp-68h] BYREF
__int64 v28[2]; // [xsp+20h] [xbp-60h] BYREF
v28[1] = *(_QWORD *)(_ReadStatusReg(ARM64_SYSREG(3, 3, 13, 0, 2)) + 40);
av_log(0LL, 48LL, "custom_verify:start call custom verify ssl:%p host:%s port:%d\n", a2, a3, a4);
v7 = av_log(0LL, 48LL, "custom_verify:start create verify ptr\n");
v8 = Cronet_CertVerify_Create(v7);
if ( v8 )
{
v9 = av_log(0LL, 48LL, "custom_verify:start create verify ptr\n");
v10 = Cronet_VerifyParamsV2_Create(v9);
if ( v10 )
{
av_log(0LL, 48LL, "custom_verify:set host and ssl to param ptr\n");
Cronet_VerifyParamsV2_port_set(v10, a4);
Cronet_VerifyParamsV2_host_set(v10, a3);
v11 = SSL_get0_peer_certificates(a2);
if ( ((__int64 (*)(void))sk_num)() )
{
if ( sk_num(v11) )
{
v12 = 0LL;
do
{
v13 = sk_value(v11, v12);
v14 = (unsigned __int8 *)CRYPTO_BUFFER_data();
v15 = CRYPTO_BUFFER_len(v13);
for ( i = Cronet_CertData_Create(); v15; --v15 )
{
v17 = *v14++;
Cronet_CertData_data_add(i, v17);
}
Cronet_VerifyParamsV2_certs_add(v10, i);
Cronet_CertData_Destroy(i);
++v12;
}
while ( v12 < sk_num(v11) );
}
SSL_get0_ocsp_response(a2, v28, &v27);
if ( v27 )
{
for ( j = 0LL; j < v27; ++j )
Cronet_VerifyParamsV2_ocsp_add(v10, *(unsigned __int8 *)(v28[0] + j));
}
SSL_get0_signed_cert_timestamp_list(a2, &v26, &v25);
if ( v25 )
{
for ( k = 0LL; k < v25; ++k )
Cronet_VerifyParamsV2_sct_list_add(v10, *(unsigned __int8 *)(v26 + k));
}
v20 = av_log(0LL, 48LL, "custom_verify: start do verify\n");
v21 = Cronet_VerifyResult_Create(v20);
v22 = Cronet_CertVerify_DoVerifyV2(v8, v10, v21);
if ( !v22 && (Cronet_VerifyResult_is_issued_by_known_root_get(v21) & 1) != 0 )
SSL_set_enforce_rsa_key_usage(a2, 1LL);
Cronet_VerifyResult_Destroy(v21);
av_log(0LL, 48LL, "custom_verify: end do verify, result:%d \n", v22);
v23 = v22 > 1;
Cronet_CertVerify_Destroy(v8);
}
else
{
Cronet_CertVerify_Destroy(v8);
v23 = 1;
}
Cronet_VerifyParamsV2_Destroy(v10);
}
else
{
av_log(0LL, 48LL, "custom_verify:create verify param ptr fail\n");
Cronet_CertVerify_Destroy(v8);
return 0;
}
}
else
{
av_log(0LL, 48LL, "custom_verify:create verify ptr fail\n");
return 0;
}
return v23;
}Cronet
Cronet 本质是把 Chrome 浏览器的网络栈封装成 SDK，供 App 使用。
核心特点：
• 与 Chrome 同源（稳定 + 高性能） • 支持 HTTP/2 / HTTP/3 (QUIC) • 内建缓存 / 压缩 / 连接复用 • 完整 TLS / 证书验证体系 • 可定制协议
相关链接：
• Cronet 源码：https://github.com/chromium/chromium/tree/main/components/cronet • Android 封装：https://github.com/chromium/chromium/tree/main/components/cronet/android
分层结构
Java API (Android)
↓
JNI Bridge
↓
Cronet C API
↓
Chromium net stack (核心)
↓
BoringSSL（Google 魔改 OpenSSL） + QUIC + DNS + Socket从日志里面可以看到加载了 libsscronet.so 应该就是 ****** 的 Cronet 库
04-23 13:16:17.257 W/System.err( 9525): ZOIN load origin: sscronet
04-23 13:16:17.257 W/System.err( 9525): ZOIN loadLibrary libsscronet.so success

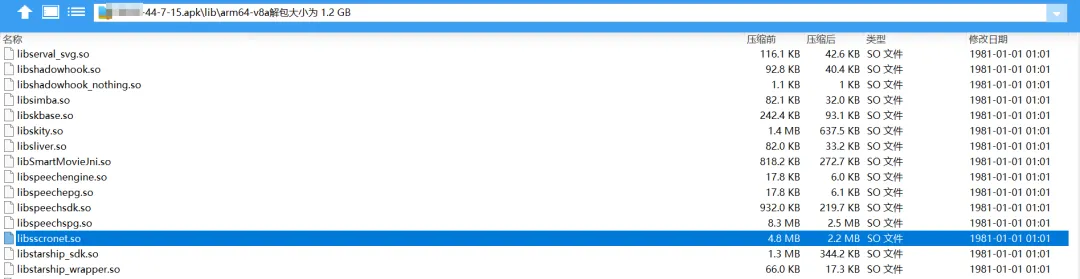

04-23 13:16:17.442 W/System.err( 9525): ZOIN already success:libsscronet.so在 apk 的 lib\arm64-v8a 目录下找到 libsscronet.so
SSL_CTX_set_custom_verify
自定义证书校验需要调用到 SSL_CTX_set_custom_verify 函数
通过 SSL_CTX_set_custom_verify 将证书验证流程（包括 SSL Pinning）从 BoringSSL 默认逻辑接管到 Chromium/Cronet 自定义实现中。
// 为 SSL 对象分配一个“扩展数据索引”，后续可以在 SSL 实例上挂自定义数据（如 socket 关联信息）
ssl_socket_data_index_ =
SSL_get_ex_new_index(0, nullptr, nullptr, nullptr, nullptr);
// 确保索引创建成功（调试断言）
DCHECK_NE(ssl_socket_data_index_, -1);
// 创建 SSL_CTX（TLS 上下文），使用带缓冲优化的 TLS 方法
ssl_ctx_.reset(SSL_CTX_new(TLS_with_buffers_method()));
// 设置客户端证书回调（当服务端要求双向认证时触发）
SSL_CTX_set_cert_cb(ssl_ctx_.get(), ClientCertRequestCallback, nullptr);
// 即使是会话复用（Session Resume），也重新验证服务器证书（避免跳过校验）
SSL_CTX_set_reverify_on_resume(ssl_ctx_.get(), 1);
// ⭐ 核心：注册自定义证书验证回调
// - 替换 BoringSSL 默认验证逻辑
// - TLS 握手时会回调 VerifyCertCallback
// - Chromium/Cronet 会在该回调中执行完整验证（含 SSL Pinning）
SSL_CTX_set_custom_verify(ssl_ctx_.get(), SSL_VERIFY_PEER,
VerifyCertCallback);
// 禁用内部 session cache（由上层统一管理，例如 SSLClientSessionCache）
SSL_CTX_set_session_cache_mode(
ssl_ctx_.get(), SSL_SESS_CACHE_CLIENT | SSL_SESS_CACHE_NO_INTERNAL);
// 设置“新建 session”回调（用于外部缓存 TLS 会话）
SSL_CTX_sess_set_new_cb(ssl_ctx_.get(), NewSessionCallback);
// 设置 session 过期时间（1 小时）
SSL_CTX_set_timeout(ssl_ctx_.get(), 1 * 60 * 60 /* one hour */);
// 启用 GREASE（防止协议被中间设备僵化识别，提升兼容性与抗干扰能力）
SSL_CTX_set_grease_enabled(ssl_ctx_.get(), 1);
// 设置证书缓冲池（去重证书内存，减少重复分配，提高性能）
SSL_CTX_set0_buffer_pool(ssl_ctx_.get(), x509_util::GetBufferPool());
// 设置 TLS 消息回调（可用于调试/日志记录握手过程）
SSL_CTX_set_msg_callback(ssl_ctx_.get(), MessageCallback);
// 配置证书压缩（减少 TLS 握手数据量，提高性能）

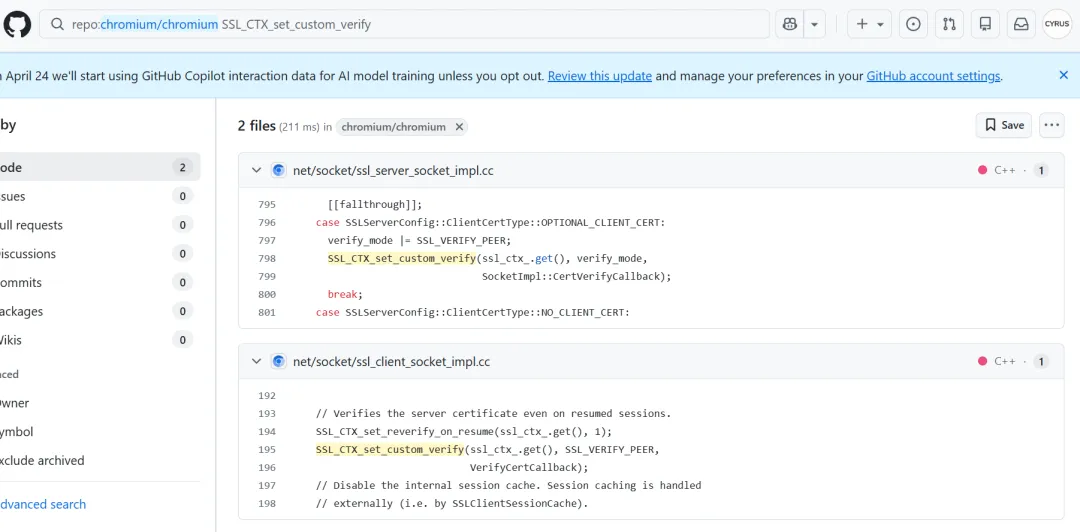

ConfigureCertificateCompression(ssl_ctx_.get());https://github.com/chromium/chromium/blob/5fe0b352507d2dfadddeec7a3ae30c716fcf5a9e/net/socket/ssl_client_socket_impl.cc#L195
VerifyCertCallback 代码如下：
ssl_verify_result_t SSLClientSocketImpl::VerifyCertCallback(
SSL* ssl,
uint8_t* out_alert) {
SSLClientSocketImpl* socket =
SSLContext::GetInstance()->GetClientSocketFromSSL(ssl);
DCHECK(socket);
return socket->VerifyCert();
}https://github.com/chromium/chromium/blob/8efa57f491dc02962b8d7a6b1b7a53325925b00f/net/socket/ssl_client_socket_impl.cc#L1032
ssl_verify_result_t 定义如下：
enum ssl_verify_result_t {
ssl_verify_ok, // 验证成功
ssl_verify_invalid, // 验证失败
ssl_verify_retry // 需要重试（异步验证）
};https://github.com/google/boringssl/blob/04aa32f96f3094994a2971d703f7489b75b94f84/include/openssl/ssl.h#L2847
过 SSL Pinning
通过 Hook SSL_CTX_set_custom_verify 拦截并替换证书校验回调函数，使其始终返回成功（ssl_verify_ok），从而在 Native 层全局绕过 SSL Pinning。
/**
* Bypass SSL pinning by hooking SSL_CTX_set_custom_verify
*
* This function hooks the native SSL verification entry point used by:
* - BoringSSL (libttboringssl.so)
* - Cronet (libsscronet.so)
*
* Core idea:
* 1. Intercept SSL_CTX_set_custom_verify
* 2. Grab the verify callback (args[2])
* 3. Hook the callback and force return 0 (verification success)
*
* @param {string} moduleName
* Target module name (e.g. "libttboringssl.so", "libsscronet.so")
*
* @param {boolean} printBacktrace
* Whether to print native backtrace when SSL_CTX_set_custom_verify is called
* Useful for analyzing call chain (default: false)
*/
function bypassSslCustomVerify(moduleName, printBacktrace = false) {
// Wait until target module is loaded into memory
waitForModule(moduleName).then((mod) => {
const funcName = "SSL_CTX_set_custom_verify";
// Locate symbol inside specific module
const addr = Module.findExportByName(mod.name, funcName);
if (!addr) {
console.warn(`[!] ${funcName} not found in ${mod.name}`);
return;
}
console.log(`[+] Hooking ${funcName} @ ${addr} in ${mod.name}`);
// Attach to SSL_CTX_set_custom_verify
Interceptor.attach(addr, {
onEnter(args) {
const caller = Process.findModuleByAddress(this.returnAddress);
// args[2] = verify callback function pointer
const cbPtr = args[2];
// 构造统一日志（避免多线程输出错乱）
let log = `[Hit] ${mod.name} -> ${funcName} ` +
`| caller=${caller ? caller.name : "unknown"} ` +
`| cb=${cbPtr}`;
if (printBacktrace) {
const bt = Thread.backtrace(this.context, Backtracer.ACCURATE)
.map(DebugSymbol.fromAddress)
.join("\n");
log += `\n---- Backtrace ----\n${bt}\n-------------------`;
}
// 一次性输出
console.log(log);
try {
//int callback(void* ssl, void* x509_ctx)
const cb = new NativeFunction(cbPtr, 'int', ['pointer', 'pointer']);
// Hook verify callback
Interceptor.attach(cb, {
onLeave(retval) {
console.log(`[Bypass] verify callback from ${moduleName} | cb=${cbPtr}`);
retval.replace(0); // SSL_VERIFY_OK
}
});
} catch (e) {
console.error(`[!] Failed to hook callback @ ${cbPtr}: ${e}`);
}
}
});
});
}调用如下：
// BoringSSL
bypassSslCustomVerify("libttboringssl.so", true); // **系
// Cronet
bypassSslCustomVerify("libsscronet.so", true); // ******日志输出如下：
[+] Hooking SSL_CTX_set_custom_verify @ 0x7932a38b64 in libttboringssl.so
[+] Hooking SSL_CTX_set_custom_verify @ 0x7932a38b64 in libsscronet.so
[Hit] libttboringssl.so -> SSL_CTX_set_custom_verify | caller=libsscronet.so | cb=0x793156a090
---- Backtrace ----
0x7931568abc libsscronet.so!0x2c5abc
0x7931568abc libsscronet.so!0x2c5abc
0x7931568abc libsscronet.so!0x2c5abc
-------------------
[Hit] libsscronet.so -> SSL_CTX_set_custom_verify | caller=libsscronet.so | cb=0x793156a090
---- Backtrace ----
0x7931568abc libsscronet.so!0x2c5abc
0x7931568abc libsscronet.so!0x2c5abc
0x7931568abc libsscronet.so!0x2c5abc
-------------------
[Bypass] verify callback from libttboringssl.so | cb=0x793156a090
[Bypass] verify callback from libsscronet.so | cb=0x793156a090
...
[Hit] libttboringssl.so -> SSL_CTX_set_custom_verify | caller=libvcn.so | cb=0x79311570d8
---- Backtrace ----
0x793115749c libvcn.so!0x1749c
0x793115749c libvcn.so!0x1749c
0x79311515e0 libvcn.so!vcn_url_open_whitelist+0x7a4
0x792e9b6174 libavmdlbase.so!0x164174
0x792e9b54d8 libavmdlbase.so!0x1634d8
0x792e9b46bc libavmdlbase.so!0x1626bc
0x792e9b44e4 libavmdlbase.so!0x1624e4
0x793122fd10 libvcbasekit.so!0x28d10
0x7931229f18 libvcbasekit.so!0x22f18
0x793122966c libvcbasekit.so!0x2266c
0x7a83dc3d38 libc.so!_ZL15__pthread_startPv+0x10c
0x7a83d60580 libc.so!__start_thread+0x48
0x7a83d60580 libc.so!__start_thread+0x48
-------------------
[Hit] libsscronet.so -> SSL_CTX_set_custom_verify | caller=libvcn.so | cb=0x79311570d8
---- Backtrace ----
0x793115749c libvcn.so!0x1749c
0x793115749c libvcn.so!0x1749c
0x79311515e0 libvcn.so!vcn_url_open_whitelist+0x7a4
0x792e9b6174 libavmdlbase.so!0x164174
0x792e9b54d8 libavmdlbase.so!0x1634d8
0x792e9b46bc libavmdlbase.so!0x1626bc
0x792e9b44e4 libavmdlbase.so!0x1624e4
0x793122fd10 libvcbasekit.so!0x28d10
0x7931229f18 libvcbasekit.so!0x22f18
0x793122966c libvcbasekit.so!0x2266c
0x7a83dc3d38 libc.so!_ZL15__pthread_startPv+0x10c
0x7a83d60580 libc.so!__start_thread+0x48
0x7a83d60580 libc.so!__start_thread+0x48
-------------------完整代码开源地址：https://github.com/CYRUS-STUDIO/frida-ssl-pinning-bypass
******地区限制解决办法
虽然现在已经能抓包成功了，但是 ****** 接口是有地区限制的。

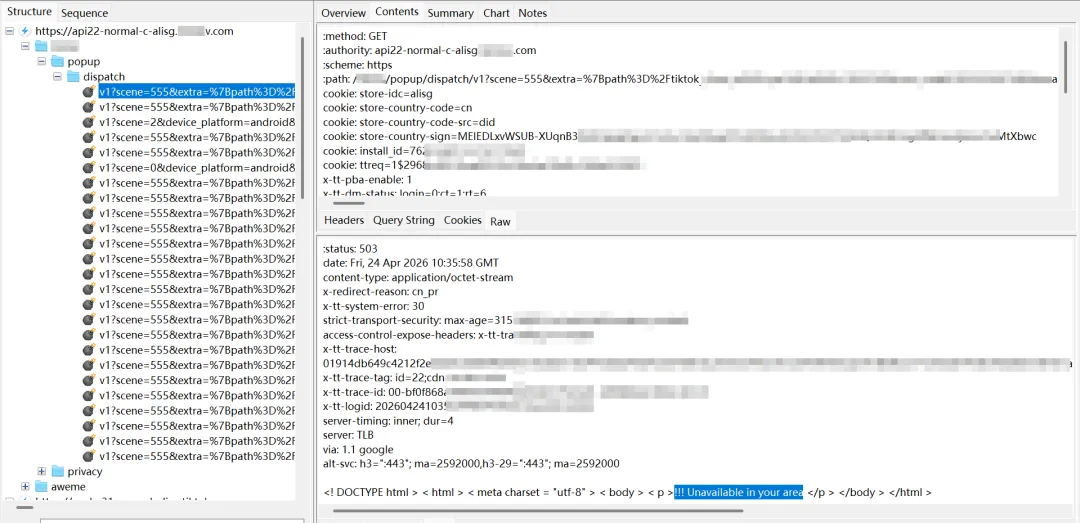

请求接口返回提示如下：
<! DOCTYPE html > < html > < meta charset = "utf-8" > < body > < p >!!! Unavailable in your area </p > </body > </html >解决方案如下：
• 如果sim卡是国内的，拔掉sim卡 • 修改设备语言和时区 • ip切到海外

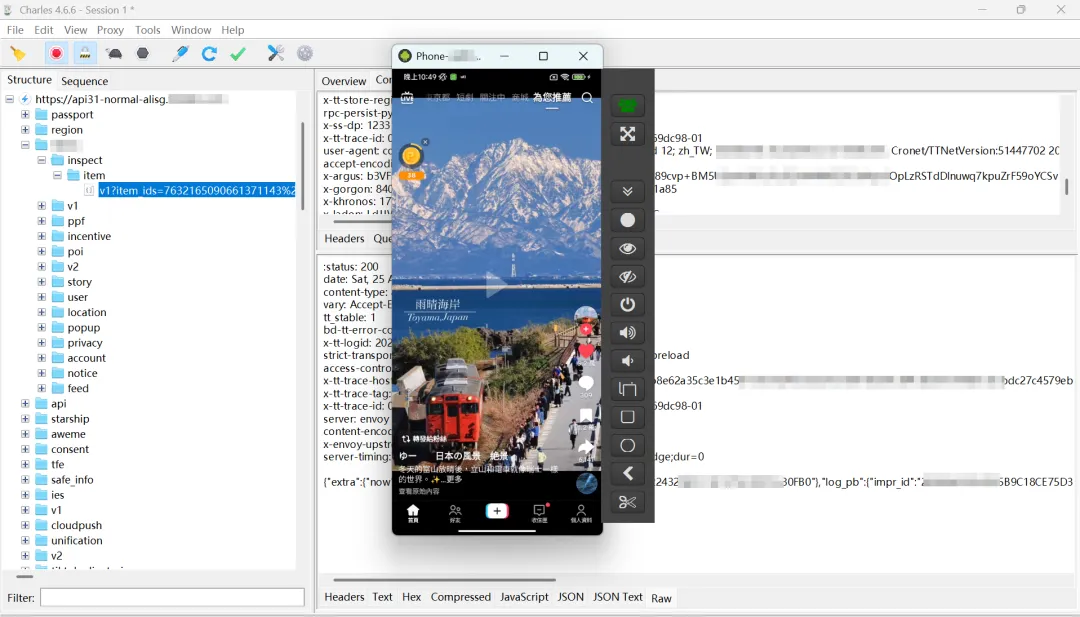

抓包成功
