AutoMQ 在兼容 Kafka 协议与语义的前提下，将本地 Log/Segment 映射为 S3 上的 Stream 存储模型。
本文从 Kafka 数据目录出发，沿 Log → Segment → Stream → S3 这条主线，梳理 AutoMQ 的存储抽象、读写路径与 Compaction 机制。
注：
1）本文基于AutoMQ1.6.6版本，WAL仅支持S3；
2）KIP-1150 Kafka无盘Topic：https://cwiki.apache.org/confluence/display/KAFKA/KIP-1150%3A+Diskless+Topics；
一、Log&Segment&Stream
Kafka的数据目录组织形式如下：
tree -a.├── .kafka_cleanshutdown├── .lock├── Test1-0│ ├── 00000000000000000000.index│ ├── 00000000000000000000.log│ ├── 00000000000000000000.timeindex│ ├── 00000000000000001872.index│ ├── 00000000000000001872.log│ ├── 00000000000000001872.timeindex│ └── leader-epoch-checkpoint├── cleaner-offset-checkpoint├── log-start-offset-checkpoint├── meta.properties├── recovery-point-offset-checkpoint└── replication-offset-checkpointLog：数据目录下的唯一目录={Topic}-{PartitionId}，如Test1-0，存储了该分区的所有数据。Log数据由多个Segment组成，如0000是第一个segment，1872是第二个segment，文件名是该segment的起始offset，如0000存储了offset=[0,1872)共1872条消息。
Segment：每个Segment由4个文件构成
a）log：消息数据文件，追加写，大小超过segment.bytes=1G触发滚动；
b）index：offset索引文件，通过mmap读写，大小=segment.index.bytes=10M，key=相对segment起始offset的offset（4byte），value=消息在log的写入位置（4byte）；
c）timeindex：时间索引文件，通过mmap读写，大小=segment.index.bytes=10M，key=时间戳（8byte），value=相对segment起始offset的offset（4byte）；
d）txnindex：事务索引文件；
leader-epoch-checkpoint：每个Log一份，记录每个分区leader任期的起始offset。
节点级别数据文件：
a）meta.properties：数据和broker+cluster的关联关系；
b）checkpoint文件：记录每个分区不同业务的offset进度；
recovery-point-offset-checkpoint：offset=消息刷盘进度，log.flush.offset.checkpoint.interval.ms=60秒刷盘一次； replication-offset-checkpoint：offset=高水位HW，replica.high.watermark.checkpoint.interval.ms=5秒刷盘一次； log-start-offset-checkpoint：offset=Log Start Offset，log.flush.start.offset.checkpoint.interval.ms=60秒刷盘一次； cleaner-offset-checkpoint：offset=压缩topic分区的处理进度；
c）kafka_cleanshutdown：broker正常关闭标记文件，如果不存在，代表kafka进程异常关闭。
d）lock：文件锁，一个数据目录同时只能有一个进程访问。
Broker侧AutoMQ和Kafka的对应关系如下：

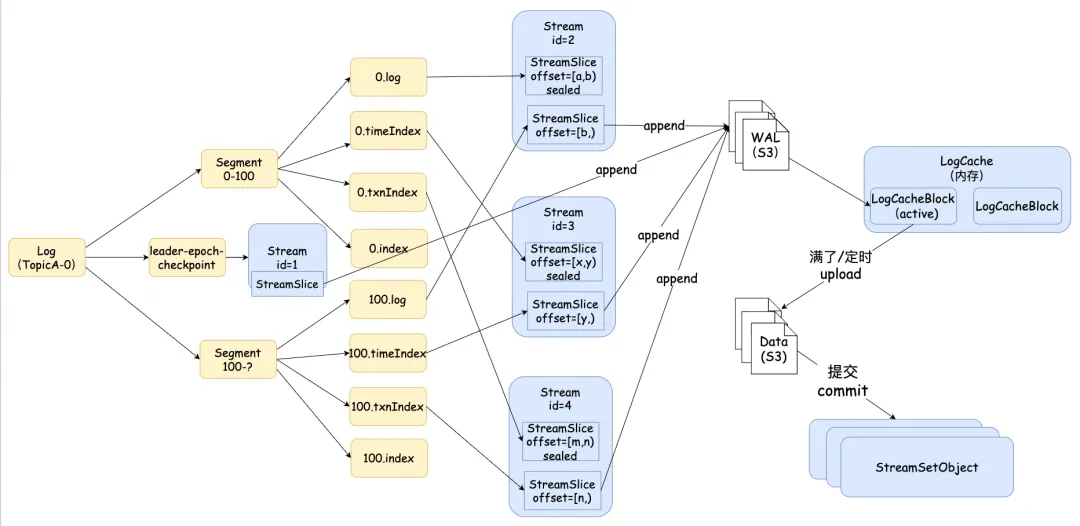

Stream：一个分区Log对应4个Stream，分别是：元数据、数据log、时间索引、事务索引。
publicclassS3StreamimplementsStream, StreamMetadataListener{// idprivatefinallong streamId;// 分区LeaderEpochprivatefinallong epoch;// 起始offsetprivatelong startOffset;// 下一个写入offsetprivatefinal AtomicLong nextOffset;// 已经写入成功的offsetfinal AtomicLong confirmOffset;// S3Storage读写Streamprivatefinal Storage storage;}元数据MetaStream包装Stream，kv存储如：
1）ElasticLogMeta：每个segment的元数据；
2）ElasticPartitionProducerSnapshotsMeta：事务状态快照；
3）ElasticPartitionMeta：对应Kafka数据目录下的checkpoint，只是按照分区拆分了，另外存储cleanedShutdown标记；
4）ElasticLeaderEpochCheckpointMeta：对应Log目录下的leader-epoch-checkpoint，每个LeaderEpoch的起始offset；
publicclassMetaStreamimplementsStream{// ElasticLogMeta publicstaticfinal String LOG_META_KEY = "LOG";// ElasticPartitionProducerSnapshotsMeta publicstaticfinal String PRODUCER_SNAPSHOTS_META_KEY = "PRODUCER_SNAPSHOTS";// ElasticPartitionMetapublicstaticfinal String PARTITION_META_KEY = "PARTITION";// ElasticLeaderEpochCheckpointMetapublicstaticfinal String LEADER_EPOCH_CHECKPOINT_KEY = "LEADER_EPOCH_CHECKPOINT";// S3Stream 实际写S3privatefinal Stream innerStream;// key valueprivatefinal Map<String, MetadataValue> metaCache;}publicclassElasticLogMeta{// log/tim/txn -> segment里的3个stream对应StreamIdprivate Map<String, Long> streamMap = new HashMap<>();// n个segment的元数据private List<ElasticStreamSegmentMeta> segmentMetas = new LinkedList<>();}publicclassElasticStreamSegmentMeta{// segment的baseOffset，以前是看文件名privatelong baseOffset;privatelong createTimestamp;privatelong lastModifiedTimestamp;private String streamSuffix = "";privateint logSize;// log的offset区间private SliceRange log = new SliceRange();// time索引的offset区间private SliceRange time = new SliceRange();// 事务索引的offset区间private SliceRange txn = new SliceRange();privatelong firstBatchTimestamp;private TimestampOffsetData timeIndexLastEntry = new TimestampOffsetData();}StreamSlice：Stream切片，一个Stream包含多个StreamSlice，一个StreamSlice对应一段数据区间。
对于Segment来说，一个Segment里的一个文件（如log文件）对应一个StreamSlice，只有最新的Slice可以写入（sealed=false）。
publicclassDefaultElasticStreamSliceimplementsElasticStreamSlice{privatefinallong startOffsetInStream;// 通过Stream写入数据privatefinal Stream stream;privatelong endOffset = Offsets.NOOP_OFFSET;// 是否封存privateboolean sealed = false;// 写public CompletableFuture<AppendResult> append(AppendContext context, RecordBatch recordBatch){if (sealed) {return FutureUtil.failedFuture(); }return stream.append(context, recordBatch).thenApply(AppendResultWrapper::new); }// 读public CompletableFuture<FetchResult> fetch(FetchContext context, long startOffset, long endOffset, int maxBytesHint){long fixedStartOffset = Utils.max(startOffset, 0);return stream.fetch(context, startOffsetInStream + fixedStartOffset, startOffsetInStream + endOffset, maxBytesHint) .thenApply(FetchResultWrapper::new); }}二、Stream管理
Stream元数据会存储在Controller里，内存中的形式如下：
publicclassStreamControlManager{// 自增streamId -> createStreamprivatefinal TimelineLong nextAssignedStreamId;// streamId -> Stream元数据privatefinal TimelineHashMap<Long, StreamRuntimeMetadata> streamsMetadata;}publicclassStreamRuntimeMetadata{privatefinallong streamId;// leaderEpochprivatefinal TimelineLong currentEpoch;// rangeIndex自增生成器privatefinal TimelineInteger currentRangeIndex;// 起始offsetprivatefinal TimelineLong startOffset;// 结束offsetprivatefinal TimelineLong endOffset;// CLOSE or OPENprivatefinal TimelineObject<StreamState> currentState;// tagsprivate Map<String, String> tags;// rangeIndex -> range元数据privatefinal TimelineHashMap<Integer, RangeMetadata> ranges;// objectId -> streamId+startOffset+endOffsetprivatefinal TimelineHashMap<Long, S3StreamObject> streamObjects;}publicclassRangeMetadataimplementsComparable<RangeMetadata> {privatelong streamId;// 创建这个range的leaderEpochprivatelong epoch;privateint rangeIndex;privatelong startOffset;privatelong endOffset;// 独占这个range的节点idprivateint nodeId;}publicclassS3StreamObject{privatefinallong objectId;privatefinallong streamId;privatefinallong startOffset;privatefinallong endOffset;}ElasticLog.apply：重写Kafka的LocalLog，Broker成为某个分区Leader，需要创建Partition，触发创建&开启MetaStream，用于读写分区元数据。
defapply(...): ElasticLog = {val key = formatStreamKey(namespace, topicPartition, topicId)// 【1】topicPartition->streamId(MetaStream)val value = client.kvClient().getKV(KeyValue.Key.of(key)).get()val topicIdStr: String = topicId.map(u => u.toString).getOrElse(topicPartition.topic())var partitionMeta: ElasticPartitionMeta = nullval metaNotExists = value.isNullvar metaStream: MetaStream = nullvar logStreamManager: ElasticLogStreamManager = nullval replicationFactor = 1val streamTags = new util.HashMap[String, String]() streamTags.put(StreamTags.Topic.KEY, topicIdStr) streamTags.put(StreamTags.Partition.KEY, StreamTags.Partition.encode(topicPartition.partition()))try {// 【2】MetaStream(S3Stream) kv存储stream metaStream = if (metaNotExists) {// 没创建stream，分配streamId并存储，开启Streamval stream = createMetaStream(client, key, replicationFactor, leaderEpoch, streamTags, logIdent = logIdent) stream } else {// 已经创建了stream，从kv获取分区对应MetaStream的streamIdval metaStreamId = Unpooled.wrappedBuffer(value.get()).readLong()// 请求Controller开启Stream，当前节点独占Stream CLOSE->OPEN val stream = client.streamClient().openStream(metaStreamId, OpenStreamOptions.builder().epoch(leaderEpoch).tags(streamTags).build())// S3Stream -> MetaStream(S3Stream) .thenApply(stream => newMetaStream(stream, META_SCHEDULE_EXECUTOR, logIdent)) .get() stream }// MetaStream 读当前分区的元数据流，恢复内存元数据val metaMap = metaStream.replay().asScala// MetaStream checkpoint数据val partitionMetaOpt = metaMap.get(MetaStream.PARTITION_META_KEY).map(m => m.asInstanceOf[ElasticPartitionMeta])// MetaStream 事务状态快照val producerSnapshotsMeta = metaMap.get(MetaStream.PRODUCER_SNAPSHOTS_META_KEY).map(m => m.asInstanceOf[ElasticPartitionProducerSnapshotsMeta]).getOrElse(newElasticPartitionProducerSnapshotsMeta())// MetaStream 每个segment的元数据val logMeta: ElasticLogMeta = metaMap.get(MetaStream.LOG_META_KEY).map(m => m.asInstanceOf[ElasticLogMeta]).getOrElse(newElasticLogMeta())// streamName(log/tim/txn) -> S3Stream logStreamManager = newElasticLogStreamManager(...)// streamName(log/tim/txn) -> DefaultElasticStreamSlice(S3Stream、startOffsetInStream、endOffset)val streamSliceManager = newElasticStreamSliceManager(logStreamManager)// Map<Long, ElasticLogSegment> segmentsval logSegmentManager = newElasticLogSegmentManager(...)val segments = newCachedLogSegments(topicPartition)// 【3】重写kafka的LogLoader，加载Segment（StreamSlice）val offsets = newElasticLogLoader(...).load()// MetaStream 分区leader的checkpointval leaderEpochCheckpointMetaOpt = metaMap.get(MetaStream.LEADER_EPOCH_CHECKPOINT_KEY).map(m => m.asInstanceOf[ElasticLeaderEpochCheckpointMeta])val elasticLog = newElasticLog(...)if (partitionMeta.getCleanedShutdown) { partitionMeta.setCleanedShutdown(false) elasticLog.persistPartitionMeta() } elasticLog }}ElasticLog.createMetaStream：因为MetaStream只是在S3Stream上封装了自己的KV存储逻辑，所以和普通Stream创建和使用逻辑一致。
1）createStream：请求Controller申请唯一streamId；
2）openStream：请求Controller，传入streamId/nodeId/leaderEpoch，Controller标记Stream开启，创建一个新的StreamRange区间，该区间属于当前nodeId，返回Stream的起始offset和写入offset（比如对于log的Stream，就是logStartOffset和logEndOffset-LEO），Broker构建S3Stream；
3）putKVIfAbsent：针对MetaStream，把partition和streamId的关系存储到Controller，下次分区Leader可以再次获取到该MetaStream。其他如log和索引Stream，通过MetaStream中的ElasticLogMeta可以定位自己的streamId，不需要这一步；
private[streamaspect] defcreateMetaStream(client: Client, key: String, replicaCount: Int, leaderEpoch: Long, streamTags: util.Map[String, String], logIdent: String): MetaStream = {val options = CreateStreamOptions.builder().replicaCount(replicaCount).epoch(leaderEpoch) streamTags.forEach((k, v) => options.tag(k, v))val metaStream = client.streamClient().createAndOpenStream(options.build()) .thenApply(stream => newMetaStream(stream, META_SCHEDULE_EXECUTOR, logIdent)) .get()val streamId = metaStream.streamId()val valueBuf = ByteBuffer.allocate(8) valueBuf.putLong(streamId) valueBuf.flip() client.kvClient().putKVIfAbsent(KeyValue.of(key, valueBuf)).get() metaStream}// S3StreamClient#createAndOpenStreampublic CompletableFuture<Stream> createAndOpenStream(CreateStreamOptions options) {return runInLock(() -> { checkState();TimerUtil timerUtil = newTimerUtil();// 1. 从controller申请streamIdreturnFutureUtil.exec(() -> streamManager.createStream(options.tags()).thenCompose(streamId -> {// 2. 请求controller stream open，内存创建S3Streamreturn openStream0(streamId, options.epoch(), options.tags(), OpenStreamOptions.builder().epoch(options.epoch()).tags(options.tags()).build()); }), LOGGER, "createAndOpenStream"); });}下面看一下对应Segment纬度的StreamSlice，多种场景下会创建Segment：
1）Log下没有Segment，即MetaStream中ElasticLogMeta为空，创建新的Segment；
2）与1相反，从ElasticLogMeta中恢复n个Segment；
3）写Log触发Segment滚动；
ElasticLog.createAndSaveSegment：创建Segment，baseOffset=Segment的起始offset，Kafka中Segment的baseOffset提现在文件名上。
privatedefcreateAndSaveSegment(logSegmentManager: ElasticLogSegmentManager, suffix: String = "", logIdent: String) (baseOffset: Long, dir: File, config: LogConfig, streamSliceManager: ElasticStreamSliceManager, time: Time) : (ElasticLogSegment, CompletableFuture[Void]) = {val meta = newElasticStreamSegmentMeta() meta.baseOffset(baseOffset) meta.streamSuffix(suffix) meta.createTimestamp(time.milliseconds())// 创建Segmentval segment: ElasticLogSegment = newElasticLogSegment(dir, meta, streamSliceManager, config, time, logSegmentManager.logSegmentEventListener(), logIdent)var metaSaveCf: CompletableFuture[Void] = CompletableFuture.completedFuture(null)// 持久化segment元数据到metastream metaSaveCf = logSegmentManager.create(baseOffset, segment) (segment, metaSaveCf)}// ElasticLogSegmentManagerfinalMap<Long, ElasticLogSegment> segments = newHashMap<>();public CompletableFuture<Void> create(long baseOffset, ElasticLogSegment segment) {// 内存管理segments segments.put(baseOffset, segment);// 持久化MetaStreamreturn asyncPersistLogMeta();}ElasticLogSegment：一个Segment=log+时间索引+事务索引3个StreamSlice=3个分区纬度的Stream里的一段。
publicclassElasticLogSegmentextendsLogSegmentimplementsComparable<ElasticLogSegment> {// segment元数据privatefinal ElasticStreamSegmentMeta meta;privatefinallong baseOffset;// log StreamSliceprivatefinal ElasticLogFileRecords log;// 时间索引 StreamSliceprivatefinal ElasticTimeIndex timeIndex;// 事务索引 StreamSliceprivatefinal ElasticTransactionIndex txnIndex;publicElasticLogSegment( File dir, ElasticStreamSegmentMeta meta, ElasticStreamSliceManager sm, LogConfig logConfig, Time time, ElasticLogSegmentEventListener segmentEventListener, String logIdent )throws IOException {super(null, null, null, null, meta.baseOffset(), logConfig.indexInterval, logConfig.segmentJitterMs, time);this.meta = meta; baseOffset = meta.baseOffset(); String suffix = meta.streamSuffix();// log的StreamSlice log = new ElasticLogFileRecords(sm.loadOrCreateSlice("log" + suffix, meta.log()), baseOffset, meta.logSize());// 时间索引的StreamSlice TimestampOffset lastTimeIndexEntry = meta.timeIndexLastEntry().toTimestampOffset(); timeIndex = new ElasticTimeIndex( LogFileUtils.timeIndexFile(dir, baseOffset, suffix), baseOffset, logConfig.maxIndexSize,new DefaultStreamSliceSupplier(sm, "tim" + suffix, meta.time()), lastTimeIndexEntry, timeCache );// 事务索引的StreamSlice txnIndex = new ElasticTransactionIndex( baseOffset, LogFileUtils.transactionIndexFile(dir, baseOffset, suffix),new DefaultStreamSliceSupplier(sm, "txn" + suffix, meta.txn()), txnCache ); }ElasticStreamSliceManager.loadOrCreateSlice：加载或创建StreamSlice。
如果是新Segment（不是从MetaStream恢复的），创建新StreamSlice。
如果Stream不存在，级联触发Stream创建（获取streamId，开启Stream）；如果Stream存在，触发Stream开启（当前节点获取一个新的Stream Range区间）。
privatefinal Map<String, ElasticStreamSlice> lastSlices = new ConcurrentHashMap<>();privatefinal ElasticLogStreamManager streamManager;public ElasticStreamSlice loadOrCreateSlice(String streamName, SliceRange sliceRange)throws IOException {if (sliceRange.start() == Offsets.NOOP_OFFSET) {return newSlice(streamName); }returnnew DefaultElasticStreamSlice(streamManager.getStream(streamName), sliceRange);}public ElasticStreamSlice newSlice(String streamName)throws IOException {// 关闭stream中上一个slice（segment），不能再写入数据 ElasticStreamSlice lastSlice = lastSlices.get(streamName);if (lastSlice != null) { lastSlice.seal(); }// 创建新slice，区间为[-1,-1] Stream stream = streamManager.getStream(streamName); ElasticStreamSlice streamSlice = new DefaultElasticStreamSlice(stream, SliceRange.of(Offsets.NOOP_OFFSET, Offsets.NOOP_OFFSET)); lastSlices.put(streamName, streamSlice);return streamSlice;}// ElasticLogStreamManager// key=log/tim/txn value=s3streamprivatefinal Map<String, LazyStream> streamMap = new ConcurrentHashMap<>();public LazyStream getStream(String name)throws IOException {if (streamMap.containsKey(name)) {return streamMap.get(name); } LazyStream lazyStream = new LazyStream(name, LazyStream.NOOP_STREAM_ID, streamClient, replicaCount, epoch, tags, snapshotRead); lazyStream.setListener(innerListener);// log和时间索引，立即创建或开启S3Streamboolean warmUp = "log".equals(name) || "tim".equals(name);if (warmUp) { lazyStream.warmUp(); } streamMap.put(name, lazyStream);return lazyStream;}后续数据写入，即找到最后一个Segment→3个StreamSlice→3个Stream。
三、写
3-1、写Write-Ahead Log
3-1-1、写入路径：Log→Segment→Stream→S3Storage
Partition.appendRecordsToLeader：AutoMQ写入口
defappendRecordsToLeader(...): LogAppendInfo = {val (info, leaderHWIncremented) = inReadLock(leaderIsrUpdateLock) { leaderLogIfLocal match {caseSome(leaderLog) =>// 写logval info = leaderLog.appendAsLeader(...) }}ElasticLog.append：写入主流程。
1）找到最后一个Segment写入消息---异步任务；
2）更新LEO，不等Segment写入完成；
3）Segment写入完成后(cf完成)，更新confirmOffset；
4）confirmOffset更新成功，回调Partition.handleLeaderConfirmOffsetMove，更新高水位HW=confirmOffset，响应挂起的acks=-1的生产者请求；
// lastOffset=records最后一条消息的offsetoverrideprivate[log] defappend(lastOffset: Long, records: MemoryRecords): Unit = {val activeSegment = segments.activeSegment// 写segment activeSegment.append(lastOffset, records)val endOffset = lastOffset + 1// 不等wal写入完成，就更新LEO updateLogEndOffset(endOffset)val cf = activeSegment.asInstanceOf[ElasticLogSegment].asyncLogFlush() cf.whenComplete((_, _) => {APPEND_PERMIT_SEMAPHORE.release(permit) }) cf.thenAccept(_ => { breakable {// 写segment完成后触发cf,更新confirmOffsetwhile (true) {val offset = _confirmOffset.get()if (offset.messageOffset < endOffset) { _confirmOffset.compareAndSet(offset, newLogOffsetMetadata(endOffset, activeSegment.baseOffset, activeSegment.size)) notify = true } else {break() } } }// 调用Partition.handleLeaderConfirmOffsetMoveif (notify) { appendAckQueue.offer(endOffset) lastAppendAckFuture = appendAckThread.submit(newRunnable {overridedefrun(): Unit = { appendCallback(startNanos) } }) } })}privatedefappendCallback(startNanos: Long): Unit = {// Partition.handleLeaderConfirmOffsetMove confirmOffsetChangeListener.foreach(_.apply())}// Partition.handleLeaderConfirmOffsetMoveprivatedefhandleLeaderConfirmOffsetMove(): Unit = { log match {caseSome(leaderLog) =>// 更新HW=confirmOffsetif (maybeIncrementLeaderHW(leaderLog)) {// 响应客户端（acks=-1） tryCompleteDelayedRequests() } }}privatedefmaybeIncrementLeaderHW(leaderLog: UnifiedLog, currentTimeMs: Long = time.milliseconds): Boolean = { leaderLog match {case elasticLog: ElasticUnifiedLog =>val confirmOffset = elasticLog.confirmOffset() newHighWatermark = confirmOffsetthis.confirmOffset = confirmOffset.messageOffsetcase _ => }// ...}ElasticLogSegment.append：Segment写入，最终调用StreamSlice（Stream）写入。
AutoMQ没有offset索引，只有时间索引，且索引间隔从4KB放大到1MB。
// StreamSliceprivatefinal ElasticLogFileRecords log;// StreamSliceprivatefinal ElasticTimeIndex timeIndex;publicvoidappend(long largestOffset, MemoryRecords records)throws IOException {if (records.sizeInBytes() > 0) {// append the messageslong appendedBytes = log.append(records, largestOffset + 1);for (RecordBatch batch : records.batches()) {// ...// index.interval.bytes=1MB (kafka 4kb)if (bytesSinceLastIndexEntry > indexIntervalBytes) { timeIndex().maybeAppend(maxTimestampSoFar(), shallowOffsetOfMaxTimestampSoFar()); bytesSinceLastIndexEntry = 0; } } }}// ElasticLogFileRecordsprivatefinal ElasticStreamSlice streamSlice;publicintappend(MemoryRecords records, long lastOffset)throws IOException {int appendSize = records.sizeInBytes();int count = (int) (lastOffset - nextOffset()); com.automq.stream.DefaultRecordBatch batch = new com.automq.stream.DefaultRecordBatch(count, 0, Collections.emptyMap(), records.buffer()); AppendContext context = new AppendContext(); CompletableFuture<?> cf;// streamSlice写 cf = streamSlice.append(context, batch);}// ElasticStreamSliceprivatefinal Stream stream;public CompletableFuture<AppendResult> append(AppendContext context, RecordBatch recordBatch){if (sealed) {return FutureUtil.failedFuture(); }return stream.append(context, recordBatch).thenApply(AppendResultWrapper::new);}S3Stream.append0：在消息批次外额外封装一层StreamRecordBatch，追加streamId、epoch-leaderEpoch、baseOffset-批次起始offset、count-消息数量，调用S3Storage写入。
// S3Storageprivatefinal Storage storage;private CompletableFuture<AppendResult> append0(AppendContext context, RecordBatch recordBatch){long offset = nextOffset.getAndAdd(recordBatch.count()); StreamRecordBatch streamRecordBatch = StreamRecordBatch.of(streamId, epoch, offset, recordBatch.count(), Unpooled.wrappedBuffer(recordBatch.rawPayload())); CompletableFuture<AppendResult> cf = storage.append(context, streamRecordBatch).thenApply(nil -> { updateConfirmOffset(offset + recordBatch.count());returnnew DefaultAppendResult(offset); });}publicstatic StreamRecordBatch of(long streamId, long epoch, long baseOffset, int count, ByteBuf payload, ByteBufSupplier alloc){int totalLength = HEADER_SIZE + payload.readableBytes(); ByteBuf buf = alloc.alloc(totalLength); buf.writeByte(MAGIC_V0); buf.writeLong(streamId); buf.writeLong(epoch); buf.writeLong(baseOffset); buf.writeInt(count); buf.writeInt(payload.readableBytes()); buf.writeBytes(payload); payload.release();returnnew StreamRecordBatch(buf);}3-1-2、聚合写入&对象布局
S3Storage.append：消息封装WAL请求，写S3。
privatefinal WriteAheadLog deltaWAL;public CompletableFuture<Void> append(AppendContext context, StreamRecordBatch streamRecord){finallong startTime = System.nanoTime(); CompletableFuture<Void> cf = new CompletableFuture<>(); WalWriteRequest writeRequest = new WalWriteRequest(streamRecord, null, cf, context); append0(context, writeRequest, false);return cf.whenComplete((nil, ex) -> { });}publicbooleanappend0(AppendContext context, WalWriteRequest request, boolean fromBackoff){ CompletableFuture<AppendResult> appendCf;try {try { StreamRecordBatch streamRecord = request.record; streamRecord.retain();// 写s3 appendCf = deltaWAL.append(new TraceContext(context), streamRecord); } catch (OverCapacityException e) {// 触发wal upload写真实数据 maybeForceUpload();returntrue; } } catch (Throwable e) { request.cf.completeExceptionally(e);returnfalse; } appendCf.thenAccept(rst -> {// 缓存到LogCache（L1读缓存） handleAppendCallback(request); });returnfalse;}DefaultWriter.append0：多个Stream会调用公共的WAL服务写入数据，多个Stream的数据可能合并到一个Bulk中。每个Bulk可能由于容量（8MB软限制、64MB硬限制）或延迟（10-250ms），刷写到S3中的某个WAL对象。
private Bulk activeBulk = null;public CompletableFuture<AppendResult> append0( StreamRecordBatch streamRecordBatch)throws OverCapacityException, WALFencedException {// 1g没wal没写，异常，触发upload，写s3 dataif (bufferedDataBytes.get() > config.maxUnflushedBytes()) {thrownew OverCapacityException(); }int dataSize = streamRecordBatch.encoded().readableBytes() + RecordHeader.RECORD_HEADER_SIZE; Record record = new Record(streamRecordBatch, new CompletableFuture<>()); lock.writeLock().lock();try {if (activeBulk == null) { activeBulk = new Bulk(nextOffset.get()); }// 如果加上新批次，超出64mb，老bulk必须先写s3 wal，让新批次加入新bulkif (dataSize + activeBulk.size > DATA_FILE_ALIGN_SIZE) { uploadActiveBulk();this.activeBulk = new Bulk(nextOffset.get()); } bufferedDataBytes.addAndGet(dataSize);// wal加入内存bulk，攒批写s3 wal activeBulk.add(record);// bulk+新批次 > 8mb，bulk写s3 walif (activeBulk.size > config.maxBytesInBatch()) { uploadActiveBulk(); } } finally { lock.writeLock().unlock(); }return record.future.whenComplete((v, throwable) -> { bufferedDataBytes.addAndGet(-dataSize); });}classBulk{privateint size;privatefinallong baseOffset;privatefinal List<Record> records = new ArrayList<>(1024);privatefinallong startNanos;final CompletableFuture<ObjectStorage.WriteResult> uploadCf = new CompletableFuture<>();final CompletableFuture<Void> completeCf = new CompletableFuture<>();publicBulk(long baseOffset){this.startNanos = time.nanoseconds();this.baseOffset = baseOffset;long forceUploadDelayNanos = Math.min( Math.max(// 10ms minBulkUploadIntervalNanos, lastBulkForceUploadNanos + batchNanos - startNanos ),// 250ms batchNanos); lastBulkForceUploadNanos = startNanos + forceUploadDelayNanos; SCHEDULE.schedule(() -> forceUploadBulk(this), forceUploadDelayNanos, TimeUnit.NANOSECONDS); }}DefaultWriter.uploadBulk0：构造WAL对象，多个Stream中的数据记录StreamRecordBatch按照顺序排列写入。如果Producer的acks=-1(all)，WAL写成功后执行callback，更新confirmOffset，才响应所有相关客户端。
注：acks=1，只要提交wal异步任务，就会更新LEO，直接响应客户端成功，见ElasticLog.append和ReplicaManager.delayedProduceRequestRequired。
privatevoiduploadBulk0(Bulk bulk){try {long startTime = time.nanoseconds();// n个stream的数据按照<streamId, offset>排序 List<Record> records = bulk.records;// ... CompositeByteBuf objectBuffer = ByteBufAlloc.compositeByteBuffer();// ...// endOffset向上对齐到64MiB nextOffset = ObjectUtils.ceilAlignOffset(nextOffset);long endOffset = nextOffset; ObjectStorage.WriteOptions writeOptions = new ObjectStorage.WriteOptions().enableFastRetry(true);// 对象存储key String path = String.format(OBJECT_PATH_FORMAT, objectPrefix, firstOffset, endOffset); FutureUtil.propagate(objectStorage.write(writeOptions, path, objectBuffer), bulk.uploadCf);long finalLastRecordOffset = lastRecordOffset; bulk.uploadCf.whenCompleteAsync((rst, ex) -> {// 这里触发响应客户端 callback(); }, callbackExecutor); } catch (Throwable ex) { bulk.uploadCf.completeExceptionally(ex); }}WAL对象：

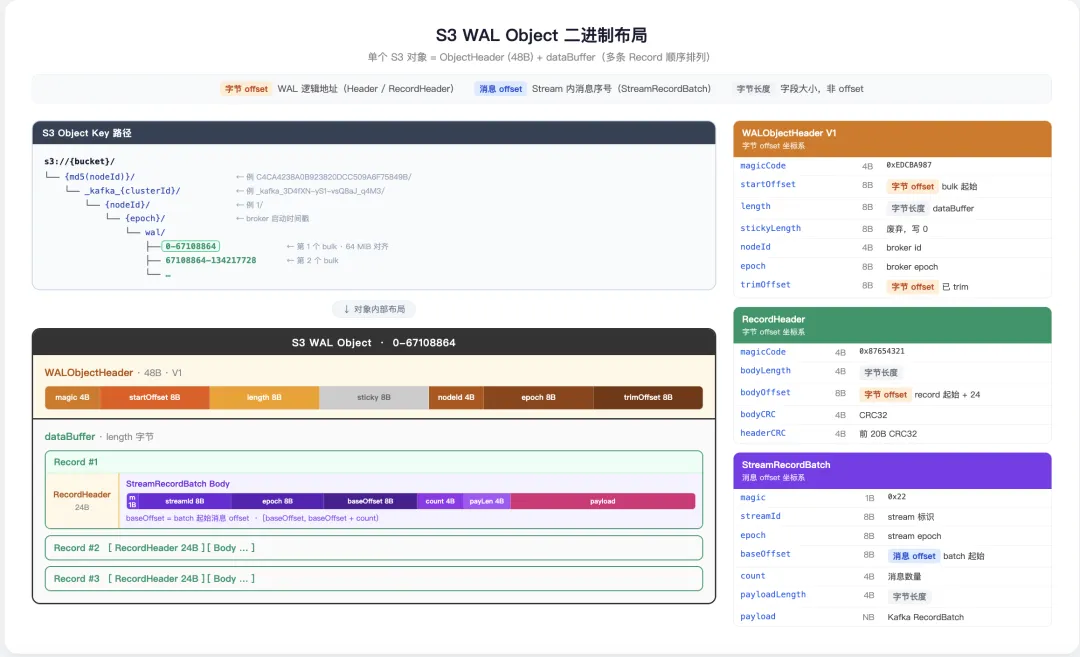

1）key=md5({node.id})/_kafka_{cluster.id}/{node.id}/{启动时间}/wal/{firstOffset}-{endOffset} ，如WAL对象0-67108864可能实际只有8MiB，但是命名会和64MiB对齐；

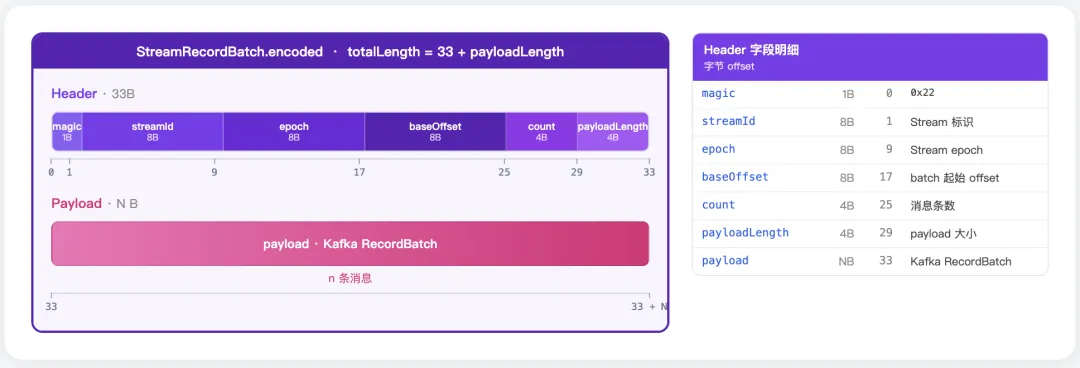

2）value=WALObjectHeader+RecordHeader[0]+StreamRecordBatch[0]+…+RecordHeader[n]+StreamRecordBatch[n]。
3-1-3、WAL缓存-LogCache
S3Storage.handleAppendCallback：WAL对象写入成功，将数据缓存到LogCache，用于加速读。
privatefinal LogCache deltaWALCache;privatevoidhandleAppendCallback(WalWriteRequest request){ request.record.retain();boolean full;// wal中的数据放到缓存里，加速读synchronized (deltaWALCache) { full = deltaWALCache.put(request.record); deltaWALCache.setLastRecordOffset(request.offset); }// 如果缓存满了，触发真实data写，写完可以清理wal对象和内存缓存if (full) { uploadDeltaWAL(); }// ...}LogCache：维护了blocks列表，列表中最后一个LogCacheBlock是可以写入的缓存块，即activeBlock。StreamRecordBatch会整个放入activeBlock缓存。
publicclassLogCache{// 缓存 老wal->新walfinal List<LogCacheBlock> blocks = new ArrayList<>();// 活跃的block，可以把最近的wal加入这里private LogCacheBlock activeBlock;// LogCache缓存字节大小// Math.max(堆内存/2/ 3, (堆内存/2 - 3L * 1024 * 1024 * 1024) / 3 * 2) // 或 s3.wal.cache.sizeprivatefinallong capacity;// 每个LogCacheBlock缓存字节大小// math.min(capacity / 3, 500L * 1024 * 1024)privatefinallong cacheBlockMaxSize;// 每个LogCacheBlock中stream数量上限// s3.max.stream.num.per.stream.set.object=20000privatefinalint maxCacheBlockStreamCount;// 最后一个批次在S3里的起始offset（字节）private RecordOffset lastRecordOffset;publicbooleanput(StreamRecordBatch recordBatch){// 尝试释放已经归档的blocks，保证缓存容量90%且blocks数量小于65 tryRealFree(); size.addAndGet(recordBatch.occupiedSize()); readLock.lock();boolean full;try {// 加入缓存 full = activeBlock.put(recordBatch); } finally { readLock.unlock(); }return full; }}publicstaticclassLogCacheBlock{final Map<Long, StreamCache> map = new ConcurrentHashMap<>();privatefinal AtomicLong size = new AtomicLong();// true-当前block需要upload，wal->datapublicbooleanput(StreamRecordBatch recordBatch){ map.compute(recordBatch.getStreamId(), (id, cache) -> {if (cache == null) { cache = new StreamCache(); } cache.add(recordBatch);return cache; }); size.addAndGet(recordBatch.occupiedSize());return isFull(); }publicbooleanisFull(){// 超出cacheBlockMaxSize 或 maxCacheBlockStreamCountreturn size.get() >= maxSize || map.size() >= maxStreamCount; }}staticclassStreamCache{ List<StreamRecordBatch> records;long startOffset = NOOP_OFFSET;long endOffset = NOOP_OFFSET; Map<Long, IndexAndCount> offsetIndexMap = new HashMap<>();synchronizedvoidadd(StreamRecordBatch recordBatch){ records.add(recordBatch);if (startOffset == NOOP_OFFSET) { startOffset = recordBatch.getBaseOffset(); } endOffset = recordBatch.getLastOffset(); }}3-2、写数据对象
activeBlock（LogCacheBlock）包含了多个S3中的wal对象，最终需要将这些wal对象写入data对象，清除wal。
3-2-1、触发时机&主流程
触发路径1，activeBlock满了，S3Storage.handleAppendCallback→S3Storage.uploadDeltaWAL。
privatevoidhandleAppendCallback(WalWriteRequest request){boolean full;synchronized (deltaWALCache) { full = deltaWALCache.put(request.record); deltaWALCache.setLastRecordOffset(request.offset); }if (full) { uploadDeltaWAL(); }}触发路径2，每隔s3.wal.upload.interval.ms=60000对当前activeBlock触发一次，S3Storage.maybeForceUpload→S3Storage.uploadDeltaWAL。
publicS3Storage(...){if (config.walUploadIntervalMs() > 0) {this.backgroundExecutor.scheduleWithFixedDelay(this::maybeForceUpload, config.walUploadIntervalMs(), config.walUploadIntervalMs(), TimeUnit.MILLISECONDS); }}S3Storage.uploadDeltaWAL：wal转data主流程
1）创建新activeBlock用于后续wal缓存写入，老activeBlock需要上传s3；
2）DeltaWALUploadTaskContext-上下文，DefaultUploadWriteAheadLogTask-上传任务；
3）DefaultUploadWriteAheadLogTask上传三步骤：prepare-从controller获取objectId，upload-上传data对象，commit-上传data对象提交元数据到controller；
CompletableFuture<Void> uploadDeltaWAL(long streamId, boolean force){ CompletableFuture<Void> cf;synchronized (deltaWALCache) {// 创建新activeBlock，返回老activeBlock Optional<LogCache.LogCacheBlock> blockOpt = deltaWALCache.archiveCurrentBlockIfContains(streamId);if (blockOpt.isPresent()) { LogCache.LogCacheBlock logCacheBlock = blockOpt.get(); DeltaWALUploadTaskContext context = new DeltaWALUploadTaskContext(logCacheBlock); context.objectManager = this.objectManager; context.force = force; cf = uploadDeltaWAL(context); } else { cf = CompletableFuture.completedFuture(null); } }return cf;}CompletableFuture<Void> uploadDeltaWAL(DeltaWALUploadTaskContext context){ CompletableFuture<Void> cf = new CompletableFuture<>(); context.cf = cf; backgroundExecutor.execute(() -> FutureUtil.exec(() -> uploadDeltaWAL0(context), cf, LOGGER, "uploadDeltaWAL"));return cf;}privatevoiduploadDeltaWAL0(DeltaWALUploadTaskContext context){ context.task = newUploadWriteAheadLogTask(context.cache.records(), objectManager, rate);// prepare -> upload -> commit prepareDeltaWALUpload(context);}protected UploadWriteAheadLogTask newUploadWriteAheadLogTask(Map<Long, List<StreamRecordBatch>> streamRecordsMap, ObjectManager objectManager, double rate){return DefaultUploadWriteAheadLogTask.builder().config(config).streamRecordsMap(streamRecordsMap) .objectManager(objectManager).objectStorage(objectStorage).executor(uploadWALExecutor).rate(rate).build();}privatevoidprepareDeltaWALUpload(DeltaWALUploadTaskContext context){// 1. prepare-从controller获取objectId（自增id） context.task.prepare().thenAcceptAsync(nil -> {// 2. upload wal转data 上传s3 DeltaWALUploadTaskContext peek = walPrepareQueue.poll(); Objects.requireNonNull(peek).task.upload();// 3. commit wal转data 提交到controller commitDeltaWALUpload(peek);// 4. 处理下一个任务 DeltaWALUploadTaskContext next = walPrepareQueue.peek();if (next != null) { prepareDeltaWALUpload(next); } }, backgroundExecutor);}3-2-2、prepare-获取objectId
DefaultUploadWriteAheadLogTask.prepare：第一步，从controller获取objectId（自增id）
这一步非必须，如果本次WAL里只有一个Stream，将在upload阶段获取objectId。见DefaultUploadWriteAheadLogTask.Builder.build，设置forceSplit。
public CompletableFuture<Long> prepare(){ startTimestamp = System.currentTimeMillis();if (forceSplit) { prepareCf.complete(NOOP_OBJECT_ID); } else { objectManager// 1代表获取一个id .prepareObject(1, TimeUnit.MINUTES.toMillis(60)) .thenAcceptAsync(prepareCf::complete, executor) .exceptionally(ex -> { prepareCf.completeExceptionally(ex);returnnull; }); }return prepareCf;}3-2-3、upload-wal转data写S3
DefaultUploadWriteAheadLogTask.upload0：第二步，把activeBlock中的数据真实写S3的data bucket，构造CommitStreamSetObjectRequest供第三步提交到Controller记录元数据。
// streamId -> activeBlock中的StreamRecordBatchprivatefinal Map<Long, List<StreamRecordBatch>> streamRecordsMap;voidupload0(long objectId){ uploadTimestamp = System.currentTimeMillis(); List<Long> streamIds = new ArrayList<>(streamRecordsMap.keySet()); Collections.sort(streamIds); CommitStreamSetObjectRequest request = new CommitStreamSetObjectRequest(); ObjectWriter streamSetObject;if (forceSplit) { streamSetObject = ObjectWriter.noop(objectId); } else { streamSetObject = ObjectWriter.writer(objectId, objectStorage, objectBlockSize, objectPartSize); } List<CompletableFuture<Void>> streamObjectCfList = new LinkedList<>(); List<CompletableFuture<Void>> streamSetWriteCfList = new LinkedList<>();for (Long streamId : streamIds) { List<StreamRecordBatch> streamRecords = streamRecordsMap.get(streamId);int streamSize = streamRecords.stream().mapToInt(StreamRecordBatch::size).sum();if (forceSplit || streamSize >= streamSplitSizeThreshold) {// forceSplit=true --- 当前上传的LogCacheBlock里只有一个stream// stream>16MB，1个stream作为StreamObject直接上传，需要获取独立objectId streamObjectCfList.add(writeStreamObject(streamRecords, streamSize).thenAccept(so -> {synchronized (request) { request.addStreamObject(so); } })); } else {// stream小，每个stream作为一个StreamRange，存储到公共的object streamSetWriteCfList.add(acquireLimiter(streamSize).thenAccept(nil -> streamSetObject.write(streamId, streamRecords)));long startOffset = streamRecords.get(0).getBaseOffset();long endOffset = streamRecords.get(streamRecords.size() - 1).getLastOffset(); request.addStreamRange(new ObjectStreamRange(streamId, -1L, startOffset, endOffset, streamSize)); } } request.setObjectId(objectId); request.setOrderId(objectId); CompletableFuture<Void> streamSetObjectCf = CompletableFuture.allOf(streamSetWriteCfList.toArray(new CompletableFuture[0]))// close触发公共object上传 .thenCompose(nil -> streamSetObject.close().thenAccept(nil2 -> { request.setObjectSize(streamSetObject.size()); request.setAttributes(ObjectAttributes.builder().bucket(streamSetObject.bucketId()).build().attributes()); })); List<CompletableFuture<?>> allCf = new LinkedList<>(streamObjectCfList); allCf.add(streamSetObjectCf); CompletableFuture.allOf(allCf.toArray(new CompletableFuture[0])).thenAccept(nil -> { commitStreamSetObjectRequest = request; uploadCf.complete(request); }).exceptionally(ex -> { uploadCf.completeExceptionally(ex);returnnull; }); }如果activeBlock中只有一个stream或者单个stream较大（超过16MB），1个Stream对应1个S3对象，每个对象称为StreamObject，都要从Controller获取唯一objectId。
publicclassStreamObject{privatelong objectId;privatelong objectSize;privatelong streamId;// log-消息偏移量 索引-字节偏移量privatelong startOffset;privatelong endOffset;privateint attributes = ObjectAttributes.UNSET.attributes();}如果stream较小，合并到一个S3对象称为StreamSetObject，这个对象的objectId在prepare阶段获取，每个stream对应一段ObjectStreamRange。
publicclassObjectStreamRange{privatelong streamId;privatelong epoch; // -1// log-消息偏移量 索引-字节偏移量privatelong startOffset;privatelong endOffset;privateint size;}后续第三步使用CommitStreamSetObjectRequest提交到Controller存储元数据。
publicclassCommitStreamSetObjectRequest{// n个ObjectStreamRange合并到一个s3对象，StreamSetObject对象的idprivatelong objectId;// compact相关，这里就是objectIdprivatelong orderId;// StreamSetObject下streamRanges整体字节大小privatelong objectSize;// StreamSetObject下n个小stream的区间private List<ObjectStreamRange> streamRanges;// n个大stream 对应n个 S3大对象StreamObject private List<StreamObject> streamObjects;// compact相关private List<Long> compactedObjectIds;privateint attributes = ObjectAttributes.UNSET.attributes();}S3对象的key={reverseHex(objectId)}/_kafka_{clusterId}/{objectId}，其中reverseHex=8位十六进制并反转。如clusterId=123，objectId=42，key=a2000000/_kafka_123/42
ObjectWriter.DefaultObjectWriter.close：无论多个小Stream合并为一个大对象，还是每个大Stream一个对象，S3数据对象布局都如下

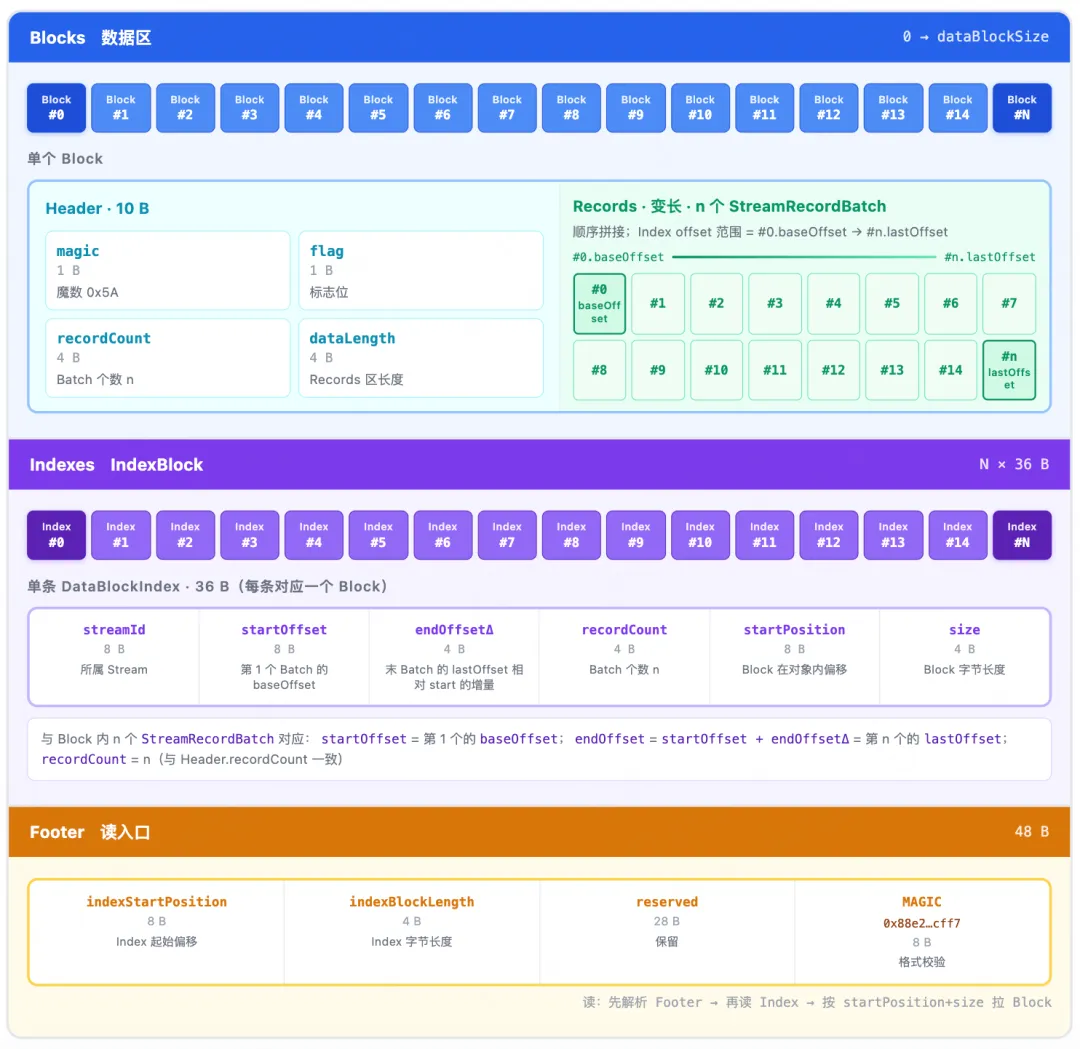

1）数据按照Blocks→Indexes→Footer写入，读取则相反；
2）Block存放真实数据。一个Stream可分布在多个 Block中，但一个 Block只属于一个 Stream。单 Stream内按StreamRecordBatch顺序累加字节大小，累计≥512KB切分为一个Block；
3-2-4、commit-提交元数据到Controller
假设3个stream，2个小stream进StreamSetObject，1 个大stream独立StreamObject。
Controller侧生成5条Record，并更新内存：
1）S3ObjectRecord：2条，对应S3Object；
publicclassS3ObjectControlManager{privatefinal TimelineHashMap<Long/*objectId*/, S3Object> objectsMetadata;}publicclassS3ObjectimplementsComparable<S3Object> {privatefinallong objectId;privatelong objectSize = -1;privatelong timestamp;// COMMITTEDprivate S3ObjectState s3ObjectState = S3ObjectState.UNINITIALIZED;privateint attributes;}2）S3StreamEndOffsetsRecord：1条，更新3个StreamRuntimeMetadata的endOffset；
3）S3StreamSetObjectRecord：1条，对应S3StreamSetObject；
4）S3StreamObjectRecord：1条，对应S3StreamObject；
publicclassStreamControlManager{// streamId -> Stream元数据privatefinal TimelineHashMap<Long/*streamId*/, StreamRuntimeMetadata> streamsMetadata;// nodeId -> Node元数据privatefinal TimelineHashMap<Integer/*nodeId*/, NodeRuntimeMetadata> nodesMetadata;}publicclassStreamRuntimeMetadata{privatefinallong streamId;// leaderEpochprivatefinal TimelineLong currentEpoch;// rangeIndex生成器privatefinal TimelineInteger currentRangeIndex;// 起始offsetprivatefinal TimelineLong startOffset;// 结束offsetprivatefinal TimelineLong endOffset;// CLOSE or OPENprivatefinal TimelineObject<StreamState> currentState;// tagsprivate Map<String, String> tags;// rangeIndex->segment元数据privatefinal TimelineHashMap<Integer/*rangeIndex*/, RangeMetadata> ranges;// objectId -> streamId+startOffset+endOffsetprivatefinal TimelineHashMap<Long/*objectId*/, S3StreamObject> streamObjects;publicclassS3StreamObject{privatefinallong objectId;privatefinallong streamId;privatefinallong startOffset;privatefinallong endOffset; }}publicclassNodeRuntimeMetadata{privatefinalint nodeId;privatefinal TimelineLong nodeEpoch;privatefinal TimelineObject<Boolean> failoverMode;privatefinal TimelineHashMap<Long/*objectId*/, S3StreamSetObject> streamSetObjects;publicclassS3StreamSetObjectimplementsComparable<S3StreamSetObject> {privatefinallong objectId;privatefinalint nodeId;privatefinallong orderId;privatefinallong dataTimeInMs; }}S3Storage.commitDeltaWALUpload：回到Broker侧
1）删除S3上的wal对象；2）可以尝试释放wal对应LogCache
privatevoidcommitDeltaWALUpload(DeltaWALUploadTaskContext context){ context.task.commit().thenAcceptAsync(nil -> {// 已经转为data，删除wal delayTrim.trim(context.cache.lastRecordOffset(), context.trimCf);// 尝试释放LogCache freeCache(context.cache); }, backgroundExecutor)}LogCache.markFree：尝试释放LogCache
1）tryRealFree：刚才wal虽然已经转换为data放入S3，但是为了加速读，wal对应LogCacheBlock不会立即从内存移除。只有LogCache缓存到达90%，或blocks列表超过64，才会触发内存回收；
2）tryMerge：此外，因为wal有序，可以尝试合并多个LogCacheBlock，加速后续缓存读取；
final List<LogCacheBlock> blocks = new ArrayList<>();// LogCache缓存容量（字节）// Math.max(堆内存/2/3, (堆内存/2 - 3L * 1024 * 1024 * 1024) / 3 * 2) privatefinallong capacity;// 当前缓存（字节）privatefinal AtomicLong size = new AtomicLong();// blocks长度64privatefinallong cacheBlockMaxSize;public CompletableFuture<Void> markFree(LogCacheBlock block){ block.free = true;// 如果LogCache超过90%容量 或 blocks数量超过64 实际释放blocks占用内存 tryRealFree(); CompletableFuture<Void> cf = new CompletableFuture<>(); LOG_CACHE_ASYNC_EXECUTOR.execute(() -> {try {// 合并连续blocks，加速后续缓存读取 tryMerge(); cf.complete(null); } catch (Throwable t) { cf.completeExceptionally(t); } });return cf;}四、读
4-1、主流程

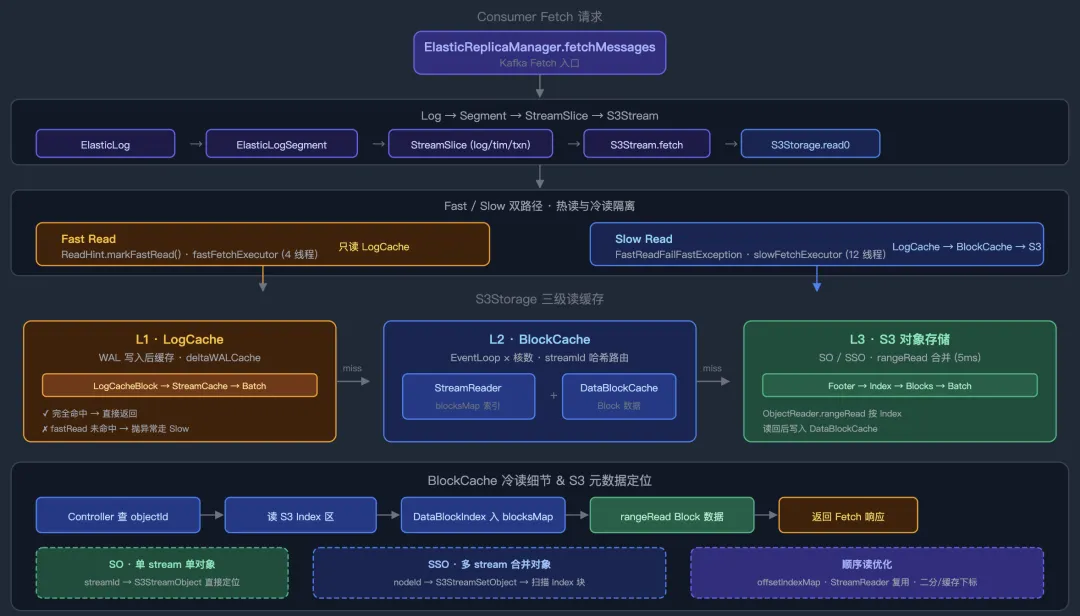

ElasticReplicaManager.fetchMessages：读消息入口
1）第一次标记fast-read，只读内存LogCache（WAL），fastFetchExecutor采用4线程处理热读；
2）如果fast-read失败，走LogCache→BlockCache→S3，slowFetchExecutor采用12线程处理冷读；
如果每次都走S3，Fetch线程会被 S3 IO 拖住；fast-read用独立小线程池，保证热读不被冷读阻塞。
overridedeffetchMessages(params: FetchParams, fetchInfos: Seq[(TopicIdPartition, FetchRequest.PartitionData)], quota: ReplicaQuota, responseCallback: Seq[(TopicIdPartition, FetchPartitionData)] => Unit): Unit = { fastFetchExecutor.submit(newRunnable {overridedefrun(): Unit = {try {ReadHint.markReadAll()// 1. 第一次标记fast-readReadHint.markFastRead() fetchMessages0(params, fetchInfos, quota, fastFetchLimiter, 0, responseCallback)ReadHint.clear() } catch {case e: Throwable =>val ex = FutureUtil.cause(e)// 2. 如果第一次抛出FastReadFailFastException异常，走slow-readval fastReadFailFast = ex.isInstanceOf[FastReadFailFastException]if (fastReadFailFast) {val timer = Time.SYSTEM.timer(params.maxWaitMs) slowFetchExecutor.submit(newRunnable {overridedefrun(): Unit = {try {ReadHint.markReadAll() fetchMessages0(params, fetchInfos, quota, slowFetchLimiter, timer.remainingMs(), responseCallback) } catch {case slowEx: Throwable => handleError(slowEx) } } }) } } } }) }S3Storage.read0：startOffset=客户端fetchOffset，endOffset=高水位=confirmOffset=wal写入进度。
// 1级缓存 WALprivatefinal LogCache deltaWALCache;// 2级缓存 持有s3protectedfinal S3BlockCache blockCache;private CompletableFuture<ReadDataBlock> read0(FetchContext context, @SpanAttribute long streamId, @SpanAttribute long startOffset, @SpanAttribute long endOffset, @SpanAttribute int maxBytes){ // 读多少字节 LogCache firstCache = deltaWALCache;// LogCache只取右连续 List<StreamRecordBatch> logCacheRecords = firstCache.get(context, streamId, startOffset, endOffset, maxBytes);if (!logCacheRecords.isEmpty() && logCacheRecords.get(0).getBaseOffset() <= startOffset) {// case1-完全命中LogCache,直接返回return CompletableFuture.completedFuture(new ReadDataBlock(logCacheRecords, CacheAccessType.DELTA_WAL_CACHE_HIT)); }if (context.readOptions().fastRead()) { releaseRecords(logCacheRecords); logCacheRecords.clear();// case2-未完全命中LogCache，但fastRead，直接异常return CompletableFuture.failedFuture(FAST_READ_FAIL_FAST_EXCEPTION); }if (!logCacheRecords.isEmpty()) { endOffset = logCacheRecords.get(0).getBaseOffset(); }long finalEndOffset = endOffset;// case3-未完全命中LogCache，非fastRead，走S3BlockCache CompletableFuture<ReadDataBlock> cf = blockCache.read(context, streamId, startOffset, endOffset, maxBytes).thenApply(blockCacheRst -> {// S3BlockCache记录 List<StreamRecordBatch> rst = new ArrayList<>(blockCacheRst.getRecords());// 合并 S3BlockCache记录 + LogCache右连续int remainingBytesSize = maxBytes - rst.stream().mapToInt(StreamRecordBatch::size).sum();int readIndex = -1;for (int i = 0; i < logCacheRecords.size() && remainingBytesSize > 0; i++) { readIndex = i; StreamRecordBatch record = logCacheRecords.get(i); rst.add(record); remainingBytesSize -= record.size(); }if (readIndex < logCacheRecords.size()) { releaseRecords(logCacheRecords.subList(readIndex + 1, logCacheRecords.size())); }returnnew ReadDataBlock(rst, blockCacheRst.getCacheAccessType()); })return FutureUtil.timeoutWithNewReturn(cf, 2, TimeUnit.MINUTES, () -> { cf.thenAccept(readDataBlock -> { releaseRecords(readDataBlock.getRecords()); }); });}4-2、读LogCache

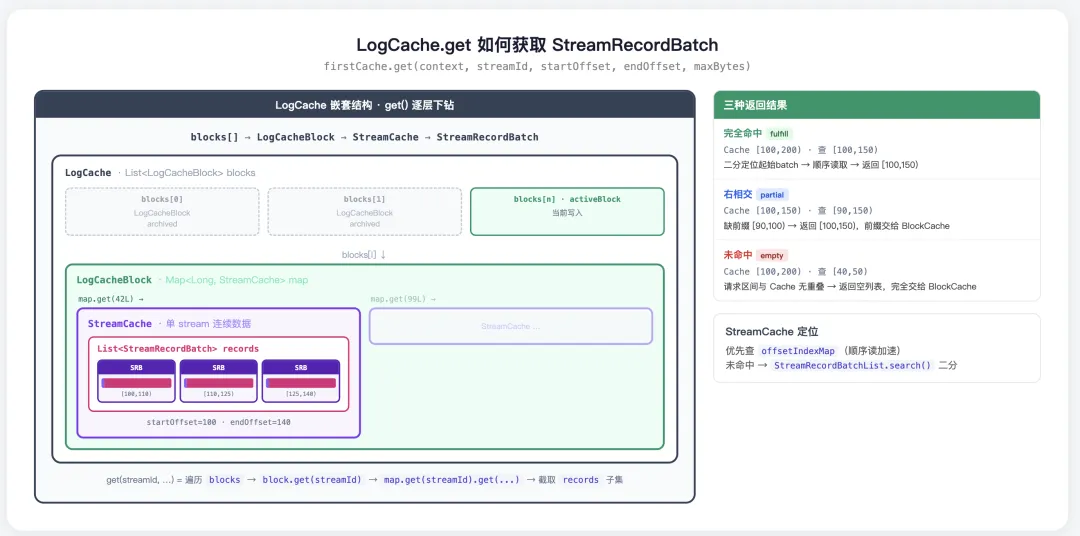

LogCache.get：
从头到尾（WAL写入顺序即从老到新）遍历n个LogCacheBlock，每个LogCacheBlock中都可能有streamId对应的n个StreamRecordBatch。
publicclassLogCache{// 缓存，包含activeBlockfinal List<LogCacheBlock> blocks = new ArrayList<>();private LogCacheBlock activeBlock;public List<StreamRecordBatch> get0(Long streamId, long startOffset, long endOffset, int maxBytes){ List<LogCacheBlock> blocks = this.blocks;for (LogCacheBlock archiveBlock : blocks) { List<StreamRecordBatch> records = archiveBlock.get(streamId, nextStartOffset, endOffset, nextMaxBytes); } }publicstaticclassLogCacheBlock{final Map<Long, StreamCache> map = new ConcurrentHashMap<>();public List<StreamRecordBatch> get(Long streamId, long startOffset, long endOffset, int maxBytes){ StreamCache cache = map.get(streamId);if (cache == null) {return Collections.emptyList(); }return cache.get(startOffset, endOffset, maxBytes); } }}LogCache.StreamCache.get：
在每个LogCacheBlock中，对StreamRecordBatch列表使用request.startOffset二分查找起始StreamRecordBatch，读取直到到达request.endOffset。
此外，由于消费一般是顺序读，offsetIndexMap缓存上次从StreamRecordBatchs读到的下标，顺序读可以降低复杂度到O(1)。
// LogCache.StreamCache.javaList<StreamRecordBatch> records;long startOffset = NOOP_OFFSET;long endOffset = NOOP_OFFSET;Map<Long, IndexAndCount> offsetIndexMap = new HashMap<>();synchronized List<StreamRecordBatch> get(long startOffset, long endOffset, int maxBytes){// startOffset不在StreamCache的范围内，直接返回if (this.startOffset > startOffset || this.endOffset <= startOffset) {return Collections.emptyList(); }// 二分查找 or 命中offsetIndexMapint startIndex = searchStartIndex(startOffset);if (startIndex < 0) {// mismatchedreturn Collections.emptyList(); }int endIndex = -1;int remainingBytesSize = maxBytes;long rstEndOffset = NOOP_OFFSET;for (int i = startIndex; i < records.size(); i++) { StreamRecordBatch record = records.get(i); endIndex = i + 1; remainingBytesSize -= Math.min(remainingBytesSize, record.size()); rstEndOffset = record.getLastOffset();if (record.getLastOffset() >= endOffset || remainingBytesSize == 0) {break; } }// 如果顺序读取，缓存下一个offset在records中的下标到offsetIndexMap// 在searchStartIndex中可以快速定位，避免二分if (rstEndOffset != NOOP_OFFSET) { map(rstEndOffset, endIndex); }returnnew ArrayList<>(records.subList(startIndex, endIndex));}intsearchStartIndex(long startOffset){ IndexAndCount indexAndCount = offsetIndexMap.get(startOffset);if (indexAndCount != null) {// 顺序读优化，直接定位records下标 unmap(startOffset, indexAndCount);return indexAndCount.index; } else {// 对records二分查找 StreamRecordBatchList search = new StreamRecordBatchList(records);return search.search(startOffset); }}finalvoidmap(long offset, int index){ offsetIndexMap.compute(offset, (k, v) -> {if (v == null) {returnnew IndexAndCount(index); } else { v.inc();return v; } });}finalvoidunmap(long startOffset, IndexAndCount indexAndCount){if (indexAndCount.dec() == 0) { offsetIndexMap.remove(startOffset); }}staticclassIndexAndCount{// 在records中的下标int index;// 引用次数int count;publicIndexAndCount(int index){this.index = index;this.count = 1; }}4-3、读BlockCache
BlockCache的实现是StreamReaders。

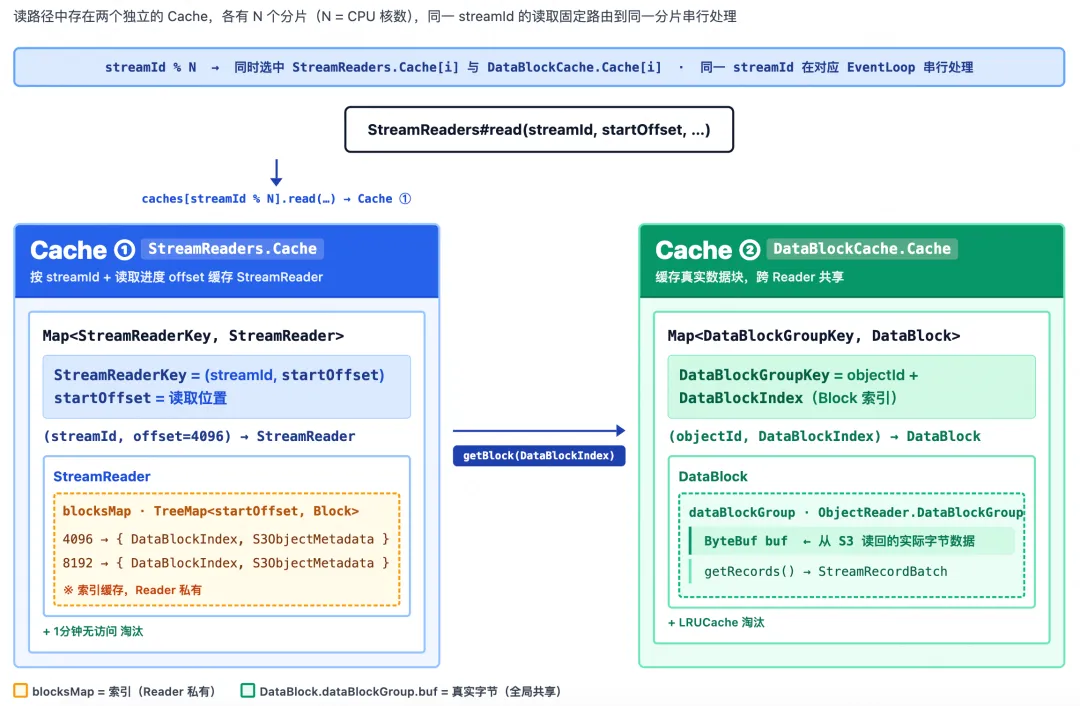

StreamReaders.read：读请求会根据streamId分发到固定的EventLoop线程处理，EventLoop线程数=核数。
publicclassStreamReadersimplementsS3BlockCache{// 会话级-数据索引缓存privatefinal Cache[] caches;// 数据缓存privatefinal DataBlockCache dataBlockCache;publicStreamReaders(...){// concurrency=核数 EventLoop[] eventLoops = new EventLoop[concurrency];for (int i = 0; i < concurrency; i++) { eventLoops[i] = new EventLoop("stream-reader-" + i); }// 会话级-数据索引缓存this.caches = new Cache[concurrency];for (int i = 0; i < concurrency; i++) { caches[i] = new Cache(eventLoops[i]); }// 全局-Block数据缓存this.dataBlockCache = new DataBlockCache(size, eventLoops);// 每分钟清理1分钟没访问的StreamReaders.Cache Threads.COMMON_SCHEDULER.scheduleAtFixedRate(this::triggerExpiredStreamReaderCleanup, STREAM_READER_EXPIRED_CHECK_INTERVAL_MILLS, STREAM_READER_EXPIRED_CHECK_INTERVAL_MILLS, TimeUnit.MILLISECONDS); }classCache{privatefinal EventLoop eventLoop;privatefinal Map<StreamReaderKey, StreamReader> streamReaders; }public CompletableFuture<ReadDataBlock> read(TraceContext context, long streamId, long startOffset, long endOffset,int maxBytes){ Cache cache = caches[Math.abs((int) (streamId % caches.length))];return cache.read(streamId, startOffset, endOffset, maxBytes); }}4-3-1、StreamReader-会话级数据索引缓存
StreamReaders.Cache.read：以streamId+读取offset维度创建StreamReader，后续顺序读会复用同一个StreamReader。
publicclassStreamReadersimplementsS3BlockCache{// 会话级-数据索引缓存privatefinal Cache[] caches;// 全局-数据缓存privatefinal DataBlockCache dataBlockCache;public CompletableFuture<ReadDataBlock> read(TraceContext context, long streamId, long startOffset, long endOffset,int maxBytes){ Cache cache = caches[Math.abs((int) (streamId % caches.length))];return cache.read(streamId, startOffset, endOffset, maxBytes); }staticclassStreamReaderKey{finallong streamId;finallong startOffset; }classCache{privatefinal EventLoop eventLoop;privatefinal Map<StreamReaderKey, StreamReader> streamReaders;public CompletableFuture<ReadDataBlock> read(long streamId, long startOffset,long endOffset, int maxBytes){ CompletableFuture<ReadDataBlock> cf = new CompletableFuture<>(); eventLoop.execute(() -> {// 清理streamReaders1分钟没使用的StreamReader cleanupExpiredStreamReader();// 如果是顺序读 streamReaders会有缓存上次的StreamReader StreamReaderKey key = new StreamReaderKey(streamId, startOffset); StreamReader streamReader = streamReaders.remove(key);if (streamReader == null) {// 非顺序读/过期/新读 创建StreamReader streamReader = new StreamReader(...); } StreamReader finalStreamReader = streamReader;// 读 CompletableFuture<ReadDataBlock> streamReadCf = streamReader.read(startOffset, endOffset, maxBytes) .whenComplete((rst, ex) -> {if (ex != null) { finalStreamReader.close(); } else {// 缓存StreamReader，用于下次顺序读 StreamReader oldStreamReader = streamReaders.put(new StreamReaderKey(streamId, finalStreamReader.nextReadOffset()), finalStreamReader);if (oldStreamReader != null) { oldStreamReader.close(); } } }); FutureUtil.propagate(streamReadCf, cf); });return cf; } }}StreamReader缓存的是，某个会话（streamId+读取offset）的索引和元数据，即blocksMap。通过这个缓存，下次顺序访问可以避免重复查询元数据和Block索引。
publicclassStreamReader{// key=DataBlockIndex.startOffset value=元数据+索引final NavigableMap<Long, Block> blocksMap = new TreeMap<>();// 全局-Block数据缓存privatefinal DataBlockCache dataBlockCache;// 下次读取的offsetlong nextReadOffset;// 上次访问时间privatelong lastAccessTimestamp;// 缓存项classBlock{// 元数据final S3ObjectMetadata metadata;// 索引(见3-2-3对象布局)final DataBlockIndex index;// 临时变量，从BlockCache拿来的实际data数据 DataBlock data; }}publicclassS3ObjectMetadata{privatefinallong objectId;privatefinal List<StreamOffsetRange> offsetRanges;privatelong objectSize;}publicclassStreamOffsetRangeimplementsComparable<StreamOffsetRange> {privatefinallong streamId;privatefinallong startOffset;privatefinallong endOffset;}publicfinalclassDataBlockIndex{privatefinalint blockId;privatefinallong streamId;privatefinallong startOffset;privatefinalint endOffsetDelta;privatefinalint recordCount;privatefinallong startPosition;privatefinalint size;}StreamReader.getBlocks0：Cache-Aside，读缓存 → miss → 读S3数据对象里的索引 → 写回缓存。
// 索引项startOffset -> 缓存(索引+S3对象元数据)final NavigableMap<Long, Block> blocksMap = new TreeMap<>();// blocksMap最后一个索引的endOffsetlong loadedBlockIndexEndOffset = 0L;privatevoidgetBlocks0(GetBlocksContext ctx, long startOffset, long endOffset, int maxBytes){ Long floorKey = blocksMap.floorKey(startOffset); CompletableFuture<Boolean> loadMoreBlocksCf;int remainingSize = maxBytes;if (floorKey == null || startOffset >= loadedBlockIndexEndOffset) {// 请求范围超出缓存范围，缓存miss，加载数据到缓存 loadMoreBlocksCf = loadMoreBlocksWithoutData(endOffset); } else {// 缓存命中，循环索引boolean firstBlock = true;boolean fulfill = false;for (Map.Entry<Long, Block> entry : blocksMap.tailMap(floorKey).entrySet()) { Block block = entry.getValue();long objectId = block.metadata.objectId(); DataBlockIndex index = block.index;if (!firstBlock || index.startOffset() == startOffset) { remainingSize -= index.size(); }if (firstBlock) { firstBlock = false; }// 根据索引查询数据到Block，加入结果集 block = block.newBlockWithData(ctx.readahead); ctx.blocks.add(block);if ((endOffset != -1L && index.endOffset() >= endOffset) || remainingSize <= 0) {// 索引的结束offset 超过 请求的endOffset 读完了 fulfill = true;break; } }if (fulfill) {// 读完了，可以返回 ctx.cf.complete(ctx.blocks);return; } else {// 没读完，继续加载索引到内存 loadMoreBlocksCf = loadMoreBlocksWithoutData(endOffset); } }int finalRemainingSize = remainingSize;// 递归调用自己，直到满足fulfill条件 loadMoreBlocksCf.thenAcceptAsync(moreBlocks -> {// ... getBlocks0(ctx, nextStartOffset, endOffset, finalRemainingSize); }, eventLoop);}public Block newBlockWithData(boolean readahead){ Block newBlock = new Block(metadata, index); ObjectReader objectReader = objectReaderFactory.get(metadata); DataBlockCache.GetOptions getOptions = DataBlockCache.GetOptions.builder().readahead(readahead).build();// 全局数据缓存，根据索引查数据 loadCf = dataBlockCache.getBlock(getOptions, objectReader, index).thenAccept(newData -> { newBlock.data = newData; }).exceptionally(ex -> { exception = ex; newBlock.exception = ex;returnnull; }).whenComplete((nil, ex) -> objectReader.release()); newBlock.loadCf = loadCf;return newBlock;}StreamReader.loadMoreBlocksWithoutData0：blocksMap缓存未命中
1）根据streamId+offset范围，找到S3对象元数据；
2）根据objectId+offset范围，获取相关DataBlockIndex索引，对应上面写数据对象，BlockIndexes区域；
// 读取offset -> BlockIndex索引+S3对象元数据final NavigableMap<Long, Block> blocksMap = new TreeMap<>();private CompletableFuture<Void> loadMoreBlocksWithoutData0(long endOffset){if (inflightLoadIndexCf != null) {// 如果已经在加载，等上次处理完再处理这次的return inflightLoadIndexCf.thenCompose(rst -> loadMoreBlocksWithoutData0(endOffset)); }long currentBlocksEpoch = blocksEpoch; inflightLoadIndexCf = new CompletableFuture<>();long nextLoadingOffset = calWindowBlocksEndOffset(); AtomicLong nextFindStartOffset = new AtomicLong(nextLoadingOffset); TimerUtil time = new TimerUtil();// 1. 查询streamId在offset范围内的S3对象 CompletableFuture<List<S3ObjectMetadata>> getObjectsCf = objectManager.getObjects(streamId, nextLoadingOffset, endOffset, GET_OBJECT_STEP);// 2. 循环S3对象，找BlockIndex CompletableFuture<Void> findBlockIndexesCf = getObjectsCf.whenComplete((rst, ex) -> { StorageOperationStats.getInstance().getIndicesTimeGetObjectStats.record(time.elapsedAndResetAs(TimeUnit.NANOSECONDS)); }).thenComposeAsync(objects -> { CompletableFuture<Void> prevCf = CompletableFuture.completedFuture(null);for (S3ObjectMetadata objectMetadata : objects) { ObjectReader objectReader = objectReaderFactory.get(objectMetadata); objectReader.basicObjectInfo(); prevCf = prevCf.thenCompose(nil -> {return objectReader.find(streamId, nextFindStartOffset.get(), -1L, Integer.MAX_VALUE).thenAcceptAsync(findRst -> { findRst.streamDataBlocks().forEach(streamDataBlock -> { DataBlockIndex index = streamDataBlock.dataBlockIndex(); Block block = new Block(objectMetadata, index);// S3对象元数据 + BlockIndex 放到 Block 缓存if (!putBlock(block)) {thrownew BlockNotContinuousException(); } nextFindStartOffset.set(streamDataBlock.getEndOffset()); }); }, eventLoop); }).whenComplete((nil, ex) -> objectReader.release()); }return prevCf; }, eventLoop);}privatebooleanputBlock(Block block){// ...Block索引连续性校验 lastBlock = block; blocksMap.put(block.index.startOffset(), block); loadedBlockIndexEndOffset = block.index.endOffset();returntrue;}

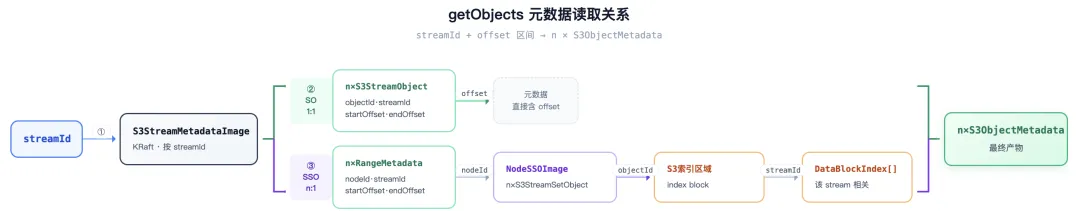

S3StreamsMetadataImage.getObjects0：根据streamId+offset范围，获取S3对象元数据
1）StreamObject，1个stream-1个object，streamId→S3StreamObject，直接拿到结果；
2）StreamSetObject，n个stream-1个object，streamId→Range元数据（segments）-nodeId→Node元数据-objectId→S3对象索引块→相关offset区间；
publicfinalclassS3StreamsMetadataImage{// streamId->stream元数据privatefinal TimelineHashMap<Long, S3StreamMetadataImage> streamMetadataMap;// nodeId->Node元数据privatefinal TimelineHashMap<Integer, NodeS3StreamSetObjectMetadataImage> nodeMetadataMap; }publicclassS3StreamMetadataImage{// segments offset区间->归属nodeIdprivatefinal List<RangeMetadata> ranges;publicclassRangeMetadataimplementsComparable<RangeMetadata> {privatelong startOffset;privatelong endOffset;privateint nodeId; }// SO 一个stream一个s3对象 直接定位final DeltaList<S3StreamObject> streamObjects;publicclassS3StreamObject{privatefinallong objectId;privatefinallong streamId;privatefinallong startOffset;privatefinallong endOffset; }}publicclassNodeS3StreamSetObjectMetadataImage{// SSO n个stream一个s3对象privatefinal DeltaList<S3StreamSetObject> s3Objects;publicclassS3StreamSetObjectimplementsComparable<S3StreamSetObject> {privatefinallong objectId; }}ObjectReader.DefaultObjectReader.basicObjectInfo：S3 range读对象的Footer和Index区域，获取DataBlockIndex索引。ObjectReader有objectId纬度缓存，对于StreamSetObject，getObjects0已经读到Index了，不会重复调用S3。
S3StreamObject不能像StreamObject一样，直接获取S3对象元数据。需要通过扫描nodeIds(NodeS3StreamSetObjectMetadataImage)→objectIds(S3StreamObject)→S3对象索引块→streamId和offset相关索引块。
为了避免每次遍历所有Node元数据里的S3StreamSetObject，找streamId对应的S3对象索引块，这里还有3个缓存索引。
索引查询入口为S3StreamsMetadataImage.getStartSearchIndex0，入参是nodeId和offset，出参是offset在这个节点元数据的S3StreamSetObject集合中的下标，这样只要从指定位置开始扫描即可。
private CompletableFuture<Integer> getStartSearchIndex0( NodeS3StreamSetObjectMetadataImage node, long startOffset, GetObjectsContext ctx){}NodeS3StreamSetObjectMetadataImage：node元数据LRU缓存offsetIndexMap，用于顺序读。streamId→offset→S3StreamSetObject集合下标，读流程中会缓存endOffset到这里，下次顺序读可以用到。
publicclassNodeS3StreamSetObjectMetadataImage{privatefinal DeltaList<S3StreamSetObject> s3Objects;privatefinal StreamOffsetIndexMap offsetIndexMap;// streamId -> offset -> s3Objects的下标// private final Map<Long, NavigableMap<Long, Integer>> streamOffsetIndexMap;}LocalStreamRangeIndexCache：稀疏索引存储(startOffset,endOffset,objectId)。如果nodeId=当前节点，才能走这个缓存，通过offset二分定位objectId。
缓存写入时机：1）当前节点写S3数据对象提交到Controller后写入，定时写入S3，key=hash(sparse-index-{nodeId})/_kafka_{clusterId}/node-{nodeId}；2）启动后重新加载到内存；
publicclassLocalStreamRangeIndexCache{// streamId->(startOffset,endOffset,objectId)privatefinal Map<Long, SparseRangeIndex> streamRangeIndexMap = new HashMap<>();}publicclassSparseRangeIndex{private List<RangeIndex> sortedRangeIndexList;}publicclassRangeIndex{privatefinallong startOffset;privatefinallong endOffset;privatefinallong objectId;}NodeRangeIndexCache：如果nodeId≠当前节点，读流程中从S3加载其他节点的索引（key=hash(sparse-index-{nodeId})/_kafka_{clusterId}/node-{nodeId}，nodeId等于请求匹配到的nodeId），也是通过offset二分定位objectId。
publicclassNodeRangeIndexCache{privatefinal ExpireLRUCache nodeRangeIndexMap = new ExpireLRUCache(MAX_CACHE_SIZE, DEFAULT_EXPIRE_TIME_MS);staticclassExpireLRUCacheextendsAsyncLRUCache<Long, StreamRangeIndexCache> { }staticclassStreamRangeIndexCacheimplementsAsyncMeasurable{// streamId->(startOffset,endOffset,objectId)privatefinal CompletableFuture<Map<Long, List<RangeIndex>>> streamRangeIndexMapCf;private CompletableFuture<Integer> sizeCf; }}4-3-2、DataBlockCache-真实数据缓存
StreamReader.Block.newBlockWithData：上面获取到S3元数据和Block索引，获取真实Block数据。
privatefinal DataBlockCache dataBlockCache;classBlock{final S3ObjectMetadata metadata;final DataBlockIndex index; CompletableFuture<Void> loadCf; DataBlock data;public Block newBlockWithData(boolean readahead){ Block newBlock = new Block(metadata, index); ObjectReader objectReader = objectReaderFactory.get(metadata); DataBlockCache.GetOptions getOptions = DataBlockCache.GetOptions.builder().readahead(readahead).build(); loadCf = dataBlockCache.getBlock(getOptions, objectReader, index).thenAccept(newData -> { newBlock.data = newData; }); newBlock.loadCf = loadCf;return newBlock; }}DataBlockCache.getBlock：每个Block索引的数据缓存在DataBlockCache.Cache.blocks中，cache miss触发读S3。这里已经拿到了DataBlockIndex索引，所以直接发起rangeRead即可。
publicclassDataBlockCache{final Cache[] caches;public CompletableFuture<DataBlock> getBlock(GetOptions options, ObjectReader objectReader, DataBlockIndex dataBlockIndex){ Cache cache = cache(dataBlockIndex.streamId());return cache.getBlock(options, objectReader, dataBlockIndex); }private Cache cache(long streamId){return caches[(int) Math.abs(streamId % caches.length)]; }classCache{// (objectId,blockIndex) -> block数据块final Map<DataBlockGroupKey, DataBlock> blocks = new HashMap<>();final LRUCache<DataBlockGroupKey, DataBlock> lru = new LRUCache<>();private CompletableFuture<DataBlock> getBlock0(GetOptions options, ObjectReader objectReader, DataBlockIndex dataBlockIndex){long objectId = objectReader.metadata().objectId(); DataBlockGroupKey key = new DataBlockGroupKey(objectId, dataBlockIndex); DataBlock dataBlock = blocks.get(key);if (dataBlock == null) {// 索引对应block缓存没命中 DataBlock newDataBlock = new DataBlock(objectId, dataBlockIndex, this, time); dataBlock = newDataBlock; blocks.put(key, newDataBlock);// 读S3 read(options, objectReader, newDataBlock, eventLoop); } lru.touchIfExist(key); } }}publicclassDataBlockextendsAbstractReferenceCounted{privatefinallong objectId;privatefinal DataBlockIndex dataBlockIndex;// 数据缓存private ObjectReader.DataBlockGroup dataBlockGroup;}classDataBlockGroupimplementsAutoCloseable{// 数据缓存privatefinal ByteBuf buf;// StreamRecordBatch个数privatefinalint recordCount;}// DefaultObjectReader#readpublic CompletableFuture<DataBlockGroup> read(ReadOptions readOptions, DataBlockIndex block){ CompletableFuture<ByteBuf> rangeReadCf = objectStorage.rangeRead(new ObjectStorage.ReadOptions() .throttleStrategy(readOptions.throttleStrategy).bucket(metadata.bucket()), metadata.key(), block.startPosition(), block.endPosition() );return rangeReadCf.thenApply(buf -> { ByteBuf pooled = ByteBufAlloc.byteBuffer(buf.readableBytes(), BLOCK_CACHE); pooled.writeBytes(buf); buf.release();returnnew DataBlockGroup(pooled); });}AbstractObjectStorage.rangeRead：5ms一次合并读。

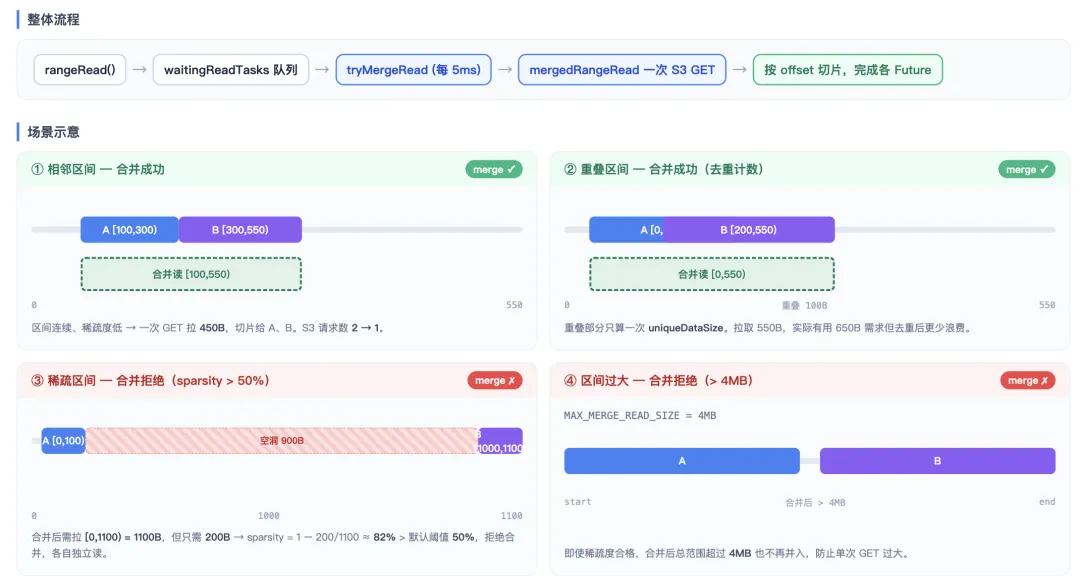

privatefinal List<AbstractObjectStorage.ReadTask> waitingReadTasks = new LinkedList<>();protectedAbstractObjectStorage(...)if(!manualMergeRead){ scheduler.scheduleWithFixedDelay(this::tryMergeRead, 5, 5, TimeUnit.MILLISECONDS); }}public CompletableFuture<ByteBuf> rangeRead(ReadOptions options, String objectPath, long start, long end){ CompletableFuture<ByteBuf> cf = new CompletableFuture<>();synchronized (waitingReadTasks) { waitingReadTasks.add(new AbstractObjectStorage.ReadTask(options, objectPath, start, end, cf)); }// ...}合并读：同一 object path 的多个小 range read 合并成一次请求，减少 S3 GET 次数。 读回整块数据后，按各子任务的 [start, end) 切片分发。
五、Compaction
5-1、概述
AutoMQ 将日志数据持久化到 S3，WAL flush 后产生两类对象：
1）Stream Set Object (SSO) ：一个 S3 对象包含多个 stream 的数据，由多 stream 批量上传产生，元数据挂在上传的Node上。
2）Stream Object (SO) ：一个 S3 对象只服务单个 stream，大 stream（>16MB）单独上传时产生。 随着时间推移，SSO / SO 数量过多 导致 元数据膨胀、读放大。
Compaction 是后台异步任务，负责 合并小对象、拆分过大对象、清理过期数据。
CompactionManager.start：对于SSO，CompactionManager每5分钟做一次compaction，元数据通过CommitStreamSetObjectRequest提交到Controller。
publicvoidstart(){ scheduleNextCompaction((long) this.compactionInterval * 60 * 1000);}voidscheduleNextCompaction(long delayMillis){this.compactionScheduledExecutor.schedule(() -> {this.compact().join(); scheduleNextCompaction(nextDelay); }, delayMillis, TimeUnit.MILLISECONDS);}S3StreamClient.startStreamObjectsCompactions：对于SO，S3StreamClient对开启的Stream每分钟做compaction，元数据通过CommitStreamObjectRequest提交到Controller。
privatevoidstartStreamObjectsCompactions(){ streamObjectCompactionScheduler.scheduleWithFixedDelay(() -> {// 集群中s3数据对象总数 CompactionHint hint = new CompactionHint(objectManager.getObjectsCount().get()); List<StreamWrapper> operationStreams = new ArrayList<>(openedStreams.values()); operationStreams.forEach(s -> s.compact(hint)); }, compactionJitterDelay, 1, TimeUnit.MINUTES);}5-2、StreamSetObject Compaction
SSO的compaction主流程：
CompactionManager.start() → scheduleNextCompaction() // 定时调度，默认 5 分钟 → compact() → objectManager.getServerObjects() // 读 本broker 所有 SSO 元数据 → updateStreamDataBlockMap() // 读 S3数据对象的 blockIndex → streamManager.getStreams() // 读 stream元数据 → compact(streamMetadataList, objectMetadataList) ├── forceSplitObjects() // 强制拆分 └── compactObjects() // 压缩CompactionManager.compact：将SSO分为两组

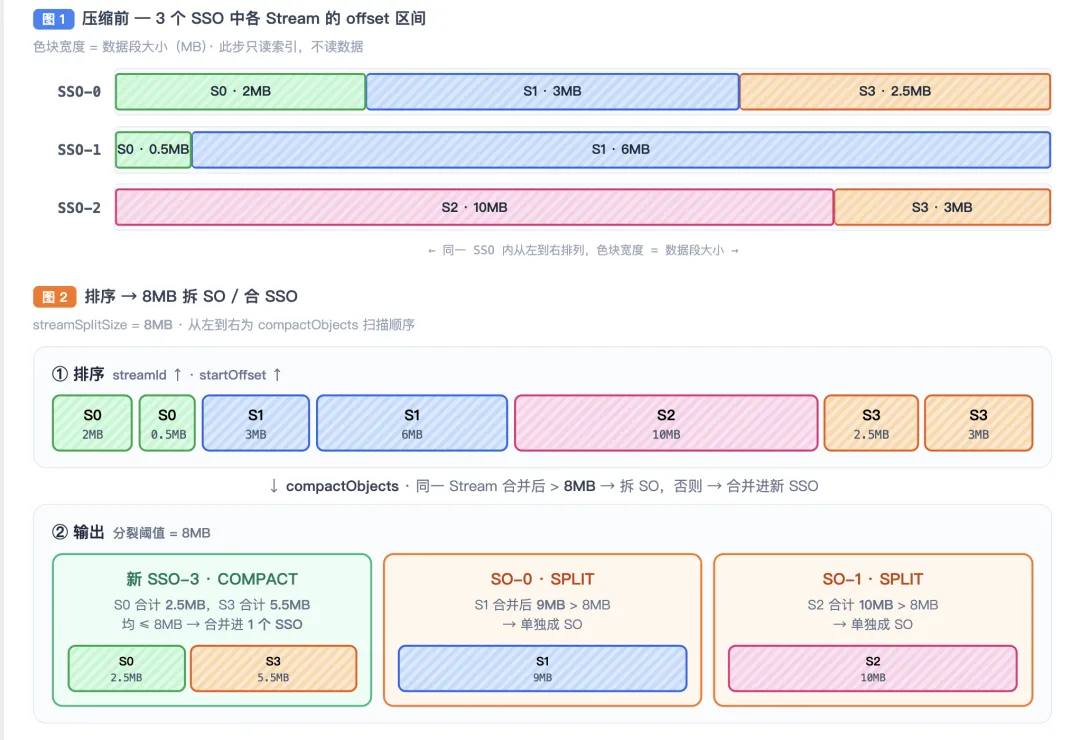

1）120分钟以前的SSO，forceSplitObjects，N 个 SSO 强制拆分 → N个SO；
2）最近的SSO，compactObjects，N 个 SSO 压缩 → 1个 SSO + N 个 SO；
privatevoidcompact(List<StreamMetadata> streamMetadataList, List<S3ObjectMetadata> objectMetadataList)throws CompletionException { Map<Boolean, List<S3ObjectMetadata>> objectMetadataFilterMap = convertS3Objects(objectMetadataList); List<S3ObjectMetadata> objectsToForceSplit = objectMetadataFilterMap.get(true); List<S3ObjectMetadata> objectsToCompact = objectMetadataFilterMap.get(false);if (!objectsToForceSplit.isEmpty()) { forceSplitObjects(streamMetadataList, objectsToForceSplit); } compactObjects(streamMetadataList, objectsToCompact);}Map<Boolean, List<S3ObjectMetadata>> convertS3Objects(List<S3ObjectMetadata> streamSetObjectMetadata) {returnnew HashMap<>(streamSetObjectMetadata.stream() .collect(Collectors.partitioningBy(e -> (System.currentTimeMillis() - e.dataTimeInMs()) >= TimeUnit.MINUTES.toMillis(this.forceSplitObjectPeriod))));}forceSplitObjects强制拆分：
1）CompactionManager.forceSplitObjects：循环SSO，将每个S3对象切分为SO，发送CommitStreamSetObjectRequest提交。
2）CompactionManager.groupAndSplitStreamDataBlocks：在不超过200MB内存占用的情况下，尽量并行处理，将SSO中同stream的连续offset的blocks合并写入S3成为1个SO。
compactObjects压缩：
1）CompactionAnalyzer.analyze：入参=SSO的objectId和对应的BlockIndex集合，生成N个CompactionPlan，每个Plan是一轮S3读写，保证内存占用不超过200MB。
即使SSO超过200MB，使用S3的Multi-Part API可以分片上传，保证内存占用不超过200MB。
// streamDataBlockMap key = objectId value = [{objectId,DataBlockIndex(streamId)}]public List<CompactionPlan> analyze(Map<Long, List<StreamDataBlock>> streamDataBlockMap, Set<Long> excludedObjectIds){// 过滤出streamId 至少存在于 两个object 中的这部分 object streamDataBlockMap = filterBlocksToCompact(streamDataBlockMap);if (streamDataBlockMap.isEmpty()) {return Collections.emptyList(); }// 分为两类CompactedObjectBuilder SPLIT-拆分为SO COMPACT-合并为一个SSO List<CompactedObjectBuilder> compactedObjectBuilders = groupObjectWithLimits(streamDataBlockMap, excludedObjectIds);// 按照200MB内存限制，分为N个Plan执行return generatePlanWithCacheLimit(compactedObjectBuilders);}CompactionAnalyzer.groupObjectWithLimits：
SSO索引按照streamId-startOffset排序，顺序处理； 最终结果要求，SSO中stream数量 ≤ 2w 个，SO ≤ 1w 个； compactObjects压缩算法，相同 stream 超过 8MB 拆分为SO，其他合并为SSO；
publicclassCompactedObjectBuilder{privatefinal List<StreamDataBlock> streamDataBlocks;// SPLIT-代表拆分为SO COMPACT-代表合并为一个SSOprivate CompactionType type;}// streamDataBlockMap key = objectId value = [{objectId,DataBlockIndex(streamId)}]List<CompactedObjectBuilder> groupObjectWithLimits(Map<Long, List<StreamDataBlock>> streamDataBlockMap, Set<Long> excludedObjectIds){// 按照streamId-startOffset排序 List<StreamDataBlock> sortedStreamDataBlocks = CompactionUtils.sortStreamRangePositions(streamDataBlockMap); List<CompactedObjectBuilder> compactedObjectBuilders = new ArrayList<>(); CompactionStats stats = null;int streamNumInStreamSet = -1;int streamObjectNum = -1;do {final Set<Long> objectsToRemove = new HashSet<>();if (stats != null) {// 为了满足循环条件，剔除对象不参与本次compactionif (streamObjectNum > maxStreamObjectNum) { addObjectsToRemove(CompactionType.SPLIT, compactedObjectBuilders, stats, objectsToRemove); } else { addObjectsToRemove(CompactionType.COMPACT, compactedObjectBuilders, stats, objectsToRemove); } }if (!objectsToRemove.isEmpty()) { excludedObjectIds.addAll(objectsToRemove); } sortedStreamDataBlocks.removeIf(e -> objectsToRemove.contains(e.getObjectId())); objectsToRemove.forEach(streamDataBlockMap::remove);// 压缩算法 compactedObjectBuilders = compactObjects(sortedStreamDataBlocks);// 计算SSO中stream数量和SO数量 stats = CompactionStats.of(compactedObjectBuilders); streamNumInStreamSet = stats.getStreamRecord().streamNumInStreamSet(); streamObjectNum = stats.getStreamRecord().streamObjectNum(); }// SSO包含<=2w个stream & SO<=1w个while (streamNumInStreamSet > maxStreamNumInStreamSet || streamObjectNum > maxStreamObjectNum);return compactedObjectBuilders;}2）CompactionManager.executeCompactionPlans：循环Plan读写S3，构造CommitStreamSetObjectRequest
voidexecuteCompactionPlans(CommitStreamSetObjectRequest request, List<CompactionPlan> compactionPlans, List<S3ObjectMetadata> s3ObjectMetadata)throws CompletionException {for (int i = 0; i < compactionPlans.size(); i++) {// S3读写...// SO streamObjectCfList.stream().map(CompletableFuture::join) .forEach(request::addStreamObject); }// SSO objectStreamRanges.forEach(request::addStreamRange); request.setObjectId(uploader.getStreamSetObjectId()); request.setOrderId(s3ObjectMetadata.get(0).objectId()); request.setObjectSize(uploader.complete()); request.setAttributes(ObjectAttributes.builder().bucket(uploader.bucketId()).build().attributes());}5-3、StreamObject Compaction
S3StreamClient.StreamWrapper.compactV1：针对每个打开的Stream处理，分为三种类型。无论那种类型
1）根据streamId获取所有SO；
2）cleanupExpiredObject：清理小于startOffset的SO；（如log.retention导致segment删除）
3）group0：根据S3对象元数据，按照大小分组；
4）compact：CompactByPhysicalMerge/CompactByCompositeObject 处理 Compaction；
5）objectManager.compactStreamObject：发送CommitStreamObjectRequest，Controller持久化元数据；

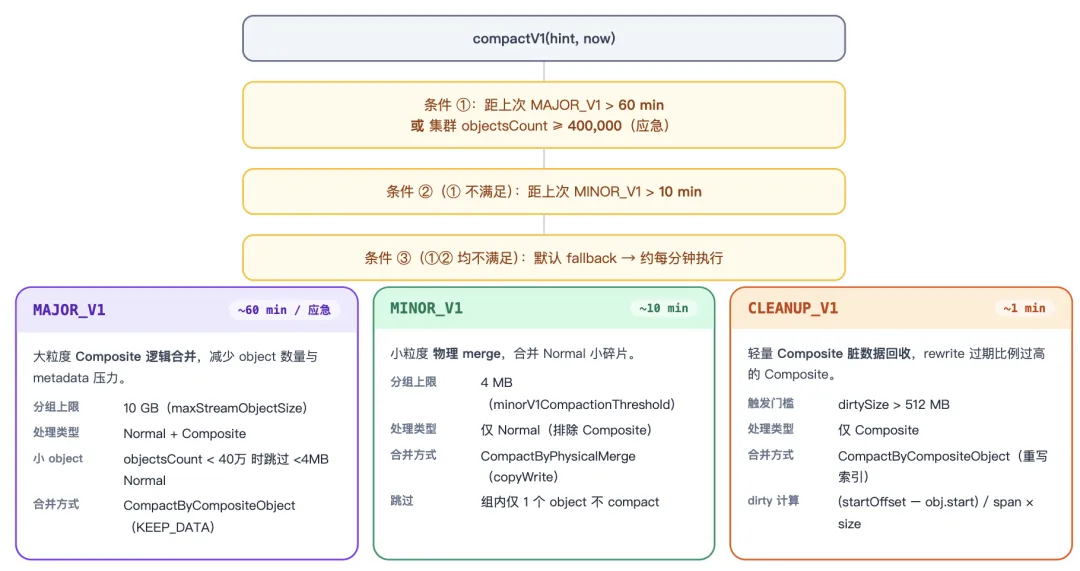

privatevoidcompactV1(CompactionHint hint, long now){if (now - lastMajorV1CompactionTimestamp > MAJOR_V1_COMPACTION_INTERVAL || hint.objectsCount >= MAJOR_V1_COMPACTION_MAX_OBJECT_THRESHOLD) {// 60分钟 or 40w object compact(MAJOR_V1, hint); lastMajorV1CompactionTimestamp = System.currentTimeMillis(); } elseif (now - lastMinorV1CompactionTimestamp > MINOR_V1_COMPACTION_INTERVAL) {// 10分钟 compact(MINOR_V1, hint); lastMinorV1CompactionTimestamp = System.currentTimeMillis(); } else {// 1分钟（定时调度间隔） compact(CLEANUP_V1, hint); }}// compact主流程voidcompact0(CompactionType compactionType){long streamId = stream.streamId();long startOffset = stream.startOffset();// 获取stream下所有SO List<S3ObjectMetadata> objects = objectManager.getStreamObjects(stream.streamId(), 0L, stream.confirmOffset(), Integer.MAX_VALUE).get(); List<S3ObjectMetadata> expiredObjects = new ArrayList<>(objects.size()); List<S3ObjectMetadata> livingObjects = new ArrayList<>(objects.size());for (S3ObjectMetadata object : objects) {if (object.endOffset() <= startOffset) { expiredObjects.add(object); } else { livingObjects.add(object); } }// 清理小于startOffset的SO，因为retention，有些数据已经删除 cleanupExpiredObject(expiredObjects);// 根据类型 将 S3对象分组 List<List<S3ObjectMetadata>> objectGroups = group0(livingObjects, getMaxGroupSize(compactionType), getObjectFilter(compactionType, majorV1CompactionSkipSmallObject ? minorV1CompactionThreshold : 0));for (List<S3ObjectMetadata> objectGroup : objectGroups) {// 部分场景的group不需要处理if (!checkObjectGroupCouldBeCompact(objectGroup, startOffset, compactionType)) {continue; }long objectId = objectManager.prepareObject(1, TimeUnit.MINUTES.toMillis(60)).get(); Optional<CompactStreamObjectRequest> requestOpt;if (MINOR_V1.equals(compactionType)) {// 小合并 内存 - NormalObject requestOpt = new CompactByPhysicalMerge(...).compact(); } else {// 大合并 索引 - CompositeObject requestOpt = new CompactByCompositeObject(streamId, stream.streamEpoch(), startOffset, objectGroup, objectId, objectStorage).compact(); } request = requestOpt.get(); objectManager.compactStreamObject(request).get(); }}5-3-1、Major Compaction
StreamObjectCompactor.CompactByCompositeObject.compact：

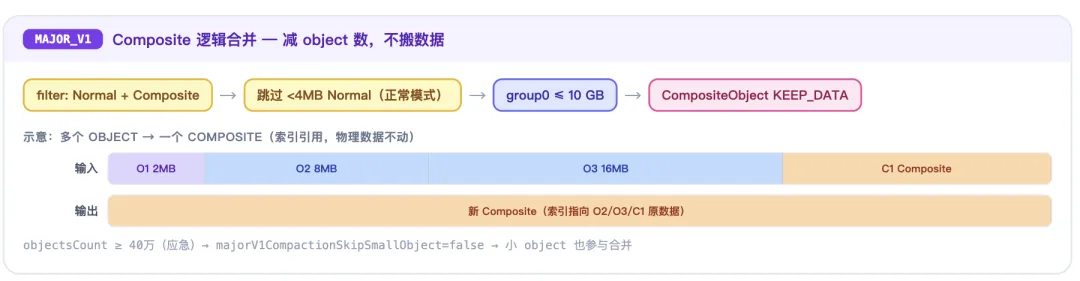

Major Compaction，处理 4MB以上Nornal对象 和 Composite对象，合并不超过10G。
如果集群中超过40W个对象，也会处理4MB以下Normal对象。一个分区3个Stream，最少3个SO，对应3个对象，即集群规模到达10W分区。
Nornal对象，即 正常写流程 和 SSO Compaction 生成的对象，包括Blocks、Indexes、Footer三个区域，其中每个Block包含了n个StreamRecordBatch（真实数据）。

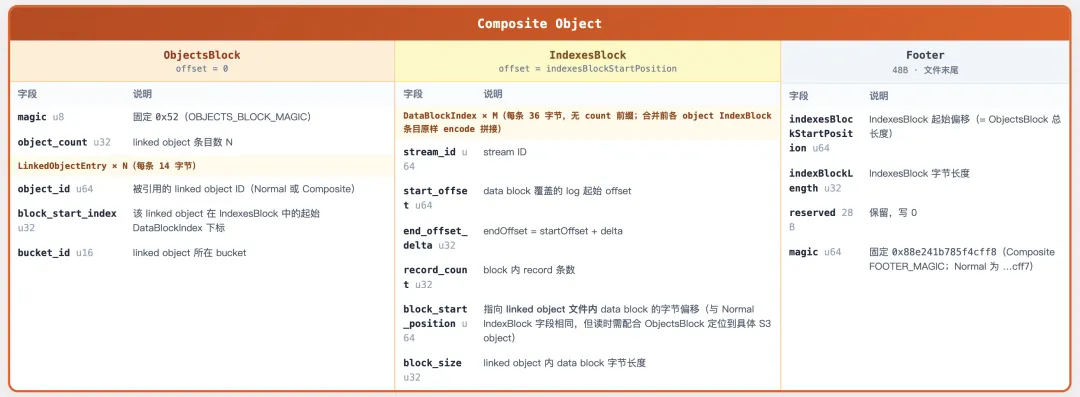

Composite对象，由Major Compaction生成，其实是2级索引，不包含StreamRecordBatch真实数据。
1）Blocks区域：只包含n个LinkBlock，指向Normal对象；
2）Indexes区域：保留最原始的Normal对象的索引数据；
3）Footer区域：魔数与Normal对象区分；
老Composite对象会被合并到新Composite对象中，不会存在Composite指向Composite的情况。
5-3-2、Minor Compaction
StreamObjectCompactor.CompactByPhysicalMerge.compact：

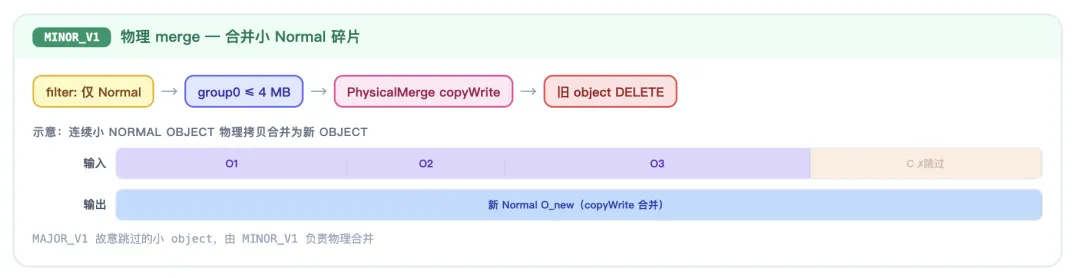

Minor Compaction 处理 4MB以下 对象，合并也不超过4MB，需要在内存中处理合并为大对象，删除老对象。
5-3-3、Cleanup Compaction
Cleanup是为了处理Composite Object指向的 Normal Object因为已经被过期删除，需要重新压缩Composite Object，Compaction 逻辑 和 Major Compaction一致。
StreamObjectCompactor.checkObjectGroupCouldBeCompact：只是Cleanup要求分组中首个对象必须是Composite对象，且指向的对象有512MB数据已经被删除。
staticbooleancheckObjectGroupCouldBeCompact(List<S3ObjectMetadata> objectGroup, long startOffset, CompactionType compactionType){if (objectGroup.size() == 1 && // Minor和Major，如果按照大小分区，只有一个对象，不做compaction SKIP_COMPACTION_TYPE_WHEN_ONE_OBJECT_IN_GROUP.contains(compactionType)) {returnfalse; }if (CLEANUP_V1.equals(compactionType)) {// 首个对象是composite S3ObjectMetadata metadata = objectGroup.get(0);if (ObjectAttributes.from(metadata.attributes()).type() != Composite) {returnfalse; }// 估算dirtySize = 删除range / 总range * 对象总大小 > 512MBdouble dirtySize = ((double) startOffset - metadata.startOffset()) / (metadata.endOffset() - metadata.startOffset()) * metadata.objectSize();return dirtySize > MAX_DIRTY_BYTES; }returntrue;}总结
AutoMQ中：
1）Stream：一个分区Log对应4个Stream，分别是：元数据、数据log、时间索引、事务索引；
2）StreamSlice：一个Segment里的一个文件对应一个StreamSlice，只有最新的Slice可以写入（sealed=false），比如最新的Segment有3个StreamSlice可以写入，分别对应数据log、时间索引、事务索引；

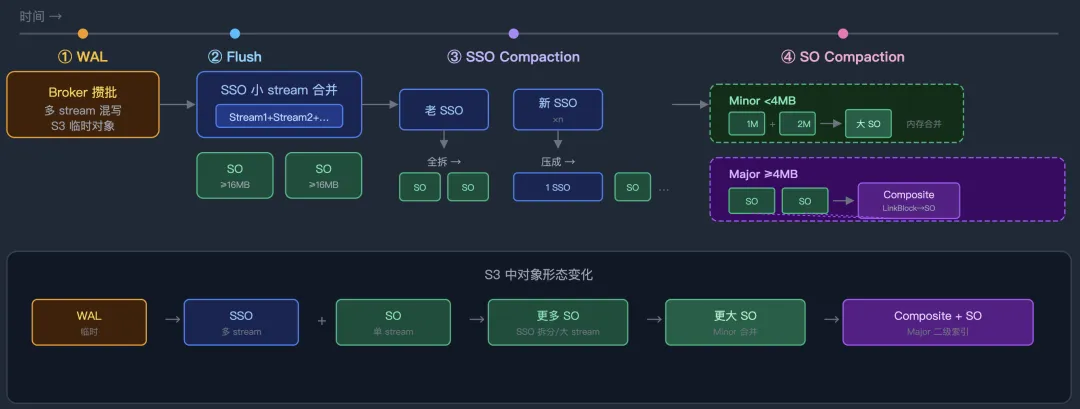

写路径
1）Producer发送消息，Broker写WAL（S3），推进HW和confirmOffset，响应Producer，缓存WAL到LogCache以备热读；
2）LogCache满或定时60s，将WAL转换为1个StreamSetObject（SSO）+n个StreamObject（SO），上传S3；
3）定时执行SSO Compaction：循环当前节点的SSO
老SSO：120min以前，拆分为stream独立SO； 新SSO：大于8MB的stream独立SO，其余压缩一个SSO；
4）定时执行SO Compaction：循环开启的Stream处理
Minor：小于4MB的SO，内存合并，生成大SO； Major：大于4MB的SO，生成Composite格式Object（二级索引）指向原始Object；
读路径
1）LogCache：WAL缓存，热数据，包括最近收到的消息；
2）BlockCache：包括索引缓存和数据缓存，从S3加载得到；
3）cache miss：合并读请求，range read S3；
