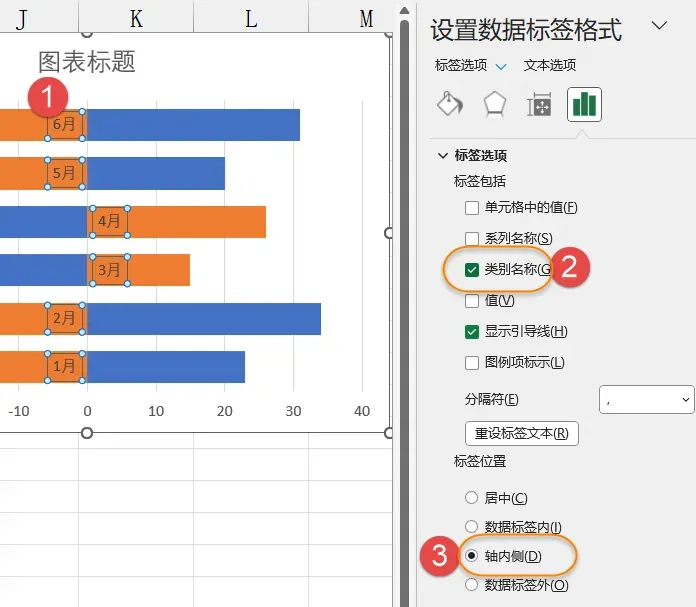

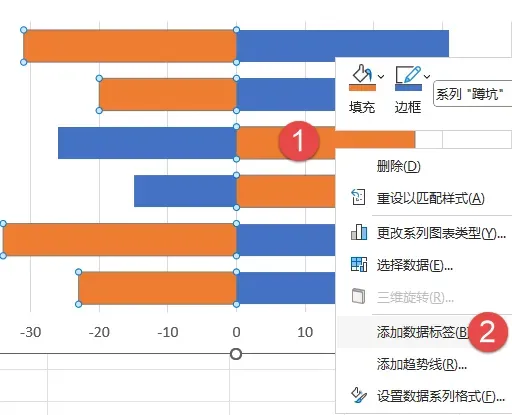

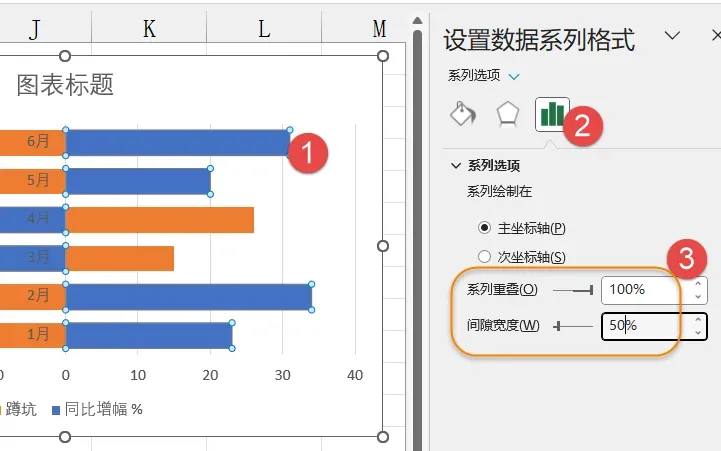

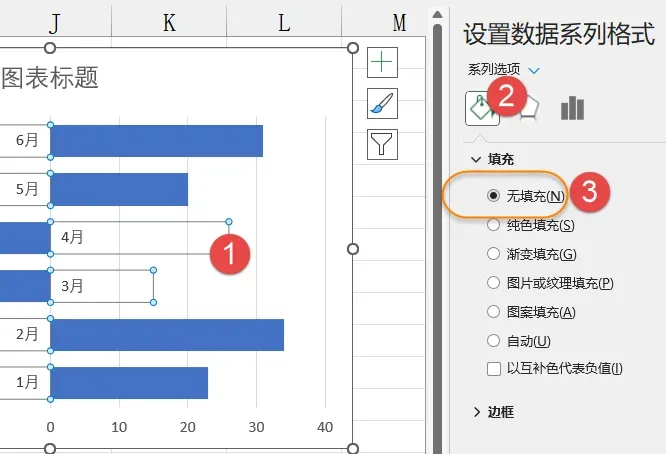

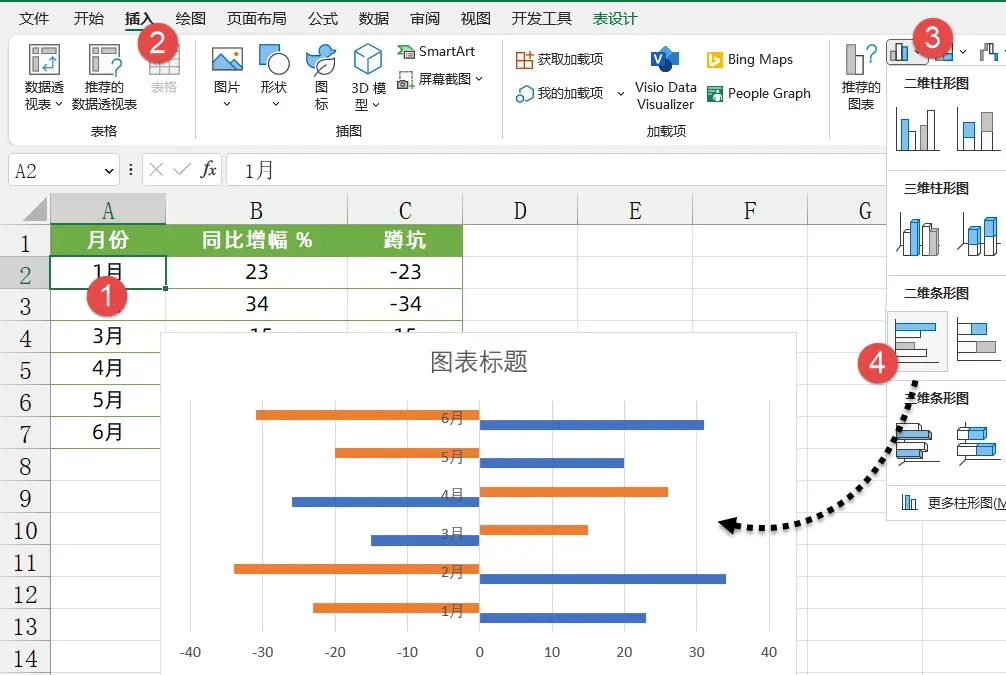

Excel图表技巧:让领导在逆境中看到希望今天咱们分享分享一个Excel图表制作技巧，先来看数据源和最终的图表效果：默认情况下的条形图数据标签，是全部在一侧显示的，而在这个图表中，垂直轴的月份标签分别在左右对称排列。双击条形图的任意数据系列，设置数据系列格式，调整【系列重叠】为100%，【间隙宽度】为50%。单击数据标签，在右侧窗格中选中【类别名称】，标签位置设置为【轴内侧】。单击杏黄色系列，在右侧窗格中设置填充选项为【无填充】。注意，图表的标题要么是能点明主题，要么是能催人奋进。在这个图表中，如果标题写成“3~4月增幅全面下滑”，领导看了肯定受刺激，而写成“5~6月份逆势上扬”，同样的图表，就能让领导在逆境中看到希望。点击[阅读原文]，了解易用宝更多亮眼功能。
