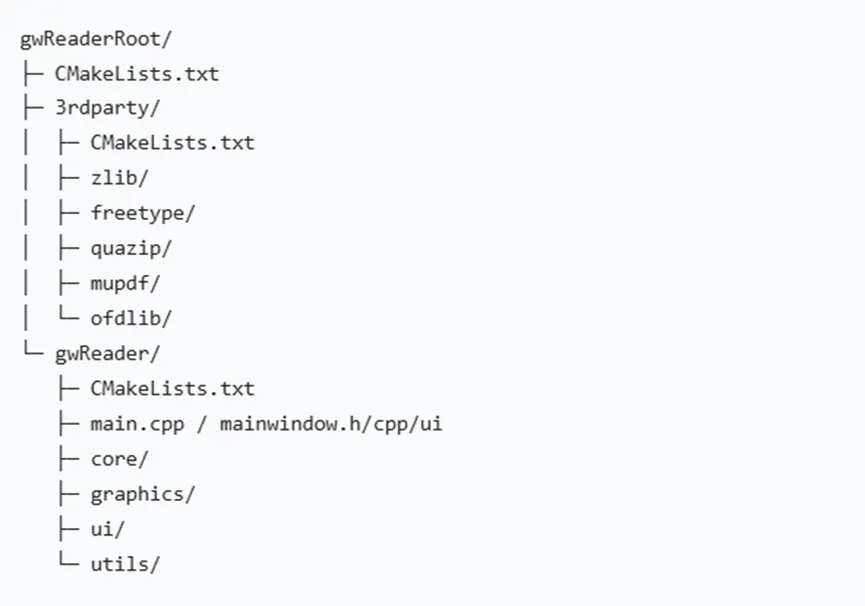

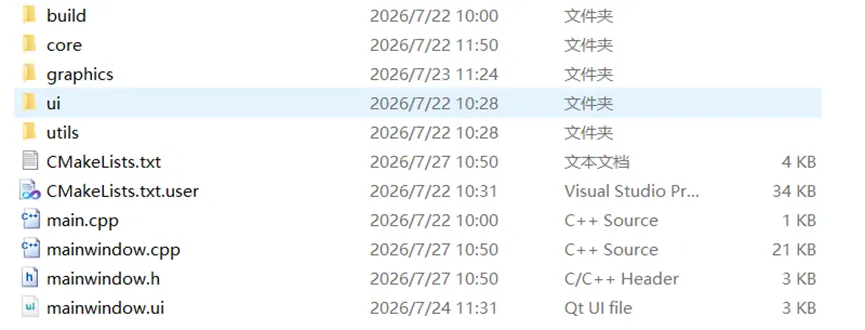

QT研发版式文件阅读器(二)---打开PDF一、项目创建框架
二、创建基础类

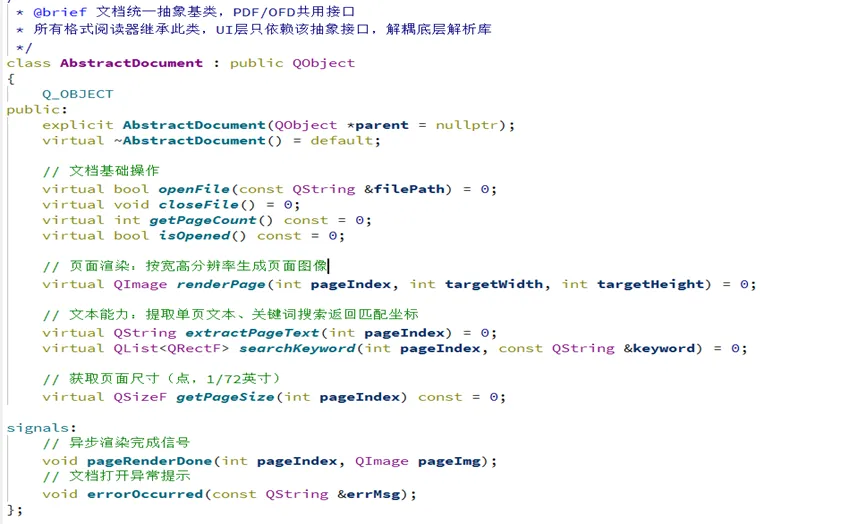

2.1创建文档抽象基类，PDF/OFD统一接口

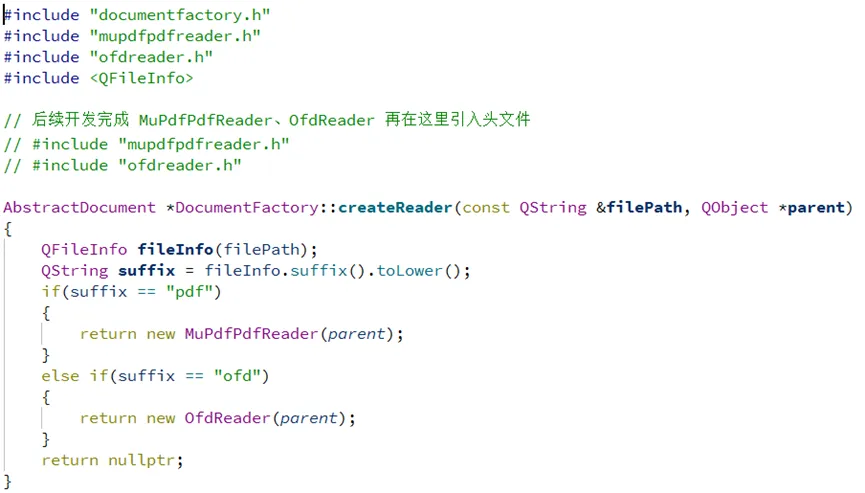

2.2创建DocumentFactory文档工厂类
三、开发 graphics 画布

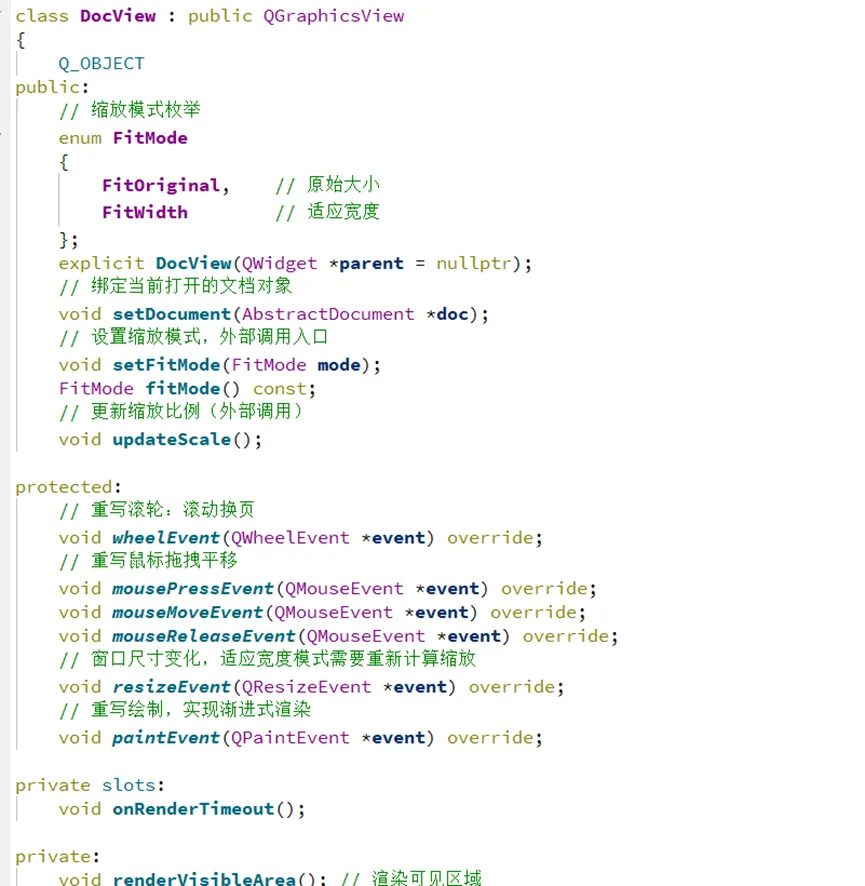

3.1创建核心类docview，实现：鼠标拖拽平移、滚轮缩放、适配整页 / 适配宽度逻辑。

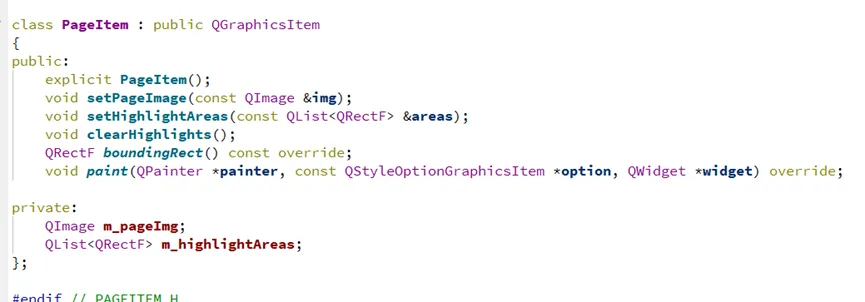

3.2创建pageitem类，存放单页渲染图像、文字选区、搜索高亮绘制逻辑。
四、引入PDF解析库mupdf
4.1下载文件。有两种方案①自行编译 MuPDF 源码；②使用预编译二进制包。推荐预编译节省时间。

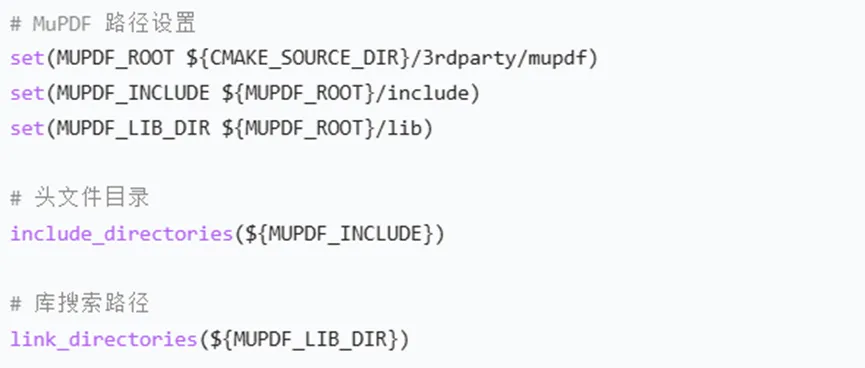

include 整个文件夹复制到3rdparty/mupdf/lib 文件夹复制到3rdparty/mupdf/lib 目录包含：libmupdf.lib、libmupdf.dll重要：编译套件必须匹配！如果你用 MSVC2022 64 位，就要拿 MSVC64 编译出来的 mupdf，不能混用 MinGW 库。4.2修改CMakeLists.txt文件，添加mupdf 路径定义

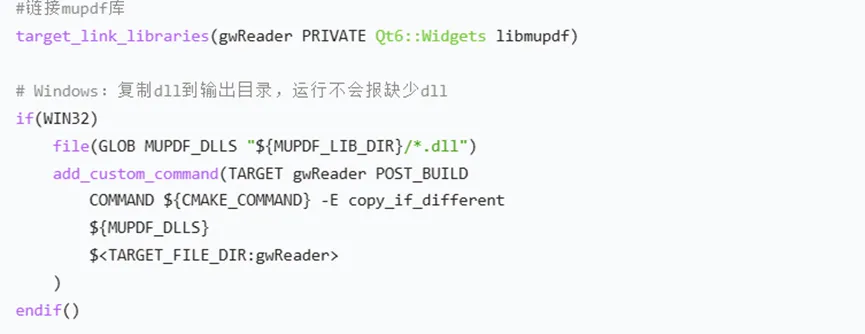

找到qt_add_executable(gwReader ...)之后，追加链接库：

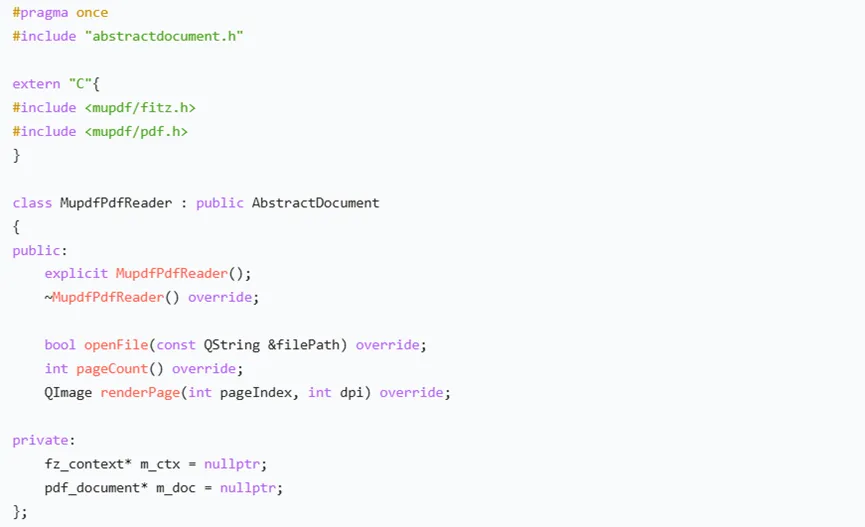

4.3在 MupdfPdfReader 头文件引入 mupdf 头, core/mupdfpdfreader.h

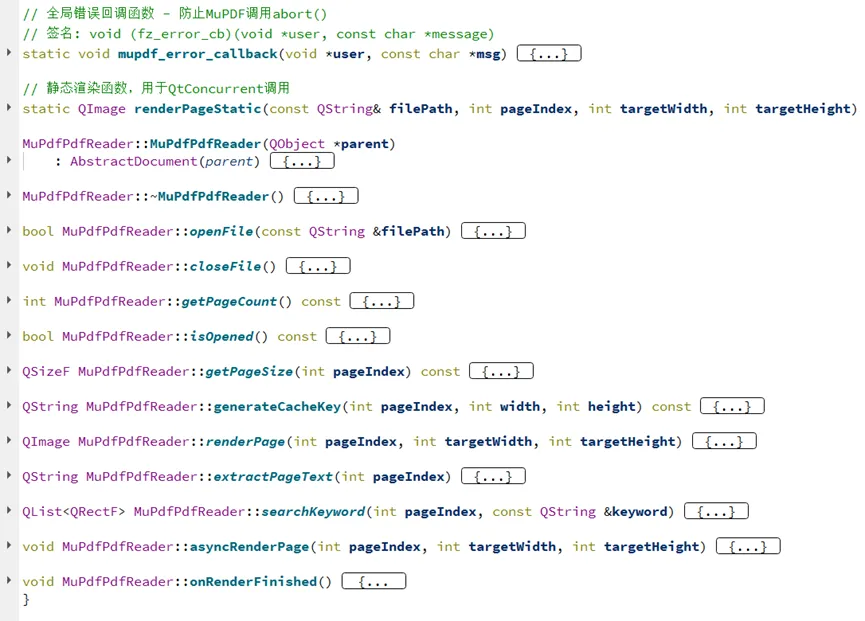

4.4mupdfpdfreader.cpp 基础骨架
五、运行
5.1 点击绿色三角号

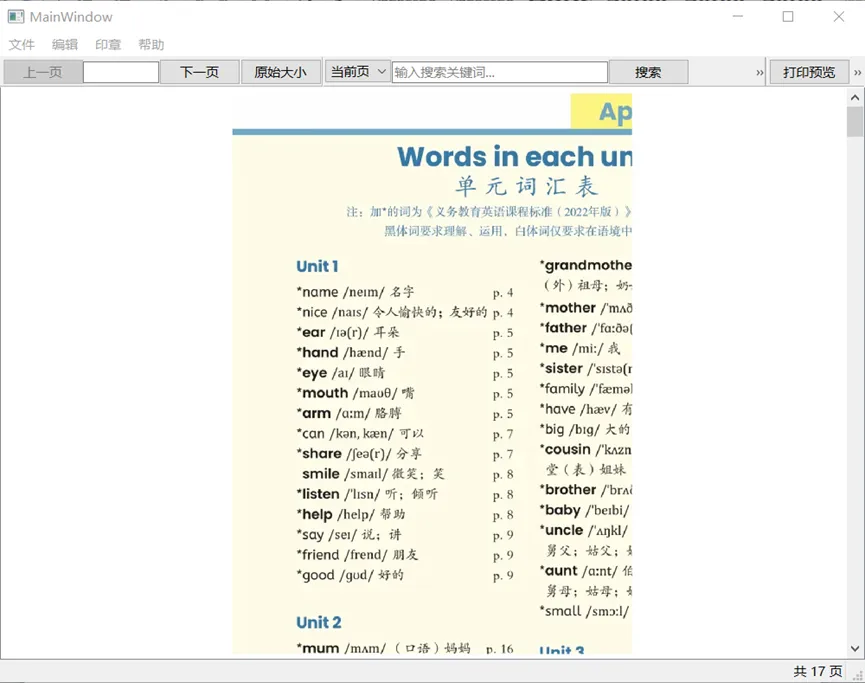

5.2 运行效果
