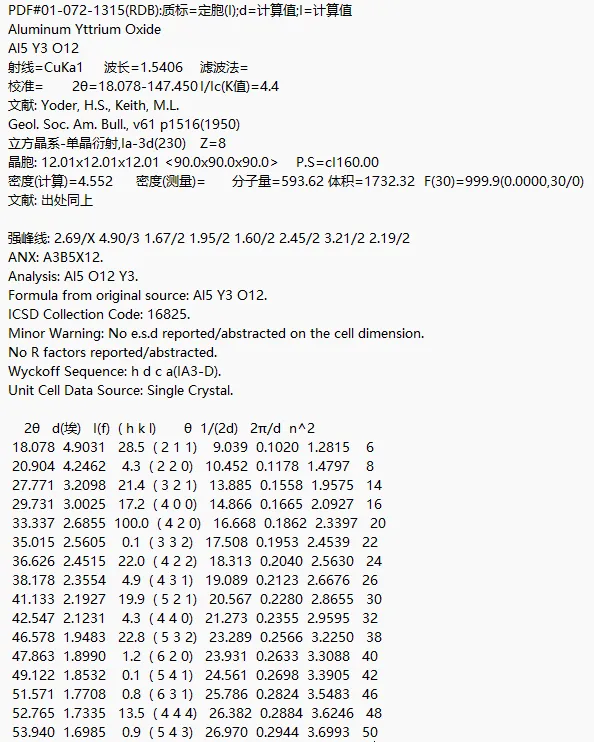

PDF#01-072-1315(RDB):质标=定胞(I);d=计算值;I=计算值
Aluminum Yttrium Oxide
Al5 Y3 O12
射线=CuKa1 波长=1.5406 滤波法=
校准= 2θ=18.078-147.450 I/Ic(K值)=4.4
文献: Yoder, H.S., Keith, M.L.
Geol. Soc. Am. Bull., v61 p1516(1950)
立方晶系-单晶衍射,Ia-3d(230) Z=8
晶胞: 12.01×12.01×12.01 <90.0×90.0x90.0> P.S=cI160.00
密度(计算)=4.552 密度(测量)= 分子量=593.62 体积=1732.32 F(30)=999.9(0.0000,30/0)
文献: 出处同上
强峰线: 2.69/X 4.90/3 1.67/2 1.95/2 1.60/2 2.45/2 3.21/2 2.19/2
ANX: A3B5X12.
Analysis: Al5 O12 Y3.
Formula from original source: Al5 Y3 O12.
ICSD Collection Code: 16825.
Minor Warning: No e.s.d reported/abstracted on the cell dimension.
No R factors reported/abstracted.
Wyckoff Sequence: h d c a(IA3-D).
Unit Cell Data Source: Single Crystal.
2θ d(埃) I(f) ( h k l) θ 1/(2d) 2π/d n^2
18.078 4.9031 28.5 ( 2 1 1) 9.039 0.1020 1.2815 6
20.904 4.2462 4.3 ( 2 2 0) 10.452 0.1178 1.4797 8
27.771 3.2098 21.4 ( 3 2 1) 13.885 0.1558 1.9575 14
29.731 3.0025 17.2 ( 4 0 0) 14.866 0.1665 2.0927 16
33.337 2.6855 100.0 ( 4 2 0) 16.668 0.1862 2.3397 20
35.015 2.5605 0.1 ( 3 3 2) 17.508 0.1953 2.4539 22
36.626 2.4515 22.0 ( 4 2 2) 18.313 0.2040 2.5630 24
38.178 2.3554 4.9 ( 4 3 1) 19.089 0.2123 2.6676 26
41.133 2.1927 19.9 ( 5 2 1) 20.567 0.2280 2.8655 30
42.547 2.1231 4.3 ( 4 4 0) 21.273 0.2355 2.9595 32
46.578 1.9483 22.8 ( 5 3 2) 23.289 0.2566 3.2250 38
47.863 1.8990 1.2 ( 6 2 0) 23.931 0.2633 3.3088 40
49.122 1.8532 0.1 ( 5 4 1) 24.561 0.2698 3.3905 42
51.571 1.7708 0.8 ( 6 3 1) 25.786 0.2824 3.5483 46
52.765 1.7335 13.5 ( 4 4 4) 26.382 0.2884 3.6246 48
53.940 1.6985 0.9 ( 5 4 3) 26.970 0.2944 3.6993 50
55.098 1.6655 24.5 ( 6 4 0) 27.549 0.3002 3.7726 52
56.239 1.6344 5.3 ( 5 5 2) 28.120 0.3059 3.8445 54
57.366 1.6049 22.6 ( 6 4 2) 28.683 0.3115 3.9150 56
60.666 1.5253 3.5 ( 6 5 1) 30.333 0.3278 4.1194 62
61.741 1.5013 8.1 ( 8 0 0) 30.871 0.3331 4.1853 64
62.806 1.4783 0.1 ( 7 4 1) 31.403 0.3382 4.2502 66
63.861 1.4564 0.1 ( 8 2 0) 31.931 0.3433 4.3141 68
64.907 1.4355 0.9 ( 6 5 3) 32.454 0.3483 4.3771 70
65.944 1.4154 0.6 ( 6 6 0) 32.972 0.3533 4.4392 72
66.972 1.3961 0.2 ( 7 4 3) 33.486 0.3581 4.5004 74
69.006 1.3599 0.2 ( 7 5 2) 34.503 0.3677 4.6205 78
70.012 1.3428 5.9 ( 8 4 0) 35.006 0.3724 4.6793 80
72.007 1.3104 12.6 ( 8 4 2) 36.003 0.3816 4.7949 84
72.995 1.2951 1.4 ( 6 5 5) 36.498 0.3861 4.8516 86
73.979 1.2803 3.3 ( 6 6 4) 36.989 0.3905 4.9077 88
74.957 1.2660 0.4 ( 7 5 4) 37.478 0.3950 4.9631 90
76.901 1.2387 2.1 ( 9 3 2) 38.450 0.4036 5.0722 94
77.867 1.2258 0.1 ( 8 4 4) 38.933 0.4079 5.1259 96
78.830 1.2132 0.7 ( 9 4 1) 39.415 0.4121 5.1791 98
79.789 1.2010 0.1 ( 8 6 0) 39.895 0.4163 5.2316 100
80.746 1.1892 1.1 (10,1,1) 40.373 0.4205 5.2837 102
81.700 1.1777 2.3 (10,2,0) 40.850 0.4246 5.3352 104
82.652 1.1665 0.1 ( 9 4 3) 41.326 0.4286 5.3863 106
84.549 1.1451 2.0 (10,3,1) 42.274 0.4366 5.4870 110
86.440 1.1248 0.1 ( 8 7 1) 43.220 0.4445 5.5858 114
87.385 1.1151 10.3 (10,4,0) 43.692 0.4484 5.6346 116
88.328 1.1056 0.9 ( 9 6 1) 44.164 0.4522 5.6830 118
89.271 1.0964 4.5 (10,4,2) 44.635 0.4561 5.7310 120
90.214 1.0873 0.1 ( 9 5 4) 45.107 0.4598 5.7785 122
92.099 1.0699 2.4 (10,5,1) 46.050 0.4673 5.8725 126
93.044 1.0615 3.8 ( 8 8 0) 46.522 0.4710 5.9189 128
95.880 1.0375 1.5 (11,3,2) 47.940 0.4819 6.0560 134
96.829 1.0299 0.4 (10,6,0) 48.415 0.4855 6.1011 136
97.780 1.0224 0.1 (11,4,1) 48.890 0.4891 6.1458 138
98.733 1.0150 0.1 (10,6,2) 49.366 0.4926 6.1901 140
99.687 1.0079 0.4 ( 9 6 5) 49.844 0.4961 6.2342 142
100.646 1.0008 0.9 (12,0,0) 50.323 0.4996 6.2780 144
101.606 0.9940 0.1 ( 9 8 1) 50.803 0.5030 6.3214 146
102.571 0.9872 2.4 (12,2,0) 51.285 0.5065 6.3646 148
103.539 0.9806 0.7 (10,7,1) 51.769 0.5099 6.4074 150

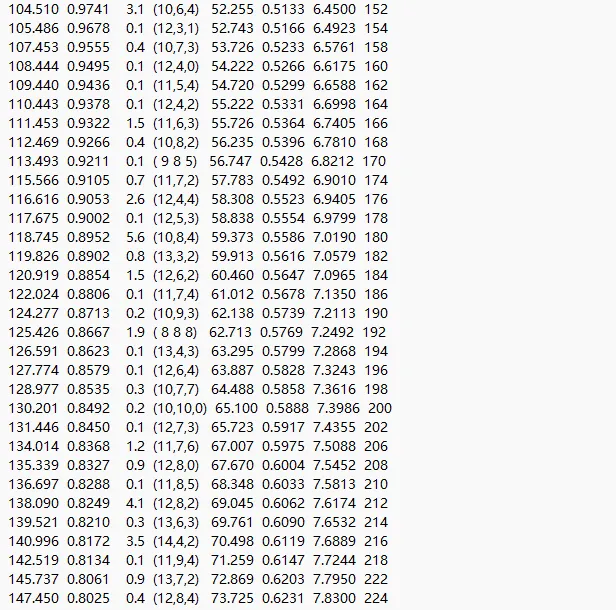

104.510 0.9741 3.1 (10,6,4) 52.255 0.5133 6.4500 152
105.486 0.9678 0.1 (12,3,1) 52.743 0.5166 6.4923 154
107.453 0.9555 0.4 (10,7,3) 53.726 0.5233 6.5761 158
108.444 0.9495 0.1 (12,4,0) 54.222 0.5266 6.6175 160
109.440 0.9436 0.1 (11,5,4) 54.720 0.5299 6.6588 162
110.443 0.9378 0.1 (12,4,2) 55.222 0.5331 6.6998 164
111.453 0.9322 1.5 (11,6,3) 55.726 0.5364 6.7405 166
112.469 0.9266 0.4 (10,8,2) 56.235 0.5396 6.7810 168
113.493 0.9211 0.1 ( 9 8 5) 56.747 0.5428 6.8212 170
115.566 0.9105 0.7 (11,7,2) 57.783 0.5492 6.9010 174
116.616 0.9053 2.6 (12,4,4) 58.308 0.5523 6.9405 176
117.675 0.9002 0.1 (12,5,3) 58.838 0.5554 6.9799 178
118.745 0.8952 5.6 (10,8,4) 59.373 0.5586 7.0190 180
119.826 0.8902 0.8 (13,3,2) 59.913 0.5616 7.0579 182
120.919 0.8854 1.5 (12,6,2) 60.460 0.5647 7.0965 184
122.024 0.8806 0.1 (11,7,4) 61.012 0.5678 7.1350 186
124.277 0.8713 0.2 (10,9,3) 62.138 0.5739 7.2113 190
125.426 0.8667 1.9 ( 8 8 8) 62.713 0.5769 7.2492 192
126.591 0.8623 0.1 (13,4,3) 63.295 0.5799 7.2868 194
127.774 0.8579 0.1 (12,6,4) 63.887 0.5828 7.3243 196
128.977 0.8535 0.3 (10,7,7) 64.488 0.5858 7.3616 198
130.201 0.8492 0.2 (10,10,0) 65.100 0.5888 7.3986 200
131.446 0.8450 0.1 (12,7,3) 65.723 0.5917 7.4355 202
134.014 0.8368 1.2 (11,7,6) 67.007 0.5975 7.5088 206
135.339 0.8327 0.9 (12,8,0) 67.670 0.6004 7.5452 208
136.697 0.8288 0.1 (11,8,5) 68.348 0.6033 7.5813 210
138.090 0.8249 4.1 (12,8,2) 69.045 0.6062 7.6174 212
139.521 0.8210 0.3 (13,6,3) 69.761 0.6090 7.6532 214
140.996 0.8172 3.5 (14,4,2) 70.498 0.6119 7.6889 216
142.519 0.8134 0.1 (11,9,4) 71.259 0.6147 7.7244 218
145.737 0.8061 0.9 (13,7,2) 72.869 0.6203 7.7950 222
147.450 0.8025 0.4 (12,8,4) 73.725 0.6231 7.8300 224
