📋 模式定义
将请求封装为对象，从而使你可以用不同的请求对客户端进行参数化，并支持请求的队列、记录和撤销操作。
❝Spring核心应用：
JdbcTemplate回调、TaskExecutor、AsyncRestTemplate

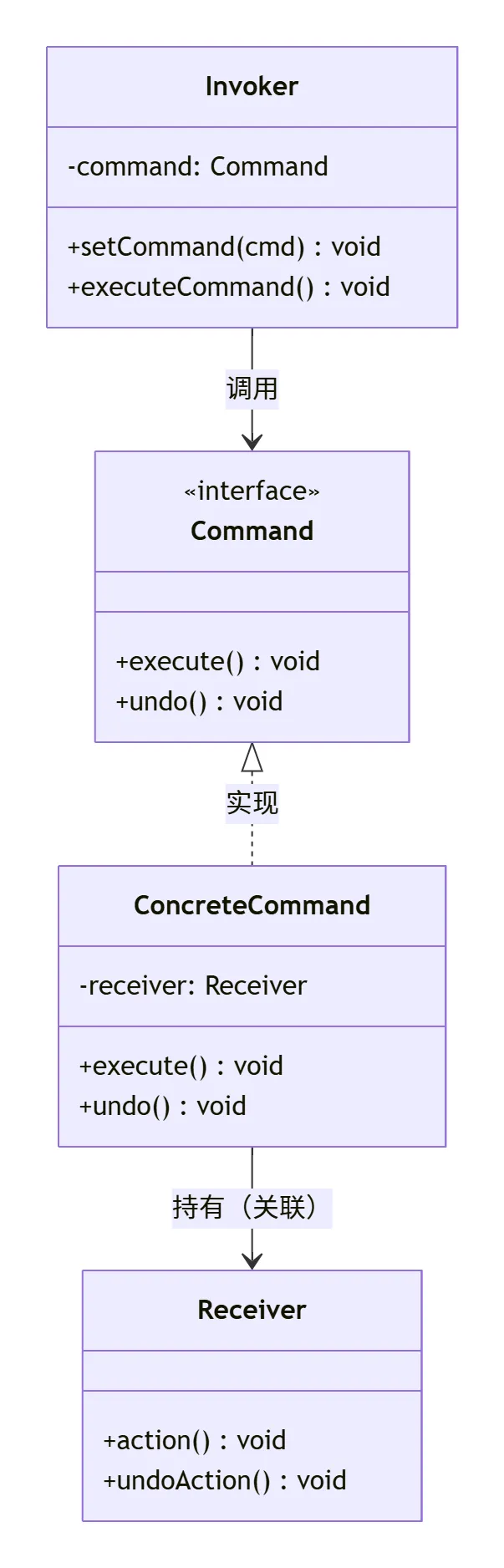

🏗️ UML类图
classDiagram
class Command {
<<interface>>
+execute() void
+undo() void
}
class ConcreteCommand {
-receiver: Receiver
+execute() void
+undo() void
}
class Invoker {
-command: Command
+set_command(cmd) void
+execute() void
}
class Receiver {
+action() void
+undo_action() void
}
Command <|-- ConcreteCommand : 实现
ConcreteCommand --> Receiver : 持有
Invoker --> Command : 调用
🌟 Spring中的命令模式
1. JdbcTemplate 回调（Command对象）
// JdbcTemplate将SQL操作封装为Command对象（回调）
// Command接口
publicinterfacePreparedStatementCallback<T> {
T doInPreparedStatement(PreparedStatement ps)throws SQLException, DataAccessException;
}
publicinterfaceRowMapper<T> {
T mapRow(ResultSet rs, int rowNum)throws SQLException;
}
publicinterfaceResultSetExtractor<T> {
T extractData(ResultSet rs)throws SQLException, DataAccessException;
}
// ConcreteCommand: PreparedStatementCreator
publicinterfacePreparedStatementCreator{
PreparedStatement createPreparedStatement(Connection con)throws SQLException;
}
// 使用：JdbcTemplate执行（Invoker）
jdbcTemplate.query(
"SELECT * FROM users WHERE age > ? AND status = ?",
new PreparedStatementSetter() {
@Override
publicvoidsetValues(PreparedStatement ps)throws SQLException {
ps.setInt(1, 18);
ps.setString(2, "ACTIVE");
}
},
new RowMapper<User>() {
@Override
public User mapRow(ResultSet rs, int rowNum)throws SQLException {
returnnew User(rs.getLong("id"), rs.getString("name"));
}
}
);
// 内部执行流程：
// 1. JdbcTemplate（Invoker）接收回调对象（Command）
// 2. 获取Connection
// 3. 执行PreparedStatementCallback（执行Command）
// 4. 返回结果
// ✅ Client（调用方）只需提供回调对象（Command），不关心执行流程
// ✅ JdbcTemplate统一管理连接、异常、资源（Invoker职责）
JdbcTemplate核心方法：
publicclassJdbcTemplate{
public <T> T query(String sql, RowMapper<T> rowMapper){
return query(sql, (ResultSet rs) -> {
List<T> results = new ArrayList<>();
int rowNum = 0;
while (rs.next()) {
results.add(rowMapper.mapRow(rs, rowNum++));
}
return results;
});
}
public <T> T query(String sql, ResultSetExtractor<T> rse){
return execute(con -> {
PreparedStatement ps = con.prepareStatement(sql);
try {
ResultSet rs = ps.executeQuery();
try {
return rse.extractData(rs);
} finally {
DataSourceUtils.closeResultSet(rs);
}
} finally {
DataSourceUtils.closeStatement(ps);
}
});
}
public <T> T execute(PreparedStatementCallback<T> action){
DataSource ds = getDataSource();
Connection con = DataSourceUtils.getConnection(ds);
try {
PreparedStatement ps = con.prepareStatement(sql);
try {
return action.doInPreparedStatement(ps); // 调用Command
} finally {
DataSourceUtils.closeStatement(ps);
}
} finally {
DataSourceUtils.releaseConnection(con, ds);
}
}
}
// 匿名内部类实现Command
jdbcTemplate.execute((PreparedStatementCallback<Boolean>) ps -> {
ps.setString(1, "test");
return ps.execute();
});
2. TaskExecutor / AsyncTaskExecutor - 异步命令
// Spring任务执行：将任务封装为Command执行
// Command: Runnable/Callable
Runnable task = () -> {
// 任务逻辑
System.out.println("执行任务");
};
// Invoker: TaskExecutor
TaskExecutor executor = new SimpleAsyncTaskExecutor();
executor.execute(task); // 异步执行
// 更丰富的Command
Callable<String> callable = () -> {
Thread.sleep(1000);
return"任务完成";
};
Future<String> future = executor.submit(callable); // 执行命令
String result = future.get(); // 获取结果（阻塞）
// AsyncTaskExecutor支持Callable
publicinterfaceAsyncTaskExecutorextendsTaskExecutor{
<T> Future<T> submit(Callable<T> task);
<T> Future<T> submit(Runnable task, T result);
}
// ThreadPoolTaskExecutor实现
publicclassThreadPoolTaskExecutorextendsExecutorConfigurationSupport
implementsAsyncListenableTaskExecutor, ScopedTaskExecutor{
private ThreadPoolExecutor threadPoolExecutor;
@Override
publicvoidexecute(Runnable task){
this.threadPoolExecutor.execute(task); // 池中执行
}
@Override
public <T> Future<T> submit(Callable<T> task){
returnthis.threadPoolExecutor.submit(task);
}
}
// 使用：Spring @Async注解（@Async → AsyncAnnotationBeanPostProcessor → 代理 → TaskExecutor）
@Service
publicclassEmailService{
@Async// 声明式异步命令
public CompletableFuture<Void> sendEmail(String to, String content){
// 该方法被包装为AsyncTaskExecutor.execute()
mailSender.send(to, content);
return CompletableFuture.completedFuture(null);
}
}
// 异步命令流程：
// 1. EmailService被代理（SimpleAsyncTaskExecutor#submit）
// 2. @Async方法提交到线程池
// 3. 主线程立即返回CompletableFuture
// 4. 工作线程执行sendEmail()
3. Runnable事务命令
// Spring事务模板：TransactionTemplate使用Command模式
// Command: TransactionCallback
publicinterfaceTransactionCallback<T> {
T doInTransaction(TransactionStatus status);
}
// 使用
TransactionTemplate template = new TransactionTemplate(transactionManager);
String result = template.execute(status -> {
// Command执行体
jdbcTemplate.update("INSERT INTO orders ...");
jdbcTemplate.update("INSERT INTO order_items ...");
return"订单创建成功";
});
// 支持回滚：throw RuntimeException自动回滚
String result = template.execute(status -> {
try {
jdbcTemplate.update("UPDATE inventory SET count = count - 1");
int rows = jdbcTemplate.update("INSERT INTO orders ...");
if (rows == 0) {
thrownew RuntimeException("创建订单失败");
}
return"OK";
} catch (Exception e) {
status.setRollbackOnly(); // 命令内部明确回滚
throw e;
}
});
4. Action / Callback 命令
// Spring Boot Actuator：HealthIndicator命令模式
// Command: HealthIndicator
publicinterfaceHealthIndicator{
Health health();
}
// 具体命令：DataSourceHealthIndicator
@Component
publicclassDataSourceHealthIndicatorextendsAbstractRelationalHealthIndicator{
@Override
protectedvoiddoHealthCheck(Builder builder)throws Exception {
DataSource dataSource = getDataSource();
try (Connection conn = DataSourceUtils.getConnection(dataSource)) {
DatabaseMetaData metaData = conn.getMetaData();
builder.up()
.withDetail("database", metaData.getDatabaseProductName())
.withDetail("version", metaData.getDatabaseProductVersion());
}
}
}
// 具体命令：RedisHealthIndicator
@Component
publicclassRedisHealthIndicatorextendsAbstractHealthIndicator{
@Override
protectedvoiddoHealthCheck(Builder builder)throws Exception {
RedisConnectionFactory factory = getRedisConnectionFactory();
try (RedisConnection conn = factory.getConnection()) {
String info = conn.info();
builder.up().withDetail("info", info);
}
}
}
// Invoker: HealthEndpoint
@Component
publicclassHealthEndpoint{
privatefinal Map<String, HealthIndicator> indicators;
@Autowired
publicHealthEndpoint(List<HealthIndicator> indicatorList){
this.indicators = new LinkedHashMap<>();
for (HealthIndicator indicator : indicatorList) {
String name = indicator.getClass().getSimpleName().replace("HealthIndicator", "").toLowerCase();
this.indicators.put(name, indicator);
}
}
public Health health(){
HealthAggregator aggregator = new SimpleHealthAggregator();
return aggregator.aggregate(this.indicators);
}
public Health healthForPath(String path){
HealthIndicator indicator = this.indicators.get(path);
if (indicator != null) {
return indicator.health();
}
return health();
}
}
// 使用：/actuator/health触发所有HealthIndicator命令
// GET /actuator/health/datasource → DataSourceHealthIndicator.health()
// GET /actuator/health/redis → RedisHealthIndicator.health()
5. ResourceEditor / PropertyEditor - 属性编辑命令
// 类型转换：String → Object（命令模式）
// Command: PropertyEditor
publicinterfacePropertyEditor{
voidsetAsText(String text)throws IllegalArgumentException;
String getAsText();
voidsetValue(Object value);
Object getValue();
}
// 具体命令：CustomDateEditor
publicclassCustomDateEditorextendsPropertyEditorSupportimplementsPropertyEditor{
privatefinal DateFormat dateFormat;
privatefinalboolean allowEmpty;
@Override
publicvoidsetAsText(String text)throws IllegalArgumentException {
if (this.allowEmpty && !StringUtils.hasText(text)) {
setValue(null);
} else {
try {
setValue(this.dateFormat.parse(text));
} catch (ParseException ex) {
thrownew IllegalArgumentException("无效日期格式: " + text, ex);
}
}
}
@Override
public String getAsText(){
Object value = getValue();
return (value instanceof Date ? this.dateFormat.format((Date) value) : "");
}
}
// 具体命令：StringTrimmerEditor
publicclassStringTrimmerEditorextendsPropertyEditorSupport{
@Override
publicvoidsetAsText(String text)throws IllegalArgumentException {
if (text == null) {
setValue(null);
} else {
String trimmed = text.trim();
setValue(trimmed.isEmpty() ? null : trimmed);
}
}
}
// Invoker: BeanWrapperImpl
publicclassBeanWrapperImpl{
private PropertyEditorRegistry registry;
publicvoidsetPropertyValue(String propertyName, String value){
PropertyEditor editor = findCustomEditor(propertyType);
if (editor != null) {
editor.setAsText(value); // 执行命令：String → Object
setPropertyValue(propertyName, editor.getValue());
}
}
}
// 使用：Spring自动转换参数
@GetMapping("/users")
public String createUser(@RequestParam @DateTimeFormat(pattern = "yyyy-MM-dd") Date birth) {
// String "1990-01-01" → Date 通过CustomDateEditor（命令）
}
🔄 命令 vs 策略
RunnableCallable、PreparedStatementCallback | SortCacheResolver |
Spring Command：Spring将很多回调接口设计为命令模式 • Runnable/Callable - 任务命令
• PreparedStatementCallback - SQL命令
• RowMapper - 结果集映射命令
• HealthIndicator - 健康检查命令
• PropertyEditor - 类型转换命令
练习
练习1：自定义JdbcTemplate
// 简化版JdbcTemplate，练习命令模式
publicclassSimpleJdbcTemplate{
privatefinal DataSource dataSource;
public <T> T query(String sql, RowCallback<T> callback){
try (Connection conn = dataSource.getConnection();
PreparedStatement ps = conn.prepareStatement(sql);
ResultSet rs = ps.executeQuery()) {
T result = callback.doInRow(rs);
return result;
} catch (SQLException e) {
thrownew DataAccessException("查询失败", e);
}
}
}
// 使用
SimpleJdbcTemplate template = new SimpleJdbcTemplate(dataSource);
List<User> users = template.query("SELECT * FROM users", rs -> {
List<User> list = new ArrayList<>();
while (rs.next()) {
list.add(new User(rs.getLong("id"), rs.getString("name")));
}
return list;
});
练习2：命令队列
// 实现命令队列，支持批量执行和撤销
publicinterfaceCommand{
voidexecute();
voidundo();
}
publicclassCommandQueue{
privatefinal Stack<Command> history = new Stack<>();
publicvoidaddCommand(Command cmd){
cmd.execute();
history.push(cmd);
}
publicvoidundoLast(){
if (!history.isEmpty()) {
history.pop().undo();
}
}
publicvoidexecuteBatch(List<Command> commands){
for (Command cmd : commands) {
cmd.execute();
history.push(cmd);
}
}
}
下一步
✅ 掌握命令模式后，继续学习：
👉 解释器模式
