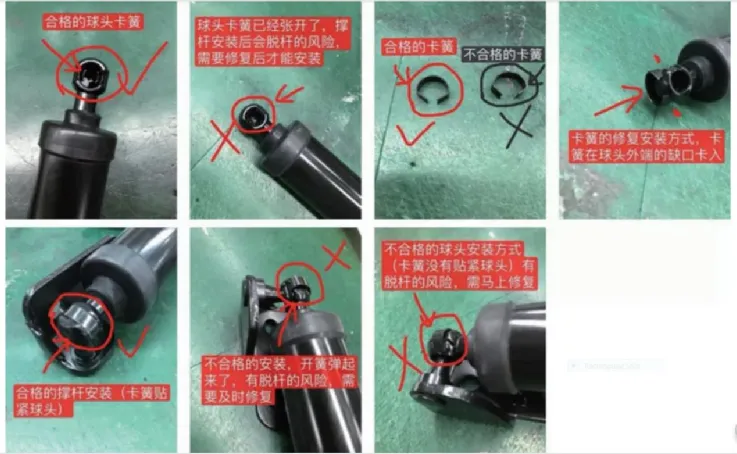

注意事项MattersNeedingAttention本说明书中的所有图片仅供参考，图片与实物有可能不同，但安装方法是一样的。为方便您安装，请在安装前认真阅读该商品使用说明书；安装时需注意保护好您爱车的表面，避免刮花。请定期检查与车连接的所有配件是否松动，以确保使用安全。Allthepicturesinthismanualareforreferenceonly.Thepicturesmaydifferfromtheactualones,buttheinstallationmethodisthesame.Foryourconvenience,pleasereadtheinstructionmanualoftheproductcarefullybeforeinstallation.Pleasepayattentiontoprotectthesurfaceofyourcarandavoidscratching.Pleasecheckregularlythatallaccessoriesconnectedtothecararetighttoensuresafeuse.常见问题点CommonIssues1.支架安装反：门关不好；2.支架螺丝没有按要求更换：门关不好，损坏杆；3.控制盒接插件没有插到位，松脱：开关门没有力或者防架力重；4.杆球头、卡簧没有安装到位：使用过程中造成杆脱落（安装后检查）；5.接插件没有插到位、脱落：功能失效；6.电吸锁架偏离中心：门关不上、门缝隙大、拉力紧导致开门大声；7.新车安装长时间没启动汽车造成电量小：开关门不正常，需重新打火；8.尾门加装隔音棉5公斤以上可能影响开关门力，需控制器加力；9.首次安装或者断电后需要学习：长按加装尾门关门键3-5秒听到“嘀”一声长响，把手松开再按门下来听到“嘀”的一声，学习成功（没有学习会出现开关门不正常）；10.球头不对时，非线端的球头可360度旋转。1.Bracket installation reverse: trunk door does not close properly.2.The bracket screw is not replaced as required: the door does not close properly, will damage electric poles.3.The ECU control box is not plugged in properly, loose: there is no force when opening or closing the door or the anti-pinch force is heavy.4.Pole ball head, the circlip is not installed properly: the poles detach during use (check after installation).5.The connector is not plugged in properly, it falls off: the function fails.6.The electric suction lock is off center: the door cannot close, the door gap is large, and the tension is tight, which causes the door to open loudly.7.Installed in a new car for a long time without restarting the car, resulting in low power: door opening or closing not functioning normally, need to restart the car.8.Adding more than 5 kg of soundproof cotton to the tailgate may affect the opening or closing door force, add power to ECU control box.9.After the first installation or power failure, need to learn: long press the tailgate closing button for 3-5 seconds to hear a long sound of "di", release the handle and press the door down to hear a sound of "di", learning success (no learning will appear abnormal opening and closing)10.When the ball head is wrong, the non-aligned ball head can be rotated 360 degrees.合格的球头卡簧Qualifiedballheadcirclip1.球头卡簧已经经张开了，撑杆安装后会脱杆的风险，需要修复后才能安装。Theballcircliphasbeenopened,thereisriskofelectricpoledetachingafterinstallation.Itneedstoberepairedbeforeinstallation.2.合格的卡簧。不合格的卡簧。PassedQCcirclip.NotpassedQCcirclip.3.卡簧的修复安装方式，卡簧在球头外端的缺口卡入。Therepairandinstallationmethodofthecirclip,thecirclipisstuckinthenotchattheouterendoftheballhead.4.合格的撑杆安装（卡簧贴紧球头）。Correctelectricpolemounting(thecircliptightlymountedintheballhead).5.不合格的安装，开簧弹起来了，有脱杆的风险，需要及时修复。Incorrectinstallation,thespringisspringedup,thereisariskofdisengagement,anditneedstoberepairedinatimelymanner.6.不合格的球头安装方式（卡簧没有贴紧球头）有脱杆的风险，需马上修复。Incorrectballheadinstallation(thecirclipdoesnotsticktotheballhead)hastheriskofbeingdisengagedandneedstoberepairedimmediately.安装步骤InstallationProcedure参考配件清单和配件图检查配件是否齐全。汽车尾门安装完成后，请按尾门加装开关按键不放手，3-5秒出现“嘀”一声长响，把手松开，再按一下尾门关上，出现“嘀嘀”两声，即尾门学习完成Refer to the spare parts list and spare parts drawing to check whether the spare parts are complete.After the installation of the car's tailgate, please press the button to install the switch on the tailgate without letting go. There will be a long "beep" in 3-5 seconds. Release the handle, and then press the tailgate to close. There will be two "beeps", that is, the programming of the tailgate is completed
更换原车上球头，用我司上球头加垫片安装Replace the ball head on the original car and install it with our ball head and gasket
更换原车下球头，用我司下球头加垫片安装Replace the lower ball head of the original car and install it with our lower ball head and gasket
更换我司上电吸锁Replace our electric suction lock

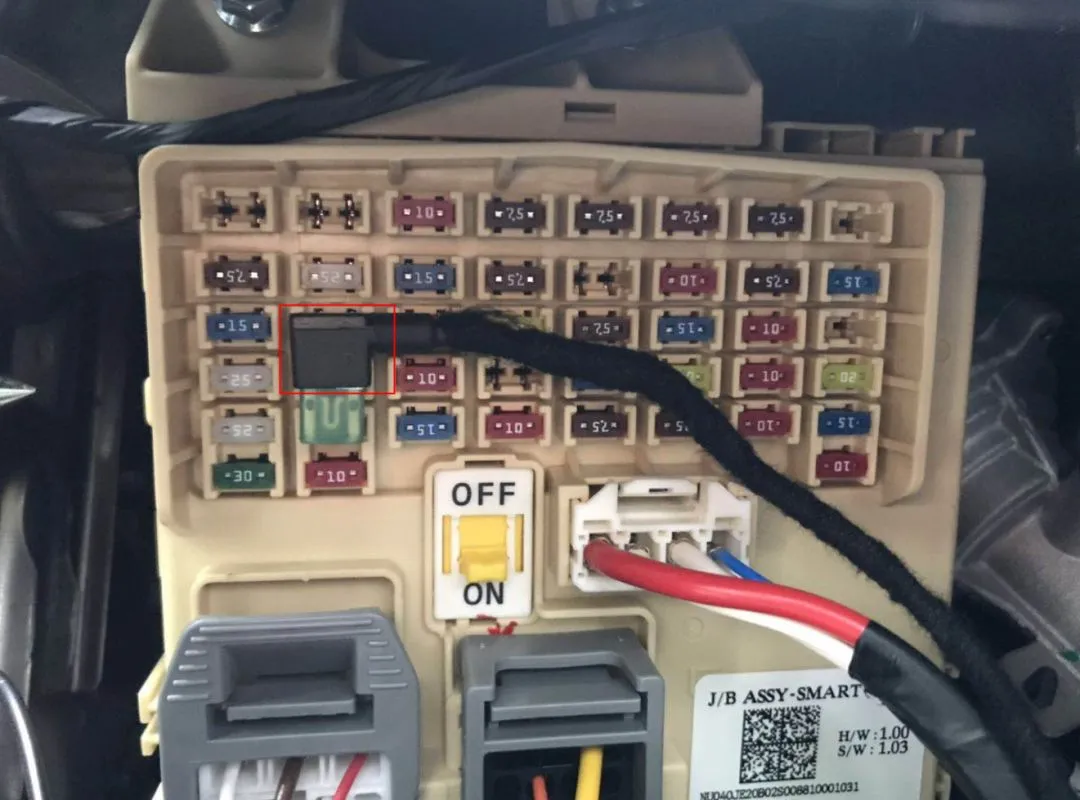

在原车主驾驶上取电Get power on the original owner's driver

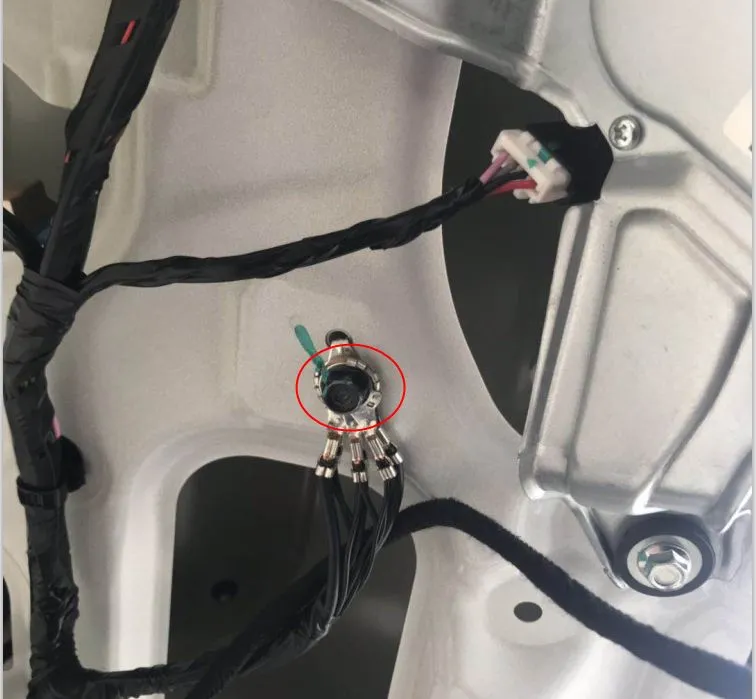

原车后尾门处接地Grounding at the rear tailgate of the original car

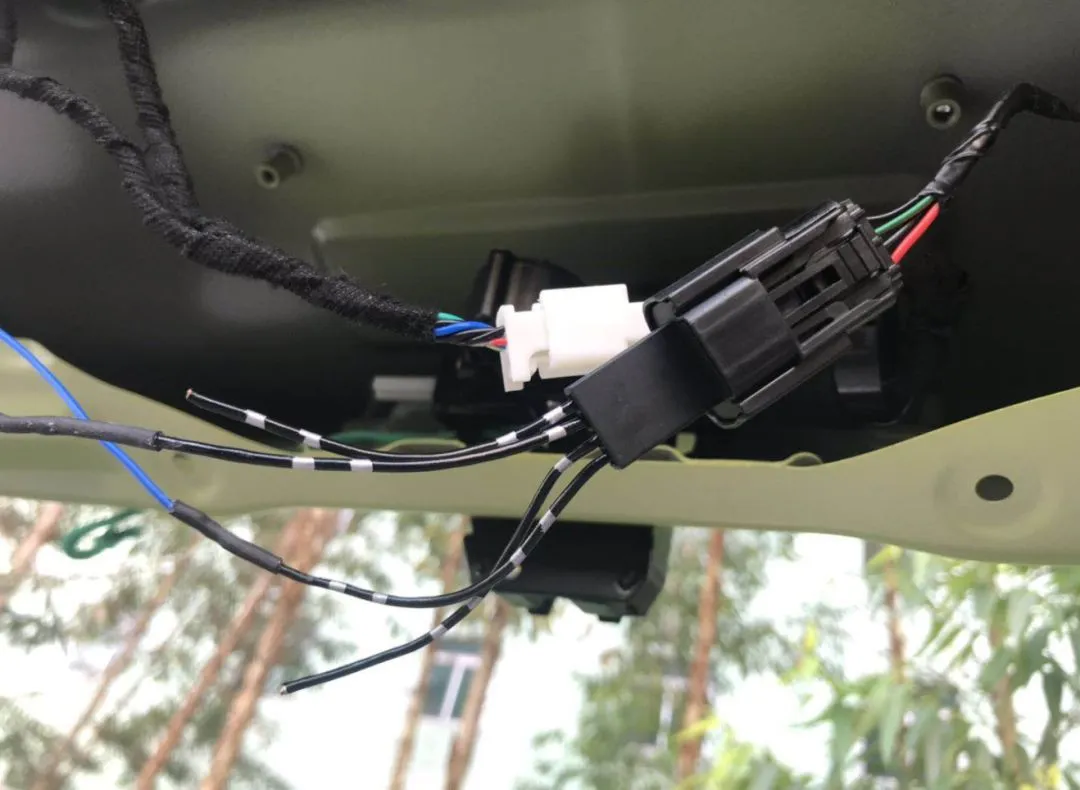

上电吸锁、三通插头对插Power-on suction lock, three-way plug to plug

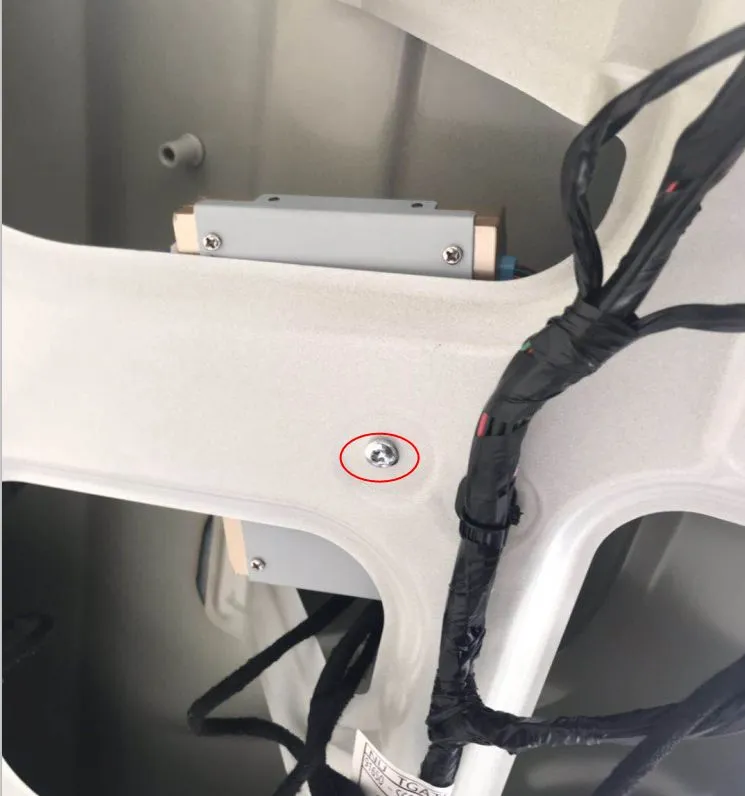

原车后尾门处安装控制盒，用我司螺丝固定Install the control box at the rear tailgate of the original car and fix it with our screws

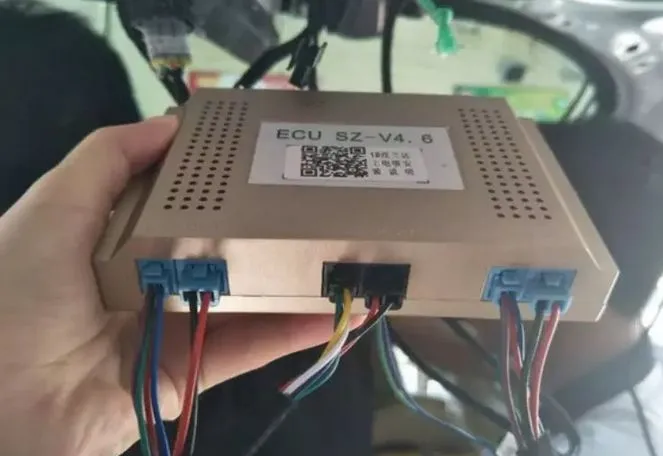

线、中控线、电源线根据颜色一一对插我司控制盒Lines, central control lines and power lines are plugged into our control box one by one according to the color
安装尾门开关，还原Install tailgate switch, restore
在安装完成后请必须进行尾门学习设置，请确保门能开关到位（将尾门升至理想高度，按尾门加装开关按键，3-5秒听到“嘀”一声长响，把手松开，再按一下尾门按键关门，尾门关到位，然后听到“嘀”一声，即尾门学习完成）After the installation is completed, the tailgate programming setting must be carried out. Please make sure that the door can be opened and closed in place (raise the tailgate to the desired height, press the button for adding the switch on the tailgate, there’s a long "beep" for 3-5 seconds, release the button, press the button for closing the tailgate again, the tailgate is closed in place, and then hear a "beep", that is, the tailgate programming is completed)免责声明Disclaimer由于安装及使用不当而引发的相关问题及损失，不在我公司的质保范围内。在使用前请仔细阅读本手册，阅后请小心收藏，以备自后才查阅，图片仅供参考，产品以实物为准。Therelatedproblemsandlossescausedbyimproperinstallationandusearenotcoveredbyourcompany'swarranty.Pleasereadthismanualcarefullybeforeuse.Pleasestorecarefullyafterreading,sothatyoucancheckitlater.Thepictureisforreferenceonly.Theproductissubjecttotheactualobject.按键操控方式Buttoncontrolmode1：原车遥控按三次解锁键开关尾门Longpressthefrontbuttonforthreesecondstoswitchthetailgate2：前按键长按三秒开关尾门Theoriginalvehicleremotecontrolpresstheunlockkeythreetimestoopenthetailgate设置高度HeightSetting将尾门升至理想高度，按尾门加装开关按键，3-5秒出现“嘀”一声长响，把手松开，再按一下尾门按键下关，尾门关到位，然后出现“嘀”一声，即尾门学习完成Raise the tailgate to the desired height, press the tailgate switch button, 3-5 seconds will appear a "beep" sound, loosen hand, then press the tailgate button to close, the tailgate is closed, and there is a "beep" sound, that is, the tailgate programming is completed电动尾门故障解决方案SolutiontoElectricTailgateFailure
