【Coze插件开发】-06 阿里云文档智能
【Coze插件开发】-06 阿里云文档智能Hi~我是Jike，专注于AI人工智能与自动化的博主一枚。因为Coze本身的能力不能实现业务场景全覆盖，很多功能的实现得依赖插件，所以我会将Coze插件库没有但又需求很大的APP的API封装成Coze插件发布到Coze插件商店，方便大家使用。

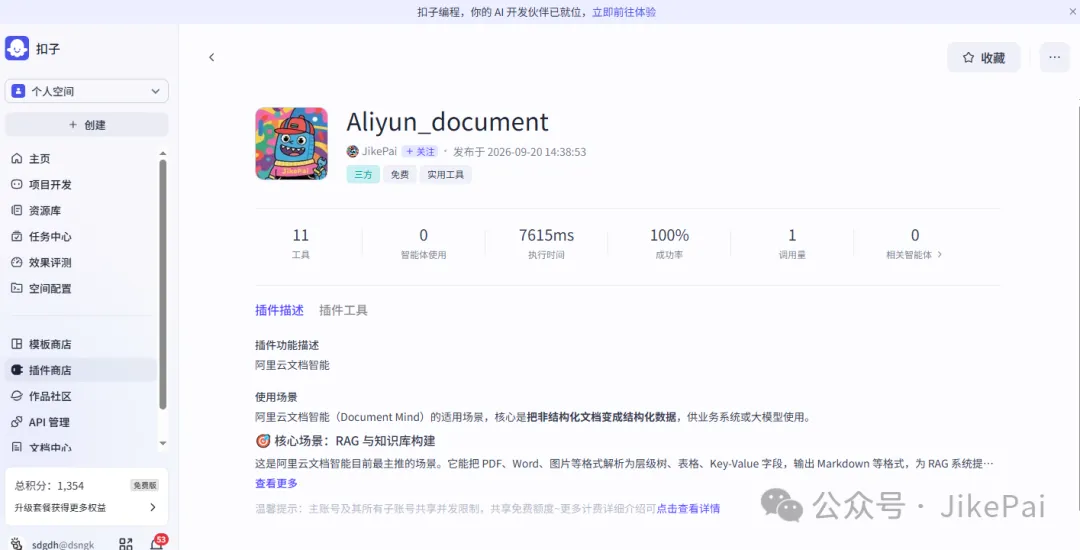

插件地址： https://www.coze.cn/store/plugin/7687501711342321674?from=store_search_suggestion 简介 文档智能（Document Mind），基于阿里巴巴达摩院多年技术积累打造的多模态文档识别与理解引擎，为用户提供通用文档智能解析，可满足各种场景下的智能文档处理需求，为大模型数据训练、RAG、知识库问答提供高精度的文档解析能力。 官方文档： https://help.aliyun.com/zh/document-mind/product-overview/what-is-document-mind 核心功能 文档理解：对各类文档和表格进行结构化识别与理解，并可在此基础上完成文档抽取等多种通用场景下的智能文档处理任务。 文档格式转换：将PDF、图片等不可编辑的文档转换为Word、Excel等可编辑的文档格式，在实现高精度内容识别的同时，最大限度地保留文档版式样式。 适用场景 结合文档智能与检索增强生成（RAG）构建 LLM 知识库。 企业数据大多数都以文本、图片、扫描件、电子表格、在线文档、邮件等文档的形式存在，难以流通和处理，大量有价值的信息都被锁定在非结构化的文档中，无法充分发挥数据价值。 文档智能深度融合文字识别、自然语言处理、图像处理、电子文档解析、文档预训练模型等多项技术，对非结构化和半结构化文档进行智能自动化处理，从而简化业务操作流程、提升文档处理效率，帮助企业更准确地进行大模型应用的场景建设。 选择文档智能，您可以高效完成以下文档处理任务： 计费概述 1.文档解析（大模型版）： 2.图片按张数计算页数； 3.电子文档解析： 4.文档智能解析： 免费额度 文档智能API服务及轻应用免费额度如下：

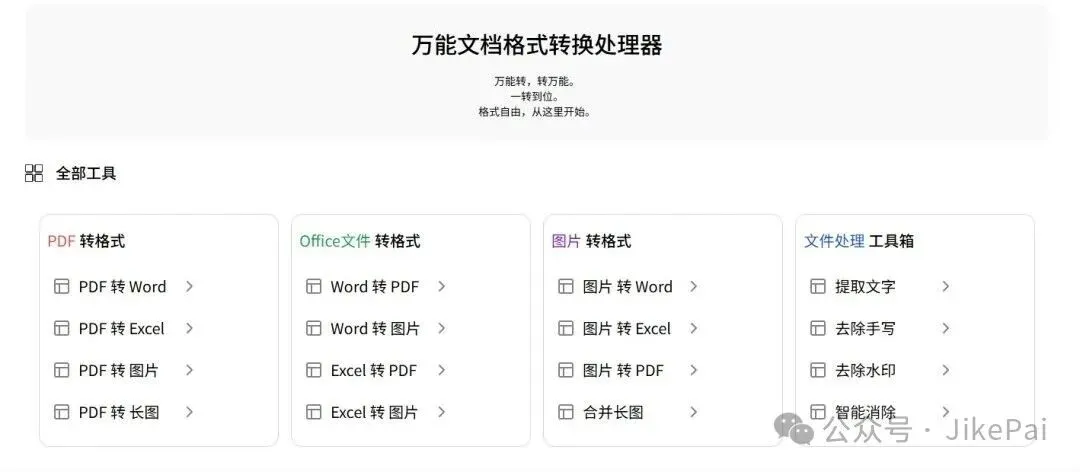

实例 个人办公助手：文档格式转换

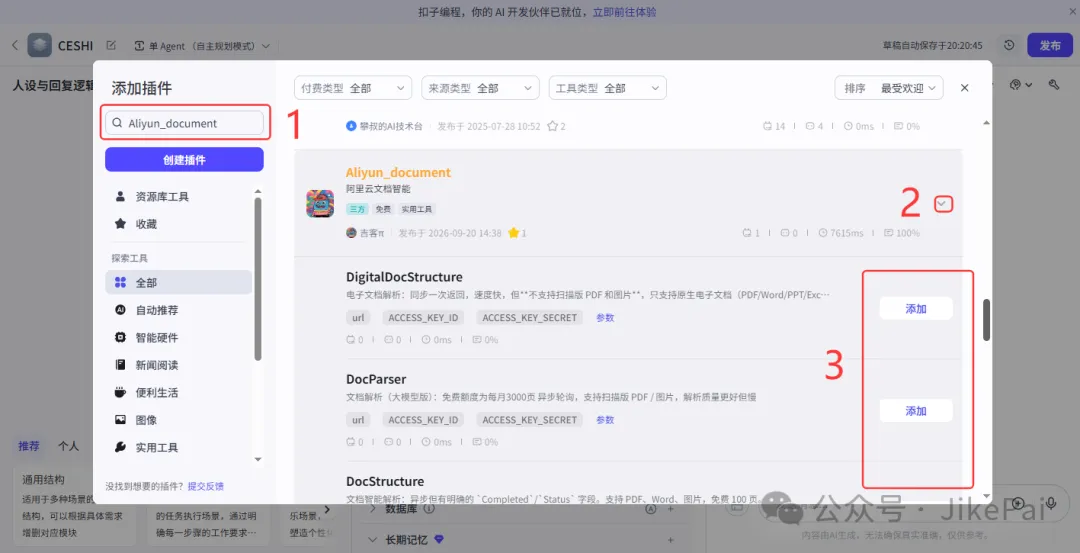

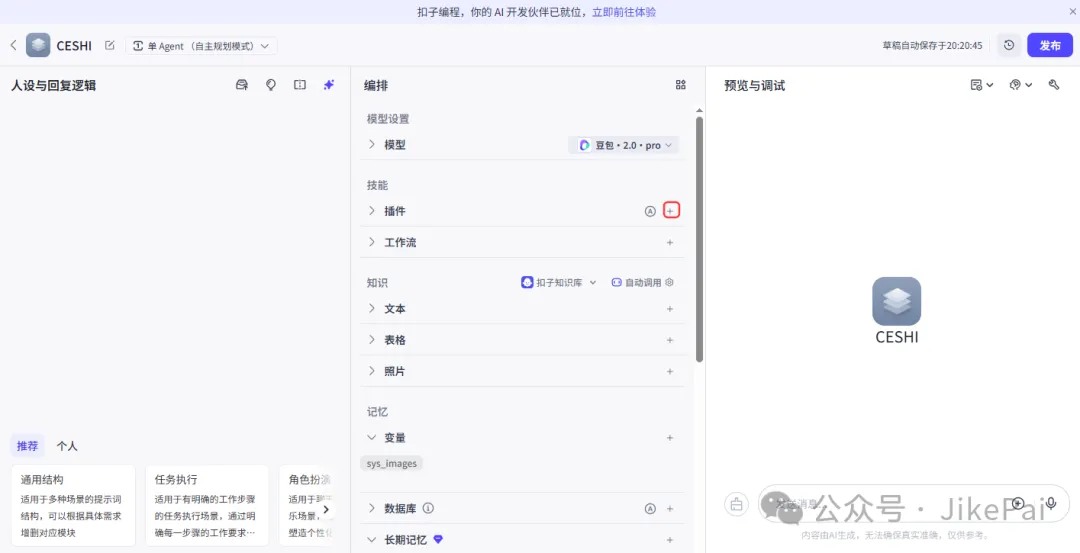

网址：https://www.coze.cn/s/l7wmt5gEPbs/ 添加插件 1.智能体->技能->插件

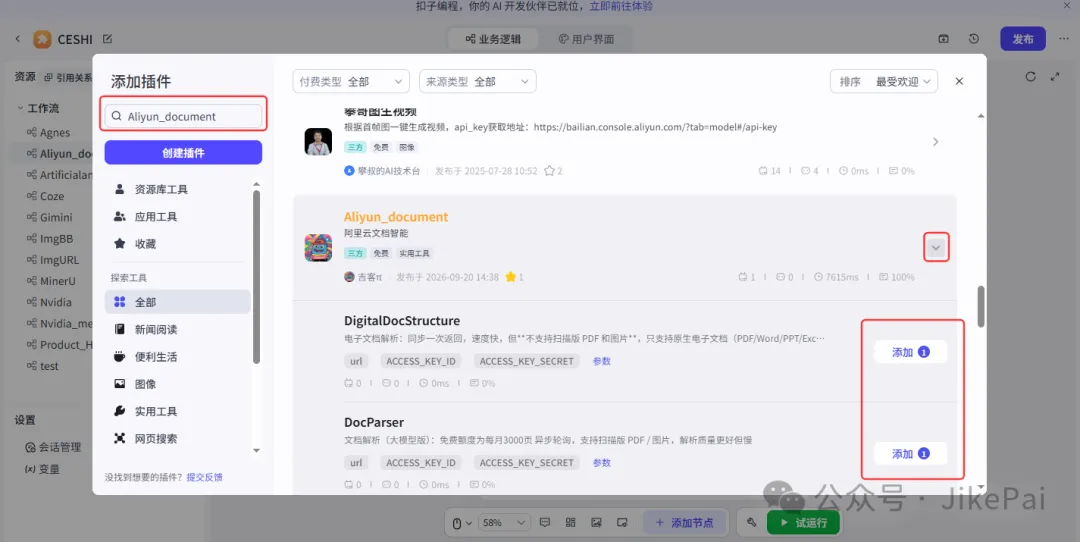

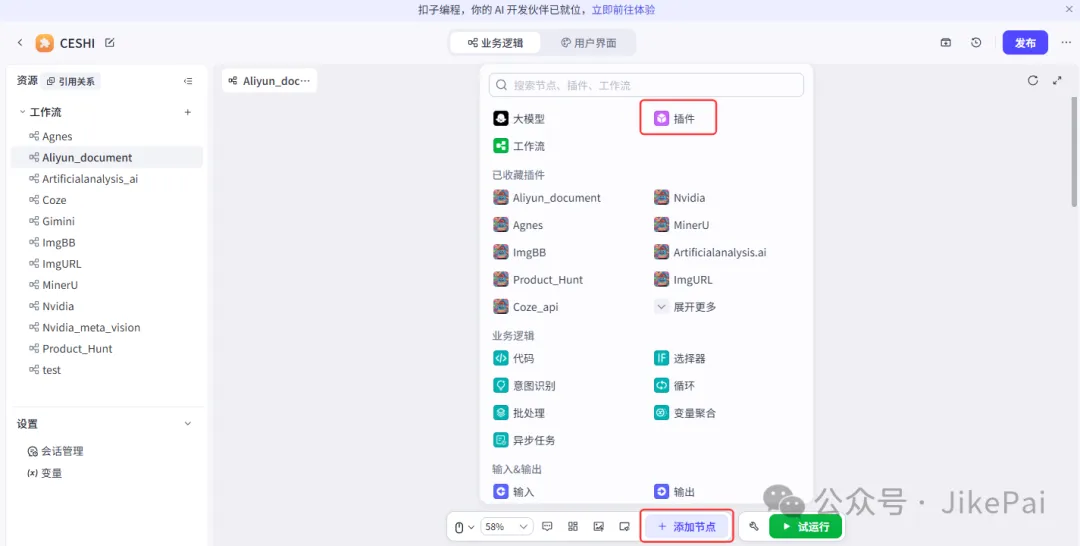

2.工作流->添加节点->插件

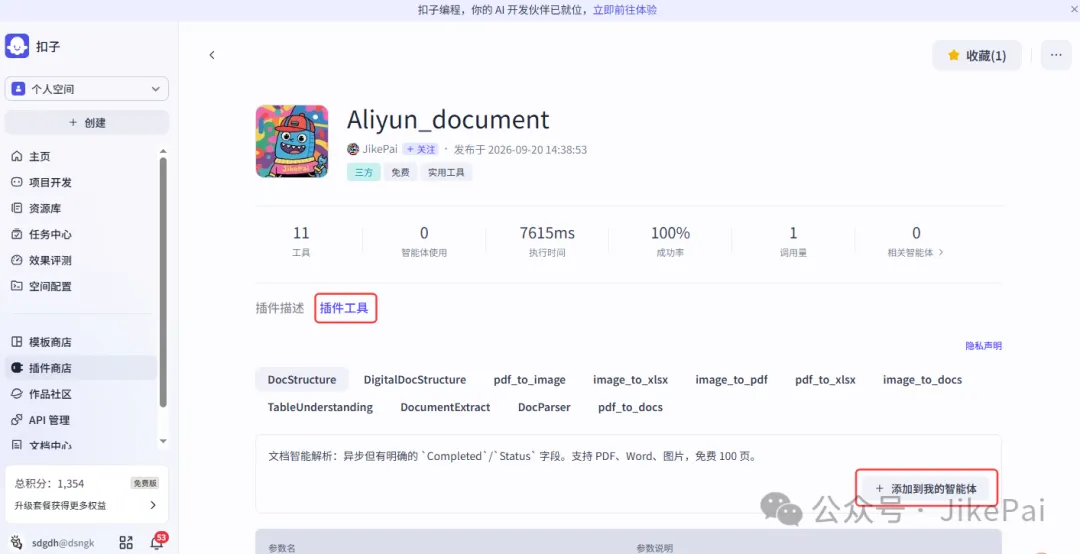

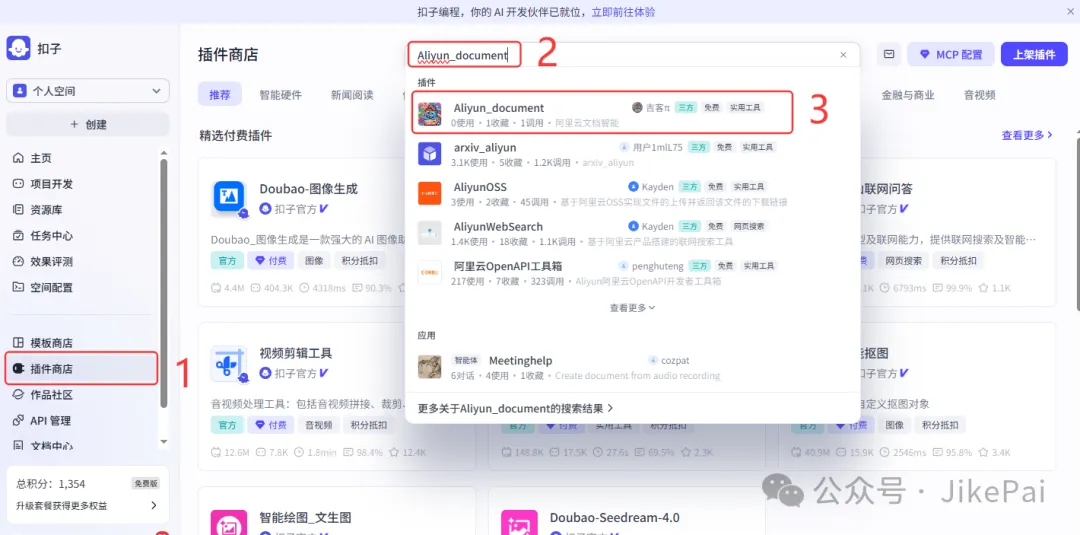

3.插件商店->添加到智能体

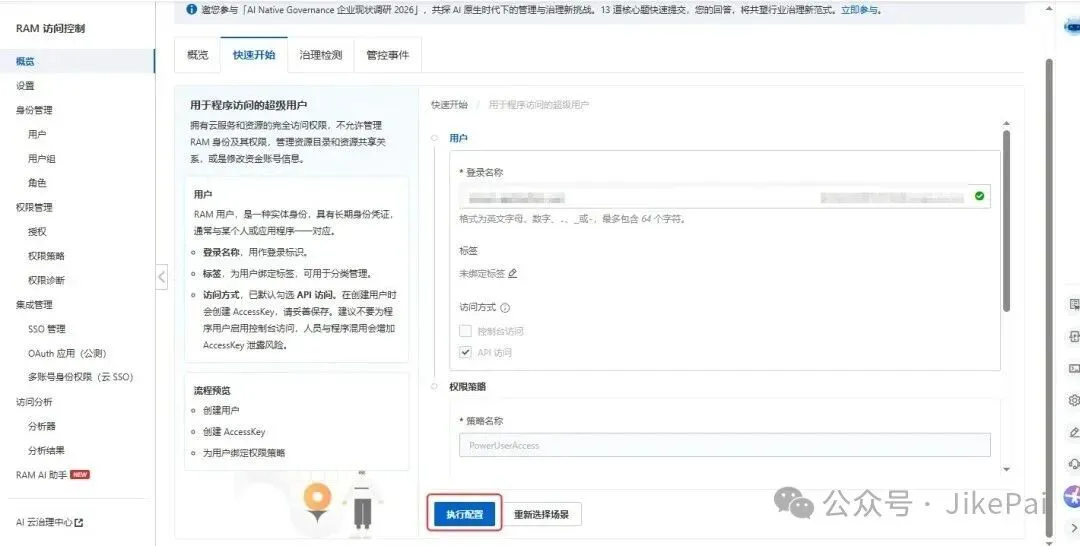

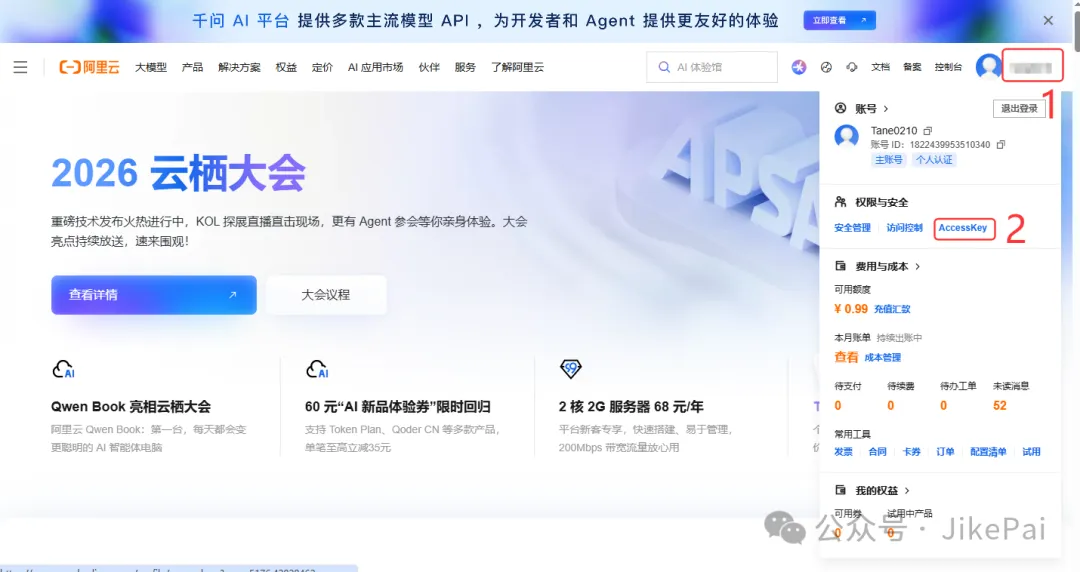

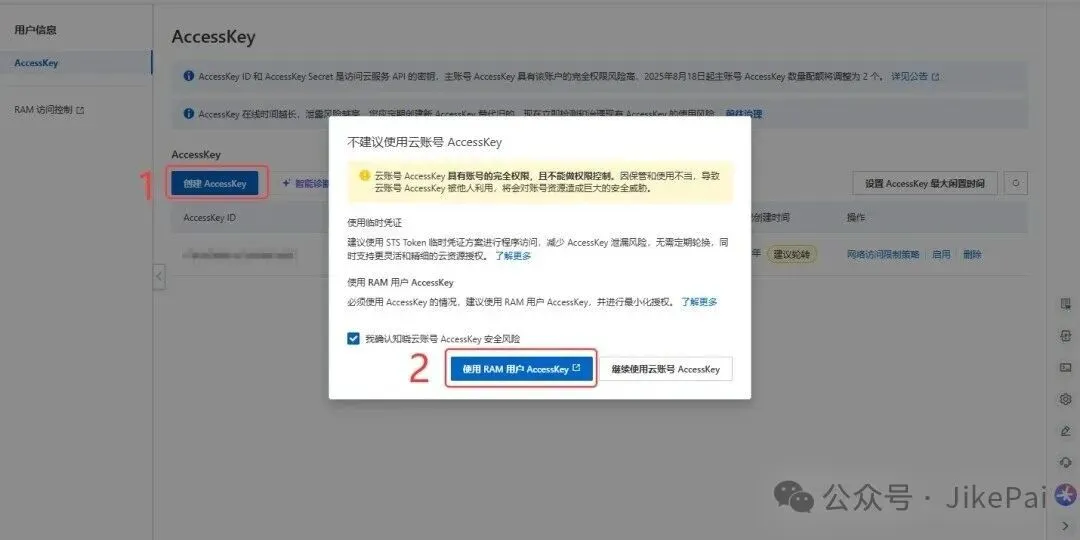

点击“插件工具”可看到需要传入的参数 运行插件 1.申请API key 复制下面👇的链接到浏览器打开

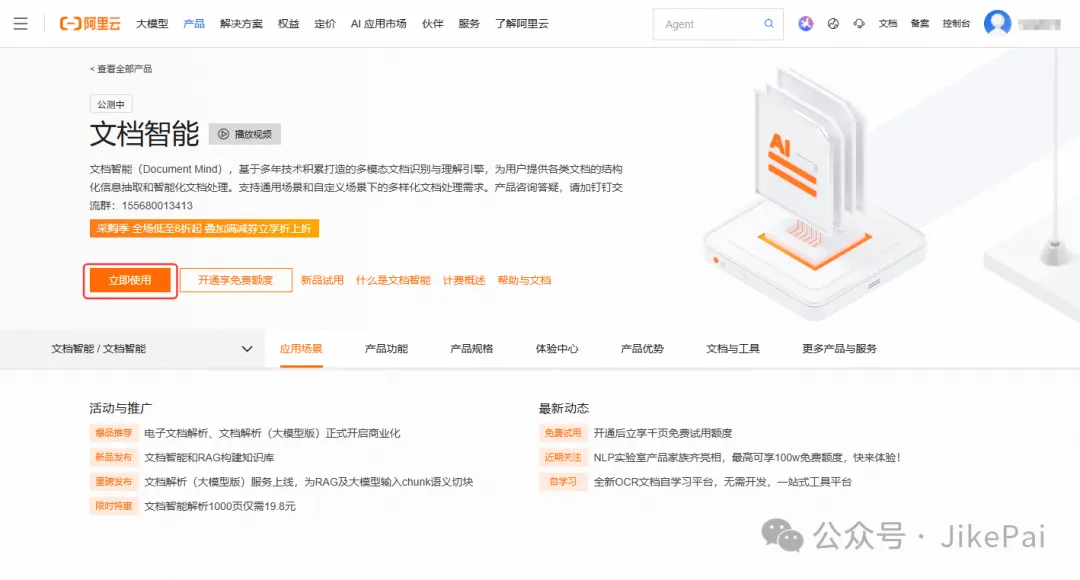

2.开通文档智能服务 复制下面👇的链接到浏览器打开。未开通用户显示的是立即开通

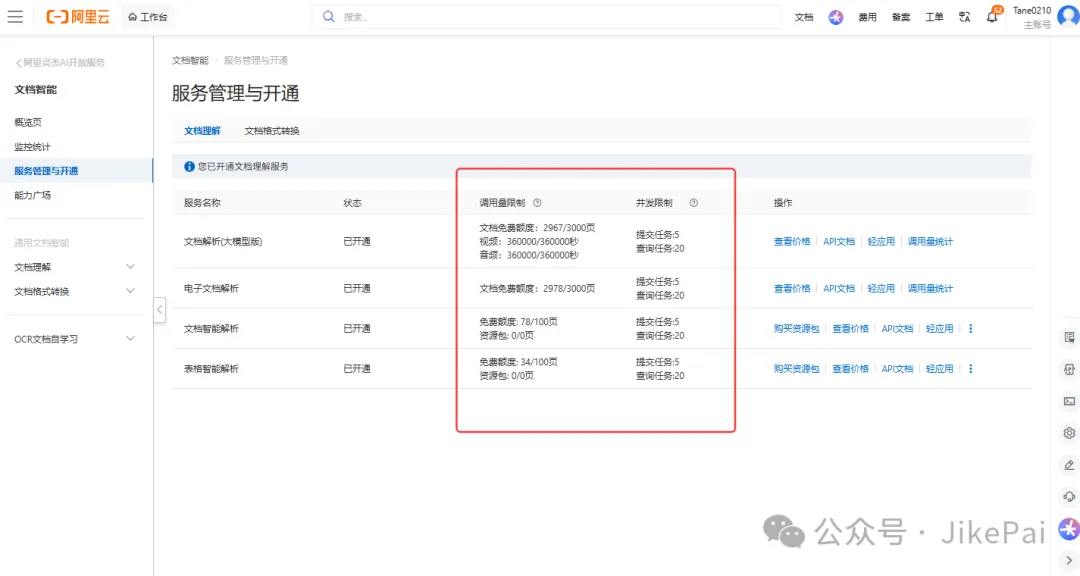

免费额度

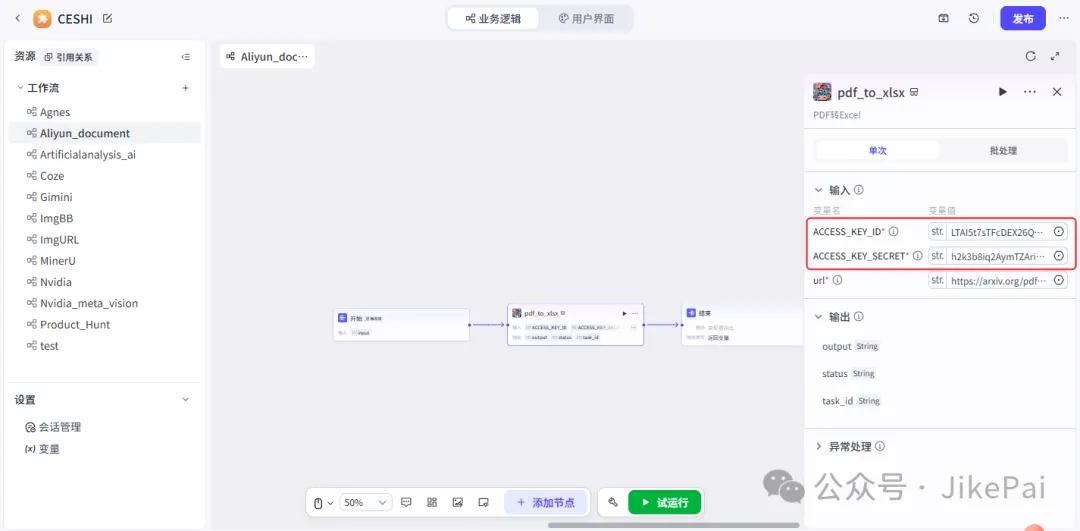

3.填写授权 将秘钥复制粘贴填好即可，不要加Bearer+空格
工作流代码 【关注我】每天分享最新AI资讯 【点赞+转发】让更多人告别重复劳动生活
结构化解析文档，提取文档中的层级树、版面、表格和字段等元素。 进行文档格式转换，如PDF转Word或Excel、图片转Word或Excel等。
图文文件按照页数计算用量 PDF、Word、PPT按实际页数计算；
Excel、html、epub、mobi等按照字数折算页数（中文每2000字符或英文每2000词计为1页） 音视频文件，例如mp4、mkv、avi、mp3、wav等按照秒数计算用量
PDF按实际页数计算；、 其余Word、PPT、Excel、epub、mobi等按照字数折算计算页数（中文每2000字符或英文每2000词计为1页）。
PDF、Word、PPT按实际页数计算； 图片按张数计算页数。

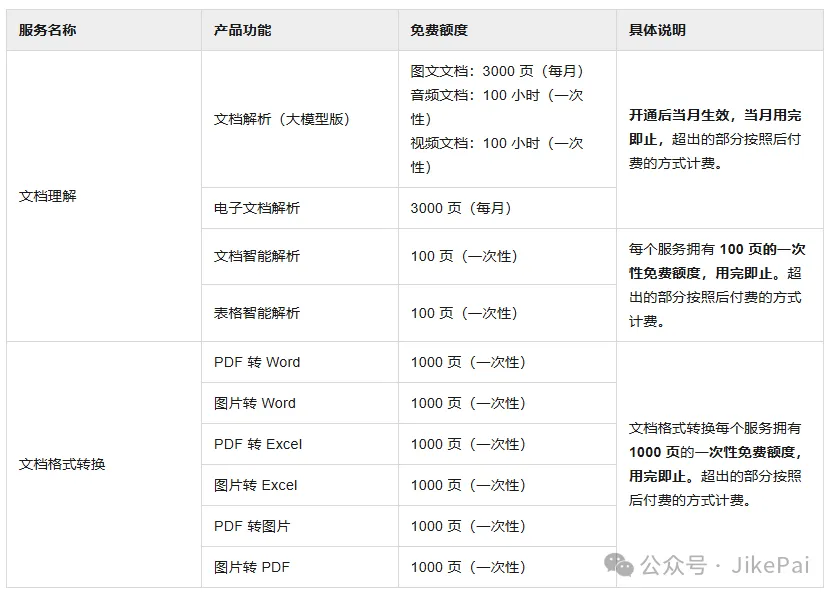

开通文档理解-文档解析（大模型版）、电子文档解析商品服务中图文文档每月3000页免费额度，当月用完即止。 开通文档理解-文档解析（大模型版）中，赠送该音视频文档音频类型、视频类型文档一次性各100小时免费额度，用完即止。 开通文档理解-文档智能解析、表格智能解析商品服务后，赠送该账户开通服务商品的一次性100页免费额度，用完即止。 开通文档格式转换对应的商品服务后，赠送该账户开通服务商品的一次性1000页免费额度，用完即止。 开通OCR文档自学习对应的应用服务后，分别赠送该账户开通服务商品的一次性500次免费额度，用完即止。可在额度范围内免费调用API接口以及使用轻应用。免费额度消耗完后，即采用按量后付费方式或资源包方式计费。
https://ram.console.aliyun.com/profile/access-keyshttps://www.aliyun.com/product/ai/docmindhttps://docmind.console.aliyun.com/service-manager不会搭工作流或懒得搭工作流，复制粘贴下方⬇️代码到Coze工作流中即可一键使用。
{"type":"coze-workflow-clipboard-data","source":{"workflowId":"7687947724943032347","flowMode":0,"spaceId":"7566267940615176233","isDouyin":false,"host":"www.coze.cn"},"json":{"nodes":[{"id":"100001","type":"1","meta":{"position":{"x":-1275.9439869931207,"y":1061.271272678111}},"data":{"nodeMeta":{"description":"工作流的起始节点，用于设定启动工作流需要的信息","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Start-v2.jpg","subTitle":"","title":"开始"},"outputs":[{"type":"string","name":"url","required":false,"defaultValue":"https://arxiv.org/pdf/2203.01927"},{"type":"string","assistType":1,"name":"local_file","required":false},{"type":"string","name":"action","required":false}],"trigger_parameters":[]},"_temp":{"bounds":{"x":-1455.9439869931207,"y":1061.271272678111,"width":360,"height":86},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Start-v2.jpg","description":"工作流的起始节点，用于设定启动工作流需要的信息","title":"开始","mainColor":"#5C62FF"}}},{"id":"900001","type":"2","meta":{"position":{"x":2439.6863121267543,"y":1621.5934007736805}},"data":{"nodeMeta":{"description":"工作流的最终节点，用于返回工作流运行后的结果信息","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-End-v2.jpg","subTitle":"","title":"结束"},"inputs":{"terminatePlan":"returnVariables","inputParameters":[{"name":"Group1","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"135417","name":"Group1"},"rawMeta":{"type":1}}}},{"name":"pdf_to_image","input":{"type":"list","schema":{"type":"string"},"value":{"type":"ref","content":{"source":"block-output","blockID":"193644","name":"output"},"rawMeta":{"type":99}}}}]}},"_temp":{"bounds":{"x":2259.6863121267543,"y":1621.5934007736805,"width":360,"height":112},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-End-v2.jpg","description":"工作流的最终节点，用于返回工作流运行后的结果信息","title":"结束","mainColor":"#5C62FF"}}},{"id":"106470","type":"4","meta":{"position":{"x":640,"y":212}},"data":{"nodeMeta":{"description":"电子文档解析：同步一次返回，速度快，但不支持扫描版 PDF 和图片，只支持原生电子文档（PDF/Word/PPT/Excel 等）","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:DigitalDocStructure","title":"DigitalDocStructure"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003409989678","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"DigitalDocStructure","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":460,"y":212,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=%2BUu%2F8daTBA%2BB%2Fc46NeJx%2FMxA9mg%3D","apiName":"DigitalDocStructure","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"电子文档解析：同步一次返回，速度快，但不支持扫描版 PDF 和图片，只支持原生电子文档（PDF/Word/PPT/Excel 等）","title":"DigitalDocStructure","mainColor":"#CA61FF"}}},{"id":"129919","type":"4","meta":{"position":{"x":640,"y":424}},"data":{"nodeMeta":{"description":"文档解析（大模型版）：免费额度为每月3000页\n异步轮询，支持扫描版 PDF / 图片，解析质量更好但慢","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:DocParser","title":"DocParser"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410006062","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"DocParser","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"task_id","required":true,"description":"task_id"},{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"}]},"_temp":{"bounds":{"x":460,"y":424,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=%2BUu%2F8daTBA%2BB%2Fc46NeJx%2FMxA9mg%3D","apiName":"DocParser","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"文档解析（大模型版）：免费额度为每月3000页\n异步轮询，支持扫描版 PDF / 图片，解析质量更好但慢","title":"DocParser","mainColor":"#CA61FF"}}},{"id":"103067","type":"4","meta":{"position":{"x":640,"y":636}},"data":{"nodeMeta":{"description":"文档智能解析：异步但有明确的 Completed/Status 字段。支持 PDF、Word、图片，免费 100 页。","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:DocStructure","title":"DocStructure"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410022446","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"DocStructure","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":460,"y":636,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=%2BUu%2F8daTBA%2BB%2Fc46NeJx%2FMxA9mg%3D","apiName":"DocStructure","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"url","input":{},"name":"url","required":true,"type":"string"},{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"}],"outputs":[{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"文档智能解析：异步但有明确的 Completed/Status 字段。支持 PDF、Word、图片，免费 100 页。","title":"DocStructure","mainColor":"#CA61FF"}}},{"id":"152979","type":"4","meta":{"position":{"x":640,"y":848}},"data":{"nodeMeta":{"description":"文档抽取：可以对各种类型文档和表格中的关键信息进行自动化抽取，返回通用KV结构化内容。","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:DocumentExtract","title":"DocumentExtract"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410038830","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"DocumentExtract","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"task_id","required":true,"description":"task_id"},{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"}]},"_temp":{"bounds":{"x":460,"y":848,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=rUfTWTmlYz8iiN2n7r%2BjZgRWY4o%3D","apiName":"DocumentExtract","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"文档抽取：可以对各种类型文档和表格中的关键信息进行自动化抽取，返回通用KV结构化内容。","title":"DocumentExtract","mainColor":"#CA61FF"}}},{"id":"157327","type":"4","meta":{"position":{"x":640,"y":1060}},"data":{"nodeMeta":{"description":"表格智能解析：可以进行表格抽取和理解，从pdf或图片格式的表格文档中提取出表格样式、表格内容、文本KV、表格KV等信息。","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:TableUnderstanding","title":"TableUnderstanding"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410153518","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"TableUnderstanding","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"literal","content":"https://arxiv.org/pdf/2203.01927","rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"task_id","required":true,"description":"task_id"},{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"}]},"_temp":{"bounds":{"x":460,"y":1060,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=rUfTWTmlYz8iiN2n7r%2BjZgRWY4o%3D","apiName":"TableUnderstanding","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"表格智能解析：可以进行表格抽取和理解，从pdf或图片格式的表格文档中提取出表格样式、表格内容、文本KV、表格KV等信息。","title":"TableUnderstanding","mainColor":"#CA61FF"}}},{"id":"132165","type":"4","meta":{"position":{"x":623.4950166112957,"y":2136.978226518392}},"data":{"nodeMeta":{"description":"图片转Word","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:image_to_docs","title":"image_to_docs"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410055214","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"image_to_docs","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"task_id","required":true,"description":"task_id"},{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"}]},"_temp":{"bounds":{"x":443.4950166112957,"y":2136.978226518392,"width":360,"height":112},"externalData":{"icon":"https://lf6-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=Hqll1sd21HAP791LJ%2BGJq3OVMEI%3D","apiName":"image_to_docs","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"图片地址，逗号分隔可传多张","input":{},"name":"url","required":true,"type":"string"},{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"}],"outputs":[{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"图片转Word","title":"image_to_docs","mainColor":"#CA61FF"}}},{"id":"124770","type":"4","meta":{"position":{"x":632.1164075194138,"y":2448.466657674825}},"data":{"nodeMeta":{"description":"图片转PDF","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:image_to_pdf","title":"image_to_pdf"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410071598","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"image_to_pdf","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":452.11640751941377,"y":2448.466657674825,"width":360,"height":112},"externalData":{"icon":"https://lf6-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=Hqll1sd21HAP791LJ%2BGJq3OVMEI%3D","apiName":"image_to_pdf","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"},{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"}],"outputs":[{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"图片转PDF","title":"image_to_pdf","mainColor":"#CA61FF"}}},{"id":"151184","type":"4","meta":{"position":{"x":623.4950166112957,"y":2292.7224420966086}},"data":{"nodeMeta":{"description":"图片转Excel","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:image_to_xlsx","title":"image_to_xlsx"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410087982","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"image_to_xlsx","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":443.4950166112957,"y":2292.7224420966086,"width":360,"height":112},"externalData":{"icon":"https://lf6-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=Hqll1sd21HAP791LJ%2BGJq3OVMEI%3D","apiName":"image_to_xlsx","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"url","input":{},"name":"url","required":true,"type":"string"},{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"}],"outputs":[{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"图片转Excel","title":"image_to_xlsx","mainColor":"#CA61FF"}}},{"id":"118202","type":"4","meta":{"position":{"x":623.4950166112957,"y":1544.0074532934718}},"data":{"nodeMeta":{"description":"PDF转Word","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:pdf_to_docs","title":"pdf_to_docs"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410104366","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"pdf_to_docs","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"debug","required":true,"description":"debug"},{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":443.4950166112957,"y":1544.0074532934718,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=%2BUu%2F8daTBA%2BB%2Fc46NeJx%2FMxA9mg%3D","apiName":"pdf_to_docs","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"PDF 地址","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"output","input":{},"name":"output","required":true,"type":"string"},{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"debug","input":{},"name":"debug","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"PDF转Word","title":"pdf_to_docs","mainColor":"#CA61FF"}}},{"id":"193644","type":"4","meta":{"position":{"x":623.4950166112957,"y":1928.9464862593763}},"data":{"nodeMeta":{"description":"PDF转图片","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:pdf_to_image","title":"pdf_to_image"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410120750","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"pdf_to_image","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"list","name":"output","schema":{"type":"string"},"required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":443.4950166112957,"y":1928.9464862593763,"width":360,"height":112},"externalData":{"icon":"https://lf9-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=rUfTWTmlYz8iiN2n7r%2BjZgRWY4o%3D","apiName":"pdf_to_image","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"output","input":{},"name":"output","required":true,"schema":{"assistType":0,"type":"string"},"type":"list"},{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"PDF转图片","title":"pdf_to_image","mainColor":"#CA61FF"}}},{"id":"128121","type":"4","meta":{"position":{"x":644.0682989867618,"y":1755.9830691871964}},"data":{"nodeMeta":{"description":"PDF转Excel","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:pdf_to_xlsx","title":"pdf_to_xlsx"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003410137134","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"pdf_to_xlsx","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_ID","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"ACCESS_KEY_SECRET","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"docx_url"},{"type":"string","name":"status","required":true,"description":"status_msg"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":464.06829898676176,"y":1755.9830691871964,"width":360,"height":112},"externalData":{"icon":"https://lf6-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=Hqll1sd21HAP791LJ%2BGJq3OVMEI%3D","apiName":"pdf_to_xlsx","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"url","input":{},"name":"url","required":true,"type":"string"},{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"}],"outputs":[{"description":"docx_url","input":{},"name":"output","required":true,"type":"string"},{"description":"status_msg","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"PDF转Excel","title":"pdf_to_xlsx","mainColor":"#CA61FF"}}},{"id":"174017","type":"8","meta":{"position":{"x":-91.72093023255815,"y":734}},"data":{"nodeMeta":{"description":"连接多个下游分支，若设定的条件成立则仅运行对应的分支，若均不成立则只运行“否则”分支","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Condition-v2.jpg","mainColor":"#00B2B2","subTitle":"选择器","title":"文档理解"},"inputs":{"branches":[{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"电子文档解析","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"文档解析（大模型版）","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"文档智能解析","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"文档抽取","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"表格智能解析","rawMeta":{"type":1}}}}}]}}]}},"_temp":{"bounds":{"x":-271.72093023255815,"y":734,"width":360,"height":298},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Condition-v2.jpg","description":"连接多个下游分支，若设定的条件成立则仅运行对应的分支，若均不成立则只运行“否则”分支","title":"选择器","mainColor":"#00B2B2"}}},{"id":"1163824","type":"8","meta":{"position":{"x":-110.9767441860464,"y":1567.843853820598}},"data":{"nodeMeta":{"description":"连接多个下游分支，若设定的条件成立则仅运行对应的分支，若均不成立则只运行“否则”分支","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Condition-v2.jpg","mainColor":"#00B2B2","subTitle":"选择器","title":"文档格式转换"},"inputs":{"branches":[{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"PDF 转 Word","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"PDF 转 Excel","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"PDF 转 图片","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"图片 转 Word","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"图片 转 Excel","rawMeta":{"type":1}}}}}]}},{"condition":{"logic":2,"conditions":[{"operator":1,"left":{"input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"action"},"rawMeta":{"type":1}}}},"right":{"input":{"type":"string","value":{"type":"literal","content":"图片 转 PDF","rawMeta":{"type":1}}}}}]}}]}},"_temp":{"bounds":{"x":-290.9767441860464,"y":1567.843853820598,"width":360,"height":338},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Condition-v2.jpg","description":"连接多个下游分支，若设定的条件成立则仅运行对应的分支，若均不成立则只运行“否则”分支","title":"选择器","mainColor":"#00B2B2"}}},{"id":"135417","type":"32","meta":{"position":{"x":1669.8795005558552,"y":1107.620641740656}},"data":{"inputs":{"mergeGroups":[{"name":"Group1","variables":[{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"103067","name":"output"},"rawMeta":{"type":1}}},{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"106470","name":"output"},"rawMeta":{"type":1}}},{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"129919","name":"output"},"rawMeta":{"type":1}}},{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"152979","name":"output"},"rawMeta":{"type":1}}},{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"157327","name":"output"},"rawMeta":{"type":1}}}]}]},"nodeMeta":{"description":"对多个分支的输出进行聚合处理","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/VariableMerge-icon.jpg","mainColor":"#00B2B2","subTitle":"变量聚合","title":"变量聚合"},"outputs":[{"type":"string","name":"Group1"}]},"_temp":{"bounds":{"x":1489.8795005558552,"y":1107.620641740656,"width":360,"height":114},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/VariableMerge-icon.jpg","description":"对多个分支的输出进行聚合处理","title":"变量聚合","mainColor":"#00B2B2"}}},{"id":"178007","type":"15","meta":{"position":{"x":-751.7259120142692,"y":1048.271272678111}},"data":{"nodeMeta":{"description":"用于处理多个字符串类型变量的格式","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-StrConcat-v2.jpg","mainColor":"#3071F2","subTitle":"文本处理","title":"文本处理"},"inputs":{"method":"concat","inputParameters":[{"name":"String1","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"url"},"rawMeta":{"type":1}}}},{"name":"String2","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"100001","name":"local_file"},"rawMeta":{"type":1}}}}],"concatParams":[{"name":"concatResult","input":{"type":"string","value":{"type":"literal","content":"{{String1}}{{String2}}","rawMeta":{"type":1}}}},{"name":"arrayItemConcatChar","input":{"type":"string","value":{"type":"literal","content":"，","rawMeta":{"type":1}}}},{"name":"allArrayItemConcatChars","input":{"type":"list","schema":{"type":"object","schema":[{"type":"string","name":"label","required":true},{"type":"string","name":"value","required":true},{"type":"boolean","name":"isDefault","required":true}]},"value":{"type":"literal","content":[{"isDefault":true,"label":"换行","value":"\n"},{"isDefault":true,"label":"制表符","value":"\t"},{"isDefault":true,"label":"句号","value":"。"},{"isDefault":true,"label":"逗号","value":"，"},{"isDefault":true,"label":"分号","value":"；"},{"isDefault":true,"label":"空格","value":" "}]}}}]},"outputs":[{"type":"string","name":"output","required":true}]},"_temp":{"bounds":{"x":-931.7259120142692,"y":1048.271272678111,"width":360,"height":112},"externalData":{"icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-StrConcat-v2.jpg","description":"用于处理多个字符串类型变量的格式","title":"文本处理","mainColor":"#3071F2"}}},{"id":"1612647","type":"4","meta":{"position":{"x":3392.1365299600034,"y":2136.978226518392}},"data":{"nodeMeta":{"description":"电子文档解析：同步一次返回，速度快，但不支持扫描版 PDF 和图片，只支持原生电子文档（PDF/Word/PPT/Excel 等）","icon":"https://lf3-static.bytednsdoc.com/obj/eden-cn/dvsmryvd_avi_dvsm/ljhwZthlaukjlkulzlp/icon/icon-Plugin-v2.jpg","subtitle":"Aliyun_document:DigitalDocStructure","title":"DigitalDocStructure_1"},"inputs":{"apiParam":[{"input":{"type":"string","value":{"content":"7687503003409989678","rawMeta":{"type":1},"type":"literal"}},"name":"apiID"},{"input":{"type":"string","value":{"content":"DigitalDocStructure","rawMeta":{"type":1},"type":"literal"}},"name":"apiName"},{"input":{"type":"string","value":{"content":"7687503003409973294","rawMeta":{"type":1},"type":"literal"}},"name":"pluginID"},{"input":{"type":"string","value":{"content":"Aliyun_document","rawMeta":{"type":1},"type":"literal"}},"name":"pluginName"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"pluginVersion"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"tips"},{"input":{"type":"string","value":{"content":"","rawMeta":{"type":1},"type":"literal"}},"name":"outDocLink"}],"inputParameters":[{"name":"ACCESS_KEY_ID","input":{"type":"string","value":{"type":"literal","content":"LTAI5t7sTFcDEX26QYcgFT58","rawMeta":{"type":1}}}},{"name":"ACCESS_KEY_SECRET","input":{"type":"string","value":{"type":"literal","content":"h2k3b8iq2AymTZArihhie2tzR6a7G3","rawMeta":{"type":1}}}},{"name":"url","input":{"type":"string","value":{"type":"ref","content":{"source":"block-output","blockID":"178007","name":"output"},"rawMeta":{"type":1}}}}],"settingOnError":{"processType":1,"timeoutMs":180000,"retryTimes":0}},"outputs":[{"type":"string","name":"output","required":true,"description":"output"},{"type":"string","name":"status","required":true,"description":"status"},{"type":"string","name":"task_id","required":true,"description":"task_id"}]},"_temp":{"bounds":{"x":3212.1365299600034,"y":2136.978226518392,"width":360,"height":112},"externalData":{"icon":"https://lf3-appstore-sign.oceancloudapi.com/ocean-cloud-tos/plugin_icon/926244342603076_1789885190511078234_35NsV3CWHX.jpg?lk3s=cd508e2b&x-expires=1795595783&x-signature=%2BUu%2F8daTBA%2BB%2Fc46NeJx%2FMxA9mg%3D","apiName":"DigitalDocStructure","pluginID":"7687503003409973294","pluginProductStatus":1,"pluginProductUnlistType":0,"pluginType":1,"spaceID":"7384700033784152098","inputs":[{"description":"ACCESS_KEY_ID","input":{},"name":"ACCESS_KEY_ID","required":true,"type":"string"},{"description":"ACCESS_KEY_SECRET","input":{},"name":"ACCESS_KEY_SECRET","required":true,"type":"string"},{"description":"url","input":{},"name":"url","required":true,"type":"string"}],"outputs":[{"description":"status","input":{},"name":"status","required":true,"type":"string"},{"description":"task_id","input":{},"name":"task_id","required":true,"type":"string"},{"description":"output","input":{},"name":"output","required":true,"type":"string"}],"updateTime":1792890484,"channel_id":2,"commercial_setting":{},"latestVersionTs":"0","latestVersionName":"","versionName":"","description":"电子文档解析：同步一次返回，速度快，但不支持扫描版 PDF 和图片，只支持原生电子文档（PDF/Word/PPT/Excel 等）","title":"DigitalDocStructure","mainColor":"#CA61FF"}}}],"edges":[{"sourceNodeID":"100001","targetNodeID":"178007"},{"sourceNodeID":"135417","targetNodeID":"900001"},{"sourceNodeID":"193644","targetNodeID":"900001"},{"sourceNodeID":"174017","targetNodeID":"106470","sourcePortID":"true"},{"sourceNodeID":"106470","targetNodeID":"135417"},{"sourceNodeID":"174017","targetNodeID":"129919","sourcePortID":"true_1"},{"sourceNodeID":"129919","targetNodeID":"135417"},{"sourceNodeID":"174017","targetNodeID":"103067","sourcePortID":"true_2"},{"sourceNodeID":"103067","targetNodeID":"135417"},{"sourceNodeID":"174017","targetNodeID":"152979","sourcePortID":"true_3"},{"sourceNodeID":"152979","targetNodeID":"135417"},{"sourceNodeID":"174017","targetNodeID":"157327","sourcePortID":"true_4"},{"sourceNodeID":"157327","targetNodeID":"135417"},{"sourceNodeID":"1163824","targetNodeID":"132165","sourcePortID":"true_3"},{"sourceNodeID":"132165","targetNodeID":"135417"},{"sourceNodeID":"1163824","targetNodeID":"124770","sourcePortID":"true_5"},{"sourceNodeID":"124770","targetNodeID":"135417"},{"sourceNodeID":"1163824","targetNodeID":"151184","sourcePortID":"true_4"},{"sourceNodeID":"151184","targetNodeID":"135417"},{"sourceNodeID":"1163824","targetNodeID":"118202","sourcePortID":"true"},{"sourceNodeID":"118202","targetNodeID":"135417"},{"sourceNodeID":"1163824","targetNodeID":"193644","sourcePortID":"true_2"},{"sourceNodeID":"1163824","targetNodeID":"128121","sourcePortID":"true_1"},{"sourceNodeID":"128121","targetNodeID":"135417"},{"sourceNodeID":"178007","targetNodeID":"174017"},{"sourceNodeID":"174017","targetNodeID":"135417","sourcePortID":"false"},{"sourceNodeID":"178007","targetNodeID":"1163824"},{"sourceNodeID":"1163824","targetNodeID":"135417","sourcePortID":"false"}]},"bounds":{"x":-1455.9439869931207,"y":212,"width":5028.080516953124,"height":2348.466657674825}}
