WPF 高颜值手势密码解锁界面(附源码)

手势解锁

框架支持.NET4 至 .NET8；
Visual Studio 2022;

欢迎各位开发者下载并体验。如果在使用过程中遇到任何问题，欢迎随时向我们反馈^[3]。

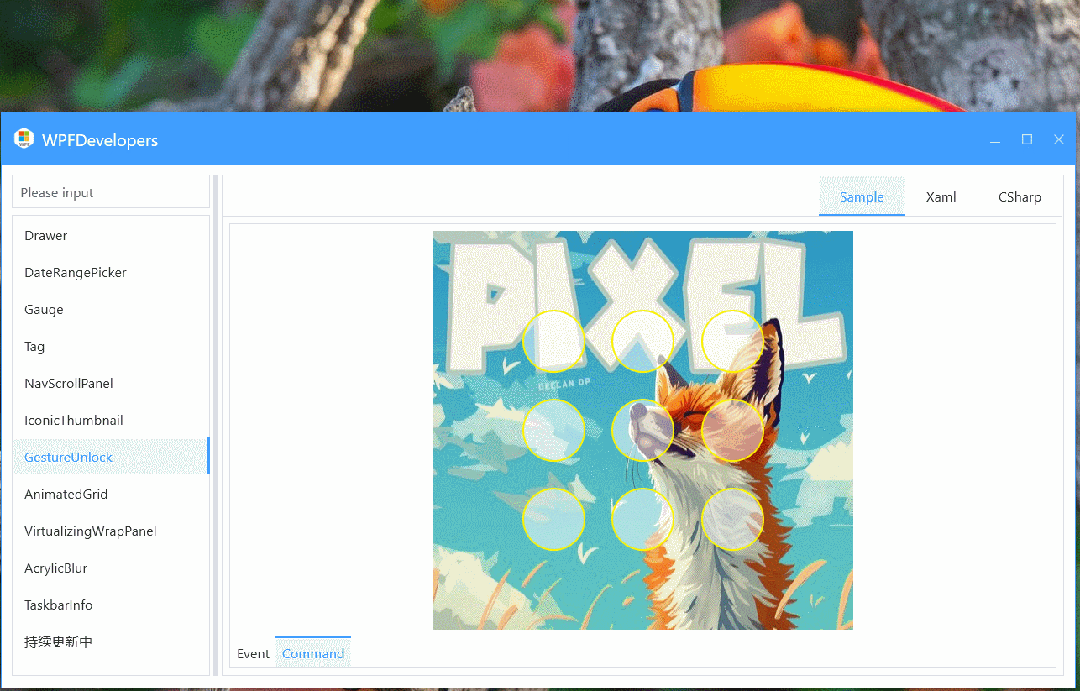

项目效果

控件功能

支持鼠标拖动九宫格生成手势密码；
State 支持手势成功、失败状态；
可自定义样式、圆角；
事件 GestureCompleted 命令 GestureCompletedCommand 双通道通知解锁结果；

1. 新增 GestureUnlock.cs

Password：记录绘制出的密码；
State：用于控制 GestureItem 颜色（成功/错误）；
GestureCompletedCommand：支持绑定；
GestureCompletedEvent：支持事件；
绘制一个 3x3 网格，每个格子是一个 GestureItem；
手势完成后，会触发状态切换，并自动 1.5 秒后清除所有 Ellipse 和 Polyline ;

[TemplatePart(Name = CanvasTemplateName, Type = typeof(Canvas))]publicclassGestureUnlock : Control{privateconststring CanvasTemplateName = "PART_GestureUnlockCanvas";publicstaticreadonly DependencyProperty PasswordProperty =        DependencyProperty.Register("Password", typeof(string), typeof(GestureUnlock),new PropertyMetadata(string.Empty));publicstaticreadonly DependencyProperty StateProperty =        DependencyProperty.Register("State", typeof(GestureState), typeof(GestureUnlock),new PropertyMetadata(GestureState.None, OnIsErrorChanged));publicstaticreadonly DependencyProperty GestureCompletedCommandProperty =        DependencyProperty.Register("GestureCompletedCommand", typeof(ICommand), typeof(GestureUnlock),new PropertyMetadata(null));publicstaticreadonly RoutedEvent GestureCompletedEvent =        EventManager.RegisterRoutedEvent("GestureCompleted", RoutingStrategy.Bubble, typeof(RoutedEventHandler),typeof(GestureUnlock));private Canvas _canvas;privatereadonly List<GestureItem> _gestureItems = new List<GestureItem>();privatereadonly List<int> _gestures = new List<int>();private Polyline _line;private Line _moveLine;privatedouble _thickness = 1;private DispatcherTimer _timer;privatebool _tracking;privatebool _isEventHandled = false;staticGestureUnlock()    {        DefaultStyleKeyProperty.OverrideMetadata(typeof(GestureUnlock),new FrameworkPropertyMetadata(typeof(GestureUnlock)));    }publicGestureUnlock()    {        SizeChanged -= GestureUnlock_SizeChanged;        SizeChanged += GestureUnlock_SizeChanged;    }publicstring Password    {get => (string) GetValue(PasswordProperty);set => SetValue(PasswordProperty, value);    }public GestureState State    {get => (GestureState) GetValue(StateProperty);set => SetValue(StateProperty, value);    }public ICommand GestureCompletedCommand    {get => (ICommand) GetValue(GestureCompletedCommandProperty);set => SetValue(GestureCompletedCommandProperty, value);    }privatestaticvoidOnIsErrorChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)    {var ctrl = d as GestureUnlock;if (ctrl != null)        {            ctrl.UpdateLineStroke();switch (ctrl.State)            {case GestureState.Success:case GestureState.Error:if (ctrl._timer == null)                    {                        ctrl._timer = new DispatcherTimer                        {                            Interval = TimeSpan.FromSeconds(1.5)                        };                        ctrl._timer.Tick += (sender, args) =>                        {                            ctrl._timer.Stop();                            ctrl.CleraGestureAndLine();                        };                    }                    ctrl._timer.Start();break;            }        }    }publicevent RoutedEventHandler GestureCompleted    {add => AddHandler(GestureCompletedEvent, value);remove => RemoveHandler(GestureCompletedEvent, value);    }publicoverridevoidOnApplyTemplate()    {base.OnApplyTemplate();        _canvas = GetTemplateChild(CanvasTemplateName) as Canvas;if (_canvas != null)        {            _canvas.MouseDown -= OnCanvas_MouseDown;            _canvas.MouseDown += OnCanvas_MouseDown;            _canvas.MouseMove -= OnCanvas_MouseMove;            _canvas.MouseMove += OnCanvas_MouseMove;            _canvas.MouseUp -= OnCanvas_MouseUp;            _canvas.MouseUp += OnCanvas_MouseUp;            Loaded += (s, e) => CreateGestureItems();        }    }protectedoverridevoidOnMouseLeave(MouseEventArgs e)    {base.OnMouseLeave(e);if (_tracking && !_isEventHandled)        {            _isEventHandled = true;             CompleteGesture();        }        _tracking = false;        _isEventHandled = false;    }privatevoidCleraGestureAndLine()    {        State = GestureState.None;        _gestureItems.ForEach(x => { x.IsSelected = false; });        _gestures.Clear();        _line.Points.Clear();        _isEventHandled = false;    }privatevoidResetMoveLine()    {if (_moveLine != null)        {            _canvas.Children.Remove(_moveLine);            _moveLine = null;        }        _moveLine = new Line        {            Stroke = _gestureItems.Count > 0 ? _gestureItems[0].BorderBrush : ThemeManager.Instance.PrimaryBrush,            StrokeThickness = _thickness > 1 ? _thickness - 1 : _thickness        };    }privatevoidGestureUnlock_SizeChanged(object sender, SizeChangedEventArgs e)    {        CreateGestureItems();    }privatevoidCreateGestureItems()    {        _gestureItems.Clear();        _canvas.Children.Clear();double radius = 20d;int cols = 3; int rows = 3; double gap = (300 - (3 * radius * 2)) / 4;         gap = Math.Max(gap, radius);double totalWidth = (3 * radius * 2) + (2 * gap);double totalHeight = (3 * radius * 2) + (2 * gap);double startX = (ActualWidth - totalWidth) / 2 + radius;double startY = (ActualHeight - totalHeight) / 2 + radius;for (int i = 0; i < 9; i++)        {int col = i % cols;int row = i / rows;double x = startX + col * (gap + radius * 2);double y = startY + row * (gap + radius * 2);var gestureItem = new GestureItem();            gestureItem.Number = i;            gestureItem.Loaded += (s, e) =>            {double actualRadius = Math.Max(gestureItem.ActualWidth, gestureItem.ActualHeight) / 2;                Canvas.SetLeft(gestureItem, x - actualRadius);                Canvas.SetTop(gestureItem, y - actualRadius);                ElementHelper.SetCornerRadius(gestureItem, new CornerRadius(actualRadius));            };            _canvas.Children.Add(gestureItem);            _gestureItems.Add(gestureItem);        }        _line = new Polyline        {            Stroke = _gestureItems.Count > 0 ? _gestureItems[0].BorderBrush : ThemeManager.Instance.PrimaryBrush,            StrokeThickness = _thickness        };        _canvas.Children.Add(_line);        Panel.SetZIndex(_line, -98);        ResetMoveLine();    }privatevoidOnCanvas_MouseUp(object sender, MouseButtonEventArgs e)    {if (!_isEventHandled)        {            _tracking = false;            _isEventHandled = true;             CompleteGesture();        }    }voidCompleteGesture()    {if (_gestures.Count == 0) return;        Password = string.Join("", _gestures);        GestureCompletedCommand?.Execute(Password);        RaiseEvent(new RoutedEventArgs(GestureCompletedEvent, Password));        ResetMoveLine();    }privatevoidOnCanvas_MouseMove(object sender, MouseEventArgs e)    {if (_tracking && e.LeftButton == MouseButtonState.Pressed)        {var point = e.GetPosition(_canvas);if (_moveLine.X2 == 0 && _moveLine.Y1 == 0)            {                _moveLine.X1 = point.X;                _moveLine.Y1 = point.Y;            }if (_moveLine.X2 != point.X)                _moveLine.X2 = point.X;if (_moveLine.Y2 != point.Y)                _moveLine.Y2 = point.Y;            TryAddPoint(point);        }    }privatevoidOnCanvas_MouseDown(object sender, MouseButtonEventArgs e)    {        CleraGestureAndLine();if (_timer != null)            _timer.Stop();        ResetMoveLine();        _tracking = true;        _isEventHandled = false;var point = e.GetPosition(_canvas);        TryAddPoint(point);    }privatevoidTryAddPoint(Point position)    {for (var i = 0; i < _gestureItems.Count; i++)        {var gestureItem = _gestureItems[i];var left = Canvas.GetLeft(gestureItem);var top = Canvas.GetTop(gestureItem);var centerX = left + gestureItem.Width / 2;var centerY = top + gestureItem.Height / 2;var dist = (position - new Point(centerX, centerY)).Length;if (dist <= gestureItem.Width / 2 && !_gestures.Contains(i))            {if(_gestures.Count == 1)                {var brush = _gestureItems.Count > 0 ? _gestureItems[0].BorderBrush : ThemeManager.Instance.PrimaryBrush;                    _line.Stroke = brush;                    _moveLine.Stroke = brush;                }                _gestures.Add(i);                _line.Points.Add(new Point(centerX, centerY));                gestureItem.IsSelected = true;if (_moveLine.X1 == 0                    &&                     _moveLine.Y1 == 0                    &&                    _moveLine.X2 == 0                    &&                     _moveLine.Y2 == 0)                {                    _moveLine.X1 = centerX;                    _moveLine.Y1 = centerY;                    _canvas.Children.Add(_moveLine);                }else                {var endPoint = _line.Points.LastOrDefault();                    _moveLine.X1 = endPoint.X;                    _moveLine.Y1 = endPoint.Y;                }                Panel.SetZIndex(_moveLine, -99);                _moveLine.X2 = centerX;                _moveLine.Y2 = centerY;break;            }        }    }privatevoidUpdateLineStroke()    {if (_line == null)return;switch (State)        {case GestureState.Success:                _line.Stroke = ThemeManager.Instance.Resources.TryFindResource<Brush>("WD.SuccessBrush");break;case GestureState.Error:                _line.Stroke = ThemeManager.Instance.Resources.TryFindResource<Brush>("WD.DangerBrush");break;default:                _line.Stroke = _gestureItems.Count > 0 ? _gestureItems[0].BorderBrush : ThemeManager.Instance.PrimaryBrush;break;        }    }}

2. 新增 GestureItem.cs

Number ：用于记录序号；
IsSelected：用于标记是否选中；

publicclassGestureItem : Control{publicstaticreadonly DependencyProperty NumberProperty =        DependencyProperty.Register("Number", typeof(int), typeof(GestureItem), new PropertyMetadata(0));publicstaticreadonly DependencyProperty IsSelectedProperty =        DependencyProperty.Register("IsSelected", typeof(bool), typeof(GestureItem), new PropertyMetadata(false));staticGestureItem()    {        DefaultStyleKeyProperty.OverrideMetadata(typeof(GestureItem),new FrameworkPropertyMetadata(typeof(GestureItem)));    }publicint Number    {get => (int) GetValue(NumberProperty);set => SetValue(NumberProperty, value);    }publicbool IsSelected    {get => (bool) GetValue(IsSelectedProperty);set => SetValue(IsSelectedProperty, value);    }}

3. 新增 GestureUnlock.xaml

MultiDataTrigger 多数据触发器：

Error：设置 BorderBrush 为 DangerBrush 红色；
Success：设置 BorderBrush 为 SuccessBrush 绿色；

IsSelected：当控件被选中；
State：控制颜色（成功/错误）

<Stylex:Key="WD.GestureItem"BasedOn="{StaticResource WD.ControlBasicStyle}"TargetType="{x:Type controls:GestureItem}"><SetterProperty="Width"Value="60" /><SetterProperty="VerticalAlignment"Value="Center" /><SetterProperty="HorizontalAlignment"Value="Center" /><SetterProperty="VerticalContentAlignment"Value="Stretch" /><SetterProperty="HorizontalContentAlignment"Value="Stretch" /><SetterProperty="Height"Value="60" /><SetterProperty="BorderThickness"Value="1.5" /><SetterProperty="Background"Value="#80FFFFFF" /><SetterProperty="BorderBrush"Value="{DynamicResource WD.PrimaryBrush}" /><SetterProperty="Padding"Value="15" /><SetterProperty="Template"><Setter.Value><ControlTemplateTargetType="{x:Type controls:GestureItem}"><Borderx:Name="PART_Border"Width="{TemplateBinding Width}"Height="{TemplateBinding Height}"Background="{TemplateBinding Background}"BorderBrush="{TemplateBinding BorderBrush}"BorderThickness="{TemplateBinding BorderThickness}"CornerRadius="{Binding Path=(helpers:ElementHelper.CornerRadius), RelativeSource={RelativeSource TemplatedParent}}"SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"UseLayoutRounding="{TemplateBinding UseLayoutRounding}"><Ellipsex:Name="PART_Ellipse"Margin="{TemplateBinding Padding}"HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"VerticalAlignment="{TemplateBinding VerticalContentAlignment}"Fill="{TemplateBinding BorderBrush}"Visibility="Collapsed" /></Border><ControlTemplate.Triggers><TriggerProperty="IsSelected"Value="True"><SetterTargetName="PART_Border"Property="Background"Value="{DynamicResource WD.BackgroundBrush}" /><SetterTargetName="PART_Ellipse"Property="Visibility"Value="Visible" /></Trigger><MultiDataTrigger><MultiDataTrigger.Conditions><ConditionBinding="{Binding IsSelected, RelativeSource={RelativeSource Self}}"Value="True" /><ConditionBinding="{Binding State, RelativeSource={RelativeSource AncestorType=controls:GestureUnlock}}"Value="Error" /></MultiDataTrigger.Conditions><SetterProperty="BorderBrush"Value="{DynamicResource WD.DangerBrush}" /></MultiDataTrigger><MultiDataTrigger><MultiDataTrigger.Conditions><ConditionBinding="{Binding IsSelected, RelativeSource={RelativeSource Self}}"Value="True" /><ConditionBinding="{Binding State, RelativeSource={RelativeSource AncestorType=controls:GestureUnlock}}"Value="Success" /></MultiDataTrigger.Conditions><SetterProperty="BorderBrush"Value="{DynamicResource WD.SuccessBrush}" /></MultiDataTrigger></ControlTemplate.Triggers></ControlTemplate></Setter.Value></Setter></Style><Stylex:Key="WD.GestureUnlock"BasedOn="{StaticResource WD.ControlBasicStyle}"TargetType="{x:Type controls:GestureUnlock}"><SetterProperty="Background"Value="{DynamicResource WD.BackgroundBrush}" /><SetterProperty="Width"Value="300" /><SetterProperty="VerticalAlignment"Value="Center" /><SetterProperty="HorizontalAlignment"Value="Center" /><SetterProperty="Height"Value="300" /><SetterProperty="Template"><Setter.Value><ControlTemplateTargetType="{x:Type controls:GestureUnlock}"><controls:WDBorderCornerRadius="{Binding Path=(helpers:ElementHelper.CornerRadius), RelativeSource={RelativeSource TemplatedParent}}"><Canvasx:Name="PART_GestureUnlockCanvas"Background="{TemplateBinding Background}"Clip="{Binding RelativeSource={RelativeSource AncestorType=controls:WDBorder}, Path=ContentClip}"SnapsToDevicePixels="True" /></controls:WDBorder></ControlTemplate></Setter.Value></Setter></Style><StyleBasedOn="{StaticResource WD.GestureItem}"TargetType="{x:Type controls:GestureItem}" /><StyleBasedOn="{StaticResource WD.GestureUnlock}"TargetType="{x:Type controls:GestureUnlock}" />

3. 新增 GestureUnlockExample.xaml

TabItem Header="Event" 事件示例；
TabItem Header="Command" 命令示例；

<TabControlTabStripPlacement="Bottom"><TabItemHeader="Event"><wd:GestureUnlockx:Name="myGestureUnlock"wd:ElementHelper.CornerRadius="5"GestureCompleted="GestureCompleted"><wd:GestureUnlock.Background><ImageBrushImageSource="pack://application:,,,/WPFDevelopers.Samples;component/Resources/Images/Chat/Right.jpg" /></wd:GestureUnlock.Background></wd:GestureUnlock></TabItem><TabItemHeader="Command"><TabItem.Resources><StyleBasedOn="{StaticResource WD.GestureItem}"TargetType="wd:GestureItem"><SetterProperty="BorderBrush"Value="Yellow" /></Style></TabItem.Resources><wd:GestureUnlockx:Name="myGestureUnlock2"Width="400"Height="500"wd:ElementHelper.CornerRadius="10"GestureCompletedCommand="{Binding GestureCompletedCommand}"><wd:GestureUnlock.Background><ImageBrushImageSource="pack://application:,,,/WPFDevelopers.Samples;component/Resources/Images/IconicThumbnail/LcupqA.jpg" /></wd:GestureUnlock.Background></wd:GestureUnlock></TabItem></TabControl>

4. 新增 GestureUnlockExample.xaml.cs

_password 字段存正确的密码 "0426"。
HandleGestureUnlock 手势解锁方法：

如密码长度小于 4 位，将状态设置 Error 并 Push 错误消息；
如密码与 _password 不匹配，也将状态设置 Error 并 Push 错误消息；

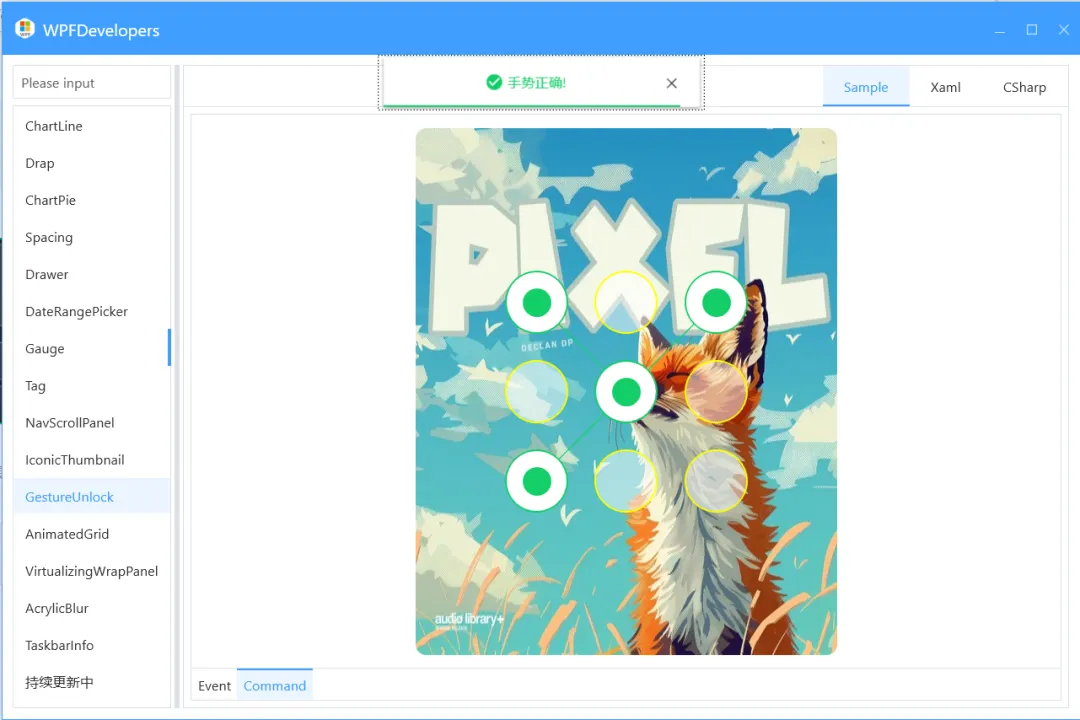

如密码正确，状态设置 Success，并提示解锁成功。

publicpartialclassGestureUnlockExample : UserControl{privatestring _password = "0426";privateenum GestureUnlockType    {        Unlock1,        Unlock2    }publicGestureUnlockExample()    {        InitializeComponent();        DataContext = this;    }privatevoidHandleGestureUnlock(string pwd, GestureUnlockType unlockType)    {if (pwd.Length < 4)        {            SetGestureState(unlockType, GestureState.Error);            Message.PushDesktop("手势错误，最少 4 个节点!", MessageBoxImage.Error, true);return;        }if (pwd != _password)        {            SetGestureState(unlockType, GestureState.Error);            Message.PushDesktop("手势错误，请重新解锁!", MessageBoxImage.Error, true);return;        }        SetGestureState(unlockType, GestureState.Success);        Message.Push("手势正确!", MessageBoxImage.Information, true);    }privatevoidSetGestureState(GestureUnlockType unlockType, GestureState state)    {if (unlockType == GestureUnlockType.Unlock1)        {            myGestureUnlock.State = state;        }elseif (unlockType == GestureUnlockType.Unlock2)        {            myGestureUnlock2.State = state;        }    }privatevoidGestureCompleted(object sender, RoutedEventArgs e)    {var pwd = e.OriginalSource.ToString();        HandleGestureUnlock(pwd, GestureUnlockType.Unlock1);    }public ICommand GestureCompletedCommand => new RelayCommand(param =>    {var pwd = param.ToString();        HandleGestureUnlock(pwd, GestureUnlockType.Unlock2);    });}
