【论文分享】应用建筑信息模型进行绿色建筑设计,结合太阳能分析和能源优化:以澳门大学一栋教学楼为例

Wang, Y., Lok, M. H., Lam, C. C., & Wong, M. on. (2026). Applying building Information modeling for green building design with solar analysis and energy optimization: a case study of an academic building at the University of Macau. Journal of Asian Architecture and Building Engineering, 1–17. https://doi.org/10.1080/13467581.2026.2652666

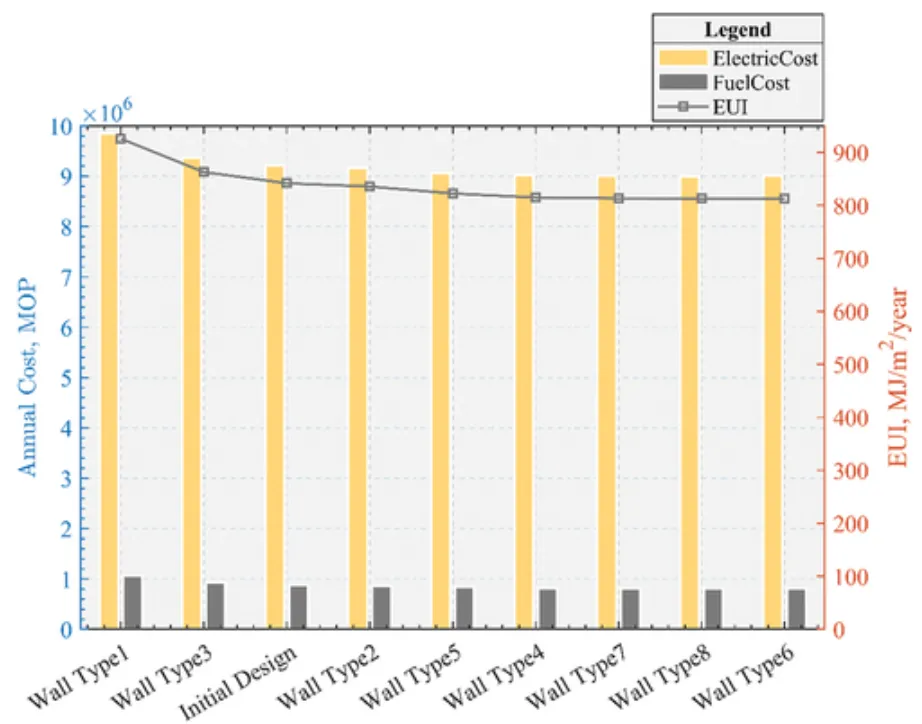

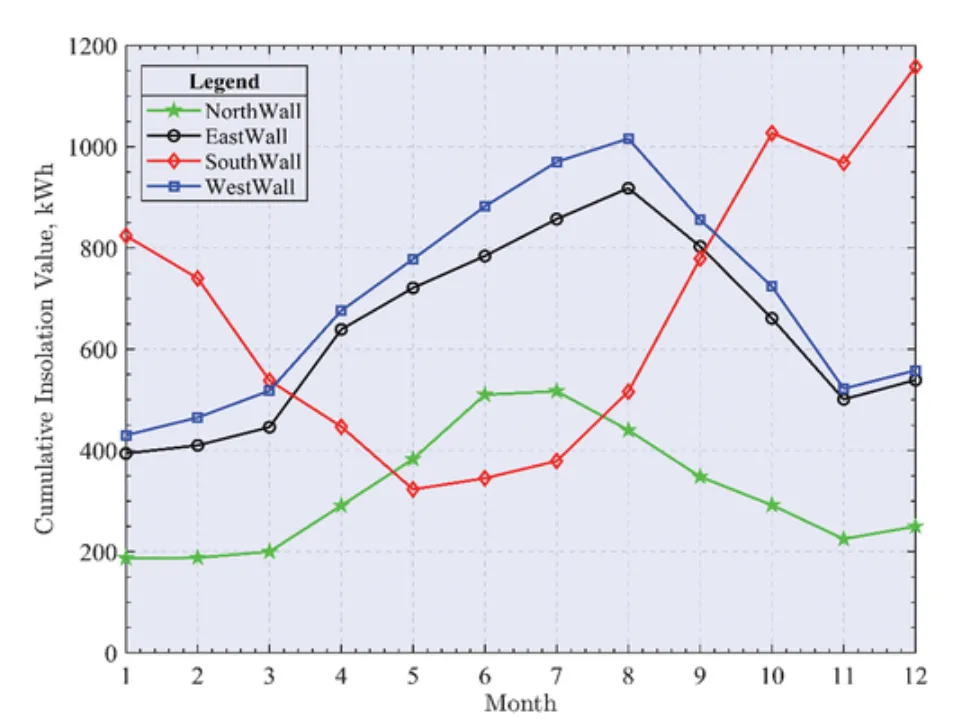

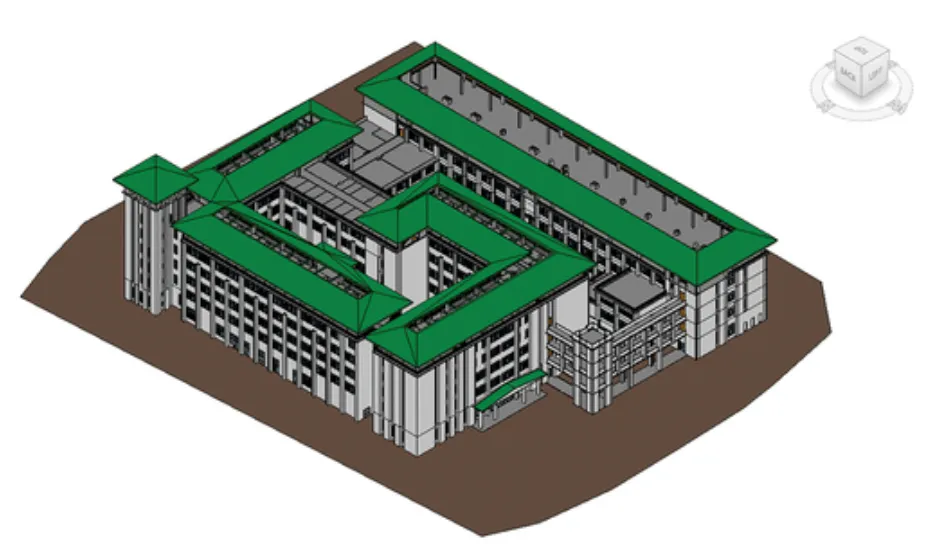

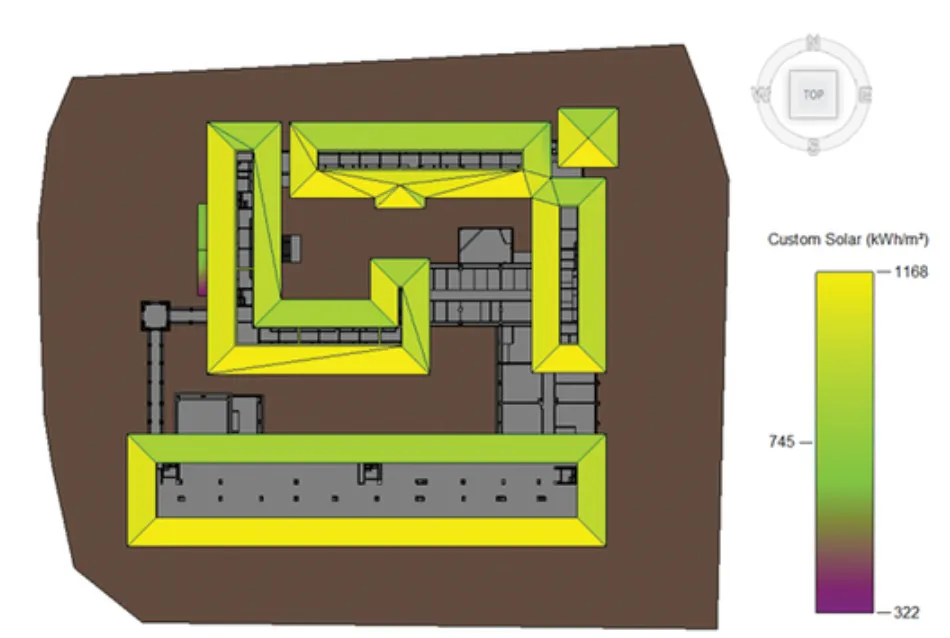

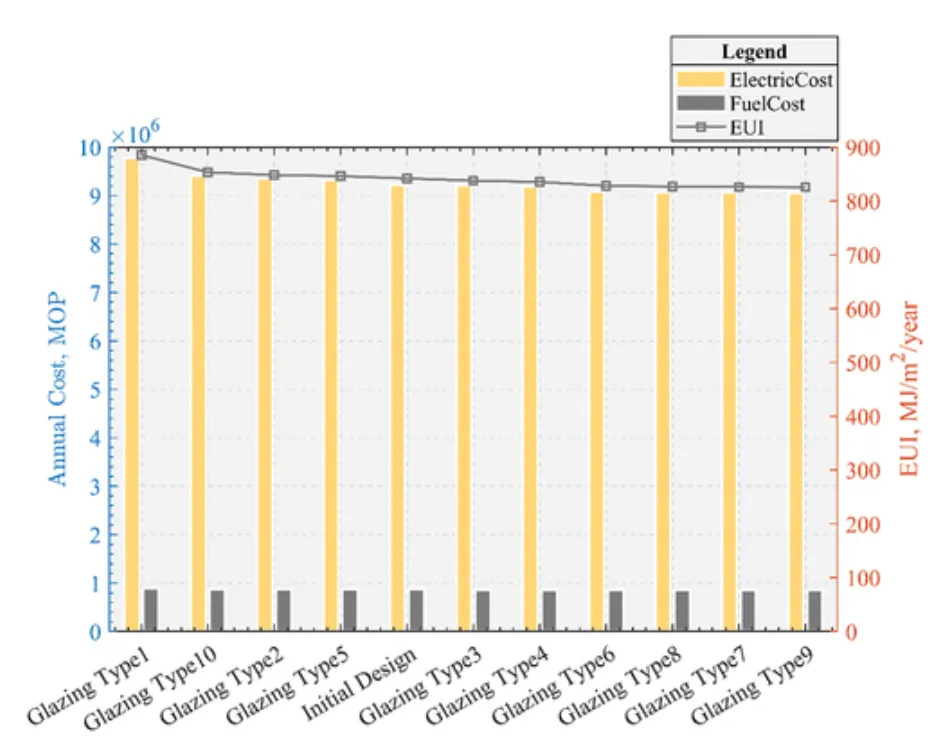

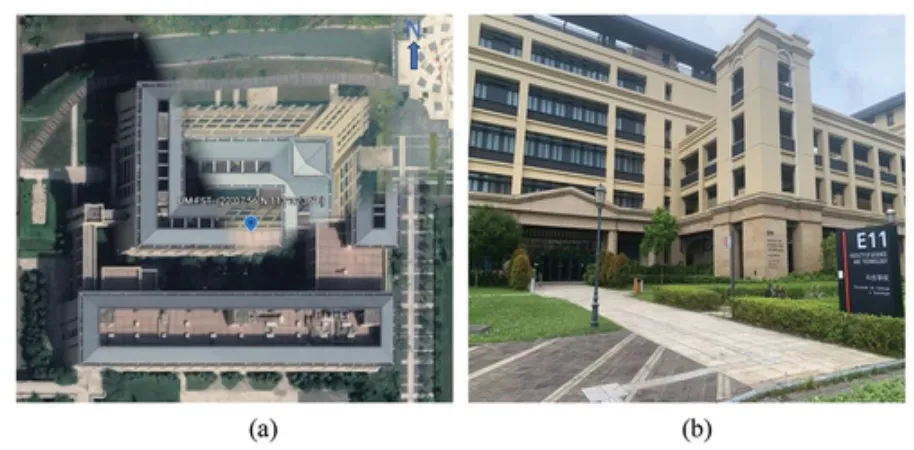

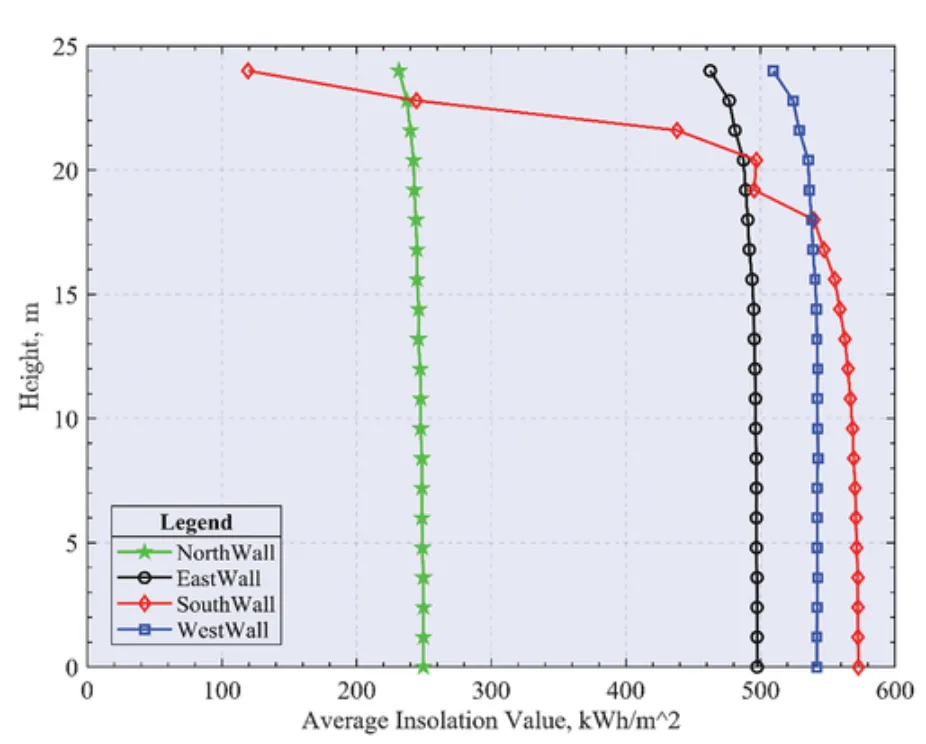

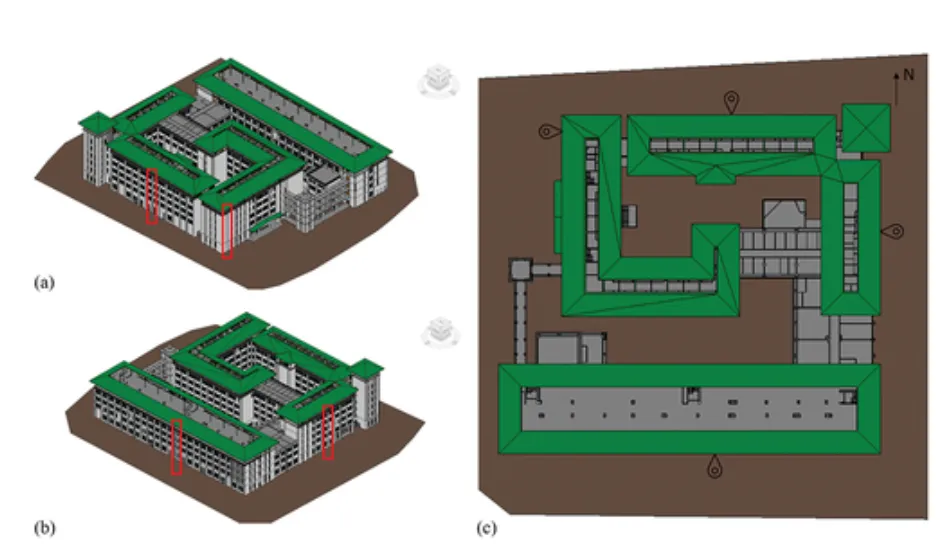

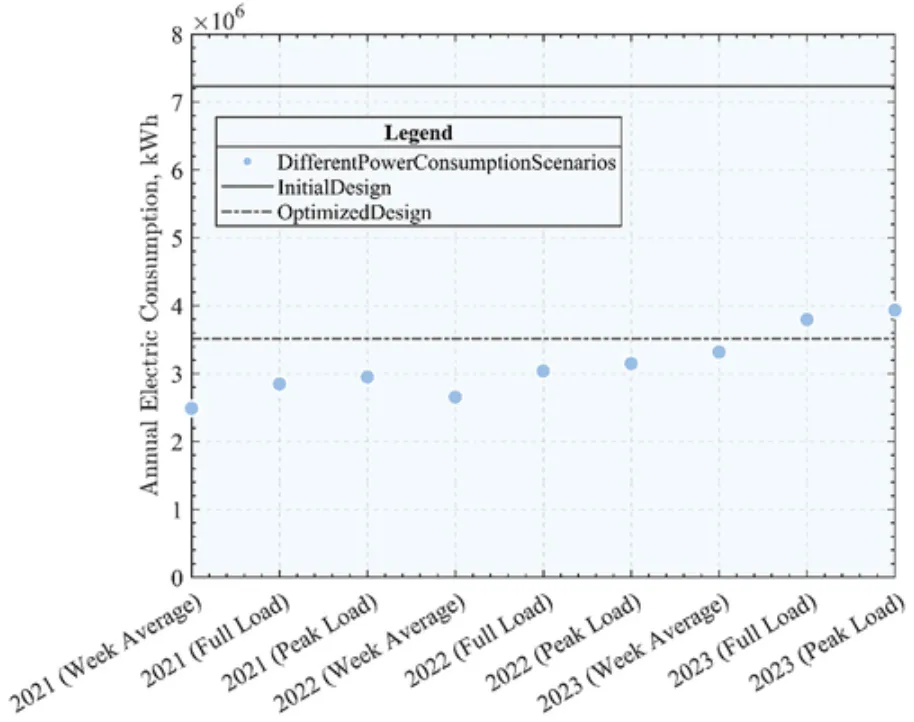

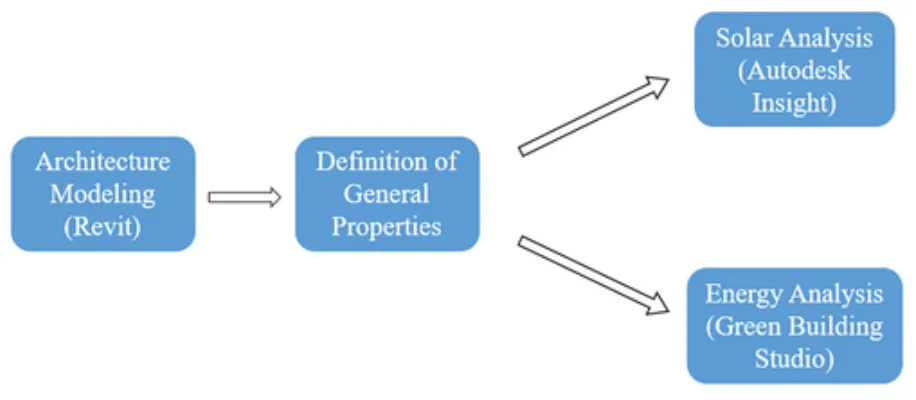

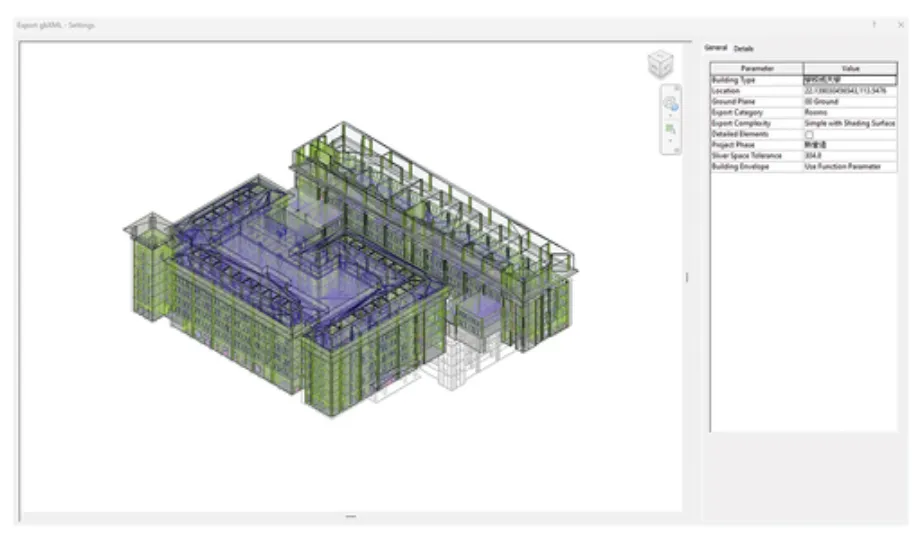

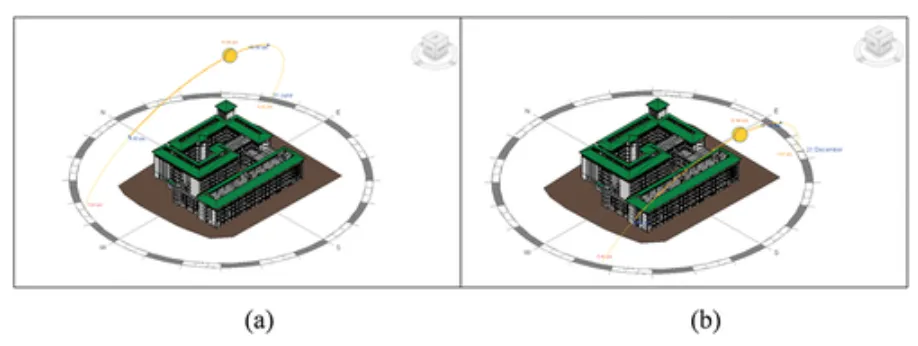

With an increasing focus on the utilization of Building Information Modeling (BIM) in the Architecture, Engineering, and Construction (AEC) industry, integrating BIM with analytical software for green building design has been a critical technical issue requiring resolution. This research proposes a workflow to achieve better solar radiation utilization and identify optimal design alternatives for energy optimization. A BIM model of an academic building located in Macau has been meticulously developed in Autodesk Revit for further investigation of solar analysis and energy simulation. Through the analysis conducted using Autodesk Insight, it has been demonstrated that orientations, heights, and seasonal changes significantly influence solar insolation and retain their typical trend pattern. The solar insolation values vary from 200 kWh to over 1000 kWh over the year. Subsequently, by exploring various alternatives in the Green Building Studio (GBS), optimal design options leading to energy savings of over 50% have been identified, and the underlying mechanisms have been figured out. The research findings collectively provide a promising outlook for integrating BIM software and analysis tools, paving the way for more sustainable and energy-efficient building practices.

随着建筑、工程和施工（AEC）行业对建筑信息模型（BIM）应用的日益重视，如何将BIM与分析软件集成以进行绿色建筑设计已成为亟待解决的关键技术难题。本研究提出了一种工作流程，旨在提高太阳辐射利用率并确定节能优化的最佳设计方案。研究人员使用Autodesk Revit软件精心构建了位于澳门的一栋学术建筑的BIM模型，以便进一步开展太阳能分析和能源模拟。通过使用Autodesk Insight软件进行的分析表明，建筑朝向、高度和季节变化显著影响太阳辐射量，并保持其典型的变化趋势。全年太阳辐射量在200千瓦时到1000千瓦时以上不等。随后，通过在绿色建筑工作室（GBS）中探索各种方案，研究人员确定了可节能50%以上的优化设计方案，并阐明了其背后的机制。研究结果为BIM软件与分析工具的集成提供了广阔的前景，为更可持续、更节能的建筑实践铺平了道路。

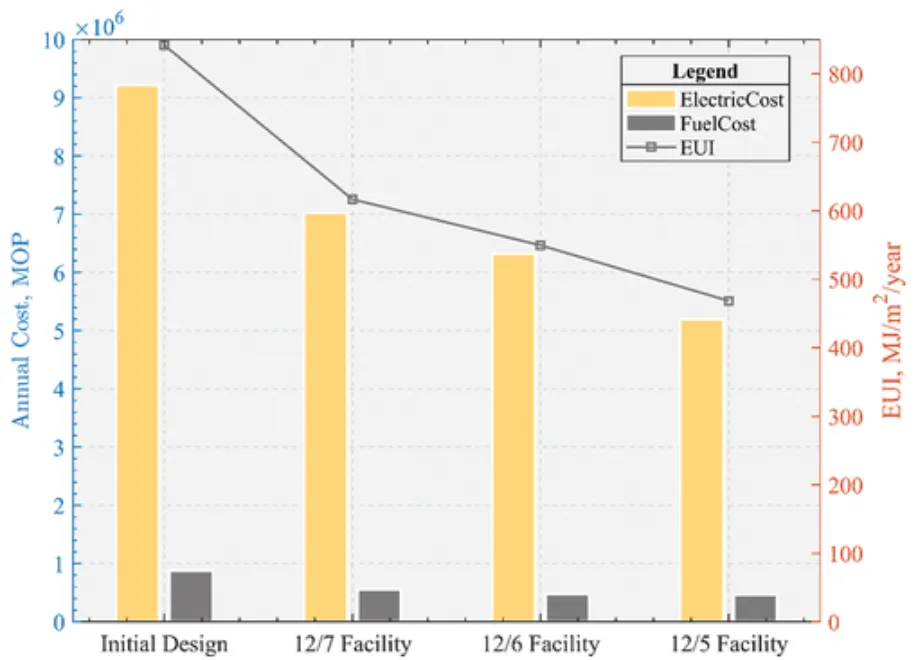

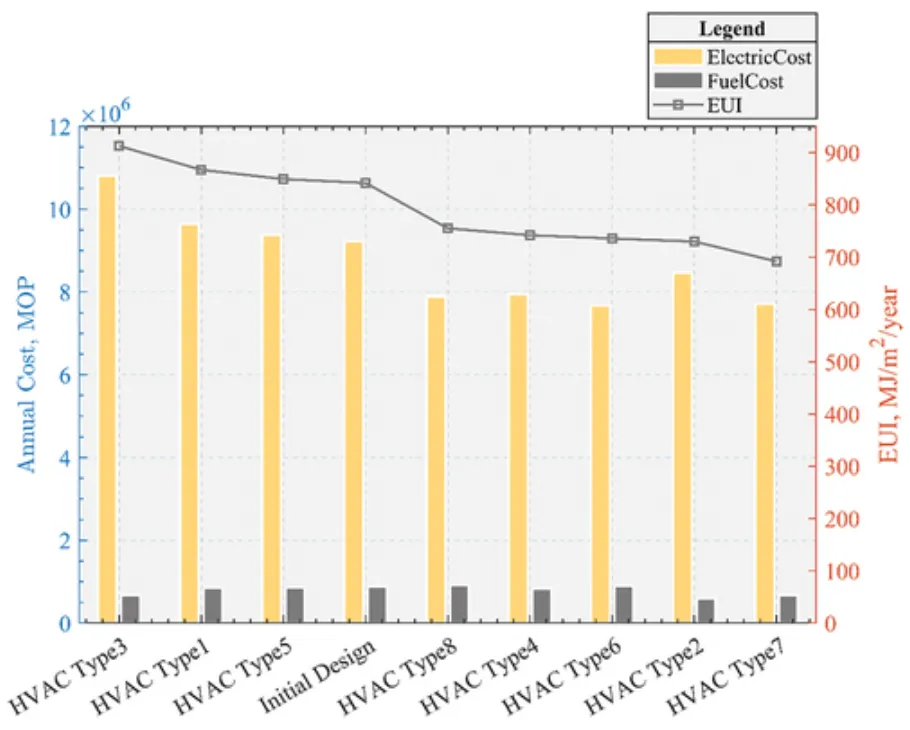

部分插图：
