Demystifying pWPS, WPS & PQR in Welding Projects 解读焊接项目中的 pWPS、 与 PQR

🚀 Demystifying pWPS, WPS & PQR in Welding Projects

🚀 解读焊接项目中的 pWPS、WPS 与 PQR

In industries where welding is critical—pipelines, bridges, pressure vessels, shipbuilding, aerospace, and beyond—quality and reliability can make or break a project. That’s where welding procedure documents come into play, ensuring every weld meets safety, performance, and compliance standards.

在焊接至关重要的行业中——管道、桥梁、压力容器、造船、航空航天等领域——质量和可靠性决定着项目的成败。这时，焊接工艺文件就发挥了关键作用，确保每道焊缝都符合安全、性能和合规标准。

One of the most important yet often overlooked steps in this process is the pWPS (Preliminary Welding Procedure Specification).

这一过程中最重要但经常被忽视的步骤之一就是 pWPS（初步焊接工艺规程）。

🔹 What is a pWPS?

🔹 什么是 pWPS？

A pWPS is the first draft blueprint of a welding procedure. Prepared by a manufacturer or welding engineer, it outlines the proposed welding parameters—such as material type, joint design, process (TIG, MIG, etc.), filler metals, preheat, and post-weld heat treatment.

pWPS 是焊接工艺的首份草案蓝图。由制造商或焊接工程师编制，它概述了拟定的焊接参数——例如材料类型、接头设计、焊接工艺（TIG、MIG等）、填充金属、预热和后热处理。

But this document isn’t just theory—it sets the foundation for real-world testing and qualification.

但这份文件不仅仅是理论——它为实际测试和资格评定奠定了基础。

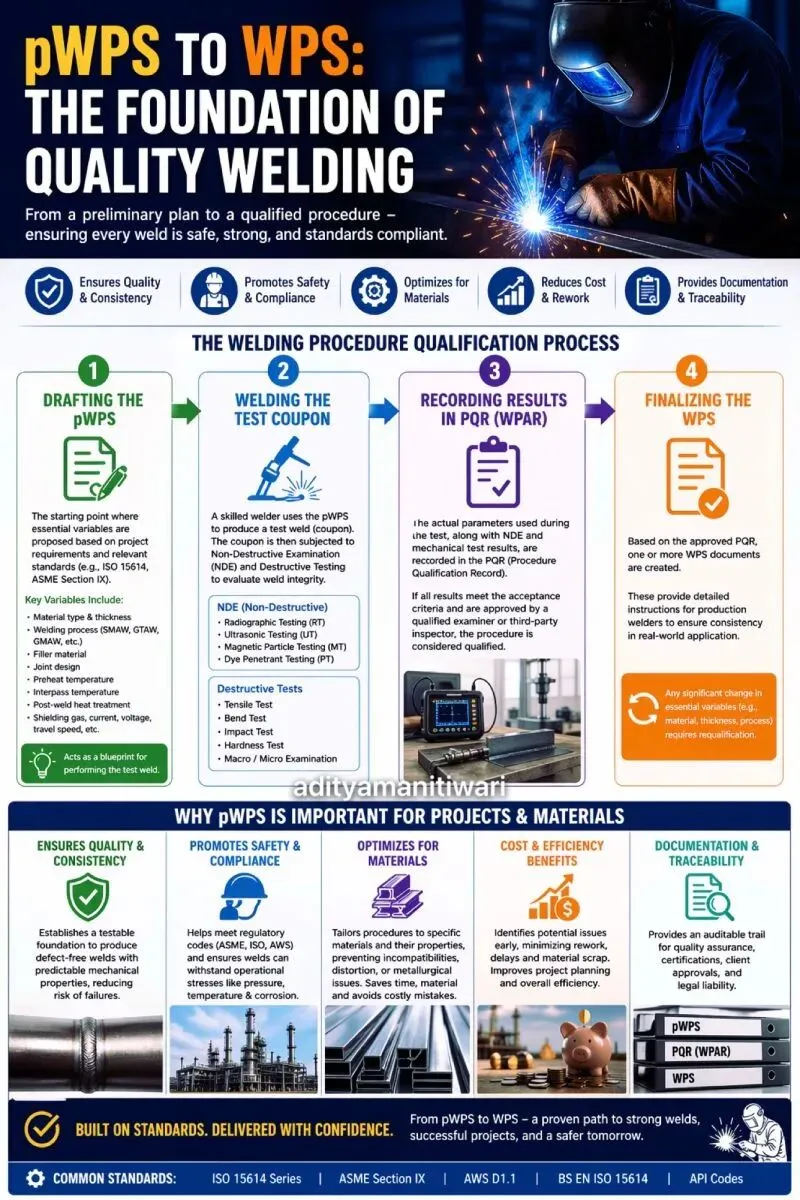

🔹 The Process: From pWPS to WPS

🔹 流程：从 pWPS 到 WPS

1️⃣ Drafting the pWPS – Essential variables are defined according to project needs and codes like ASME Section IX or BS EN ISO 15614.

1️⃣ 起草 pWPS – 根据项目需求和 ASME 第 IX 卷或 BS EN ISO 15614 等规范定义重要变素。

2️⃣ Welding the Test Coupon – A welder follows the pWPS to produce a test weld, which undergoes non-destructive (X-ray, UT) and destructive (tensile, bend, impact) testing.

2️⃣ 焊接试件 – 焊工按照 pWPS 进行试件焊接，然后试件需经过无损检测（X射线、超声）和破坏性检测（拉伸、弯曲、冲击）。

3️⃣ Procedure Qualification Record (PQR) – Also called WPAR, this records the actual welding parameters and test results. Approval validates the procedure.

3️⃣ 工艺评定记录 (PQR) – 也称为 WPAR，记录实际的焊接参数和检测结果。批准后即证明该工艺有效。

4️⃣ Final WPS (Welding Procedure Specification) – Using the approved PQR, detailed WPS documents are issued for production welders. Any major change in essential variables requires requalification.

4️⃣ 最终 WPS（焊接工艺规程）– 使用经批准的 PQR，编制详细的 WPS 文件用于生产焊工。任何重要变素的重大变更都需要重新评定。

If the first test fails, the pWPS is revised, making this process iterative until a sound, compliant procedure is achieved.

如果首次检测失败，则修订 pWPS，这一过程是迭代的，直到获得一个可靠且合规的工艺。

🔹 Why is pWPS Important?

🔹 为什么 pWPS 很重要？

✅ Quality & Consistency – Ensures welds are defect-free and repeatable across projects.

✅ 质量与一致性 – 确保焊缝无缺陷，并且在不同项目中具有可重复性。

✅ Safety & Compliance – Prevents catastrophic failures by meeting ASME, ISO, or AWS standards.

✅ 安全与合规 – 通过满足 ASME、ISO 或 AWS 等标准，防止灾难性失效。

✅ Material Optimization – Tailors procedures for carbon steel, stainless, aluminum, or exotic alloys, avoiding distortions or incompatibility.

✅ 材料优化 – 针对碳钢、不锈钢、铝或特殊合金定制工艺，避免变形或不兼容问题。

✅ Cost & Efficiency – Detects issues early, reducing rework, waste, and delays.

✅ 成本与效率 – 尽早发现问题，减少返工、浪费和延误。

✅ Traceability & Assurance – Provides a documented trail for certifications, client approvals, and audits.

✅ 可追溯性与保障 – 为认证、客户批准和审核提供文件化的追溯路径。

In short, the pWPS is not just paperwork—it’s the cornerstone of safe, reliable, and efficient welding. Without it, projects risk poor quality, non-compliance, and costly failures.

简而言之，pWPS 不仅仅是文书工作——它是安全、可靠和高效焊接的基石。没有它，项目将面临质量差、不合规以及代价高昂的失败风险。

👉 Whether you’re in oil & gas, construction, shipbuilding, or manufacturing, understanding this process is vital to delivering projects that are safe, efficient, and built to last.

👉 无论您从事油气、建筑、造船还是制造业，理解这一流程对于交付安全、高效且经久耐用的项目都至关重要。
