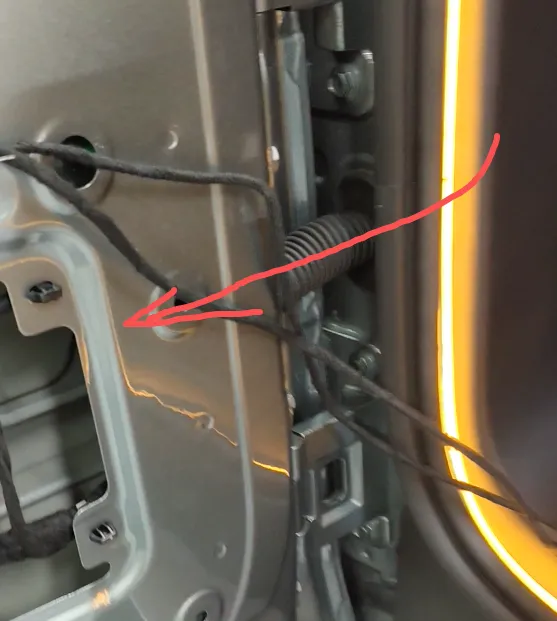

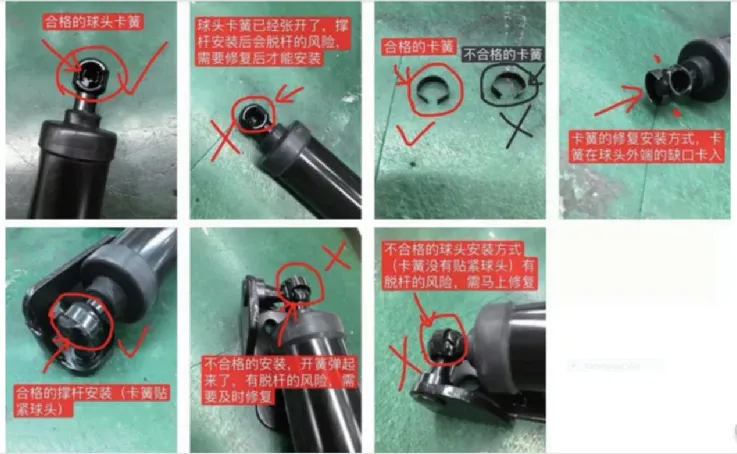

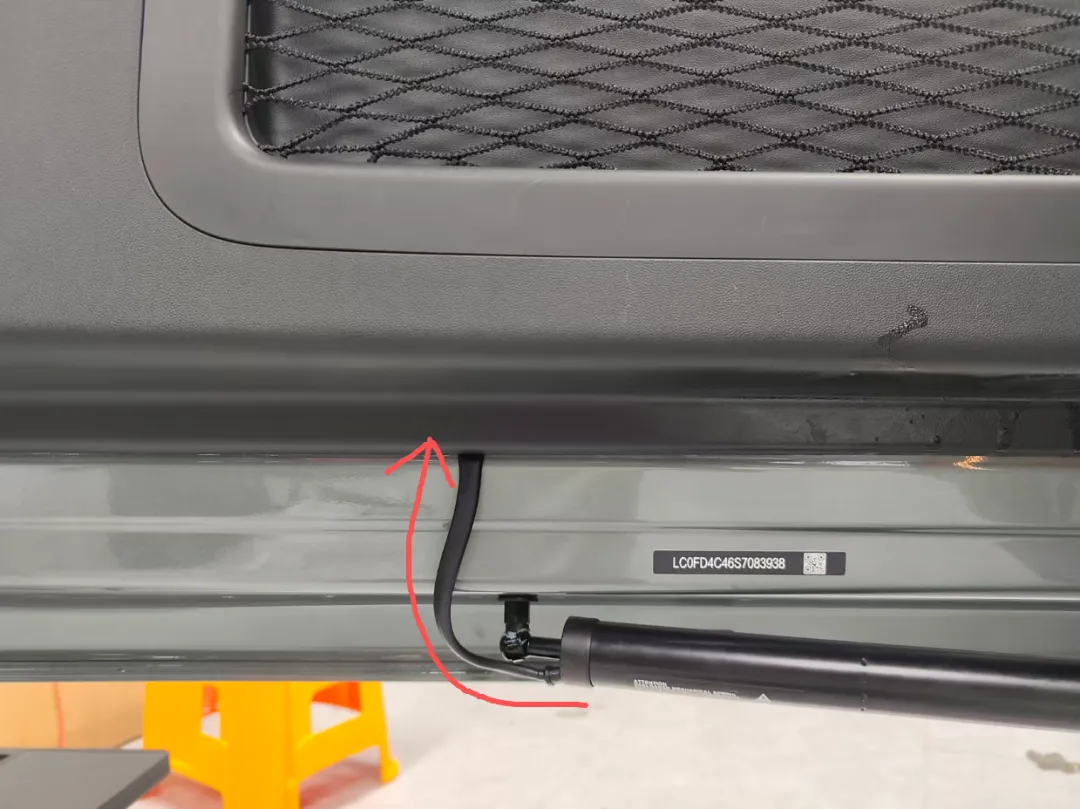

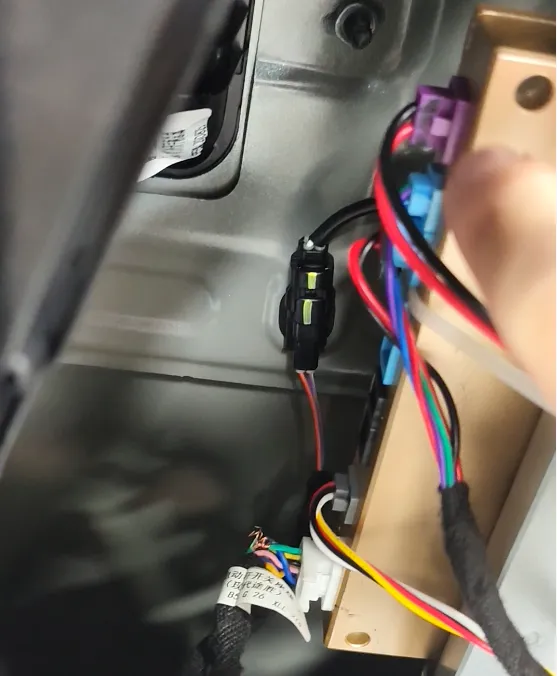

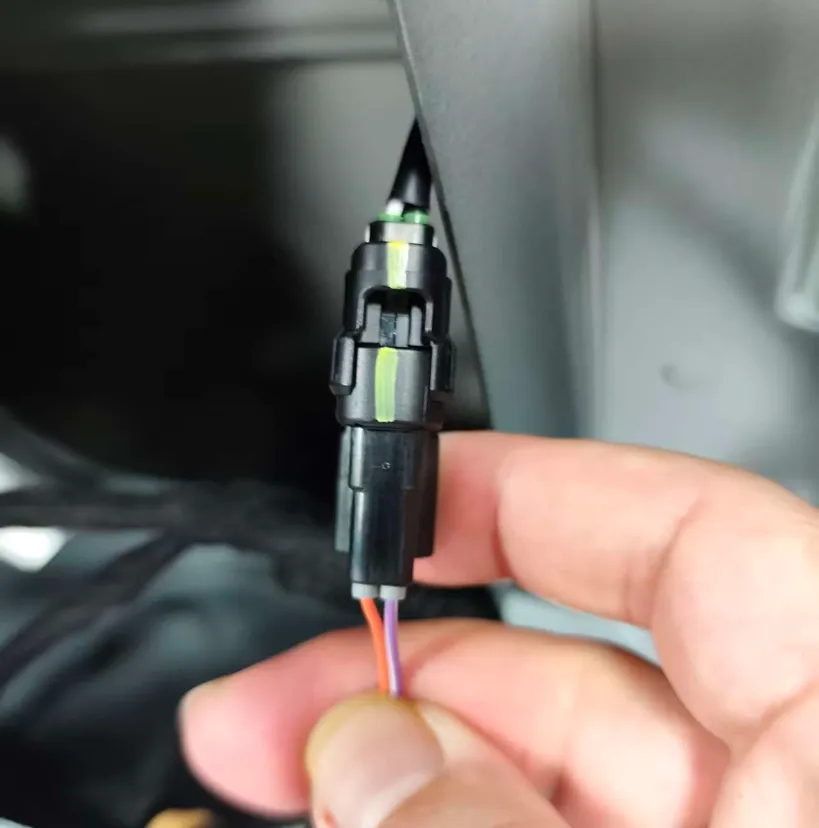

注意事项Matters Needing Attention本说明书中的所有图片仅供参考，图片与实物有可能不同，但安装方法是一样的。为方便您安装，请在安装前认真阅读该商品使用说明书；安装时需注意保护好您爱车的表面，避免刮花。请定期检查与车连接的所有配件是否松动，以确保使用安全。All the pictures in this manual are for reference only. The pictures may differ from the actual ones, but the installation method is the same.For your convenience, please read the instruction manual of the product carefully before installation. Please pay attention to protect the surface of your car and avoid scratching.Please check regularly that all accessories connected to the car are tight to ensure safe use.常见问题点Common Issues1.支架安装反：门关不好；2.支架螺丝没有按要求更换：门关不好，损坏杆；3.控制盒接插件没有插到位，松脱：开关门没有力或者防架力重；4.杆球头、卡簧没有安装到位：使用过程中造成杆脱落（安装后检查）；5.接插件没有插到位、脱落：功能失效；6.电吸锁架偏离中心：门关不上、门缝隙大、拉力紧导致开门大声；7.新车安装长时间没启动汽车造成电量小：开关门不正常，需重新打火；8.尾门加装隔音棉5公斤以上可能影响开关门力，需控制器加力；9.首次安装或者断电后需要学习：长按加装尾门关门键3-5秒听到“嘀”一声长响，把手松开再按门下来听到“嘀”的一声，学习成功（没有学习会出现开关门不正常）；10.球头不对时，非线端的球头可360度旋转。1.Bracket installation reverse: trunk door does not close properly.2.The bracket screw is not replaced as required: the door does not close properly, will damage electric poles.3.The ECU control box is not plugged in properly, loose: there is no force when opening or closing the door or the anti-pinch force is heavy.4.Pole ball head, the circlip is not installed properly: the poles detach during use (check after installation).5.The connector is not plugged in properly, it falls off: the function fails.6.The electric suction lock is off center: the door cannot close, the door gap is large, and the tension is tight, which causes the door to open loudly.7.Installed in a new car for a long time without restarting the car, resulting in low power: door opening or closing not functioning normally, need to restart the car.8.Adding more than 5 kg of soundproof cotton to the tailgate may affect the opening or closing door force, add power to ECU control box.9.After the first installation or power failure, need to learn: long press the tailgate closing button for 3-5 seconds to hear a long sound of "di", release the handle and press the door down to hear a sound of "di", learning success (no learning will appear abnormal opening and closing)10.When the ball head is wrong, the non-aligned ball head can be rotated 360 degrees.合格的球头卡簧Qualified ball head circlip1.球头卡簧已经经张开了，撑杆安装后会脱杆的风险，需要修复后才能安装。The ball circlip has been opened, there is risk of electric pole detaching after installation. It needs to be repaired before installation.2.合格的卡簧。不合格的卡簧。Passed QC circlip. Not passed QC circlip.3.卡簧的修复安装方式，卡簧在球头外端的缺口卡入。The repair and installation method of the circlip, the circlip is stuck in the notch at the outer end of the ball head.4.合格的撑杆安装（卡簧贴紧球头）。Correct electric pole mounting (the circlip tightly mounted in the ball head).5.不合格的安装，开簧弹起来了，有脱杆的风险，需要及时修复。Incorrect installation, the spring is springed up, there is a risk of disengagement, and it needs to be repaired in a timely manner.6.不合格的球头安装方式（卡簧没有贴紧球头）有脱杆的风险，需马上修复。Incorrect ball head installation (the circlip does not stick to the ball head) has the risk of being disengaged and needs to be repaired immediately.安装步骤Installation Procedure参考配件清单和配件图检查配件是否齐全。汽车尾门安装完成后，请按尾门加装开关按键不放手，3-5秒出现“嘀”一声长响，把手松开，再按一下尾门关上，出现“嘀嘀”两声，即尾门学习完成Refer to the spare parts list and spare parts drawing to check whether the spare parts are complete.After the installation of the car's tailgate, please press the button to install the switch on the tailgate without letting go. There will be a long "beep" in 3-5 seconds. Release the handle, and then press the tailgate to close. There will be two "beeps", that is, the programming of the tailgate is completed拆下上图标记处三颗螺丝Remove the three screws marked in the above picture用原车两端球头安装电动撑杆Install the electric support rods with the ball joints at both ends of the original vehicle撑杆线束压在门板下进入尾门内与控制盒对插The pole wire harness is pressed under the door panel and enters the tail door to be inserted into the control box在主驾方向盘下方保险盒位置取电12V Take 12V power from the fuse box below the driver's steering wheel在保险盒侧边螺丝柱上接地Ground the side screw column of the fuse box在保险盒的盖板上打孔安装开关按键Drill holes in the cover plate of the fuse box to install the switch buttons在主驾一侧B柱找到上图端子，中控协议线接原车黑白线Find the terminal shown in the picture on the B-pillar on the driver's side. Connect the central control protocol cable to the original black and white cables of the vehicle把电源线，中控线，前开关线穿过尾门波纹管走线到尾门内部与控制盒对插Pass the power cord, central control cord and front switch cord through the tailgate bellows to the interior of the tailgate and plug them into the control box锁头插座用三通转插Use a three-way adapter for the lock socket原车尾门按键用三通转插The original tailgate button uses a three-way adapter把线束插头对插入控制盒，最后把控制盒用扎带绑在车门内部Insert the wire harness plug pair into the control box, and finally tie the control box to the inside of the car door with cable ties在尾门饰板上图位置打孔安装尾门关门按键Drill holes at the position shown in the above picture on the tailgate trim panel to install the tailgate close button
视频说明Video description在安装完成后请必须进行尾门学习设置，请确保门能开关到位（将尾门升至理想高度，按尾门加装开关按键，3-5秒听到“嘀”一声长响，把手松开，再按一下尾门按键关门，尾门关到位，然后听到“嘀”一声，即尾门学习完成）After the installation is completed, the tailgate programming setting must be carried out. Please make sure that the door can be opened and closed in place (raise the tailgate to the desired height, press the button for adding the switch on the tailgate, there’s a long "beep" for 3-5 seconds, release the button, press the button for closing the tailgate again, the tailgate is closed in place, and then hear a "beep", that is, the tailgate programming is completed)免责声明Disclaimer由于安装及使用不当而引发的相关问题及损失，不在我公司的质保范围内。在使用前请仔细阅读本手册，阅后请小心收藏，以备自后才查阅，图片仅供参考，产品以实物为准。The related problems and losses caused by improper installation and use are not covered by our company's warranty. Please read this manual carefully before use. Please store carefully after reading, so that you can check it later. The picture is for reference only. The product is subject to the actual object.按键操控方式Button control mode1：原车遥控按三次解锁键开关尾门Long press the front button for three seconds to switch the tailgate2：前按键长按三秒开关尾门The original vehicle remote control press the unlock key three times to open the tailgate设置高度Height Setting将尾门升至理想高度，按尾门加装开关按键，3-5秒出现“嘀”一声长响，把手松开，再按一下尾门按键下关，尾门关到位，然后出现“嘀”一声，即尾门学习完成Raise the tailgate to the desired height, press the tailgate switch button, 3-5 seconds will appear a "beep" sound, loosen hand, then press the tailgate button to close, the tailgate is closed, and there is a "beep" sound, that is, the tailgate programming is completed电动尾门故障解决方案Solution to Electric Tailgate Failure

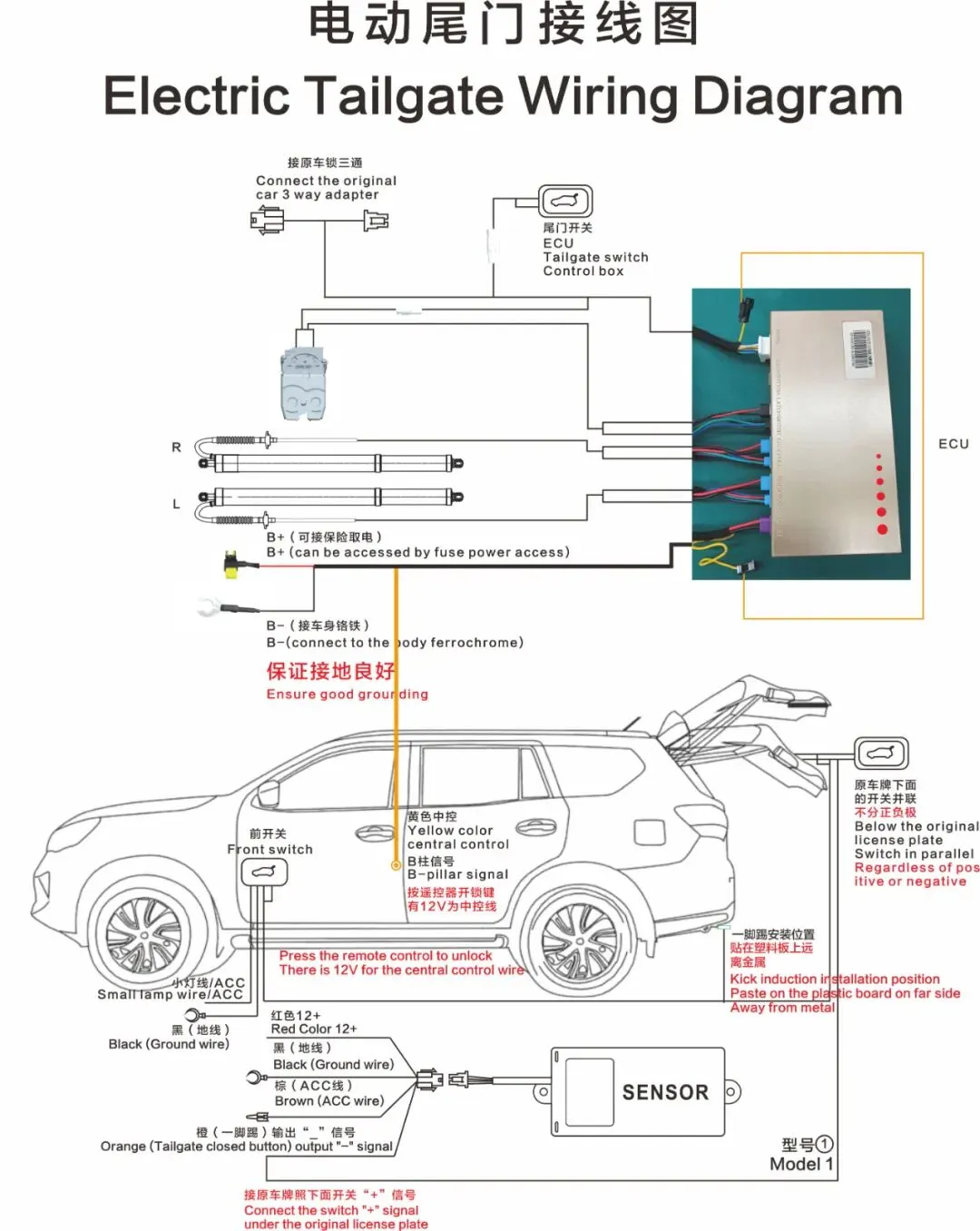

故障现象Fault Phenomenon
故障排除Troubleshooting
原车遥控没作用The original car remote control did not work

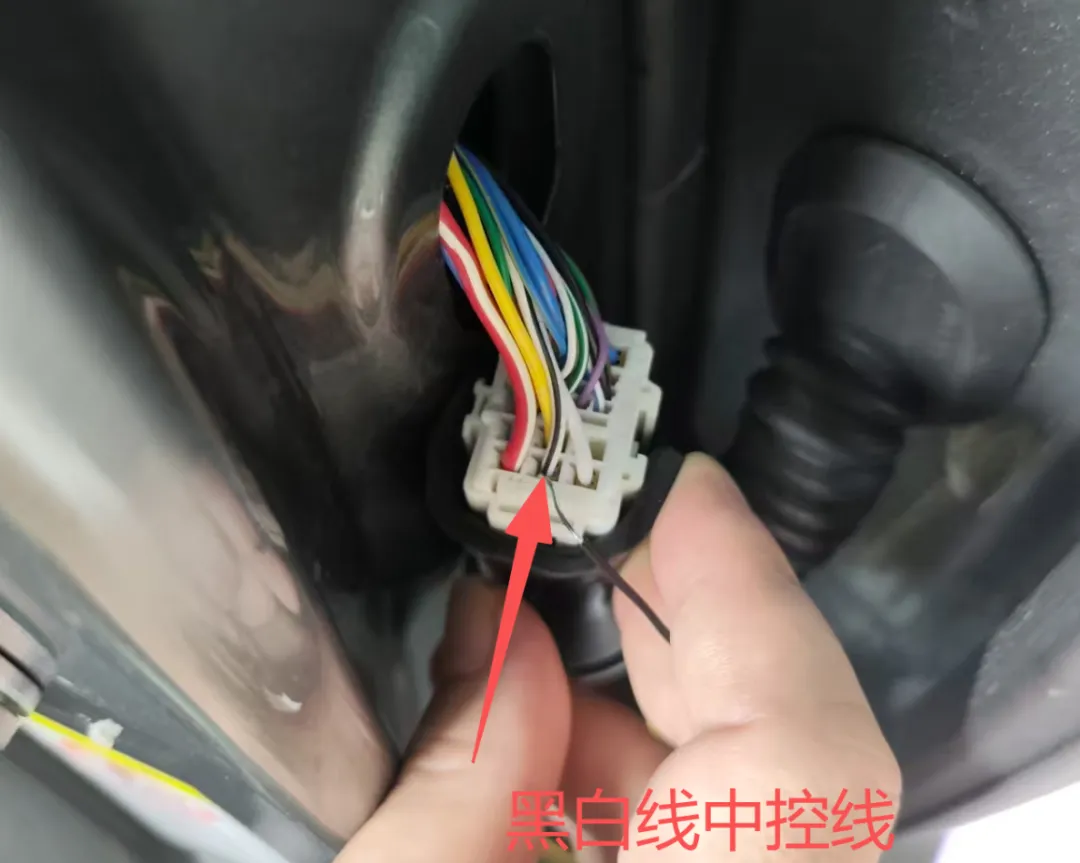

黄色中控线是否接好Whether the yellow center wire connected properly
安装完成后不工作Does not work after installation is complete

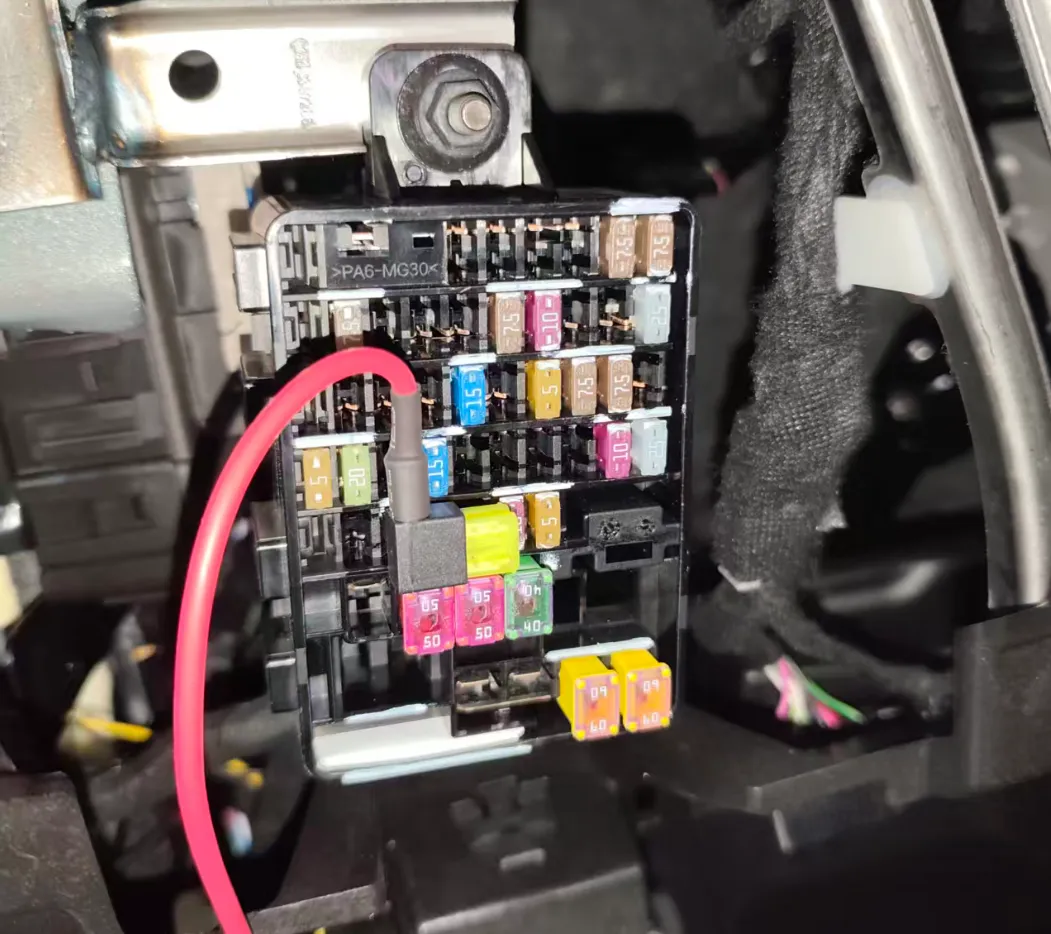

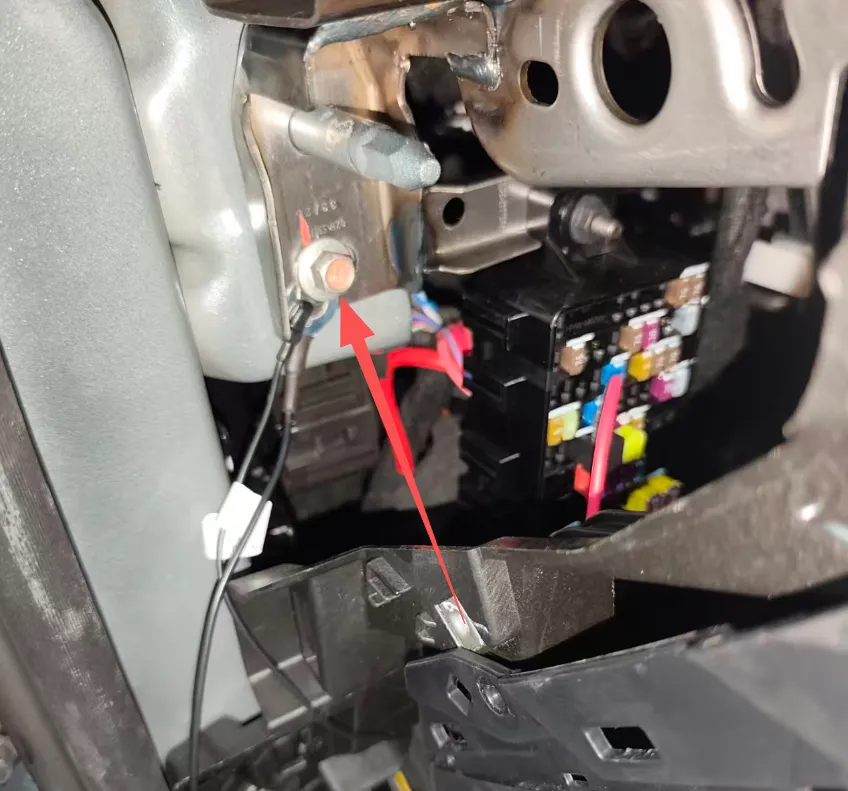

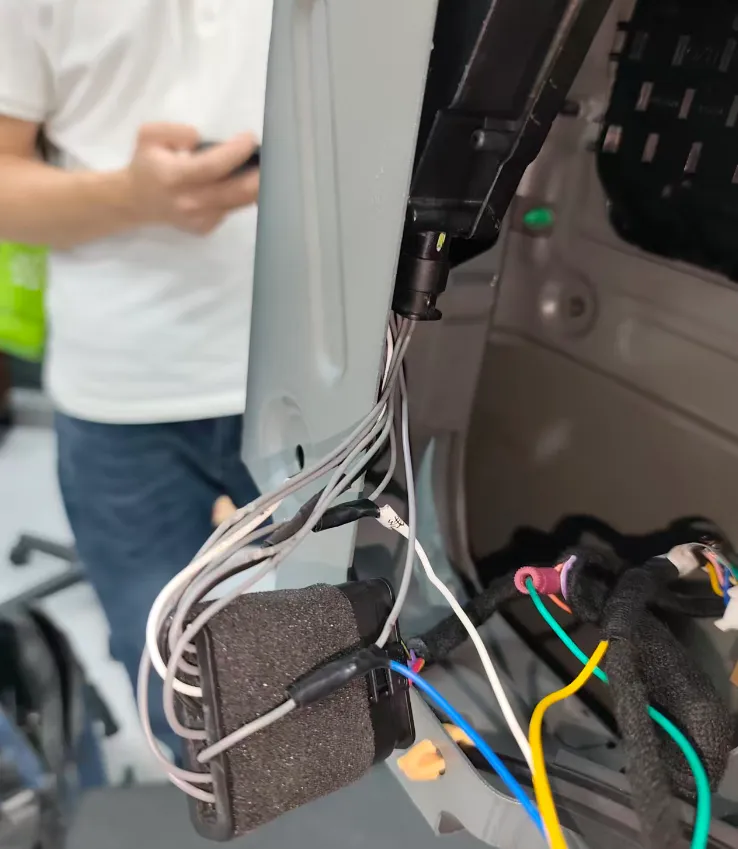

检查正电源是否接好12V-16V检查电源线保险丝是否插好检查地线是否接好Check if the positive power supply is connected to 12V-16VCheck if the power cord fuse is plugged in.Check if the ground wire is connected
关尾门关不到位Tailgate do not close properly

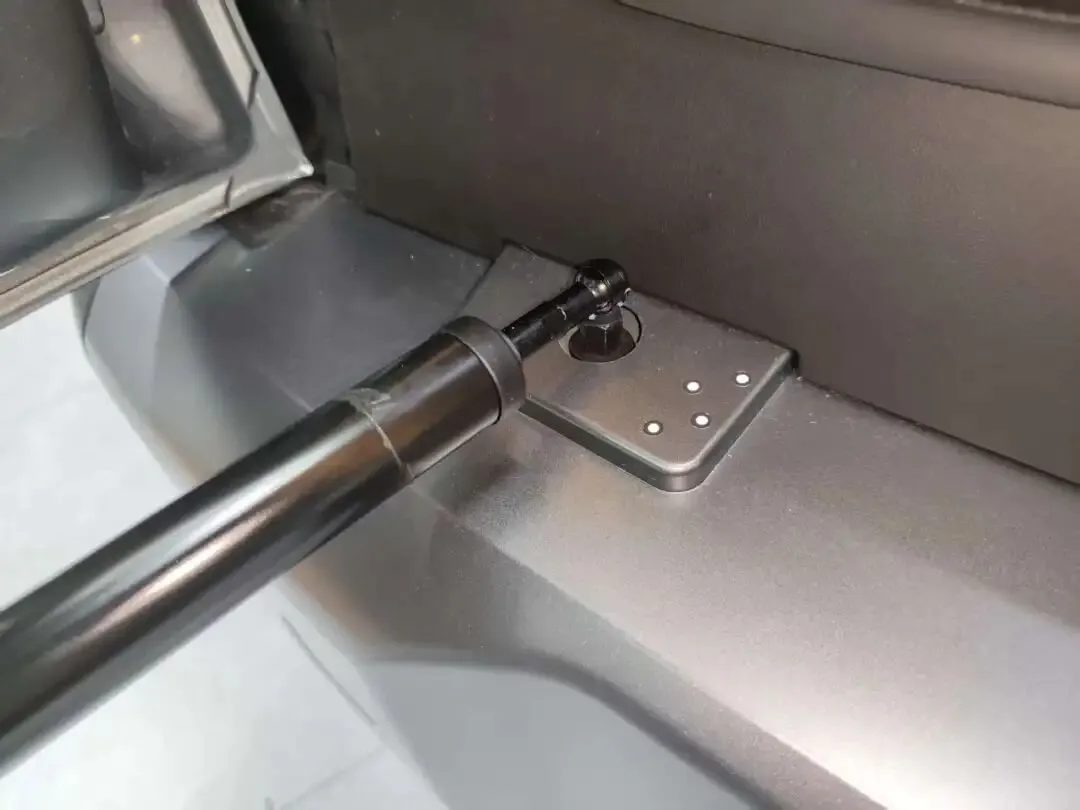

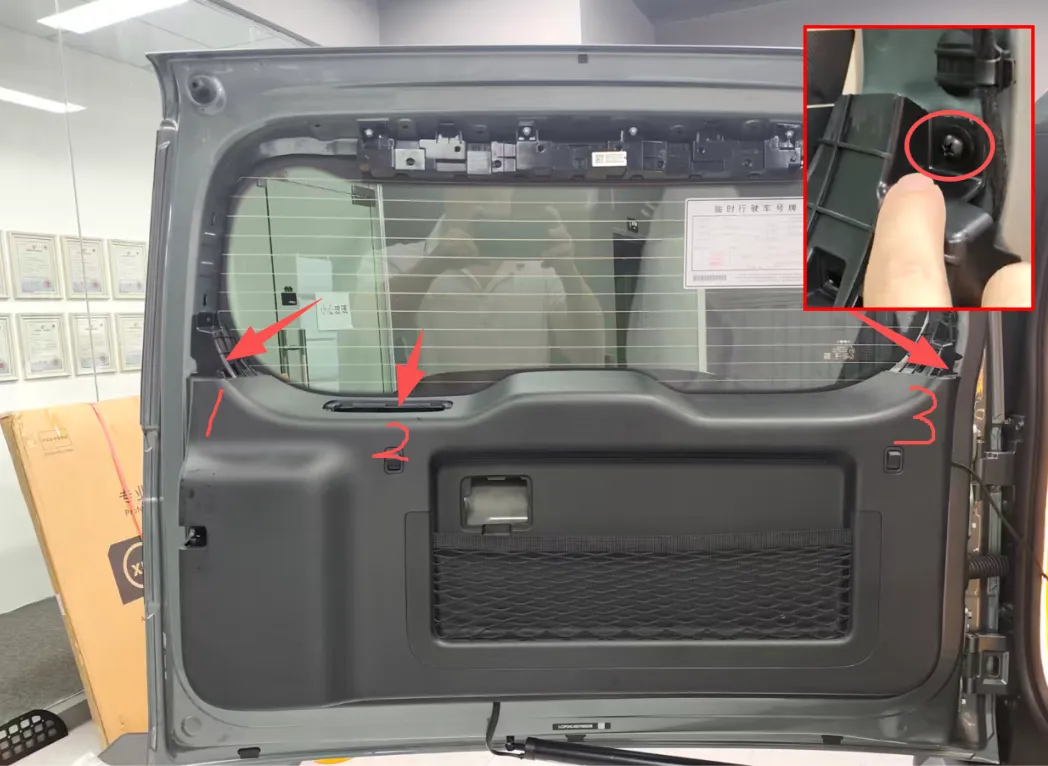

撑杆左右支架是否装反盒子线材是否插好支架固定是否更换成我司专用螺丝原车尾门上盖左右有两个黑胶，是否松脱，需钮紧Whether the left and right brackets of the poles are reversedWhether the control box cables plugged in properlyWhether the bracket is fixed or replaced with our special screwThere are two vinyls on the left and right sides of the original tailgate. If it is loose, it needs to be tighten.
原车遥控器不能关门The original car remote cannot close the door

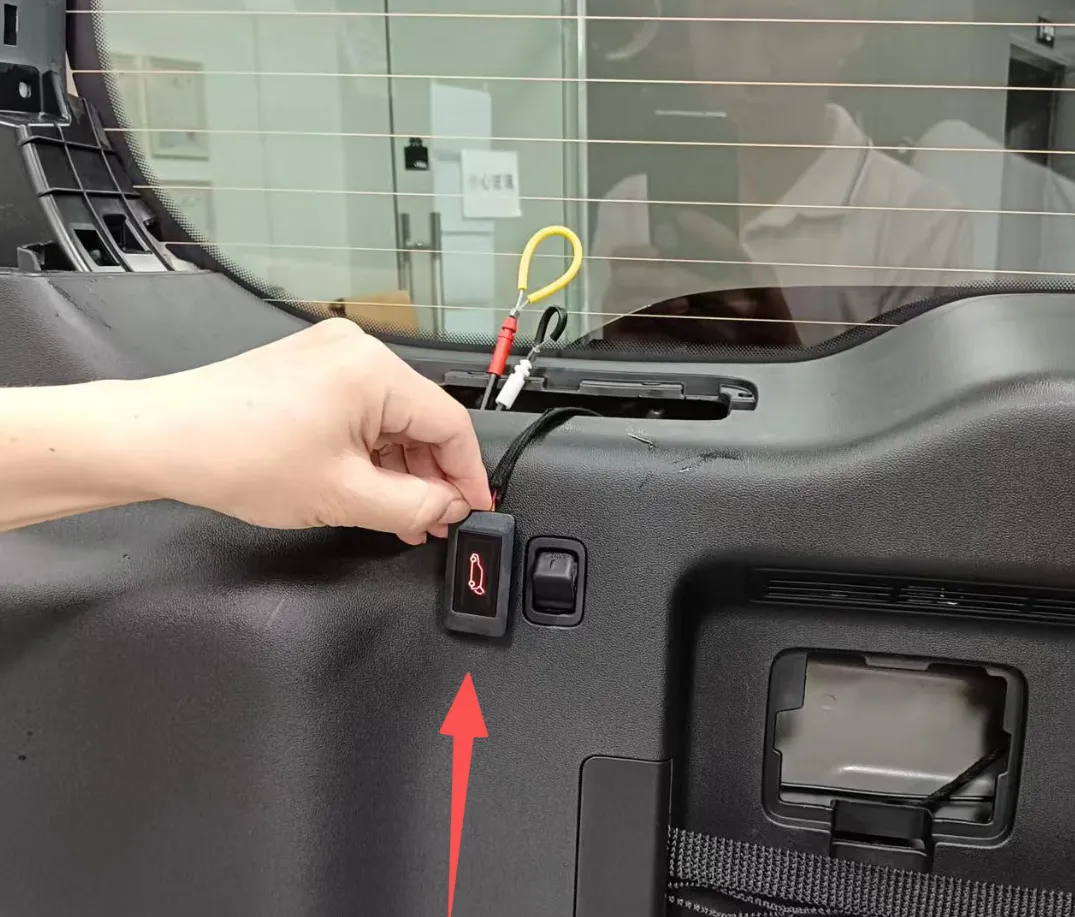

装车后是否有学习，第一次装好车需要关门按键学习一次学习步骤；打开车门长按关尾门键三秒，听到嘀的一声响，松开手重按一下此键，尾门会自动关上,学习完成。Whether there is any programming after installation. The first time you install on the car, you need to program by using the tailgate button once.Programming steps; open the door and press and hold the tailgate button for three seconds. When you hear a click, release the hand and press the button again. The tailgate will automatically close and programming is complete.
尾门开到一半上不去The tailgate does not go up halfway
撑杆左右支架是否装反盒子线材是否插好支架固定是否更换成我司专用螺丝Whether the left and right brackets of the poles are reversedWhether the control box cables is plugged in properlyWhether the bracket is fixed or replaced with our special screw
