Outline保姆级安装教程

前一段时间，自己有很多项目需要存放或者分享，使用了IMA，发现文档的分享对方需要下载客户端才能看到完整分享，然后也使用了一些其他的平台，体验都不是很好，最后在网上找到了Outline知识库，可以私有化部署，而且体验非常好，所以自己记录了整个搭建过程，希望有诸如此类想法的朋友可以借鉴参考，少走弯路。

Outline 是什么？Outline 是一款开源的团队知识库工具，由 Pencil Labs 开发维护。它的特点非常鲜明：

✍️ 类 Notion 编辑体验 — 块编辑、协作实时编辑、强大的富文本
🔗 开放 API — 可接入任意应用，打造你的工具生态
🔒 私有化部署 — 数据完全在自己手里，安全感拉满
🐳 Docker 一键部署 — 官方推荐方式，5 分钟跑起来

1.系统安装

本次安装outline应用部署在阿里云服务器中，采用docker部署，这也是outline官方最推荐的部署方式，目前配置4G内存/4核心CPU.

1.1完整部署流程

前置准备

服务器：4 核 8G 及以上（最低 2 核 4G）
系统：Ubuntu 20.04+/CentOS 7+
已安装 Docker & Docker Compose【参考1.2安装或问AI都可以】
（离线环境需提前导入镜像：outlinewiki/outline:latest、postgres:14、redis:7）【参考1.3节，提前离线导入并加载镜像】
防火墙开放端口：3000/TCP
公网 IP：47.98.235.X（替换为你的实际 IP）

一键部署脚本（复制直接执行）

步骤 1：进入部署目录并清理旧环境

# 创建并进入目录mkdir -p /outline && cd /outline# 清理旧容器/数据（避免冲突）docker-compose down -v 2>/dev/nullrm -rf postgres .env docker-compose.ymldocker system prune -f 2>/dev/null

步骤2：生成 docker-compose.yml（核心配置）

cat > docker-compose.yml <<'EOF'version: '3'services:  outline:    image: outlinewiki/outline:latest    env_file: .env    ports:      - "3000:3000"    depends_on:      - postgres      - redis    restart: always    logging:      driver: "json-file"      options:        max-size: "100m"        max-file: "3"  postgres:    image: postgres:14    environment:      POSTGRES_USER: outline      POSTGRES_PASSWORD: outline123      POSTGRES_DB: outline      # 关闭数据库SSL（关键！避免连接失败）      PGSSLMODE: disable    volumes:      - ./postgres:/var/lib/postgresql/data    restart: always    healthcheck:      test: ["CMD-SHELL", "pg_isready -U outline"]      interval: 5s      timeout: 5s      retries: 5  redis:    image: redis:7    restart: always    healthcheck:      test: ["CMD", "redis-cli", "ping"]      interval: 5s      timeout: 5s      retries: 5EOF

【已成功部署的docker-compose.yml配置】

root@iZbp142fio164aasvak4qsZ:~# cat /outline/docker-compose.ymlversion: '3'services:  outline:    image: outlinewiki/outline:latest    env_file: .env    ports:      - "3000:3000"    depends_on:      - postgres      - redis    restart: always  postgres:    image: postgres:14    environment:      POSTGRES_USER: outline      POSTGRES_PASSWORD: outline123      POSTGRES_DB: outline    volumes:      - ./postgres:/var/lib/postgresql/data    restart: always  redis:    image: redis:7    restart: alwaysroot@iZbp142fio164aasvak4qsZ:~#

步骤 3：生成合规 .env 配置（含所有关键修复）

# 生成官方标准密钥（64位十六进制）SECRET=$(openssl rand -hex 32)UTILS=$(openssl rand -hex 32)# 写入配置文件cat > .env <<EOF# 核心密钥（官方强制要求）SECRET_KEY=$SECRETUTILS_SECRET=$UTILS# 基础网络配置URL=http://your server ip:3000PORT=3000# 数据库连接（已修复SSL问题）DATABASE_URL=postgres://outline:outline123@postgres:5432/outlineREDIS_URL=redis://redis:6379PGSSLMODE=disable# 运行环境NODE_ENV=productionALLOWED_DOMAINS=*DOMAIN_ALLOW_LIST=*FORCE_HTTPS=false# 登录修复（强制显示邮箱密码登录框）ENABLE_EMAIL_PASSWORD_LOGIN=trueDISABLE_SECURITY_STAMP=true# 图片存储配置（本地存储，避免粘贴失败）FILE_STORAGE=localLOCAL_STORAGE_PATH=/var/lib/outline/storageMAX_FILE_SIZE=52428800EOF

【已部署成功的.env配置】

root@iZbp142fio164aasvak4qsZ:~# cat /outline/.env# 核心密钥（官方标准）SECRET_KEY=67613ae4c32e6a373ee982d06a0d95d2e5e4d5f02ca19fc7394cbb49e47e318aUTILS_SECRET=42d95d962f771f052fff96c4441cf9d4a18c51b6df3033fd9e1a55ec48a210be# 基础配置URL=http://47.98.X.X:3000PORT=3000DATABASE_URL=postgres://outline:outline123@postgres:5432/outlineREDIS_URL=redis://redis:6379NODE_ENV=productionALLOWED_DOMAINS=*FORCE_HTTPS=false# 修复数据库SSL问题PGSSLMODE=disable# 强制启用邮箱密码登录（解决登录页问题）ENABLE_EMAIL_PASSWORD_LOGIN=trueDOMAIN_ALLOW_LIST=*# ====================== SMTP 邮件服务配置（方案A核心）====================== SMTP # 服务器地址（QQ邮箱为 smtp.qq.com，企业邮为 smtp.exmail.qq.com）SMTP_HOST=smtp.qq.com# SMTP 端口（TLS用587，SSL用465，推荐587）SMTP_PORT=465# SMTP 用户名（你的邮箱地址）SMTP_USERNAME=49443xxxxx@qq.com# SMTP 授权码SMTP_PASSWORD=jzvdxxxxxxxxxxxx# 发件人邮箱（和用户名一致即可，或自定义 noreply@your-domain.com）SMTP_FROM=4944xxxxxx@qq.com# 回复邮箱（可自定义）SMTP_REPLY_TO=4944xxxxxxx@qq.com# 是否开启 TLS（必须开启，对应端口587）SMTP_TLS_ENABLED=false# 是否拒绝未认证的TLS（内网环境可设为false，公网建议true）SMTP_TLS_REJECT_UNAUTHORIZED=false# 强制开启邮箱登录（部分旧版本需手动开启，新版本默认true，建议加上）ENABLE_EMAIL_LOGIN=trueSMTP_FROM_EMAIL=494xxxxxxxx@qq.comSMTP_SECURE=true# picture sizeFILE_STORAGE=localAWS_REGION=us-east-1AWS_S3_REGION=us-east-1MAX_UPLOAD_SIZE=20971520

步骤 4：启动服务

# 启动所有服务docker-compose up -d# 查看启动状态（等待30秒，确保容器不重启）docker ps

部署成功验证

CONTAINER ID   IMAGE                        STATUS         PORTSxxxxxxx        outlinewiki/outline:latest   Up 30 seconds  0.0.0.0:3000->3000/tcpxxxxxxx        postgres:14                  Up 30 seconds  5432/tcpxxxxxxx        redis:7                      Up 30 seconds  6379/tcp

❌ 异常处理：仍无法访问outline，后台查原因【outline-outline-1容器反复无限重启】

root@iZbp142fio164aasvak4qsZ:/outline# docker psCONTAINER ID   IMAGE                        COMMAND                  CREATED          STATUS                                  PORTS      NAMESc72a274333f1   outlinewiki/outline:latest   "docker-entrypoint.s…"   16 seconds ago   Restarting (1) Less than a second ago              outline_outline_1dd76dd66966d   postgres:14                  "docker-entrypoint.s…"   17 seconds ago   Up 16 seconds                           5432/tcp   outline_postgres_1e0033cc0271d   redis:7                      "docker-entrypoint.s…"   17 seconds ago   Up 16 seconds                           6379/tcp   outline_redis_1

显示 Restarting，立即执行日志排查：

# 查看Outline错误日志docker logs --tail 50 outline_outline_1

查看当前日志，主要输出："error":"TheserverdoesnotsupportSSLconnections"

日志清清楚楚写死：PostgreSQL 数据库 SSL 连接被强制开启，但数据库没开 SSL → 直接崩溃重启！

这就是 Outline 无限重启的唯一、真正、最终原因！

root@iZbp142fio164aasvak4qsZ:/outline# docker psCONTAINER ID   IMAGE                        COMMAND                  CREATED          STATUS                            PORTS                                         NAMESc72a274333f1   outlinewiki/outline:latest   "docker-entrypoint.s…"   15 seconds ago   Up 3 seconds (health: starting)   0.0.0.0:3000->3000/tcp, [::]:3000->3000/tcp   outline_outline_1dd76dd66966d   postgres:14                  "docker-entrypoint.s…"   16 seconds ago   Up 15 seconds                     5432/tcp                                      outline_postgres_1e0033cc0271d   redis:7                      "docker-entrypoint.s…"   16 seconds ago   Up 15 seconds                     6379/tcp                                      outline_redis_1root@iZbp142fio164aasvak4qsZ:/outline# docker psCONTAINER ID   IMAGE                        COMMAND                  CREATED          STATUS                                  PORTS      NAMESc72a274333f1   outlinewiki/outline:latest   "docker-entrypoint.s…"   16 seconds ago   Restarting (1) Less than a second ago              outline_outline_1dd76dd66966d   postgres:14                  "docker-entrypoint.s…"   17 seconds ago   Up 16 seconds                           5432/tcp   outline_postgres_1e0033cc0271d   redis:7                      "docker-entrypoint.s…"   17 seconds ago   Up 16 seconds                           6379/tcp   outline_redis_1root@iZbp142fio164aasvak4qsZ:/outline# docker logs --tail 30 outline_outline_1{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"error":"The server does not support SSL connections","level":"error","message":"The database does not support SSL connections. Set the `PGSSLMODE` environment variable to `disable` or enable SSL on your database server.","stack":"SequelizeConnectionError: The server does not support SSL connections\n    at Client._connectionCallback (/opt/outline/node_modules/sequelize/lib/dialects/postgres/connection-manager.js:149:20)\n    at Client._handleErrorWhileConnecting (/opt/outline/node_modules/pg/lib/client.js:336:19)\n    at Client._handleErrorEvent (/opt/outline/node_modules/pg/lib/client.js:346:19)\n    at Connection.emit (node:events:519:28)\n    at Connection.emit (node:domain:489:12)\n    at Socket.<anonymous> (/opt/outline/node_modules/pg/lib/connection.js:76:23)\n    at Object.onceWrapper (node:events:634:26)\n    at Socket.emit (node:events:519:28)\n    at Socket.emit (node:domain:489:12)\n    at addChunk (node:internal/streams/readable:561:12)\n    at readableAddChunkPushByteMode (node:internal/streams/readable:512:3)\n    at Readable.push (node:internal/streams/readable:392:5)\n    at TCP.onStreamRead (node:internal/stream_base_commons:189:23)"}{"label":"lifecycle","level":"info","message":"Gracefully quitting"}{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"error":"The server does not support SSL connections","level":"error","message":"The database does not support SSL connections. Set the `PGSSLMODE` environment variable to `disable` or enable SSL on your database server.","stack":"SequelizeConnectionError: The server does not support SSL connections\n    at Client._connectionCallback (/opt/outline/node_modules/sequelize/lib/dialects/postgres/connection-manager.js:149:20)\n    at Client._handleErrorWhileConnecting (/opt/outline/node_modules/pg/lib/client.js:336:19)\n    at Client._handleErrorEvent (/opt/outline/node_modules/pg/lib/client.js:346:19)\n    at Connection.emit (node:events:519:28)\n    at Connection.emit (node:domain:489:12)\n    at Socket.<anonymous> (/opt/outline/node_modules/pg/lib/connection.js:76:23)\n    at Object.onceWrapper (node:events:634:26)\n    at Socket.emit (node:events:519:28)\n    at Socket.emit (node:domain:489:12)\n    at addChunk (node:internal/streams/readable:561:12)\n    at readableAddChunkPushByteMode (node:internal/streams/readable:512:3)\n    at Readable.push (node:internal/streams/readable:392:5)\n    at TCP.onStreamRead (node:internal/stream_base_commons:189:23)"}{"label":"lifecycle","level":"info","message":"Gracefully quitting"}{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"error":"The server does not support SSL connections","level":"error","message":"The database does not support SSL connections. Set the `PGSSLMODE` environment variable to `disable` or enable SSL on your database server.","stack":"SequelizeConnectionError: The server does not support SSL connections\n    at Client._connectionCallback (/opt/outline/node_modules/sequelize/lib/dialects/postgres/connection-manager.js:149:20)\n    at Client._handleErrorWhileConnecting (/opt/outline/node_modules/pg/lib/client.js:336:19)\n    at Client._handleErrorEvent (/opt/outline/node_modules/pg/lib/client.js:346:19)\n    at Connection.emit (node:events:519:28)\n    at Connection.emit (node:domain:489:12)\n    at Socket.<anonymous> (/opt/outline/node_modules/pg/lib/connection.js:76:23)\n    at Object.onceWrapper (node:events:634:26)\n    at Socket.emit (node:events:519:28)\n    at Socket.emit (node:domain:489:12)\n    at addChunk (node:internal/streams/readable:561:12)\n    at readableAddChunkPushByteMode (node:internal/streams/readable:512:3)\n    at Readable.push (node:internal/streams/readable:392:5)\n    at TCP.onStreamRead (node:internal/stream_base_commons:189:23)"}{"label":"lifecycle","level":"info","message":"Gracefully quitting"}{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"error":"The server does not support SSL connections","level":"error","message":"The database does not support SSL connections. Set the `PGSSLMODE` environment variable to `disable` or enable SSL on your database server.","stack":"SequelizeConnectionError: The server does not support SSL connections\n    at Client._connectionCallback (/opt/outline/node_modules/sequelize/lib/dialects/postgres/connection-manager.js:149:20)\n    at Client._handleErrorWhileConnecting (/opt/outline/node_modules/pg/lib/client.js:336:19)\n    at Client._handleErrorEvent (/opt/outline/node_modules/pg/lib/client.js:346:19)\n    at Connection.emit (node:events:519:28)\n    at Connection.emit (node:domain:489:12)\n    at Socket.<anonymous> (/opt/outline/node_modules/pg/lib/connection.js:76:23)\n    at Object.onceWrapper (node:events:634:26)\n    at Socket.emit (node:events:519:28)\n    at Socket.emit (node:domain:489:12)\n    at addChunk (node:internal/streams/readable:561:12)\n    at readableAddChunkPushByteMode (node:internal/streams/readable:512:3)\n    at Readable.push (node:internal/streams/readable:392:5)\n    at TCP.onStreamRead (node:internal/stream_base_commons:189:23)"}{"label":"lifecycle","level":"info","message":"Gracefully quitting"}root@iZbp142fio164aasvak4qsZ:/outline#

加了一行官方要求的关键配置：

PGSSLMODE=disable

作用：强制关闭 PostgreSQL SSL 连接，和现在的数据库匹配，不再报错！

root@iZbp142fio164aasvak4qsZ:~# docker psCONTAINER ID   IMAGE                        COMMAND                  CREATED        STATUS                  PORTS                                         NAMES0c322b838ca8   outlinewiki/outline:latest   "docker-entrypoint.s…"   11 hours ago   Up 11 hours (healthy)   0.0.0.0:3000->3000/tcp, [::]:3000->3000/tcp   outline-outline-1305f5b4e581e   postgres:14                  "docker-entrypoint.s…"   11 hours ago   Up 11 hours             5432/tcp                                      outline-postgres-1e6459a9ed48d   redis:7                      "docker-entrypoint.s…"   11 hours ago   Up 11 hours             6379/tcp                                      outline-redis-1root@iZbp142fio164aasvak4qsZ:~#

1.2初尝试：采用在线安装

PS：本节在线安装最后并未安装成功，仅做安装记录以及经验总结，如需直接安装，请跳过此节

docker和docker-compose安装都无问题，但是在拉去outline镜像的时候，发现无法从docker上下载下来，具体原因是：docker无法直接访问下载且国内的镜像源都挂了，无法使用。

部署过程：

1.部署docker-compose

sudo curl -L "https://github.com/docker/compose/releases/download/$(curl -s https://api.github.com/repos/docker/compose/releases/latest | grep -Po '"tag_name": "\K.*\d')/docker-compose-linux-x86_64" -o /usr/local/bin/docker-compose# 添加执行权限sudo chmod +x /usr/local/bin/docker-compose# 测试是否安装成功docker-compose --version

这一段的作用：自动获取 Docker Compose 最新版本号（比如 v2.29.1）

/usr/local/bin/docker-compose：把下载的文件，安装到系统可执行目录，让你全局能用 docker-compose 命令

这里我犯了一个错误，还未安装docker就直接安装docker-compose了，因为对docker不是很熟悉，所以在执行docker-compose up -d

root@iZkk02hybu54hvZ:/outline# docker compose up -dCommand 'docker' not found, but can be installed with:apt install docker.io

Docker 根本没安装，所以 docker 命令找不到。

2.安装docker

因为可以直接连接互联网，所以直接采用apt安装

apt update && apt install docker.io -y#启动 Docker 并设置开机自启systemctl start docker && systemctl enable docker

3.验证安装成功

docker --versiondocker-compose --version

4.创建并进入项目目录。

mkdir outline && cd outline

5.用命令 sudo vim docker-compose.yml 创建 docker-compose.yml 文件并填入以下内容。

version: '3.8'services:  outline:    image: outlinewiki/outline:0.84.0    ports: ["3001:3000"]    env_file: .env    environment:      - URL=http://你的服务器 IP:3001      - DATABASE_URL=postgres://postgres:postgres@db/outline      - REDIS_URL=redis://redis:6379      - NODE_ENV=production      - FORCE_HTTPS=false      - PGSSLMODE=disable    depends_on:      db:        condition: service_healthy      redis:        condition: service_started  db:    image: postgres:16    environment:      POSTGRES_USER: postgres      POSTGRES_PASSWORD: postgres      POSTGRES_DB: outline    healthcheck:      test: ["CMD-SHELL", "pg_isready -U postgres"]    volumes:      - pgdata:/var/lib/postgresql/data  redis:    image: redis:7    healthcheck:      test: ["CMD", "redis-cli", "ping"]volumes:  pgdata:

6.生成密钥

echo "SECRET_KEY=$(openssl rand -hex 32)" > .envecho "UTILS_SECRET=$(openssl rand -hex 32)" >> .env

7.启动outline服务，发现报错

docker compose up -dWARN[0000] /outline/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion [+] up 3/3 ✘ Image postgres:16                Error Get "https://registry-1.docker.io/v2/...       15.0s ! Image redis:7                    Interrupted                                          15.0s ! Image outlinewiki/outline:0.84.0 Interrupted                                          15.0sError response from daemon: Get "https://registry-1.docker.io/v2/": net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)

现在Docker 和 Docker Compose 都已经装好了！报错是因为：从官方仓库拉取 Docker 镜像超时（网络问题）

测试一下官方仓库是否能访问，仍报错。

root@iZkk02hybu54hvZ:/outline# docker pull hello-worldUsing default tag: latestError response from daemon: Get "https://registry-1.docker.io/v2/": net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)

采用解决国内镜像加速，来解决问题！

cat > /etc/docker/daemon.json << EOF{  "registry-mirrors": [    "https://docker.mirrors.ustc.edu.cn",    "https://hub-mirror.c.163.com",    "https://mirror.baidubce.com"  ]}EOF

重启docker生效

systemctl daemon-reloadsystemctl restart docker

修改国内镜像源后，再次尝试，仍然报错！！！

root@iZkk02hybu54hvZ:/outline# docker-compose up -dWARN[0000] /outline/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion [+] up 3/3 ! Image docker.registry.docker-cn.com/library/postgres:16     Interrupted   0.0s ! Image docker.registry.docker-cn.com/library/redis:7         Interrupted   0.0s ✘ Image docker.mirrors.ustc.edu.cn/outlinewiki/outline:0.84.0 Error         0.0sError response from daemon: Get "https://docker.mirrors.ustc.edu.cn/v2/": dial tcp: lookup docker.mirrors.ustc.edu.cn on 127.0.0.53:53: no such host

现在的状态

Docker 装好了 ✅

Docker Compose 装好了 ✅

服务器环境没问题 ✅

但是：国内服务器完全无法拉取 Docker 镜像，这是硬性限制，无解！❌

！！！我的阿里云服务器（国内）能ping通www.docker.com为什么不能直接在线拉取docker？

root@iZkk02hybu54hvZ:/outline# ping www.docker.comPING fe4.edge.pantheon.io (23.185.0.4) 56(84) bytes of data.64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=1 ttl=50 time=204 ms64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=2 ttl=50 time=204 ms64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=3 ttl=50 time=203 ms64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=4 ttl=50 time=204 ms64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=5 ttl=50 time=204 ms64 bytes from 23.185.0.4 (23.185.0.4): icmp_seq=6 ttl=50 time=204 ms

豆包给我的回复：

你 ping 的是：www.docker.com（官网）这个是介绍 Docker 的网站，相当于「苹果官网」能打开，不代表你能下载 APP！
Docker 下载镜像的地址是：registry-1.docker.io 这个是应用商店，国内被防火墙严格限制！

真实区别

www.docker.com → 你能访问 ✅

registry-1.docker.io → 国内服务器无法访问 ❌

你 ping 通的是前者，下载镜像用的是后者！

这就是为什么：

你能 ping 通百度 ✅

能 ping 通 docker.com ✅

但下载镜像一直超时 / 失败 ❌

再给你打个最形象的比方

ping www.docker.com = 你能看到苹果官网

下载镜像 = 你想从美国 App Store 下载微信

国内网络不让你直接连美国应用商店，但允许你看苹果官网！

然后无路可走了，====选择离线安装=====

1.3再尝试：采用离线安装

离线安装总共就 4 步

在你自己的电脑（Windows/Mac）下载 3 个镜像
导出成文件
传到你的阿里云服务器
在服务器导入 → 直接启动！

第一步：在你电脑上安装 Docker（免费、5 分钟）

你电脑必须装 Docker，才能下载镜像文件。

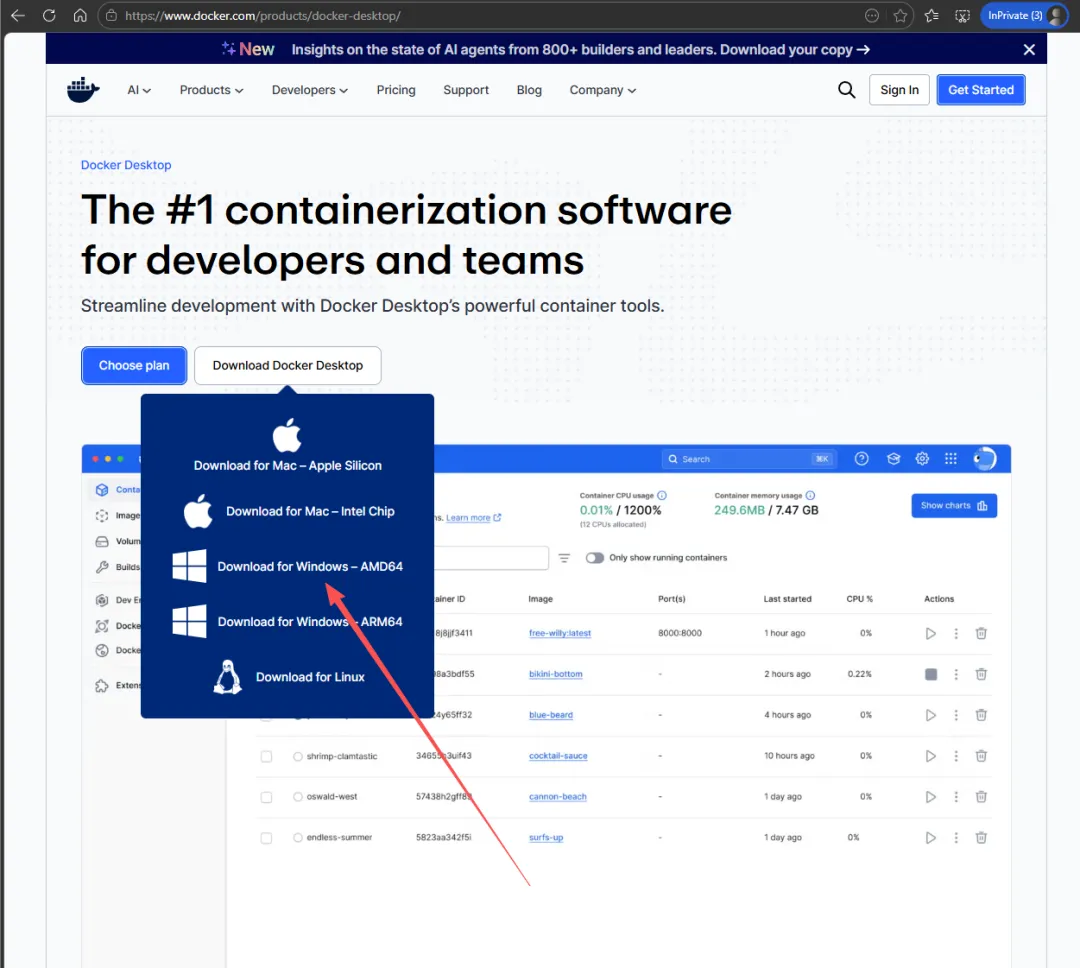

下载地址（官方免费）：

https://www.docker.com/products/docker-desktop/

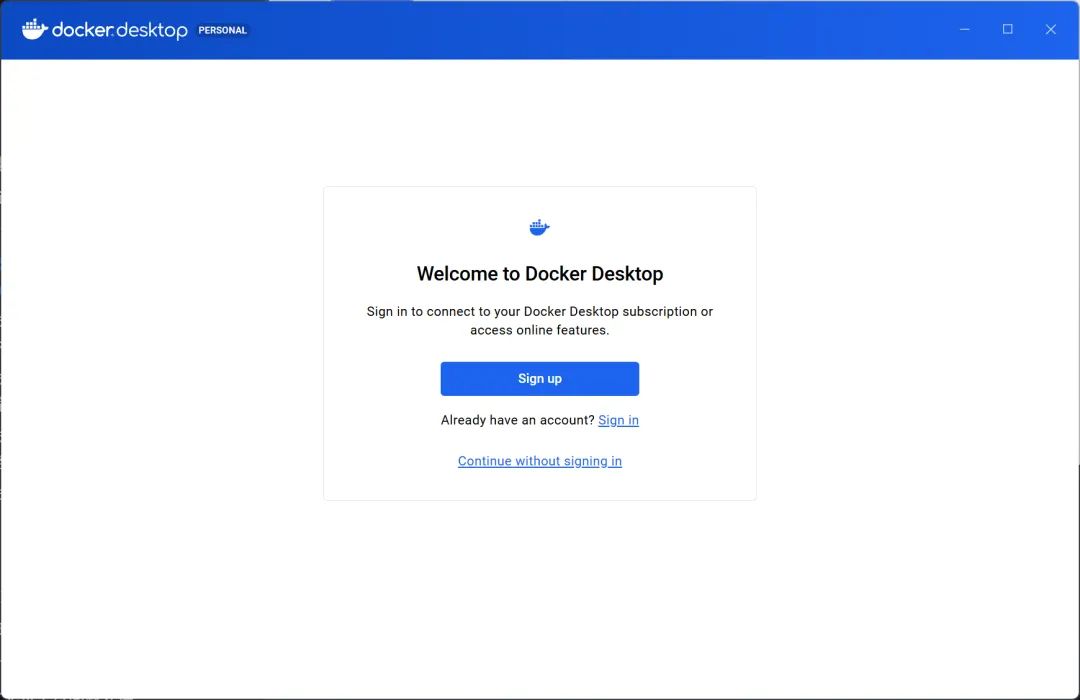

安装好 → 打开 → 保持运行（右下角有鲸鱼图标就对了）。

【这里又要展开长篇大论了，因为安装docker-desktop并下载镜像也不是一个容易的事！】

首先到官网的desktop中下载安装包；

下载下来后，还不能直接使用，打开docker desktop后，提示wsl版本有问题，要下载最新的wsl；

报错提示如下：

WSL needs updating Your version of Windows Subsystem for Linux (WSL) is too old. Run the command below to update or for more information, visit .the Microsoft WSL documentation wsl --update

尝试过在CMD中输入，wsl --update 不生效；

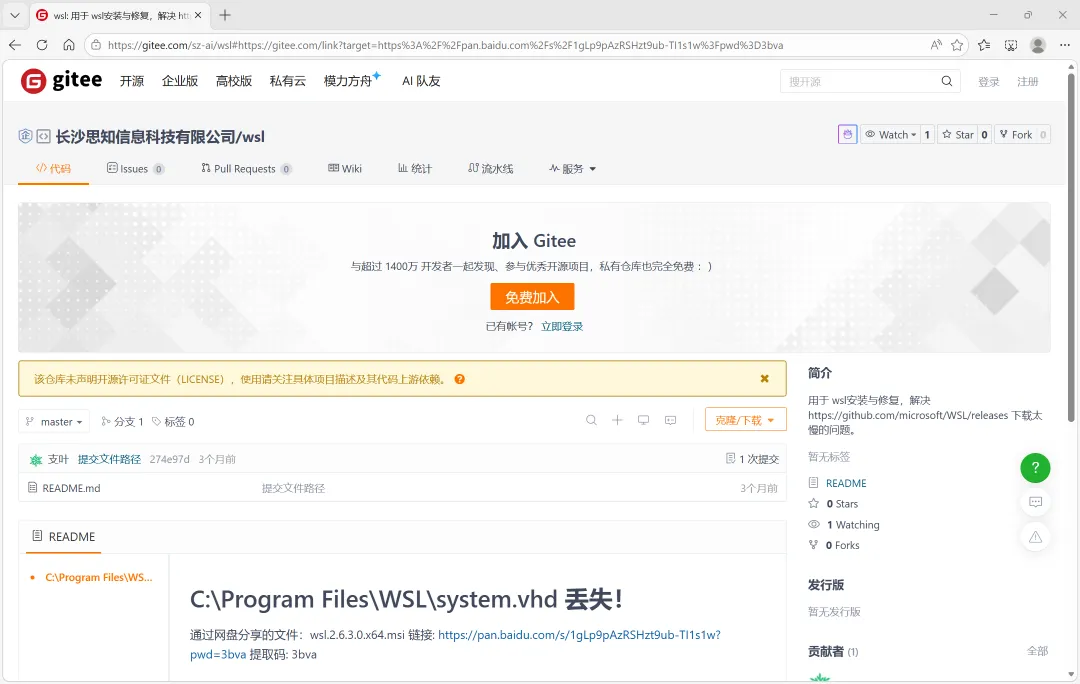

如何下载最新的wsl呢，可以在github上下载，但由于网络原因一直无法下载，通过寻找其他方式解决；

通过网盘分享的文件：wsl.2.6.3.0.x64.msi 链接: https://pan.baidu.com/s/1gLp9pAzRSHzt9ub-TI1s1w?pwd=3bva 提取码: 3bva

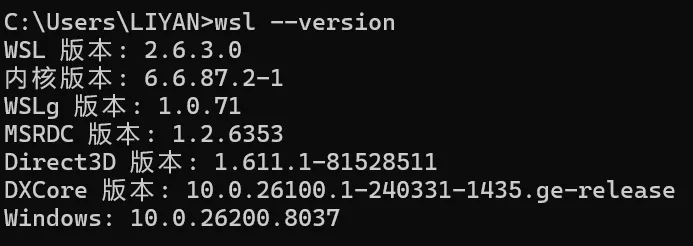

下载后是一个MSI程序，直接运行安装即可，然后CMD可以验证wsl版本

最终才正常↓

到这一步是不是觉得OK了，可以去下载docker镜像了？

NO！

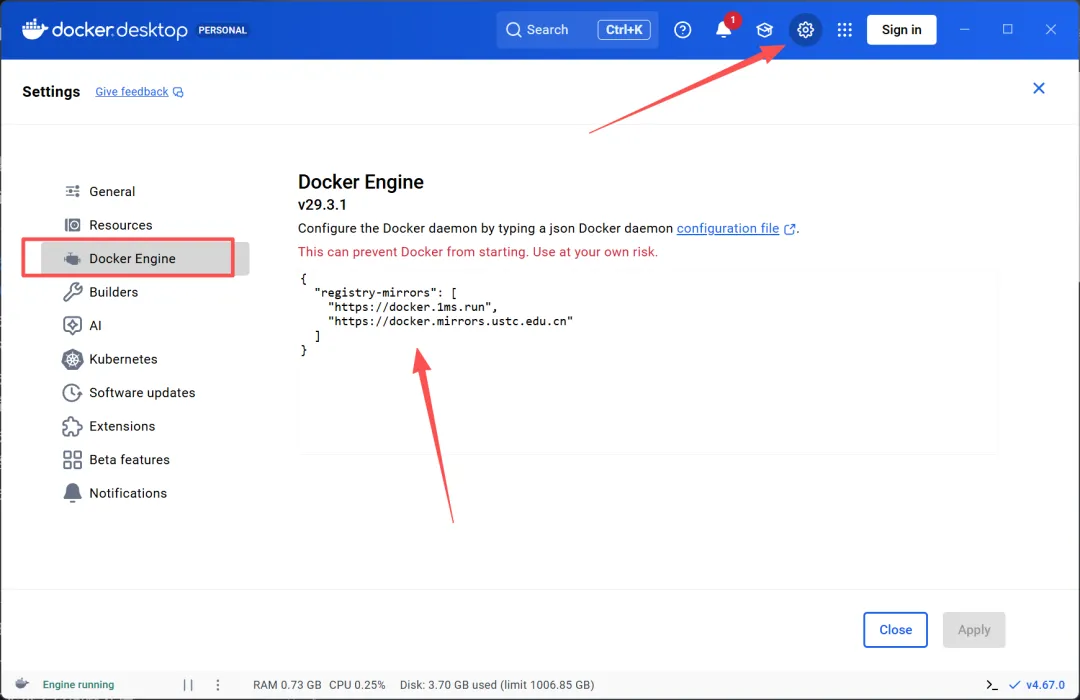

还需要修改Docker Engine里面的配置；

默认配置：

{  "builder": {    "gc": {      "defaultKeepStorage": "20GB",      "enabled": true    }  },  "experimental": false}

可用配置：

{  "registry-mirrors": [    "https://docker.1ms.run",    "https://docker.mirrors.ustc.edu.cn"  ]}

至此，电脑上安装docker desktop才完成！

第二步：在你电脑下载 3 个镜像（国内能下）

无需登录，即可通过命令下载对应的docker镜像

打开你电脑的 CMD（命令提示符），分别运行这 3 行：

docker pull postgres:14docker pull redis:7docker pull outlinewiki/outline:latest

这 3 个就是 Outline 必须的软件！

第三步：把镜像导出成文件（变成压缩包）

继续在电脑 CMD 里输入：

docker save -o postgres14.tar postgres:14docker save -o redis7.tar redis:7docker save -o outline.tar outlinewiki/outline:latest

第四步：把这 3 个文件传到阿里云服务器

你用任意传输工具都行：

Xshell
FinalShell
宝塔面板
scp 命令

传到服务器的这个目录：/outline/

第五步：安装docker镜像

然后依次导入 3 个文件：

docker load -i postgres14.tar docker load -i redis7.tar docker load -i outline.tar

第六步：直接启动 Outline！

docker-compose up -ddocker ps

✅ 恭喜！部署成功！

打开浏览器访问：

http://ip:3000

2.基本使用

首次登录时，会要求输入【工作区】【邮箱】【管理员名称】这三个信息，输入后即可进入管理界面

坑来了！如果你建立账户后，退出登录了，就再也登录不上了（显示登录到工作区，但是没有任何认证方式），在这种情况下，我至今没找到解决办法；

无法登录时显示，无任何认证方式

我是如何处理的呢？

我直接重新安装了一遍；重新建立工作区以及管理员账户，登入后，立马对接邮箱认证，这时候才会出现邮箱认证；用当前管理员账户，邀请另外一个账号，然后会发送邀请到邮箱，在邮箱里面验证后，即可用新账号登录

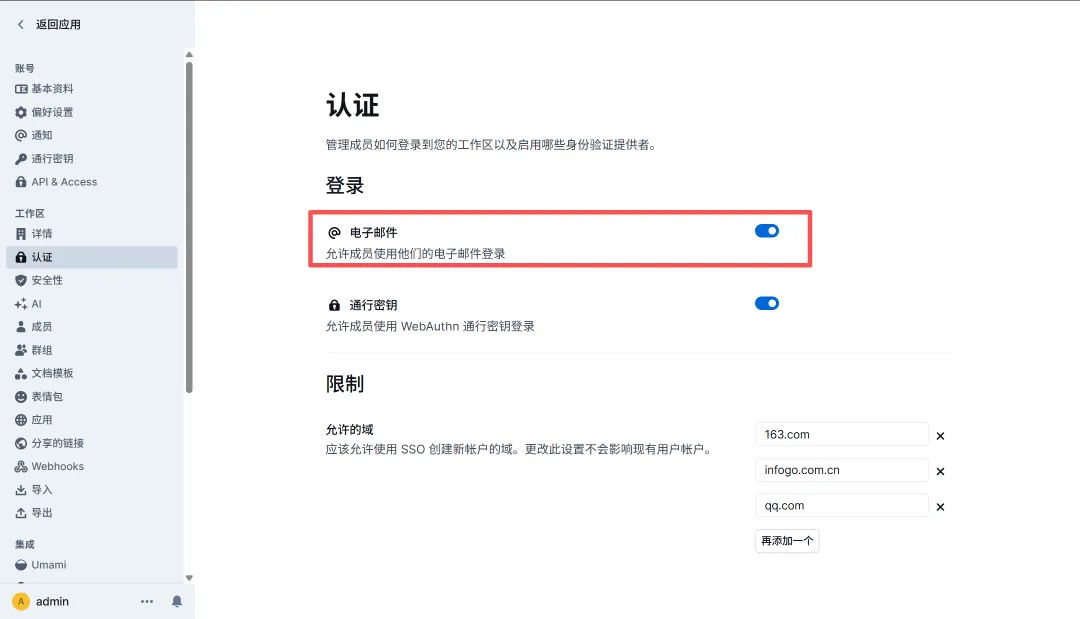

邮件认证对接成功后，显示有认证方式

所以，在初次私有化部署后，切记，一定要先对接认证方式，可以是邮箱、也可以是github等

2.1对接邮件认证

在“偏好设置中，找到工作区--认证”，打开电子邮件认证

这时候，会发现电子邮件认证的开关点不动！

需要进入后台修改.env的配置环境，我的修改主要在21-41

root@iZbp142fio164aasvak4qsZ:/outline# cat .env# 核心密钥（官方标准）SECRET_KEY=67613ae4c32e6a373ee982d06a0d95d2e5e4d5f02ca19fc7394cbb49e47e318aUTILS_SECRET=42d95d962f771f052fff96c4441cf9d4a18c51b6df3033fd9e1a55ec48a210be# 基础配置URL=http://47.98.235.112:3000PORT=3000DATABASE_URL=postgres://outline:outline123@postgres:5432/outlineREDIS_URL=redis://redis:6379NODE_ENV=productionALLOWED_DOMAINS=*FORCE_HTTPS=false# 修复数据库SSL问题PGSSLMODE=disable# 强制启用邮箱密码登录（解决登录页问题）ENABLE_EMAIL_PASSWORD_LOGIN=trueDOMAIN_ALLOW_LIST=*# ====================== SMTP 邮件服务配置（方案A核心）====================== SMTP # 服务器地址（QQ邮箱为 smtp.qq.com，企业邮为 smtp.exmail.qq.com）SMTP_HOST=smtp.qq.com# SMTP 端口（TLS用587，SSL用465，推荐587）SMTP_PORT=465# SMTP 用户名（你的邮箱地址）SMTP_USERNAME=49443030*@qq.com# SMTP 授权码（需要去邮箱设置里面生成，如果是163企业邮箱直接就是密码）SMTP_PASSWORD=jzvdozhxrjlzcage# 发件人邮箱（和用户名一致即可，或自定义 noreply@your-domain.com）SMTP_FROM=49443030*@qq.com# 回复邮箱（可自定义，基本保持一致即可）SMTP_REPLY_TO=49443030*@qq.com# 是否开启 TLS（必须开启，对应端口587）SMTP_TLS_ENABLED=false# 是否拒绝未认证的TLS（内网环境可设为false，公网建议true）SMTP_TLS_REJECT_UNAUTHORIZED=false# 强制开启邮箱登录（部分旧版本需手动开启，新版本默认true，建议加上）ENABLE_EMAIL_LOGIN=trueSMTP_FROM_EMAIL=49443030*@qq.comSMTP_SECURE=true# picture sizeFILE_STORAGE=localAWS_REGION=us-east-1AWS_S3_REGION=us-east-1MAX_UPLOAD_SIZE=20971520

如果是追加这些内容，可以使用以下命令：

nano .env

把光标移到文件最后一行，粘贴完整的 SMTP 配置块

按 Ctrl+O → 按回车确认保存 → 按 Ctrl+X 退出 nano

邮箱配置以及获取授权码：

QQ 邮箱：SMTP 服务器 smtp.qq.com，端口 587，授权码需在邮箱设置中开启。

3.问题处理

3.1邮箱认证按钮无法打开

因为后台.env里面没有邮箱的配置，因此无法打开

按照2.1完成邮箱配置后，即可以打开，并使用邮箱魔法验证

3.2图片无法上传问题处理

截图后想粘贴到文档中，发现报错了，无法上传，报错代码：error 500

寻找解决方案：

Outline 粘贴图片报 500 错误，核心多为存储权限、MinIO 配置、文件系统权限或服务异常，按以下步骤排查即可解决。

尝试修改添加图片大小配置，在.env配置文件中添加

MAX_UPLOAD_SIZE=10485760

先看真正的上传错误日志（必做）
执行这条命令，只看图片上传相关的错误： bash 运行

docker logs outline 2>&1 | grep -i "file|upload|500|s3|storage"

报错日志详细输出：

root@iZbp142fio164aasvak4qsZ:/outline# docker logs outline --tail 50Error response from daemon: No such container: outline#注意，这里容器的名称不是outline，而是outline-outline-1通过docker ps 查看容器名称：NAMESroot@iZbp142fio164aasvak4qsZ:/outline# docker psCONTAINER ID   IMAGE                        COMMAND                  CREATED             STATUS                       PORTS                                         NAMES3fdae8d34399   outlinewiki/outline:latest   "docker-entrypoint.s…"   About an hour ago   Up About an hour (healthy)   0.0.0.0:3000->3000/tcp, [::]:3000->3000/tcp   outline-outline-148e5ace50fc2   postgres:14                  "docker-entrypoint.s…"   About an hour ago   Up About an hour             5432/tcp                                      outline-postgres-1a736791fdc18   redis:7                      "docker-entrypoint.s…"   About an hour ago   Up About an hour             6379/tcproot@iZbp142fio164aasvak4qsZ:/outline# docker logs outline-outline-1 --tail 50{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"label":"lifecycle","level":"info","message":"\nIs your team enjoying Outline? Consider supporting future development by sponsoring the project:\n\nhttps://github.com/sponsors/outline\n"}{"label":"lifecycle","level":"info","message":"Note: Restricting process count to 1 due to use of collaborative service without REDIS_COLLABORATION_URL"}{"label":"lifecycle","level":"info","message":"Starting collaboration service"}{"label":"lifecycle","level":"info","message":"Starting websockets service"}{"label":"lifecycle","level":"info","message":"Starting worker service"}{"label":"lifecycle","level":"info","message":"Starting web service"}{"level":"warn","message":"Enforced https was disabled with FORCE_HTTPS env variable"}{"label":"lifecycle","level":"info","message":"Listening on http://localhost:3000 / http://47.98.235.112:3000"}{"label":"multiplayer","level":"info","message":"New connection to \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\""}{"label":"database","level":"info","message":"Document f547f888-84d5-43b0-ac79-8801e96d1edd is in database state"}{"label":"multiplayer","level":"info","message":"Loaded document \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\"","userId":"5cb10515-a2ed-442b-a295-a4d468a1499d"}{"label":"multiplayer","level":"info","message":"Authenticated connection to \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\""}{"label":"multiplayer","level":"info","message":"Closed connection to \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\"","userId":"5cb10515-a2ed-442b-a295-a4d468a1499d"}{"label":"multiplayer","level":"info","message":"New connection to \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\""}{"label":"database","level":"info","message":"Document f547f888-84d5-43b0-ac79-8801e96d1edd is in database state"}{"label":"multiplayer","level":"info","message":"Loaded document \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\"","userId":"5cb10515-a2ed-442b-a295-a4d468a1499d"}{"label":"multiplayer","level":"info","message":"Authenticated connection to \"document.f547f888-84d5-43b0-ac79-8801e96d1edd\""}{"attempt":0,"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","changes":null,"collectionId":null,"createdAt":"2026-03-31T16:00:58.717Z","data":null,"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"fa54c065-4d42-4a77-8437-06bb8d4b50fb","ip":"113.247.183.219","modelId":"c4854297-2808-4287-ad11-a0a6fe0ef368","name":"views.create","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8","userId":"5cb10515-a2ed-442b-a295-a4d468a1499d"},"label":"worker","level":"info","message":"Processing views.create"}{"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","changes":null,"collectionId":null,"createdAt":"2026-03-31T16:00:58.717Z","data":null,"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"fa54c065-4d42-4a77-8437-06bb8d4b50fb","ip":"113.247.183.219","modelId":"c4854297-2808-4287-ad11-a0a6fe0ef368","name":"views.create","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8","userId":"5cb10515-a2ed-442b-a295-a4d468a1499d"},"label":"worker","level":"info","message":"WebhookProcessor running views.create"}{"label":"multiplayer","level":"info","message":"Persisting f547f888-84d5-43b0-ac79-8801e96d1edd, attributed to 5cb10515-a2ed-442b-a295-a4d468a1499d"}{"attempt":0,"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","collectionId":"6721cb41-3819-45c3-bece-e65d2186dc54","createdAt":"2026-03-31T16:00:59.063Z","data":{"done":false,"multiplayer":true,"title":"outline-安装教程"},"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"39d68a08-2e47-440f-8847-437f00a199a1","name":"documents.update","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8"},"label":"worker","level":"info","message":"Processing documents.update"}{"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","collectionId":"6721cb41-3819-45c3-bece-e65d2186dc54","createdAt":"2026-03-31T16:00:59.063Z","data":{"done":false,"multiplayer":true,"title":"outline-安装教程"},"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"39d68a08-2e47-440f-8847-437f00a199a1","name":"documents.update","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8"},"label":"worker","level":"info","message":"BacklinksProcessor running documents.update"}{"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","collectionId":"6721cb41-3819-45c3-bece-e65d2186dc54","createdAt":"2026-03-31T16:00:59.063Z","data":{"done":false,"multiplayer":true,"title":"outline-安装教程"},"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"39d68a08-2e47-440f-8847-437f00a199a1","name":"documents.update","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8"},"label":"worker","level":"info","message":"DebounceProcessor running documents.update"}{"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","collectionId":"6721cb41-3819-45c3-bece-e65d2186dc54","createdAt":"2026-03-31T16:00:59.063Z","data":{"done":false,"multiplayer":true,"title":"outline-安装教程"},"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"39d68a08-2e47-440f-8847-437f00a199a1","name":"documents.update","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8"},"label":"worker","level":"info","message":"RevisionsProcessor running documents.update"}{"event":{"actorId":"5cb10515-a2ed-442b-a295-a4d468a1499d","authType":"app","collectionId":"6721cb41-3819-45c3-bece-e65d2186dc54","createdAt":"2026-03-31T16:00:59.063Z","data":{"done":false,"multiplayer":true,"title":"outline-安装教程"},"documentId":"f547f888-84d5-43b0-ac79-8801e96d1edd","id":"39d68a08-2e47-440f-8847-437f00a199a1","name":"documents.update","teamId":"4acd7452-6049-4185-b42d-09b1f3339fb8"},"label":"worker","level":"info","message":"WebhookProcessor running documents.update"}Error: Region is missing    at default (/opt/outline/node_modules/@smithy/config-resolver/dist-cjs/index.js:70:15)    at /opt/outline/node_modules/@smithy/node-config-provider/dist-cjs/index.js:54:83    at /opt/outline/node_modules/@smithy/property-provider/dist-cjs/index.js:50:39    at process.processTicksAndRejections (node:internal/process/task_queues:105:5)    at async coalesceProvider (/opt/outline/node_modules/@smithy/property-provider/dist-cjs/index.js:76:24)    at async /opt/outline/node_modules/@smithy/property-provider/dist-cjs/index.js:88:28    at async Object.region (/opt/outline/node_modules/@smithy/config-resolver/dist-cjs/index.js:107:67)    at async createPresignedPost (/opt/outline/node_modules/@aws-sdk/s3-presigned-post/dist-cjs/index.js:22:26)    at async /opt/outline/build/server/routes/api/attachments/attachments.js:132:25    at async /opt/outline/node_modules/sequelize/lib/sequelize.js:507:18    at async transactionMiddleware (/opt/outline/build/server/middlewares/transaction.js:17:5)    at async verifyCSRFTokenMiddleware (/opt/outline/build/server/middlewares/csrf.js:106:5)    at async apiErrorHandlerMiddleware (/opt/outline/build/server/routes/api/middlewares/apiErrorHandler.js:12:7)    at async apiResponseMiddleware (/opt/outline/build/server/routes/api/middlewares/apiResponse.js:12:5)    at async requestTracerMiddleware (/opt/outline/build/server/middlewares/requestTracer.js:21:5)    at async userAgent (/opt/outline/node_modules/koa-useragent/dist/index.js:12:5)    at async /opt/outline/node_modules/koa-mount/index.js:62:7    at async compressMiddleware (/opt/outline/node_modules/koa-compress/lib/index.js:56:5)    at async userAgent (/opt/outline/node_modules/koa-useragent/dist/index.js:12:5)root@iZbp142fio164aasvak4qsZ:/outlin

终于找到报错根源了！

日志里明确写着：

🟥 Error: Region is missing（缺少区域配置）

这就是导致图片上传 500 错误的直接原因！

10 秒修复方法（复制粘贴即可）

第一步：编辑 .env 配置文件

bash

运行

cd/outlinevi.env

第二步：添加 / 修改这 3 行配置（必须加）

找到文件里的存储配置，确保有这 3 行：

ini

FILE_STORAGE=local

AWS_REGION=us-east-1

AWS_S3_REGION=us-east-1

第三步：重启服务生效

bash

运行

dockercomposedown&&dockercomposeup-d

第四步：刷新网页

现在去粘贴图片 → 立刻正常！

为什么会报错？

你用的是 本地文件存储，但 Outline 1.6.1 有个小强制要求：

就算不用 S3/MinIO，也必须填写一个默认的 Region 区域配置，否则就会报 Regionismissing → 500 错误。

加 us-east-1 只是填一个默认值，不会影响你的本地存储。

总结

报错根因：缺少 Region 配置项
修复方法：.env 加 AWS_REGION=us-east-1
重启服务 → 图片上传恢复正常
