夜雨聆风源码加更02_FB_MqttBroker 顶层调度、连接池和权限边界
这一组源码加更只有一个目标：把 MqttBroker 的真实 ST 源码按工程阅读顺序讲完整。不是再补几段“看起来像源码”的片段，而是让读者能沿着源码对象理解这个 Broker 怎么组织、怎么运行、怎么排障。
适合谁收藏
已经读过 MqttBroker 主线教程，想继续看真实源码实现的工程师。 想学习 CodeSys ST 工程如何拆分 Broker、连接池、编解码、路由和 QoS 调度的人。 想把 MQTT Broker 移植到 PLC、边缘控制器或教学工程里的开发者。
先给结论

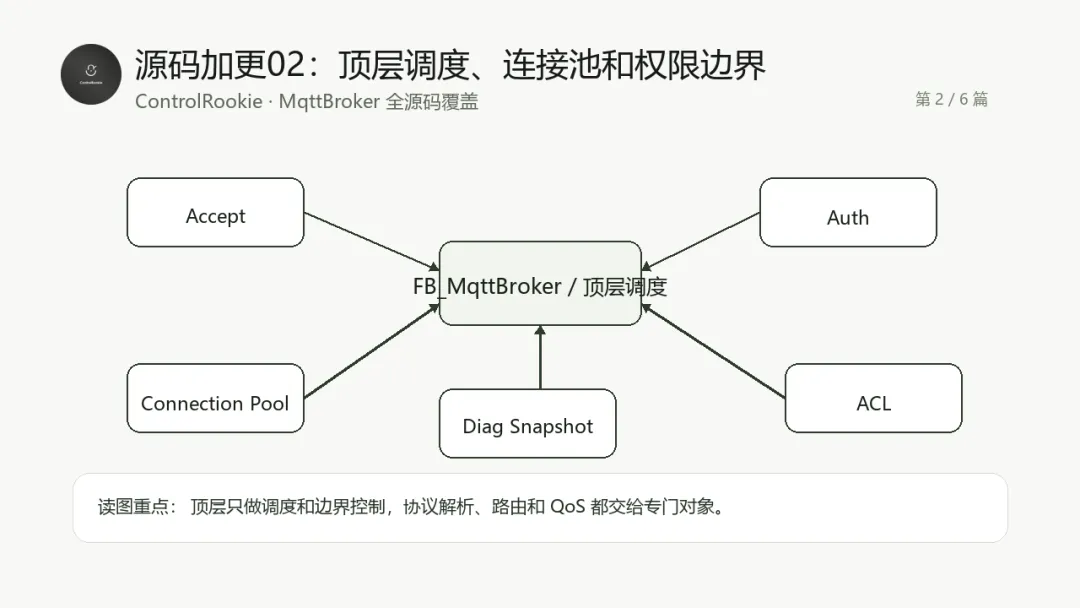

这一篇看 FB_MqttBroker 顶层如何只做调度：接收新连接、驱动连接槽位、处理业务事件、检查权限、更新诊断和快照。真正的协议解析和路由不应该堆在顶层。
Broker 顶层最容易写成一个巨大的 CASE，然后监听、连接、认证、ACL、路由、诊断全部塞在一起。这样能跑，但很难稳定维护。
这篇覆盖 12 个源码文件，合计约 906 行 ST 代码。为了保持公开教程可读性，正文先讲源码阅读路径，再给完整源码。读代码时建议不要从第一个代码块一路机械读到底，而是按本篇的“读代码顺序”来抓主线。
从工程问题到代码职责
本篇源码覆盖表
FB_MqttBroker.M_AcceptNewConnection.st | ||
FB_MqttBroker.M_CheckAuth.st | ||
FB_MqttBroker.M_CheckPublishAcl.st | ||
FB_MqttBroker.M_CheckSubscribeAcl.st | ||
FB_MqttBroker.M_ClearDiag.st | ||
FB_MqttBroker.M_ClearMetrics.st | ||
FB_MqttBroker.M_HandleDuplicateClientId.st | ||
FB_MqttBroker.M_KickClient.st | ||
FB_MqttBroker.M_LogDiag.st | ||
FB_MqttBroker.M_ServiceConnections.st | ||
FB_MqttBroker.M_UpdateSnapshots.st | ||
FB_MqttBroker.st |
推荐阅读顺序
先看 FB_MqttBroker.st的输入输出和主调度。再看连接接入、重复 ClientId、KickClient。 最后看认证、ACL、诊断和快照方法如何服务现场运维。
验证和排障边界
多个客户端同时连接时，观察连接池是否稳定复用槽位。 用户名、密码或 ACL 异常时，确认错误停在权限边界，而不是污染路由和编解码逻辑。
本篇完整开源代码
下面代码来自对应 .st 源文件的连续完整内容。为方便公开阅读，只保留源码对象名，不放本机工程路径。
完整代码 01: FB_MqttBroker.M_AcceptNewConnection.st
/// =======================================================================/// 名称 : M_AcceptNewConnection/// 功能 : 接受一个新的 TCP 客户端连接/// 说明 : 每扫描周期最多分配一个新连接，避免大量接入瞬间拖长 PLC 扫描周期。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_AcceptNewConnection : BOOLVARuiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]END_VAR// === IMPLEMENTATION ===uiFreeSlot := 0;uiUsedSlotCount := 0;xTcpAcceptActive := FALSE;xTcpAcceptError := FALSE;// 每个客户端槽位必须独立调用自己的 NBS.TCP_Connection。// 之前如果多个槽位复用一个 TCP_Connection 实例，hConnection 会被后续接入覆盖，// 连接槽位中的 TCP_Read 就可能读到已经失效或不属于自己的句柄，现场表现为客户端连接瞬间掉线。FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOIF aConnections[uiIndex].xActive THEN// 已占用槽位继续保持对应 TCP_Connection 运行，用它的 xActive 作为该槽位连接是否仍有效的唯一依据。uiUsedSlotCount := uiUsedSlotCount + 1;aTcpAccept[uiIndex](xEnable := TRUE, hServer := hServer);ELSEIF uiFreeSlot = 0 THEN// 本周期只开放第一个空闲槽位接收新连接，控制 PLC 单周期接入工作量。uiFreeSlot := uiIndex;aTcpAccept[uiIndex](xEnable := TRUE, hServer := hServer);ELSE// 其他空闲槽位禁用，避免同一扫描周期多个空槽同时竞争同一个新连接。aTcpAccept[uiIndex](xEnable := FALSE, hServer := hServer);END_IFEND_IFIF aTcpAccept[uiIndex].xActive THENxTcpAcceptActive := TRUE;END_IFIF aTcpAccept[uiIndex].xError THENxTcpAcceptError := TRUE;eTcpAcceptErrorID := aTcpAccept[uiIndex].eError;END_IFEND_FORuiAcceptFreeSlot := uiFreeSlot;uiActiveSlotCount := uiUsedSlotCount;IF xTcpAcceptError THENeLastError := E_MqttBrokerError.uiTcpAcceptFailed;xError := TRUE;stMetrics.udiRejectedConnections := stMetrics.udiRejectedConnections + 1;M_AcceptNewConnection := FALSE;RETURN;END_IFIF uiFreeSlot <> 0 THENhNewConnection := aTcpAccept[uiFreeSlot].hConnection;IF (hNewConnection <> 0)AND aTcpAccept[uiFreeSlot].xActiveAND (hNewConnection <> hLastDispatchedConnection) THENhLastAcceptHandle := hNewConnection;// 新连接只交给 uiFreeSlot 对应的连接 FB。// xConnectionActiveIn 必须来自同一个槽位的 aTcpAccept[uiFreeSlot].xActive，// 不能用全局 xTcpAcceptActive，否则会让某个槽位误读其他槽位的 TCP 状态。// NBS.TCP_Connection 的 hConnection 在部分运行时会短暂保留上一拍句柄。// 如果不排除 hLastDispatchedConnection，空闲槽位可能反复接收同一个旧句柄，// 在线表现就是 xTcpAcceptActive、uiAcceptFreeSlot、uiActiveSlotCount 不断闪烁，// 而连接槽位始终读不到 CONNECT 首包。aConnections[uiFreeSlot](bEnable := TRUE,uiSlot := uiFreeSlot,hConnectionIn := hNewConnection,xConnectionActiveIn := aTcpAccept[uiFreeSlot].xActive,udiNowMs := udiNowMs,stConnection => aConnectionStates[uiFreeSlot]);hLastDispatchedConnection := hNewConnection;uiActiveSlotCount := uiUsedSlotCount + 1;stMetrics.udiAcceptedConnections := stMetrics.udiAcceptedConnections + 1;M_LogDiag(uiSlot := uiFreeSlot, eError := E_MqttBrokerError.uiNoError, sMessage := 'TCP client accepted');END_IFELSEhNewConnection := 0;END_IFM_AcceptNewConnection := TRUE;
完整代码 02: FB_MqttBroker.M_CheckAuth.st
/// =======================================================================/// 名称 : M_CheckAuth/// 功能 : 校验 MQTT CONNECT 用户名和密码/// 说明 : 未启用认证时直接放行；启用后使用固定小表匹配，适合工业内网轻量部署。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_CheckAuth : BOOLVAR_INPUTsUsername : STRING; // CONNECT 中解析出的用户名sPassword : STRING; // CONNECT 中解析出的密码END_VARVARuiIndex : UINT; // 固定用户表扫描索引[1..cnMaxAuthUsers]END_VAR// === IMPLEMENTATION ===IF NOT xAuthEnable THENM_CheckAuth := TRUE;RETURN;END_IFFOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAuthUsers DOIF aAuthUsers[uiIndex].xUsedAND (aAuthUsers[uiIndex].sUsername = sUsername)AND (aAuthUsers[uiIndex].sPassword = sPassword) THENM_CheckAuth := TRUE;RETURN;END_IFEND_FORM_CheckAuth := FALSE;
完整代码 03: FB_MqttBroker.M_CheckPublishAcl.st
/// =======================================================================/// 名称 : M_CheckPublishAcl/// 功能 : 校验客户端是否允许发布指定 Topic/// 说明 : ACL 未启用时直接放行；启用后按 ClientID / 用户名 / Topic 前缀固定表匹配。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_CheckPublishAcl : BOOLVAR_INPUTuiSlot : UINT; // 发布来源客户端槽位编号[1..cnMaxClientSlots]sTopic : STRING; // 发布 Topic NameEND_VARVARuiIndex : UINT; // ACL 固定规则表扫描索引[1..cnMaxAclRules]END_VAR// === IMPLEMENTATION ===IF NOT xAclEnable THENM_CheckPublishAcl := TRUE;RETURN;END_IFIF (uiSlot < 1) OR (uiSlot > GVL_MqttBroker.cnMaxClientSlots) THENM_CheckPublishAcl := FALSE;RETURN;END_IFFOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAclRules DOIF aAclRules[uiIndex].xUsedAND aAclRules[uiIndex].xAllowPublishAND ((aAclRules[uiIndex].sClientId = '') OR (aAclRules[uiIndex].sClientId = aConnectionStates[uiSlot].sClientId))AND ((aAclRules[uiIndex].sUsername = '') OR (aAclRules[uiIndex].sUsername = aConnectionStates[uiSlot].sUsername))AND F_MqttStartsWith(sValue := sTopic, sPrefix := aAclRules[uiIndex].sTopicPrefix) THENM_CheckPublishAcl := TRUE;RETURN;END_IFEND_FORM_CheckPublishAcl := FALSE;
完整代码 04: FB_MqttBroker.M_CheckSubscribeAcl.st
/// =======================================================================/// 名称 : M_CheckSubscribeAcl/// 功能 : 校验客户端是否允许订阅指定 Topic Filter/// 说明 : ACL 未启用时直接放行；启用后按固定 Topic 前缀和通配符许可校验。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_CheckSubscribeAcl : BOOLVAR_INPUTuiSlot : UINT; // 订阅来源客户端槽位编号[1..cnMaxClientSlots]sTopicFilter : STRING; // 客户端请求的 Topic FilterEND_VARVARuiIndex : UINT; // ACL 固定规则表扫描索引[1..cnMaxAclRules]xHasWildcard : BOOL; // 当前 Topic Filter 是否包含 + 或 # 通配符END_VAR// === IMPLEMENTATION ===IF NOT xAclEnable THENM_CheckSubscribeAcl := TRUE;RETURN;END_IFIF (uiSlot < 1) OR (uiSlot > GVL_MqttBroker.cnMaxClientSlots) THENM_CheckSubscribeAcl := FALSE;RETURN;END_IFxHasWildcard := F_MqttContainsWildcard(sTopicFilter := sTopicFilter);FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxAclRules DOIF aAclRules[uiIndex].xUsedAND aAclRules[uiIndex].xAllowSubscribeAND ((aAclRules[uiIndex].sClientId = '') OR (aAclRules[uiIndex].sClientId = aConnectionStates[uiSlot].sClientId))AND ((aAclRules[uiIndex].sUsername = '') OR (aAclRules[uiIndex].sUsername = aConnectionStates[uiSlot].sUsername))AND ((NOT xHasWildcard) OR aAclRules[uiIndex].xAllowWildcard)AND F_MqttStartsWith(sValue := sTopicFilter, sPrefix := aAclRules[uiIndex].sTopicPrefix) THENM_CheckSubscribeAcl := TRUE;RETURN;END_IFEND_FORM_CheckSubscribeAcl := FALSE;
完整代码 05: FB_MqttBroker.M_ClearDiag.st
/// =======================================================================/// 名称 : M_ClearDiag/// 功能 : 清除 Broker 诊断环形历史/// 说明 : 维护动作必须显式触发，清除后写入一条新的维护记录。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_ClearDiag : BOOLVARuiIndex : UINT; // 诊断历史清理索引[1..cnDiagHistorySize]END_VAR// === IMPLEMENTATION ===FOR uiIndex := 1 TO GVL_MqttBroker.cnDiagHistorySize DOaDiagHistory[uiIndex].xUsed := FALSE;aDiagHistory[uiIndex].uiSlot := 0;aDiagHistory[uiIndex].eError := E_MqttBrokerError.uiNoError;aDiagHistory[uiIndex].udiTimeMs := 0;aDiagHistory[uiIndex].sMessage := '';END_FORuiDiagWriteIndex := 1;uiDiagHistoryCount := 0;M_LogDiag(uiSlot := 0, eError := E_MqttBrokerError.uiNoError, sMessage := 'Diagnostic history cleared');M_ClearDiag := TRUE;
完整代码 06: FB_MqttBroker.M_ClearMetrics.st
/// =======================================================================/// 名称 : M_ClearMetrics/// 功能 : 清除 Broker 运行统计计数/// 说明 : 仅清零统计，不释放连接和业务表，适合现场重新开始观察计数。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_ClearMetrics : BOOL// === IMPLEMENTATION ===stMetrics.udiAcceptedConnections := 0;stMetrics.udiRejectedConnections := 0;stMetrics.udiCurrentConnections := 0;stMetrics.udiMqttSessions := 0;stMetrics.udiPublishReceived := 0;stMetrics.udiPublishDelivered := 0;stMetrics.udiPublishDropped := 0;stMetrics.udiSubscribeReceived := 0;stMetrics.udiUnsubscribeReceived := 0;stMetrics.udiPubAckSent := 0;stMetrics.udiPubAckReceived := 0;stMetrics.udiPubRecSent := 0;stMetrics.udiPubRecReceived := 0;stMetrics.udiPubRelSent := 0;stMetrics.udiPubRelReceived := 0;stMetrics.udiPubCompSent := 0;stMetrics.udiPubCompReceived := 0;stMetrics.udiRetainUpdated := 0;stMetrics.udiRetainCleared := 0;stMetrics.udiWillPublished := 0;stMetrics.udiQoS1Retries := 0;stMetrics.udiQoS2Retries := 0;stMetrics.udiKeepAliveTimeouts := 0;stMetrics.udiProtocolErrors := 0;stMetrics.udiAuthRejected := 0;stMetrics.udiAclRejected := 0;M_LogDiag(uiSlot := 0, eError := E_MqttBrokerError.uiNoError, sMessage := 'Runtime metrics cleared');M_ClearMetrics := TRUE;
完整代码 07: FB_MqttBroker.M_HandleDuplicateClientId.st
/// =======================================================================/// 名称 : M_HandleDuplicateClientId/// 功能 : 处理重复 ClientID/// 说明 : 新会话建立后，如果发现旧槽位使用相同 ClientID，则断开旧槽位，保留新槽位。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_HandleDuplicateClientId : BOOLVAR_INPUTuiNewSlot : UINT; // 新建立 MQTT 会话的槽位编号[1..cnMaxClientSlots]END_VARVARuiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]sClientId : STRING(GVL_MqttBroker.cnMaxClientIdLen); // 新连接 ClientID 快照END_VAR// === IMPLEMENTATION ===IF (uiNewSlot < 1) OR (uiNewSlot > GVL_MqttBroker.cnMaxClientSlots) THENM_HandleDuplicateClientId := FALSE;RETURN;END_IFsClientId := aConnectionStates[uiNewSlot].sClientId;IF sClientId = '' THENM_HandleDuplicateClientId := FALSE;RETURN;END_IFFOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOIF (uiIndex <> uiNewSlot)AND aConnections[uiIndex].xActiveAND aConnections[uiIndex].xMqttConnectedAND (aConnectionStates[uiIndex].sClientId = sClientId) THEN// MQTT 3.1.1 规定同一个 ClientID 同时只能有一个在线会话。// 两个客户端如果配置了相同 ClientID，新连接会替换旧连接；这不是端口容量不足，而是协议规则。aConnections[uiIndex].M_RequestDisconnect();M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiDuplicateClientId, sMessage := 'Duplicate ClientID old connection disconnected');END_IFEND_FORM_HandleDuplicateClientId := TRUE;
完整代码 08: FB_MqttBroker.M_KickClient.st
/// =======================================================================/// 名称 : M_KickClient/// 功能 : 踢掉指定 ClientID 的在线连接/// 说明 : 用于维护操作和重复 ClientID 冲突处理，释放动作由连接清理流程统一完成。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_KickClient : BOOLVAR_INPUTsClientId : STRING; // 需要断开的 MQTT ClientIDEND_VARVARuiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]END_VAR// === IMPLEMENTATION ===IF sClientId = '' THENM_KickClient := FALSE;RETURN;END_IFFOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOIF aConnections[uiIndex].xActiveAND (aConnectionStates[uiIndex].sClientId = sClientId) THENaConnections[uiIndex].M_RequestDisconnect();M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiNoError, sMessage := 'Client kicked by maintenance command');M_KickClient := TRUE;RETURN;END_IFEND_FORM_KickClient := FALSE;
完整代码 09: FB_MqttBroker.M_LogDiag.st
/// =======================================================================/// 名称 : M_LogDiag/// 功能 : 写入 Broker 诊断环形历史/// 说明 : 所有关键异常和维护动作写入固定 ring buffer，避免动态内存和日志文件依赖。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_LogDiag : BOOLVAR_INPUTuiSlot : UINT; // 事件关联客户端槽位，0 表示 Broker 顶层事件[1..cnMaxClientSlots]eError : E_MqttBrokerError; // 事件关联错误码或状态码sMessage : STRING; // 面向现场工程师的简短中文诊断文本END_VAR// === IMPLEMENTATION ===IF (uiDiagWriteIndex < 1) OR (uiDiagWriteIndex > GVL_MqttBroker.cnDiagHistorySize) THENuiDiagWriteIndex := 1;END_IFaDiagHistory[uiDiagWriteIndex].xUsed := TRUE;aDiagHistory[uiDiagWriteIndex].uiSlot := uiSlot;aDiagHistory[uiDiagWriteIndex].eError := eError;aDiagHistory[uiDiagWriteIndex].udiTimeMs := udiNowMs;aDiagHistory[uiDiagWriteIndex].sMessage := sMessage;IF uiDiagHistoryCount < GVL_MqttBroker.cnDiagHistorySize THENuiDiagHistoryCount := uiDiagHistoryCount + 1;END_IFuiDiagWriteIndex := uiDiagWriteIndex + 1;IF uiDiagWriteIndex > GVL_MqttBroker.cnDiagHistorySize THENuiDiagWriteIndex := 1;END_IFM_LogDiag := TRUE;
完整代码 10: FB_MqttBroker.M_ServiceConnections.st
/// =======================================================================/// 名称 : M_ServiceConnections/// 功能 : 调度所有连接槽位/// 说明 : 逐槽位处理入站事件、订阅路由、Retain 补发、Will 和资源清理。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_ServiceConnections : BOOLVARuiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]uiRouteCount : UINT; // 本扫描周期已生成的路由投递数量stWill : ST_MqttBrokerPublishFrame; // 异常断线时生成的 Will 发布帧END_VAR// === IMPLEMENTATION ===stMetrics.udiCurrentConnections := 0;stMetrics.udiMqttSessions := 0;uiRouteCount := 0;FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOaConnections[uiIndex](bEnable := TRUE,uiSlot := uiIndex,hConnectionIn := 0,xConnectionActiveIn := aTcpAccept[uiIndex].xActive,udiNowMs := udiNowMs,stConnection => aConnectionStates[uiIndex]);IF aConnections[uiIndex].xActive THENstMetrics.udiCurrentConnections := stMetrics.udiCurrentConnections + 1;END_IFIF aConnections[uiIndex].xMqttConnected THENstMetrics.udiMqttSessions := stMetrics.udiMqttSessions + 1;IF NOT aConnectionStates[uiIndex].xAuthenticated THENIF M_CheckAuth(sUsername := aConnectionStates[uiIndex].sUsername,sPassword := aConnectionStates[uiIndex].sPassword) THENaConnections[uiIndex].M_SetAuthenticated();M_HandleDuplicateClientId(uiNewSlot := uiIndex);M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiNoError, sMessage := 'MQTT session authenticated');ELSEstMetrics.udiAuthRejected := stMetrics.udiAuthRejected + 1;aConnections[uiIndex].M_RequestDisconnect();M_LogDiag(uiSlot := uiIndex, eError := E_MqttBrokerError.uiUnsupportedProtocol, sMessage := 'MQTT session authentication failed');END_IFEND_IFEND_IFIF aConnections[uiIndex].xSubscribeReady THENstMetrics.udiSubscribeReceived := stMetrics.udiSubscribeReceived + 1;M_HandleSubscribe(uiSlot := uiIndex);END_IFIF aConnections[uiIndex].xUnsubReady THENstMetrics.udiUnsubscribeReceived := stMetrics.udiUnsubscribeReceived + 1;M_HandleUnsubscribe(uiSlot := uiIndex);END_IFIF aConnections[uiIndex].xPubAckReady THENIF fbTxScheduler.M_AckPublish(uiSlot := uiIndex,uiPacketId := aConnections[uiIndex].uiPubAckPacketId) THENstMetrics.udiPubAckReceived := stMetrics.udiPubAckReceived + 1;END_IFEND_IFIF aConnections[uiIndex].xPubRecReady THENIF fbTxScheduler.M_ReceivePubRec(uiSlot := uiIndex,uiPacketId := aConnections[uiIndex].uiPubRecPacketId,udiNowMs := udiNowMs,xNeedPubRel => xNeedPubRel) THENstMetrics.udiPubRecReceived := stMetrics.udiPubRecReceived + 1;IF xNeedPubRel THENaConnections[uiIndex].M_EnqueueProtocolAck(ePacketType := E_MqttPacketType.byPubRel,uiPacketId := aConnections[uiIndex].uiPubRecPacketId,byReturnCode := 0);stMetrics.udiPubRelSent := stMetrics.udiPubRelSent + 1;END_IFEND_IFEND_IFIF aConnections[uiIndex].xPubRelReady THENIF fbRxScheduler.M_TakePublishForPubRel(stPublish := stQoS2Route,uiSlot := uiIndex,uiPacketId := aConnections[uiIndex].uiPubRelPacketId,udiNowMs := udiNowMs,xNeedRoute => xNeedRoute) THENstMetrics.udiPubRelReceived := stMetrics.udiPubRelReceived + 1;IF xNeedRoute THEN// QoS2 的 Retain 写入和订阅路由必须在 PUBREL 阶段执行。// 收到 PUBLISH 时只回 PUBREC，不允许提前路由；否则 exactly once 语义会被破坏。// 之前这里未实际进入 M_RoutePublishNow，会导致 QoS2+Retain 消息不会保存到 Retain 表。M_RoutePublishNow(stPublish := stQoS2Route);END_IFaConnections[uiIndex].M_EnqueueProtocolAck(ePacketType := E_MqttPacketType.byPubComp,uiPacketId := aConnections[uiIndex].uiPubRelPacketId,byReturnCode := 0);fbRxScheduler.M_CompletePublish(uiSlot := uiIndex, uiPacketId := aConnections[uiIndex].uiPubRelPacketId);stMetrics.udiPubCompSent := stMetrics.udiPubCompSent + 1;END_IFEND_IFIF aConnections[uiIndex].xPubCompReady THENIF fbTxScheduler.M_ReceivePubComp(uiSlot := uiIndex,uiPacketId := aConnections[uiIndex].uiPubCompPacketId) THENstMetrics.udiPubCompReceived := stMetrics.udiPubCompReceived + 1;END_IFEND_IFIF aConnections[uiIndex].xPublishReady THENM_HandlePublish(uiSourceSlot := uiIndex, stPublish := aConnections[uiIndex].stPublishOut);END_IFIF aConnections[uiIndex].xNeedCleanup THENxLastCleanupValid := TRUE;uiLastCleanupSlot := uiIndex;udiLastCleanupMs := udiNowMs;stLastCleanupSnapshot.xUsed := aConnections[uiIndex].xActive;stLastCleanupSnapshot.xMqttConnected := aConnections[uiIndex].xMqttConnected;stLastCleanupSnapshot.xDisconnectRequested := aConnectionStates[uiIndex].xDisconnectRequested;stLastCleanupSnapshot.xTcpReadError := aConnections[uiIndex].xTcpReadError;stLastCleanupSnapshot.xTcpWriteError := aConnections[uiIndex].xTcpWriteError;stLastCleanupSnapshot.xWriteBusy := aConnections[uiIndex].xWriteBusy;stLastCleanupSnapshot.xWriteExecute := aConnections[uiIndex].xWriteExecute;stLastCleanupSnapshot.xConnectionActive := aConnections[uiIndex].xConnectionActive;stLastCleanupSnapshot.xLastTcpReadError := aConnections[uiIndex].xLastTcpReadError;stLastCleanupSnapshot.uiSlot := uiIndex;stLastCleanupSnapshot.uiTcpReadErrorCount := aConnections[uiIndex].uiTcpReadErrorCountOut;stLastCleanupSnapshot.byProtocolLevel := aConnectionStates[uiIndex].byProtocolLevel;stLastCleanupSnapshot.uiKeepAlive := aConnectionStates[uiIndex].uiKeepAlive;stLastCleanupSnapshot.udiLastActivityMs := aConnectionStates[uiIndex].udiLastActivityMs;stLastCleanupSnapshot.udiLastTcpActiveMs := aConnectionStates[uiIndex].udiLastTcpActiveMs;stLastCleanupSnapshot.udiLastBytesRead := aConnections[uiIndex].udiLastBytesRead;stLastCleanupSnapshot.udiLastNonZeroBytesRead := aConnections[uiIndex].udiLastNonZeroBytesRead;stLastCleanupSnapshot.hConnection := aConnectionStates[uiIndex].hConnection;stLastCleanupSnapshot.uiRxLength := aConnectionStates[uiIndex].uiRxLength;stLastCleanupSnapshot.uiTxLength := aConnectionStates[uiIndex].uiTxLength;stLastCleanupSnapshot.uiLastFrameLen := aConnections[uiIndex].uiLastFrameLen;stLastCleanupSnapshot.byLastPacketType := aConnections[uiIndex].byLastPacketType;stLastCleanupSnapshot.byLastConnectLevel := aConnections[uiIndex].byLastConnectLevel;stLastCleanupSnapshot.xLastConnectParsed := aConnections[uiIndex].xLastConnectParsed;stLastCleanupSnapshot.uiProtocolQueueCount := aConnectionStates[uiIndex].uiProtocolQueueCount;stLastCleanupSnapshot.uiDeliveryQueueCount := aConnectionStates[uiIndex].uiDeliveryQueueCount;stLastCleanupSnapshot.uiRxInflightCount := fbRxScheduler.M_CountSlot(uiSlot := uiIndex);stLastCleanupSnapshot.uiTxInflightCount := fbTxScheduler.M_CountSlot(uiSlot := uiIndex);stLastCleanupSnapshot.eState := aConnectionStates[uiIndex].eState;stLastCleanupSnapshot.eLastError := aConnections[uiIndex].eLastError;stLastCleanupSnapshot.eLastParseError := aConnections[uiIndex].eLastParseError;stLastCleanupSnapshot.eTcpReadErrorID := aConnections[uiIndex].eTcpReadErrorID;stLastCleanupSnapshot.eLastTcpReadErrorID := aConnections[uiIndex].eLastTcpReadErrorID;stLastCleanupSnapshot.eTcpWriteErrorID := aConnections[uiIndex].eTcpWriteErrorID;stLastCleanupSnapshot.sClientId := aConnectionStates[uiIndex].sClientId;stLastCleanupSnapshot.sUsername := aConnectionStates[uiIndex].sUsername;IF aConnectionStates[uiIndex].hConnection = hLastDispatchedConnection THENhLastDispatchedConnection := 0;END_IFaTcpAccept[uiIndex](xEnable := FALSE, hServer := hServer);IF aConnectionStates[uiIndex].xWillFlag AND NOT aConnectionStates[uiIndex].xGracefulDisconnect THENstWill.xValid := TRUE;stWill.uiSourceSlot := uiIndex;stWill.uiTargetSlot := 0;stWill.uiPacketId := 0;stWill.eQoS := aConnectionStates[uiIndex].eWillQoS;stWill.xDup := FALSE;stWill.xRetain := aConnectionStates[uiIndex].xWillRetain;stWill.uiTopicLen := TO_UINT(LEN(aConnectionStates[uiIndex].sWillTopic));stWill.uiPayloadLen := TO_UINT(LEN(aConnectionStates[uiIndex].sWillPayload));stWill.sTopic := aConnectionStates[uiIndex].sWillTopic;stWill.sPayload := aConnectionStates[uiIndex].sWillPayload;M_HandlePublish(uiSourceSlot := uiIndex, stPublish := stWill);stMetrics.udiWillPublished := stMetrics.udiWillPublished + 1;END_IFfbRouter.M_ClearSlot(uiSlot := uiIndex);fbRxScheduler.M_ClearSlot(uiSlot := uiIndex);fbTxScheduler.M_ClearSlot(uiSlot := uiIndex);aConnections[uiIndex](bEnable := FALSE,uiSlot := uiIndex,hConnectionIn := 0,xConnectionActiveIn := FALSE,udiNowMs := udiNowMs,stConnection => aConnectionStates[uiIndex]);END_IFEND_FORM_ServiceConnections := TRUE;
完整代码 11: FB_MqttBroker.M_UpdateSnapshots.st
/// =======================================================================/// 名称 : M_UpdateSnapshots/// 功能 : 更新每连接状态快照/// 说明 : HMI 或在线监控直接读取快照数组即可定位连接、队列和事务状态。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}METHOD M_UpdateSnapshots : BOOLVARuiIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]END_VAR// === IMPLEMENTATION ===FOR uiIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOaSnapshots[uiIndex].xUsed := aConnections[uiIndex].xActive;aSnapshots[uiIndex].xMqttConnected := aConnections[uiIndex].xMqttConnected;aSnapshots[uiIndex].xDisconnectRequested := aConnectionStates[uiIndex].xDisconnectRequested;aSnapshots[uiIndex].xTcpReadError := aConnections[uiIndex].xTcpReadError;aSnapshots[uiIndex].xTcpWriteError := aConnections[uiIndex].xTcpWriteError;aSnapshots[uiIndex].xWriteBusy := aConnections[uiIndex].xWriteBusy;aSnapshots[uiIndex].xWriteExecute := aConnections[uiIndex].xWriteExecute;aSnapshots[uiIndex].xConnectionActive := aConnections[uiIndex].xConnectionActive;aSnapshots[uiIndex].xLastTcpReadError := aConnections[uiIndex].xLastTcpReadError;aSnapshots[uiIndex].uiSlot := uiIndex;aSnapshots[uiIndex].uiTcpReadErrorCount := aConnections[uiIndex].uiTcpReadErrorCountOut;aSnapshots[uiIndex].byProtocolLevel := aConnectionStates[uiIndex].byProtocolLevel;aSnapshots[uiIndex].uiKeepAlive := aConnectionStates[uiIndex].uiKeepAlive;aSnapshots[uiIndex].udiLastActivityMs := aConnectionStates[uiIndex].udiLastActivityMs;aSnapshots[uiIndex].udiLastTcpActiveMs := aConnectionStates[uiIndex].udiLastTcpActiveMs;aSnapshots[uiIndex].udiLastBytesRead := aConnections[uiIndex].udiLastBytesRead;aSnapshots[uiIndex].udiLastNonZeroBytesRead := aConnections[uiIndex].udiLastNonZeroBytesRead;aSnapshots[uiIndex].hConnection := aConnectionStates[uiIndex].hConnection;aSnapshots[uiIndex].uiRxLength := aConnectionStates[uiIndex].uiRxLength;aSnapshots[uiIndex].uiTxLength := aConnectionStates[uiIndex].uiTxLength;aSnapshots[uiIndex].uiLastTxFrameCount := aConnections[uiIndex].uiLastTxFrameCount;aSnapshots[uiIndex].uiLastTxBytes := aConnections[uiIndex].uiLastTxBytes;aSnapshots[uiIndex].udiTxBatchCount := aConnections[uiIndex].udiTxBatchCount;aSnapshots[uiIndex].udiTxFrameCount := aConnections[uiIndex].udiTxFrameCount;aSnapshots[uiIndex].uiMaxDeliveryQueueCountSeen := aConnections[uiIndex].uiMaxDeliveryQueueCountSeen;aSnapshots[uiIndex].uiMaxProtocolQueueCountSeen := aConnections[uiIndex].uiMaxProtocolQueueCountSeen;aSnapshots[uiIndex].udiTxQueueFullDropped := aConnections[uiIndex].udiTxQueueFullDropped;aSnapshots[uiIndex].uiLastFrameLen := aConnections[uiIndex].uiLastFrameLen;aSnapshots[uiIndex].byLastPacketType := aConnections[uiIndex].byLastPacketType;aSnapshots[uiIndex].byLastConnectLevel := aConnections[uiIndex].byLastConnectLevel;aSnapshots[uiIndex].xLastConnectParsed := aConnections[uiIndex].xLastConnectParsed;aSnapshots[uiIndex].uiProtocolQueueCount := aConnectionStates[uiIndex].uiProtocolQueueCount;aSnapshots[uiIndex].uiDeliveryQueueCount := aConnectionStates[uiIndex].uiDeliveryQueueCount;aSnapshots[uiIndex].uiRxInflightCount := fbRxScheduler.M_CountSlot(uiSlot := uiIndex);aSnapshots[uiIndex].uiTxInflightCount := fbTxScheduler.M_CountSlot(uiSlot := uiIndex);aSnapshots[uiIndex].eState := aConnectionStates[uiIndex].eState;aSnapshots[uiIndex].eLastError := aConnections[uiIndex].eLastError;aSnapshots[uiIndex].eLastParseError := aConnections[uiIndex].eLastParseError;aSnapshots[uiIndex].eTcpReadErrorID := aConnections[uiIndex].eTcpReadErrorID;aSnapshots[uiIndex].eLastTcpReadErrorID := aConnections[uiIndex].eLastTcpReadErrorID;aSnapshots[uiIndex].eTcpWriteErrorID := aConnections[uiIndex].eTcpWriteErrorID;aSnapshots[uiIndex].sClientId := aConnectionStates[uiIndex].sClientId;aSnapshots[uiIndex].sUsername := aConnectionStates[uiIndex].sUsername;END_FORM_UpdateSnapshots := TRUE;
完整代码 12: FB_MqttBroker.st
/// =======================================================================/// 名称 : FB_MqttBroker/// 功能 : PLC 侧轻量 MQTT Broker/// 说明 : 实现 MQTT 3.1.1、QoS0/QoS1、Retain、Will、KeepAlive 和 QoS2 扩展骨架。/// 编程人员 : ControlRookie/// 时间 : 2026-05-08/// 版本 : V1.0/// ======================================================================={attribute 'hide_all_locals'}FUNCTION_BLOCK FB_MqttBrokerVAR_INPUTbEnable : BOOL := TRUE; // Broker 总使能，FALSE 时关闭监听并释放连接槽位运行态sBindIP : STRING := '0.0.0.0'; // TCP 监听绑定地址，0.0.0.0 表示所有网卡uiPort : UINT := GVL_MqttBroker.cnDefaultPort; // MQTT Broker TCP 监听端口号xAuthEnable : BOOL := FALSE; // 是否启用固定用户表基础认证xAclEnable : BOOL := FALSE; // 是否启用固定 Topic ACL 权限控制xClearDiag : BOOL := FALSE; // 上升沿清除诊断环形历史xClearMetrics : BOOL := FALSE; // 上升沿清除运行统计计数xKickClient : BOOL := FALSE; // 上升沿踢掉指定 ClientID 对应连接sKickClientId : STRING(GVL_MqttBroker.cnMaxClientIdLen); // 需要踢掉的 MQTT ClientIDEND_VARVAR_OUTPUTeState : E_MqttBrokerState; // Broker 顶层运行状态xRunning : BOOL; // TRUE 表示 TCP 监听已启动并进入运行调度xError : BOOL; // TRUE 表示 Broker 当前扫描周期存在监听、接入或资源类错误eLastError : E_MqttBrokerError; // Broker 当前错误码，xError 为 FALSE 时必须保持 uiNoErrorstMetrics : ST_MqttBrokerMetrics; // Broker 运行统计计数sDiagMsg : STRING(255); // Broker 当前诊断文本hListenHandle : NBS.CAA.HANDLE; // TCP_Server 当前监听句柄，非 0 表示端口监听已建立hLastAcceptHandle : NBS.CAA.HANDLE; // 最近一次 TCP_Connection 输出的新连接句柄xTcpServerError : BOOL; // TCP_Server 当前错误状态，TRUE 表示监听层失败xTcpAcceptActive : BOOL; // TCP_Connection 当前是否检测到可接入连接xTcpAcceptError : BOOL; // TCP_Connection 当前错误状态，TRUE 表示接入层失败eTcpServerErrorID : NBS.ERROR; // TCP_Server 原始错误码，用于判断监听失败、端口占用或绑定地址异常eTcpAcceptErrorID : NBS.ERROR; // TCP_Connection 原始错误码，用于判断接入层是否因服务端句柄或底层连接异常失败uiAcceptFreeSlot : UINT; // 最近一次接入扫描发现的空闲槽位编号，0 表示没有空闲槽位[1..cnMaxClientSlots]uiActiveSlotCount : UINT; // 最近一次接入扫描统计到的已占用连接槽位数量[个]xLastCleanupValid : BOOL; // TRUE 表示 stLastCleanupSnapshot 已锁存过最近一次槽位释放前状态uiLastCleanupSlot : UINT; // 最近一次被 Broker 清理释放的连接槽位编号[1..cnMaxClientSlots]udiLastCleanupMs : ULINT; // 最近一次连接槽位被清理释放的系统时间戳[ms]stLastCleanupSnapshot : ST_MqttBrokerConnectionSnapshot; // 最近一次连接槽位释放前的完整诊断快照，专门定位瞬断原因aDiagHistory : ARRAY[1..GVL_MqttBroker.cnDiagHistorySize] OF ST_MqttBrokerDiagItem; // 固定容量诊断环形历史，供在线调试直接观察最近事件uiDiagHistoryCount : UINT; // 当前诊断环形历史中已写入的有效条目数量[条]aSnapshots : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF ST_MqttBrokerConnectionSnapshot; // 每连接状态快照uiRetainCount : UINT; // 在线诊断：当前 Retain 表有效消息数量[条]sLastRetainTopic : STRING(GVL_MqttBroker.cnMaxTopicLen); // 在线诊断：最近一次新增、更新或补发命中的 Retain TopicuiLastRetainPayloadLen : UINT; // 在线诊断：最近一次新增、更新或补发命中的 Retain Payload 长度[byte]END_VARVARrtrigClearDiag : R_TRIG; // 清除诊断历史命令上升沿检测rtrigClearMetrics : R_TRIG; // 清除统计计数命令上升沿检测rtrigKickClient : R_TRIG; // 踢客户端命令上升沿检测fbServer : NBS.TCP_Server; // NBS TCP 服务端监听功能块aTcpAccept : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF NBS.TCP_Connection; // 每个连接槽位独立持有一个 NBS TCP_Connection，保证 hConnection 生命周期跟槽位绑定，禁止改回单实例复用fbRouter : FB_MqttBrokerRouter; // MQTT 主题路由和 Retain 管理器fbRxScheduler : FB_MqttBrokerRxScheduler; // 入站 QoS 事务调度器fbTxScheduler : FB_MqttBrokerTxScheduler; // 出站 QoS 事务调度器aConnections : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF FB_MqttBrokerConnection; // 固定容量连接槽位池aConnectionStates : ARRAY[1..GVL_MqttBroker.cnMaxClientSlots] OF ST_MqttBrokerConnection; // 连接槽位公开状态镜像aAuthUsers : ARRAY[1..GVL_MqttBroker.cnMaxAuthUsers] OF ST_MqttBrokerAuthUser; // 固定用户认证表，由工程师在工程中配置aAclRules : ARRAY[1..GVL_MqttBroker.cnMaxAclRules] OF ST_MqttBrokerAclRule; // 固定 Topic 权限规则表，由工程师在工程中配置ipBindAddr : NBS.IP_ADDR; // NBS TCP_Server 绑定地址结构hServer : NBS.CAA.HANDLE; // NBS TCP_Server 输出监听句柄hNewConnection : NBS.CAA.HANDLE; // NBS TCP_Connection 输出的新客户端连接句柄hLastDispatchedConnection : NBS.CAA.HANDLE; // 最近已分配到槽位的 TCP 连接句柄，用于避免同一句柄重复入槽uiSlotIndex : UINT; // 连接槽位扫描索引[1..cnMaxClientSlots]uiFreeSlot : UINT; // 当前发现的空闲连接槽位编号[1..cnMaxClientSlots]uiUsedSlotCount : UINT; // 当前扫描统计到的已占用连接槽位数量[个]udiNowMs : ULINT; // 当前系统时间戳[ms]stTimeZone : Util.TimeZone := (iBias := 480); // 本地时间转换时区配置[min]stDelivery : ST_MqttBrokerPublishFrame; // 路由器或 Retain 返回的投递任务stRetry : ST_MqttBrokerPublishFrame; // 发送事务调度器返回的重发任务stQoS2Route : ST_MqttBrokerPublishFrame; // QoS2 入站 PUBREL 首次确认后需要路由的发布帧xRouteFound : BOOL; // 路由扫描是否找到匹配订阅xRetainFound : BOOL; // Retain 扫描是否找到补发消息xRetryFound : BOOL; // 事务调度器是否找到重发消息xRetryPubRel : BOOL; // 事务调度器是否要求重发 QoS2 PUBRELuiRetryPubRelSlot : UINT; // 需要重发 PUBREL 的客户端槽位编号[1..cnMaxClientSlots]uiRetryPubRelPacketId : UINT; // 需要重发 PUBREL 的 Packet IdentifierxRetryFailed : BOOL; // 事务调度器是否发现重试耗尽xNeedPubRel : BOOL; // 收到 PUBREC 后是否需要向订阅者发送 PUBRELxNeedRoute : BOOL; // 收到 PUBREL 后是否需要执行 QoS2 首次路由uiFailedSlot : UINT; // 重试耗尽的客户端槽位编号[1..cnMaxClientSlots]uiDiagWriteIndex : UINT := 1; // 诊断环形历史下一次写入位置[1..cnDiagHistorySize]END_VAR// === IMPLEMENTATION ===udiNowMs := GetLocalDateTime(tzTimeZone := stTimeZone);ipBindAddr.sAddr := sBindIP;hListenHandle := hServer;hLastAcceptHandle := hNewConnection;xTcpServerError := fbServer.xError;xTcpAcceptActive := FALSE;xTcpAcceptError := FALSE;eTcpServerErrorID := fbServer.eError;uiAcceptFreeSlot := uiFreeSlot;uiActiveSlotCount := uiUsedSlotCount;uiRetainCount := fbRouter.uiRetainCount;rtrigClearDiag(CLK := xClearDiag);rtrigClearMetrics(CLK := xClearMetrics);rtrigKickClient(CLK := xKickClient);IF rtrigClearDiag.Q THENM_ClearDiag();END_IFIF rtrigClearMetrics.Q THENM_ClearMetrics();END_IFIF rtrigKickClient.Q THENM_KickClient(sClientId := sKickClientId);END_IFIF NOT bEnable THENfbServer(xEnable := FALSE, ipAddr := ipBindAddr, uiPort := uiPort);hNewConnection := 0;hLastDispatchedConnection := 0;uiFreeSlot := 0;uiUsedSlotCount := 0;xLastCleanupValid := FALSE;uiLastCleanupSlot := 0;udiLastCleanupMs := 0;stLastCleanupSnapshot.xUsed := FALSE;stLastCleanupSnapshot.xMqttConnected := FALSE;stLastCleanupSnapshot.xDisconnectRequested := FALSE;stLastCleanupSnapshot.xTcpReadError := FALSE;stLastCleanupSnapshot.xTcpWriteError := FALSE;stLastCleanupSnapshot.xWriteBusy := FALSE;stLastCleanupSnapshot.xWriteExecute := FALSE;stLastCleanupSnapshot.xConnectionActive := FALSE;stLastCleanupSnapshot.xLastTcpReadError := FALSE;stLastCleanupSnapshot.uiSlot := 0;stLastCleanupSnapshot.uiTcpReadErrorCount := 0;stLastCleanupSnapshot.uiKeepAlive := 0;stLastCleanupSnapshot.udiLastActivityMs := 0;stLastCleanupSnapshot.udiLastTcpActiveMs := 0;stLastCleanupSnapshot.udiLastBytesRead := 0;stLastCleanupSnapshot.udiLastNonZeroBytesRead := 0;stLastCleanupSnapshot.hConnection := 0;stLastCleanupSnapshot.uiRxLength := 0;stLastCleanupSnapshot.uiTxLength := 0;stLastCleanupSnapshot.uiLastFrameLen := 0;stLastCleanupSnapshot.byLastPacketType := 0;stLastCleanupSnapshot.byLastConnectLevel := 0;stLastCleanupSnapshot.xLastConnectParsed := FALSE;stLastCleanupSnapshot.uiProtocolQueueCount := 0;stLastCleanupSnapshot.uiDeliveryQueueCount := 0;stLastCleanupSnapshot.uiRxInflightCount := 0;stLastCleanupSnapshot.uiTxInflightCount := 0;stLastCleanupSnapshot.eState := E_MqttConnectionState.iFree;stLastCleanupSnapshot.eLastError := E_MqttBrokerError.uiNoError;stLastCleanupSnapshot.eLastParseError := E_MqttBrokerError.uiNoError;stLastCleanupSnapshot.sClientId := '';stLastCleanupSnapshot.sUsername := '';uiDiagHistoryCount := 0;FOR uiSlotIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOaTcpAccept[uiSlotIndex](xEnable := FALSE, hServer := hServer);aConnections[uiSlotIndex](bEnable := FALSE,uiSlot := uiSlotIndex,hConnectionIn := 0,xConnectionActiveIn := FALSE,udiNowMs := udiNowMs,stConnection => aConnectionStates[uiSlotIndex]);END_FOReState := E_MqttBrokerState.iDisabled;xRunning := FALSE;xError := FALSE;eLastError := E_MqttBrokerError.uiNoError;sDiagMsg := 'Broker disabled';RETURN;END_IFCASE eState OFE_MqttBrokerState.iDisabled:eState := E_MqttBrokerState.iInit;xError := FALSE;eLastError := E_MqttBrokerError.uiNoError;sDiagMsg := 'Broker init';E_MqttBrokerState.iInit:stMetrics.udiCurrentConnections := 0;stMetrics.udiMqttSessions := 0;eState := E_MqttBrokerState.iListen;E_MqttBrokerState.iListen:fbServer(xEnable := TRUE, ipAddr := ipBindAddr, uiPort := uiPort);hServer := fbServer.hServer;hListenHandle := hServer;xTcpServerError := fbServer.xError;eTcpServerErrorID := fbServer.eError;IF fbServer.xError THENeLastError := E_MqttBrokerError.uiTcpListenFailed;xError := TRUE;sDiagMsg := 'TCP listen failed';eState := E_MqttBrokerState.iFault;ELSIF hServer <> 0 THENxRunning := TRUE;sDiagMsg := 'Broker running';eState := E_MqttBrokerState.iRunning;END_IFE_MqttBrokerState.iRunning:fbServer(xEnable := TRUE, ipAddr := ipBindAddr, uiPort := uiPort);hServer := fbServer.hServer;hListenHandle := hServer;xTcpServerError := fbServer.xError;eTcpServerErrorID := fbServer.eError;IF fbServer.xError THENeLastError := E_MqttBrokerError.uiTcpListenFailed;xError := TRUE;sDiagMsg := 'TCP listen error while running';eState := E_MqttBrokerState.iFault;ELSExError := FALSE;eLastError := E_MqttBrokerError.uiNoError;// TCP 接入调度必须先于连接槽位业务调度：// 1. aTcpAccept[] 每个槽位一个实例，避免多个客户端共享同一个 hConnection 生命周期。// 2. FB_MqttBrokerConnection 只在对应 aTcpAccept[slot].xActive 为 TRUE 时读写 TCP。// 3. 这个顺序能防止“槽位刚置位又复位”的旧问题再次出现。M_AcceptNewConnection();M_ServiceConnections();M_ServiceRetries();M_UpdateSnapshots();IF eLastError <> E_MqttBrokerError.uiNoError THENxError := TRUE;END_IFIF xTcpServerError OR xTcpAcceptError THENxError := TRUE;IF xTcpServerError THENeLastError := E_MqttBrokerError.uiTcpListenFailed;ELSIF xTcpAcceptError THENeLastError := E_MqttBrokerError.uiTcpAcceptFailed;END_IFEND_IFEND_IFE_MqttBrokerState.iFault:xRunning := FALSE;xError := TRUE;FOR uiSlotIndex := 1 TO GVL_MqttBroker.cnMaxClientSlots DOaTcpAccept[uiSlotIndex](xEnable := FALSE, hServer := hServer);END_FORELSEeLastError := E_MqttBrokerError.uiInvalidState;xError := TRUE;eState := E_MqttBrokerState.iFault;END_CASE
这一篇你最该记住的几句话
Broker 源码不要按“文件夹顺序”读，要按“入口、状态、数据、报文、路由、事务”读。 CodeSys ST 工程最容易失控的不是语法，而是对象职责边界混乱。 只要你能把本篇源码对象和在线变量对应起来，后续排查连接、订阅、发布和 QoS 问题就不会乱。
