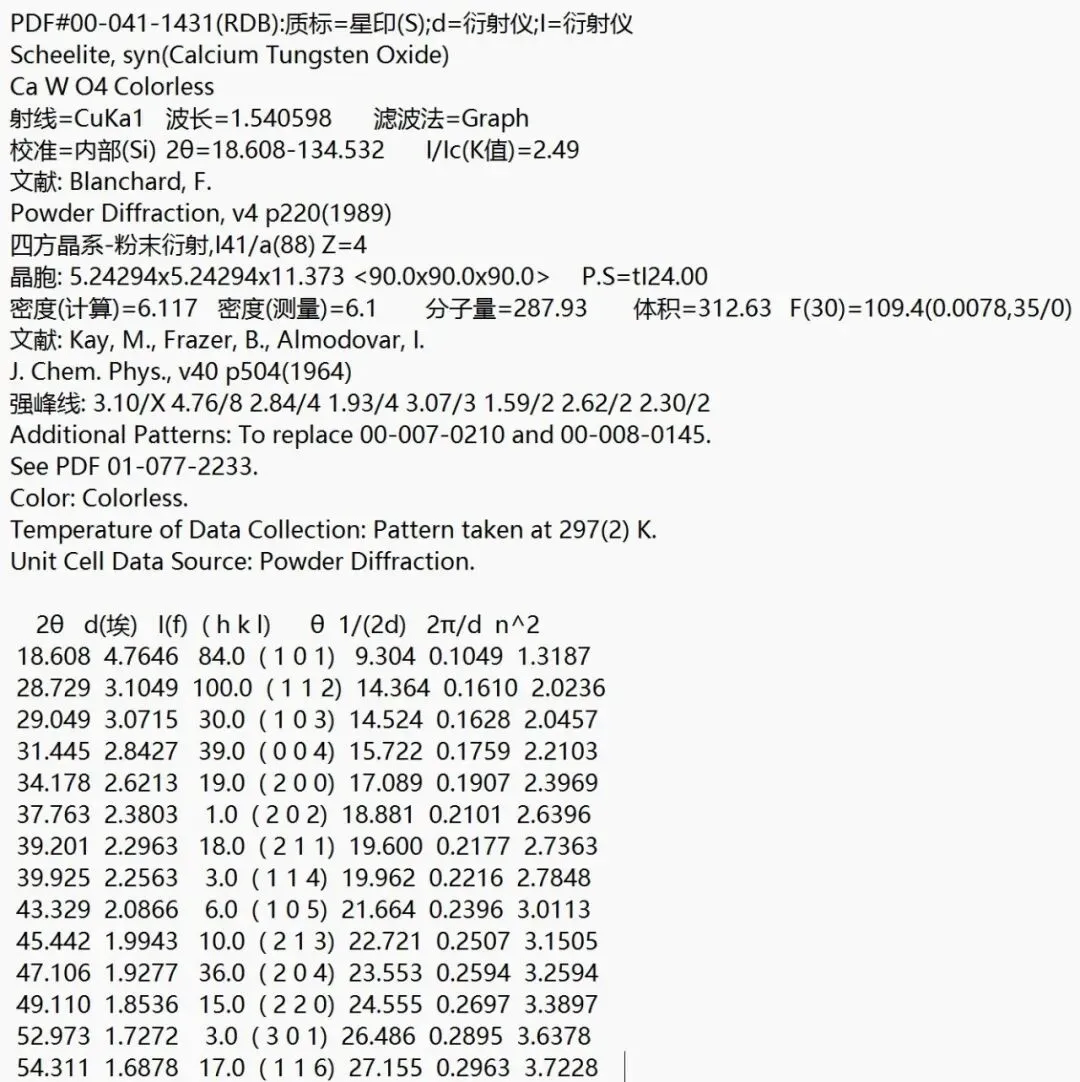

夜雨聆风PDF#00-041-1431(RDB):质标=星印(S);d=衍射仪;I=衍射仪
Scheelite, syn(Calcium Tungsten Oxide)
Ca W O4 Colorless
射线=CuKa1 波长=1.540598 滤波法=Graph
校准=内部(Si) 2θ=18.608-134.532 I/Ic(K值)=2.49
文献: Blanchard, F.
Powder Diffraction, v4 p220(1989)
四方晶系-粉末衍射,I41/a(88) Z=4
晶胞: 5.24294x5.24294x11.373 <90.0x90.0x90.0> P.S=tI24.00
密度(计算)=6.117 密度(测量)=6.1 分子量=287.93 体积=312.63 F(30)=109.4(0.0078,35/0)
文献: Kay, M., Frazer, B., Almodovar, I.
J. Chem. Phys., v40 p504(1964)
强峰线: 3.10/X 4.76/8 2.84/4 1.93/4 3.07/3 1.59/2 2.62/2 2.30/2
Additional Patterns: To replace 00-007-0210 and 00-008-0145.
See PDF 01-077-2233.
Color: Colorless.
Temperature of Data Collection: Pattern taken at 297(2) K.
Unit Cell Data Source: Powder Diffraction.
2θ d(埃) I(f) ( h k l) θ 1/(2d) 2π/d n^2
18.608 4.7646 84.0 ( 1 0 1) 9.304 0.1049 1.3187
28.729 3.1049 100.0 ( 1 1 2) 14.364 0.1610 2.0236
29.049 3.0715 30.0 ( 1 0 3) 14.524 0.1628 2.0457
31.445 2.8427 39.0 ( 0 0 4) 15.722 0.1759 2.2103
34.178 2.6213 19.0 ( 2 0 0) 17.089 0.1907 2.3969
37.763 2.3803 1.0 ( 2 0 2) 18.881 0.2101 2.6396
39.201 2.2963 18.0 ( 2 1 1) 19.600 0.2177 2.7363
39.925 2.2563 3.0 ( 1 1 4) 19.962 0.2216 2.7848
43.329 2.0866 6.0 ( 1 0 5) 21.664 0.2396 3.0113
45.442 1.9943 10.0 ( 2 1 3) 22.721 0.2507 3.1505
47.106 1.9277 36.0 ( 2 0 4) 23.553 0.2594 3.2594
49.110 1.8536 15.0 ( 2 2 0) 24.555 0.2697 3.3897
52.973 1.7272 3.0 ( 3 0 1) 26.486 0.2895 3.6378
54.311 1.6878 17.0 ( 1 1 6) 27.155 0.2963 3.7228

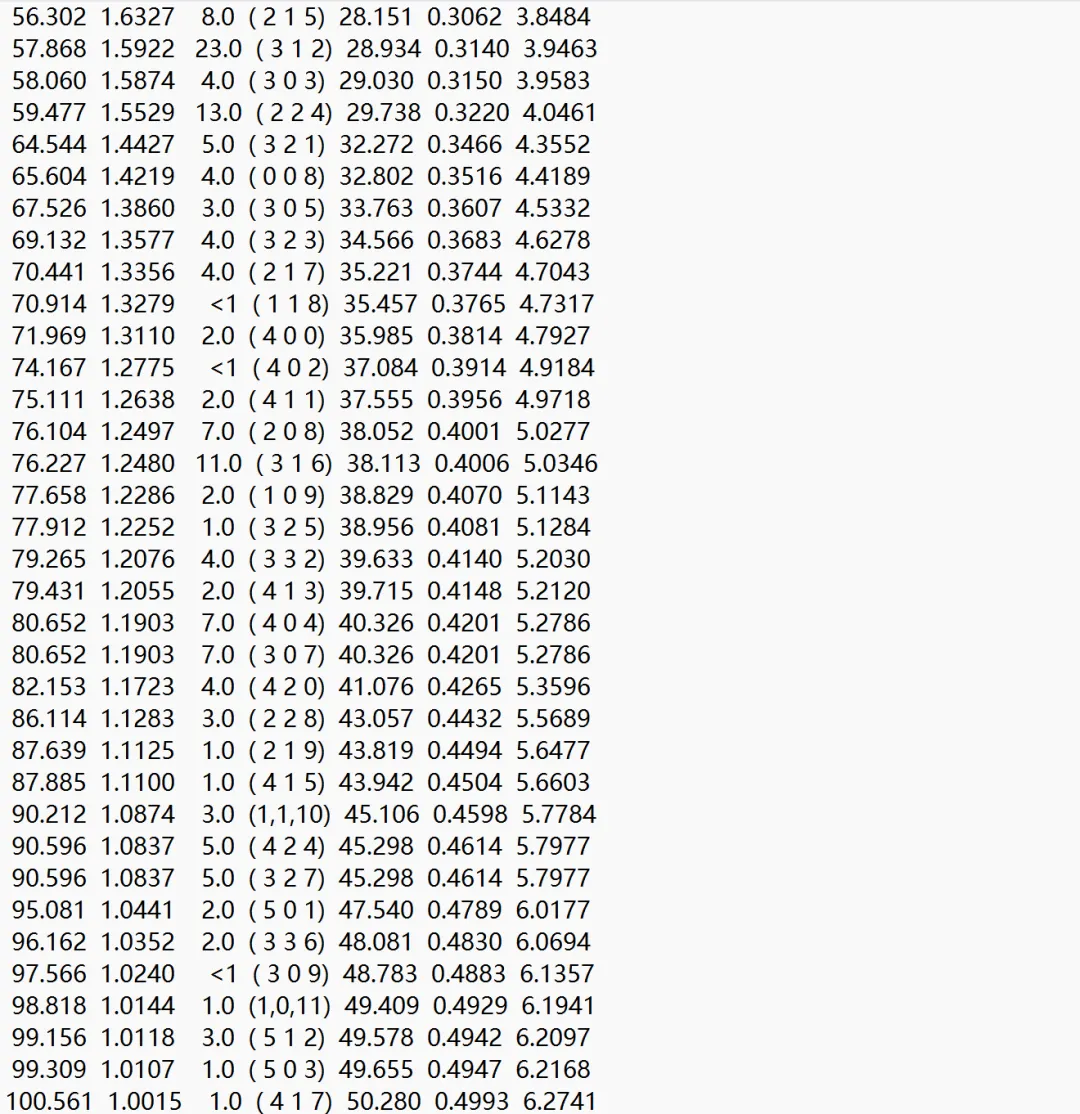

56.302 1.6327 8.0 ( 2 1 5) 28.151 0.3062 3.8484
57.868 1.5922 23.0 ( 3 1 2) 28.934 0.3140 3.9463
58.060 1.5874 4.0 ( 3 0 3) 29.030 0.3150 3.9583
59.477 1.5529 13.0 ( 2 2 4) 29.738 0.3220 4.0461
64.544 1.4427 5.0 ( 3 2 1) 32.272 0.3466 4.3552
65.604 1.4219 4.0 ( 0 0 8) 32.802 0.3516 4.4189
67.526 1.3860 3.0 ( 3 0 5) 33.763 0.3607 4.5332
69.132 1.3577 4.0 ( 3 2 3) 34.566 0.3683 4.6278
70.441 1.3356 4.0 ( 2 1 7) 35.221 0.3744 4.7043
70.914 1.3279 <1 ( 1 1 8) 35.457 0.3765 4.7317
71.969 1.3110 2.0 ( 4 0 0) 35.985 0.3814 4.7927
74.167 1.2775 <1 ( 4 0 2) 37.084 0.3914 4.9184
75.111 1.2638 2.0 ( 4 1 1) 37.555 0.3956 4.9718
76.104 1.2497 7.0 ( 2 0 8) 38.052 0.4001 5.0277
76.227 1.2480 11.0 ( 3 1 6) 38.113 0.4006 5.0346
77.658 1.2286 2.0 ( 1 0 9) 38.829 0.4070 5.1143
77.912 1.2252 1.0 ( 3 2 5) 38.956 0.4081 5.1284
79.265 1.2076 4.0 ( 3 3 2) 39.633 0.4140 5.2030
79.431 1.2055 2.0 ( 4 1 3) 39.715 0.4148 5.2120
80.652 1.1903 7.0 ( 4 0 4) 40.326 0.4201 5.2786
80.652 1.1903 7.0 ( 3 0 7) 40.326 0.4201 5.2786
82.153 1.1723 4.0 ( 4 2 0) 41.076 0.4265 5.3596
86.114 1.1283 3.0 ( 2 2 8) 43.057 0.4432 5.5689
87.639 1.1125 1.0 ( 2 1 9) 43.819 0.4494 5.6477
87.885 1.1100 1.0 ( 4 1 5) 43.942 0.4504 5.6603
90.212 1.0874 3.0 (1,1,10) 45.106 0.4598 5.7784
90.596 1.0837 5.0 ( 4 2 4) 45.298 0.4614 5.7977
90.596 1.0837 5.0 ( 3 2 7) 45.298 0.4614 5.7977
95.081 1.0441 2.0 ( 5 0 1) 47.540 0.4789 6.0177
96.162 1.0352 2.0 ( 3 3 6) 48.081 0.4830 6.0694
97.566 1.0240 <1 ( 3 0 9) 48.783 0.4883 6.1357
98.818 1.0144 1.0 (1,0,11) 49.409 0.4929 6.1941
99.156 1.0118 3.0 ( 5 1 2) 49.578 0.4942 6.2097
99.309 1.0107 1.0 ( 5 0 3) 49.655 0.4947 6.2168
100.561 1.0015 1.0 ( 4 1 7) 50.280 0.4993 6.2741

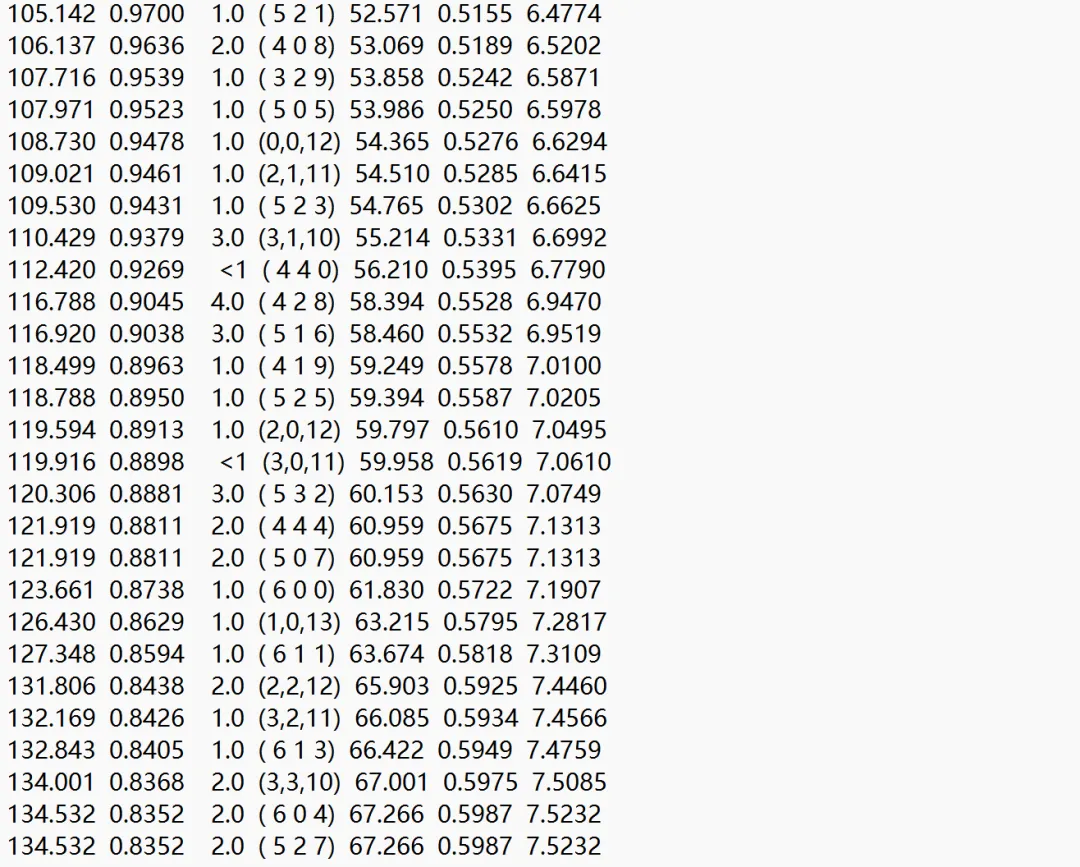

105.142 0.9700 1.0 ( 5 2 1) 52.571 0.5155 6.4774
106.137 0.9636 2.0 ( 4 0 8) 53.069 0.5189 6.5202
107.716 0.9539 1.0 ( 3 2 9) 53.858 0.5242 6.5871
107.971 0.9523 1.0 ( 5 0 5) 53.986 0.5250 6.5978
108.730 0.9478 1.0 (0,0,12) 54.365 0.5276 6.6294
109.021 0.9461 1.0 (2,1,11) 54.510 0.5285 6.6415
109.530 0.9431 1.0 ( 5 2 3) 54.765 0.5302 6.6625
110.429 0.9379 3.0 (3,1,10) 55.214 0.5331 6.6992
112.420 0.9269 <1 ( 4 4 0) 56.210 0.5395 6.7790
116.788 0.9045 4.0 ( 4 2 8) 58.394 0.5528 6.9470
116.920 0.9038 3.0 ( 5 1 6) 58.460 0.5532 6.9519
118.499 0.8963 1.0 ( 4 1 9) 59.249 0.5578 7.0100
118.788 0.8950 1.0 ( 5 2 5) 59.394 0.5587 7.0205
119.594 0.8913 1.0 (2,0,12) 59.797 0.5610 7.0495
119.916 0.8898 <1 (3,0,11) 59.958 0.5619 7.0610
120.306 0.8881 3.0 ( 5 3 2) 60.153 0.5630 7.0749
121.919 0.8811 2.0 ( 4 4 4) 60.959 0.5675 7.1313
121.919 0.8811 2.0 ( 5 0 7) 60.959 0.5675 7.1313
123.661 0.8738 1.0 ( 6 0 0) 61.830 0.5722 7.1907
126.430 0.8629 1.0 (1,0,13) 63.215 0.5795 7.2817
127.348 0.8594 1.0 ( 6 1 1) 63.674 0.5818 7.3109
131.806 0.8438 2.0 (2,2,12) 65.903 0.5925 7.4460
132.169 0.8426 1.0 (3,2,11) 66.085 0.5934 7.4566
132.843 0.8405 1.0 ( 6 1 3) 66.422 0.5949 7.4759
134.001 0.8368 2.0 (3,3,10) 67.001 0.5975 7.5085
134.532 0.8352 2.0 ( 6 0 4) 67.266 0.5987 7.5232
134.532 0.8352 2.0 ( 5 2 7) 67.266 0.5987 7.5232
附图：

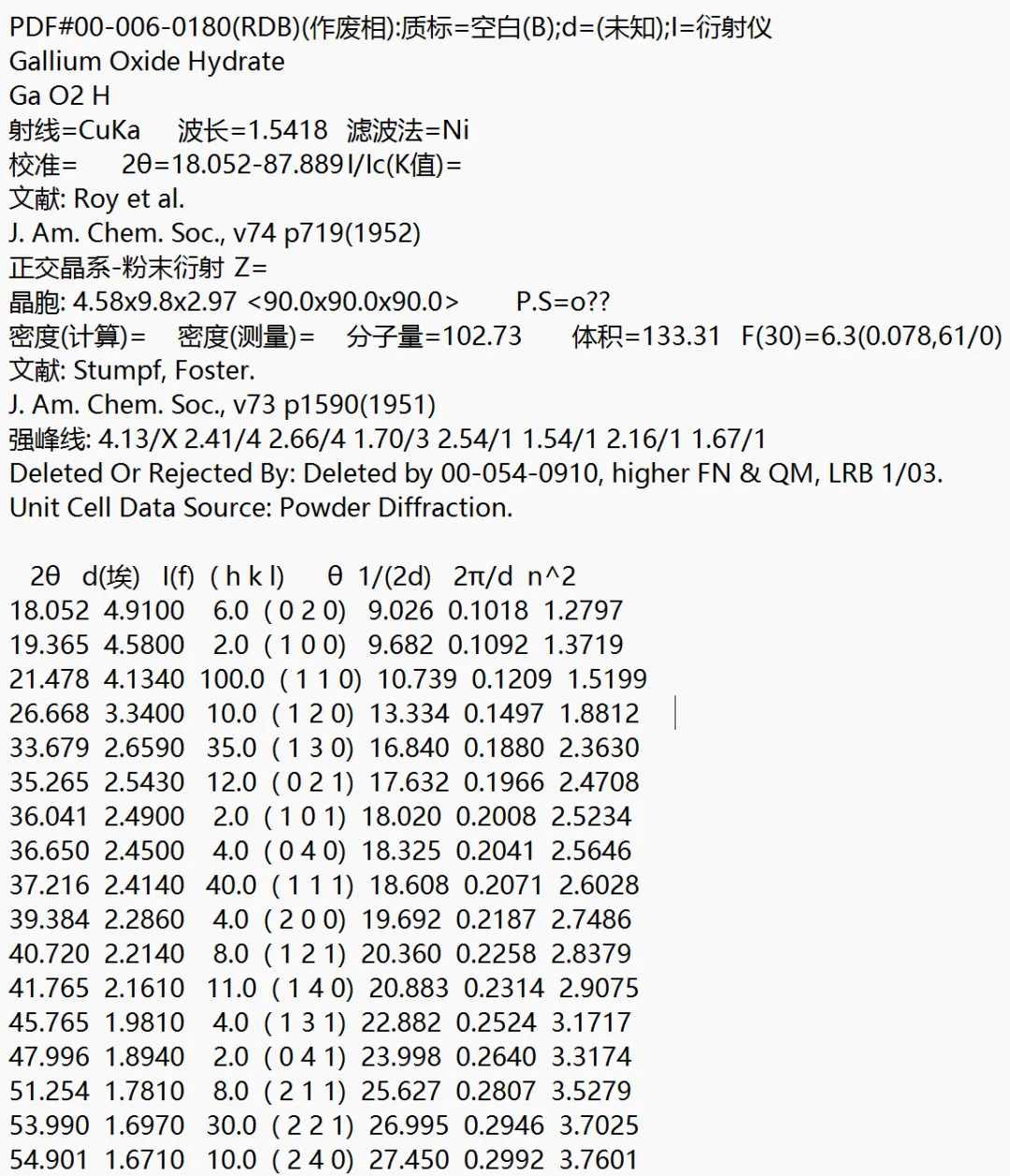

PDF#00-006-0180(RDB)(作废相):质标=空白(B);d=(未知);I=衍射仪
Gallium Oxide Hydrate
Ga O2 H
射线=CuKa 波长=1.5418 滤波法=Ni
校准= 2θ=18.052-87.889 I/Ic(K值)=
文献: Roy et al.
J. Am. Chem. Soc., v74 p719(1952)
正交晶系-粉末衍射 Z=
晶胞: 4.58x9.8x2.97 <90.0x90.0x90.0> P.S=o??
密度(计算)= 密度(测量)= 分子量=102.73 体积=133.31 F(30)=6.3(0.078,61/0)
文献: Stumpf, Foster.
J. Am. Chem. Soc., v73 p1590(1951)
强峰线: 4.13/X 2.41/4 2.66/4 1.70/3 2.54/1 1.54/1 2.16/1 1.67/1
Deleted Or Rejected By: Deleted by 00-054-0910, higher FN & QM, LRB 1/03.
Unit Cell Data Source: Powder Diffraction.
2θ d(埃) I(f) ( h k l) θ 1/(2d) 2π/d n^2
18.052 4.9100 6.0 ( 0 2 0) 9.026 0.1018 1.2797
19.365 4.5800 2.0 ( 1 0 0) 9.682 0.1092 1.3719
21.478 4.1340 100.0 ( 1 1 0) 10.739 0.1209 1.5199
26.668 3.3400 10.0 ( 1 2 0) 13.334 0.1497 1.8812
33.679 2.6590 35.0 ( 1 3 0) 16.840 0.1880 2.3630
35.265 2.5430 12.0 ( 0 2 1) 17.632 0.1966 2.4708
36.041 2.4900 2.0 ( 1 0 1) 18.020 0.2008 2.5234
36.650 2.4500 4.0 ( 0 4 0) 18.325 0.2041 2.5646
37.216 2.4140 40.0 ( 1 1 1) 18.608 0.2071 2.6028
39.384 2.2860 4.0 ( 2 0 0) 19.692 0.2187 2.7486
40.720 2.2140 8.0 ( 1 2 1) 20.360 0.2258 2.8379
41.765 2.1610 11.0 ( 1 4 0) 20.883 0.2314 2.9075
45.765 1.9810 4.0 ( 1 3 1) 22.882 0.2524 3.1717
47.996 1.8940 2.0 ( 0 4 1) 23.998 0.2640 3.3174
51.254 1.7810 8.0 ( 2 1 1) 25.627 0.2807 3.5279
53.990 1.6970 30.0 ( 2 2 1) 26.995 0.2946 3.7025
54.901 1.6710 10.0 ( 2 4 0) 27.450 0.2992 3.7601

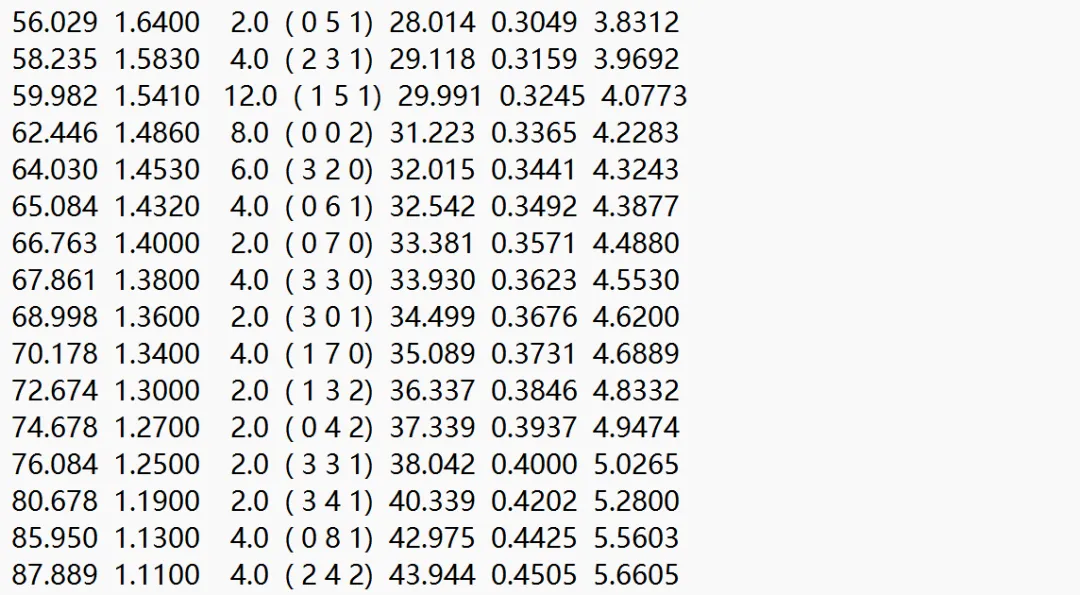

56.029 1.6400 2.0 ( 0 5 1) 28.014 0.3049 3.8312
58.235 1.5830 4.0 ( 2 3 1) 29.118 0.3159 3.9692
59.982 1.5410 12.0 ( 1 5 1) 29.991 0.3245 4.0773
62.446 1.4860 8.0 ( 0 0 2) 31.223 0.3365 4.2283
64.030 1.4530 6.0 ( 3 2 0) 32.015 0.3441 4.3243
65.084 1.4320 4.0 ( 0 6 1) 32.542 0.3492 4.3877
66.763 1.4000 2.0 ( 0 7 0) 33.381 0.3571 4.4880
67.861 1.3800 4.0 ( 3 3 0) 33.930 0.3623 4.5530
68.998 1.3600 2.0 ( 3 0 1) 34.499 0.3676 4.6200
70.178 1.3400 4.0 ( 1 7 0) 35.089 0.3731 4.6889
72.674 1.3000 2.0 ( 1 3 2) 36.337 0.3846 4.8332
74.678 1.2700 2.0 ( 0 4 2) 37.339 0.3937 4.9474
76.084 1.2500 2.0 ( 3 3 1) 38.042 0.4000 5.0265
80.678 1.1900 2.0 ( 3 4 1) 40.339 0.4202 5.2800
85.950 1.1300 4.0 ( 0 8 1) 42.975 0.4425 5.5603
87.889 1.1100 4.0 ( 2 4 2) 43.944 0.4505 5.6605
附图：

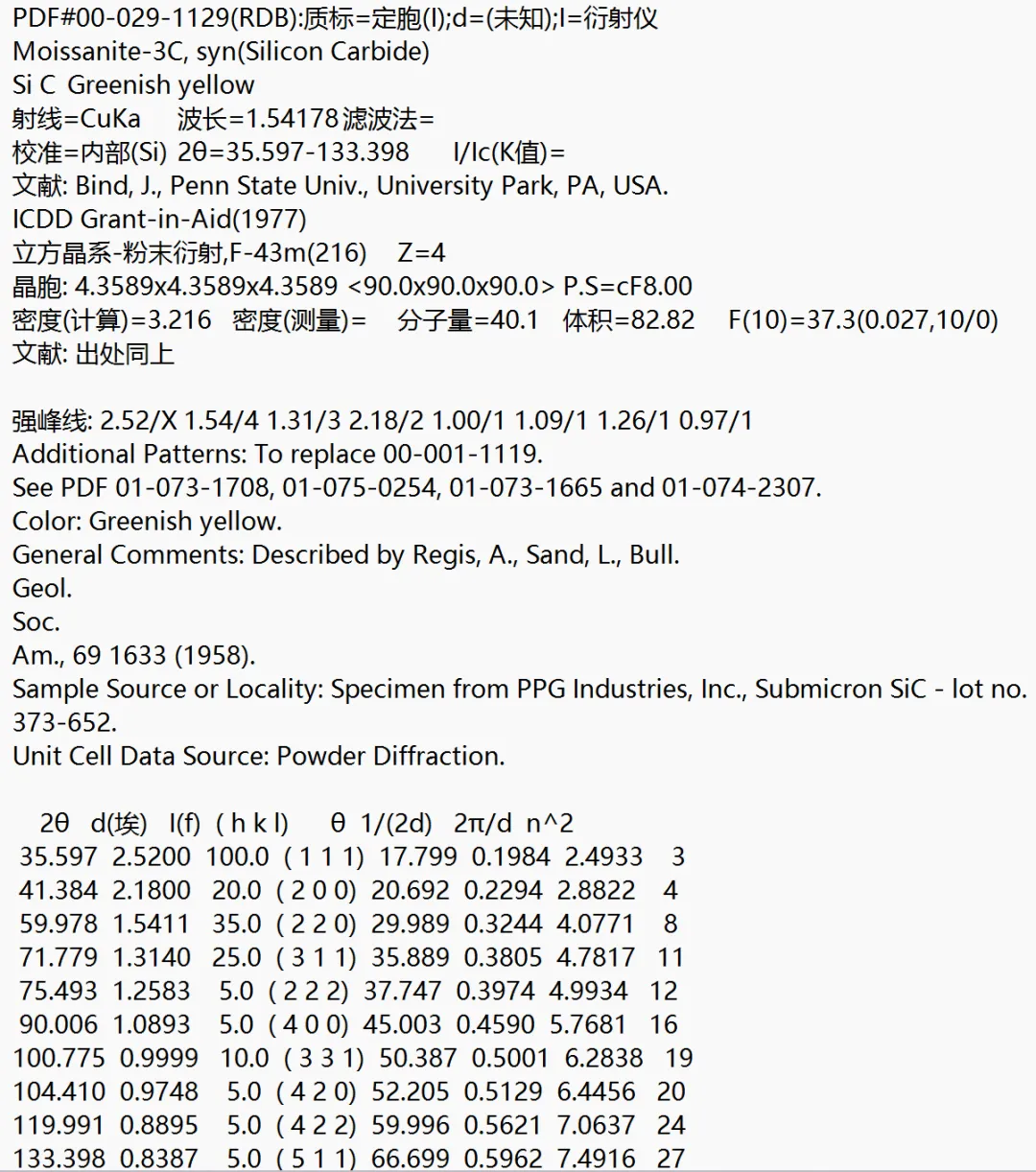

PDF#00-029-1129(RDB):质标=定胞(I);d=(未知);I=衍射仪
Moissanite-3C, syn(Silicon Carbide)
Si C Greenish yellow
射线=CuKa 波长=1.54178 滤波法=
校准=内部(Si) 2θ=35.597-133.398 I/Ic(K值)=
文献: Bind, J., Penn State Univ., University Park, PA, USA.
ICDD Grant-in-Aid(1977)
立方晶系-粉末衍射,F-43m(216) Z=4
晶胞: 4.3589x4.3589x4.3589 <90.0x90.0x90.0> P.S=cF8.00
密度(计算)=3.216 密度(测量)= 分子量=40.1 体积=82.82 F(10)=37.3(0.027,10/0)
文献: 出处同上
强峰线: 2.52/X 1.54/4 1.31/3 2.18/2 1.00/1 1.09/1 1.26/1 0.97/1
Additional Patterns: To replace 00-001-1119.
See PDF 01-073-1708, 01-075-0254, 01-073-1665 and 01-074-2307.
Color: Greenish yellow.
General Comments: Described by Regis, A., Sand, L., Bull.
Geol.
Soc.
Am., 69 1633 (1958).
Sample Source or Locality: Specimen from PPG Industries, Inc., Submicron SiC - lot no.
373-652.
Unit Cell Data Source: Powder Diffraction.
2θ d(埃) I(f) ( h k l) θ 1/(2d) 2π/d n^2
35.597 2.5200 100.0 ( 1 1 1) 17.799 0.1984 2.4933 3
41.384 2.1800 20.0 ( 2 0 0) 20.692 0.2294 2.8822 4
59.978 1.5411 35.0 ( 2 2 0) 29.989 0.3244 4.0771 8
71.779 1.3140 25.0 ( 3 1 1) 35.889 0.3805 4.7817 11
75.493 1.2583 5.0 ( 2 2 2) 37.747 0.3974 4.9934 12
90.006 1.0893 5.0 ( 4 0 0) 45.003 0.4590 5.7681 16
100.775 0.9999 10.0 ( 3 3 1) 50.387 0.5001 6.2838 19
104.410 0.9748 5.0 ( 4 2 0) 52.205 0.5129 6.4456 20
119.991 0.8895 5.0 ( 4 2 2) 59.996 0.5621 7.0637 24
133.398 0.8387 5.0 ( 5 1 1) 66.699 0.5962 7.4916 27
附图：
