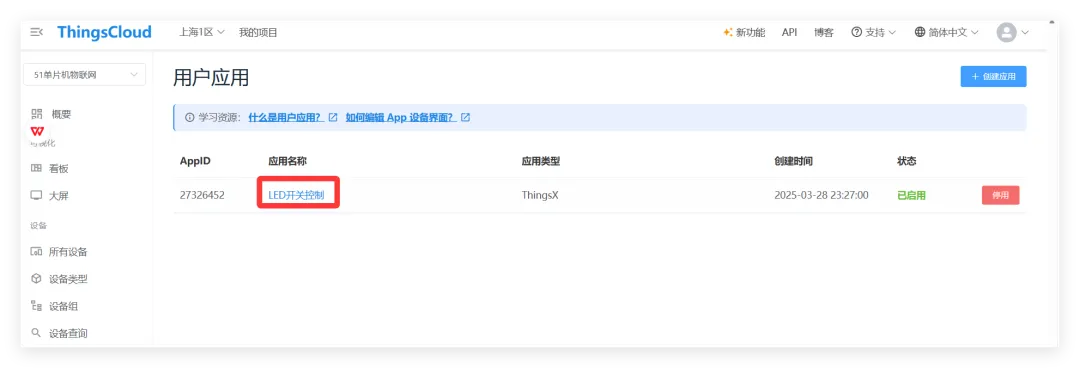

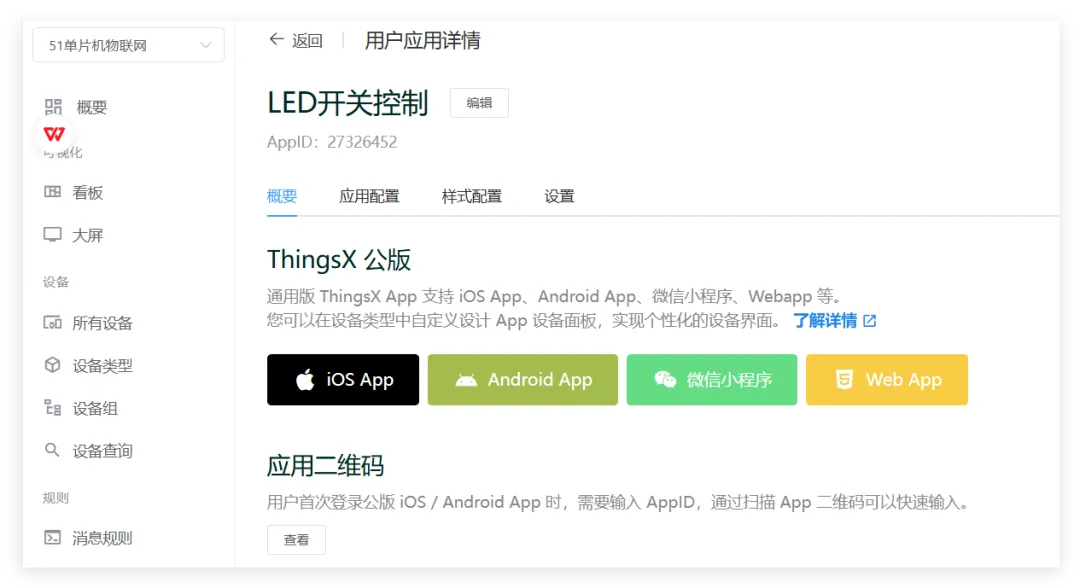

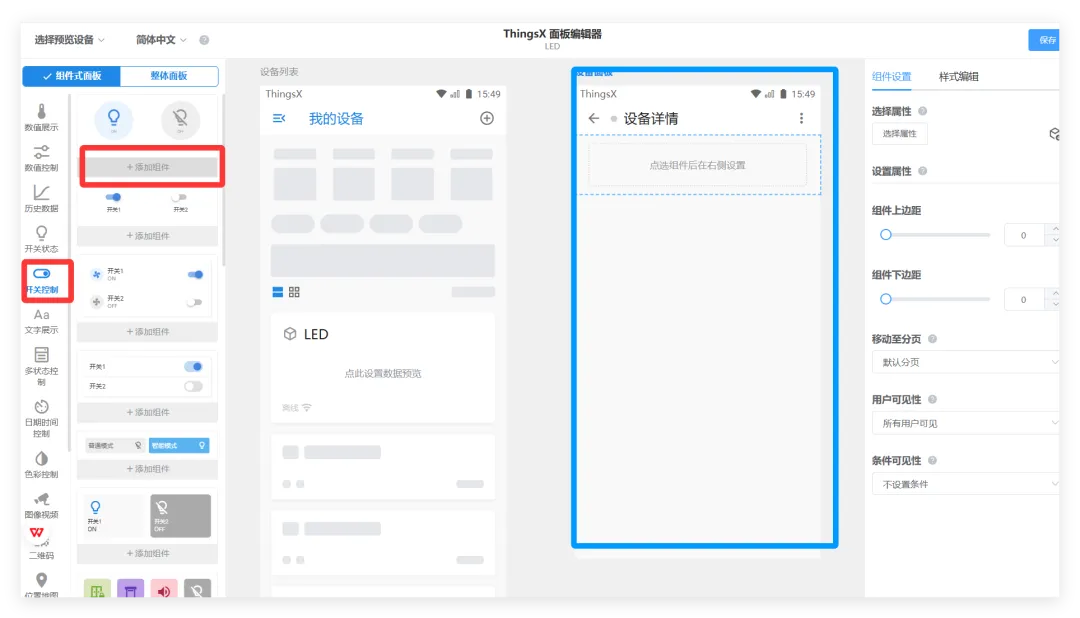

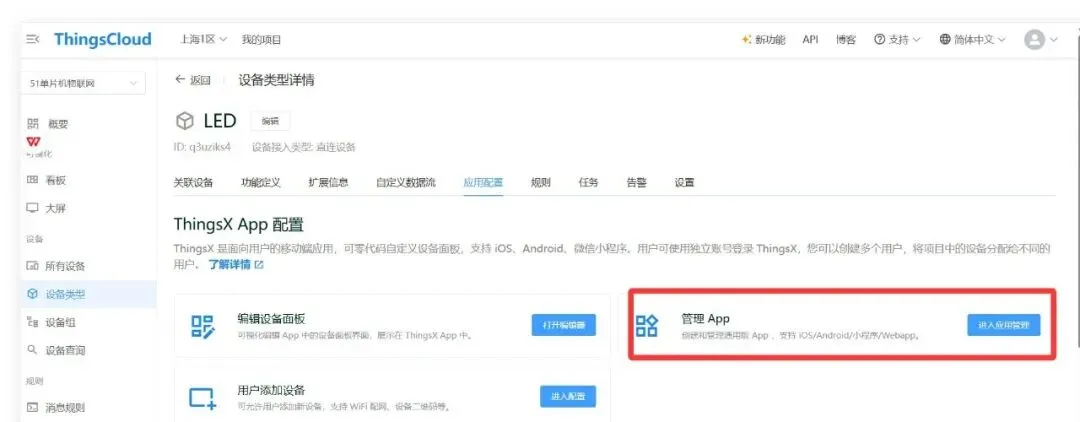

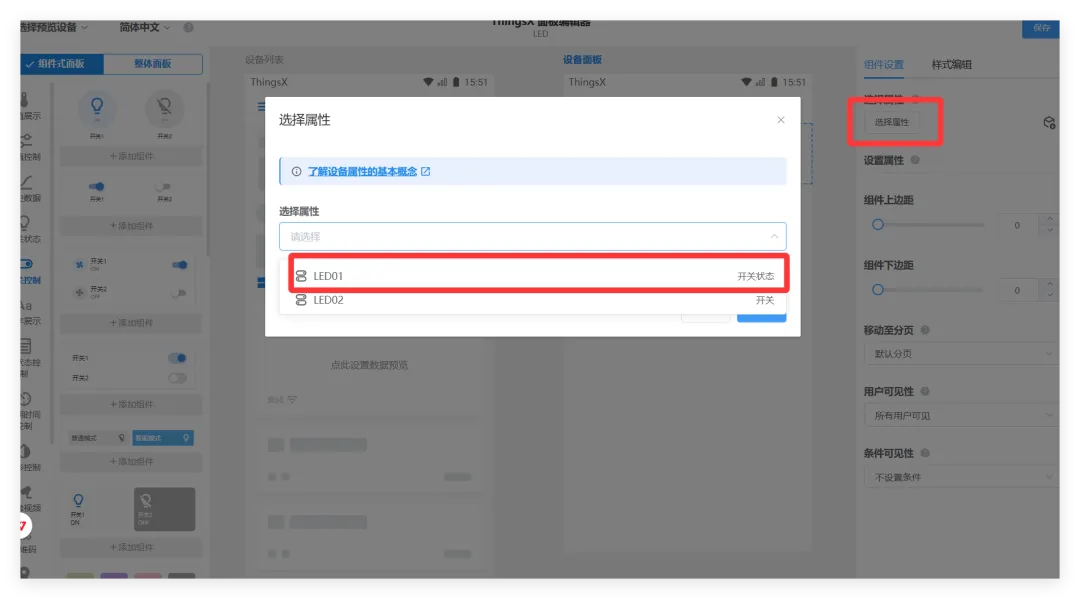

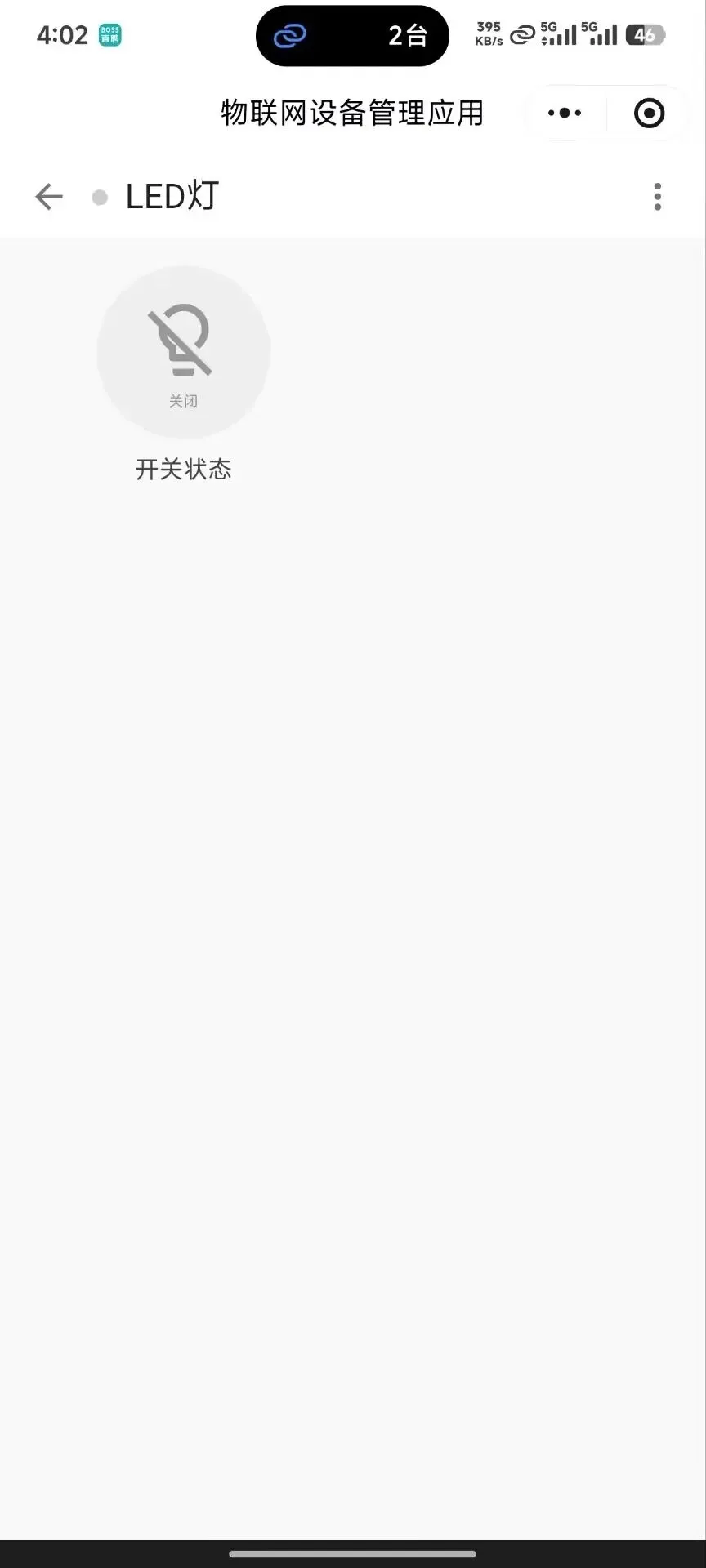

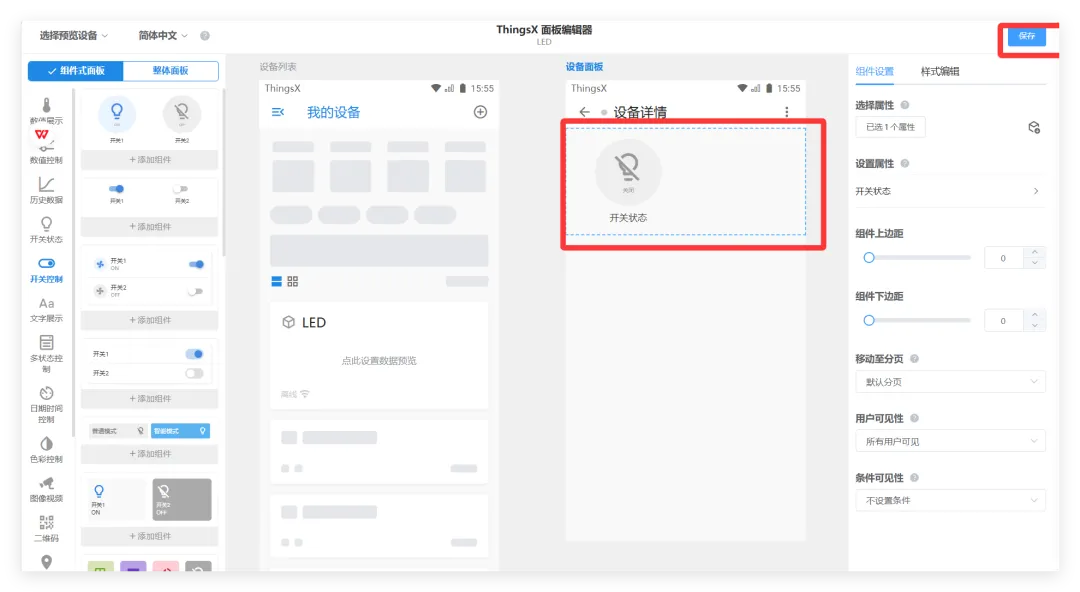

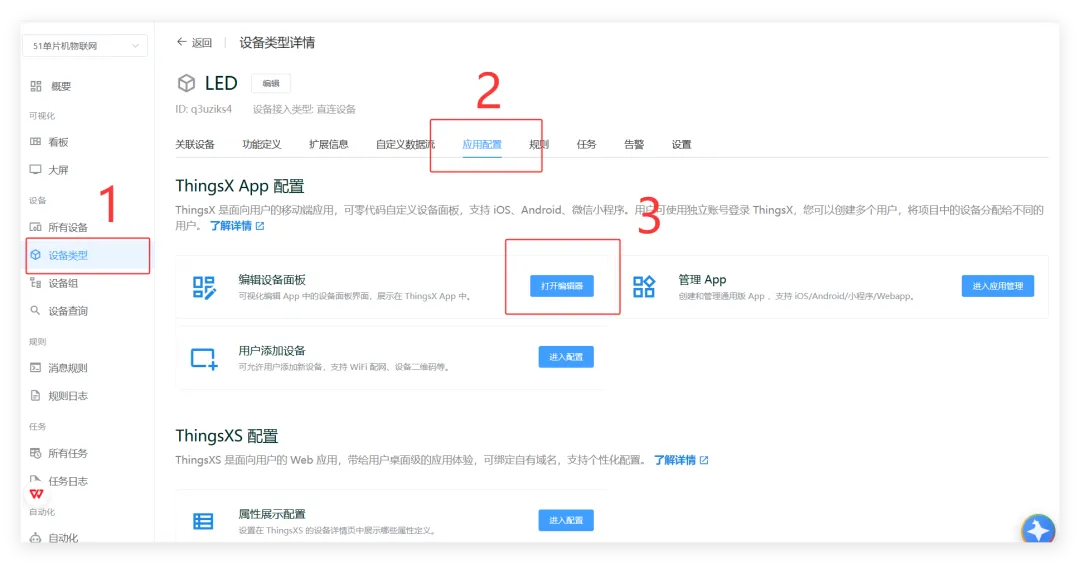

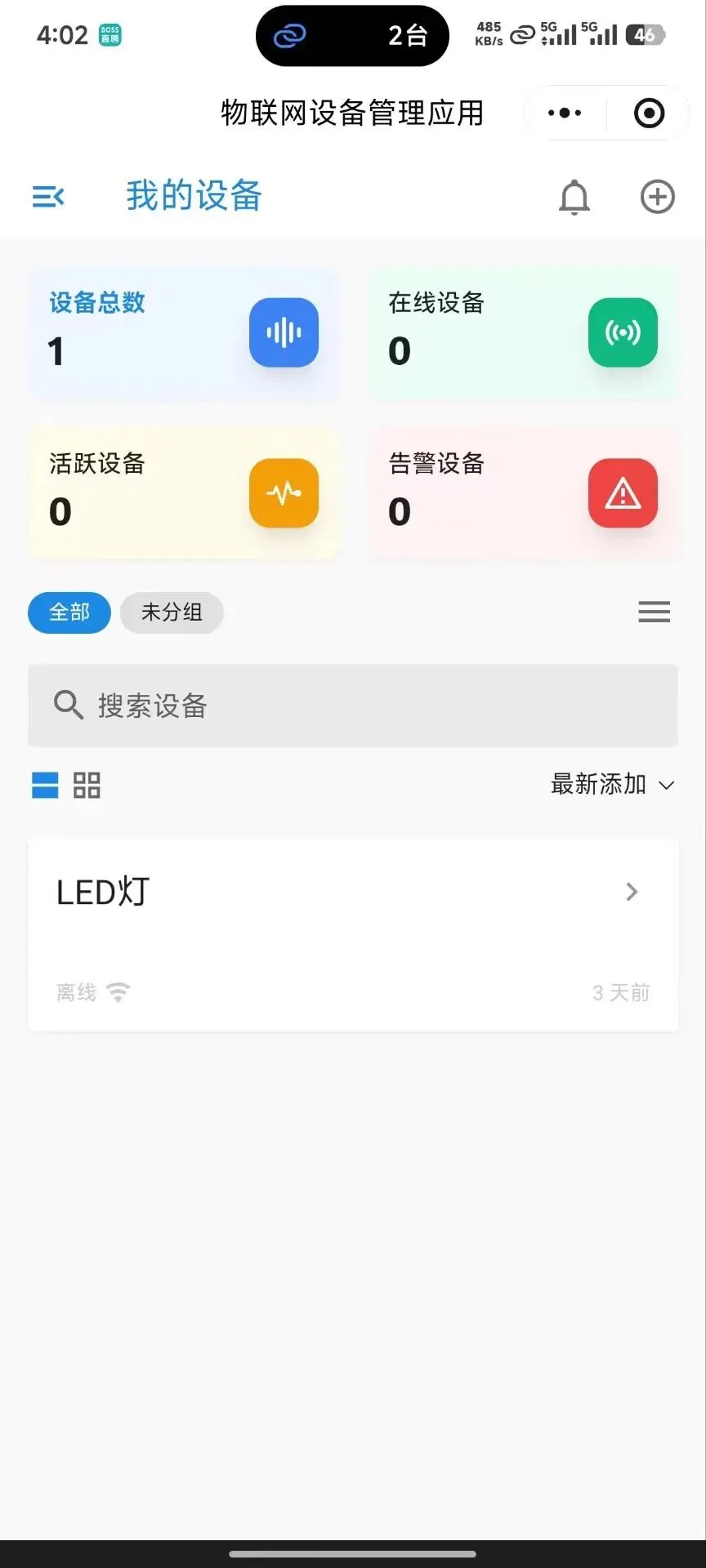

5、APP及微信小程序配置这篇文讲解一下如何通过ThingsCloud物联网平台生成一个手机APP或者微信小程序，从而实现手机端远程控制单片机设备，真正的实现物联网远程控制。点进去之后会进入到APP界面配置阶段，中间蓝色部分就是手机界面显示看到的页面。这里用的是LED灯的开和关，所以在最左边找到开关控制，然后点击添加组件然后看见面板上会出现一个组件，但是是空白的。然后再点击右上角的选择属性，将之前设置的LED灯的开关属性LED01选好，保存确认。然后就能看到这个界面上配置好的东西，如果不满意，还可以选择其他类型的组件，在左边都能看到，最后保存即可。返回配置界面，点击管理APP，然后继续点击设备名称在这里会生成四种你刚才配置好的界面程序，点击后会出现相应的程序下载二维码，可以自行扫码下载。最后控制APP界面就是这样的了，只要之前设置过的都没问题，设备正常启动后，就可以通过这个APP来实现远程控制了。
