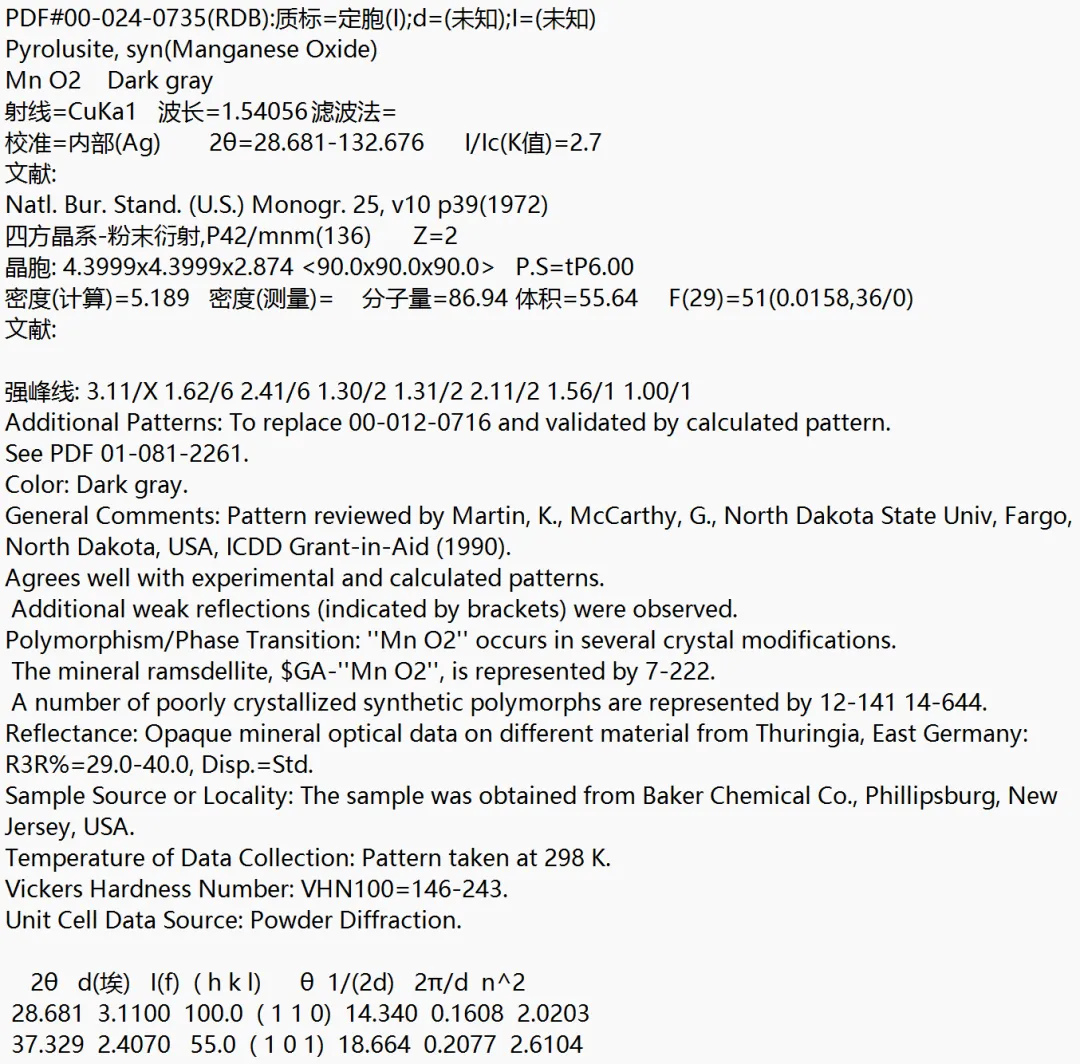

PDF#00-024-0735(RDB):质标=定胞(I);d=(未知);I=(未知)
Pyrolusite, syn(Manganese Oxide)
Mn O2 Dark gray
射线=CuKa1 波长=1.54056 滤波法=
校准=内部(Ag) 2θ=28.681-132.676 I/Ic(K值)=2.7
文献:
Natl. Bur. Stand. (U.S.) Monogr. 25, v10 p39(1972)
四方晶系-粉末衍射,P42/mnm(136) Z=2
晶胞: 4.3999x4.3999x2.874 <90.0x90.0x90.0> P.S=tP6.00
密度(计算)=5.189 密度(测量)= 分子量=86.94 体积=55.64 F(29)=51(0.0158,36/0)
文献:
强峰线: 3.11/X 1.62/6 2.41/6 1.30/2 1.31/2 2.11/2 1.56/1 1.00/1
Additional Patterns: To replace 00-012-0716 and validated by calculated pattern.
See PDF 01-081-2261.
Color: Dark gray.
General Comments: Pattern reviewed by Martin, K., McCarthy, G., North Dakota State Univ, Fargo, North Dakota, USA, ICDD Grant-in-Aid (1990).
Agrees well with experimental and calculated patterns.
Additional weak reflections (indicated by brackets) were observed.
Polymorphism/Phase Transition: ''Mn O2'' occurs in several crystal modifications.
The mineral ramsdellite, $GA-''Mn O2'', is represented by 7-222.
A number of poorly crystallized synthetic polymorphs are represented by 12-141 14-644.
Reflectance: Opaque mineral optical data on different material from Thuringia, East Germany: R3R%=29.0-40.0, Disp.=Std.
Sample Source or Locality: The sample was obtained from Baker Chemical Co., Phillipsburg, New Jersey, USA.
Temperature of Data Collection: Pattern taken at 298 K.
Vickers Hardness Number: VHN100=146-243.
Unit Cell Data Source: Powder Diffraction.

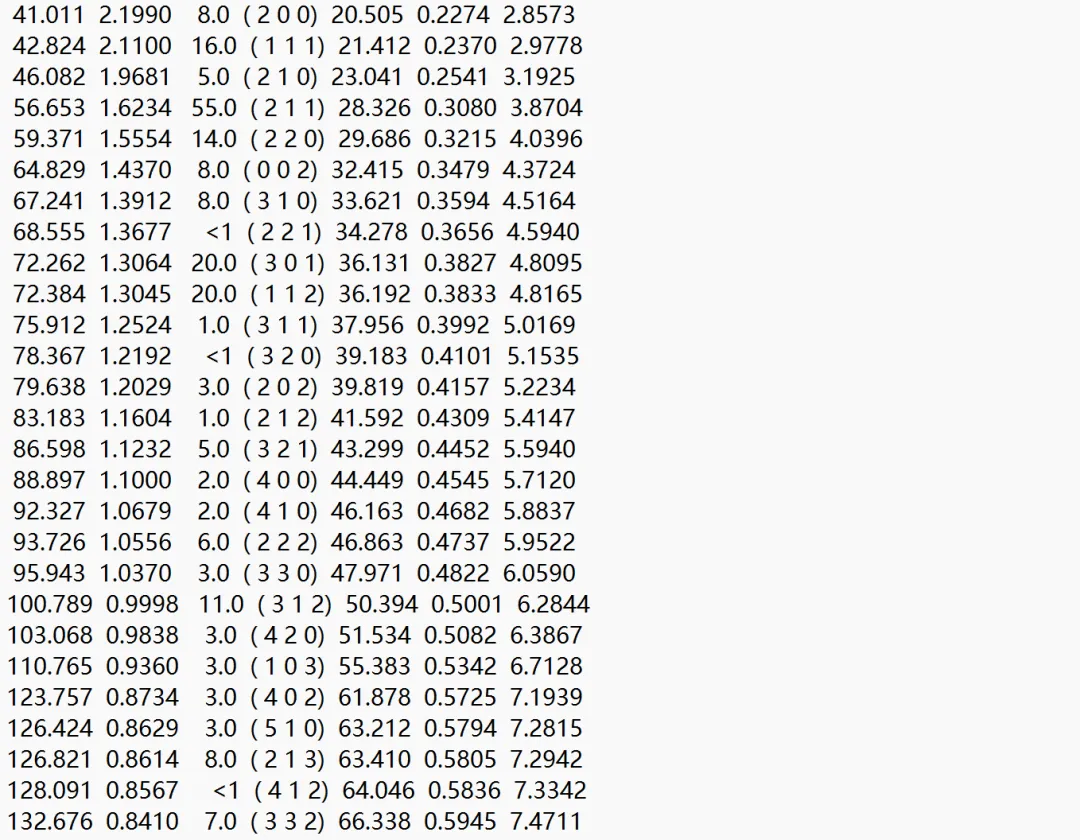

2θ d(埃) I(f) ( h k l) θ 1/(2d) 2π/d n^2
28.681 3.1100 100.0 ( 1 1 0) 14.340 0.1608 2.0203
37.329 2.4070 55.0 ( 1 0 1) 18.664 0.2077 2.6104
41.011 2.1990 8.0 ( 2 0 0) 20.505 0.2274 2.8573
42.824 2.1100 16.0 ( 1 1 1) 21.412 0.2370 2.9778
46.082 1.9681 5.0 ( 2 1 0) 23.041 0.2541 3.1925
56.653 1.6234 55.0 ( 2 1 1) 28.326 0.3080 3.8704
59.371 1.5554 14.0 ( 2 2 0) 29.686 0.3215 4.0396
64.829 1.4370 8.0 ( 0 0 2) 32.415 0.3479 4.3724
67.241 1.3912 8.0 ( 3 1 0) 33.621 0.3594 4.5164
68.555 1.3677 <1 ( 2 2 1) 34.278 0.3656 4.5940
72.262 1.3064 20.0 ( 3 0 1) 36.131 0.3827 4.8095
72.384 1.3045 20.0 ( 1 1 2) 36.192 0.3833 4.8165
75.912 1.2524 1.0 ( 3 1 1) 37.956 0.3992 5.0169
78.367 1.2192 <1 ( 3 2 0) 39.183 0.4101 5.1535
79.638 1.2029 3.0 ( 2 0 2) 39.819 0.4157 5.2234
83.183 1.1604 1.0 ( 2 1 2) 41.592 0.4309 5.4147
86.598 1.1232 5.0 ( 3 2 1) 43.299 0.4452 5.5940
88.897 1.1000 2.0 ( 4 0 0) 44.449 0.4545 5.7120
92.327 1.0679 2.0 ( 4 1 0) 46.163 0.4682 5.8837
93.726 1.0556 6.0 ( 2 2 2) 46.863 0.4737 5.9522
95.943 1.0370 3.0 ( 3 3 0) 47.971 0.4822 6.0590
100.789 0.9998 11.0 ( 3 1 2) 50.394 0.5001 6.2844
103.068 0.9838 3.0 ( 4 2 0) 51.534 0.5082 6.3867
110.765 0.9360 3.0 ( 1 0 3) 55.383 0.5342 6.7128
123.757 0.8734 3.0 ( 4 0 2) 61.878 0.5725 7.1939
126.424 0.8629 3.0 ( 5 1 0) 63.212 0.5794 7.2815
126.821 0.8614 8.0 ( 2 1 3) 63.410 0.5805 7.2942
128.091 0.8567 <1 ( 4 1 2) 64.046 0.5836 7.3342
132.676 0.8410 7.0 ( 3 3 2) 66.338 0.5945 7.4711
