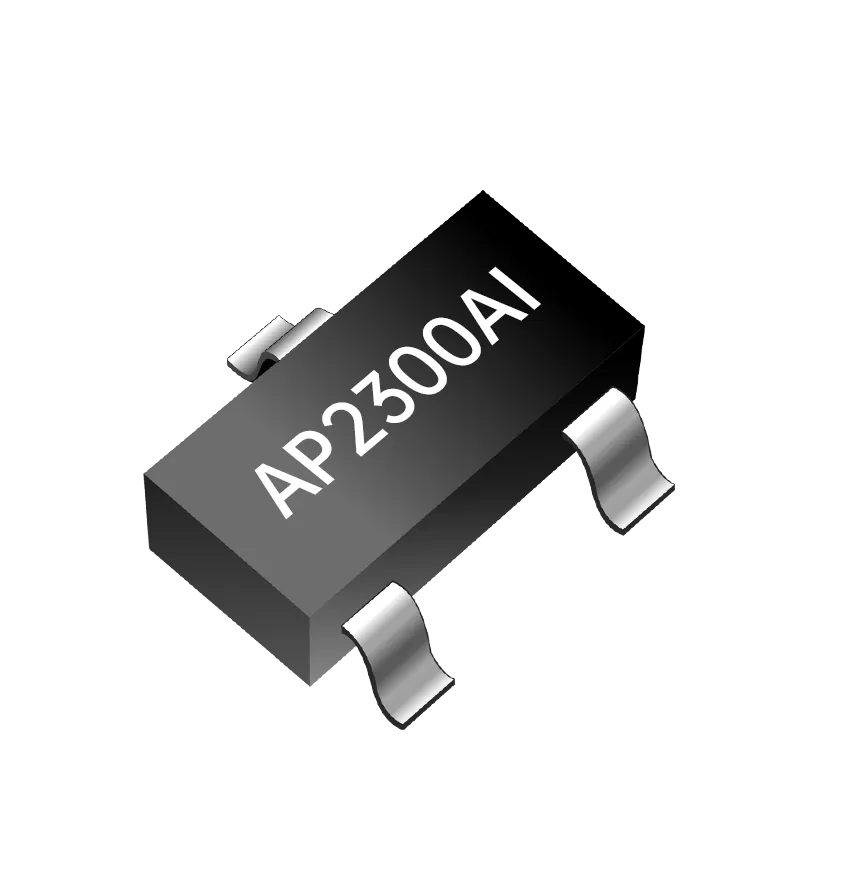

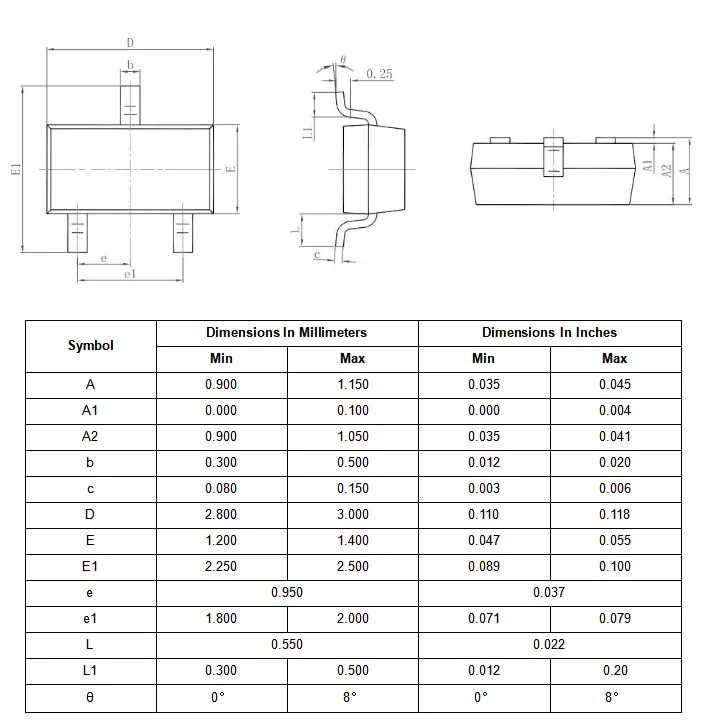

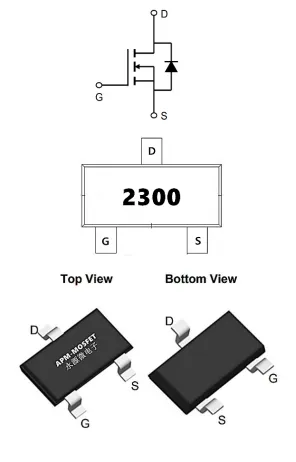

APM永源微品牌授权 AP2300AI 20V N沟道MOS管 耐压20V 电流4.5A 内阻小于30mΩ 封装SOT-23
The AP2300AI uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application.
-

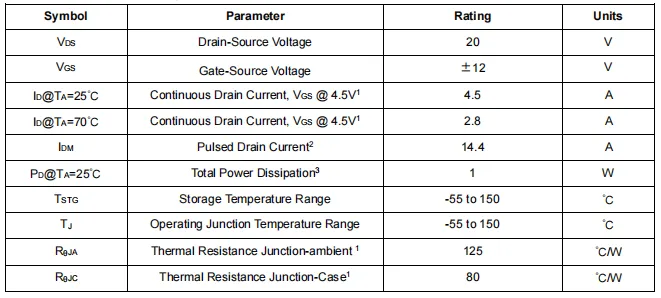

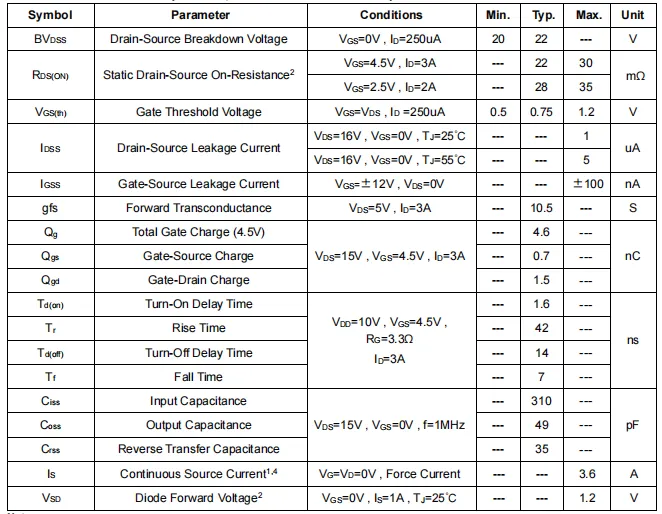

VDS = 20V ID =4.5A
-
RDS(ON) < 30mΩ @ VGS=4.5V （Type：22mΩ）
-
Battery protection
-
Load switch
-
Uninterruptible power supply
