飞享IM送达与已读回执的设计方案说明一、设计要点
- 送达只在单聊界面中显示,群聊不关心送达.那么根据
uid和target就能确定当前用户的单聊界面最后一次消息的送达时间 单聊已读回执,同送达回执原理一样
- 如果用户读取了改群组的最后一条消息,代表这个用户读取所有其他用户发送的消息.即是任意发送消息给该群组的用户可以通过
uid和target来确定该uid用户是否读取了消息 - 对于群组消息的已读回执上报,要上报当前群组会话中,发送消息的用户ID
二、送达回执
- 送达
代表接收到对方发送的消息,这里指拉取到最新的用户消息的时间点
每个用户上报自己最后一次接收消息的时间

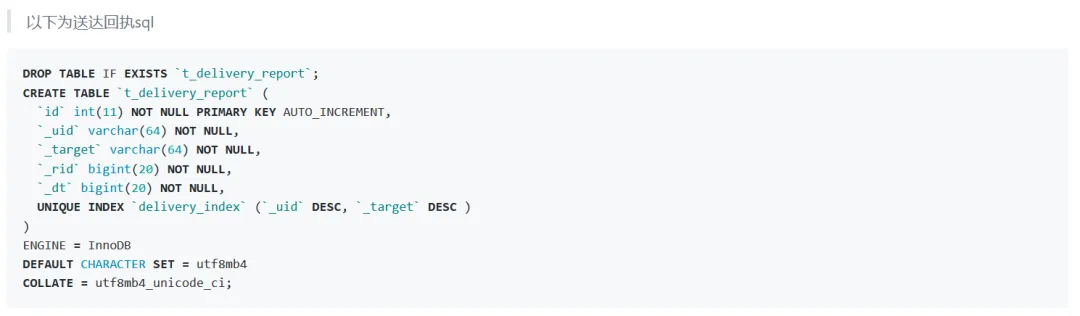

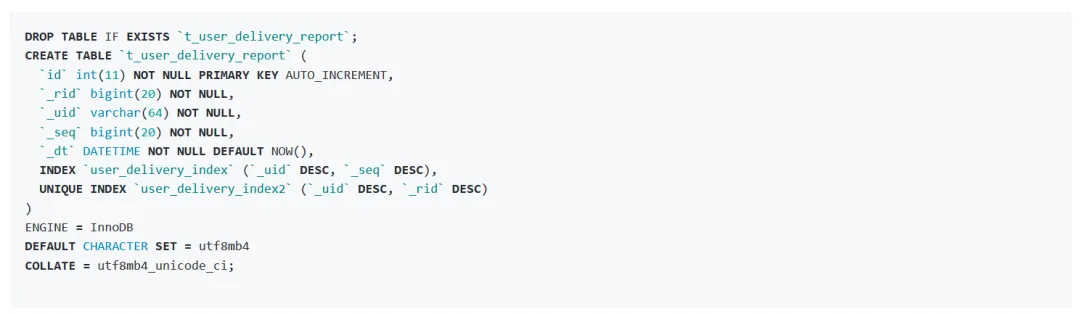

送达回执持久化存储,采用即时推送机制,用户发送送达回执后,推送给发送者当前送达回执seq,发送者根据seq获取最新的送达回执列表. 原理同发送消息的推拉模式。三、已读回执

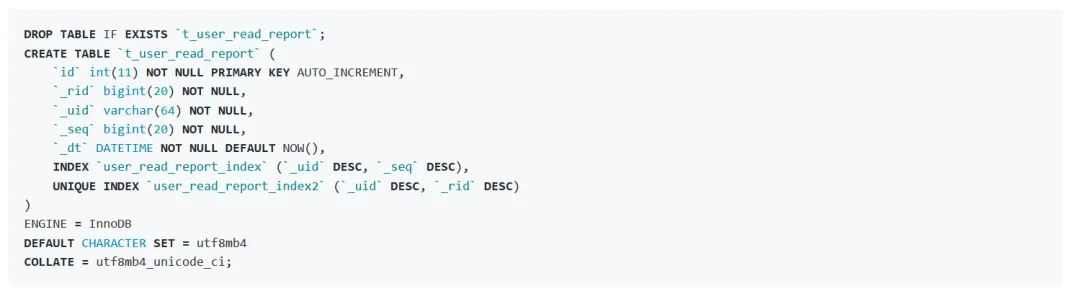

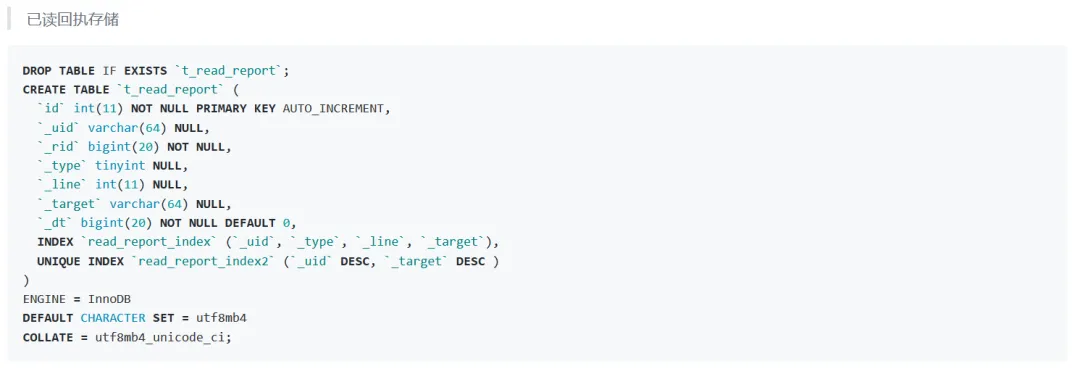

- 已读
已读跟已送达有点区别,送达代表用户已经拉取到对方发来的消息,在收到消息后,上报此时收到新消息的最新时间,这个时间点.就是该用户的接收消息时间点. 由于消息在每个会话中,每个会话都有阅读时间点.用户没有点击这个会话代表用户没有阅读该会话内的消息.如果只上报一条已读消息,无法区分用户到底阅读的是那个会话里面的消息
