VASPKIT模版INCAR笔记

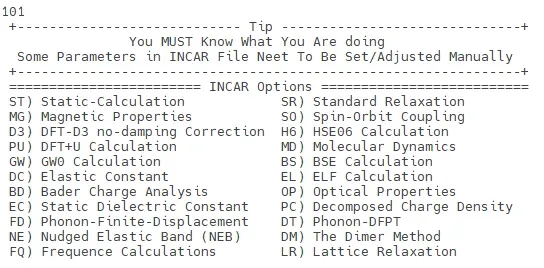

运行 vaspkit ，选择 101 菜单，可按计算类型（静态、弛豫、磁性、HSE06、GW、声子、NEB 等 20 余种）直接生成对应的 INCAR 模板。

运行 vaspkit 102 自动生成 KPOINTS，同时若目录缺少 INCAR 和 POTCAR，也会自动补齐。

生成的 INCAR 已附带注释，按需微调即可使用。

ST) Static-Calculation

静态计算

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)表示如果目录中存在 WAVECAR，则从已有波函数继续计算。0：从头计算，不读取旧波函数。1：读取波函数（常用于收敛加速）。2：读取波函数和电荷密度（主要用于重启）。

ISPIN = 1 (Non-Spin polarised DFT)表示非自旋极化计算（即不考虑磁性）。1：非自旋极化（绝大多数非磁性体系）。2：自旋极化（磁性材料必须设为2）。

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)非自洽计算（NSCF），常用于能带结构计算。11：基于静态电荷密度，只计算能带，不做电荷更新。

LREAL = .FALSE. (Projection operators: automatic)投影算符是否在实空间近似。.AUTO.：自动选择（快但不总是准确）。.FALSE.：完全在倒空间处理，最精确，推荐能带/DOS 时用。

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)平面波截断能（单位 eV），控制基组大小。必须 ≥ POTCAR 里最大 ENMAX，建议取 1.3 × ENMAX。

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)精度控制：Normal：普通精度，速度快。Accurate：高精度，推荐用于结构弛豫和能带计算。

LWAVE = .TRUE. (Write WAVECAR or not)是否写出 WAVECAR（波函数文件），通常设为 .TRUE. 方便后续继续计算。

LCHARG = .TRUE. (Write CHGCAR or not)是否写出 CHGCAR（电荷密度文件），常用于 Bader 分析、后处理。

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)在 FFT 网格中加密辅助网格，改善 GGA 收敛性，推荐开启。

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)是否写出总静电势 (LOCPOT)，常用于表面功函数计算。

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)是否写出离子+Hartree 势（不含交换相关势）。

# NELECT = (No. of electrons: charged cells, be careful)指定体系电子数（常用于带电超胞）。需小心，否则体系总电荷不平衡。

# LPLANE = .TRUE. (Real space distribution, supercells)针对超胞的实空间分布，通常保持默认即可。

# NWRITE = 2 (Medium-level output)输出信息量：1：少量2：中等（常用）3：详细

# KPAR = 2 (Divides k-grid into separate groups)并行化参数，将 k 点分组。大体系可加速。

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)SR

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)FFT 网格点数（x, y, z方向），控制电荷密度/电势的分辨率。默认由 ENCUT 决定，手动设置一般在画电荷密度时用。

Static Calculation

ISMEAR = 0 (gaussian smearing method)smearing 方法（展宽方式）：0：Gaussian 展宽（常用于绝缘体/半导体）。-5：四分之一占据（tetrahedron，最精确，适合 DOS）。1, 2：金属常用（Methfessel-Paxton）。

SIGMA = 0.05 (please check the width of the smearing)smearing 宽度（单位 eV）。对绝缘体取小（0.05 eV）。对金属可大一点（0.1~0.2 eV）。

LORBIT = 11 (PAW radii for projected DOS)投影态密度 (PDOS) 设置。10：只写 DOSCAR。

11：写 DOSCAR + PROCAR，适合做投影DOS。

NEDOS = 2001 (DOSCAR points)DOSCAR 文件中的能量点数。数值越大，DOS 越平滑。

NELM = 60 (Max electronic SCF steps)SCF 最大迭代步数。一般 60 足够。

EDIFF = 1E-08 (SCF energy convergence, in eV)自洽收敛能量精度（eV）。1E-04：结构优化常用。1E-06 ~ 1E-08：高精度能带、DOS计算推荐。

SR) Standard Relaxation 标准弛豫

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Electronic Relaxation

ISMEAR = 0 (Gaussian smearing, metals:1)

SIGMA = 0.05 (Smearing value in eV, metals:0.2)

NELM = 90 (Max electronic SCF steps)

NELMIN = 6 (Min electronic SCF steps)电子自洽最小步数，避免过早收敛。

EDIFF = 1E-08 (SCF energy convergence, in eV)电子自洽能量收敛精度。1E-04：结构优化常用。1E-06 ~ 1E-08：高精度能带/DOS 计算推荐。

# GGA = PS (PBEsol exchange-correlation)指定交换-相关泛函。PS = PBEsol，适合固体晶格常数计算。

Ionic Relaxation

NSW = 100 (Max ionic steps)离子弛豫最大步数。

IBRION = 2 (Algorithm: 0-MD, 1-Quasi-New, 2-CG)离子运动算法。0：分子动力学 (MD)。1：准牛顿法 (RMM-DIIS)。2：共轭梯度 (CG)，常用于弛豫。3：快速最速下降法。

ISIF = 2 (Stress/relaxation: 2-Ions, 3-Shape/Ions/V, 4-Shape/Ions)应力和弛豫控制。2：只弛豫原子位置。3：同时弛豫原子位置 + 晶格形状 + 体积。4：弛豫原子 + 晶格形状（固定体积）。

EDIFFG = -2E-02 (Ionic convergence, eV/AA)离子收敛条件。>0：总能量变化收敛条件。<0：力收敛条件（这里是 -0.02 eV/Å，表示当最大残余力 < 0.02 eV/Å 时停止优化）。

# ISYM = 2 (Symmetry: 0=none, 2=GGA, 3=hybrids)对称性设置。0：不使用对称性。2：GGA 常用默认值。3：混合泛函（如 HSE06）时用。

LR) Lattice Relaxation

晶格弛豫

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Lattice Relaxation

NSW = 300 (number of ionic steps)

ISMEAR = 0 (gaussian smearing method )

SIGMA = 0.05 (please check the width of the smearing)Gaussian 宽度，0.05 eV 比较小，适合非金属体系。

IBRION = 2 (Algorithm: 0-MD, 1-Quasi-New, 2-CG)

ISIF = 3 (optimize atomic coordinates and lattice parameters)

EDIFFG = -1.5E-02 (Ionic convergence, eV/A)

PREC = Accurate (Precision level)

MG) Magnetic Properties 磁性计算

Collinear Magnetic Calculation共线磁性计算

ISPIN = 2 (Spin polarised DFT)开启自旋极化计算，即考虑磁矩。1：非磁性（默认）。2：自旋极化，必须设置初始磁矩（MAGMOM）。

# MAGMOM = (Set this parameters manually)初始磁矩，必须根据原子化学价和经验给定，否则 VASP 可能收敛到非期望解。格式：MAGMOM = N*val ...例如 Fe: MAGMOM = 1*5.0 (表示 Fe 初始磁矩 5 μB)或更复杂：MAGMOM = 2*5.0 2*0.0 (两个 Fe 设 5 μB，两个 O 设 0 μB)如果不给，VASP 会默认 1 μB，可能导致收敛慢或错误解。

LASPH = .TRUE. (Non-spherical elements, d/f convergence)在 PAW 投影中考虑非球对称项，特别重要：对于 d 元素（过渡金属）和 f 元素（稀土/锕系），可以显著改善磁矩和能量收敛。对 s/p 元素影响小。

GGA_COMPAT = .FALSE. (Apply spherical cutoff on gradient field)控制梯度修正的球对称化。.TRUE.：使用旧的近似方法（更快，但对磁性可能不准）。.FALSE.：保留完整的梯度场（推荐，能更好地描述磁矩）。

VOSKOWN = 1 (Enhances the magnetic moments and the magnetic energies)使用 Vosko-Wilk-Nusair 参数化，增强磁矩和磁性能量的计算准确性。常用于磁性体系（铁磁、反铁磁）。

LMAXMIX = 4 (For d elements increase LMAXMIX to 4, f: LMAXMIX = 6)设置电荷密度混合时的球谐展开最大角动量数：2：默认，适合 s/p 元素。4：适合 d 元素（过渡金属）。6：适合 f 元素（稀土/锕系）。

# AMIX = 0.2 (Mixing parameter to control SCF convergence)电荷密度线性混合系数（默认大约 0.4）。数值越小，收敛更稳定但更慢。

# BMIX = 0.0001 (Mixing parameter to control SCF convergence)电荷密度 Broyden 混合参数（影响非线性收敛）。

# AMIX_MAG = 0.4 (Mixing parameter to control SCF convergence)磁矩部分的线性混合系数。数值小可避免磁矩震荡。

# BMIX_MAG = 0.0001 (Mixing parameter to control SCF convergence)磁矩部分的 Broyden 混合参数。

SO) Spin-Orbit Coupling

自旋轨道耦合

Spin-Orbit Coupling Calculation

LSORBIT = .TRUE. (Activate SOC)开启自旋–轨道耦合计算。必须和 ISPIN=2 一起用（体系要考虑自旋自由度）。一旦开启，计算会变成非共线磁性 (noncollinear)，磁矩可以有方向，而不仅仅是 +z 或 -z。

GGA_COMPAT = .FALSE. (Apply spherical cutoff on gradient field)在 SOC 下必须设置为 .FALSE. 才能保证正确性。

VOSKOWN = 1 (Enhances the magnetic moments and the magnetic energies)增强磁矩和磁性能量的计算精度（Vosko–Wilk–Nusair 参数化）。在 SOC 计算中依旧推荐保持开启。

LMAXMIX = 4 (For d elements increase LMAXMIX to 4, f: LMAXMIX = 6)混合电荷时的球谐展开角动量上限：4 → d 元素；6 → f 元素。SOC 对 d/f 元素影响很大，所以必须设高一点。

ISYM = -1 (Switch symmetry off)关闭对称性。SOC 计算中，晶格对称性往往会与磁矩方向冲突，必须完全关闭对称性。否则 VASP 可能强制磁矩回到高对称方向，导致结果错误。

# SAXIS = 0 0 1 (Direction of the magnetic field)定义全局磁化方向（外部磁场方向）。格式：SAXIS = x y z（单位向量）。例：0 0 1 表示 z 方向，1 0 0 表示 x 方向。

# MAGMOM = 0 0 3 (Set this parameters manually, Local magnetic moment parallel to SAXIS, 3*NIONS*1.0 for non-collinear magnetic systems)指定每个原子的初始磁矩方向和大小。在 SOC 下，必须给三分量：mx my mz。例如：MAGMOM = 0 0 3 表示磁矩初始沿 z 方向，大小约 3 μB。格式通常是 MAGMOM = N*(mx my mz)，N 为原子数。注释里提到 3*NIONS*1.0，意思是如果有 N 个原子，就给 3N 个数，每个原子一个三分量。

# NBANDS = (Set this parameters manually, 2 * number of bands of collinear-run)手动设置能带数。SOC 会使能带数加倍（每个自旋态分裂）。一般取为两倍的无 SOC 计算中 NBANDS。如果不设，VASP 会自动加倍，但可能不够，尤其在金属体系中会影响收敛。

D3) DFT-D3 no-damping Correction 色散修正

DFT-D3 Correction

IVDW = 11 (DFT-D3 method of method with no damping)IVDW = 0 → 不考虑色散相互作用（默认）。IVDW = 11 → DFT-D3 方法（Grimme D3），无阻尼 (zero damping)。IVDW = 12 → DFT-D3 方法，带 Becke-Johnson (BJ) 阻尼（通常更推荐，尤其是固体）。IVDW = 202 → DFT-D4 方法（更新版本，适合有机体系/金属有机骨架）。

PU) DFT+U Calculation DFT+U 修正

DFT+U Calculation

LDAU = .TRUE. (Activate DFT+U)开启 DFT+U 修正（在常规 DFT 基础上引入 Hubbard U 项）。主要用于过渡金属氧化物、f 元素体系（如稀土、锕系），因为普通 GGA/LDA 对强关联系统常低估带隙、磁矩。

LDATYPE= 2 (Dudarev, only U-J matters)选择 DFT+U 的具体方法：1 → Liechtenstein 方法（U 和 J 分开，E = U − J）。2 → Dudarev 简化方法（只依赖有效 U_eff = U − J）。这里取 2 → 表示使用 Dudarev 方法，更常见更简洁。

LDAUL = 2 -1 (Orbitals for each species)指定哪些轨道施加 U：轨道编号规则：-1=不加U, 0=s, 1=p, 2=d, 3=f。这里有两个元素：第 1 个元素 → 2 → 对 d 轨道施加 U；第 2 个元素 → -1 → 不施加 U。

LDAUU = 2 0 (U for each species)设置每个元素的 U 值（单位 eV）。第 1 个元素 → U = 2 eV；第 2 个元素 → U = 0（即不加 U）。

LDAUJ = 0 0 (J for each species)设置每个元素的 J 值。因为 LDATYPE = 2（Dudarev），这里 J 值不会单独用到，只是形式上写上。

LMAXMIX= 4 (Mixing cut-off, 4-d, 6-f)控制电荷密度混合时的最大角动量数：对 d 元素 → 建议设为 4；对 f 元素 → 建议设为 6。否则可能导致电荷密度收敛不良。

H6) HSE06 Calculation HSE06计算（混合泛函）

HSE06 Calculation

LHFCALC= .TRUE. (Activate HF)打开 Hartree–Fock (HF) 精确交换计算。如果不开这个，计算就是普通的 GGA/PBE。

AEXX = 0.25 (25% HF exact exchange, adjusted this value to reproduce experimental band gap)设置确切交换（Exact Exchange, EXX）所占比例。HSE06 标准取值 = 0.25 (即 25% HF 交换 + 75% GGA/PBE 交换)。这个比例可以调节：例如为了拟合实验带隙，可以略微调整。

HFSCREEN= 0.2 (Switch to screened exchange, e.g. HSE06)设定交换作用的屏蔽参数，决定 HF 交换作用的作用范围：HFSCREEN = 0.2 → 代表 HSE06（短程 HF + 长程 PBE）。HFSCREEN = 0.0 → 代表 PBE0（全程 HF + PBE）。 HSE06 相比 PBE0 计算更快，适合周期性固体体系。

ALGO = ALL (Electronic Minimisation Algorithm, ALGO=58)指定电子结构最小化算法。ALGO = ALL 是混合泛函计算推荐的稳定算法（内部等价于 ALGO = 58）。普通 GGA/PBE 中常用 Fast 或 Normal，但对 HF 交换不稳定，所以换用 ALL。

TIME = 0.4 (Timestep for IALGO5X)和 ALGO = ALL 相关的收敛控制参数。实际上是 IALGO = 5X 家族算法的时间步长。太大 → 不收敛，太小 → 计算效率低。

PRECFOCK= N (HF FFT grid)设置 HF 交换积分的 FFT 精度（和普通 PREC 不同）：N = Norma;lF = Fast;A = Accurate;一般 Normal 就够，除非体系非常复杂（比如 f 元素、精细能带）。

# NKRED = 2 (Reduce k-grid-even only, see also NKREDX, NKREDY and NKREDZ)在 HF 计算中可对 k 网格稀疏化，只在偶数分区下有效（如 2,4,8）。目的是减少计算量。但结果会有轻微差异，所以精度与效率需要平衡。

# HFLMAX = 4 (HF cut-off: 4d, 6f)HF 投影到的最大角动量：d 元素设 4；f 元素设 6。这类似前面 LMAXMIX 的逻辑。

# LDIAG = .TRUE. (Diagnolise Eigenvalues)是否对 HF 交换矩阵进行对角化。默认通常自动选择。如果收敛不好，可以显式设 .TRUE.。

GW) GW0 Calculation GW0计算

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

step2

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

Obtain DFT Virtual Orbitals

ALGO = EXX

LOPTICS = .TRUE.

NELM = 1

NEDOS = 2000

NBANDS = (Set this parameters manually, 50-100 per atom)

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

step3

GW Calculation including LWANNIER90 TAG

ALGO = GW0

LSPECTRAL = .TRUE.

NOMEGA = 60

NEDOS = 2000

NELM = 1 (1-G0W0, 4-GW0)

NBANDS = (Take the same number of bands in the previous step)

# LWANNIER90 =.TRUE. (Switches on the interface between VASP and WANNIER90)

BS) BSE Calculation Bethe–Salpeter方程计算

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

EL) ELF Calculation 电子局域化函数

Electron Localization Function

ISTART = 1 (Read existing wavefunction, if there)表示读取已有的 WAVECAR 文件中的波函数作为起始输入（如果存在）。对 ELF 计算来说，这样可以避免重新自洽计算，直接在收敛的波函数基础上生成 ELF 分布，更高效。

LELF = .TRUE. (Activate ELF)打开 ELF（Electron Localization Function）计算功能。

OP) Optical Properties 光学性质

Optical properties

ALGO = Exact选择 Exact Diagonalization 算法来求解电子态。在光学计算中需要高精度的本征值和波函数，因此通常不用快速近似算法，而采用精确对角化

NBANDS = (Set this parameters manually)指定计算所需的能带数（空带数量必须足够多）。

光学性质（介电函数、吸收谱等）涉及价带 → 导带的跃迁，因此必须设置 NBANDS 比默认更多。一般经验：至少是占据态带数的 2~3 倍，否则光学谱会截断或不准确。

LOPTICS = .TRUE.打开光学性质计算功能。VASP 会在收敛的波函数基础上计算介电函数（ε1 和 ε2），以及由此推导的折射率、吸收系数、能量损耗谱等。输出结果写入 OUTCAR 和 vasprun.xml，可进一步用脚本提取或用 VASPKIT 处理。

CSHIFT = 0.100给能量加一个小的虚部（单位：eV）。作用：模拟有限寿命效应，使 δ 函数峰变成 Lorentzian 展宽。避免光学谱中出现尖锐的 δ 峰。一般 0.05 ~ 0.1 eV 是常用范围。

NEDOS = 2000指定光学谱的能量分辨率（点数）。数值越大，谱线越光滑精细。2000 属于高分辨率（比通常态密度计算常用的 1000 更精细）。

ISMEAR = 0

SIGMA = 0.01

EDIFF = 1.E-8

# LPEAD = .TRUE. (Write the derivative of the cell-periodic part of the orbitals)默认关闭。打开后，VASP 会计算并输出 cell-periodic 部分轨道的导数。在某些高阶光学性质（如二阶极化率、非线性光学）计算中必须启用。常规的线性介电函数计算通常不需要。

PC) Decomposed Charge Density 分波电荷密度

Decomposed Charge Density

ISTART = 1 (Job: 0-new 1-cont 2-samecut)从已有波函数（WAVECAR）继续计算。对分解电荷计算来说，一般先做完自洽计算，再用收敛好的波函数做静态计算，因此要用 ISTART=1。

ICHARG = 1 (Read charge: 1-file 2-atom 10-const)取已有电荷密度文件（CHGCAR）。这样避免重新自洽，只做一次非自洽（NSCF）计算来分析态分布。

LPARD = .TRUE. (Activate decomposed charge density)激活分解电荷密度（partial charge density）输出功能。输出文件为 PARCHG（或分解文件 PARCHG.nk、PARCHG.nb）。

LSEPB = .TRUE. (Separately write PARCHG.nb by every band or not)是否按照能带 band 单独输出 PARCHG.nb 文件。每个指定 band 都会生成一个文件，便于逐一分析。

LSEPK = .TRUE. (Separately write PARCHG.nk by every kpoint or not)是否按照 k 点 k-point 单独输出 PARCHG.nk 文件。每个指定 k 点都会输出对应的分解电荷文件。

Method I: Partial Charge for the specified BANDS and KPOINTS

IBAND = 20 21 22 23 (Set this parameters manually)

KPUSE = 1 2 3 4 (Set this parameters manually)

# Method II: Partial Charge in the energy rang of [-10.3 -5.1]

# EINT = -10.3 -5.1 (Set this parameters manually)

# Method III: Partial Charge in the energy rang of [EF-1 -EF]

# NBMOD=-3

# EINT = -1 (Set this parameters manually)

*********** Notes *************

(1) Copy IBZKPT as KPOINTS for static calculation,

(2) Band structure calculation.

MD) Molecular Dynamics

分子动力学

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

Molecular Dynamics

IBRION = 0 (Activate MD)

NSW = 100 (Max ionic steps)

EDIFFG = -1E-02 (Ionic convergence, eV/A)

POTIM = 1 (Timestep in fs)时间步长，单位是飞秒 (fs)。对 MD 来说，这是每一步原子运动的时间跨度。典型值 1–2 fs，太大会导致积分不稳定，太小则计算太慢。

SMASS = 0 (MD Algorithm: -3-microcanonical ensemble, 0-canonical ensemble)控制离子温度控制算法（thermostat）。取值含义：-3 → 微正则系综 (NVE)，能量守恒，不控温。0 → 正则系综 (NVT)，使用 Nosé-Hoover thermostat 控温。>0 → 控温强度参数，值越大温度变化越慢。

# TEBEG = 100 (Start temperature K)初始温度，单位 K。若不指定，则使用前一步或默认值。常用于升温模拟，比如从 100 K 升到 1000 K。

# TEEND = 100 (Final temperature K)结束温度，单位 K。和 TEBEG 搭配 → 可以实现加热或冷却过程。例如 TEBEG=300, TEEND=1000 → 升温。

# MDALGO = 1 (Andersen Thermostat)控制 thermostat 算法。1 → Andersen thermostat。默认是 Nosé-Hoover thermostat。Andersen thermostat 更适合采样正则分布，但会随机扰动原子速度

# ISYM = 0 (Switch symmetry off)

NWRITE = 0 (For long MD-runs use NWRITE=0 or NWRITE=1)控制输出详细程度。对长时间 MD 计算，设为 0 或 1 可以减少输出文件大小，提高效率。

NE) Nudged Elastic Band (NEB)

NEB方法

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Budged Elastic Band (NEB)

IMAGES = 5 (no. of images excluding two endpoints, set a NEB run no. of nodes, must be dividable by no. of images. each group of nodes works on one image. PLEASE CHANGE IT TO YOUR CHOICE NEBMAKE.PL)表示插入的中间镜像数（不包括初末态）。实际计算中会有 IMAGES + 2 个结构（初态和末态各 1 个，中间 5 个），即一共 7 个构型。NEB 脚本（如 nebmake.pl）会根据初末态自动生成这几个镜像。

NSW = 500 (number of ionic steps)

ISMEAR = 0 (gaussian smearing method)

SIGMA = 0.05 (please check the width of the smearing)

IBRION = 3 (do MD with a zero time step)

POTIM = 0 (Zero time step so that VASP does not move the ions)

SPRING = -5.0 (spring force (eV/A2) between images)

LCLIMB = .TRUE. (turn on the climbing image algorithm)

ICHAIN = 0 (Indicates which method to run. NEB (ICHAIN=0) is the default)

IOPT = 1 (LBFGS = Limited-memory Broyden-Fletcher-Goldfarb-Shanno)控制优化算法。1 → LBFGS (Limited-memory Broyden-Fletcher-Goldfarb-Shanno)，是一种拟牛顿法，适合 NEB 路径优化。其他常见取值：2 → Conjugate Gradient (CG)。3 → Quick-Min。

DM) Dimer Method

二聚体方法（过渡态搜索）

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

The dimer method

NSW = 500 (number of ionic steps)

ISMEAR = 0 (gaussian smearing method )

SIGMA = 0.05 (please check the width of the smearing)

IBRION = 3 (do MD with a zero time step)

POTIM = 0 (Zero time step so that VASP does not move the ions)

ICHAIN = 2 (Use the dimer method required for the latest code)

DdR = 0.005 (The dimer separation, twice the distance between images)dimer 分离距离，单位 Å。实际上就是两个“像”之间的间隔（dimer = 2 个结构）。设置过大会影响精度，过小会增加噪声。0.005 Å 是常见合理值。

DRotMax = 1 (Maximum number of rotation steps per translation step)每个平移步骤中允许的最大旋转步数。dimer 在搜索过程中会不断旋转以找到不稳定方向。值太小可能导致方向没找准，太大则计算量增加。

DFNMin = 0.01 (Magnitude of the rotational force below which the dimer is not rotated)旋转力阈值（下限）。当旋转力小于该值时，不再旋转 dimer，认为已经找到主导不稳定模式。

DFNMax = 1.0 (Magnitude of the rotational force below which dimer rotation stops)旋转力阈值（上限）。当旋转力大于该值时，旋转停止（避免过度迭代）。

IOPT = 2 (CG = Conjugate Gradient)

FQ) Frequency Calculations

振动频率计算

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Frequence Calculations

NSW = 1 (number of ionic steps. Make it odd.)

ISMEAR = 0 (gaussian smearing method)

SIGMA = 0.05 (please check the width of the smearing)

IBRION = 5 (frequence calculation)

POTIM = 0.02 (displacement step)

DC) Elastic Constant

弹性常数

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Elastic constants Calculation

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

IBRION = 6 (Determine the Hessian matrix)

NFREE = 2 (How many displacements are used for each direction, 2-4)

ISIF = 3 (Stress/relaxation: 3-Shape/Ions/V)

NSW = 1 (Max ionic steps)

PREC = High (High level)

# ENCUT = 700 (1.3 ~ 1.5 * default cutoff, need to check convergence)

BD) Bader Charge Analysis Bader 电荷分析

Bader Charge Analysis

LAECHG = .TRUE. (Write core charge into CHGCAR file)

LCHARG = .TRUE. (Write CHGCAR file)

（主要依赖 CHGCAR 输出，用 bader 程序分析，INCAR 无特殊要求）

EC) Static Dielectric Constant

静态介电常数

Global Parameters

ISTART = 1 (Read existing wavefunction, if there)

ISPIN = 1 (Non-Spin polarised DFT)

# ICHARG = 11 (Non-self-consistent: GGA/LDA band structures)

LREAL = .FALSE. (Projection operators: automatic)

# ENCUT = 400 (Cut-off energy for plane wave basis set, in eV)

# PREC = Accurate (Precision level: Normal or Accurate, set Accurate when perform structure lattice relaxation calculation)

LWAVE = .TRUE. (Write WAVECAR or not)

LCHARG = .TRUE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

# LVTOT = .TRUE. (Write total electrostatic potential into LOCPOT or not)

# LVHAR = .TRUE. (Write ionic + Hartree electrostatic potential into LOCPOT or not)

# NELECT = (No. of electrons: charged cells, be careful)

# LPLANE = .TRUE. (Real space distribution, supercells)

# NWRITE = 2 (Medium-level output)

# KPAR = 2 (Divides k-grid into separate groups)

# NGXF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGYF = 300 (FFT grid mesh density for nice charge/potential plots)

# NGZF = 300 (FFT grid mesh density for nice charge/potential plots)

Electronic Relaxation

ISMEAR = 0

SIGMA = 0.05

EDIFF = 1E-08

LEPSILON = .TRUE. (Determined by density functional perturbation theory)

# LCALCEPS = .TRUE. (OR Determined by self-consistent response of the system to a finite electric field)

LPEAD = .TRUE. (Determined derivative of the cell-periodic part of the orbitals using finite differences)

FD) Phonon-Finite-Displacement

声子有限位移法

ISMEAR = 0 (Gaussian smearing)

SIGMA = 0.01 (Smearing value in eV)

IBRION = -1 (Ions are not moved)

EDIFF = 1E-08 (SCF energy convergence, in eV)

PREC = Accurate (Precision level)

# ENCUT = 500 (Cut-off energy for plane wave basis set, in eV)

IALGO = 38 (Davidson block iteration scheme)

LREAL = .FALSE. (Projection operators: false)

LWAVE = .FLASE. (Write WAVECAR or not)

LCHARG = .FLASE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

DT) Phonon-DFPT 声子密度泛函微扰理论

ISMEAR = 0 (Gaussian smearing)

SIGMA = 0.05 (Smearing value in eV)

IBRION = 8 (determines the Hessian matrix using DFPT)

EDIFF = 1E-08 (SCF energy convergence, in eV)

PREC = Accurate (Precision level)

# ENCUT = 500 (Cut-off energy for plane wave basis set, in eV)

IALGO = 38 (Davidson block iteration scheme)

LREAL = .FALSE. (Projection operators: false)

LWAVE = .FLASE. (Write WAVECAR or not)

LCHARG = .FLASE. (Write CHGCAR or not)

ADDGRID= .TRUE. (Increase grid, helps GGA convergence)

本公众号不定期发布有关DFT计算相关内容，主题多变且不固定。

欢迎分享本公众号推送，将教程与经验传播给需要的人。

如对教程内容有疑问，或者有需要咨询，可后台留言或微信联系作者：hn_87165

公众号已开启AI机器人，可直接进行对话，获取基于已有文章内容的回复。

同时如想加入公众号交流群，也可添加作者并说明。

或扫描二维码添加

加交流群请主动说明：所在单位研究方向

最后，如果您有DFT计算相关经验，愿意写相关的教程，也可以联系作者投稿。

愿有所成

引喻失义妄自菲薄
