Excel教程:面积图正负值分不清?用颜色区分,让你的图表更专业!

当前时间： 1970-01-01 08:00:00 分类：办公文件 评论(0)
Excel教程:面积图正负值分不清?用颜色区分,让你的图表更专业!

点击【开通SVIP会员免费学】

今天小编教大家在面积图中用不同的颜色来区分正负值，效果如下图所示，这是某地三月份的气温变化，当气温高于零度时用红色来表示，低于零度时用绿色来表示，是不是感觉格外的醒目呢？好了，赶紧跟着小编一起来学习一下吧。

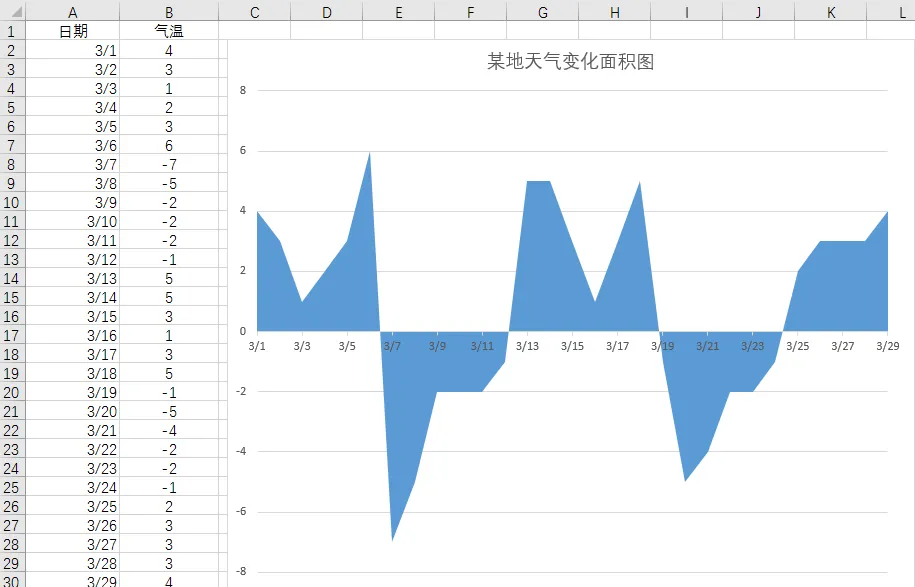

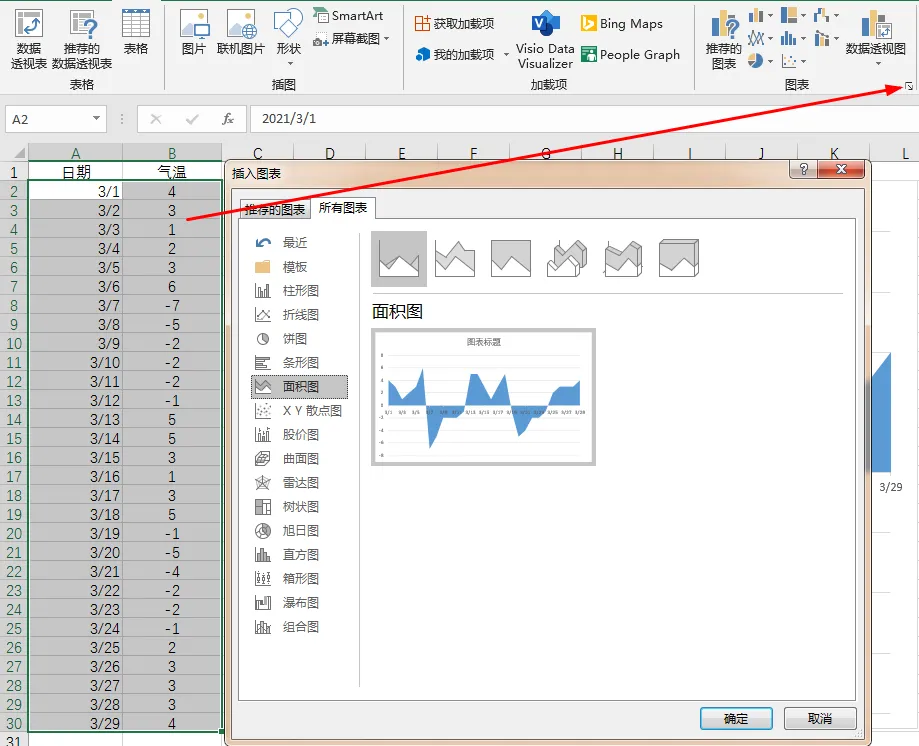

首先我们选中原始数据，点击图表中的面积图，生成一个普通的面积图，如下图所示。

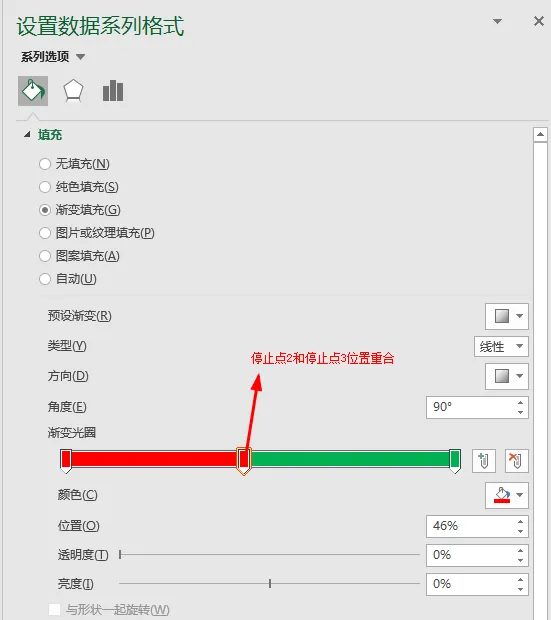

接下来，点击面积图，设置数据系列格式，弹出设置数据系列格式面板，找到填充折叠菜单，选择渐变填充，如下图所示，渐变类型为“线性”，渐变方向选择90度（上下垂直渐变），如下图所示。
在渐变光圈上添加四个停止点，其中第一个和第四个位置分别为0%和100%，颜色分别为红色和绿色，第二个和第三个停止点位置均为46%（计算公式为：温度值最大正值/(温度值最大正值+温度值最小负值绝对值)），颜色分别为红色和绿色，设置完如下图所示。
完成以上设置，就实现了我们文章开头的效果，是不是很简单？赶紧试试吧！
