使用Modbus Poll软件读取TJ-SR131称重拉力传感器的方法

当前时间： 2026-04-10 17:21:01 分类：办公文件 评论(0)
使用Modbus Poll软件读取TJ-SR131称重拉力传感器的方法

TJ-SR131 称重拉力传感器是数字量传感器，无需标定，即可达到0.3%F.S的测量精度。可以广泛应用于实验室、工业生产、机器人、农业果实称重等领域。

传感器采用标准Modbus RTU通讯规约，接口UART和RS485可选，供电电压最高24VDC。

传感器默认设备地址0x01，默认波特率115200，8N1。

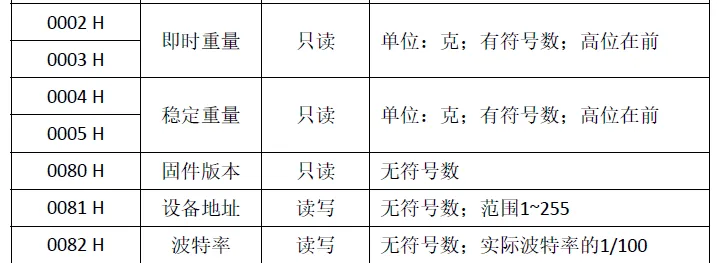

传感器寄存器地址如下：

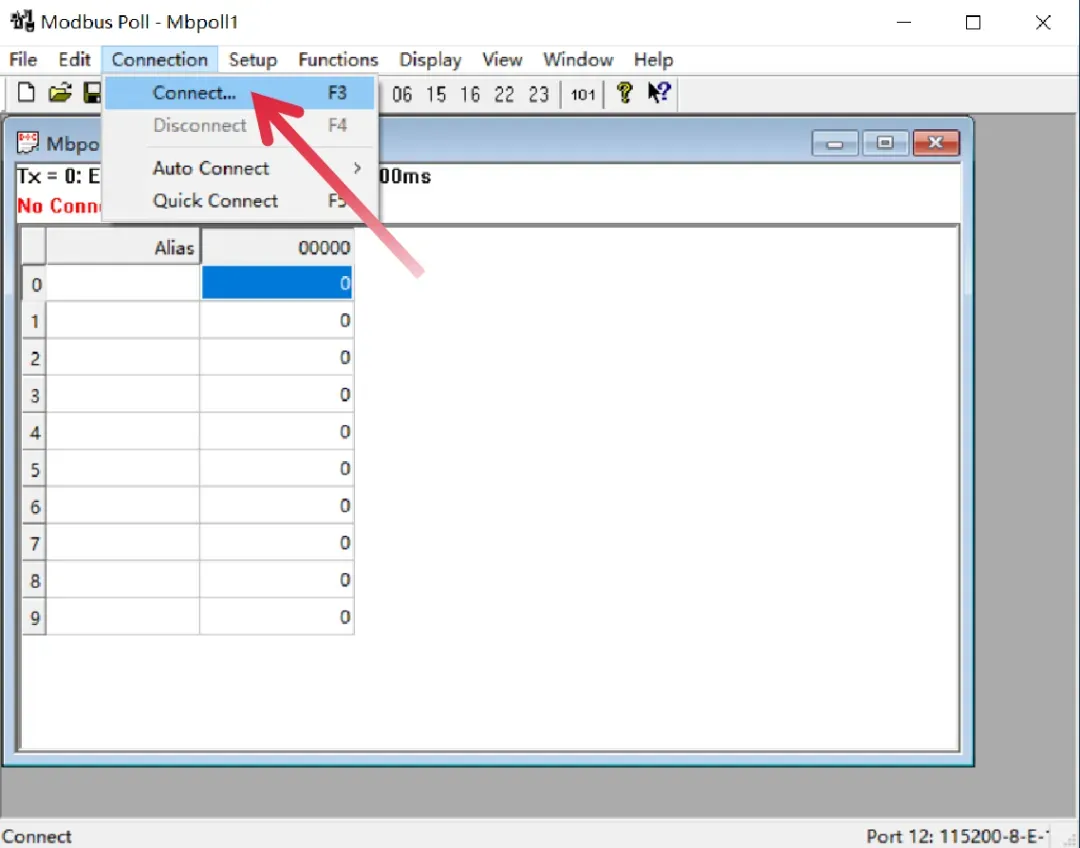

一、运行Modbus Poll软件，点击Connection ➡︎ Connect。

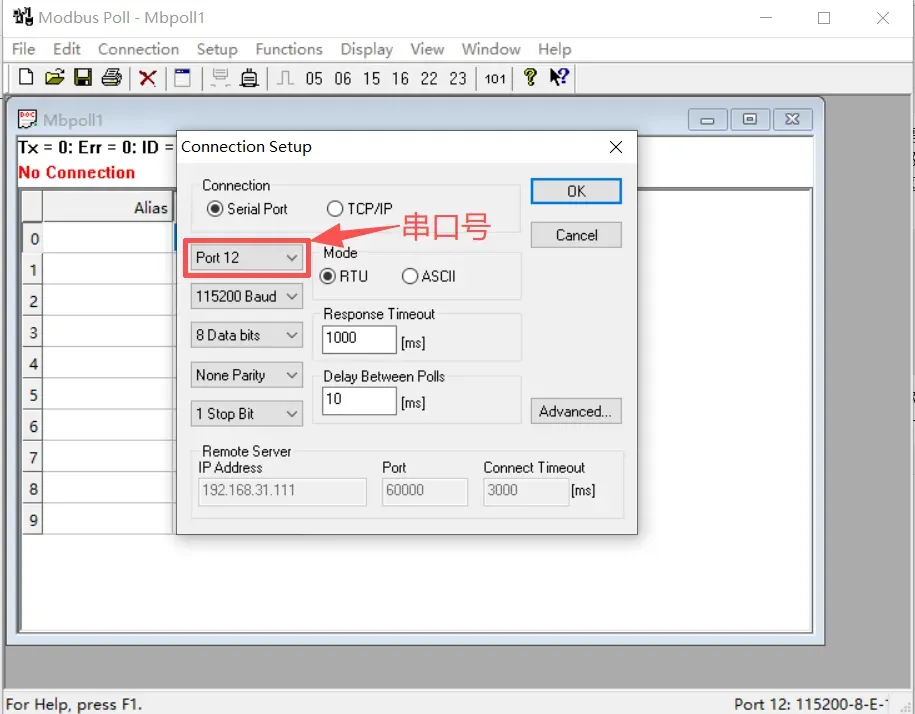

二、在打开的Connection Setup窗口中配置通讯参数。
串口号需要根据实际情况选择，其它参数按照传感器参数设置，即波特率115200，8位数据位，无校验位，1位停止位。

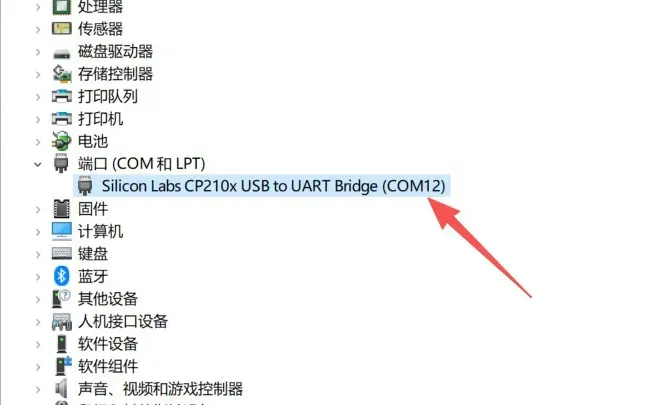

如果不确定串口号，可以打开设备管理器查看。

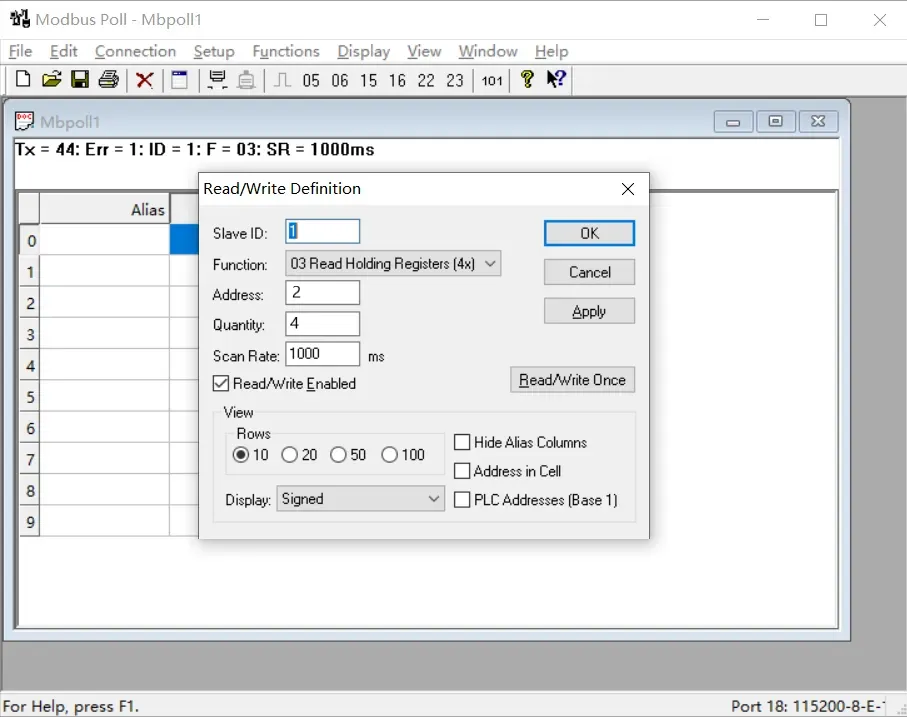

三、点击工具栏“Write/Read Definition”图标
打开Write/Read Definition窗口，填入需要读写的寄存器地址和长度等参数。

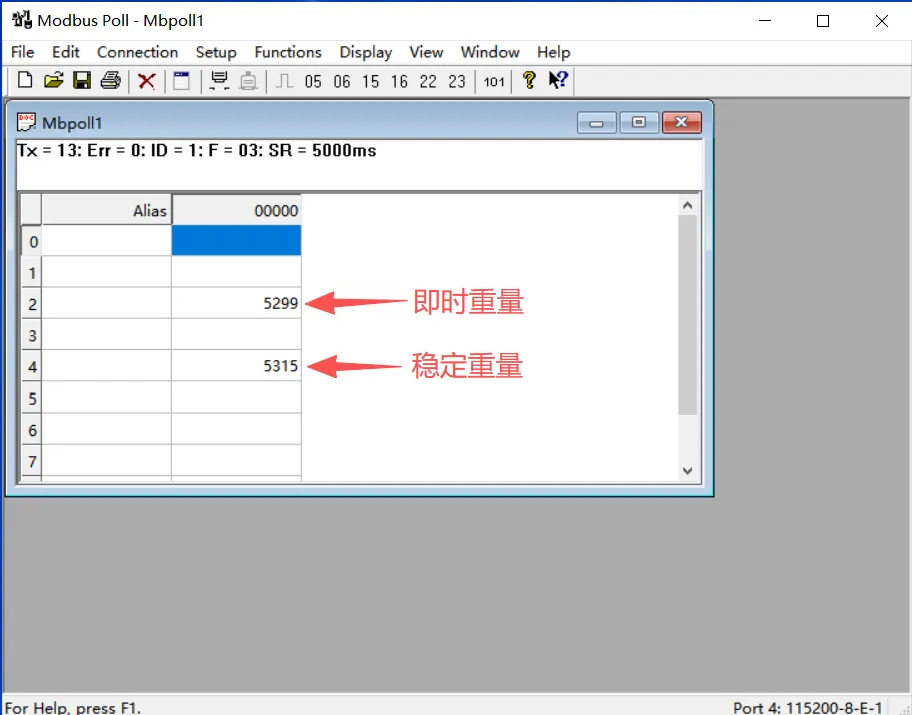

四、查看传感器数值

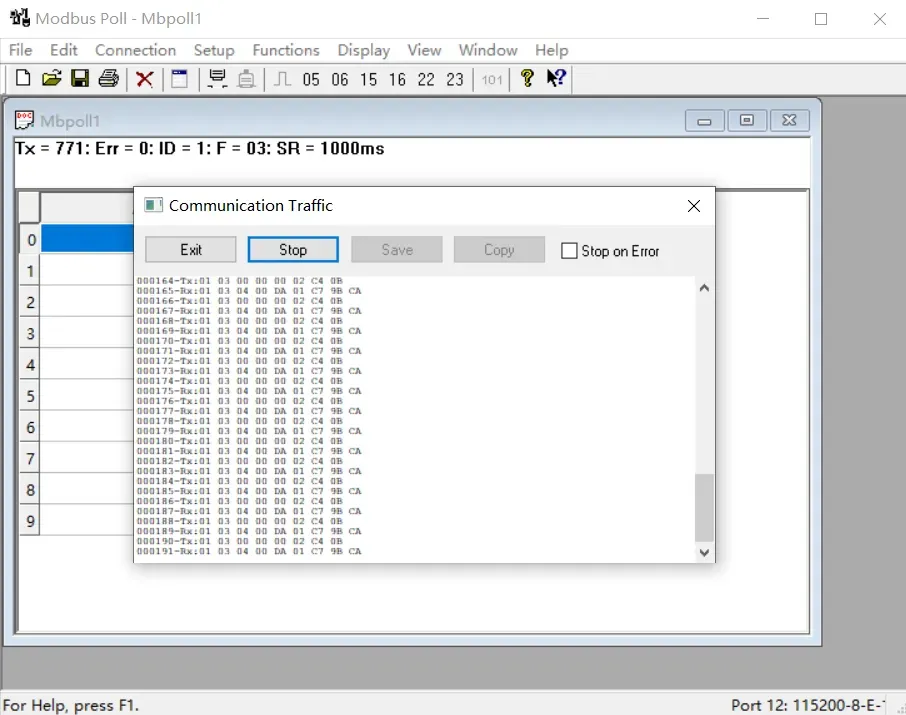

五、点击Display ➡︎ Communication...可以查看原始通讯数据。
