「软件技巧」Petrel中一种表征断裂系统倾角倾向平面图方法

当前时间： 2026-06-03 22:31:26 分类：办公文件 评论(0)
「软件技巧」Petrel中一种表征断裂系统倾角倾向平面图方法
▲点击蓝字「斯伦贝谢数字与一体化集团」设为【星标】，查看信息不“迷路”

断裂系统在构造油气藏中起非常重要的作用，用户想快速做出研究区主要断裂系统的平面图，并且清楚展现各断层的倾向和倾角信息，下面的方法就可以实现该目的，具体步骤如下。

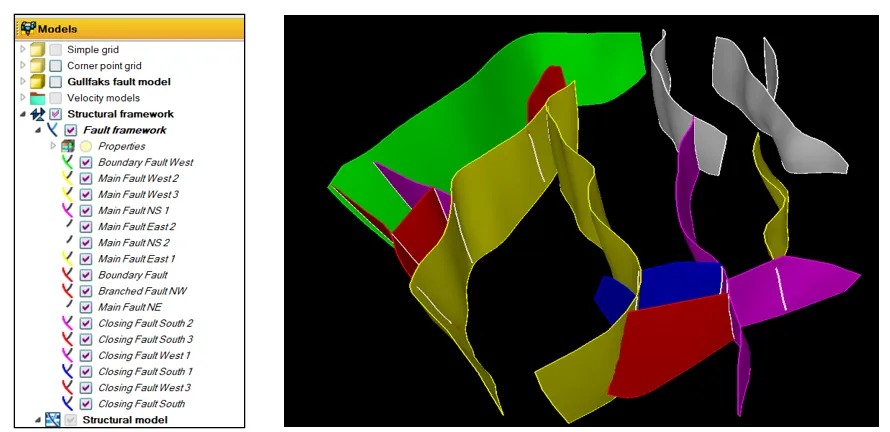

1.用Petrel中的复杂构造建模或传统角点建模方法，用研究区的主要断层构建断层模型，最好为深度域数据。

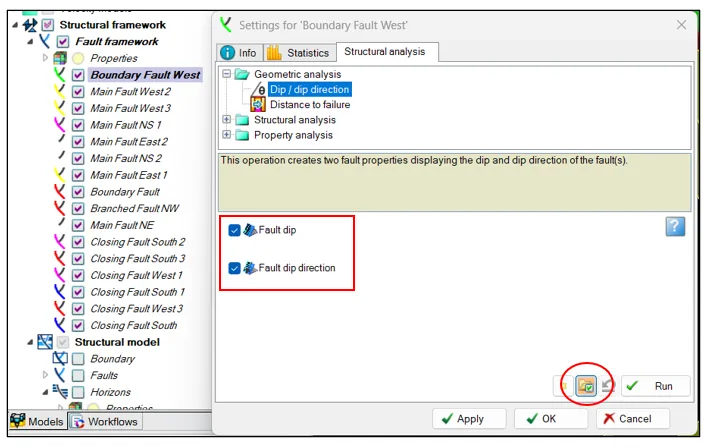

2.双击其中一个断层，弹出面板中选择Structural analysis栏，并点击下面面板中的Dip/dip direction行，在下面面板中勾选Fault dip和Fault dip direction两个选项，如果对所有断层都进行该运算，勾选面板下面的红色圆圈中的图标，对目录下所有数据计算，并点击run按钮。

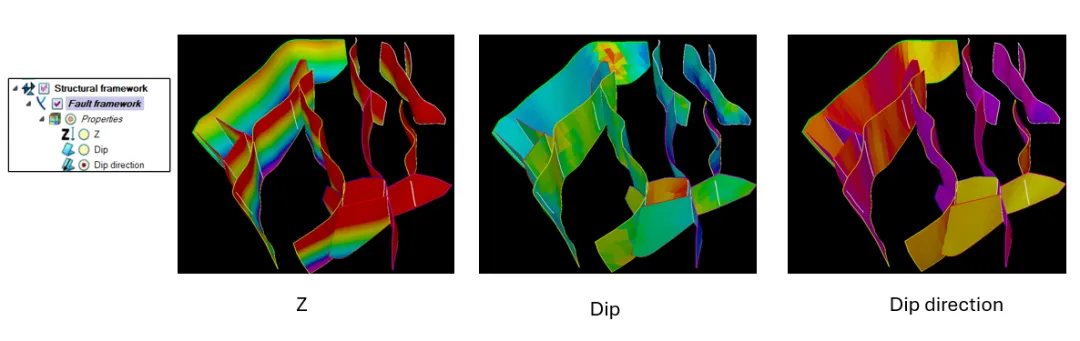

上述过程运算完成之后在断层属性下面会有三种属性除了Z之外，另两个属性是新生成的，它计算出断面上每个面元的三种属性值。如下图所示：

3.通过平均方法把两种属性由面属性变为点属性

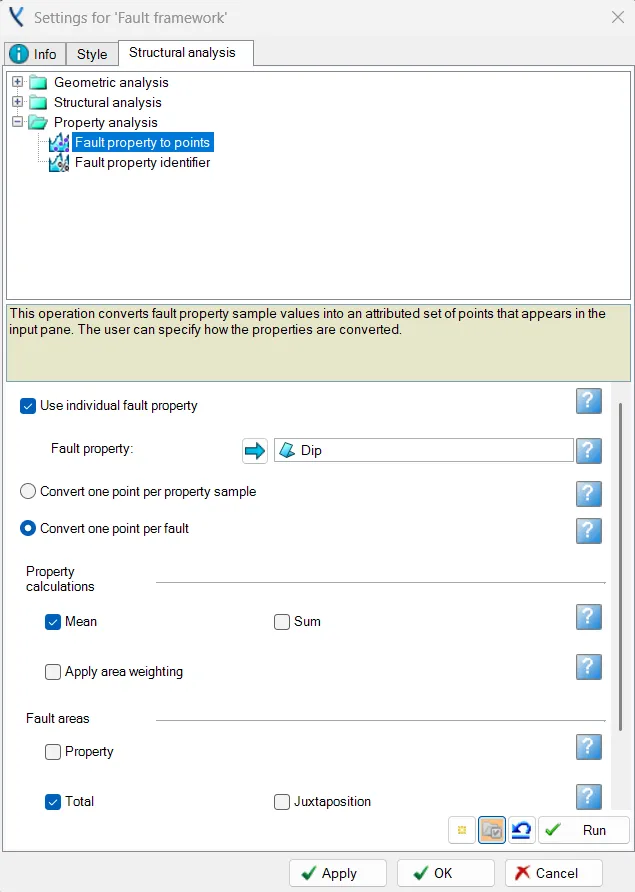

双击断层模型目录，弹出面板中先按下图所示勾选各项，其中fault property 选项那先选择Dip属性，然后点击面板下面的Run按钮，然后再把Fault property换为Dip direction，再点击Run按钮。

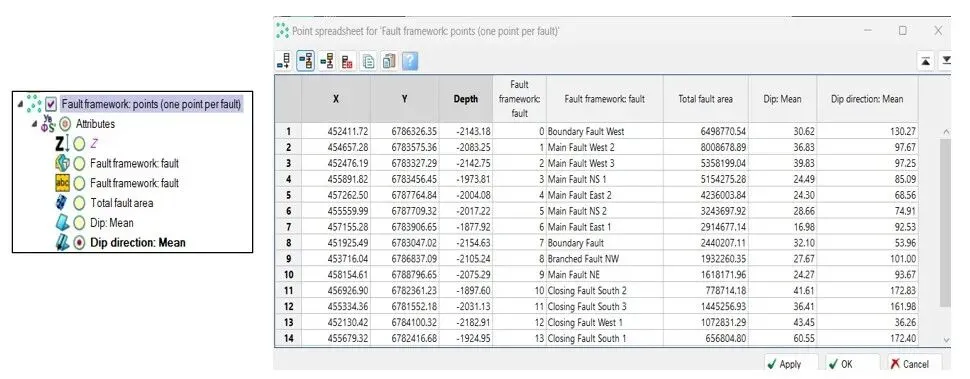

其结果会放在input面板的最下面，以散点形式出现

4.最终成果展示

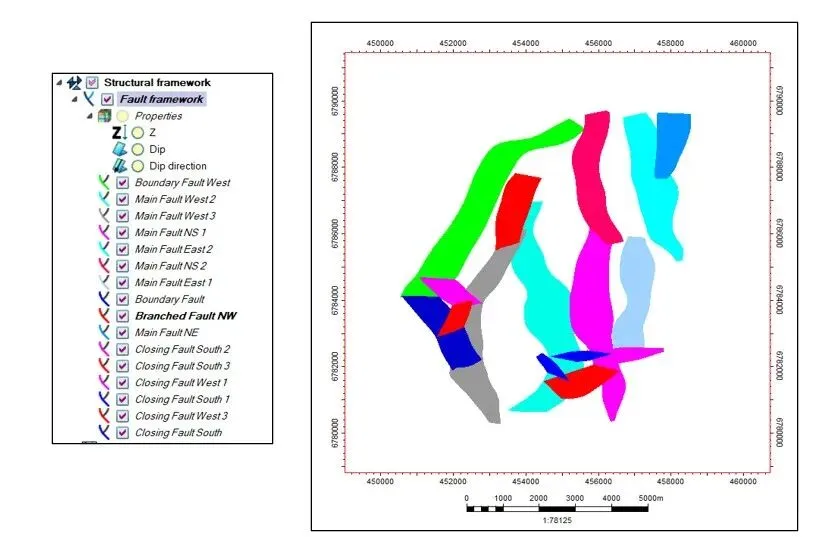

打开一下Map窗口，显示model面板中所使用的断层

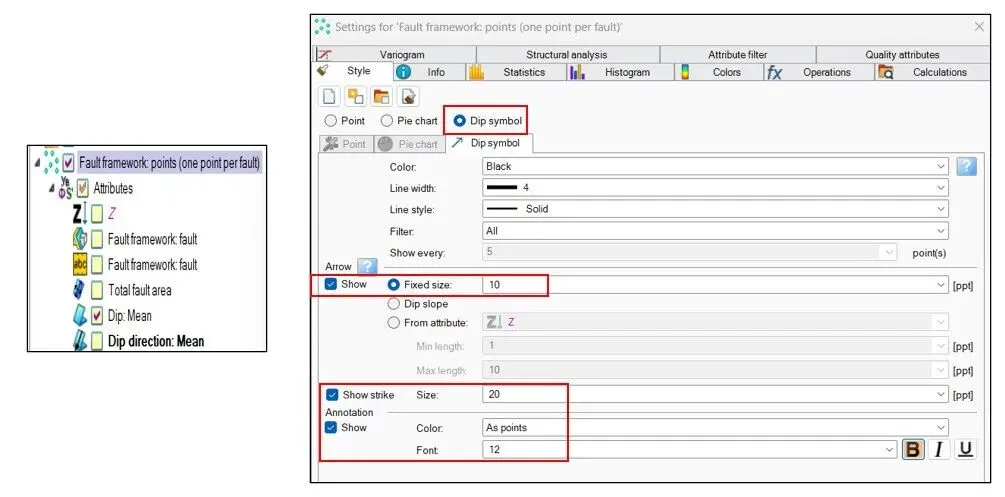

勾选input面板中通过步骤3计算得到的散点数据，并设置其在Map窗口中显示的方式，如下图所示

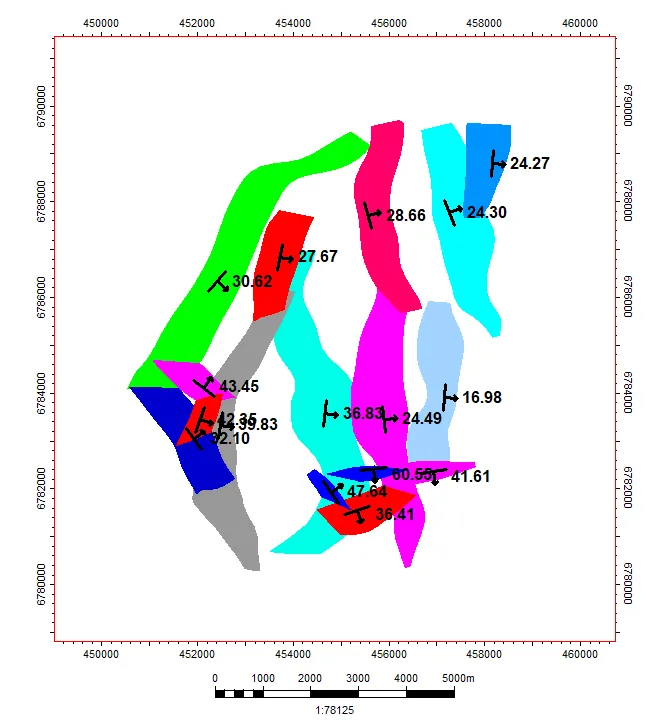

最终显示结果：图中数字是代表倾角，也可以在散点属性里切换为倾角方向或同时选择倾角和倾角方向。

— END —

作者：赵兴华
编辑：于婷
