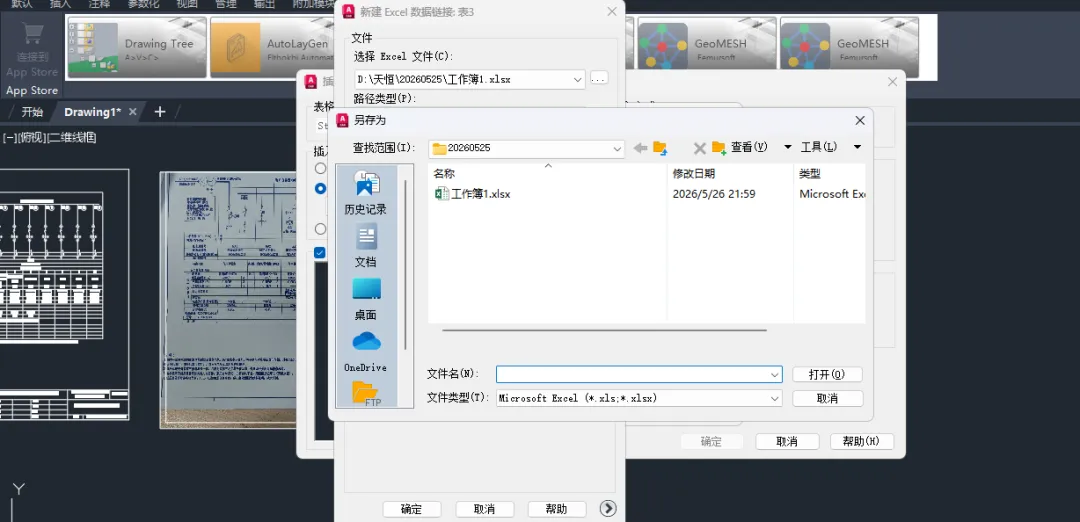

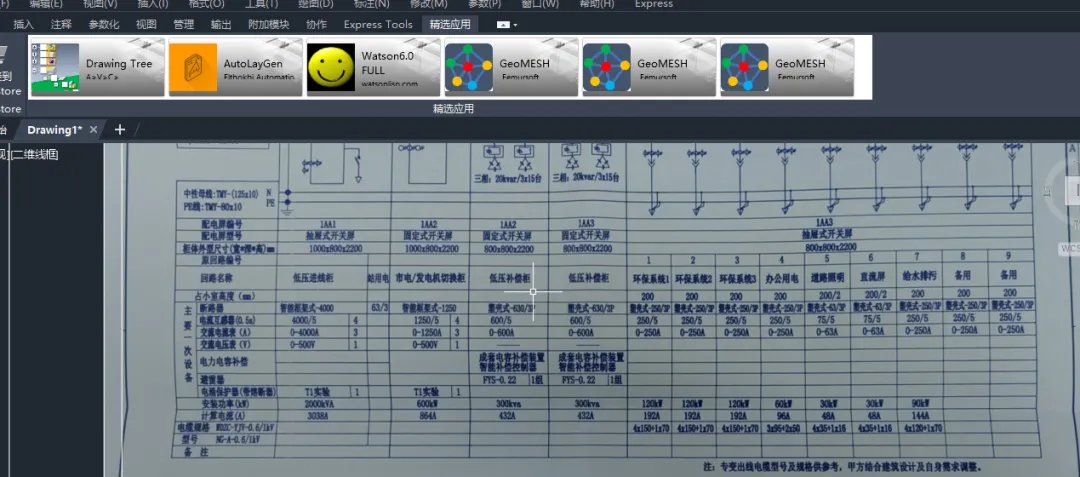

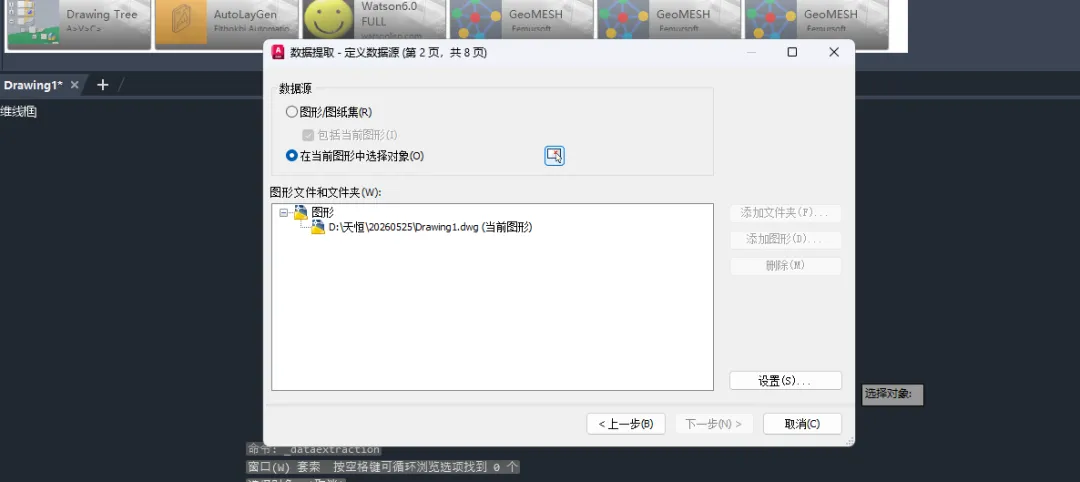

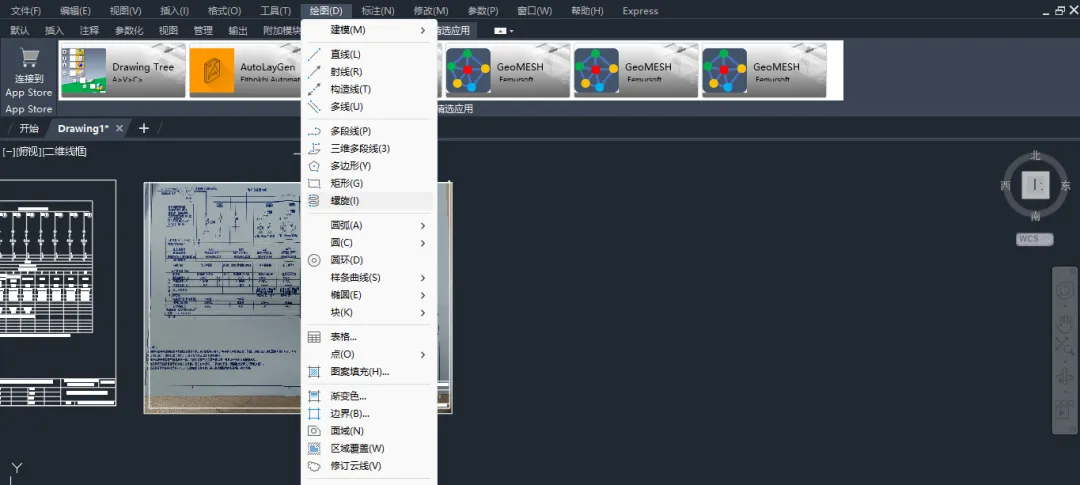

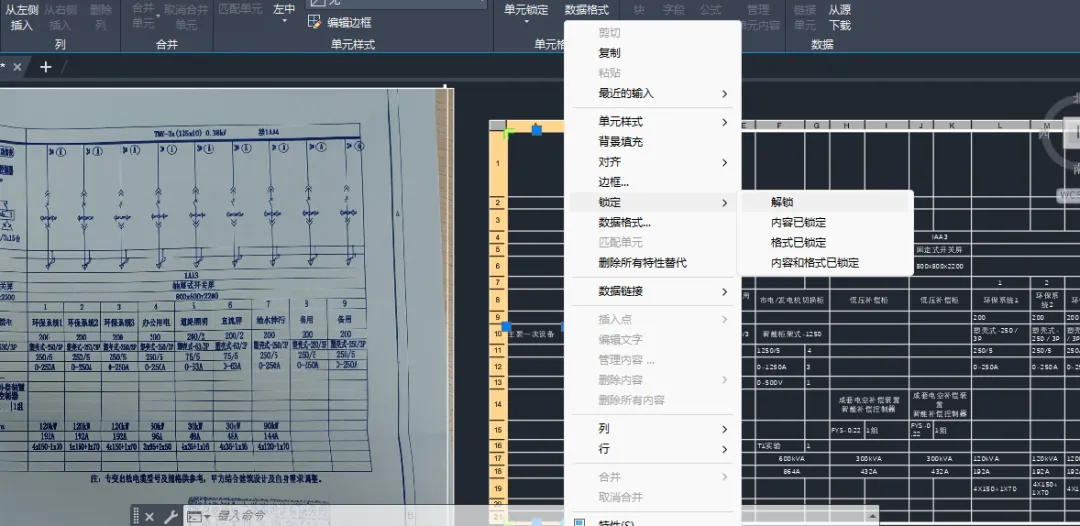

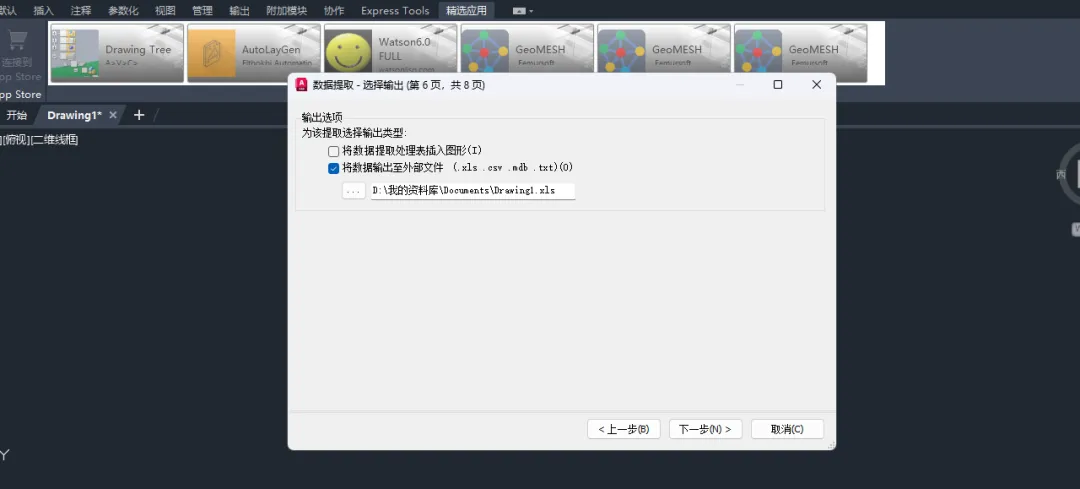

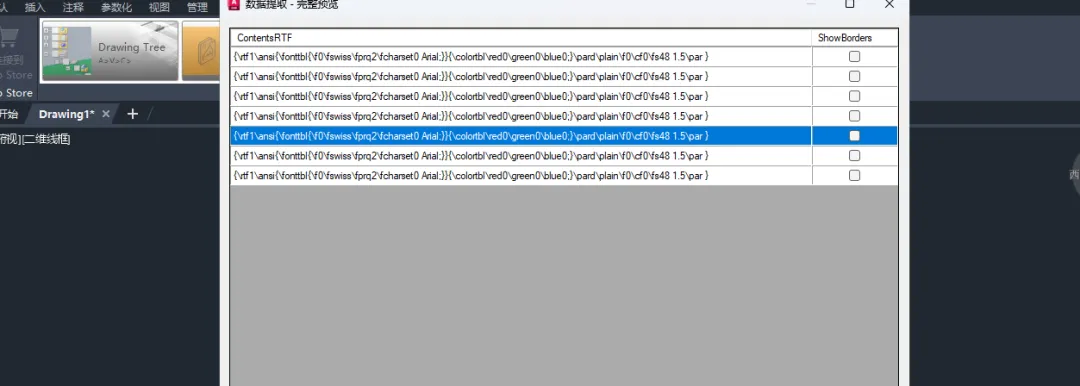

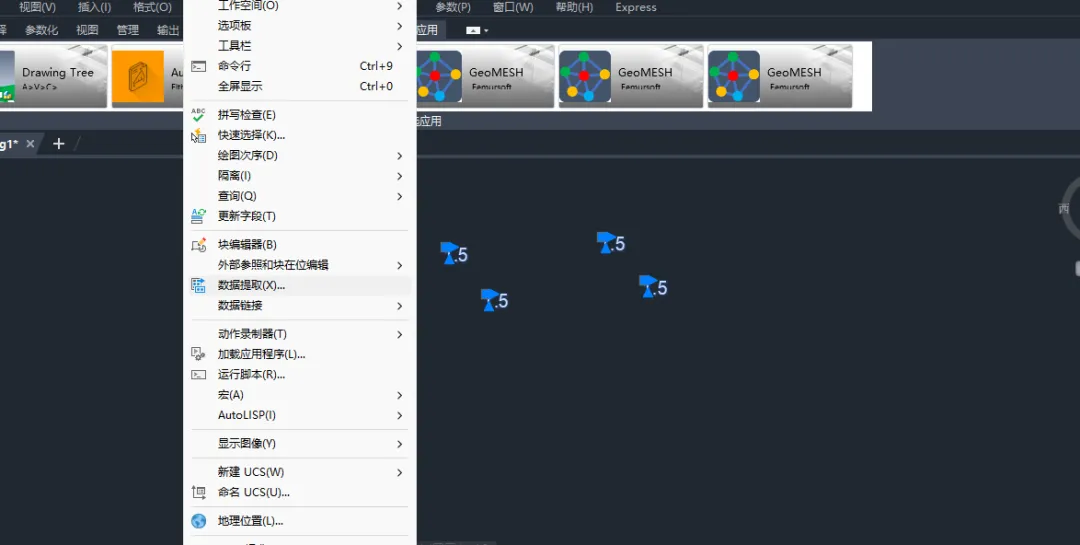

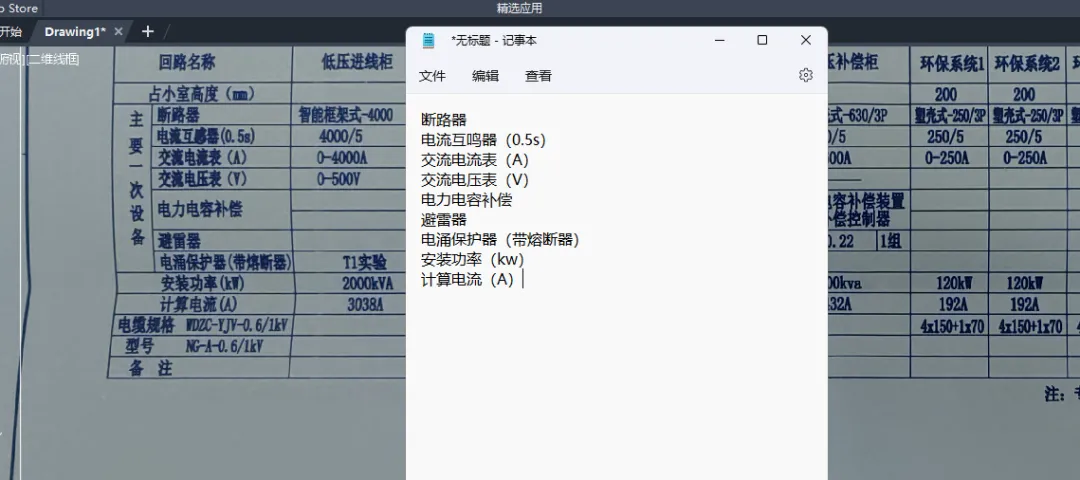

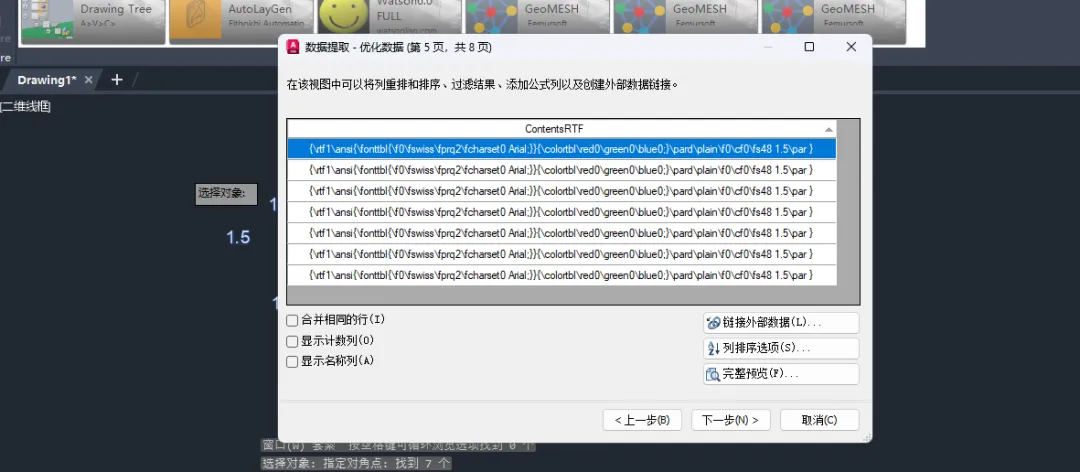

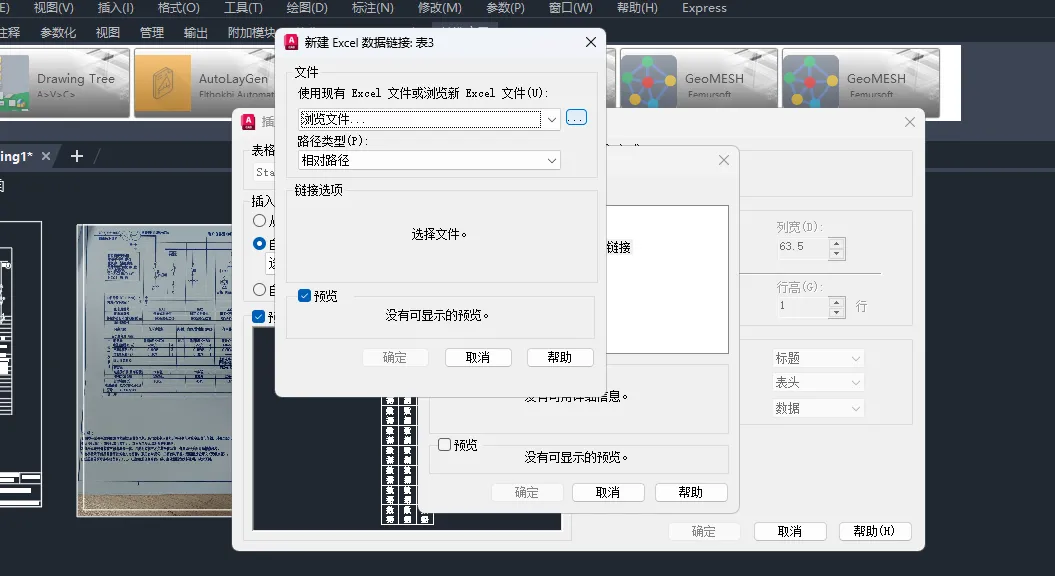

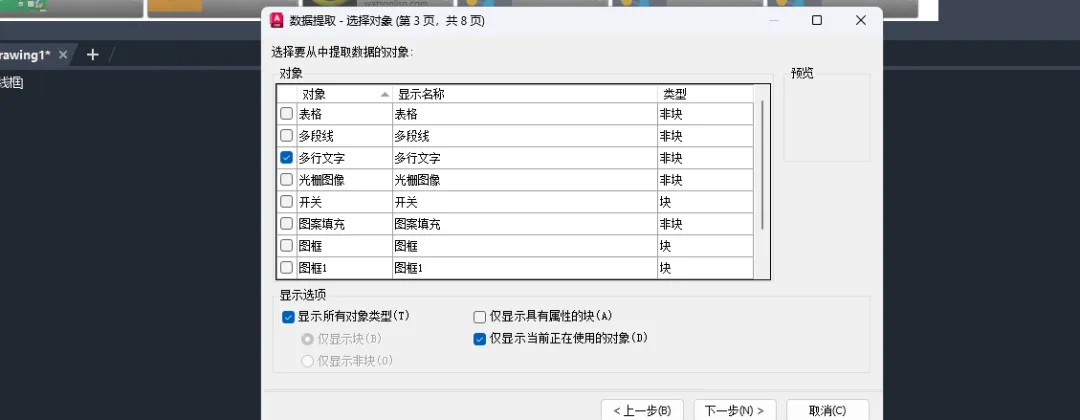

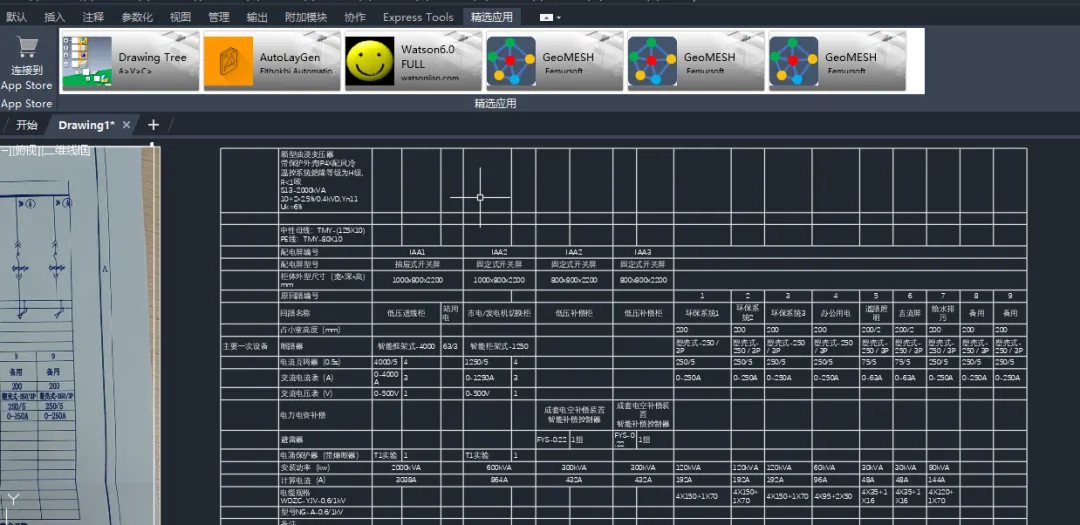

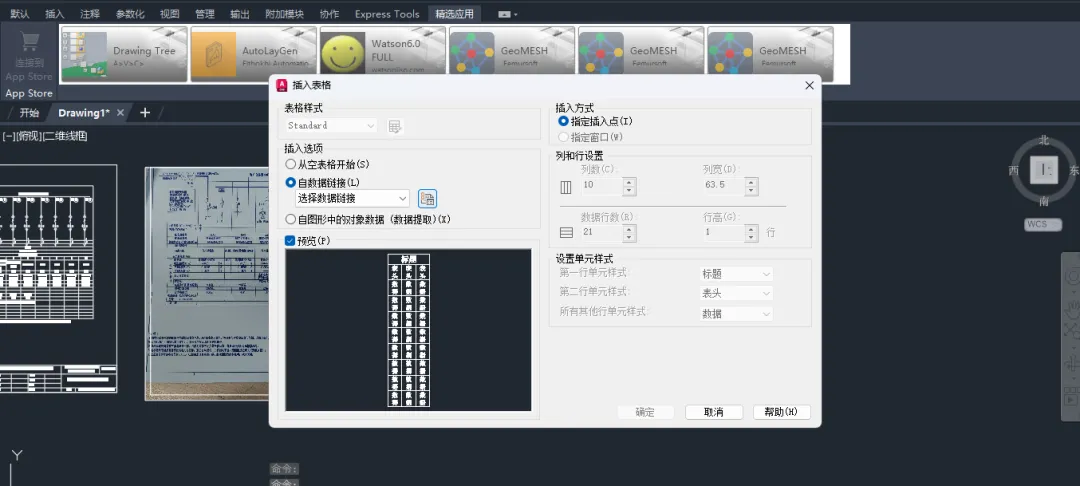

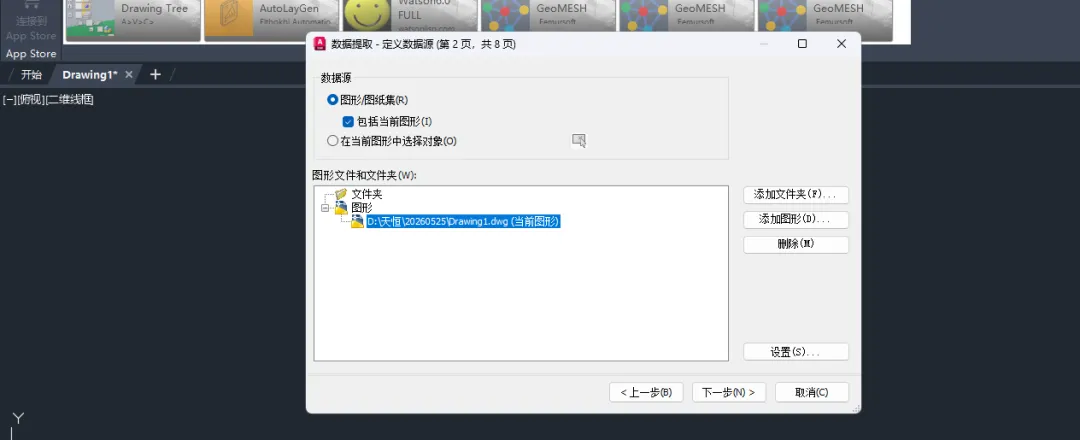

如何把EXCEL数据表格放入CAD图里?不过有些东西，似乎用久了，你怎么也忘不了。比如打开CAD,我就能直接用快捷键。比如L,M,P,REC......比如这张图如何将这么多的数据用EXCEL做，然后再导入CAD里？通过PIXPIN自动识别，把文字导入记事本。然后复制到EXCEL表格里。点击绘图表格，插入表格点自数据链接至保存好的EXCEL表格。然后CAD里的表格数据就生成了。这样在CAD里做表格就很方便。当然如果要进行编辑的话，还是在选择然后右击，解锁才能编辑。把文字提取出来后，打开数据EXCEL表格，然后用CTRL+E就可以把你要的纯数据提取出来。然后你就可以与你的资料进行比对，核对数据了。这样可以做到你的表与CAD里的图上的数据100%符合。对于大的工程，数据比较多，这样的核对准确率会高很多，不然几个人在图上数出来的数据会有好几个结果。我印象最深的是在湖南永顺做电力工程资料，真的几个人数半天，硬是数据对不上。因为有1000多根电杆，你要把档距都要加起来，还有拉线。真的很是崩溃。。。。。。
