国内直飞距离最长航线图-openclaw

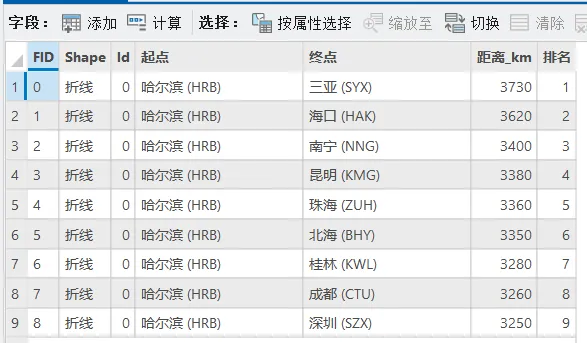

import arcpyimport os# 设置工作空间desktop = os.path.join(os.path.expanduser("~"), "Desktop")gis_folder = os.path.join(desktop, "GIS")os.makedirs(gis_folder, exist_ok=True)arcpy.env.workspace = gis_folderarcpy.env.overwriteOutput = True# 输出路径output_path = os.path.join(gis_folder, "国内航线.shp")# 机场坐标（纬度，经度）airports = {"HRB": {"name": "哈尔滨 (HRB)", "lat": 45.6234, "lon": 126.2500},"SYX": {"name": "三亚 (SYX)", "lat": 18.3037, "lon": 109.4124},"HAK": {"name": "海口 (HAK)", "lat": 19.9349, "lon": 110.4591},"NNG": {"name": "南宁 (NNG)", "lat": 22.6083, "lon": 108.1722},"KMG": {"name": "昆明 (KMG)", "lat": 24.9924, "lon": 102.7431},"ZUH": {"name": "珠海 (ZUH)", "lat": 22.0064, "lon": 113.3767},"BHY": {"name": "北海 (BHY)", "lat": 21.5392, "lon": 109.2970},"KWL": {"name": "桂林 (KWL)", "lat": 25.2181, "lon": 110.0392},"CTU": {"name": "成都 (CTU)", "lat": 30.5728, "lon": 103.9468},"SZX": {"name": "深圳 (SZX)", "lat": 22.6393, "lon": 113.8107}}# 航线列表（起点，终点，距离）routes = [    ("HRB", "SYX", 3730),    ("HRB", "HAK", 3620),    ("HRB", "NNG", 3400),    ("HRB", "KMG", 3380),    ("HRB", "ZUH", 3360),    ("HRB", "BHY", 3350),    ("HRB", "KWL", 3280),    ("HRB", "CTU", 3260),    ("HRB", "SZX", 3250)]# 删除已存在的文件if arcpy.Exists(output_path):    arcpy.Delete_management(output_path)    print("已删除旧文件")# 创建线要素类arcpy.CreateFeatureclass_management(    out_path=gis_folder,    out_name="国内航线.shp",    geometry_type="POLYLINE",    spatial_reference=arcpy.SpatialReference(4326)  # WGS84)# 添加字段arcpy.AddField_management(output_path, "起点", "TEXT", field_length=50)arcpy.AddField_management(output_path, "终点", "TEXT", field_length=50)arcpy.AddField_management(output_path, "距离_km", "DOUBLE")arcpy.AddField_management(output_path, "排名", "SHORT")print("要素类已创建，开始绘制航线...")# 使用插入游标添加要素with arcpy.da.InsertCursor(output_path, ["SHAPE@", "起点", "终点", "距离_km", "排名"]) as cursor:for rank, (start_code, end_code, distance) in enumerate(routes, 1):        start = airports[start_code]        end = airports[end_code]# 创建测地线（大圆航线）array = arcpy.Array([            arcpy.Point(start["lon"], start["lat"]),            arcpy.Point(end["lon"], end["lat"])        ])# 创建测地线（考虑地球曲率）polyline = arcpy.Polyline(            array,             arcpy.SpatialReference(4326),            has_z=False,            has_m=False)# 沿测地线加密点（每 200 公里一个点，使曲线更平滑）num_points = int(distance / 200) + 2densified_line = polyline.densify("GEODESIC", num_points)# 插入记录cursor.insertRow([            densified_line,            start["name"],            end["name"],            distance,            rank        ])        print(f"  [{rank}] 已绘制：{start['name']} → {end['name']} ({distance:,} km)")# 统计结果result_count = int(arcpy.GetCount_management(output_path)[0])print(f"\n[OK] 文件已生成：{output_path}")print(f"[OK] 航线数量：{result_count} 条")print(f"[OK] 坐标系统：EPSG:4326 (WGS84)")print(f"[OK] 字段：起点，终点，距离_km，排名")print(f"\n航线列表（按距离排序）：")for rank, (start_code, end_code, distance) in enumerate(routes, 1):    start = airports[start_code]    end = airports[end_code]    print(f"  {rank}. {start['name']} → {end['name']} | {distance:,} km")
