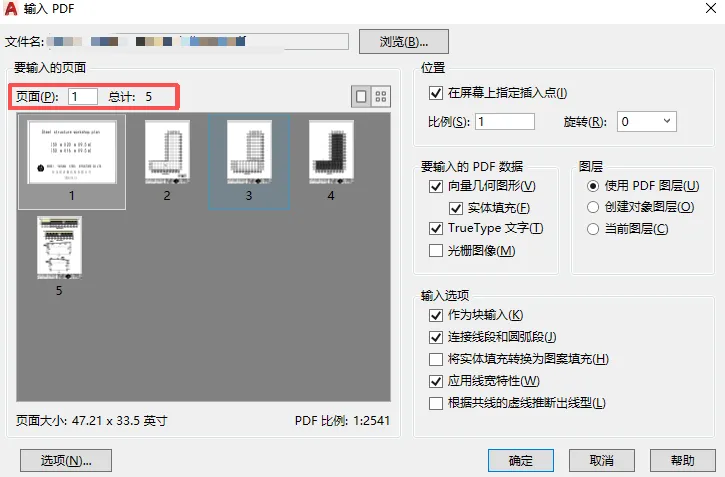

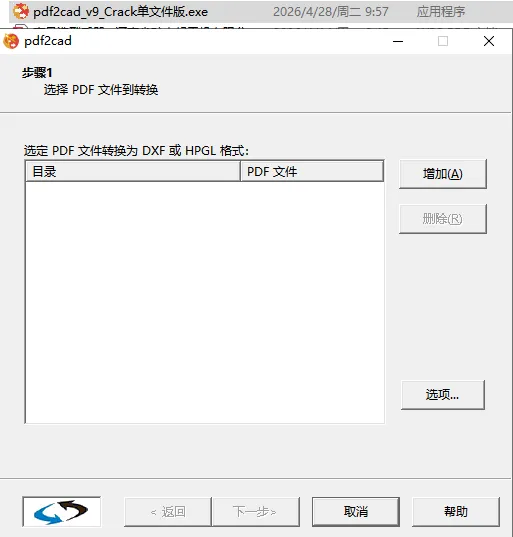

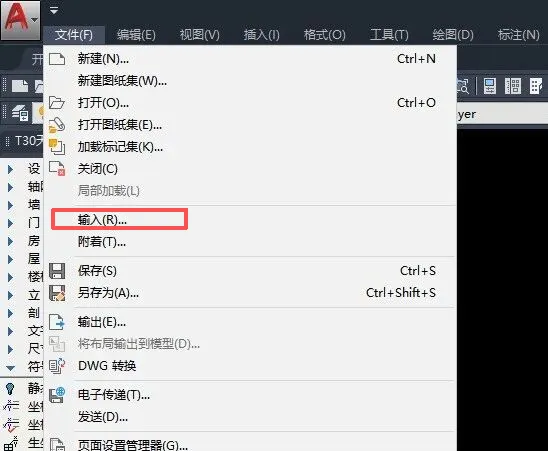

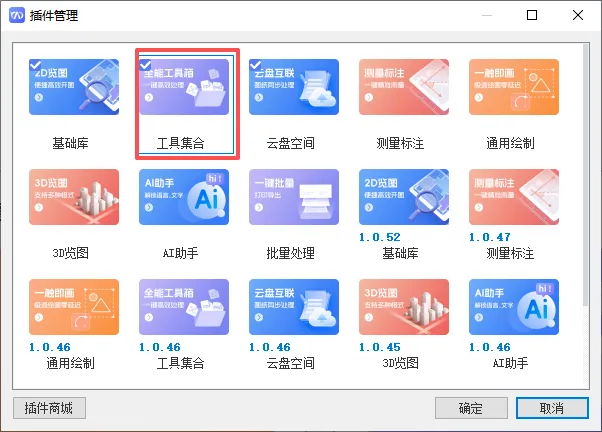

pdf转cad方法分享设计师很多时候需要把pdf图纸转成cad版本，本文介绍三种方法，大家参考使用。高版本cad可以直接把单张的pdf转成cad，在cad文件菜单下的输入，然后选择pdf文件，之后可以选择要转cad的页面。缺点是一次只能转一张。图纸比较多的时候不合适最近yjk元图软件更新了，可以pdf转cad，下载软件后需要登录，登录后在插件管理菜单，下载工具集合插件，然后在左侧可以看到工具集合菜单，点击后可以批量pdf转cad。目前这个功能是免费的。pdf2cad是经典的转图软件，可以批量转成cad，缺点是转完后文字都是单个字母，不方便查找，上面的两种方法没有这个问题。还有注意转换过程中一定要建立文件夹，不然生成的文件会 占满整个屏幕。大家可以根据自己的需求选择合适方法，关注公众号后可以回复”pdf“下载pdf2cad软件
