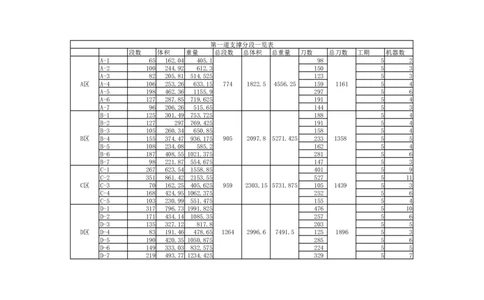

第一道支撑分段一览表
段数 体积 重量 总段数 总体积 总重量 刀数 总刀数 工期 机器数
A-1 65 162.04 405.1 98 5 2
A-2 100 244.92 612.3 150 5 3
A-3 82 205.81 514.525 123 5 3
A区 A-4 106 253.26 633.15 774 1822.5 4556.25 159 1161 5 4
A-5 198 462.36 1155.9 297 5 6
A-6 127 287.85 719.625 191 5 4
A-7 96 206.26 515.65 144 5 3
B-1 125 301.49 753.725 188 5 4
B-2 127 297 769.425 191 5 4
B-3 105 260.34 650.85 158 5 4
B区 B-4 155 374.47 936.175 905 2097.8 5271.425 233 1358 5 5
B-5 108 234.08 585.2 162 5 4
B-6 187 408.55 1021.375 281 5 6
B-7 98 221.87 554.675 147 5 3
C-1 267 623.54 1558.85 401 5 9
C-2 351 861.42 2153.55 527 5 11
C区 C-3 70 162.25 405.625 959 2303.15 5731.875 105 1439 5 3
C-4 168 424.95 1062.375 252 5 6
C-5 103 230.99 551.475 155 5 4
D-1 317 796.73 1991.825 476 5 10
D-2 171 434.14 1085.35 257 5 6
D-3 135 327.12 817.8 203 5 5
D区 D-4 83 191.46 478.65 1264 2996.6 7491.5 125 1896 5 3
D-5 190 420.35 1050.875 285 5 6
D-6 149 333.03 832.575 224 5 5

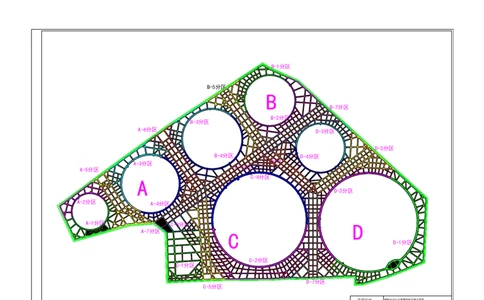

D-7 219 493.77 1234.425 329 5 7B-1分区
W W -3 W -4 -2 3 W 2 W - 6 1 - 4 W 5 1 - 7 1 W 1 5 W -6 - H H 2 W - - 1 2 8 - H 3 2 W H - 4 - 3 - 1 7 5 W- HA 4 H - 3 6 - 4 9 2 A - W-8 H - 2 W 7 - H 5 - 1 5 - 0 3 5 分 A 8 分 1 H - W 09 - W H 6 1 - - - 1 区 4 6 11 1 1 12 1 2 13 区 W 分 H 11 - - H 2 9 7 45 W - 3 511 - 7 7 6 1 4 2 1 1 区 W 8 0 2 2 H - 11 5 3 1 H - 9 1 8 3 - 1 2 1 6 2 1 1 2 3 6 4 2 2 2 W 0 3 1 W H - 1 2 5 4 8 1 - 2 H 5 - 3 7 3 5 4 2 9 - 1 3 9 7 1 3 6 H 1 2 2 8 2 3 3 - 6 4 3 3 4 3 8 8 2 0 1 2 6 9 1 7 3 9 2 W 3 7 1 2 5 0 2 8 - 2 2 3 7 5 4 4 2 2 3 6 4 1 3 4 3 6 0 7 0 3 2 1 8 9 5 W 2 6 3 4 4 4 7 7 5 4 5 - 8 4 4 7 9 3 5 6 4 1 2 8 7 3 7 6 5 2 4 0 4 5 5 5 W 2 1 8 5 3 4 9 H 0 6 5 0 5 - 7 - 6 H 8 1 1 H 6 W - H 5 - 1 5 2 - 5 - 9 5 7 7 2 6 1 4 7 W 1 6 H 6 H 1 - 7 2 - 0 2 5 - 6 3 1 3 7 6 7 6 6 1 H 3 8 W -4 1 - 6 6 7 2 8 7 W H4 9 8 2 - - 7 4 A 3 9 7 8 3 08 - H 8 1 A - 1 H 4 5 W A W 3 8 -5 3 3 - - 4 8 9 8 8 2 - 6 7 A 8 分 9 H 5 W 8 H 0 -6 9 -1 - 6 8 1 6 - 9W 8 1 2 1 -1 4 9 W H 分 0 7 2 - 区 - 7 2 9 9 4 3 3 分 H 8 W - A H 7 1 W - - 区 4 6 1 -3 1 2 - 9 5 8 5 区 6 1 1 4 H 1 1 3 6 8 9 - W 2 H 5 4 1 1 W - 0 - 1 6 1 7 分 8 2 4 7 3 - 1 8 4 1 4 0 3 5 2 H 0 1 1 2 W - 8 4 8 6 3 区 5 8 3 3 1 - 7 5 H 1 1 8 1 8 8 - 7 2 1 W W 7 2 2 W W 14 W W 4 1 1 1 W - - 7 0 - - W 1 1 1 8 - - 7 8 3 3 7 9 - 2 3 2 9 6 - 4 2 7 H 5 4 3 1 2 2 1 2 1 2 8 5 3 2 2 3 - 1 2 1 2 7 1 C 3 9 5 0 1 7 6 0 7 2 1 7 1 2 3 H 8 7 5 7 0 4 3 7 4 4 1 2 8 - 4 1 6 6 W 1 3 1 3 4 2 1 8 2 2 - 5 1 9 W 8 3 3 2 6 3 6 3 - 9 7 H 6 4 1 4 6 8 1 7 - 6 2 6 5 1 1 3 1 - 1 2 9 2 2 2 9 C H 0 1 2 4 1 1 6 3 2 6 3 1 2 2 - 2 3 6 4 9 3 1 3 H 2 2 7 4 3 3 2 9 1 W 5 4 1 H - 0 0 2 6 1 1 2 1 9 - 3 1 1 1 6 9 8 3 6 分 - 7 - H 2 5 7 3 1 2 1 3 6 7 5 6 4 7 2 1 5 0 3 3 - 5 4 2 7 3 7 3 2 W 4 0 6 3 4 1 2 3 6 3 1 2 7 1 1 4 2 7 4 0 3 2 3 5 6 H 4 8 5 - 7 2 2 4 8 2 4 1 1 H 4 0 4 3 0 1 7 8 1 2 5 - 0 1 5 H 2 2 9 4 4 5 7 W - 1 1 2 2 8 3 3 2 2 5 6 - 0 3 0 8 3 1 3 2 分 2 9 8 - 1 3 5 2 区 3 5 8 4 5 9 0 2 4 5 1 9 2 3 5 2 5 6 8 9 5 7 1 1 3 3 4 3 5 1 7 1 1 H 0 4 8 2 W 3 8 1 4 1 2 H 6 5 5 - 8 2 3 2 7 3 9 4 1 2 5 6 1 7 9 2 1 1 5 - 4 7 - 1 W 3 6 5 3 5 2 2 5 4 2 5 1 6 1 0 1 3 2 1 4 4 8 3 4 4 2 4 4 - 4 6 8 8 6 区 2 2 4 4 2 4 5 9 9 1 1 H 2 1 4 5 9 2 5 B 1 1 2 4 4 3 5 1 - 7 9 9 2 1 5 4 6 5 6 9 6 3 4 H 9 8 3 3 5 3 3 5 3 1 1 0 2 4 - 1 5 1 9 3 1 2 4 0 6 3 7 3 6 1 2 5 - 2 4 3 4 2 5 2 3 4 7 4 0 9 6 4 3 0 2 1 4 4 8 3 7 1 3 9 2 3 7 6 2 W 3 0 4 1 2 5 4 5 3 8 1 2 W 0 3 6 2 6 3 3 11 4 6 5 - 1 3 1 3 5 4 1 4 5 5 7 5 3 4 1 - 1 8 5 4 1 4 8 1 5 6 1 3 8 8 3 1 1 41 2 5 H 4 4 3 6 3 7 2 4 4 6 1 5 5 4 8 3 - 9 8 3 1 7 0 0 分 7 6 1 5 0 2 1 4 3 4 H 8 1 2 0 5 6 1 2 1 7 2 4 3 - 1 6 5 9 1 1 W 8 7 5 1 5 5 5 2 4 6 5 2 4 3 2 3 5 6 5 4 5 3 7 2 - 2 7 2 1 1 1 9 8 4 4 0 4 8 2 5 5 4 9 1 6 8 3 3 4 5 5 6 6 2 6 1 5 1 3 1 3 W 2 1 1 5 1 9 6 5 9 1 3 4 0 5 9 C 6 9 2 6 2 1 8 2 6 0 5 5 2 1 3 - 6 区 9 9 2 4 H 5 1 7 3 6 1 3 5 7 3 2 1 H 6 8 3 4 - 3 9 5 5 7 1 4 4 4 4 6 8 - 8 3 6 2 6 6 6 5 0 - 1 1 2 3 1 1 6 7 4 3 7 6 0 2 5 6 4 5 2 0 3 7 7 7 9 2 0 4 4 7 B 3 6 1 0 6 2 7 2 3 1 7 1 0 0 9 6 6 W 4 1 2 1 2 5 0 1 6 6 1 4 3 4 9 5 5 5 4 5 2 8 6 4 6 4 - 4 1 2 3 7 1 3 1 4 6 H 8 7 3 4 8 3 8 5 2 8 8 8 7 0 7 - 6 6 3 8 1 45 W - 5 1 2 2 1 H 1 8 3 1 1 3 8 5 93 5 7 0 2 5 4 7 H H 分 - - 5 5 1 3 4 7 5 7 8 7 5 7 1 6 7 9 8 2 - - 9 2 0 4 6 1 7 7 7 5 3 1 6 7 1 1 5 1 8 H 9 2 2 6 5 0 2 9 4 5 1 96 6 1 - 8 1 3 H 5 9 4 B 6 2 0 8 2 5 2 3 6 5 5 1 - 0 9 4 分 7 6 7 H 5 0 9 0 3 9 0 3 0 2 2 7 1 7 3 1 W - 5 7 0 区 1 H 4 8 0 9 4 4 2 - 1 2 6 7 W H H 0 - 4 - 7 6 6 1 1 8 5 9 2 7 5 3 3 4 - - 3 3 1 3 3 - 6 9 1 8 4 1 5 2 1 2 H 1 1 4 2 1 0 1 8 4 8 1 - 1 3 0 0 1 7 3 8 0 区 1 6 1 1 3 7 1 2 6 6 5 H 2 5 4 4 3 1 1 0 8 2 9 1 - 2 1 3 分 1 4 4 3 2 1 W 3 6 7 1 7 1 2 7 5 3 2 3 6 2 3 4 9 1 1 7 - 3 9 5 2 1 1 1 5 6 8 5 1 6 6 1 7 1 2 3 4 1 W 0 3 3 3 9 1 3 H 2 1 3 2 7 2 1 3 1 4 2 9 6 - H - 9 2 3 6 1 1 7 2 7 3 2 7 4 1 - 0 1 H 1 8 3 3 9 1 3 6 1 2 4 区 C 3 8 3 5 H - 9 7 1 4 4 0 6 4 6 2 5 3 4 2 4 1 W - 8 2 1 2 3 3 4 4 2 3 4 1 W 4 3 - 1 7 8 8 2 4 33 3 4 5 1 9 9 - 5 5 6 0 0 5 5 3 1 9 4 H 3 4 5 5 5 6 4 3 9 - 3 5 8 H 1 0 5 8 6 2 3 4 7 4 H - 9 0 6 1 4 6 4 B 9 9 5 H - 8 4 6 1 1 1 8 8 W 6 - 7 5 3 4 8 1 W 7 1 4 7 1 0 - 8 6 1 H - 2 8 - 2 9 3 1 5 0 - 8 5 5 1 2 5 0 4 8 8 H 8 7 8 1 1 2 3 5 1 5 2 5 2 H - 9 1 1 7 3 H 2 6 8 2 6 3 7 5 6 - 6 1 9 W 2 1 - 1 0 5 1 1 2 H 5 5 9 4 2 8 1 H - 4 5 8 1 - 2 4 1 6 7 W H 7 3 5 3 6 9 - 4 6 8 0 1 2 1 1 分 2 7 3 0 7 6 7 1 - H 7 8 5 8 - 1 3 1 3 0 6 3 2 - 1 9 3 7 H 3 1 1 2 1 3 1 7 W 4 1 7 7 2 7 H - 0 2 7 2 5 8 1 2 3 4 6 3 1 - - 9 8 1 6 1 6 1 H 6 8 3 2 1 1 9 4 8 2 7 H 5 1 - 4 2 4 0 9 区 2 7 2 6 - 1 0 C 1 6 1 1 9 6 4 5 W 7 5 2 2 2 3 3 1 CH 9 5 2 9 H 0 4 0 5 7 - 2 6 6 2 1 - 1 1 4 5 W - H - 2 6 4 5 6 2 2 6 7 4 2 - 2 2 3 - 0 1 6 - 2 1 2 3 3 4 H 5 5 0 1 1 6 0 7 2 6 1 - 5 2 2 2 3 4 4 3 8 3 1 8 4 6 2 2 3 2 7 4 4 4 5 3 4 1 7 1 1 5 6 7 5 3 1 3 6 1 9 4 4 H H 3 分 3 8 3 8 8 2 - - 7 1 5 2 W 8 3 2 2 2 8 2 5 2 0 W H H 分 2 7 7 3 3 8 5 4 4 8 4 6 - - - 2 5 1 4 4 9 - 3 3 4 2 3 1 2 3 4 3 9 9 1 2 4 6 5 3 4 3 4 9 1 2 0 1 3 8 5 2 2 H 区 2 4 4 3 4 0 D 1 1 2 9 7 1 - 8 5 0 2 3 3 9 0 2 H 5 区 2 3 5 0 4 1 2 - 3 9 0 1 H 9 1 1 6 3 4 6 - B 1 2 3 3 W H 5 2 3 - 6 3 8 3 3 3 5 0 0 3 4 3 2 W - 4 3 1 1 - 4 2 1 2 2 3 9 6 4 3 3 3 7 - 1 5 5 1 5 4 6 7 6 64 2 3 3 1 4 5 H 2 3 4 9 3 3 4 7 2 7 1 H - 2 9 0 1 6 8 1 4 7 B 5 - 3 4 3 H 1 4 5 W 分 6 4 8 5 4 5 5 9 0 2 - 4 7 3 2 0 1 1 6 3 0 2 - 1 3 1 1 8 5 5 8 4 8 - 5 8 2 4 4 6 1 1 5 8 4 1 5 1 8 H 4 4 W 0 9 7 8 3 5 6 2 4 5 - 0 7 2 4 4 6 5 1 - 2 1 6 3 H 7 6 2 1 区 W 3 8 - 0 8 4 5 1 H 3 - 7 8 2 4 6 8 8 5 6 5 0 4 分 - 4 5 5 9 7 6 8 1 9 9 H 7 3 4 9 3 9 7 9 7 3 7 1 - 4 1 31 7 6 1 0 5 8 3 6 8 0 1 8 9 2 9 H H 2 7 3 4 5 6 8 9 0 8 7 4 9 5 8 4 - - 7 7 8 9 8 4 6 5 5 6 6 2 1 4 W 6 7 1 W H 6 5 区 8 9 1 1 5 7 9 3 8 0 1 - 0 - 3 1 1 5 0 - 9 5 7 0 5 2 9 8 4 6 2 7 9 6 1 9 8 3 5 7 9 5 2 9 4 3 7 8 2 5 1 H 9 0 7 0 2 1 7 7 1 1 H 4 2 1 1 H - 6 9 1 1 1 3 7 1 1 1 2 0 0 5 8 6 - 1 2 6 - 4 1 7 1 1 9 H 7 2 0 0 1 0 5 7 8 0 1 9 9 7 6 8 6 6 0 4 7 - 7 6 1 7 6 8 3 1 7 8 1 1 1 3 6 1 2 1 1 3 1 1 W 8 3 8 1 1 0 1 2 8 1 W 4 2 2 3 6 9 1 H 0 1 1 9 4 0 3 8 6 9 0 - 2 1 7 7 3 5 0 1 5 2 7 1 H - 7 - 8 1 4 8 1 6 6 9 9 1 4 0 1 1 1 33 1 9 0 6 2 1 - 5 1 9 2 2 1 9 19 7 5 1 H 4 9 3 5 1 1 1 H 2 1 1 1 1 H 3 9 9 1 9 1 0 5 8 H H - 5 0 3 3 7 7 H - 6 0 1 2 7 2 2 1 - 2 0 6 1 2 8 4 0 0 2 2 5 - - 5 5 7 6 3 1 6 3 H - 0 0 8 3 9 2 3 1 3 8 5 4 4 1 9 5 6 5 2 7 1 - 4 8 3 5 H 4 3 3 7 1 1 8 6 0 2 2 9 4 1 W 1 3 4 - 6 2 2 6 1 0 7 2 1 7 3 3 1 5 4 8 2 H 6 - 6 3 W H 1 5 0 6 6 5 1 3 3 2 2 5 H 7 4 6 1 H - 1 7 - 7 4 8 D 4 4 1 1 7 2 - 6 - 1 2 0 4 - 1 0 3 5 1 6 6 2 4 1 6 7 0 4 6 3 1 4 0 1 9 2 1 3 6 2 6 5 5 4 5 1 H H 8 - 3 1 4 4 5 4 1 4 4 1 2 W - - 4 7 1 5 5 4 2 3 1 5 4 3 1 7 6 2 1 H H 9 5 5 5 - 3 5 3 W 4 4 H 6 2 4 6 - - 1 1 4 H 4 5 4 2 6 5 8 0 6 H - 4 1 -D 1 1 5 6 3 - 4 2 7 3 3 4 4 5 4 8 1 2 9 7 3 - 2 8 3 2 7 4 7 3 9 4 8 3 5 0 4 5 5 5 7 3 1 2 4 9 2 1 3 4 5 分 4 6 7 2 4 6 W 4 9 9 8 7 4 8 1 0 4 1 6 - 1 3 9 4 9 0 4 3 2 6 5 7 1 7 9 - 3 2 5 6 7 1 2 3 3 4 6 6 8 3 8 3 5 2 1 0 6 7 H 3 1 3 7 2 4 7 2 8 5 2 9 2 7 7 4 W - 2 7 6 3 3 5 9 1 6 5 7 2 2 1 2 0 6 8 3 3 4 4 H 5 7 5 4 7 5 1 0 - 5 0 9 8 5 0 0 0 5 2 9 4 3 3 4 - 0 7 2 1 W 区 7 6 5 4 2 2 5 2 7 1 1 3 6 6 7 1 3 5 6 2 2 2 3 4 分 8 3 0 4 1 8 2 1 - 8 3 8 3 5 9 3 1 8 8 3 6 4 1 2 D 3 3 2 5 0 6 6 3 5 1 2 1 2 3 0 0 8 1 4 5 4 1 5 6 7 7 4 8 6 6 0 2 5 3 2 6 1 2 H 1 9 3 8 2 6 1 1 6 1 1 1 4 9 2 1 1 0 1 1 7 - 3 - 3 1 W 1 2 0 2 H 4 2 1 4 4 8 1 6 2 3 9 6 H 2 9 3 H 5 5 1 5 - 7 3 2 - 0 8 2 1 4 5 区 - 9 1 8 W H - 9 4 1 1 1 5 1 2 1 7 1 1 2 1 8 8 3 1 5 8 - 3 8 0 9 0 7 1 - 1 1 8 8 1 4 2 3 5 5 6 H 3 6 2 1 1 5 H 0 1 2 - 2 8 4 W 2 3 2 6 H - 7 4 1 3 分 3 4 4 1 1 1 1 8 H 6 5 9 - 0 2 - 8 1 5 0 1 1 5 2 7 - 4 6 6 1 1 4 2 7 1 6 4 5 2 2 9 8 1 3 1 1 4 1 8 4 3 1 1 3 7 0 2 9 1 8 9 5 3 1 H 0 3 3 2 7 W H 7 5 1 7 H 0 7 - 1 2 5 8 - 9 区 3 5 - - 6 1 6 B 1 1 2 6 9 1 5 9 4 H 4 8 3 0 1 W H 6 0 2 0 6 2- 6 4 2 4 8 8 1 - 23 - 1 7 2 8 9 H 13 4 6 - 6 0 6 1 7 8 8 9 5 - 5 1 8 0 H 4 5 1 6 D 4 H 9 3 8 - 7 9 - 3 5 9 7 5 9 1 2 7 3 7 2 9 6 8 0 4 7 8 5 H 6 0 7 - 7 8 4 3 - 1 5 分 1 8 1 9 9 9 6 1 0 0 H 2 7 W 3 3 9 0 W 1 1 H H 6 - 5 8 2 5 4 2 - - - 7 - 1 4 7 4 8 1 1 1 1 3 4 9 4 4 4 9 6 4 5 7 3 7 9 1 7 H 分 6 H 5 9 4 - 8 区 1 1 4 - 8 9 1 H H 1 4 5 8 9 8 1 7 4 - - 6 4 8 W 6 7 2 6 4 9 H 4 0 4 2 2 2 - H - 0 2 2 9 4 2 1 - 0 1 5 2 6 区 4 5 4 6 3 4 2 1 7 4 2 5 8 7 2 4 2 1 W 1 W 3 3 3 6 3 6 0 3 7 - 2 3 - 4 3 0 1 2 4 4 2 H 2 3 7 1 2 1 1 D - 3 1 5 4 8 1 3 H 1 7 4 5 4 4 2 W 3 2 - 0 8 5 W 1 9 3 - 1 2 1 3 9 1 - 9 4 32 8 4 3 1 5 3 W 7 8 8 2 3 3 4 6 5 2 2 1 5- 2 9 3 2 6 1 H 7 1 0 3 4 3 1 - 6 3 6 W 2 3 1 3 5 5 3 4 0 1 4 - 3 6 0 5 5 2 2 2 0 2 9 2 1 8 6 7 3 3 6 8 5 4 5 2 H 5 9 1 2 2 7 4 6 - 5 2 W 2 3 5 2 W 3 2 9 6 H 6 1 - 2 0 4 5 - 6 6 - 5 3 1 1 2 8 0 3 5 6 3 3 5 8 1 2 2 3 2 6 3 5 4 6 2 W 6 3 9 6 3 2 H 3 0 3 9 6 1 - 7 - 5 7 3 2 7 3 6 3 H 0 8 7 7 - 1 W D 7 4 1 3 1 8 7 3 0 2 - 9 9 4 9 7 1 W 1 7 4 H - - 4 2 8 4 - 7 1 1 4 4 1 5 5 4 6 3 5 7 4 6 6 4 H 4 8 - W 5 1 分 1 4 - W 97 7 7 - H 8 5 5 4 5 - 1 1 5 4 9 0 H 4 5 5 H - 3 区 7 5 2 -1 6 5 5 W 0 5 8 - W H 1 5 H - - 1 6 7 7 - D 3 6 5 H 9 - H 9 - W - W 5 - 6 2 - H 0 1 6 1 H - 2 - 8 1 分 W H 1 H - W - 1 - 4 2 1 -5 1 2 H 区 -3 H 9 W - 3 7 3 - W 2 H - - 4 H 2 H - 1 - 4 W 1 0 4 H - H 4 3 8 - - 5 H 1 5 2 6 1 0 H -6 H H -8 - 7 - 9 7 W W 1 1 1 5 1 7 3 0 9 - - 6 8 4 3 1 1 1 6 1 1 4 5 8 9 W 1 3 W W W W - W W 2 1 - - - - W 1 1 2 - 5 1 W - 9 0 1 8 - - 7 6
工程名称 昆明市综合交通国际枢纽建设项目
设计 图名
第一道支撑编号
描图 图号 01
校对 比例

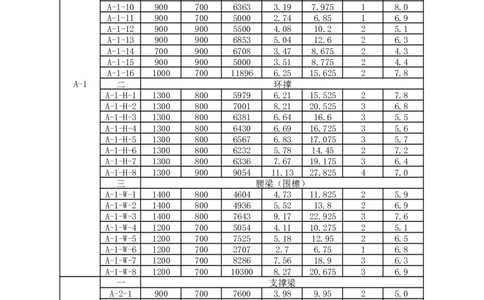

审核 日期 2020.04.20第一道支撑分段一览表
编号 宽度 高度 长度 体积 重量 段数 每段重量
一 支撑梁
A-1-1 900 700 5289 3.73 9.325 2 4.7
A-1-2 1000 700 6100 2.83 7.075 1 7.1
A-1-3 900 700 4402 2.34 5.85 1 5.9
A-1-4 1000 700 6400 4.48 11.2 2 5.6
A-1-5 900 700 4500 2.43 6.075 1 6.1
A-1-6 900 700 5668 3.1 7.75 1 7.8
A-1-7 1000 700 7079 3.66 9.15 2 4.6
A-1-8 900 700 5561 2.7 6.75 1 6.8
A-1-9 900 700 4527 2.09 5.225 1 5.2
A-1-10 900 700 6363 3.19 7.975 1 8.0
A-1-11 900 700 5000 2.74 6.85 1 6.9
A-1-12 900 900 5500 4.08 10.2 2 5.1
A-1-13 900 900 6853 5.04 12.6 2 6.3
A-1-14 700 900 6708 3.47 8.675 2 4.3
A-1-15 900 900 5000 3.51 8.775 2 4.4
A-1-16 1000 700 11896 6.25 15.625 2 7.8
A-1 二 环撑
A-1-H-1 1300 800 5979 6.21 15.525 2 7.8
A-1-H-2 1300 800 7001 8.21 20.525 3 6.8
A-1-H-3 1300 800 6381 6.64 16.6 3 5.5
A-1-H-4 1300 800 6430 6.69 16.725 3 5.6
A-1-H-5 1300 800 6567 6.83 17.075 3 5.7
A-1-H-6 1300 800 6232 5.78 14.45 2 7.2
A-1-H-7 1300 800 6336 7.67 19.175 3 6.4
A-1-H-8 1300 900 9054 11.13 27.825 4 7.0
三 腰梁（围檩）
A-1-W-1 1400 800 4604 4.73 11.825 2 5.9
A-1-W-2 1400 800 4936 5.52 13.8 2 6.9
A-1-W-3 1400 800 7643 9.17 22.925 3 7.6
A-1-W-4 1200 700 5054 4.11 10.275 2 5.1
A-1-W-5 1200 700 7525 5.18 12.95 2 6.5
A-1-W-6 1200 700 2707 2.7 6.75 1 6.8
A-1-W-7 1200 700 8286 7.56 18.9 3 6.3
A-1-W-8 1200 700 10300 8.27 20.675 3 6.9
一 支撑梁
A-2-1 900 700 7600 3.98 9.95 2 5.0
A-2-2 900 700 8657 4.59 11.475 2 5.7
A-2-3 900 700 8474 5.74 14.35 2 7.2
A-2-4 1000 700 6287 3.02 7.55 1 7.6
A-2-5 900 700 5200 2.74 6.85 1 6.9
A-2-6 1000 700 5200 2.89 7.225 1 7.2
A-2-7 700 700 10760 5.11 12.775 2 6.4
A-2-8 900 700 7525 3.83 9.575 2 4.8
A-2-9 700 700 4634 1.36 3.4 1 3.4
A-2-10 700 700 7116 2.54 6.35 1 6.4
A-2-11 700 700 4099 1.89 4.725 1 4.7
A-2-12 700 700 3644 1.36 3.4 1 3.4
A-2-13 900 700 4804 2.17 5.425 1 5.4
A-2A-2-14 700 700 4400 2.04 5.1 1 5.1
A-2-15 700 700 4747 1.53 3.825 1 3.8
A-2-16 700 700 4527 1.57 3.925 1 3.9
A-2-17 700 700 3987 1.02 2.55 1 2.6
A-2-18 900 700 5087 2.73 6.825 1 6.8
A-2-19 700 700 4114 1.43 3.575 1 3.6
A-2-20 700 700 7410 2.81 7.025 1 7.0
A-2-21 700 700 4200 1.78 4.45 1 4.5
A-2-22 700 700 4813 1.47 3.675 1 3.7
A-2-23 900 700 8565 4.47 11.175 2 5.6
A-2-24 700 700 11608 5.08 12.7 2 6.4
A-2-25 900 700 7400 4.25 10.625 2 5.3

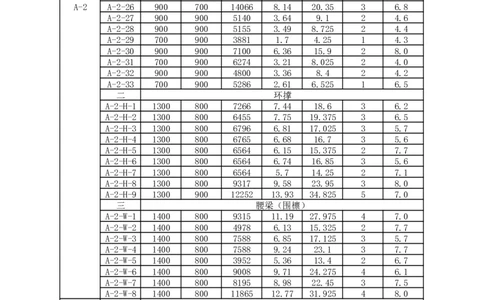

A-2 A-2-26 900 700 14066 8.14 20.35 3 6.8
A-2-27 900 900 5140 3.64 9.1 2 4.6
A-2-28 900 900 5155 3.49 8.725 2 4.4
A-2-29 700 900 3881 1.7 4.25 1 4.3
A-2-30 900 900 7100 6.36 15.9 2 8.0
A-2-31 700 900 6274 3.21 8.025 2 4.0
A-2-32 900 900 4800 3.36 8.4 2 4.2
A-2-33 700 900 5286 2.61 6.525 1 6.5
二 环撑
A-2-H-1 1300 800 7266 7.44 18.6 3 6.2
A-2-H-2 1300 800 6455 7.75 19.375 3 6.5
A-2-H-3 1300 800 6796 6.81 17.025 3 5.7
A-2-H-4 1300 800 6765 6.68 16.7 3 5.6
A-2-H-5 1300 800 6564 6.15 15.375 2 7.7
A-2-H-6 1300 800 6564 6.74 16.85 3 5.6
A-2-H-7 1300 800 6564 5.7 14.25 2 7.1
A-2-H-8 1300 800 9317 9.58 23.95 3 8.0
A-2-H-9 1300 900 12252 13.93 34.825 5 7.0
三 腰梁（围檩）
A-2-W-1 1400 800 9315 11.19 27.975 4 7.0
A-2-W-2 1400 800 4978 6.13 15.325 2 7.7
A-2-W-3 1400 800 7588 6.85 17.125 3 5.7
A-2-W-4 1400 800 7588 9.24 23.1 3 7.7
A-2-W-5 1400 800 3952 5.36 13.4 2 6.7
A-2-W-6 1400 800 9008 9.71 24.275 4 6.1
A-2-W-7 1400 800 8195 8.98 22.45 3 7.5
A-2-W-8 1400 800 11865 12.77 31.925 4 8.0
一 支撑梁
A-3-1 900 900 6586 4.51 11.275 2 5.6
A-3-2 900 900 6061 4.49 11.225 2 5.6
A-3-3 700 900 4835 2.4 6 1 6.0
A-3-4 700 900 4647 2.31 5.775 1 5.8
A-3-5 700 900 4897 2.51 6.275 1 6.3
A-3-6 700 900 4900 2.64 6.6 1 6.6
A-3-7 700 900 4701 2.45 6.125 1 6.1
A-3-8 900 900 5377 4.64 11.6 2 5.8
A-3-9 900 900 4751 3.65 9.125 2 4.6
A-3-10 900 700 10763 6.77 16.925 3 5.6
A-3-11 900 700 8031 4.44 11.1 2 5.6
A-3A-3-12 900 700 7206 3.92 9.8 2 4.9
A-3-13 900 700 8298 4.43 11.075 2 5.5
A-3-14 900 700 7948 4.6 11.5 2 5.8
A-3-15 900 900 6845 5.31 13.275 2 6.6
A-3-16 900 900 8284 6.71 16.775 3 5.6
A-3-17 700 900 7688 3.98 9.95 2 5.0
A-3 A-3-18 900 900 10237 7.25 18.125 3 6.0
二 环撑
A-3-H-1 1300 900 5406 6.33 15.825 2 7.9
A-3-H-2 1300 800 7223 7.54 18.85 3 6.3
A-3-H-3 1300 800 6224 7.37 18.425 3 6.1
A-3-H-4 1300 800 6463 6.72 16.8 3 5.6
A-3-H-5 1300 800 7822 7.97 19.925 3 6.6
A-3-H-6 1300 800 6865 6.68 16.7 3 5.6
A-3-H-7 1300 800 7635 8.99 22.475 3 7.5
A-3-H-8 1300 900 8660 10.8 27 4 6.8
A-3-H-9 1300 900 6946 8.13 20.325 3 6.8
A-3-H-10 1300 900 7696 9 22.5 3 7.5
A-3-H-11 1300 900 8961 10.48 26.2 4 6.6
A-3-H-12 1300 900 9168 10.73 26.825 4 6.7
三 腰梁（围檩）
A-3-W-1 1200 700 8959 7.94 19.85 3 6.6
A-3-W-2 1200 700 8073 6.4 16 2 8.0
A-3-W-3 1200 700 9115 8.3 20.75 3 6.9
A-3-W-4 1200 700 6135 5.42 13.55 2 6.8
一 支撑梁
A-4-1 1000 900 3100 3.2 8 1 8.0
A-4-2 700 900 6600 3.87 9.675 2 4.8
A-4-3 1000 900 3600 3.96 9.9 2 5.0
A-4-4 700 900 4830 2.31 5.775 1 5.8
A-4-5 700 900 5324 2.62 6.55 1 6.6
A-4-6 1000 900 4100 4.09 10.225 2 5.1
A-4-7 1000 900 3600 3.33 8.325 2 4.2
A-4-8 900 900 4686 2.86 7.15 1 7.2
A-4-9 900 900 4499 2.96 7.4 1 7.4
A-4-10 900 900 4499 2.96 7.4 1 7.4
A-4-11 900 900 4325 2.57 6.425 1 6.4
A-4-12 700 900 4476 2.1 5.25 1 5.3
A-4-13 1000 900 3600 3.15 7.875 1 7.9
A-4-14 700 900 7800 4.63 11.575 2 5.8
A-4-15 700 900 5748 3.03 7.575 1 7.6
A-4-16 900 900 4964 3.19 7.975 1 8.0
A-4-17 700 900 3702 1.7 4.25 1 4.3
A-4-18 900 900 5300 3.74 9.35 2 4.7
A-4-19 700 900 5136 2.5 6.25 1 6.3
A-4-20 700 900 4245 2.59 6.475 1 6.5
A-4-21 700 900 4224 2.15 5.375 1 5.4
A-4-22 900 900 7004 4.28 10.7 2 5.4
A-4-23 900 900 4964 3.83 9.575 2 4.8
A-4-24 700 900 3902 1.9 4.75 1 4.8
A-4-25 900 900 4652 2.84 7.1 1 7.1
A-4A-4-26 700 900 4647 2.2 5.5 1 5.5
A-4-27 900 900 4700 3.77 9.425 2 4.7
A-4-28 700 900 6433 3.3 8.25 2 4.1
A-4-29 900 900 8131 5.59 13.975 2 7.0
A-4-30 700 900 4741 2.34 5.85 1 5.9
A-4 A-4-31 1000 900 3600 3.15 7.875 1 7.9
A-4-32 700 900 4230 1.94 4.85 1 4.9
A-4-33 1000 900 3600 3.33 8.325 2 4.2
A-4-34 1000 900 3600 2.52 6.3 1 6.3
A-4-35 900 900 4686 2.86 7.15 1 7.2
A-4-36 900 900 4499 3.52 8.8 2 4.4
A-4-37 700 900 3431 1.43 3.575 1 3.6
A-4-38 900 900 7045 4.43 11.075 2 5.5
A-4-39 900 900 5696 3.71 9.275 2 4.6
A-4-40 900 900 4680 3.67 9.175 2 4.6
A-4-41 700 900 3300 1.69 4.225 1 4.2
A-4-42 700 900 3858 1.84 4.6 1 4.6
A-4-43 900 900 4877 3.11 7.775 1 7.8
A-4-44 900 900 5402 4.27 10.675 2 5.3
A-4-45 900 900 6881 4.88 12.2 2 6.1
A-4-46 700 900 7445 3.96 9.9 2 5.0
A-4-47 900 900 6599 4.52 11.3 2 5.7
A-4-48 700 900 3462 1.5 3.75 1 3.8
A-4-49 900 900 7835 5.79 14.475 2 7.2
A-4-50 900 900 5500 3.86 9.65 2 4.8
二 环撑
A-4-H-1 1300 900 7533 8.58 21.45 3 7.2
A-4-H-2 1300 900 7409 8.9 22.25 3 7.4
A-4-H-3 1300 900 7171 8.39 20.975 3 7.0
A-4-H-4 1300 900 7363 8.62 21.55 3 7.2
A-4-H-5 1300 800 6883 7.16 17.9 3 6.0
A-4-H-6 1300 900 8520 10.26 25.65 4 6.4
A-4-H-7 1300 900 7728 8.75 21.875 3 7.3
A-4-H-8 1300 900 7977 9.33 23.325 3 7.8
A-4-H-9 1300 900 7448 8.71 21.775 3 7.3
A-4-H-10 1300 900 6952 8.13 20.325 3 6.8
A-4-H-11 1300 900 4988 6.89 17.225 3 5.7
一 支撑梁
A-5-1 900 700 7545 4.26 10.65 2 5.3
A-5-2 900 700 7378 3.56 8.9 2 4.5
A-5-3 900 700 8937 4.66 11.65 2 5.8
A-5-4 1000 700 7467 4.29 10.725 2 5.4
A-5-5 1000 700 8028 4.59 11.475 2 5.7
A-5-6 900 900 5034 4.04 10.1 2 5.1
A-5-7 900 900 6300 4.54 11.35 2 5.7
A-5-8 900 700 8144 4.29 10.725 2 5.4
A-5-9 900 700 6500 3.81 9.525 2 4.8
A-5-10 900 900 5820 4.16 10.4 2 5.2
A-5-11 1000 900 3745 4.35 10.875 2 5.4
A-5-12 900 900 4400 3.04 7.6 1 7.6
A-5-13 900 900 5000 3.45 8.625 2 4.3
A-5A-5-14 700 900 3745 1.71 4.275 1 4.3
A-5-15 900 900 4000 2.84 7.1 1 7.1
A-5-16 1000 900 6300 6.08 15.2 2 7.6
A-5-17 700 900 5153 2.5 6.25 1 6.3
A-5-18 900 900 4965 3.37 8.425 2 4.2
A-5-19 700 900 5500 3.17 7.925 1 7.9
A-5-20 900 900 4200 3.03 7.575 1 7.6
A-5-21 900 900 4500 3.65 9.125 2 4.6
A-5-22 900 900 5752 4.07 10.175 2 5.1
A-5-23 700 900 4494 2.07 5.175 1 5.2
A-5-24 700 900 4506 2.08 5.2 1 5.2
A-5-25 900 900 5625 4.34 10.85 2 5.4
A-5-26 1000 900 3755 2.44 6.1 1 6.1
A-5-27 700 900 4300 1.77 4.425 1 4.4
A-5-28 900 900 7315 5.4 13.5 2 6.8
A-5-29 900 900 4047 3.12 7.8 1 7.8
A-5-30 900 900 4953 3.4 8.5 2 4.3
A-5-31 1000 900 6750 5.26 13.15 2 6.6
A-5-32 700 900 5700 3.59 8.975 2 4.5
A-5-33 1000 900 4575 4.43 11.075 2 5.5
A-5-34 700 900 6586 3.61 9.025 2 4.5
A-5-35 1000 900 3725 2.95 7.375 1 7.4
A-5-36 700 900 6750 3.69 9.225 2 4.6
A-5-37 900 900 5627 4.56 11.4 2 5.7
A-5-38 900 900 4800 3.08 7.7 1 7.7
A-5-39 900 900 7300 5.91 14.775 2 7.4
A-5-40 1000 900 6200 5.18 12.95 2 6.5
A-5-41 700 900 6700 3.65 9.125 2 4.6
A-5-42 1000 900 6400 5.45 13.625 2 6.8
A-5-43 700 900 6586 3.4 8.5 2 4.3
A-5-44 900 900 5700 3.81 9.525 2 4.8
A-5-45 900 900 4600 3.73 9.325 2 4.7
A-5-46 900 900 4957 3.48 8.7 2 4.4
A-5-47 1000 900 6700 6.03 15.075 2 7.5
A-5-48 700 900 6800 3.72 9.3 2 4.7
A-5-49 1000 900 6275 5.24 13.1 2 6.6
A-5-50 900 900 4800 3.08 7.7 1 7.7
A-5-51 900 900 5610 3.73 9.325 2 4.7
A-5-52 900 900 4000 2.71 6.775 1 6.8
A-5-53 1000 900 7350 6.76 16.9 3 5.6
A-5-54 700 900 6649 3.62 9.05 2 4.5
A-5 A-5-55 1000 900 7225 6.1 15.25 2 7.6
A-5-56 900 900 5000 3.53 8.825 2 4.4
A-5-57 900 900 4000 3.03 7.575 1 7.6
A-5-58 900 900 5382 4.04 10.1 2 5.1
A-5-59 900 900 6355 5.4 13.5 2 6.8
A-5-60 700 900 5100 2.24 5.6 1 5.6
A-5-61 1000 900 4494 2.86 7.15 1 7.2
A-5-62 900 900 5158 3.43 8.575 2 4.3
A-5-63 700 900 5200 2.88 7.2 1 7.2
A-5-64 700 900 2900 1.83 4.575 1 4.6A-5
A-5-65 700 900 3083 1.51 3.775 1 3.8
A-5-66 900 700 11117 6.42 16.05 3 5.4
A-5-67 1000 700 8000 5.12 12.8 2 6.4
A-5-68 900 900 6373 4.29 10.725 2 5.4
A-5-69 1000 900 4506 4.54 11.35 2 5.7
A-5-70 900 900 5172 3.45 8.625 2 4.3
A-5-71 700 700 10236 4.33 10.825 2 5.4
A-5-72 900 700 9000 4.92 12.3 2 6.2
A-5-73 900 900 5071 3.17 7.925 1 7.9
A-5-74 900 900 3706 2.82 7.05 1 7.1
A-5-75 900 700 8400 4.74 11.85 2 5.9
A-5-76 900 700 8863 4.39 10.975 2 5.5
A-5-77 900 700 8464 4.39 10.975 2 5.5
A-5-78 1000 700 8377 5.35 13.375 2 6.7
A-5-79 1000 700 11697 6.97 17.425 3 5.8
A-5-80 900 900 9393 7.35 18.375 3 6.1
A-5-81 700 900 4429 2.21 5.525 1 5.5
A-5-82 900 900 5700 4.2 10.5 2 5.3
A-5-83 900 900 4107 2.06 5.15 1 5.2
A-5-84 900 900 3700 2.55 6.375 1 6.4
A-5-85 900 700 5985 2.96 7.4 1 7.4
A-5-86 900 900 5633 4.04 10.1 2 5.1
A-5-87 900 900 6126 4.84 12.1 2 6.1
A-5-88 900 700 4700 2.51 6.275 1 6.3
A-5-89 900 900 4555 2.75 6.875 1 6.9
A-5-90 900 700 3200 1.65 4.125 1 4.1
A-5-91 900 700 3807 1.35 3.375 1 3.4
A-5-92 900 700 6054 2.95 7.375 1 7.4
A-5-93 900 900 5814 4.73 11.825 2 5.9
A-5-94 900 900 6547 5.43 13.575 2 6.8
A-5-95 900 700 3712 1.58 3.95 1 4.0
二 环撑
A-5-H-5 1300 900 8007 9.85 24.625 4 6.2
A-5-H-6 1300 900 4548 5.07 12.675 2 6.3
A-5-H-7 1300 900 4837 5.43 13.575 2 6.8
三 腰梁（围檩）
A-5-W-1 1400 800 9570 11.37 28.425 4 7.1
A-5-W-2 1400 800 9525 10.06 25.15 4 6.3
A-5-W-3 1400 800 7309 8.39 20.975 3 7.0
A-5-W-4 1200 700 7000 5.88 14.7 2 7.4
A-5-W-5 1200 700 9791 8.64 21.6 3 7.2
A-5-W-6 1200 700 9597 7.94 19.85 3 6.6
A-5-W-7 1200 700 5421 4.67 11.675 2 5.8
A-5-W-8 1200 700 9017 7.57 18.925 3 6.3
A-5-W-9 1400 800 6498 7.59 18.975 3 6.3
A-5-W-10 1400 800 6398 6.24 15.6 2 7.8
一 支撑梁
A-6-1 900 700 5100 2.68 6.7 1 6.7
A-6-2 900 700 4100 1.56 3.9 1 3.9
A-6-3 900 700 8779 5.25 13.125 2 6.6
A-6-4 900 700 6185 3.08 7.7 1 7.7
A-6A-6-5 900 700 5865 2.91 7.275 1 7.3
A-6-6 1000 700 10281 6.33 15.825 2 7.9
A-6-7 1000 700 10329 6.33 15.825 2 7.9
A-6-8 900 900 7312 5.22 13.05 2 6.5
A-6-9 900 900 4146 3.99 9.975 2 5.0
A-6-10 900 900 4146 2.5 6.25 1 6.3
A-6-11 900 900 5145 3.38 8.45 2 4.2
A-6-12 700 900 4646 2.82 7.05 1 7.1
A-6-13 700 900 3723 1.83 4.575 1 4.6
A-6-14 700 900 3723 1.84 4.6 1 4.6
A-6-15 700 900 7020 3.45 8.625 2 4.3
A-6-16 1000 900 5143 5.38 13.45 2 6.7
A-6-17 900 900 8998 6.49 16.225 3 5.4
A-6-18 700 900 5147 2.68 6.7 1 6.7
A-6-19 1000 900 5152 4.4 11 2 5.5
A-6-20 900 900 7832 4.73 11.825 2 5.9
A-6-21 900 900 4499 3.52 8.8 2 4.4
A-6-22 900 900 4499 2.96 7.4 1 7.4
A-6-23 900 900 9895 6.85 17.125 3 5.7
A-6-24 1000 900 5274 4.03 10.075 2 5.0
A-6-25 700 900 5128 2.66 6.65 1 6.7
A-6-26 1000 900 5123 4.74 11.85 2 5.9
A-6-27 900 900 4499 3.52 8.8 2 4.4
A-6-28 900 900 4499 2.96 7.4 1 7.4
A-6-29 900 900 4565 3.14 7.85 1 7.9
A-6-30 900 900 4565 3.38 8.45 2 4.2
A-6-31 700 900 3600 1.76 4.4 1 4.4
A-6-32 1000 900 7200 5.67 14.175 2 7.1
A-6-33 700 900 7200 3.97 9.925 2 5.0
A-6-34 1000 900 7200 5.67 14.175 2 7.1
A-6-35 700 900 7200 3.53 8.825 2 4.4
A-6-36 700 900 3975 2.19 5.475 1 5.5
A-6-37 700 900 3200 1.57 3.925 1 3.9
A-6-38 700 900 3400 1.68 4.2 1 4.2
A-6-39 700 900 4623 2.6 6.5 1 6.5
A-6
A-6-40 700 900 3600 1.76 4.4 1 4.4
A-6-41 900 900 6418 4.23 10.575 2 5.3
A-6-42 900 900 4499 3.52 8.8 2 4.4
A-6-43 900 900 4499 2.96 7.4 1 7.4
A-6-44 900 900 5766 3.71 9.275 2 4.6
A-6-45 900 900 4499 2.96 7.4 1 7.4
A-6-46 900 900 4542 2.74 6.85 1 6.9
A-6-47 700 900 5324 2.62 6.55 1 6.6
A-6-48 1000 900 3600 3.15 7.875 1 7.9
A-6-49 700 900 7200 3.97 9.925 2 5.0
A-6-50 1000 900 3600 3.33 8.325 2 4.2
A-6-51 1000 900 3600 3.15 7.875 1 7.9
A-6-52 700 900 5274 2.58 6.45 1 6.5
A-6-53 1000 900 3600 3.33 8.325 2 4.2
A-6-54 900 900 6418 4.23 10.575 2 5.3
A-6-55 900 900 4499 3.52 8.8 2 4.4A-6
A-6-56 900 900 4499 2.96 7.4 1 7.4
A-6-57 900 900 6455 4.45 11.125 2 5.6
A-6-58 700 900 3600 2.2 5.5 1 5.5
A-6-59 1000 900 3600 3.15 7.875 1 7.9
A-6-60 700 900 7200 3.97 9.925 2 5.0
A-6-61 1000 900 7200 6.65 16.625 3 5.5
A-6-62 700 900 3195 1.33 3.325 1 3.3
A-6-63 700 900 4828 2.51 6.275 1 6.3
A-6-64 700 900 3600 1.77 4.425 1 4.4
A-6-65 1000 900 3600 3.45 8.625 2 4.3
A-6-66 900 900 5436 4.04 10.1 2 5.1
A-6-67 900 900 4801 3.2 8 1 8.0
A-6-68 900 900 4499 2.96 7.4 1 7.4
A-6-69 900 900 10437 7.5 18.75 3 6.3
A-6-70 700 900 3949 1.85 4.625 1 4.6
A-6-71 900 900 6162 4.67 11.675 2 5.8
A-6-72 1000 900 3948 3.34 8.35 2 4.2
A-6-73 700 900 3948 2.42 6.05 1 6.1
A-6-74 1000 900 3948 3.3 8.25 2 4.1
三 腰梁（围檩）
A-6-W-1 1200 700 5555 4.14 10.35 2 5.2
A-6-W-2 1200 700 4700 4.48 11.2 2 5.6
A-6-W-3 1200 700 8235 7.45 18.625 3 6.2
A-6-W-4 1200 700 13157 11.05 27.625 4 6.9
一 支撑梁
A-7-1 1000 900 4960 4.37 10.925 2 5.5
A-7-2 700 900 4702 2.15 5.375 1 5.4
A-7-3 900 900 6658 4.41 11.025 2 5.5
A-7-4 1000 900 4756 3.33 8.325 2 4.2
A-7-5 1000 900 4898 3.84 9.6 2 4.8
A-7-6 1000 900 5278 4.64 11.6 2 5.8
A-7-7 1000 900 5278 3.85 9.625 2 4.8
A-7-8 700 900 2758 1.15 2.875 1 2.9
A-7-9 1000 900 4235 3.26 8.15 2 4.1
A-7-10 700 900 4500 2.3 5.75 1 5.8
A-7-11 700 900 4500 2.01 5.025 1 5.0
A-7-12 700 900 4500 2.3 5.75 1 5.8
A-7-13 700 900 3618 1.84 4.6 1 4.6
A-7-14 700 900 4500 2.74 6.85 1 6.9
A-7-15 1000 900 3618 3.41 8.525 2 4.3
A-7-16 700 900 3618 1.78 4.45 1 4.5
A-7-17 1000 900 7236 5.72 14.3 2 7.2
A-7-18 900 900 4100 2.92 7.3 1 7.3
A-7-19 900 900 4900 3.56 8.9 2 4.5
A-7-20 1000 900 4147 3.82 9.55 2 4.8
A-7-21 700 900 4147 2.11 5.275 1 5.3
A-7-22 1000 900 3768 3.8 9.5 2 4.8
A-7-23 700 900 4500 2.3 5.75 1 5.8
A-7-24 700 900 4500 2.3 5.75 1 5.8
A-7-25 1000 900 4147 3.37 8.425 2 4.2
A-7-26 700 900 4147 2.55 6.375 1 6.4
A-7A-7-27 1000 900 4526 3.67 9.175 2 4.6
A-7-28 900 900 4500 2.96 7.4 1 7.4
A-7-29 900 900 4500 3.52 8.8 2 4.4
A-7 A-7-30 1000 900 3837 2.73 6.825 1 6.8
A-7-31 700 900 3837 1.91 4.775 1 4.8
A-7-32 1000 900 3837 3.54 8.85 2 4.4
A-7-33 1000 900 3837 2.73 6.825 1 6.8
A-7-34 700 900 3837 1.91 4.775 1 4.8
A-7-35 1000 900 3837 3.36 8.4 2 4.2
A-7-36 900 900 4700 3.81 9.525 2 4.8
A-7-37 900 900 4912 3.57 8.925 2 4.5
A-7-38 1000 900 4523 3.35 8.375 2 4.2
A-7-39 700 900 4523 2.35 5.875 1 5.9
A-7-40 1000 900 4523 4.16 10.4 2 5.2
A-7-41 700 900 4500 2.74 6.85 1 6.9
A-7-42 700 900 4500 2.3 5.75 1 5.8
A-7-43 1000 900 4523 3.35 8.375 2 4.2
A-7-44 700 900 5300 3.12 7.8 1 7.8
A-7-45 1000 900 4523 3.98 9.95 2 5.0
A-7-46 900 900 4500 2.96 7.4 1 7.4
A-7-47 900 900 4500 2.96 7.4 1 7.4
A-7-48 1000 900 7243 5.71 14.275 2 7.1
A-7-49 700 900 6467 3.79 9.475 2 4.7
A-7-50 1000 900 7244 7.33 18.325 3 6.1
A-7-51 900 900 4500 3.65 9.125 2 4.6
A-7-52 900 900 5268 3.86 9.65 2 4.8
A-7-53 1000 900 5406 4.13 10.325 2 5.2
A-7-54 1000 900 5406 4.76 11.9 2 6.0
A-7-55 1000 700 8044 4.8 12 2 6.0
A-7-56 700 900 4500 2.3 5.75 1 5.8
A-7-57 700 900 4500 2.3 5.75 1 5.8
三 腰梁（围檩）
C-7-W-1 1400 800 6439 6.43 16.075 3 5.4
C-7-W-2 1400 800 9484 12.39 30.975 4 7.7
一 支撑梁
B-1-1 700 900 5372 3.38 8.45 2 4.2
B-1-2 900 900 5195 4.21 10.525 2 5.3
B-1-3 700 900 5466 3.44 8.6 2 4.3
B-1-4 900 900 3500 2.4 6 1 6.0
B-1-5 700 900 5138 2.63 6.575 1 6.6
B-1-6 700 900 3306 2.08 5.2 1 5.2
B-1-7 700 900 4938 2.15 5.375 1 5.4
B-1-8 700 900 3304 2.03 5.075 1 5.1
B-1-9 700 900 5274 2.69 6.725 1 6.7
B-1-10 900 900 4926 3.93 9.825 2 4.9
B-1-11 700 900 4800 3.02 7.55 1 7.6
B-1-12 900 900 3400 2.7 6.75 1 6.8
B-1-13 900 900 4166 2.95 7.375 1 7.4
B-1-14 1000 700 6695 4.69 11.725 2 5.9
B-1-15 900 700 4400 2.3 5.75 1 5.8
B-1-16 900 700 5063 2.95 7.375 1 7.4
B-1B-1-17 1000 700 6200 2.88 7.2 1 7.2
B-1-18 900 700 4686 2.15 5.375 1 5.4
B-1-19 900 700 3385 1.35 3.375 1 3.4
B-1-20 900 700 4233 2.05 5.125 1 5.1
B-1-21 900 700 7553 3.92 9.8 2 4.9
B-1-22 900 900 5034 3.74 9.35 2 4.7
B-1-23 900 900 4217 3.03 7.575 1 7.6
B-1-24 700 900 3867 1.82 4.55 1 4.6
B-1-25 700 900 5171 3 7.5 1 7.5
B-1-26 900 900 6337 5.13 12.825 2 6.4
B-1-27 900 900 5485 4.14 10.35 2 5.2
B-1-28 900 900 4926 3.55 8.875 2 4.4
B-1-29 900 900 4500 2.96 7.4 1 7.4
B-1-30 900 900 4500 3.52 8.8 2 4.4
B-1-31 900 700 7009 3.81 9.525 2 4.8
B-1-32 900 900 4659 3.62 9.05 2 4.5
B-1-33 700 900 4314 2.72 6.8 1 6.8
B-1
B-1-34 700 900 3102 2.05 5.125 1 5.1
B-1-35 700 900 4411 1.95 4.875 1 4.9
B-1-36 700 900 5170 2.61 6.525 1 6.5
二 环撑
B-1-H-1 1300 800 7488 7.1 17.75 3 5.9
B-1-H-2 1300 800 6801 6.82 17.05 3 5.7
B-1-H-3 1300 800 6342 6.34 15.85 2 7.9
B-1-H-4 1300 800 7153 7.58 18.95 3 6.3
B-1-H-5 1300 800 7135 7.35 18.375 3 6.1
B-1-H-6 1300 800 6909 6.94 17.35 3 5.8
B-1-H-7 1300 800 7280 7.58 18.95 3 6.3
B-1-H-8 900 900 7472 5.88 14.7 2 7.4
B-1-H-9 900 900 5680 4.72 11.8 2 5.9
B-1-H-10 900 900 8316 6.43 16.075 3 5.4
B-1-H-11 900 900 6712 2.91 7.275 1 7.3
B-1-H-12 1300 900 13269 15 37.5 5 7.5
B-1-H-13 1300 900 5352 5.92 14.8 2 7.4
B-1-H-14 1300 800 4008 4.17 10.425 2 5.2
B-1-H-15 1300 800 8956 8.89 22.225 3 7.4
B-1-H-16 1300 800 6470 6.52 16.3 3 5.4
B-1-H-17 1300 900 9213 10.78 26.95 4 6.7
三 腰梁（围檩）
B-1-W-1 1000 900 5054 3.73 9.325 2 4.7
B-1-W-2 1000 900 13765 10.97 27.425 4 6.9
B-1-W-3 1200 700 6700 6.17 15.425 2 7.7
B-1-W-4 1200 700 6174 5.19 12.975 2 6.5
B-1-W-5 1200 700 3917 3.29 8.225 2 4.1
B-1-W-6 1200 700 8209 7.27 18.175 3 6.1
B-1-W-7 1200 700 8089 6.69 16.725 3 5.6
B-1-W-8 1200 700 11104 9.06 22.65 3 7.6
B-1-W-9 1200 700 9400 7.9 19.75 3 6.6
B-1-W-10 1200 700 9644 8.1 20.25 3 6.8
B-1-W-11 1200 700 3460 2.36 5.9 1 5.9
B-1-W-12 1000 900 3591 2.28 5.7 1 5.7一 支撑梁
B-2-1 900 700 11242 6.26 15.65 2 7.8
B-2-2 900 700 9295 5.44 13.6 2 6.8
B-2-3 900 700 8600 4.95 12.375 2 6.2
B-2-4 900 700 9000 4.08 10.2 2 5.1
B-2-5 900 700 7400 4.09 10.225 2 5.1
B-2-6 900 700 8000 4.63 11.575 2 5.8
B-2-7 900 700 7200 4.54 11.35 2 5.7
B-2-8 900 700 8600 4.95 12.375 2 6.2
B-2-9 900 700 5364 2.91 7.275 1 7.3
B-2-10 900 700 5061 2.9 7.25 1 7.3
B-2-11 900 700 7234 3.39 8.475 2 4.2
B-2-12 900 700 14728 8.85 22.125 3 7.4
B-2-13 900 700 11246 6.66 16.65 3 5.6
B-2-14 900 700 3600 1.85 4.625 1 4.6
B-2-15 1000 900 2723 2.33 5.825 1 5.8
B-2-16 700 900 3707 2.45 6.125 1 6.1
B-2-17 1000 900 4691 4.23 10.575 2 5.3
B-2-18 900 900 5816 3.41 8.525 2 4.3
B-2-19 700 900 2699 1.01 2.525 1 2.5
B-2-20 1000 900 4691 4.31 10.775 2 5.4
B-2-21 700 900 4100 2.36 5.9 1 5.9
B-2-22 1000 900 4691 4.31 10.775 2 5.4
B-2-23 900 900 6984 5 12.5 2 6.3
B-2-24 900 900 7633 5.65 14.125 2 7.1
B-2-25 900 900 4853 3.91 9.775 2 4.9
B-2-26 900 900 5265 3.67 9.175 2 4.6
B-2-27 900 900 4500 2.96 7.4 1 7.4
B-2-28 900 900 4500 2.96 7.4 1 7.4
B-2-29 1000 900 4500 3.96 9.9 2 5.0
B-2-30 700 900 4000 2.2 5.5 1 5.5
B-2-31 700 900 4700 2.96 7.4 1 7.4
B-2-32 700 900 5000 2.39 5.975 1 6.0
B-2
B-2-33 1000 900 4500 3.96 9.9 2 5.0
B-2-34 900 900 5474 4.34 10.85 2 5.4
B-2-35 1000 900 4900 4.82 12.05 2 6.0
B-2-36 700 900 4900 2.8 7 1 7.0
B-2-37 1000 900 5000 4.91 12.275 2 6.1
B-2-38 900 900 2953 1.46 3.65 1 3.7
B-2-39 900 900 4500 3.52 8.8 2 4.4
B-2-40 900 900 4500 2.96 7.4 1 7.4
B-2-41 900 900 2999 1.49 3.725 1 3.7
B-2-42 1000 900 6700 5.63 14.075 2 7.0
B-2-43 700 900 7200 3.97 9.925 2 5.0
B-2-44 1000 900 6700 5.63 14.075 2 7.0
B-2-45 900 900 3066 1.55 3.875 1 3.9
B-2-46 900 900 4500 3.52 8.8 2 4.4
B-2-47 900 900 4500 2.96 7.4 1 7.4
B-2-48 900 900 2597 1.17 2.925 1 2.9
B-2-49 1000 900 7200 6.48 16.2 3 5.4
二 环撑B-2
B-2-H-1 1300 800 7379 7.48 18.7 3 6.2
B-2-H-2 1300 800 6169 7.23 18.075 3 6.0
B-2-H-3 1300 800 5636 5.35 13.375 2 6.7
B-2-H-4 1300 800 4861 5.37 13.425 2 6.7
B-2-H-5 1300 900 9191 10.64 26.6 4 6.7
B-2-H-6 1300 900 8992 10.98 27.45 4 6.9
B-2-H-7 1300 900 13612 16.57 41.425 6 6.9
三 腰梁（围檩）
B-2-W-1 1200 700 8350 7.2 18 3 6.0
B-2-W-2 1200 700 5750 4.65 11.625 2 5.8
B-2-W-3 1200 700 7200 6.12 15.3 2 7.7
B-2-W-4 1200 700 6832 6.14 15.35 2 7.7
B-2-W-5 1300 900 11457 13.4 33.5 5 6.7
B-2-W-6 1300 900 8150 9.13 22.825 3 7.6
B-2-W-7 1300 900 8310 10.77 26.925 4 6.7
一 支撑梁
B-3-1 900 700 5841 2.88 7.2 1 7.2
B-3-2 900 900 4259 2.82 7.05 1 7.1
B-3-3 900 900 4259 3.2 8 1 8.0
B-3-4 700 900 3648 1.82 4.55 1 4.6
B-3-5 700 900 4277 2.62 6.55 1 6.6
B-3-6 700 900 4276 2.25 5.625 1 5.6
B-3-7 700 900 3653 2.05 5.125 1 5.1
B-3-8 700 900 3428 1.49 3.725 1 3.7
B-3-9 700 900 4200 2.43 6.075 1 6.1
B-3-10 700 900 3641 1.79 4.475 1 4.5
B-3-11 900 900 6836 4.68 11.7 2 5.9
B-3-12 700 900 5893 3.66 9.15 2 4.6
B-3-13 900 900 4292 2.91 7.275 1 7.3
B-3-14 700 900 5763 2.93 7.325 1 7.3
B-3-15 900 900 4294 2.83 7.075 1 7.1
B-3-16 900 900 7288 6.62 16.55 3 5.5
B-3-17 900 900 5674 3.88 9.7 2 4.9
B-3-18 900 700 6062 3 7.5 1 7.5
B-3-19 900 700 8112 4.83 12.075 2 6.0
B-3-20 900 700 3900 1.43 3.575 1 3.6
B-3-21 900 700 6620 3.76 9.4 2 4.7
B-3-22 900 700 5100 2.7 6.75 1 6.8
B-3-23 900 700 6267 3.14 7.85 1 7.9
B-3-24 900 700 4704 2.18 5.45 1 5.5
B-3-25 900 700 5323 2.56 6.4 1 6.4
B-3-26 900 700 8319 4.4 11 2 5.5
B-3-27 900 700 9157 5.24 13.1 2 6.6
B-3-28 900 700 2261 0.66 1.65 1 1.7
B-3
B-3-29 900 700 5695 3.3 8.25 2 4.1
B-3-30 900 700 6800 3.88 9.7 2 4.9
B-3-31 900 700 11228 6.08 15.2 2 7.6
B-3-32 900 700 7900 4.12 10.3 2 5.2
B-3-33 900 900 5400 3.84 9.6 2 4.8
B-3-34 900 900 6963 5.29 13.225 2 6.6
B-3-35 900 900 5294 3.16 7.9 1 7.9B-3
B-3-36 900 900 7900 5.43 13.575 2 6.8
B-3-37 700 900 5867 2.91 7.275 1 7.3
二 环撑
B-3-H-1 1300 900 8376 9.27 23.175 3 7.7
B-3-H-2 1300 800 7603 8.93 22.325 3 7.4
B-3-H-3 1300 800 7732 7.06 17.65 3 5.9
B-3-H-4 1300 800 7883 8 20 3 6.7
B-3-H-5 1300 800 7882 8.11 20.275 3 6.8
B-3-H-6 1300 800 7147 8 20 3 6.7
B-3-H-7 1300 800 7239 7.79 19.475 3 6.5
B-3-H-8 1300 800 6868 7.61 19.025 3 6.3
B-3-H-9 1300 900 9129 10.68 26.7 4 6.7
B-4-H-1 900 900 6031 4.63 11.575 2 5.8
三 腰梁（围檩）
B-3-W-1 1200 700 8216 6.9 17.25 3 5.8
B-3-W-2 1200 700 7000 5.88 14.7 2 7.4
B-3-W-3 1200 700 8000 6.72 16.8 3 5.6
B-3-W-4 1200 700 9000 7.56 18.9 3 6.3
B-3-W-5 1200 700 10236 8.89 22.225 3 7.4
B-3-W-6 1200 700 9767 8.44 21.1 3 7.0
B-3-W-7 1200 700 9051 7.61 19.025 3 6.3
B-3-W-8 1200 700 7674 5.49 13.725 2 6.9
一 支撑梁
B-4-1 900 900 4500 2.96 7.4 1 7.4
B-4-2 900 900 4500 2.96 7.4 1 7.4
B-4-3 900 900 8151 5.62 14.05 2 7.0
B-4-4 900 700 5957 3.06 7.65 1 7.7
B-4-5 900 700 12448 6.99 17.475 3 5.8
B-4-6 1000 900 4100 3.29 8.225 2 4.1
B-4-7 700 900 4700 2.96 7.4 1 7.4
B-4-8 1000 900 4507 3.97 9.925 2 5.0
B-4-9 900 700 11729 6.67 16.675 3 5.6
B-4-10 900 700 5364 2.69 6.725 1 6.7
B-4-11 700 900 4500 2.3 5.75 1 5.8
B-4-12 700 900 4500 2.3 5.75 1 5.8
B-4-13 1000 900 4914 5.01 12.525 2 6.3
B-4-14 700 900 4400 2.77 6.925 1 6.9
B-4-15 1000 900 4507 4.15 10.375 2 5.2
B-4-16 900 700 14396 8.16 20.4 3 6.8
B-4-17 1000 900 4437 3.9 9.75 2 4.9
B-4-18 700 900 5129 2.72 6.8 1 6.8
B-4-19 1000 900 5820 5.24 13.1 2 6.6
B-4-20 700 900 4500 2.74 6.85 1 6.9
B-4-21 700 900 4500 2.3 5.75 1 5.8
B-4-22 1000 900 5820 5.48 13.7 2 6.9
B-4-23 700 900 5820 3.16 7.9 1 7.9
B-4-24 1000 900 5820 5.09 12.725 2 6.4
B-4-25 900 700 6795 4.28 10.7 2 5.4
B-4-26 700 900 4920 2.6 6.5 1 6.5
B-4-27 1000 900 4880 4.3 10.75 2 5.4
B-4-28 900 900 6841 5.33 13.325 2 6.7
B-4B-4-29 900 700 5551 2.93 7.325 1 7.3
B-4-30 900 700 13443 8.02 20.05 3 6.7
B-4-31 900 700 10416 5.68 14.2 2 7.1
B-4-32 900 700 5969 3.43 8.575 2 4.3
B-4-33 700 900 4499 2.3 5.75 1 5.8
B-4-34 700 900 4499 2.3 5.75 1 5.8
B-4-35 700 900 4838 2.22 5.55 1 5.6
B-4-36 700 900 4796 2.92 7.3 1 7.3
B-4-37 1000 900 4836 3.59 8.975 2 4.5
B-4 B-4-38 900 900 6871 4.45 11.125 2 5.6
B-4-39 900 900 6900 4.65 11.625 2 5.8
B-4-40 1000 900 4499 4.74 11.85 2 5.9
B-4-41 1000 900 4499 3.44 8.6 2 4.3
B-4-42 1000 900 5036 4.55 11.375 2 5.7
B-4-43 1000 900 4681 4.3 10.75 2 5.4
B-4-44 1000 900 4000 3.51 8.775 2 4.4
B-4-45 1000 900 3850 3.27 8.175 2 4.1
B-4-46 1000 900 4650 4.38 10.95 2 5.5
B-4-47 1000 900 4500 3.33 8.325 2 4.2
B-4-48 900 700 11400 6.74 16.85 3 5.6
B-4-49 700 900 8854 4.73 11.825 2 5.9
B-4-50 700 900 4730 2.22 5.55 1 5.6
B-4-51 700 900 4499 2.3 5.75 1 5.8
B-4-52 700 900 4499 2.3 5.75 1 5.8
B-4-53 900 900 6293 4.12 10.3 2 5.2
B-4-54 700 900 8905 4.7 11.75 2 5.9
B-4-55 1000 900 3902 3.6 9 2 4.5
B-4-56 700 900 3902 1.95 4.875 1 4.9
B-4-57 1000 900 3902 3.6 9 2 4.5
B-4-58 900 700 7015 3.73 9.325 2 4.7
B-4-59 900 900 4499 3.52 8.8 2 4.4
B-4-60 900 900 4499 2.96 7.4 1 7.4
二 环撑
B-4-H-1 1300 900 8308 9.72 24.3 4 6.1
B-4-H-2 1300 900 12438 13.59 33.975 5 6.8
B-4-H-3 1300 900 13712 16.61 41.525 6 6.9
B-4-H-4 1300 800 7197 7.99 19.975 3 6.7
B-4-H-5 1300 800 6172 6.53 16.325 3 5.4
B-4-H-6 1300 800 7531 8.29 20.725 3 6.9
B-4-H-7 1300 800 10292 11.05 27.625 4 6.9
B-4-H-8 1300 800 8282 8.26 20.65 3 6.9
B-4-H-9 1300 800 7376 7.67 19.175 3 6.4
B-4-H-10 1300 800 8907 9.26 23.15 3 7.7
B-4-H-11 1300 800 5591 5.81 14.525 2 7.3
B-4-H-12 1300 900 9088 10.63 26.575 4 6.6
B-4-H-13 1300 900 9645 11.95 29.875 4 7.5
B-4-H-14 1300 800 5594 6.84 17.1 3 5.7
B-4-H-15 1300 800 6380 6.79 16.975 3 5.7
一 支撑梁
B-5-1 900 700 7738 4.31 10.775 2 5.4
B-5-2 900 900 7712 5.23 13.075 2 6.5
B-5B-5-3 1000 900 4310 3.71 9.275 2 4.6
B-5-4 700 900 4452 2.24 5.6 1 5.6
B-5-5 1000 900 4594 3.93 9.825 2 4.9
B-5-6 900 900 4502 2.96 7.4 1 7.4
B-5-7 900 900 4502 3.54 8.85 2 4.4
B-5-8 1000 900 5415 4.85 12.125 2 6.1
B-5-9 900 900 7970 4.98 12.45 2 6.2
B-5-10 700 900 4410 2.99 7.475 1 7.5
B-5-11 1000 900 5699 4.83 12.075 2 6.0
B-5-12 700 900 5557 2.93 7.325 1 7.3
B-5-13 900 900 3100 1.89 4.725 1 4.7
B-5-14 900 900 4912 3.44 8.6 2 4.3
B-5-15 900 900 4088 2.91 7.275 1 7.3
B-5-16 900 900 4912 3.57 8.925 2 4.5
B-5-17 900 900 6326 4.16 10.4 2 5.2
B-5-18 900 900 4497 3.04 7.6 1 7.6
B-5-19 700 900 5129 1.75 4.375 1 4.4
B-5-20 1000 900 3600 3.45 8.625 2 4.3
B-5-21 700 900 6500 3.81 9.525 2 4.8
B-5-22 1000 900 6400 5.38 13.45 2 6.7
B-5-23 700 900 8373 4.89 12.225 2 6.1
B-5-24 700 900 5817 2.71 6.775 1 6.8
B-5-25 700 900 5980 3 7.5 1 7.5
B-5-26 1000 900 3600 3.33 8.325 2 4.2
B-5-27 900 900 4506 2.69 6.725 1 6.7
B-5-28 900 900 4100 2.92 7.3 1 7.3
B-5-29 900 900 4300 3.48 8.7 2 4.4
B-5-30 900 900 6074 3.52 8.8 2 4.4
B-5-31 1000 900 2300 1.67 4.175 1 4.2
B-5-32 700 900 3000 1.32 3.3 1 3.3
B-5 B-5-33 1000 900 3000 2.7 6.75 1 6.8
B-5-34 700 900 6700 3.94 9.85 2 4.9
B-5-35 1000 900 7200 6.48 16.2 3 5.4
B-5-36 900 900 5400 4.13 10.325 2 5.2
B-5-37 900 900 4500 3.65 9.125 2 4.6
B-5-38 900 900 4535 2.86 7.15 1 7.2
B-5-39 900 900 3600 2.36 5.9 1 5.9
B-5-40 700 900 6483 3.31 8.275 2 4.1
B-5-41 1000 900 4100 4 10 2 5.0
B-5-42 700 900 7100 3.91 9.775 2 4.9
B-5-43 1000 900 4100 4 10 2 5.0
B-5-44 700 900 5801 2.88 7.2 1 7.2
B-5-45 1000 900 3600 3.33 8.325 2 4.2
B-5-46 1000 900 3600 3.33 8.325 2 4.2
B-5-47 900 900 8692 6.21 15.525 2 7.8
B-5-48 1000 900 3963 4.42 11.05 2 5.5
B-5-49 700 900 3802 2.41 6.025 1 6.0
B-5-50 1000 900 3641 4.13 10.325 2 5.2
B-5-51 900 700 10560 5.69 14.225 2 7.1
B-5-52 900 700 5945 3.3 8.25 2 4.1
B-5-53 700 900 4500 2.3 5.75 1 5.8B-5
B-5-54 700 900 4500 2.3 5.75 1 5.8
B-5-55 900 900 4504 3.62 9.05 2 4.5
B-5-56 900 900 1775 1.8 4.5 1 4.5
B-5-57 700 900 5606 3.21 8.025 2 4.0
B-5-58 1000 900 3963 3.81 9.525 2 4.8
B-5-59 700 900 3963 1.99 4.975 1 5.0
B-5-60 1000 900 3963 3.85 9.625 2 4.8
B-5-61 700 900 4026 1.96 4.9 1 4.9
三 腰梁（围檩）
B-5-W-1 1200 700 9006 6.72 16.8 3 5.6
B-5-W-2 1200 700 7604 6.01 15.025 2 7.5
B-5-W-3 1200 700 7000 5.84 14.6 2 7.3
B-5-W-4 1200 700 5000 4.2 10.5 2 5.3
一 支撑梁
B-6-1 1000 900 4500 4.14 10.35 2 5.2
B-6-2 1000 900 4500 3.96 9.9 2 5.0
B-6-3 700 900 5085 3.1 7.75 1 7.8
B-6-4 1000 900 4916 4.86 12.15 2 6.1
B-6-5 900 900 4652 3.36 8.4 2 4.2
B-6-6 700 900 4500 2.3 5.75 1 5.8
B-6-7 900 900 4500 3.52 8.8 2 4.4
B-6-8 700 900 4500 2.74 6.85 1 6.9
B-6-9 900 900 4500 3.52 8.8 2 4.4
B-6-10 700 900 4500 2.74 6.85 1 6.9
B-6-11 900 900 4500 3.52 8.8 2 4.4
B-6-12 700 900 4500 2.74 6.85 1 6.9
B-6-13 700 900 4888 2.46 6.15 1 6.2
B-6-14 700 900 4888 2.49 6.225 1 6.2
B-6-15 700 900 3156 1.35 3.375 1 3.4
B-6-16 700 900 3858 1.92 4.8 1 4.8
B-6-17 700 900 4681 2.44 6.1 1 6.1
B-6-18 700 900 4000 2.02 5.05 1 5.1
B-6-19 700 900 4000 2.02 5.05 1 5.1
B-6-20 700 900 4500 2.33 5.825 1 5.8
B-6-21 700 900 4500 2.33 5.825 1 5.8
B-6-22 700 900 4500 2.33 5.825 1 5.8
B-6-23 700 900 4500 2.33 5.825 1 5.8
B-6-24 700 900 5085 2.6 6.5 1 6.5
B-6-25 1000 900 4916 3.79 9.475 2 4.7
B-6-26 900 900 4652 3.06 7.65 1 7.7
B-6-27 700 900 4500 2.74 6.85 1 6.9
B-6-28 900 900 4500 2.96 7.4 1 7.4
B-6-29 700 900 4500 2.3 5.75 1 5.8
B-6-30 900 900 4500 2.96 7.4 1 7.4
B-6-31 700 900 4500 2.3 5.75 1 5.8
B-6-32 900 900 4500 2.96 7.4 1 7.4
B-6-33 700 900 4500 2.3 5.75 1 5.8
B-6-34 1000 900 5278 3.72 9.3 2 4.7
B-6-35 1000 900 5278 4.59 11.475 2 5.7
B-6-36 1000 900 6313 4.91 12.275 2 6.1
B-6-37 1000 900 2681 2.35 5.875 1 5.9
B-6B-6-38 1000 900 4681 4.12 10.3 2 5.2
B-6-39 1000 900 4000 3.69 9.225 2 4.6
B-6-40 1000 900 4000 3.51 8.775 2 4.4
B-6-41 1000 900 4500 4.14 10.35 2 5.2
B-6-42 1000 900 4500 3.96 9.9 2 5.0
B-6-43 1000 900 4500 4.14 10.35 2 5.2
B-6-44 1000 900 4500 3.96 9.9 2 5.0
B-6-45 900 900 6609 5.16 12.9 2 6.5
B-6-46 900 900 4500 2.96 7.4 1 7.4
B-6-47 900 900 4500 3.52 8.8 2 4.4
B-6-48 1000 900 4576 3.87 9.675 2 4.8
B-6-49 700 900 4576 2.38 5.95 1 6.0
B-6-50 1000 900 4576 4.03 10.075 2 5.0
B-6-51 700 900 5000 2.83 7.075 1 7.1
B-6-52 700 900 4000 2.2 5.5 1 5.5
B-6-53 900 900 5885 3.82 9.55 2 4.8
B-6-54 900 900 6272 4.09 10.225 2 5.1
B-6-55 1000 900 4075 2.76 6.9 1 6.9
B-6-56 700 900 4075 2.03 5.075 1 5.1
B-6-57 1000 900 4075 2.89 7.225 1 7.2
B-6-58 1000 900 4303 3.78 9.45 2 4.7
B-6-59 1000 900 4711 3.47 8.675 2 4.3
B-6-60 1000 900 4500 3.91 9.775 2 4.9
B-6-61 1000 900 4500 3.2 8 1 8.0
B-6-62 900 900 4500 2.96 7.4 1 7.4
B-6-63 700 900 4500 2.3 5.75 1 5.8
B-6 B-6-64 1000 900 4500 3.91 9.775 2 4.9
B-6-65 700 900 4500 2.74 6.85 1 6.9
B-6-66 1000 900 4500 3.91 9.775 2 4.9
B-6-67 700 900 4880 2.85 7.125 1 7.1
B-6-68 700 900 4647 2.39 5.975 1 6.0
B-6-69 700 900 4500 2.3 5.75 1 5.8
B-6-70 700 900 4500 2.3 5.75 1 5.8
B-6-71 900 900 4500 2.96 7.4 1 7.4
B-6-72 700 900 4500 2.75 6.875 1 6.9
B-6-73 1000 900 4500 3.29 8.225 2 4.1
B-6-74 700 900 4500 2.3 5.75 1 5.8
B-6-75 1000 900 4500 3.38 8.45 2 4.2
B-6-76 1000 900 4430 3.71 9.275 2 4.6
B-6-77 1000 900 4584 3.36 8.4 2 4.2
B-6-78 1000 900 4500 4.21 10.525 2 5.3
B-6-79 1000 900 4500 3.33 8.325 2 4.2
B-6-80 900 900 6224 4.82 12.05 2 6.0
B-6-81 900 900 6248 3.94 9.85 2 4.9
B-6-82 1000 900 4310 3.74 9.35 2 4.7
B-6-83 700 900 4310 2.18 5.45 1 5.5
B-6-84 1000 900 4310 3.73 9.325 2 4.7
B-6-85 900 700 6248 3.37 8.425 2 4.2
B-6-86 900 900 6270 4.15 10.375 2 5.2
B-6-87 700 900 4500 2.74 6.85 1 6.9
B-6-88 700 900 4500 2.3 5.75 1 5.8B-6
B-6-89 1000 900 4341 3.19 7.975 1 8.0
B-6-90 700 900 4341 2.23 5.575 1 5.6
B-6-91 1000 900 4341 4.04 10.1 2 5.1
B-6-92 900 700 12539 7.61 19.025 3 6.3
B-6-93 1000 900 4326 3.98 9.95 2 5.0
B-6-94 700 900 4326 2.22 5.55 1 5.6
B-6-95 1000 900 4326 3.13 7.825 1 7.8
B-6-96 700 900 4500 2.3 5.75 1 5.8
B-6-97 700 900 4500 2.74 6.85 1 6.9
B-6-98 1000 900 4326 3.8 9.5 2 4.8
B-6-99 700 900 4326 2.22 5.55 1 5.6
B-6-100 1000 900 4326 3.57 8.925 2 4.5
B-6-101 900 700 9736 5.33 13.325 2 6.7
B-6-102 900 900 4100 2.92 7.3 1 7.3
B-6-103 900 900 4900 3.56 8.9 2 4.5
B-6-104 1000 900 4500 4.14 10.35 2 5.2
B-6-105 700 900 4500 2.33 5.825 1 5.8
B-6-106 1000 900 4500 4.38 10.95 2 5.5
B-6-107 700 900 4500 2.74 6.85 1 6.9
B-6-108 700 900 4500 2.3 5.75 1 5.8
B-6-109 1000 900 4500 3.96 9.9 2 5.0
B-6-110 700 900 4500 2.33 5.825 1 5.8
B-6-111 1000 900 4500 3.96 9.9 2 5.0
B-6-112 900 700 5676 2.84 7.1 1 7.1
B-6-113 900 900 4500 3.52 8.8 2 4.4
B-6-114 900 900 4500 2.96 7.4 1 7.4
B-6-115 1000 900 4500 4.14 10.35 2 5.2
B-6-116 1000 900 300 0 0 #DIV/0!
B-6-117 700 900 4500 2.33 5.825 1 5.8
B-6-118 1000 900 4500 4.14 10.35 2 5.2
B-6-119 700 900 4500 2.74 6.85 1 6.9
B-6-120 700 900 3800 2.17 5.425 1 5.4
B-6-121 1000 900 4500 4.77 11.925 2 6.0
B-6-122 700 900 4500 2.33 5.825 1 5.8
B-6-123 1000 900 4500 4.14 10.35 2 5.2
B-6-124 900 700 4530 2.13 5.325 1 5.3
B-6-125 900 900 4500 3.52 8.8 2 4.4
B-6-126 900 900 4500 2.96 7.4 1 7.4
B-6-127 900 900 4500 3.52 8.8 2 4.4
B-6-128 900 900 4500 2.96 7.4 1 7.4
一 支撑梁
B-7-1 900 900 4282 3.46 8.65 2 4.3
B-7-2 900 900 4041 2.48 6.2 1 6.2
B-7-3 900 900 6801 4.9 12.25 2 6.1
B-7-4 1000 900 4500 4.14 10.35 2 5.2
B-7-5 700 900 4200 2.65 6.625 1 6.6
B-7-6 1000 900 4500 4.14 10.35 2 5.2
B-7-7 900 900 4100 2.92 7.3 1 7.3
B-7-8 900 900 4900 3.56 8.9 2 4.5
B-7-9 1000 900 4500 3.96 9.9 2 5.0
B-7-10 700 900 4600 2.33 5.825 1 5.8
B-7B-7-11 1000 900 4500 3.96 9.9 2 5.0
B-7-12 900 700 4796 2.68 6.7 1 6.7
B-7-13 700 900 4000 2.2 5.5 1 5.5
B-7-14 700 900 5000 2.39 5.975 1 6.0
B-7-15 1000 900 4500 3.19 7.975 1 8.0
B-7-16 700 900 4600 2.9 7.25 1 7.3
B-7-17 1000 900 4500 3.33 8.325 2 4.2
B-7-18 900 900 4687 3.62 9.05 2 4.5
B-7-19 900 900 4114 3.33 8.325 2 4.2
B-7-20 900 900 5229 3.55 8.875 2 4.4
B-7-21 900 900 4000 2.83 7.075 1 7.1
B-7-22 900 900 4239 3.43 8.575 2 4.3
B-7-23 900 900 3300 3.12 7.8 1 7.8
B-7-24 700 900 7855 3.17 7.925 1 7.9
B-7-25 700 900 4000 2.24 5.6 1 5.6
B-7-26 1000 900 4100 3.29 8.225 2 4.1
B-7-27 700 900 4400 2.21 5.525 1 5.5
B-7-28 1000 900 4500 3.96 9.9 2 5.0
B-7-29 700 900 5200 2.81 7.025 1 7.0
B-7-30 700 900 4900 2.65 6.625 1 6.6
B-7-31 700 900 4800 2.39 5.975 1 6.0
B-7-32 700 900 5007 2.4 6 1 6.0
B-7-33 700 900 4300 2.71 6.775 1 6.8
B-7-34 1000 900 4300 3.87 9.675 2 4.8
B-7
B-7-35 700 900 4400 2.77 6.925 1 6.9
B-7-36 1000 900 4500 3.33 8.325 2 4.2
B-7-37 900 900 3702 2.17 5.425 1 5.4
B-7-38 900 900 5229 3.55 8.875 2 4.4
B-7-39 900 900 4100 2.92 7.3 1 7.3
B-7-40 900 900 3977 3.22 8.05 2 4.0
B-7-41 900 900 4000 2.85 7.125 1 7.1
B-7-42 700 900 4900 3.09 7.725 1 7.7
B-7-43 1000 900 4700 4.23 10.575 2 5.3
B-7-44 700 900 4600 2.33 5.825 1 5.8
B-7-45 1000 900 4624 4.07 10.175 2 5.1
B-7-46 700 900 3300 1.22 3.05 1 3.1
B-7-47 700 900 4526 2.54 6.35 1 6.4
B-7-48 700 900 4500 2.3 5.75 1 5.8
B-7-49 700 900 4500 2.3 5.75 1 5.8
B-7-50 700 900 4651 2.17 5.425 1 5.4
B-7-51 700 900 4100 2.58 6.45 1 6.5
B-7-52 1000 900 4400 3.96 9.9 2 5.0
B-7-53 700 900 4300 2.71 6.775 1 6.8
B-7-54 1000 900 3900 3.2 8 1 8.0
B-7-55 900 900 2312 1.06 2.65 1 2.7
B-7-56 900 900 5229 3.55 8.875 2 4.4
B-7-57 900 900 4500 2.96 7.4 1 7.4
B-7-58 900 900 4500 2.96 7.4 1 7.4
B-7-59 900 900 7151 4.75 11.875 2 5.9
B-7-60 700 900 6284 3.67 9.175 2 4.6
B-7-61 1000 900 4800 4.32 10.8 2 5.4B-7
B-7-62 700 900 4600 2.9 7.25 1 7.3
B-7-63 1000 900 4701 3.87 9.675 2 4.8
B-7-64 700 900 3684 1.47 3.675 1 3.7
三 腰梁（围檩）
B-6-W-1 1200 700 6865 5.28 13.2 2 6.6
B-6-W-2 1200 700 4606 3.59 8.975 2 4.5
B-6-W-3 1200 700 13912 11.42 28.55 4 7.1
B-6-W-4 1000 900 9026 5.79 14.475 2 7.2
一 支撑梁
C-1-1 1000 700 7529 5.16 12.9 2 6.5
C-1-2 1000 700 8099 5.56 13.9 2 7.0
C-1-3 1000 700 9385 5.95 14.875 2 7.4
C-1-4 1000 700 8657 5.36 13.4 2 6.7
C-1-5 700 700 8660 3.76 9.4 2 4.7
C-1-6 900 900 10153 8.05 20.125 3 6.7
C-1-7 1000 700 7876 4.71 11.775 2 5.9
C-1-8 1000 700 7864 5.4 13.5 2 6.8
C-1-9 1000 700 9611 6.73 16.825 3 5.6
C-1-10 1000 700 5305 3.27 8.175 2 4.1
C-1-11 1000 700 8663 6.75 16.875 3 5.6
C-1-12 700 700 8660 3.75 9.375 2 4.7
C-1-13 700 700 8657 3.75 9.375 2 4.7
C-1-14 1000 700 7876 4.7 11.75 2 5.9
C-1-15 1000 700 7976 5.48 13.7 2 6.9
C-1-16 1000 700 9838 6.89 17.225 3 5.7
C-1-17 900 900 10153 6.96 17.4 3 5.8
C-1-18 1000 700 10610 6.83 17.075 3 5.7
C-1-19 1000 700 6044 4.13 10.325 2 5.2
C-1-20 700 700 7870 3.27 8.175 2 4.1
C-1-21 1000 900 6735 6.06 15.15 2 7.6
C-1-22 1000 700 7277 4.85 12.125 2 6.1
C-1-23 1000 900 5123 4.06 10.15 2 5.1
C-1-24 700 900 5174 2.86 7.15 1 7.2
C-1-25 1000 900 5138 4.54 11.35 2 5.7
C-1-26 1000 900 4747 4 10 2 5.0
C-1-27 1000 900 5527 4.97 12.425 2 6.2
C-1-28 1000 900 4211 3.71 9.275 2 4.6
C-1-29 1000 900 4741 4.19 10.475 2 5.2
C-1-30 700 900 4603 2.9 7.25 1 7.3
C-1-31 700 900 4400 2.41 6.025 1 6.0
C-1-32 700 900 3196 2.01 5.025 1 5.0
C-1-33 700 900 3972 2.5 6.25 1 6.3
C-1-34 1000 900 4292 2.61 6.525 1 6.5
C-1-35 1000 900 4480 2.88 7.2 1 7.2
C-1-36 700 900 4580 2.89 7.225 1 7.2
C-1-37 900 900 2807 1.75 4.375 1 4.4
C-1-38 700 900 3254 1.56 3.9 1 3.9
C-1-39 700 900 5266 3.32 8.3 2 4.2
C-1-40 900 900 2850 1.88 4.7 1 4.7
C-1-41 900 900 5141 5.06 12.65 2 6.3
C-1-42 900 900 4068 2.56 6.4 1 6.4
C-1C-1-43 900 900 4042 2.4 6 1 6.0
C-1-44 1000 700 4900 2.74 6.85 1 6.9
C-1-45 1000 700 4800 2.96 7.4 1 7.4
C-1-46 1000 700 4500 2.16 5.4 1 5.4
C-1-47 1000 700 4577 2.62 6.55 1 6.6
C-1-48 900 700 5100 3.18 7.95 1 8.0
C-1-49 900 700 5239 2.86 7.15 1 7.2
C-1-50 900 900 5141 3.08 7.7 1 7.7
C-1-51 1000 700 7446 3.94 9.85 2 4.9
C-1-52 1000 700 6900 4.41 11.025 2 5.5
C-1-53 700 700 5650 2.4 6 1 6.0
C-1-54 900 700 8001 4.3 10.75 2 5.4
C-1-55 1000 700 6941 4.03 10.075 2 5.0
C-1-56 1000 700 8498 5.23 13.075 2 6.5
C-1-57 900 900 5305 4.08 10.2 2 5.1
C-1-58 900 900 5305 3.36 8.4 2 4.2
C-1-59 900 900 9000 6.39 15.975 2 8.0
C-1-60 900 900 4500 3.59 8.975 2 4.5
C-1-61 900 900 4500 2.96 7.4 1 7.4
C-1-62 900 900 5105 3 7.5 1 7.5
C-1-63 1000 700 7856 5.5 13.75 2 6.9
C-1-64 900 900 4607 3.78 9.45 2 4.7
C-1-65 700 900 4607 2.43 6.075 1 6.1
C-1-66 900 900 4607 3.41 8.525 2 4.3
C-1-67 1000 900 7400 6.26 15.65 2 7.8
C-1-68 900 900 9214 6.82 17.05 3 5.7
C-1-69 700 900 3931 2.41 6.025 1 6.0
C-1-70 1000 900 4400 3.65 9.125 2 4.6
C-1-71 700 900 5305 3.13 7.825 1 7.8
C-1-72 700 900 5305 2.75 6.875 1 6.9
C-1-73 700 900 4343 2.2 5.5 1 5.5
C-1-74 700 900 5782 2.75 6.875 1 6.9
C-1-75 900 900 4607 2.97 7.425 1 7.4
C-1 C-1-76 700 900 4607 2.45 6.125 1 6.1
C-1-77 900 900 4607 3.19 7.975 1 8.0
C-1-78 700 900 3931 1.67 4.175 1 4.2
C-1-79 1000 900 3928 3.45 8.625 2 4.3
C-1-80 1000 700 8700 5.63 14.075 2 7.0
C-1-81 1000 700 11860 7.93 19.825 3 6.6
C-1-82 900 900 5305 4.83 12.075 2 6.0
C-1-83 900 900 5305 4.62 11.55 2 5.8
C-1-84 900 900 4186 2.56 6.4 1 6.4
C-1-85 900 900 4814 3.07 7.675 1 7.7
C-1-86 900 900 4786 3.45 8.625 2 4.3
C-1-87 900 900 6189 4.25 10.625 2 5.3
C-1-88 1000 700 6831 4.08 10.2 2 5.1
C-1-89 900 900 4006 3.15 7.875 1 7.9
C-1-90 700 900 4006 1.93 4.825 1 4.8
C-1-91 900 900 4006 2.93 7.325 1 7.3
C-1-92 1000 900 7286 7.44 18.6 3 6.2
C-1-93 700 900 6832 3.49 8.725 2 4.4C-1
C-1-94 900 900 8011 5.44 13.6 2 6.8
C-1-95 1000 900 6900 5.81 14.525 2 7.3
C-1-96 700 900 6981 3.82 9.55 2 4.8
C-1-97 700 900 5305 3.27 8.175 2 4.1
C-1-98 700 900 5305 2.75 6.875 1 6.9
C-1-99 900 900 4006 2.71 6.775 1 6.8
C-1-100 700 900 4006 1.93 4.825 1 4.8
C-1-101 900 900 4006 2.36 5.9 1 5.9
C-1-102 900 900 5305 4.61 11.525 2 5.8
C-1-103 900 900 5305 3.72 9.3 2 4.7
C-1-104 900 900 4676 3.1 7.75 1 7.8
C-1-105 900 900 4324 2.81 7.025 1 7.0
C-1-106 900 900 4697 3.61 9.025 2 4.5
C-1-107 900 900 4700 2.79 6.975 1 7.0
C-1-108 1000 900 8657 7.32 18.3 3 6.1
C-1-109 900 900 9757 7.2 18 3 6.0
C-1-110 700 900 4329 2.23 5.575 1 5.6
C-1-111 1000 900 4259 4.15 10.375 2 5.2
C-1-112 900 900 5077 3.38 8.45 2 4.2
C-1-113 700 900 5060 2.98 7.45 1 7.5
C-1-114 700 900 4412 2.68 6.7 1 6.7
C-1-115 700 900 2653 1.02 2.55 1 2.6
C-1-116 700 900 4665 2.71 6.775 1 6.8
C-1-117 700 900 4372 1.84 4.6 1 4.6
C-1-118 700 900 4329 1.91 4.775 1 4.8
C-1-119 1000 900 4328 3.99 9.975 2 5.0
C-1-120 900 900 5076 3.98 9.95 2 5.0
C-1-121 700 900 5060 2.6 6.5 1 6.5
C-1-122 1000 700 5305 2.99 7.475 1 7.5
C-1-123 900 900 4500 2.83 7.075 1 7.1
C-1-124 900 900 4500 3.02 7.55 1 7.6
C-1-125 900 900 5305 3.46 8.65 2 4.3
C-1-126 900 900 4633 3.91 9.775 2 4.9
C-1-127 900 900 4637 2.49 6.225 1 6.2
C-1-128 1000 900 4328 3.81 9.525 2 4.8
C-1-129 700 900 4328 1.89 4.725 1 4.7
C-1-130 900 900 9757 6.56 16.4 3 5.5
C-1-131 1000 900 4328 3.81 9.525 2 4.8
C-1-132 700 900 5077 2.31 5.775 1 5.8
C-1-133 900 900 5077 3.79 9.475 2 4.7
C-1-134 700 900 5493 3.21 8.025 2 4.0
C-1-135 700 900 4500 2.74 6.85 1 6.9
C-1-136 1000 900 4328 3.62 9.05 2 4.5
三 腰梁（围檩）
C-1-W-1 1400 800 8663 9.68 24.2 4 6.1
C-1-W-2 1400 800 8663 9.68 24.2 4 6.1
C-1-W-3 1400 800 6595 6.82 17.05 3 5.7
C-1-W-4 1400 800 8107 9.08 22.7 3 7.6
C-1-W-5 1400 800 5363 6.67 16.675 3 5.6
C-1-W-6 1000 900 6538 5.88 14.7 2 7.4
C-1-W-7 1000 900 5700 5.13 12.825 2 6.4C-1
C-1-W-8 1000 900 6554 5.9 14.75 2 7.4
C-1-W-9 1200 700 16997 13.31 33.275 5 6.7
C-1-W-10 1200 900 3359 4.78 11.95 2 6.0
C-1-W-11 1200 700 9354 7.4 18.5 3 6.2
C-1-W-12 1200 700 12300 10.33 25.825 4 6.5
C-1-W-13 1200 700 6600 5.54 13.85 2 6.9
C-1-W-14 1000 900 7151 6.41 16.025 3 5.3
C-1-W-15 1000 900 6625 1.87 4.675 1 4.7
一 支撑梁
C-2-1 700 900 2103 0.55 1.375 1 1.4
C-2-2 900 900 7013 4.63 11.575 2 5.8
C-2-3 900 900 6733 4.88 12.2 2 6.1
C-2-4 900 900 7590 5.59 13.975 2 7.0
C-2-5 700 900 3917 1.8 4.5 1 4.5
C-2-6 900 900 6500 4.67 11.675 2 5.8
C-2-7 900 900 5390 3.82 9.55 2 4.8
C-2-8 700 900 4682 2.88 7.2 1 7.2
C-2-9 900 900 5407 4.77 11.925 2 6.0
C-2-10 700 900 5911 3.18 7.95 1 8.0
C-2-11 700 900 6120 3.06 7.65 1 7.7
C-2-12 700 900 4652 2.41 6.025 1 6.0
C-2-13 900 700 6334 3.29 8.225 2 4.1
C-2-14 900 900 5012 3.96 9.9 2 5.0
C-2-15 900 900 5014 3.04 7.6 1 7.6
C-2-16 900 900 7293 5.15 12.875 2 6.4
C-2-17 700 900 6555 3.55 8.875 2 4.4
C-2-18 900 700 6059 3.14 7.85 1 7.9
C-2-19 900 900 4010 3.33 8.325 2 4.2
C-2-20 900 900 4013 2.23 5.575 1 5.6
C-2-21 900 900 8100 5.82 14.55 2 7.3
C-2-22 700 900 7517 4.73 11.825 2 5.9
C-2-23 900 900 5866 4.63 11.575 2 5.8
C-2-24 900 900 3410 2.11 5.275 1 5.3
C-2-25 900 900 3413 1.75 4.375 1 4.4
C-2-26 700 900 5815 3 7.5 1 7.5
C-2-27 900 900 7923 5.69 14.225 2 7.1
C-2-28 700 900 7449 4.13 10.325 2 5.2
C-2-29 900 900 5792 4.57 11.425 2 5.7
C-2-30 900 900 3376 2.65 6.625 1 6.6
C-2-31 900 900 3378 1.72 4.3 1 4.3
C-2-32 700 900 5775 2.97 7.425 1 7.4
C-2-33 900 900 8060 5.79 14.475 2 7.2
C-2-34 700 900 7502 4.16 10.4 2 5.2
C-2-35 900 900 5779 4.56 11.4 2 5.7
C-2-36 900 900 3903 3.04 7.6 1 7.6
C-2-37 900 900 3906 2.18 5.45 1 5.5
C-2-38 900 900 4230 2.76 6.9 1 6.9
C-2-39 700 900 3824 2.35 5.875 1 5.9
C-2-40 700 900 5650 2.88 7.2 1 7.2
C-2-41 700 900 4456 2.29 5.725 1 5.7
C-2-42 900 900 4305 2.84 7.1 1 7.1
C-2C-2-43 700 900 3861 1.92 4.8 1 4.8
C-2-44 900 900 5529 4.34 10.85 2 5.4
C-2-45 900 900 5046 3.96 9.9 2 5.0
C-2-46 900 900 5049 3.08 7.7 1 7.7
C-2-47 900 900 5044 3.65 9.125 2 4.6
C-2-48 900 900 4338 3.44 8.6 2 4.3
C-2-49 700 900 3894 2.41 6.025 1 6.0
C-2-50 700 900 3694 1.62 4.05 1 4.1
C-2-51 700 900 2736 1.13 2.825 1 2.8
C-2-52 700 900 5465 2.93 7.325 1 7.3
C-2-53 700 900 5345 2.58 6.45 1 6.5
C-2-54 700 900 4783 2.15 5.375 1 5.4
C-2-55 900 900 4578 3.02 7.55 1 7.6
C-2-56 900 900 4568 2.64 6.6 1 6.6
C-2-57 700 900 3894 2.22 5.55 1 5.6
C-2-58 700 900 4328 2.22 5.55 1 5.6
C-2-59 700 900 3700 2.02 5.05 1 5.1
C-2-60 1000 900 4328 3.99 9.975 2 5.0
C-2-61 700 900 5076 2.61 6.525 1 6.5
C-2-62 700 900 4258 2.57 6.425 1 6.4
C-2-63 700 900 5363 2.94 7.35 1 7.4
C-2-64 700 900 4875 2.02 5.05 1 5.1
C-2-65 900 900 5076 3.98 9.95 2 5.0
C-2-66 700 900 5493 2.82 7.05 1 7.1
C-2-67 900 900 4500 3.46 8.65 2 4.3
C-2-68 900 900 4500 2.89 7.225 1 7.2
C-2-69 900 900 5305 3.93 9.825 2 4.9
C-2-70 900 900 5305 3.98 9.95 2 5.0
C-2-71 900 900 6093 4.86 12.15 2 6.1
C-2-72 900 900 6097 3.46 8.65 2 4.3
C-2-73 1000 900 7343 6.69 16.725 3 5.6
C-2-74 900 900 8612 6.4 16 2 8.0
C-2-75 700 900 7343 3.79 9.475 2 4.7
C-2-76 1000 900 7343 6.61 16.525 3 5.5
C-2-77 900 900 4306 3.11 7.775 1 7.8
C-2-78 700 900 4306 2.12 5.3 1 5.3
C-2-79 900 900 4306 3.36 8.4 2 4.2
C-2-80 700 900 5305 3.13 7.825 1 7.8
C-2-81 700 900 5305 2.89 7.225 1 7.2
C-2-82 700 900 5619 3.4 8.5 2 4.3
C-2-83 700 900 4300 2.56 6.4 1 6.4
C-2-84 900 900 4306 2.73 6.825 1 6.8
C-2-85 700 900 4306 2.12 5.3 1 5.3
C-2-86 900 900 4306 3.62 9.05 2 4.5
C-2-87 900 900 5155 3.24 8.1 2 4.1
C-2-88 900 900 4500 2.81 7.025 1 7.0
C-2-89 900 900 4500 2.81 7.025 1 7.0
C-2-90 900 900 4500 3.44 8.6 2 4.3
C-2-91 900 900 5305 4.2 10.5 2 5.3
C-2 C-2-92 900 900 5305 3.54 8.85 2 4.4
C-2-93 700 900 5597 3.02 7.55 1 7.6C-2
C-2-94 700 900 5931 2.89 7.225 1 7.2
C-2-95 900 900 5066 3.24 8.1 2 4.1
C-2-96 900 900 5140 3.22 8.05 2 4.0
C-2-97 1000 900 7343 6.02 15.05 2 7.5
C-2-98 700 900 7343 3.76 9.4 2 4.7
C-2-99 900 900 3523 2.5 6.25 1 6.3
C-2-100 900 900 5000 3.75 9.375 2 4.7
C-2-101 900 900 5363 4.34 10.85 2 5.4
C-2-102 900 900 5300 4.29 10.725 2 5.4
C-2-103 700 900 4090 1.78 4.45 1 4.5
C-2-104 900 900 4726 3.65 9.125 2 4.6
C-2-105 700 900 5061 2.78 6.95 1 7.0
C-2-106 900 900 4513 3.21 8.025 2 4.0
C-2-107 700 900 4140 2.09 5.225 1 5.2
C-2-108 700 900 3705 2.27 5.675 1 5.7
C-2-109 700 900 5597 3.01 7.525 1 7.5
C-2-110 700 900 5040 2.83 7.075 1 7.1
C-2-111 700 900 3739 1.85 4.625 1 4.6
C-2-112 900 900 4039 2.69 6.725 1 6.7
C-2-113 700 900 4199 2.13 5.325 1 5.3
C-2-114 900 900 4388 3.58 8.95 2 4.5
C-2-115 900 900 4497 2.67 6.675 1 6.7
C-2-116 900 900 4630 3.99 9.975 2 5.0
C-2-117 900 900 4400 3.34 8.35 2 4.2
C-2-118 900 900 4124 3.2 8 1 8.0
C-2-119 900 700 7903 4.24 10.6 2 5.3
C-2-120 700 900 3900 1.95 4.875 1 4.9
C-2-121 900 900 4292 2.82 7.05 1 7.1
C-2-122 700 900 4547 2.36 5.9 1 5.9
C-2-123 900 900 4834 3.89 9.725 2 4.9
C-2-124 900 700 9931 5.96 14.9 2 7.5
C-2-125 700 900 4109 2.08 5.2 1 5.2
C-2-126 700 900 3793 1.88 4.7 1 4.7
C-2-127 700 900 4957 2.62 6.55 1 6.6
C-2-128 700 900 4202 2.3 5.75 1 5.8
C-2-129 700 900 3892 1.95 4.875 1 4.9
C-2-130 900 900 4257 4.08 10.2 2 5.1
C-2-131 700 900 4533 2.36 5.9 1 5.9
C-2-132 900 900 4834 3.27 8.175 2 4.1
C-2-133 900 700 8336 4.68 11.7 2 5.9
C-2-134 900 900 4114 3.24 8.1 2 4.1
C-2-135 900 900 3855 2.47 6.175 1 6.2
C-2-136 900 900 4661 3.69 9.225 2 4.6
C-2-137 900 900 4186 2.38 5.95 1 6.0
C-2-138 900 900 8084 6.55 16.375 3 5.5
C-2-139 700 900 7582 4.21 10.525 2 5.3
C-2-140 900 900 7104 5.76 14.4 2 7.2
C-2-141 700 900 6595 3.58 8.95 2 4.5
C-2-142 900 900 4171 3.99 9.975 2 5.0
C-2-143 700 900 6990 3.84 9.6 2 4.8
C-2-144 1000 900 6900 6.21 15.525 2 7.8C-2
C-2-145 700 900 6500 3.81 9.525 2 4.8
C-2-146 1000 900 6494 6.25 15.625 2 7.8
C-2-147 700 900 6990 3.83 9.575 2 4.8
C-2-148 900 900 4479 2.53 6.325 1 6.3
C-2-149 900 900 4489 2.95 7.375 1 7.4
C-2-150 900 900 4509 2.96 7.4 1 7.4
二 环撑
C-2-H-1 1800 900 7898 12.92 32.3 5 6.5
C-2-H-2 1800 900 6151 9.63 24.075 4 6.0
C-2-H-3 1800 900 6704 11.87 29.675 4 7.4
C-2-H-4 1800 900 7425 12.2 30.5 4 7.6
C-2-H-5 1800 900 6608 11.31 28.275 4 7.1
C-2-H-6 1800 900 6997 11.31 28.275 4 7.1
C-2-H-7 1800 900 6543 11.3 28.25 4 7.1
C-2-H-8 1800 900 10147 15.63 39.075 5 7.8
C-2-H-9 1800 900 8275 14.31 35.775 5 7.2
C-2-H-10 1800 900 9448 16.27 40.675 6 6.8
C-2-H-11 1800 900 7975 12.72 31.8 4 8.0
C-2-H-12 1800 900 8798 13.49 33.725 5 6.7
C-2-H-13 1800 900 4101 8.53 21.325 3 7.1
C-2-H-14 1800 900 5305 8.59 21.475 3 7.2
C-2-H-15 1800 900 6376 9.37 23.425 3 7.8
C-2-H-16 1800 900 7192 11.65 29.125 4 7.3
C-2-H-17 1800 900 7584 11.49 28.725 4 7.2
C-2-H-18 1800 900 8547 12.56 31.4 4 7.9
C-2-H-19 1800 900 5569 8.99 22.475 3 7.5
C-2-H-20 1800 900 6967 13.29 33.225 5 6.6
C-2-H-21 1800 900 6959 12.38 30.95 4 7.7
C-2-H-22 1800 900 6985 11.41 28.525 4 7.1
C-2-H-23 1800 900 7104 12.44 31.1 4 7.8
C-2-H-24 1800 900 8163 15.53 38.825 5 7.8
三 腰梁（围檩）
C-2-W-1 1200 900 7668 7.87 19.675 3 6.6
C-2-W-2 1200 700 4374 3.34 8.35 2 4.2
C-2-W-3 1200 700 8077 6.73 16.825 3 5.6
C-2-W-4 1200 700 8951 7.46 18.65 3 6.2
C-2-W-5 1200 900 8737 9.87 24.675 4 6.2
C-2-W-6 1200 900 8859 9.57 23.925 3 8.0
C-2-W-7 1200 900 11588 12.51 31.275 4 7.8
C-2-W-8 1200 900 8700 10.13 25.325 4 6.3
一 支撑梁
C-3-1 900 700 10655 6.03 15.075 2 7.5
C-3-2 900 900 15095 12.1 30.25 4 7.6
C-3-3 900 900 12689 9.5 23.75 3 7.9
C-3-4 900 700 10648 6.23 15.575 2 7.8
C-3-5 900 700 13241 7.37 18.425 3 6.1
C-3-6 700 900 7539 3.88 9.7 2 4.9
C-3-7 900 900 4680 3.61 9.025 2 4.5
C-3-8 900 900 4681 3.22 8.05 2 4.0
C-3-9 700 900 3975 1.87 4.675 1 4.7
C-3-10 900 900 3975 3.7 9.25 2 4.6
C-3C-3-11 900 900 3970 3.13 7.825 1 7.8
C-3-12 700 900 4681 2.26 5.65 1 5.7
C-3-13 900 900 3975 2.82 7.05 1 7.1
C-3-14 700 900 3970 1.98 4.95 1 5.0
C-3-15 700 900 3970 2.31 5.775 1 5.8
C-3-16 700 900 3975 2.44 6.1 1 6.1
C-3-17 700 900 3975 2.05 5.125 1 5.1
C-3-18 700 900 3372 1.56 3.9 1 3.9
C-3-19 900 900 3970 2.68 6.7 1 6.7
C-3-20 700 900 3970 1.98 4.95 1 5.0
C-3 C-3-21 700 900 3970 1.98 4.95 1 5.0
C-3-22 900 900 3975 3.72 9.3 2 4.7
C-3-23 900 900 3975 3.22 8.05 2 4.0
C-3-24 900 900 6743 4.74 11.85 2 5.9
C-3-25 900 700 7677 4.19 10.475 2 5.2
C-3-26 1000 900 6264 5.31 13.275 2 6.6
C-3-27 700 900 6264 3.38 8.45 2 4.2
C-3-28 1000 900 5792 5.62 14.05 2 7.0
C-3-29 900 900 4500 3.52 8.8 2 4.4
C-3-30 900 900 4500 2.96 7.4 1 7.4
C-3-31 900 900 4679 2.66 6.65 1 6.7
C-3-32 1000 900 6264 5.64 14.1 2 7.1
C-3-33 700 900 6264 3.38 8.45 2 4.2
C-3-34 1000 900 6264 4.83 12.075 2 6.0
C-3-35 900 900 4500 3.52 8.8 2 4.4
C-3-36 900 900 4500 2.96 7.4 1 7.4
C-3-37 900 900 5040 2.94 7.35 1 7.4
C-3-38 1000 900 4539 4 10 2 5.0
C-3-39 700 900 4539 2.36 5.9 1 5.9
C-3-40 1000 900 4900 4.01 10.025 2 5.0
三 腰梁（围檩）
C-3-W-1 1400 800 7314 6.59 16.475 3 5.5
一 支撑梁
C-4-1 700 900 4500 2.74 6.85 1 6.9
C-4-2 700 900 4500 2.3 5.75 1 5.8
C-4-3 700 900 5803 2.76 6.9 1 6.9
C-4-4 1000 900 4540 4.18 10.45 2 5.2
C-4-5 700 900 4540 2.36 5.9 1 5.9
C-4-6 1000 900 4179 3.36 8.4 2 4.2
C-4-7 900 900 4500 3.52 8.8 2 4.4
C-4-8 900 900 5600 4.25 10.625 2 5.3
C-4-9 900 900 5909 4.02 10.05 2 5.0
C-4-10 1000 900 4057 3.56 8.9 2 4.5
C-4-11 700 900 4057 2.05 5.125 1 5.1
C-4-12 1000 900 4057 3.56 8.9 2 4.5
C-4-13 700 900 4057 2.49 6.225 1 6.2
C-4-14 700 900 4500 2.74 6.85 1 6.9
C-4-15 700 900 4500 2.3 5.75 1 5.8
C-4-16 700 900 4243 2.14 5.35 1 5.4
C-4-17 700 900 4245 1.84 4.6 1 4.6
C-4-18 1000 900 4057 2.81 7.025 1 7.0
C-4C-4-19 700 900 4068 2.06 5.15 1 5.2
C-4-20 1000 900 4079 2.95 7.375 1 7.4
C-4-21 900 900 3710 1.86 4.65 1 4.7
C-4-22 700 900 5359 2.79 6.975 1 7.0
C-4-23 900 900 6056 4.74 11.85 2 5.9
C-4-24 700 900 4243 2.36 5.9 1 5.9
C-4-25 900 900 5984 4.33 10.825 2 5.4
C-4-26 900 900 7986 6.12 15.3 2 7.7
C-4-27 700 900 4600 1.81 4.525 1 4.5
C-4-28 900 900 5612 3.72 9.3 2 4.7
C-4-29 700 900 6708 3.4 8.5 2 4.3
C-4-30 900 900 4600 3.08 7.7 1 7.7
C-4-31 700 900 4500 2.33 5.825 1 5.8
C-4-32 700 900 5100 2.43 6.075 1 6.1
C-4-33 700 900 5591 3.03 7.575 1 7.6
C-4-34 700 900 5449 3.15 7.875 1 7.9
C-4-35 900 900 3470 3.09 7.725 1 7.7
C-4-36 700 900 3663 1.8 4.5 1 4.5
C-4-37 700 900 3700 1.7 4.25 1 4.3
C-4-38 900 900 4400 3 7.5 1 7.5
C-4-39 700 900 5715 2.84 7.1 1 7.1
C-4-40 900 900 3400 2.46 6.15 1 6.2
C-4-41 900 900 5411 3.64 9.1 2 4.6
C-4-42 900 900 2300 1.58 3.95 1 4.0
C-4-43 700 900 3200 1.73 4.325 1 4.3
C-4-44 700 900 4600 2.51 6.275 1 6.3
C-4 C-4-45 900 900 4525 3.17 7.925 1 7.9
C-4-46 700 900 4489 2.25 5.625 1 5.6
C-4-47 900 900 4252 2.96 7.4 1 7.4
C-4-48 900 900 3900 3.16 7.9 1 7.9
C-4-49 900 900 3768 2.4 6 1 6.0
C-4-50 700 900 3840 1.92 4.8 1 4.8
C-4-51 700 900 3100 1.51 3.775 1 3.8
C-4-52 700 900 3900 2.46 6.15 1 6.2
C-4-53 700 900 4530 2.28 5.7 1 5.7
C-4-54 700 900 4149 2.39 5.975 1 6.0
C-4-55 900 900 3900 2.88 7.2 1 7.2
C-4-56 700 900 4222 2.66 6.65 1 6.7
C-4-57 700 900 3113 1.4 3.5 1 3.5
C-4-58 900 900 4411 2.77 6.925 1 6.9
C-4-59 700 900 4513 2.24 5.6 1 5.6
C-4-60 700 900 3349 1.61 4.025 1 4.0
C-4-61 700 900 5867 3.52 8.8 2 4.4
C-4-62 700 900 6454 3.51 8.775 2 4.4
C-4-63 900 900 5697 3.45 8.625 2 4.3
C-4-64 700 900 4656 2.04 5.1 1 5.1
C-4-65 900 900 4682 3.06 7.65 1 7.7
C-4-66 700 900 4584 2.32 5.8 1 5.8
C-4-67 900 900 3932 2.05 5.125 1 5.1
C-4-68 700 900 5073 2.62 6.55 1 6.6
C-4-69 700 900 3600 1.98 4.95 1 5.0C-4
C-4-70 900 900 3617 3.21 8.025 2 4.0
C-4-71 900 900 4317 2.38 5.95 1 6.0
二 环撑
C-4-H-1 1800 900 8303 12.86 32.15 5 6.4
C-4-H-2 1800 900 9706 14.98 37.45 5 7.5
C-4-H-3 1800 900 7779 12.6 31.5 4 7.9
C-4-H-4 1800 900 8221 12.98 32.45 5 6.5
C-4-H-5 1800 900 9203 14.45 36.125 5 7.2
C-4-H-6 1800 900 8855 13.75 34.375 5 6.9
C-4-H-7 1800 900 11707 19.69 49.225 7 7.0
C-4-H-8 1800 900 9518 15.84 39.6 5 7.9
C-4-H-9 1800 900 9893 16.79 41.975 6 7.0
C-4-H-10 1800 800 6847 11.27 28.175 4 7.0
C-4-H-11 1800 900 8151 11.71 29.275 4 7.3
C-4-H-12 1800 800 9054 15.04 37.6 5 7.5
C-4-H-13 1800 800 8860 12.64 31.6 4 7.9
C-4-H-14 1800 800 7086 9.17 22.925 3 7.6
C-4-H-15 1800 800 10386 15.4 38.5 5 7.7
C-4-H-16 1300 900 6174 7.22 18.05 3 6.0
C-4-H-17 1300 800 4698 5.69 14.225 2 7.1
C-4-H-18 1800 900 4587 7.18 17.95 3 6.0
一 支撑梁
C-5-1 900 900 8612 5.91 14.775 2 7.4
C-5-2 1000 900 7343 5.75 14.375 2 7.2
C-5-3 700 900 7343 3.76 9.4 2 4.7
C-5-4 900 900 4723 3.74 9.35 2 4.7
C-5-5 700 900 4860 2.69 6.725 1 6.7
C-5-6 900 900 4998 3.82 9.55 2 4.8
C-5-7 700 900 5429 3.11 7.775 1 7.8
C-5-8 700 900 5378 3.31 8.275 2 4.1
C-5-9 700 900 5378 2.79 6.975 1 7.0
C-5-10 700 900 5977 3.25 8.125 2 4.1
C-5-11 900 900 3890 2.34 5.85 1 5.9
C-5-12 700 900 4444 2.18 5.45 1 5.5
C-5-13 900 900 5982 4.64 11.6 2 5.8
C-5-14 900 900 7367 5.14 12.85 2 6.4
C-5-15 900 900 5350 3.99 9.975 2 5.0
C-5-16 1000 900 6586 5.42 13.55 2 6.8
C-5-17 1000 900 7491 6.88 17.2 3 5.7
C-5-18 1000 900 4500 3.61 9.025 2 4.5
C-5-19 1000 900 4500 4.17 10.425 2 5.2
C-5-20 1000 900 4500 3.93 9.825 2 4.9
C-5-21 1000 900 4500 4.56 11.4 2 5.7
C-5-22 900 900 5697 4.23 10.575 2 5.3
C-5-23 900 900 5697 4.08 10.2 2 5.1
C-5-24 900 900 4546 2.95 7.375 1 7.4
C-5-25 900 900 3140 2.12 5.3 1 5.3
C-5-26 700 900 5655 3.49 8.725 2 4.4
C-5-27 900 900 4272 2.71 6.775 1 6.8
C-5-28 700 900 4095 2.5 6.25 1 6.3
C-5-29 700 900 3753 1.96 4.9 1 4.9
C-5C-5-30 900 900 3886 2.53 6.325 1 6.3
C-5-31 900 900 3000 1.7 4.25 1 4.3
C-5-32 900 900 4272 2.97 7.425 1 7.4
C-5 C-5-33 1000 700 6102 3.5 8.75 2 4.4
C-5-34 1000 700 6282 3.33 8.325 2 4.2
C-5-35 900 700 7458 4.33 10.825 2 5.4
C-5-36 900 900 4851 4.07 10.175 2 5.1
C-5-37 700 900 5692 2.91 7.275 1 7.3
C-5-38 700 900 6839 3.12 7.8 1 7.8
C-5-39 900 900 3255 1.71 4.275 1 4.3
C-5-40 700 900 2749 1.15 2.875 1 2.9
C-5-41 900 900 5244 3.86 9.65 2 4.8
C-5-42 700 900 4089 2.07 5.175 1 5.2
C-5-43 900 900 4500 3.14 7.85 1 7.9
C-5-44 900 900 4500 2.96 7.4 1 7.4
C-5-45 900 900 5000 3.64 9.1 2 4.6
C-5-46 900 900 5412 5.02 12.55 2 6.3
C-5-47 700 900 2747 1.08 2.7 1 2.7
C-5-48 1000 900 5493 5.88 14.7 2 7.4
C-5-49 700 900 3264 1.45 3.625 1 3.6
C-5-50 900 900 4773 3.62 9.05 2 4.5
C-5-51 900 900 6988 4.5 11.25 2 5.6
C-5-52 700 900 5457 2.82 7.05 1 7.1
C-5-53 900 900 3983 3.08 7.7 1 7.7
C-5-54 900 900 4806 2.86 7.15 1 7.2
C-5-55 700 900 5811 3.08 7.7 1 7.7
C-5-56 900 900 6385 3.84 9.6 2 4.8
C-5-57 700 900 5038 2.27 5.675 1 5.7
C-5-58 900 900 4054 2.13 5.325 1 5.3
C-5-59 700 900 3353 1.23 3.075 1 3.1
C-5-60 900 900 3065 1.35 3.375 1 3.4
C-5-61 700 900 3183 1.12 2.8 1 2.8
三 腰梁（围檩）
C-5-W-1 1200 700 7100 5.86 14.65 2 7.3
C-5-W-2 1200 700 6994 5.75 14.375 2 7.2
C-5-W-3 1400 800 6836 7.63 19.075 3 6.4
C-5-W-4 1400 800 7905 10.4 26 4 6.5
一 支撑梁
D-1-1 900 700 7283 4.77 11.925 2 6.0
D-1-2 700 700 10678 4.51 11.275 2 5.6
D-1-3 900 700 7714 3.91 9.775 2 4.9
D-1-4 900 700 9374 6.07 15.175 2 7.6
D-1-5 900 700 639 0.12 0.3 1 0.3
D-1-6 700 700 12317 5 12.5 2 6.3
D-1-7 1000 700 6700 3.13 7.825 1 7.8
D-1-8 900 700 8250 4.63 11.575 2 5.8
D-1-9 900 700 4200 2.24 5.6 1 5.6
D-1-10 1000 700 6223 4.36 10.9 2 5.5
D-1-11 900 700 11281 6.14 15.35 2 7.7
D-1-12 700 700 11656 4.69 11.725 2 5.9
D-1-13 1000 700 5500 2.15 5.375 1 5.4
D-1D-1-14 900 700 9000 4.72 11.8 2 5.9
D-1-15 900 700 7650 4.06 10.15 2 5.1
D-1-16 700 700 10989 4.23 10.575 2 5.3
D-1-17 900 700 7516 3.82 9.55 2 4.8
D-1-18 900 700 8591 4.46 11.15 2 5.6
D-1-19 700 700 11715 5.2 13 2 6.5
D-1-20 900 700 10990 5.95 14.875 2 7.4
D-1-21 900 700 14536 8.17 20.425 3 6.8
D-1-22 700 700 13761 5.63 14.075 2 7.0
D-1-23 1000 700 10400 5.86 14.65 2 7.3
D-1-24 900 700 10453 6.22 15.55 2 7.8
D-1-25 900 700 8600 4.88 12.2 2 6.1
D-1-26 1000 700 7252 4.45 11.125 2 5.6
D-1-27 900 700 10381 5.97 14.925 2 7.5
D-1-28 900 700 4300 2.29 5.725 1 5.7
D-1-29 700 700 14143 5.85 14.625 2 7.3
D-1-30 1000 700 5400 2.36 5.9 1 5.9
D-1-31 900 700 11539 7.44 18.6 3 6.2
D-1-32 900 700 7550 4.37 10.925 2 5.5
D-1-33 900 700 6180 3.51 8.775 2 4.4
D-1-34 900 700 7752 3.95 9.875 2 4.9
D-1-35 900 900 4033 2.5 6.25 1 6.3
D-1-36 900 900 4033 3.05 7.625 1 7.6
D-1-37 700 900 4395 2.69 6.725 1 6.7
D-1-38 700 900 4340 1.95 4.875 1 4.9
D-1-39 700 900 4314 2.11 5.275 1 5.3
D-1-40 900 900 4985 3.02 7.55 1 7.6
D-1-41 900 900 4617 2.95 7.375 1 7.4
D-1-42 700 900 4400 2.54 6.35 1 6.4
D-1-43 700 900 6158 3.03 7.575 1 7.6
D-1-44 700 900 5225 2.59 6.475 1 6.5
D-1-45 900 900 4600 4 10 2 5.0
D-1-46 700 900 4557 1.96 4.9 1 4.9
D-1-47 900 900 5843 4.37 10.925 2 5.5
D-1-48 900 900 3100 2.15 5.375 1 5.4
D-1-49 900 900 4880 4.19 10.475 2 5.2
D-1-50 900 900 3908 3.17 7.925 1 7.9
D-1-51 700 900 5024 2.57 6.425 1 6.4
D-1-52 1000 700 5295 2.94 7.35 1 7.4
D-1-53 700 900 5812 2.81 7.025 1 7.0
D-1-54 700 900 3970 2.22 5.55 1 5.6
D-1-55 700 900 3900 2.07 5.175 1 5.2
D-1-56 900 900 3600 2.43 6.075 1 6.1
D-1-57 1000 700 4383 2.18 5.45 1 5.5
D-1-58 900 900 2986 1.98 4.95 1 5.0
D-1-59 900 900 3090 1.71 4.275 1 4.3
D-1-60 700 900 5089 2.92 7.3 1 7.3
D-1-61 700 900 3717 1.55 3.875 1 3.9
D-1-62 700 900 3969 1.87 4.675 1 4.7
D-1-63 700 900 4200 2.35 5.875 1 5.9
D-1-64 900 900 4817 2.88 7.2 1 7.2
D-1D-1-65 900 900 4927 3.75 9.375 2 4.7
D-1-66 700 900 8327 4.39 10.975 2 5.5
D-1-67 900 900 4406 2.9 7.25 1 7.3
D-1-68 900 900 4406 3.62 9.05 2 4.5
D-1-69 900 900 8258 5.96 14.9 2 7.5
D-1-70 900 900 6500 5.53 13.825 2 6.9
D-1-71 900 700 6000 3.21 8.025 2 4.0
D-1-72 900 700 5900 3.06 7.65 1 7.7
D-1-73 700 900 5035 2.98 7.45 1 7.5
D-1-74 700 900 4600 2.11 5.275 1 5.3
D-1
D-1-75 900 900 3700 2.27 5.675 1 5.7
D-1-76 900 900 5257 3.53 8.825 2 4.4
D-1-77 900 900 4362 3.75 9.375 2 4.7
D-1-78 700 900 3975 1.99 4.975 1 5.0
D-1-79 900 900 4210 3.04 7.6 1 7.6
D-1-80 700 900 5534 2.92 7.3 1 7.3
D-1-81 700 900 4797 2.35 5.875 1 5.9
D-1-82 900 900 4900 3.68 9.2 2 4.6
D-1-83 900 900 5859 4.02 10.05 2 5.0
D-1-84 900 900 3566 2.52 6.3 1 6.3
D-1-85 700 900 5300 2.98 7.45 1 7.5
D-1-86 700 900 6547 3.46 8.65 2 4.3
D-1-87 900 900 6000 4.33 10.825 2 5.4
D-1-88 700 700 4804 1.92 4.8 1 4.8
D-1-89 700 700 4200 1.82 4.55 1 4.6
D-1-90 1000 700 5600 4.03 10.075 2 5.0
D-1-91 1000 700 6061 3.8 9.5 2 4.8
D-1-92 700 700 4500 2 5 1 5.0
D-1-93 700 700 4502 1.96 4.9 1 4.9
D-1-94 1000 700 5847 3.17 7.925 1 7.9
D-1-95 1000 700 5847 3.5 8.75 2 4.4
二 环撑
D-1-H-1 1800 800 7253 10.52 26.3 4 6.6
D-1-H-2 1800 800 6931 10.56 26.4 4 6.6
D-1-H-3 1800 800 6966 10.31 25.775 4 6.4
D-1-H-4 1800 800 6893 10.52 26.3 4 6.6
D-1-H-5 1800 800 6187 8.41 21.025 3 7.0
D-1-H-6 1800 800 6505 10.13 25.325 4 6.3
D-1-H-7 1800 800 8238 10.91 27.275 4 6.8
D-1-H-8 1800 800 7576 10.18 25.45 4 6.4
D-1-H-9 1800 800 7477 10.63 26.575 4 6.6
D-1-H-10 1800 800 7240 11.29 28.225 4 7.1
D-1-H-11 1800 800 6116 9.08 22.7 3 7.6
D-1-H-12 1800 800 5681 8.5 21.25 3 7.1
D-1-H-13 1800 800 6092 8.84 22.1 3 7.4
D-1-H-14 1800 800 6402 6.25 15.625 2 7.8
D-1-H-15 1800 800 7275 11.5 28.75 4 7.2
D-1-H-16 1800 800 5742 8.91 22.275 3 7.4
D-1-H-17 1800 800 6799 11.05 27.625 4 6.9
D-1-H-18 1800 800 7378 8.53 21.325 3 7.1
D-1-H-19 1800 800 6626 8.41 21.025 3 7.0D-1
D-1-H-20 1800 800 6832 7.63 19.075 3 6.4
D-1-H-21 1800 800 8038 12.26 30.65 4 7.7
D-1-H-22 1800 900 8035 14.52 36.3 5 7.3
D-1-H-23 1800 900 7588 11.52 28.8 4 7.2
D-1-H-24 1800 900 7715 11.06 27.65 4 6.9
D-1-H-25 1800 900 8410 13.75 34.375 5 6.9
D-1-H-26 1800 900 7869 13.33 33.325 5 6.7
D-1-H-27 1800 900 6298 10.37 25.925 4 6.5
三 腰梁（围檩）
D-1-W-1 1200 700 7453 6.64 16.6 3 5.5
D-1-W-2 1200 700 8377 6.98 17.45 3 5.8
D-1-W-3 1200 700 8697 7.24 18.1 3 6.0
D-1-W-4 1200 700 4927 3.88 9.7 2 4.9
D-1-W-5 1200 700 9448 6.7 16.75 3 5.6
D-1-W-6 1200 700 7000 5.22 13.05 2 6.5
D-1-W-7 1200 700 8000 6.72 16.8 3 5.6
D-1-W-8 1200 700 7594 6.76 16.9 3 5.6
D-1-W-9 1200 700 8438 7.06 17.65 3 5.9
D-1-W-10 1200 700 8582 7.12 17.8 3 5.9
D-1-W-11 1200 700 9084 7.57 18.925 3 6.3
D-1-W-12 1200 700 9061 6.96 17.4 3 5.8
D-1-W-13 1200 700 9041 8.37 20.925 3 7.0
D-1-W-14 1200 700 9328 7.48 18.7 3 6.2
D-1-W-15 1200 700 4364 3.67 9.175 2 4.6
D-1-W-16 1200 700 11935 10.03 25.075 4 6.3
D-1-W-17 1200 700 7376 6.2 15.5 2 7.8
D-1-W-18 1200 700 6607 5.55 13.875 2 6.9
D-1-W-19 1200 700 9250 7.39 18.475 3 6.2
D-1-W-20 1200 900 9537 10.29 25.725 4 6.4
D-1-W-21 1200 900 11389 11.38 28.45 4 7.1
D-1-W-22 1200 900 6204 5.5 13.75 2 6.9
D-1-W-23 1200 900 8218 8.9 22.25 3 7.4
D-1-W-24 1200 900 10421 12.11 30.275 4 7.6
D-1-W-25 1200 700 10262 7.63 19.075 3 6.4
一 支撑梁
D-2-1 900 900 4000 3.61 9.025 2 4.5
D-2-2 700 900 4059 2.05 5.125 1 5.1
D-2-3 700 900 3804 1.96 4.9 1 4.9
D-2-4 900 900 4342 2.86 7.15 1 7.2
D-2-5 900 900 4343 2.89 7.225 1 7.2
D-2-6 700 900 4362 2.24 5.6 1 5.6
D-2-7 700 900 4407 2.49 6.225 1 6.2
D-2-8 900 900 4256 3.08 7.7 1 7.7
D-2-9 900 900 3902 2.51 6.275 1 6.3
D-2-10 700 900 6381 3.17 7.925 1 7.9
D-2-11 900 900 5917 3.7 9.25 2 4.6
D-2-12 900 900 3798 2.99 7.475 1 7.5
D-2-13 700 900 3918 1.97 4.925 1 4.9
D-2-14 700 900 3700 2.05 5.125 1 5.1
D-2-15 900 900 4345 4.15 10.375 2 5.2
D-2-16 900 900 4247 2.79 6.975 1 7.0
D-2D-2-17 700 900 3972 2 5 1 5.0
D-2-18 900 900 4500 3.36 8.4 2 4.2
D-2-19 900 900 3300 2.39 5.975 1 6.0
D-2-20 700 900 5716 2.75 6.875 1 6.9
D-2-21 900 900 4244 3.19 7.975 1 8.0
D-2-22 700 900 4346 2.67 6.675 1 6.7
D-2-23 1000 900 6859 6.58 16.45 3 5.5
D-2-24 700 900 6406 3.47 8.675 2 4.3
D-2-25 900 900 7342 5.41 13.525 2 6.8
D-2-26 900 900 5307 3.41 8.525 2 4.3
D-2-27 900 900 4000 3.09 7.725 1 7.7
D-2-28 900 900 5000 3.13 7.825 1 7.8
D-2-29 900 900 4800 3.48 8.7 2 4.4
D-2-30 900 900 5505 3.6 9 2 4.5
D-2-31 1000 900 4502 3.33 8.325 2 4.2
D-2-32 1000 900 4498 3.33 8.325 2 4.2
D-2-33 1000 900 4502 4.14 10.35 2 5.2
D-2-34 1000 900 4498 3.33 8.325 2 4.2
D-2-35 1000 900 5300 4.3 10.75 2 5.4
D-2-36 700 900 4800 2.71 6.775 1 6.8
D-2-37 900 900 4500 3.52 8.8 2 4.4
D-2-38 700 900 5332 2.95 7.375 1 7.4
D-2 D-2-39 900 900 4910 3.57 8.925 2 4.5
D-2-40 900 900 4500 2.96 7.4 1 7.4
D-2-41 700 900 4502 2.33 5.825 1 5.8
D-2-42 700 900 4498 2.33 5.825 1 5.8
D-2-43 700 900 4476 2.25 5.625 1 5.6
D-2-44 700 900 4885 2.79 6.975 1 7.0
D-2-45 900 900 4500 2.96 7.4 1 7.4
D-2-46 700 900 4500 2.3 5.75 1 5.8
D-2-47 900 900 4090 2.91 7.275 1 7.3
D-2-48 900 900 4500 3.52 8.8 2 4.4
D-2-49 1000 900 4502 4.77 11.925 2 6.0
D-2-50 1000 900 4498 3.33 8.325 2 4.2
D-2-51 1000 900 4476 4.03 10.075 2 5.0
D-2-52 1000 900 4476 5.08 12.7 2 6.4
D-2-53 900 900 5416 3.23 8.075 2 4.0
D-2-54 700 900 3787 2.07 5.175 1 5.2
D-2-55 900 900 4310 3.27 8.175 2 4.1
D-2-56 900 900 8505 6 15 2 7.5
二 环撑
D-2-H-1 1800 900 7112 11.52 28.8 4 7.2
D-2-H-2 1800 900 7792 12.62 31.55 4 7.9
D-2-H-3 1800 900 7564 10.83 27.075 4 6.8
D-2-H-4 1800 900 8937 14.48 36.2 5 7.2
D-2-H-5 1800 900 496 0 0 0 #DIV/0!
D-2-H-6 1800 900 9693 14.94 37.35 5 7.5
D-2-H-7 1800 900 8414 11.74 29.35 4 7.3
D-2-H-8 1800 900 6210 10.58 26.45 4 6.6
D-2-H-9 1800 900 8108 12.25 30.625 4 7.7
D-2-H-10 1800 900 6929 11.23 28.075 4 7.0D-2
D-2-H-11 1800 900 9904 16.04 40.1 6 6.7
D-2-H-12 1800 900 8794 14.25 35.625 5 7.1
D-2-H-13 1800 900 6390 10.35 25.875 4 6.5
D-2-H-14 1800 900 5778 9.36 23.4 3 7.8
D-2-H-15 1800 900 7974 13.02 32.55 5 6.5
D-2-H-16 1800 900 10317 17.4 43.5 6 7.3
D-2-H-17 1800 900 9939 16.27 40.675 6 6.8
D-2-H-18 1800 900 8029 12.01 30.025 4 7.5
D-2-H-19 1800 900 7767 12.58 31.45 4 7.9
D-2-H-20 1800 900 7362 11.2 28 4 7.0
D-2-H-21 1800 800 7276 11.12 27.8 4 7.0
一 支撑梁
D-3-1 900 900 4038 2.46 6.15 1 6.2
D-3-2 700 900 4775 2.3 5.75 1 5.8
D-3-3 700 900 5355 2.72 6.8 1 6.8
D-3-4 900 900 4177 3.38 8.45 2 4.2
D-3-5 900 900 5237 3.14 7.85 1 7.9
D-3-6 900 900 5845 4.41 11.025 2 5.5
D-3-7 700 900 4006 2.52 6.3 1 6.3
D-3-8 900 900 7292 5.63 14.075 2 7.0
D-3-9 700 900 4603 2.81 7.025 1 7.0
D-3-10 700 900 3020 1.76 4.4 1 4.4
D-3-11 700 900 4534 2.67 6.675 1 6.7
D-3-12 700 900 472 0.3 0.75 1 0.8
D-3-13 700 900 2472 0.63 1.575 1 1.6
D-3-14 700 900 4796 2.89 7.225 1 7.2
D-3-15 700 900 4925 2.71 6.775 1 6.8
D-3-16 700 900 3800 2.39 5.975 1 6.0
D-3-17 700 900 5518 3.15 7.875 1 7.9
D-3-18 700 900 4491 2.54 6.35 1 6.4
D-3-19 700 900 3561 2.2 5.5 1 5.5
D-3-20 900 900 5599 4.42 11.05 2 5.5
D-3-21 900 900 4955 4.01 10.025 2 5.0
D-3-22 700 900 4560 2.4 6 1 6.0
D-3-23 700 900 5721 3.39 8.475 2 4.2
D-3-24 700 900 3348 2.11 5.275 1 5.3
D-3-25 900 700 3700 1.54 3.85 1 3.9
D-3-26 700 900 3726 1.98 4.95 1 5.0
D-3-27 700 900 4623 2.48 6.2 1 6.2
D-3-28 900 700 4501 2.81 7.025 1 7.0
D-3-29 900 900 8313 6.34 15.85 2 7.9
D-3-30 900 900 7200 5.39 13.475 2 6.7
D-3-31 900 700 8500 5.07 12.675 2 6.3
D-3-32 900 700 10112 5.89 14.725 2 7.4
D-3-33 900 700 5400 2.99 7.475 1 7.5
D-3-34 900 700 7000 4.41 11.025 2 5.5
D-3-35 900 700 6575 4.14 10.35 2 5.2
D-3-36 900 700 4785 2.25 5.625 1 5.6
D-3-37 900 700 6400 3.49 8.725 2 4.4
D-3-38 900 700 14318 7.88 19.7 3 6.6
D-3-39 900 700 9700 5.14 12.85 2 6.4
D-3D-3
D-3-40 900 900 3071 2.18 5.45 1 5.5
D-3-41 900 900 5252 3.6 9 2 4.5
D-3-42 900 900 4520 2.97 7.425 1 7.4
D-3-43 900 900 4520 2.97 7.425 1 7.4
D-3-44 900 900 6455 5.01 12.525 2 6.3
D-3-45 900 900 3496 1.97 4.925 1 4.9
D-3-46 700 900 5388 2.82 7.05 1 7.1
D-3-47 1000 900 5869 4.87 12.175 2 6.1
D-3-48 700 900 5669 3.28 8.2 2 4.1
D-3-49 1000 900 4561 5.02 12.55 2 6.3
D-3-50 700 900 4407 2.17 5.425 1 5.4
D-3-51 900 900 5290 4.14 10.35 2 5.2
D-3-52 900 900 5290 4.12 10.3 2 5.2
D-3-53 900 900 4553 3.85 9.625 2 4.8
D-3-54 900 900 4553 2.99 7.475 1 7.5
D-3-55 900 900 5623 4.33 10.825 2 5.4
D-3-56 900 900 8534 5.84 14.6 2 7.3
D-3-57 700 900 4500 2.74 6.85 1 6.9
D-3-58 700 900 4500 2.3 5.75 1 5.8
二 环撑
D-3-H-1 900 900 872 0.17 0.425 1 0.4
D-3-H-2 900 900 681 0.55 1.375 1 1.4
D-3-H-3 900 900 5984 4.77 11.925 2 6.0
D-3-H-4 900 900 6496 5.26 13.15 2 6.6
D-3-H-5 900 900 5556 4.4 11 2 5.5
D-3-H-6 900 900 7508 6.08 15.2 2 7.6
D-3-H-7 900 900 7303 5.69 14.225 2 7.1
D-3-H-8 1300 800 12047 13.18 32.95 5 6.6
D-3-H-9 1300 900 4707 6.24 15.6 2 7.8
D-3-H-10 1300 900 6632 7.56 18.9 3 6.3
D-3-H-11 900 900 6685 5.37 13.425 2 6.7
D-3-H-12 1300 800 7666 8.17 20.425 3 6.8
D-3-H-13 1300 800 9071 10.14 25.35 4 6.3
D-3-H-14 1300 900 9371 12.29 30.725 4 7.7
D-3-H-15 1300 900 10155 10.67 26.675 4 6.7
三 腰梁（围檩）
D-3-W-1 1000 900 9173 8.26 20.65 3 6.9
D-3-W-2 1000 900 8220 7.4 18.5 3 6.2
D-3-W-3 1000 900 7235 6.49 16.225 3 5.4
D-3-W-4 1000 900 9466 8.52 21.3 3 7.1
一 支撑梁
D-4-1 900 900 3959 2.55 6.375 1 6.4
D-4-2 900 900 2945 1.74 4.35 1 4.4
D-4-3 900 900 3204 1.81 4.525 1 4.5
D-4-4 700 900 4000 2.14 5.35 1 5.4
D-4-5 900 900 3886 3.43 8.575 2 4.3
D-4-6 700 900 3800 1.86 4.65 1 4.7
D-4-7 700 900 3934 1.81 4.525 1 4.5
D-4-8 700 900 3018 1.2 3 1 3.0
D-4-9 900 900 3912 2.07 5.175 1 5.2
D-4-10 1000 900 4422 4.71 11.775 2 5.9
D-4D-4-11 1000 900 3857 3.43 8.575 2 4.3
D-4-12 1000 900 5450 4.84 12.1 2 6.1
D-4-13 1000 900 5196 3.74 9.35 2 4.7
D-4-14 900 900 5836 4.2 10.5 2 5.3
D-4-15 900 900 5237 3.89 9.725 2 4.9
D-4-16 700 900 4363 2.27 5.675 1 5.7
D-4-17 700 900 4100 2.26 5.65 1 5.7
D-4-18 700 900 3460 1.89 4.725 1 4.7
D-4-19 700 900 4037 2.48 6.2 1 6.2
D-4-20 1000 900 4043 4.32 10.8 2 5.4
D-4-21 900 900 3900 2.75 6.875 1 6.9
D-4-22 900 900 4807 3.49 8.725 2 4.4
D-4-23 900 700 8914 4.89 12.225 2 6.1
D-4-24 1000 900 4116 3.33 8.325 2 4.2
D-4 D-4-25 900 700 9871 5.47 13.675 2 6.8
D-4-26 1000 900 5784 5.21 13.025 2 6.5
D-4-27 900 700 12564 7.09 17.725 3 5.9
D-4-28 700 700 14428 6.14 15.35 2 7.7
D-4-29 1000 900 3862 3.86 9.65 2 4.8
D-4-30 700 900 7214 3.48 8.7 2 4.4
D-4-31 700 900 4588 2.09 5.225 1 5.2
D-4-32 700 900 4299 2.17 5.425 1 5.4
D-4-33 700 900 4353 2.2 5.5 1 5.5
D-4-34 700 900 4353 2.21 5.525 1 5.5
D-4-35 700 900 3824 1.97 4.925 1 4.9
D-4-36 1000 900 3960 2.88 7.2 1 7.2
D-4-37 700 900 4264 2.37 5.925 1 5.9
D-4-38 1000 900 3862 3.05 7.625 1 7.6
D-4-39 900 700 9690 5.23 13.075 2 6.5
D-4-40 900 900 3500 2.46 6.15 1 6.2
D-4-41 700 900 2843 1.06 2.65 1 2.7
D-4-42 900 900 3100 1.99 4.975 1 5.0
二 环撑
D-4-H-1 1300 900 8333 9.67 24.175 4 6.0
D-4-H-2 1300 900 9400 11.83 29.575 4 7.4
D-4-H-3 1300 800 10546 12.2 30.5 4 7.6
D-4-H-4 1300 800 6948 6.51 16.275 3 5.4
D-4-H-5 1300 800 6391 5.83 14.575 2 7.3
D-4-H-6 1300 900 5867 6.12 15.3 2 7.7
D-4-H-7 1300 900 5847 7.27 18.175 3 6.1
一 支撑梁
D-5-1 900 900 5100 3.65 9.125 2 4.6
D-5-2 900 900 7318 4.92 12.3 2 6.2
D-5-3 700 900 4502 2.33 5.825 1 5.8
D-5-4 700 900 4498 2.33 5.825 1 5.8
D-5-5 700 900 3000 1.29 3.225 1 3.2
D-5-6 900 900 4311 2.4 6 1 6.0
D-5-7 700 900 6744 3.38 8.45 2 4.2
D-5-8 900 900 6710 4.7 11.75 2 5.9
D-5-9 700 900 8007 4.09 10.225 2 5.1
D-5-10 900 900 5500 3.94 9.85 2 4.9
D-5D-5-11 900 900 5487 3.71 9.275 2 4.6
D-5-12 900 900 5403 3.28 8.2 2 4.1
D-5-13 900 900 4500 3.28 8.2 2 4.1
D-5-14 900 900 3800 3.08 7.7 1 7.7
D-5-15 700 900 5442 2.86 7.15 1 7.2
D-5-16 700 900 5336 2.51 6.275 1 6.3
D-5-17 900 900 4100 3.32 8.3 2 4.2
D-5-18 900 900 4201 3.04 7.6 1 7.6
D-5-19 900 900 5420 4.39 10.975 2 5.5
D-5-20 900 900 5506 3.37 8.425 2 4.2
D-5-21 900 900 3999 2.95 7.375 1 7.4
D-5-22 900 900 4094 3.24 8.1 2 4.1
D-5-23 700 900 6102 3.56 8.9 2 4.5
D-5-24 700 900 5967 2.91 7.275 1 7.3
D-5-25 900 900 4396 2.9 7.25 1 7.3
D-5-26 900 900 4070 2.64 6.6 1 6.6
D-5-27 900 900 5447 5.08 12.7 2 6.4
D-5-28 900 900 6705 4.33 10.825 2 5.4
D-5-29 900 900 3406 2.79 6.975 1 7.0
D-5-30 900 900 5360 4.27 10.675 2 5.3
D-5-31 700 900 4700 2.32 5.8 1 5.8
D-5-32 700 900 3872 1.92 4.8 1 4.8
D-5-33 700 900 3000 1.59 3.975 1 4.0
D-5-34 700 900 5082 2.63 6.575 1 6.6
D-5-35 900 900 5660 4.68 11.7 2 5.9
D-5-36 700 900 5525 2.75 6.875 1 6.9
D-5-37 900 900 5003 3.76 9.4 2 4.7
D-5-38 900 900 5003 3.31 8.275 2 4.1
D-5-39 700 700 12770 5.19 12.975 2 6.5
D-5-40 900 700 8025 4.66 11.65 2 5.8
D-5-41 900 700 3820 1.72 4.3 1 4.3
D-5-42 900 900 4900 3.48 8.7 2 4.4
D-5-43 700 900 5099 1.69 4.225 1 4.2
D-5-44 700 900 3900 2.17 5.425 1 5.4
D-5-45 900 900 4059 2.32 5.8 1 5.8
D-5-46 700 900 5400 2.93 7.325 1 7.3
D-5-47 900 900 4790 3.47 8.675 2 4.3
D-5-48 1000 900 5077 4.97 12.425 2 6.2
D-5-49 1000 900 3923 3.94 9.85 2 4.9
D-5-50 1000 900 8952 8.17 20.425 3 6.8
D-5-51 1000 900 4476 3.91 9.775 2 4.9
D-5-52 1000 900 4476 4.14 10.35 2 5.2
D-5-53 1000 900 6873 5.16 12.9 2 6.5
D-5-54 700 900 4000 2.2 5.5 1 5.5
D-5-55 900 900 4000 2.83 7.075 1 7.1
D-5-56 700 900 3900 2.14 5.35 1 5.4
D-5-57 900 900 3900 2.75 6.875 1 6.9
D-5 D-5-58 700 900 4067 2.28 5.7 1 5.7
D-5-59 700 900 4900 2.8 7 1 7.0
D-5-60 700 900 3700 2.33 5.825 1 5.8
D-5-61 700 900 3733 1.57 3.925 1 3.9D-5
D-5-62 700 900 5000 2.39 5.975 1 6.0
D-5-63 900 900 5000 3.64 9.1 2 4.6
D-5-64 700 900 5100 2.46 6.15 1 6.2
D-5-65 900 900 5100 3.73 9.325 2 4.7
D-5-66 1000 900 4476 3.79 9.475 2 4.7
D-5-67 1000 900 4476 4.27 10.675 2 5.3
D-5-68 1000 900 4731 3.21 8.025 2 4.0
D-5-69 1000 900 4109 3.8 9.5 2 4.8
D-5-70 900 900 5624 4.41 11.025 2 5.5
D-5-71 900 900 4900 3.32 8.3 2 4.2
D-5-72 900 900 3809 2.21 5.525 1 5.5
D-5-73 900 900 3792 2.4 6 1 6.0
D-5-74 700 900 5614 2.97 7.425 1 7.4
D-5-75 900 900 3914 2.8 7 1 7.0
D-5-76 900 900 5627 3.83 9.575 2 4.8
D-5-77 900 900 4959 3.93 9.825 2 4.9
D-5-78 700 900 5000 2.75 6.875 1 6.9
D-5-79 900 900 2397 1.27 3.175 1 3.2
D-5-80 700 900 3500 1.79 4.475 1 4.5
D-5-81 700 900 5100 3.13 7.825 1 7.8
D-5-82 700 900 5235 2.84 7.1 1 7.1
D-5-83 1000 900 4343 4.93 12.325 2 6.2
D-5-84 1000 900 4343 3 7.5 1 7.5
D-5-85 1000 900 5145 4.48 11.2 2 5.6
D-5-86 1000 900 5145 4.72 11.8 2 5.9
D-5-87 1000 900 4500 3.96 9.9 2 5.0
D-5-88 1000 900 4500 3.33 8.325 2 4.2
D-5-89 1000 900 4502 3.96 9.9 2 5.0
D-5-90 1000 900 4498 3.33 8.325 2 4.2
D-5-91 1000 900 4502 3.33 8.325 2 4.2
D-5-92 1000 900 4498 3.33 8.325 2 4.2
D-5-93 1000 900 6700 5.36 13.4 2 6.7
D-5-94 1000 900 4648 3.4 8.5 2 4.3
D-5-95 700 900 4676 2.16 5.4 1 5.4
D-5-96 700 900 4659 2.2 5.5 1 5.5
D-5-97 1000 900 4676 4.88 12.2 2 6.1
D-5-98 700 900 4500 2.3 5.75 1 5.8
D-5-99 900 900 4500 3.52 8.8 2 4.4
D-5-100 700 900 4500 2.74 6.85 1 6.9
D-5-101 900 900 4700 3.81 9.525 2 4.8
D-5-102 700 900 4100 2.27 5.675 1 5.7
D-5-103 900 900 3484 2.82 7.05 1 7.1
D-5-104 700 900 3844 2.64 6.6 1 6.6
D-5-105 700 900 4343 2.01 5.025 1 5.0
三 腰梁（围檩）
D-5-W-1 1200 700 8337 6.05 15.125 2 7.6
D-5-W-2 1200 700 9689 7.95 19.875 3 6.6
D-5-W-3 1200 700 8920 7.49 18.725 3 6.2
D-5-W-4 1200 700 6848 5.29 13.225 2 6.6
D-5-W-5 1200 700 5131 4.29 10.725 2 5.4
D-5-W-6 1200 700 7900 6.64 16.6 3 5.5D-5
D-5-W-7 1200 700 13974 11.14 27.85 4 7.0
D-5-W-8 1200 700 11900 9.65 24.125 4 6.0
D-5-W-9 1200 700 9798 8.06 20.15 3 6.7
D-5-W-10 1200 700 11389 10.05 25.125 4 6.3
一 支撑梁
D-6-1 700 900 4363 2.21 5.525 1 5.5
D-6-2 1000 900 6841 7.1 17.75 3 5.9
D-6-3 900 900 6198 4.46 11.15 2 5.6
D-6-4 700 900 4718 2.23 5.575 1 5.6
D-6-5 700 900 4764 2.33 5.825 1 5.8
D-6-6 900 900 7811 6.14 15.35 2 7.7
D-6-7 700 900 4276 1.92 4.8 1 4.8
D-6-8 900 900 4200 2.85 7.125 1 7.1
D-6-9 900 900 6732 5.08 12.7 2 6.4
D-6-10 700 900 6022 3.35 8.375 2 4.2
D-6-11 900 900 4538 3.01 7.525 1 7.5
D-6-12 900 900 4423 3.58 8.95 2 4.5
D-6-13 900 900 5868 4.1 10.25 2 5.1
D-6-14 900 900 5419 3.52 8.8 2 4.4
D-6-15 900 900 4715 3.08 7.7 1 7.7
D-6-16 900 900 4706 3.07 7.675 1 7.7
D-6-17 700 900 5100 2.83 7.075 1 7.1
D-6-18 900 900 4761 3.63 9.075 2 4.5
D-6-19 900 900 4468 2.88 7.2 1 7.2
D-6-20 900 900 6871 4.71 11.775 2 5.9
D-6-21 900 900 3756 2.2 5.5 1 5.5
D-6-22 900 900 7324 5.76 14.4 2 7.2
D-6-23 700 900 4544 2.1 5.25 1 5.3
D-6-24 900 900 4363 3.41 8.525 2 4.3
D-6-25 900 900 4363 2.84 7.1 1 7.1
D-6-26 700 900 5450 2.86 7.15 1 7.2
D-6-27 1000 900 5450 4.51 11.275 2 5.6
D-6-28 900 900 4363 2.84 7.1 1 7.1
D-6-29 900 900 4363 3.41 8.525 2 4.3
D-6-30 700 900 5196 2.7 6.75 1 6.8
D-6-31 1000 900 5196 4.88 12.2 2 6.1
D-6-32 900 900 4363 3.41 8.525 2 4.3
D-6-33 900 900 4363 2.84 7.1 1 7.1
D-6-34 900 900 6274 4.68 11.7 2 5.9
D-6-35 900 900 4672 2.99 7.475 1 7.5
D-6-36 900 900 7034 5.81 14.525 2 7.3
D-6-37 1000 900 4289 3.77 9.425 2 4.7
D-6-38 700 900 4189 2.58 6.45 1 6.5
D-6-39 1000 900 4089 3.55 8.875 2 4.4
D-6-40 700 900 3946 1.98 4.95 1 5.0
D-6-41 700 900 3839 1.91 4.775 1 4.8
D-6-42 700 900 4353 2.2 5.5 1 5.5
D-6-43 700 900 4353 2.2 5.5 1 5.5
D-6-44 700 900 6260 3.41 8.525 2 4.3
D-6-45 700 900 4661 2.51 6.275 1 6.3
D-6-46 700 900 3742 2.07 5.175 1 5.2
D-6D-6-47 1000 900 4063 3.71 9.275 2 4.6
D-6-48 700 900 4076 2.06 5.15 1 5.2
D-6-49 1000 900 4089 3.77 9.425 2 4.7
D-6-50 700 900 4108 2.08 5.2 1 5.2
D-6 D-6-51 700 900 6620 2.4 6 1 6.0
D-6-52 900 700 7733 3.95 9.875 2 4.9
D-6-53 900 900 4354 3.37 8.425 2 4.2
D-6-54 900 900 4354 2.87 7.175 1 7.2
D-6-55 900 900 6261 4.99 12.475 2 6.2
D-6-56 900 900 5808 3.85 9.625 2 4.8
D-6-57 1000 900 4204 3.73 9.325 2 4.7
D-6-58 700 900 4190 2.13 5.325 1 5.3
D-6-59 1000 900 4177 3.63 9.075 2 4.5
D-6-60 700 900 4158 2.11 5.275 1 5.3
D-6-61 700 900 4353 2.2 5.5 1 5.5
D-6-62 700 900 4353 2.2 5.5 1 5.5
D-6-63 700 900 6260 3.45 8.625 2 4.3
D-6-64 700 900 4056 2.36 5.9 1 5.9
D-6-65 1000 900 4247 3.88 9.7 2 4.9
D-6-66 700 900 4212 2.15 5.375 1 5.4
D-6-67 1000 900 4177 3.04 7.6 1 7.6
D-6-68 700 900 4127 2.09 5.225 1 5.2
D-6-69 900 700 6204 3.02 7.55 1 7.6
D-6-70 900 900 4350 3.4 8.5 2 4.3
D-6-71 900 900 4350 2.83 7.075 1 7.1
D-6-72 900 900 5786 4.28 10.7 2 5.4
D-6-73 900 900 3500 3.36 8.4 2 4.2
D-6-74 1000 900 3000 2.7 6.75 1 6.8
D-6-75 1000 900 5288 4.8 12 2 6.0
D-6-76 700 900 5241 2.73 6.825 1 6.8
D-6-77 1000 900 4336 3.5 8.75 2 4.4
D-6-78 900 700 6028 2.91 7.275 1 7.3
D-6-79 900 900 4346 2.83 7.075 1 7.1
D-6-80 900 900 4346 3.4 8.5 2 4.3
D-6-81 1000 900 5700 4.72 11.8 2 5.9
D-6-82 700 900 5700 3.31 8.275 2 4.1
D-6-83 900 700 6558 3.25 8.125 2 4.1
D-6-84 900 900 4346 2.83 7.075 1 7.1
D-6-85 900 900 4346 2.83 7.075 1 7.1
D-6-86 1000 900 6159 5.14 12.85 2 6.4
D-6-87 700 900 6251 3.65 9.125 2 4.6
D-6-88 900 900 7670 5.27 13.175 2 6.6
D-6-89 700 900 4409 2.07 5.175 1 5.2
D-6-90 1000 900 4676 3.39 8.475 2 4.2
D-6-91 700 900 6465 3.97 9.925 2 5.0
D-6-92 700 900 5097 2.71 6.775 1 6.8
D-6-93 700 900 4500 2.33 5.825 1 5.8
D-6-94 700 900 4500 2.33 5.825 1 5.8
D-6-95 700 900 4100 2.3 5.75 1 5.8
D-6-96 700 900 4900 2.8 7 1 7.0
D-6-97 700 900 4502 2.33 5.825 1 5.8D-6
D-6-98 700 900 4498 2.33 5.825 1 5.8
D-6-99 700 900 6013 3.18 7.95 1 8.0
D-6-100 1000 900 4670 4.87 12.175 2 6.1
D-6-101 700 900 5400 3.18 7.95 1 8.0
D-6-102 900 900 4500 2.96 7.4 1 7.4
一 支撑梁
D-1-1 700 900 4500 2.3 5.75 1 5.8
D-1-2 900 900 4200 3.4 8.5 2 4.3
D-1-3 700 900 4100 2.14 5.35 1 5.4
D-1-4 900 900 4300 3.48 8.7 2 4.4
D-1-5 700 900 3900 2.24 5.6 1 5.6
D-1-6 900 900 6700 5.03 12.575 2 6.3
D-1-7 900 900 5600 3.73 9.325 2 4.7
D-1-8 900 900 4800 3.08 7.7 1 7.7
D-1-9 1000 900 5291 4.43 11.075 2 5.5
D-1-10 1000 900 2494 1.86 4.65 1 4.7
D-1-11 1000 900 5048 3.82 9.55 2 4.8
D-1-12 1000 900 4500 4.14 10.35 2 5.2
D-1-13 1000 900 4500 3.96 9.9 2 5.0
D-1-14 900 900 5395 4.75 11.875 2 5.9
D-1-15 1000 900 4400 3.96 9.9 2 5.0
D-1-16 700 900 4200 2.65 6.625 1 6.6
D-1-17 1000 900 4151 3.65 9.125 2 4.6
D-1-18 700 900 3800 1.18 2.95 1 3.0
D-1-19 700 900 3988 2.29 5.725 1 5.7
D-1-20 700 900 4508 2.3 5.75 1 5.8
D-1-21 700 900 4026 1.63 4.075 1 4.1
D-1-22 1000 900 4000 3.6 9 2 4.5
D-1-23 700 900 4100 2.58 6.45 1 6.5
D-1-24 1000 900 3649 2.97 7.425 1 7.4
D-1-25 900 900 3000 1.62 4.05 1 4.1
D-1-26 900 900 3985 2.94 7.35 1 7.4
D-1-27 900 900 4507 2.96 7.4 1 7.4
D-1-28 900 900 3029 1.3 3.25 1 3.3
D-1-29 1000 900 6157 5.14 12.85 2 6.4
D-1-30 700 900 5600 3.53 8.825 2 4.4
D-1-31 1000 900 5500 4.95 12.375 2 6.2
D-1-32 900 900 6462 4.22 10.55 2 5.3
D-1-33 900 900 6736 3.63 9.075 2 4.5
D-1-34 1000 900 5709 4.33 10.825 2 5.4
D-1-35 700 900 5600 3.53 8.825 2 4.4
D-1-36 1000 900 5900 5.31 13.275 2 6.6
D-1-37 900 900 6586 4.32 10.8 2 5.4
D-1-38 900 900 4499 3.52 8.8 2 4.4
D-1-39 900 900 6556 3.49 8.725 2 4.4
D-1-40 900 900 568 0.05 0.125 1 0.1
D-1-41 1000 900 6900 5.8 14.5 2 7.3
D-1-42 700 900 7400 4.66 11.65 2 5.8
D-1-43 1000 900 7300 6.57 16.425 3 5.5
D-1-44 900 900 3900 1.6 4 1 4.0
D-1-45 900 900 4300 3.48 8.7 2 4.4
D-7D-1-46 900 900 3389 2.75 6.875 1 6.9
D-1-47 900 900 3400 1.21 3.025 1 3.0
D-1-48 1000 900 7223 6.1 15.25 2 7.6
D-1-49 700 900 6900 3.78 9.45 2 4.7
D-1-50 1000 900 6800 6.12 15.3 2 7.7
D-1-51 900 900 4800 4.11 10.275 2 5.1
D-1-52 900 900 4500 3.65 9.125 2 4.6
D-1-53 900 900 4500 3.65 9.125 2 4.6
D-1-54 900 900 4847 3.12 7.8 1 7.8
D-1-55 1000 900 5900 4.9 12.25 2 6.1
D-1-56 700 900 6400 3.46 8.65 2 4.3
D-1-57 1000 900 6500 5.85 14.625 2 7.3
D-1-58 900 900 7400 5.16 12.9 2 6.5
D-1-59 900 900 4800 3.08 7.7 1 7.7
D-1-60 900 900 4400 3.56 8.9 2 4.5
D-1-61 900 900 7566 5.32 13.3 2 6.7
D-1-62 700 900 6406 3.47 8.675 2 4.3
D-1-63 1000 900 6977 5.87 14.675 2 7.3
D-1-64 700 900 6950 3.53 8.825 2 4.4
D-1-65 900 900 4005 2.59 6.475 1 6.5
D-1-66 900 900 4217 3.34 8.35 2 4.2
D-1-67 900 900 4795 2.87 7.175 1 7.2
D-1-68 700 900 4544 2.36 5.9 1 5.9
D-1-69 900 900 5135 3.51 8.775 2 4.4
D-7 D-1-70 700 900 5743 2.91 7.275 1 7.3
D-1-71 700 900 3815 1.73 4.325 1 4.3
D-1-72 700 900 4082 2.47 6.175 1 6.2
D-1-73 900 900 3938 3.63 9.075 2 4.5
D-1-74 1000 900 2849 3.21 8.025 2 4.0
D-1-75 700 900 3068 2.1 5.25 1 5.3
D-1-76 1000 900 2662 3.05 7.625 1 7.6
D-1-77 700 900 4491 2.33 5.825 1 5.8
D-1-78 700 900 4509 2.33 5.825 1 5.8
D-1-79 1000 900 3289 2.96 7.4 1 7.4
D-1-80 700 900 3013 1.9 4.75 1 4.8
D-1-81 1000 900 3617 3.26 8.15 2 4.1
D-1-82 900 900 5047 3.12 7.8 1 7.8
D-1-83 900 900 3953 2.84 7.1 1 7.1
D-1-84 1000 900 5984 5.38 13.45 2 6.7
D-1-85 700 900 5814 3.66 9.15 2 4.6
D-1-86 1000 900 5295 4.77 11.925 2 6.0
D-1-87 900 900 4534 2.99 7.475 1 7.5
D-1-88 900 900 4466 2.99 7.475 1 7.5
D-1-89 1000 900 5826 5.24 13.1 2 6.6
D-1-90 700 900 6040 3.8 9.5 2 4.8
D-1-91 1000 900 6029 5.42 13.55 2 6.8
D-1-92 900 900 4400 3.02 7.55 1 7.6
D-1-93 900 900 4602 3.04 7.6 1 7.6
D-1-94 1000 900 5786 5.21 13.025 2 6.5
D-1-95 700 900 5828 3.67 9.175 2 4.6
D-1-96 1000 900 5924 5.14 12.85 2 6.4D-7
D-1-97 900 900 4200 2.92 7.3 1 7.3
D-1-98 900 900 4800 3.11 7.775 1 7.8
D-1-99 1000 900 6907 4.97 12.425 2 6.2
D-1-100 700 900 6723 4.24 10.6 2 5.3
D-1-101 1000 900 6788 3.81 9.525 2 4.8
D-1-102 900 700 9765 5.18 12.95 2 6.5
D-1-103 900 700 8016 4.26 10.65 2 5.3
D-1-104 900 900 4250 3.33 8.325 2 4.2
D-1-105 700 900 4439 2.71 6.775 1 6.8
D-1-106 900 900 4250 2.79 6.975 1 7.0
D-1-107 700 900 4698 2.45 6.125 1 6.1
D-1-108 900 700 8535 4.64 11.6 2 5.8
D-1-109 900 900 4336 3.43 8.575 2 4.3
D-1-110 900 900 4000 3.61 9.025 2 4.5
D-1-111 700 900 4059 2.05 5.125 1 5.1
D-1-112 700 900 3804 1.96 4.9 1 4.9
D-1-113 900 900 4342 2.86 7.15 1 7.2
D-1-114 900 900 4343 2.89 7.225 1 7.2
D-1-115 700 900 4362 2.24 5.6 1 5.6
D-1-116 700 900 4407 2.49 6.225 1 6.2
D-1-117 900 900 4256 3.08 7.7 1 7.7
D-1-118 900 900 3902 2.51 6.275 1 6.3
D-1-119 700 900 6381 3.17 7.925 1 7.9
D-1-120 900 900 5917 3.7 9.25 2 4.6
D-1-121 900 900 3798 2.99 7.475 1 7.5
D-1-122 700 900 3918 1.97 4.925 1 4.9
D-1-123 700 900 3700 2.05 5.125 1 5.1
D-1-124 900 900 4345 4.15 10.375 2 5.2
D-1-125 900 900 4247 2.79 6.975 1 7.0
D-1-126 700 900 3972 2 5 1 5.0
D-1-127 900 900 4500 3.36 8.4 2 4.2
D-1-128 900 900 3300 2.39 5.975 1 6.0
D-1-129 700 900 5716 2.75 6.875 1 6.9
D-1-130 900 900 4244 3.19 7.975 1 8.0
D-1-131 700 900 4346 2.67 6.675 1 6.7
三 腰梁（围檩）
D-7-W-1 1200 700 5572 3.61 9.025 2 4.5
D-7-W-2 1200 700 6508 4.94 12.35 2 6.2
D-7-W-3 1200 700 6386 5.39 13.475 2 6.7
D-7-W-4 1200 700 9006 7.57 18.925 3 6.3
D-7-W-5 1200 700 8000 6.16 15.4 2 7.7
D-7-W-6 1200 700 12285 10.62 26.55 4 6.6
D-7-W-7 1200 700 659 1.56 3.9 1 3.9
D-7-W-8 1200 700 9000 7.56 18.9 3 6.3
