盖梁抱箍法施工方案word55页+计算书+cad图(会员资料)

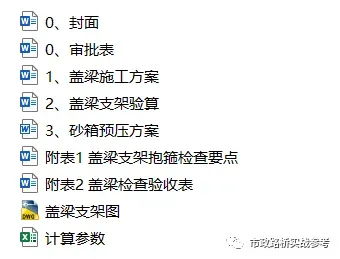

资料专项方案，共计54页WORD文档。附盖梁支架验算书61页、砂箱抱箍预压方案5页、盖梁支架图22张CAD及计算参数表，编制于2018年。内容齐全，非常有参考价值。

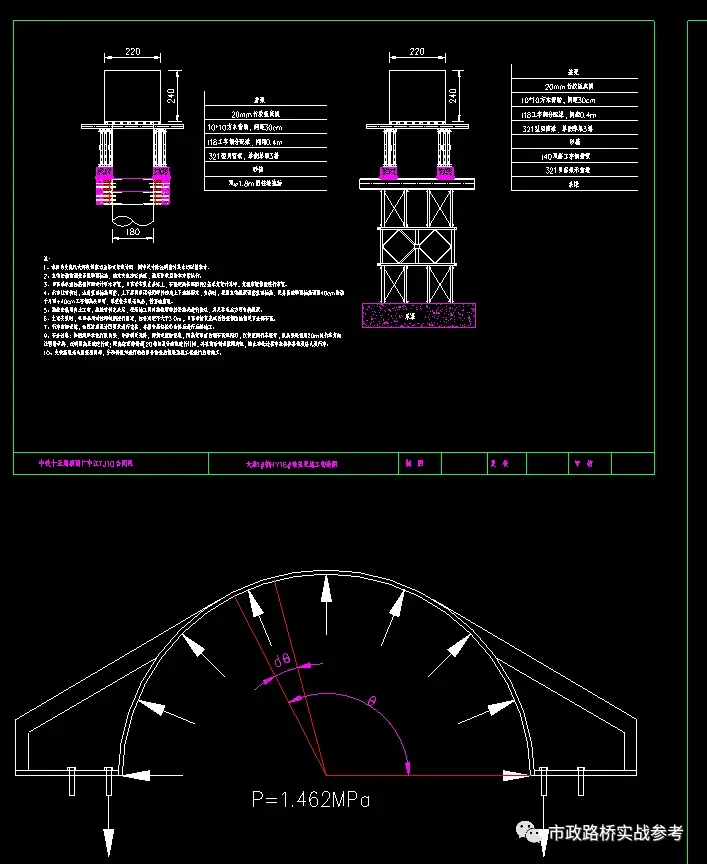

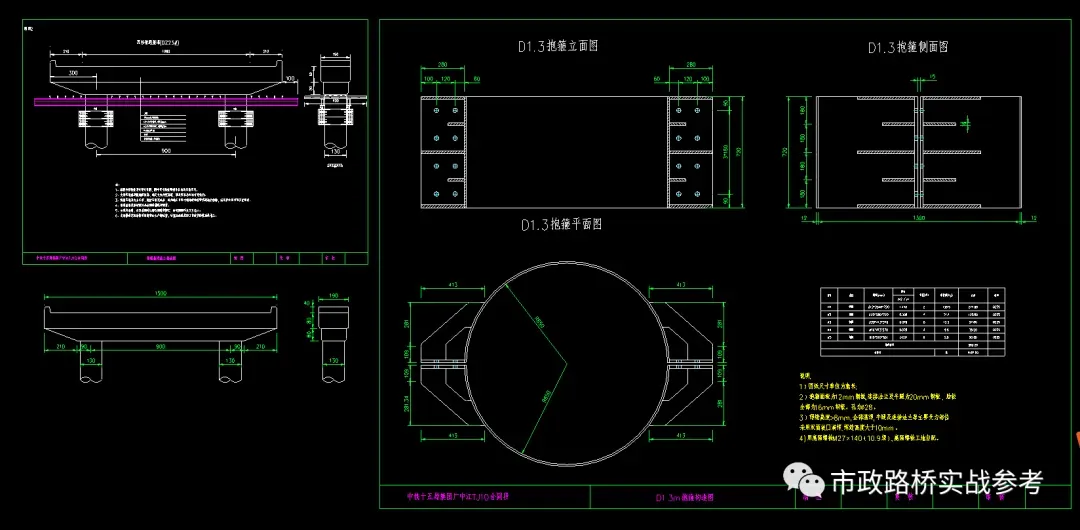

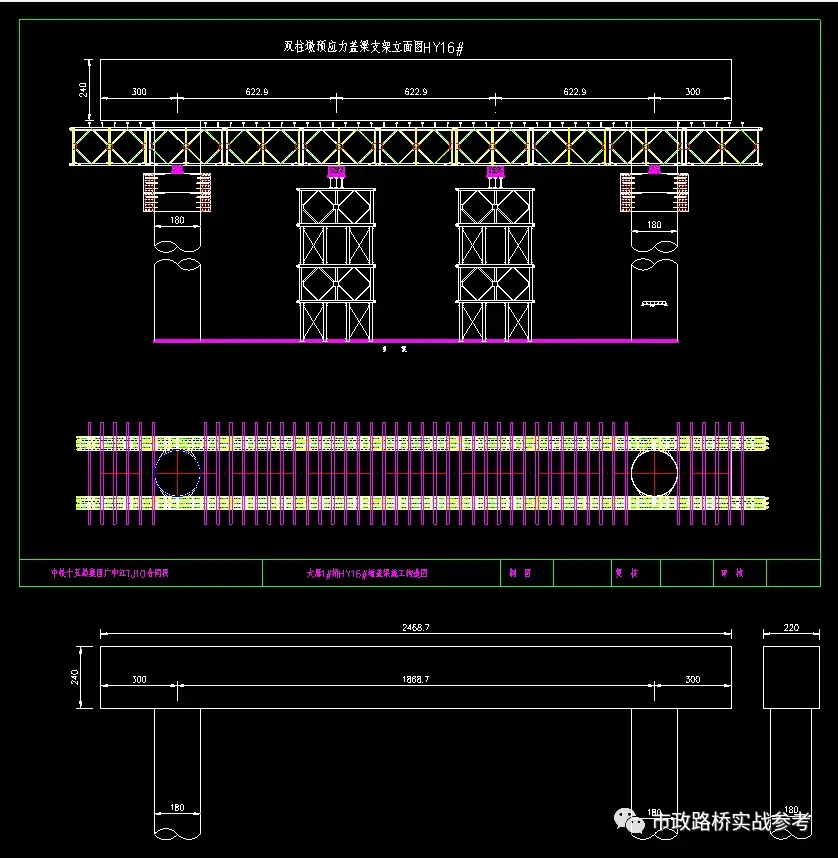

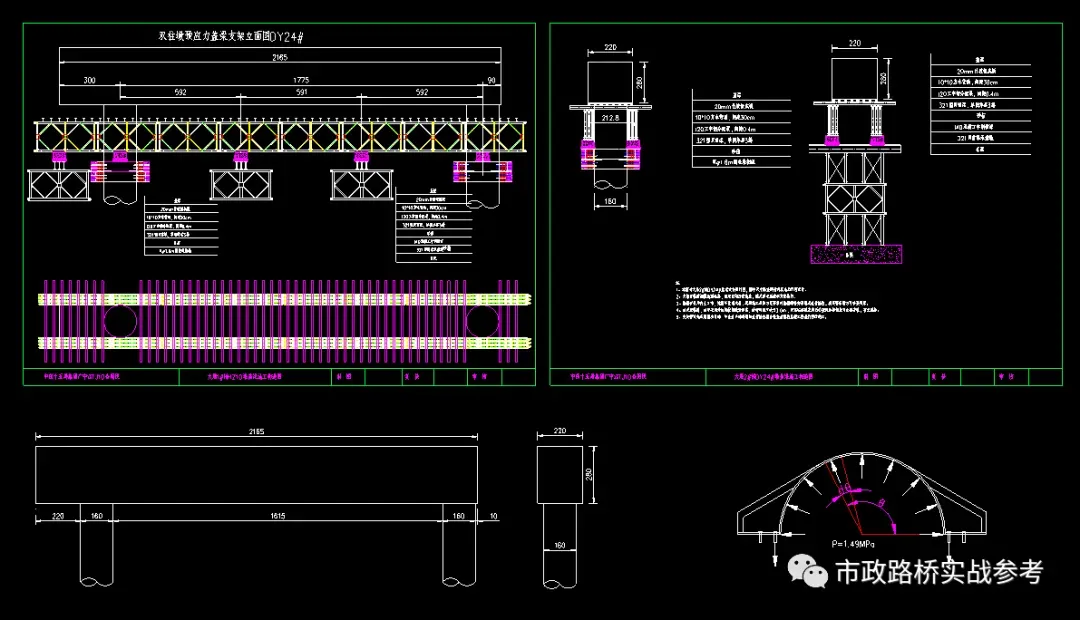

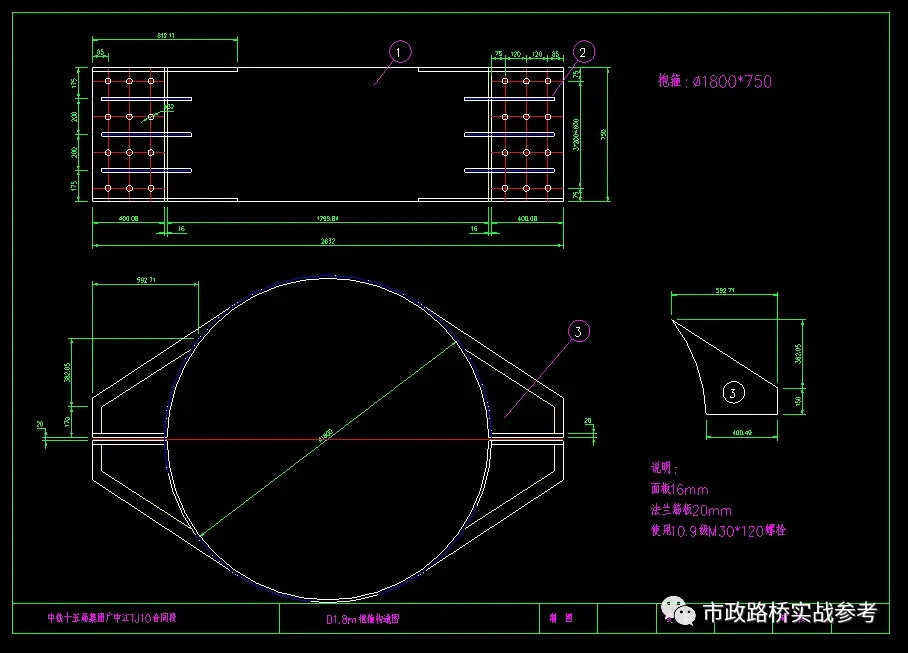

大桥含双圆柱预应力盖梁、三柱门架式盖梁。本方案针对双柱墩、门架墩普通盖梁及预应力盖梁编制。双柱普通盖梁（DZ23#），盖梁最长长度15m，最大梁高1.8m，最大梁宽2.0m，墩高10m，墩柱间距9m，墩柱直径1.4m，采用双抱箍+砂箱+ 双I45a工字钢。双柱普通盖梁（DZ24#），盖梁最长长度15m，最大梁高1.6m，最大梁宽1.9m，墩高10m，墩柱间距9m，墩柱直径1.3m，采用双抱箍+砂箱+双 I45a工字钢。双柱墩预应力盖梁（HY16#），盖梁最长长度24.687m，最大梁高2.4m，最大梁宽2.2m，悬臂长度2.1m，墩高13m,墩柱直径1.8m，采用双抱箍+砂箱+3排贝雷梁法，中间两排支墩。分体门架墩预应力盖梁（EZ24#），各项指标取最大值，盖梁长度16.398m，梁高2.0m，梁宽1.9m，墩高13.884m，最大跨度16.607m，最大悬臂长度2.2m，墩柱直径1.6m，加载截面取2*1.9m进行计算，采用双抱箍+砂箱+3排贝雷梁支架法，抱箍侧增加贝雷梁支墩保护。砂箱按设计值100吨进行预压。将400t千斤顶（左右对称安装）安装在抱箍中间。
15.2. 实行“施工精细化管理”，推进施工技术管理标准化
