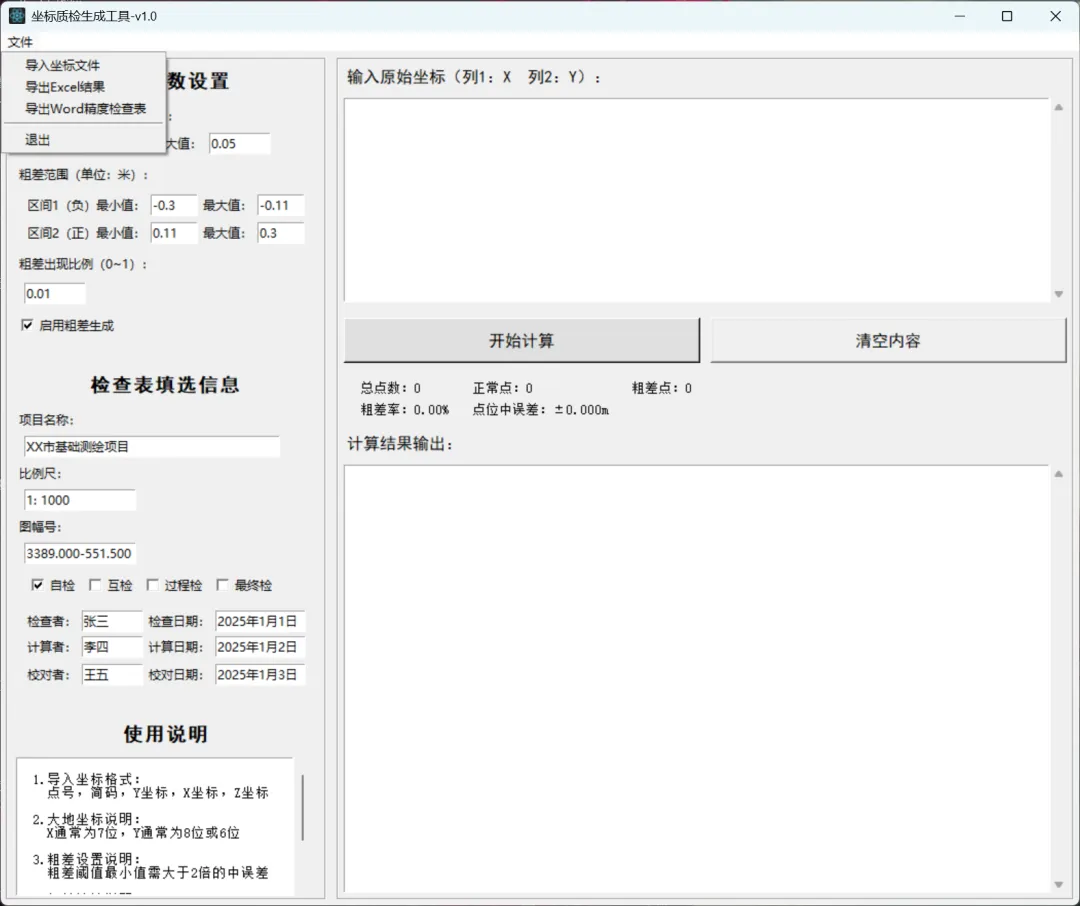

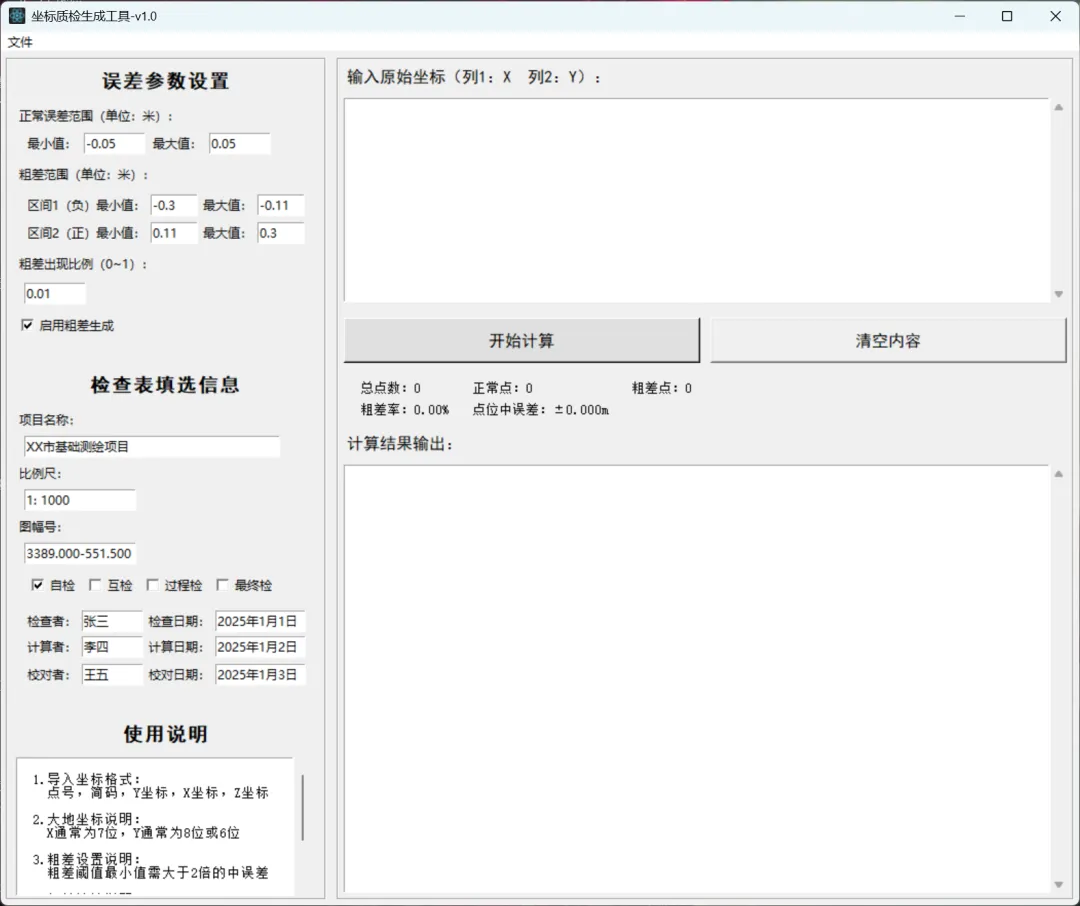

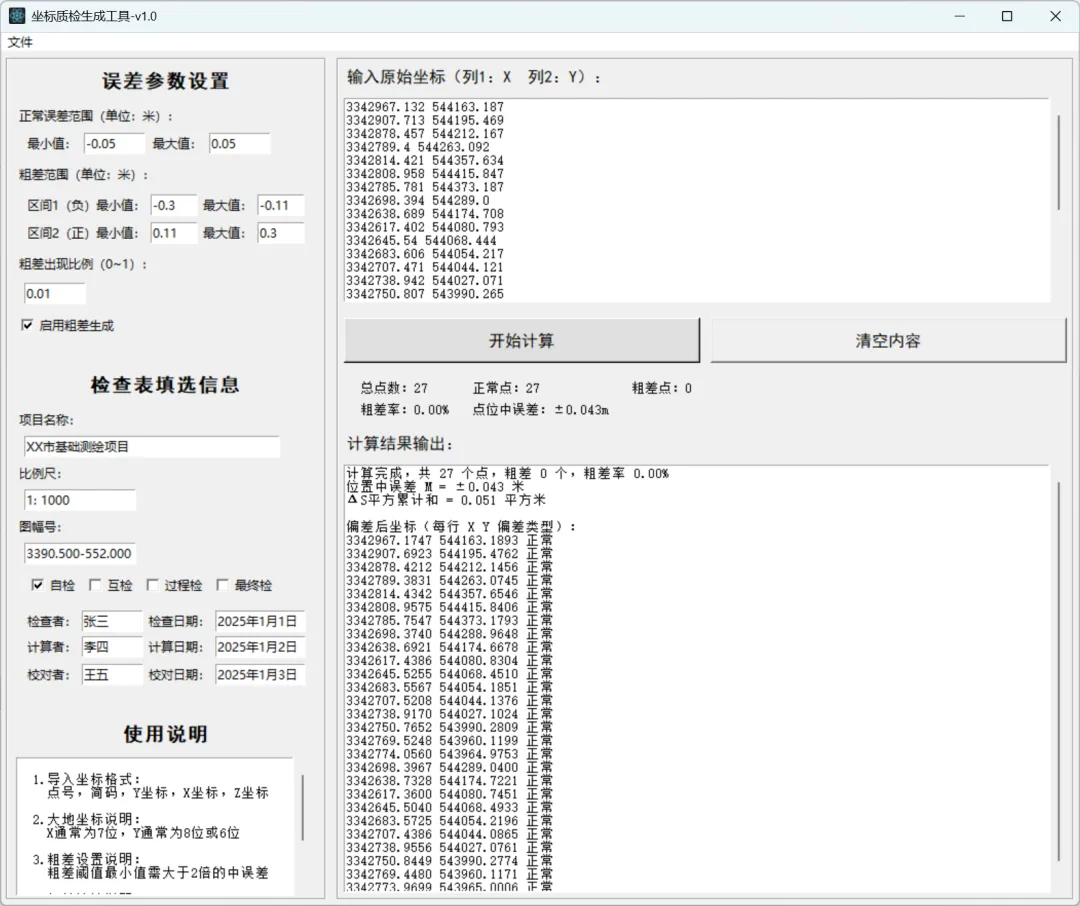

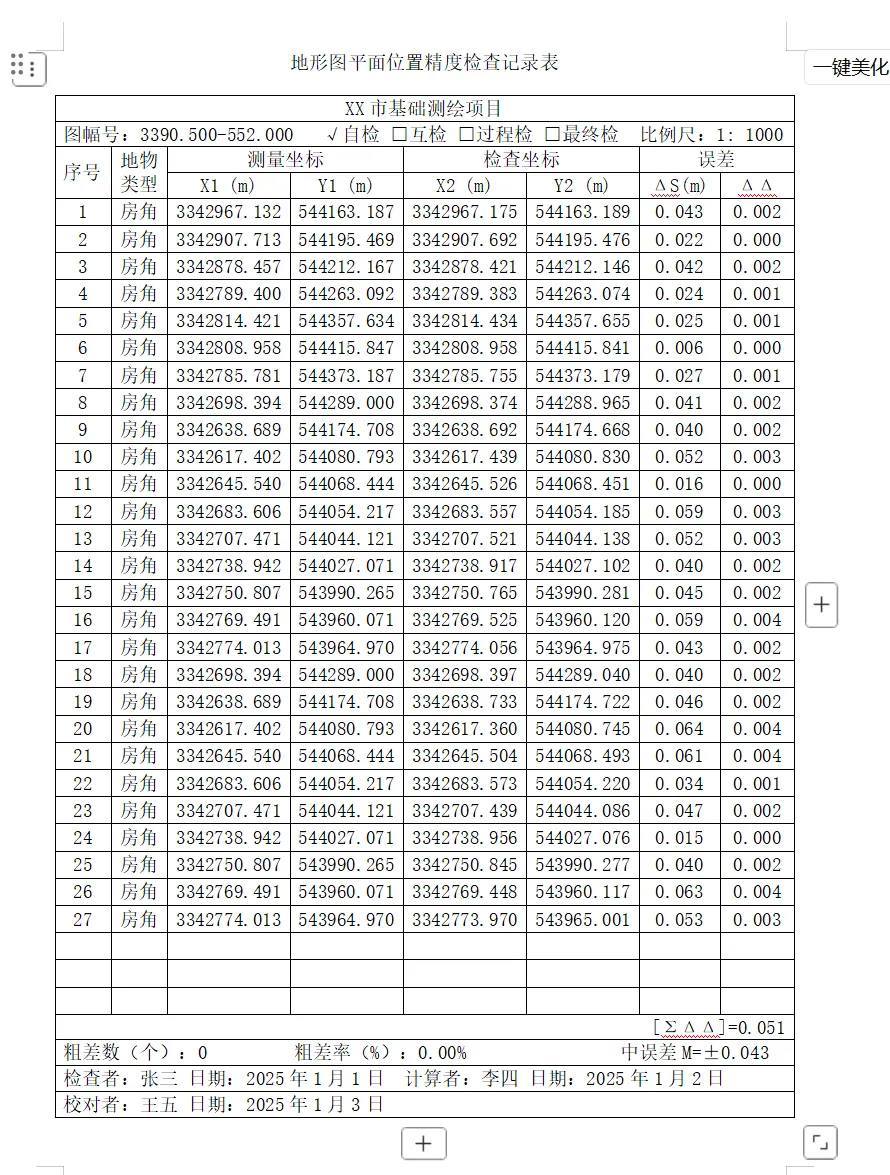

推荐一款方便制作坐标质检文档的小工具这一款可以根据已知（已测）坐标，直接生成检查坐标并直接导出精度检查记录表（word），减少了人工操作，增加了工作效率，此工具是基于python制作的一款小工具，打开文件夹下的（坐标质检生成工具.exe）启动程序即可使用正常误差范围即为中误差的正负值。粗差范围即大于两倍的中误差范围区间，粗差值在计算中误差时已剔除，不直接参与计算。粗差比例设置一般≤5%，质检合格要求粗差率≤5%，设置完计算后查看一下粗差率，是否粗差率≤5%，如果粗差率＞5%，则再点击一次开始计算，直到粗差率≤5%，如果不需要粗差，关闭启用粗差生成即可。有项目名称、比例尺、图幅号、勾选（自检、互检、过程检、最终检）选项、检查者及日期、计算者及日期、校对者及日期。此工具支持*.dat、*.txt、*.xlsx坐标的导入以及*.word精度检查表的导出，导入*.dat、*.txt、*.xlsx坐标文件时可以自动读取*.dat、*.txt、*.xlsx文件名并填入图幅号里面，导出精度检查记录表（word）名称以图幅号命名
